MSI K9A2 Platinum V2, MS-7376 User Manual

Getting Started

Chapter 1

Getting Started

Thank you for choosing the K9A2 Platinum/ K9A2 Plati­num V2 Series (MS-7376 v1.X) ATX mainboards. The
K9A2 Platinum/ K9A2 Platinum V2 Series mainboards
are based on AMD® 790FX & SB600 chipsets for opti­mal system efficiency. Designed to fit the advanced
AMD® Phenom/Athlon/Sempron processors in
socket AM2+, the K9A2 Platinum/ K9A2 Platinum V2
Series deliver a high performance and professional
desktop platform solution.

1-1

MS-7376 Mainboard

Mainboard Specifications

Processor Support

- AMD® Phenom/Athlon/Sempron in the Socket AM2+ package.

- Supports 4 pin CPU Fan Pin-Header with Fan Speed Control
(For the latest information about CPU, please visit

http://global.msi.com.tw/index.php?func=cpuform)

Supported FSB

- HyperTransport 3.0 supports speed up to 2600 MHz

Chipset

- North Bridge: AMD® 790FX chipset

- South Bridge: AMD® SB600 chipset

Memory Support

- DDR2 1066/800/667/533 DRAM (240pin/ 1.8V)

- 4 DDR2 DIMMs (8GB Max)
(For more information on compatible components, please visit

http://global.msi.com.tw/index.php?func=testreport)

LAN

- Supports 10/100/1000 Fast Ethernet by Realtek 8111B

1394 (Optional)

- Transfer rate is up to 400Mbps

- Controlled by VIA VT6308P (optional)

Audio

- Chip integrated by Realtek® ALC888/ ALC888T (optional)

- Flexible 8-channel audio with jack sensing

- Compliant with Azalia 1.0 spec

IDE

- 1 IDE port by SB600

- Supports Ultra DMA 66/100/133 mode

- Supports PIO, Bus Master operation mode

SATA

- 4 SATAII ports by SB600 (SATA1~4)

- 2 SATAII ports by Promise T3, support SAS ready device
(SATA5~6, optional)

- 2 eSATA ports by Promise T3 (optional)

- Supports storage and data transfers at up to 300MB/s

- 2 SATA (SATA5 & SATA6) ports and 2 eSATA ports by Promise T3
support to install storage devices only (optional)

Floppy

- 1 floppy port

- Supports 1 FDD with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB

1-2

Getting Started

RAID

- SATA1~4 support RAID 0/ 1/ 0+1 mode

- SATS5~6 & 2 eSATA ports support RAID0/ 1/ 0+1 mode (optional)

Connectors

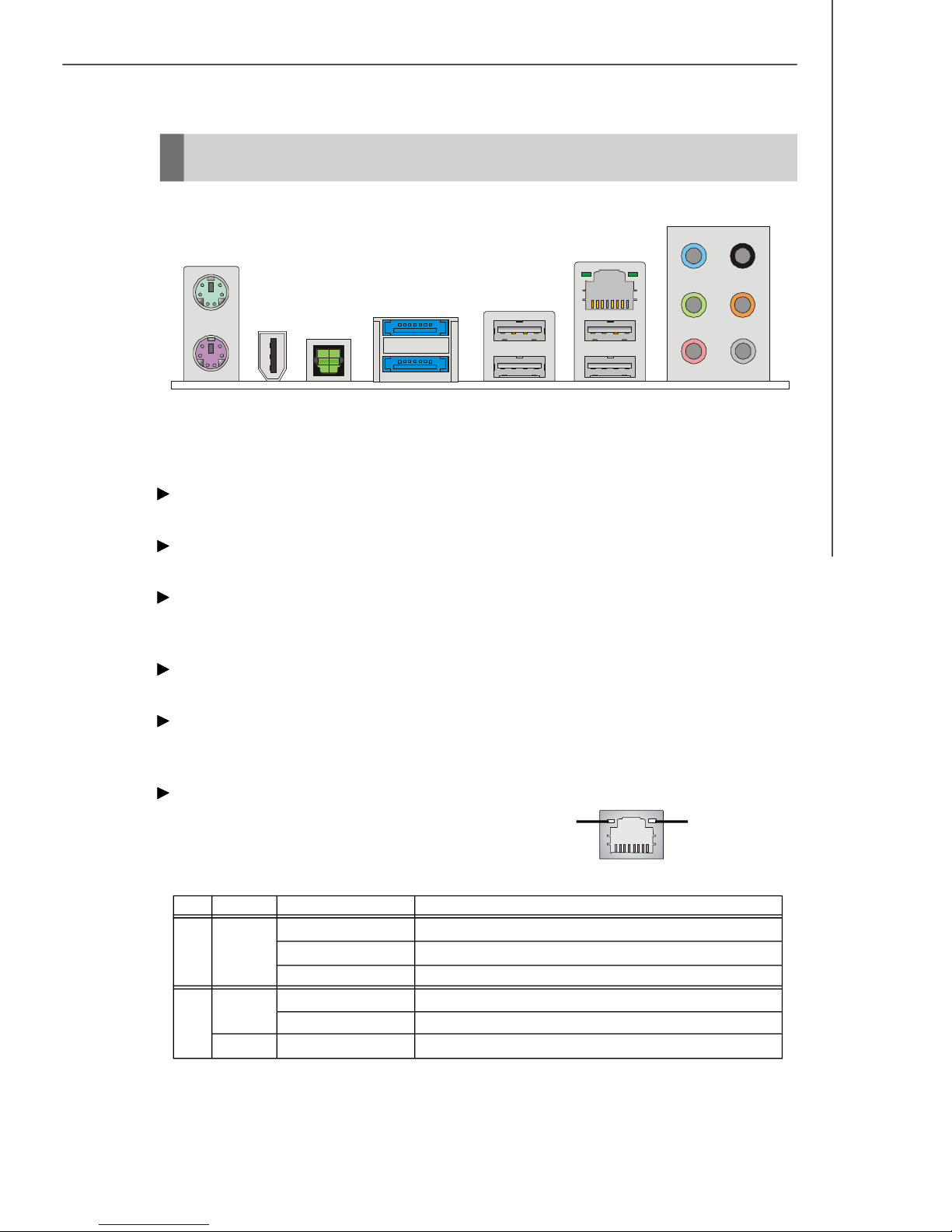

Back panel

- 1 PS/2 mouse port

- 1 PS/2 keyboard port

- 1 1394 port (optional)

- 1 Optical SPDIF-out jack

- 2 eSATA ports (optional)

- 1 LAN jack

- 4 USB 2.0 ports

- 6 flexible audio jacks

On-Board Pinheaders

- 3 USB 2.0 pinheaders

- 1 1394 pinheader (optional)

- 1 Serial port pinheader (optional)

- 1 Front Panel Audio pinheader

- 1 CD-in pinheader

- 1 TPM Module pinheader (optional)

- 1 VoIP card pinheader (optional)

- 1 S/PDIF-out pinheader

TPM (optional)

- Supports TPM

Slots

- 4 PCI Express x16 slots compatible with PCIE 2.0 spec
a. the mazarine PCIE x16 slots (PCI_EX1/ PCI_EX4) support up to

PCIE 2.0x16 speed

b. for CrossFire mode, please install both graphics cards on both

mazarine PCIE x16 slots

c. the blue PCIE x16 slots (PCI_EX3/ PCI_EX5) are special design

that support up to PCIE 2.0x8 speed

d. to use all 4 PCIE x16 slots or to use both blue PCIE x16 slots,

the PCIE x 16 lanes will auto arrange from x16/ x0/ x16/ x0 to
x8/ x8/ x8/ x8

- 1 PCI Express x 1 slot

- 2 PCI slots

Form Factor

- ATX (30.5cm X 24.5 cm)

Mounting

- 9 mounting holes

1-3

MS-7376 Mainboard

JTPM

Promise

BATT

790FX

VT6308P

(optional)

(Optional)

(optional)

IDE 1ATX

1

DIMM1DIMM3DIMM2DIMM

4

POWER

RESET

Mainboard Layout

Top : mouse
Bottom:
keyboard

1394 Port
(optional)

Optical S/PDIF Out

USB ports

Top: LAN Jack
Bottom: USB ports

T:

Line-In

M:

Line-Out

B:

Mic
T:RS-Out
M:CS-Out
B:SS-Out

LAN
Chip

Audio

JCD1

codec

JPWR1

JPW1

PCI_EX1
PCI_EX2

PCI_EX3

PCI1

PCI_EX4

PCI2

PCI_EX5

SYSFAN4

AMD

VIA

CPUFAN1

AMD

SB600

SYSFAN1

T3

SATA2

SATA3

SATA1SATA2

I/O

Chip

SATA6

JFP2

JFP1

SATA5

SYSFAN2

+

JBAT1

JAUD1

JSLIC1

K9A2 Platinum Series (MS-7376 v1.X)

1-4

SPDOUT1

J1394_1

FDD1

ATX Mainboard

JUSB3

JUSB1SYSFAN3

JCOM1JUSB2

Getting Started

JTPM

BATT

790FX

VT6308P

(optional)

(Optional)

(optional)

IDE 1ATX

1

DIMM1DIMM3DIMM2DIMM

4

POWER

RESET

Top : mouse
Bottom:
keyboard

1394 Port
(optional)

Optical S/PDIF Out

USB ports

Top: LAN Jack
Bottom: USB ports

T:

Line-In

M:

Line-Out

B:

Mic
T:RS-Out
M:CS-Out
B:SS-Out

LAN
Chip

Audio

JCD1

codec

JPWR1

JPW1

PCI_EX1
PCI_EX2

PCI_EX3

PCI1

PCI_EX4

PCI2

PCI_EX5

SYSFAN4

AMD

VIA

CPUFAN1

AMD

SB600

SYSFAN1

SATA2SATA3

SATA1SATA2

JFP2

SYSFAN2

JFP1

I/O

+

Chip

JBAT1

JAUD1

JSLIC1

K9A2 Platinum V2 Series (MS-7376 v1.X)

SPDOUT1

J1394_1

FDD1

ATX Mainboard

JUSB3

JUSB1SYSFAN3

JCOM1JUSB2

1-5

Hardware Setup

Chapter 2

Hardware Setup

This chapter provides you with the information about
hardware setup procedures. While doing the installation,
be careful in holding the components and follow the
installation procedures. For some components, if you
install in the wrong orientation, the components will not
work properly.

Use a grounded wrist strap before handling computer
components. Static electricity may damage the
components.

2-1

MS-7376 Mainboard

Quick Components Guide

JPWR1, p.2-8

JPW1, p.2-8

Back Panel
I/O, p.2-9

SYSFAN4,

p.2-13

DDR2 DIMMs, p.2-6

CPUFAN1, p.2-13

CPU, p.2-3

PCI Slots,

p.2-23

JCD1, p.2-13

PCI Express
slots, p.2-20

SPDOUT1, p.2-17

JSLIC1, p.2-15

JAUD1, p.2-14

FDD1, p.2-11

J1394_1, p.2-17

JUSB1~3,

p.2-15

SYSFAN3,

p.2-13

POWER, p.2-19

ATX1, p.2-8

SYSFAN1,

p.2-13

IDE1, p.2-11

JFP2, p.2-16

SATA1~6,

p.2-12

JFP1, p.2-16
JTPM, p.2-14
SYSFAN2,

p.2-13

JCOM1, p.2-16

JBAT1, p.2-18
RESET, p.2-19

2-2

Hardware Setup

CPU (Central Processing Unit)

The mainboard supports AMD® Phenom/Athlon/Sempron processors. The mainboard
uses a CPU socket called Socket AM2+ for easy CPU installation. When you are
installing the CPU, make sure the CPU has a heat sink and a cooling fan
attached on the top to prevent overheating. If you do not have the heat sink and
cooling fan, contact your dealer to purchase and install them before turning on the
computer.
For the latest information about CPU, please visit http://global.msi.com.tw/index.php?
func=cpuform

Important

Overheating

Overheating will seriously damage the CPU and system. Always make sure
the cooling fan can work properly to protect the CPU from overheating. Make
sure that you apply an even layer of thermal paste (or thermal tape) between
the CPU and the heatsink to enhance heat dissipation.

Replaceing the CPU

While replacing the CPU, always turn off the ATX power supply or unplug the
power supply’s power cord from the grounded outlet first to ensure the safety
of CPU.

Overclocking

This mainboard is designed to support overclocking. However, please make
sure your components are able to tolerate such abnormal setting, while
doing overclocking. Any attempt to operate beyond product specifications is
not recommended. We do not guarantee the damages or risks caused

by inadequate operation or beyond product specifications.

2-3

MS-7376 Mainboard

Open the lever

Gold arrow

Gold arrow

Gold arrow

Correct CPU

O

Incorrect CPU

the lever

CPU Installation Procedures for Socket AM2+

1.Please turn off the power and
unplug the power cord before
installing the CPU.

Sliding

2.Pull the lever sideways away
from the socket. Make sure to
raise the lever up to a 90-de­gree angle.

3.Look for the gold arrow on the
CPU. The gold arrow should point
as shown in the picture. The CPU
can only fit in the correct
orientation.Lower the CPU down
onto the socket.

the plate

90 degree

4.If the CPU is correctly installed,
the pins should be completely
embedded into the socket and
can not be seen. Please note
that any violation of the correct
installation procedures may
cause permanent damages to
your mainboard.

5. Press the CPU down firmly into
the socket and close the lever.
As the CPU is likely to move while
the lever is being closed, al­ways close the lever with your
fingers pressing tightly on top of
the CPU to make sure the CPU is
properly and completely embed­ded into the socket.

placement

placement

Press down
the CPU

Close

2-4

Hardware Setup

Installing AMD Socket AM2+ CPU Cooler Set

When you are installing the CPU, make sure the CPU has a heat sink and a
cooling fan attached on the top to prevent overheating. If you do not have the

heat sink and cooling fan, contact your dealer to purchase and install them before
turning on the computer.

Important

1. Read the CPU status in BIOS (Chapter 3).

2. Mainboard photos shown in this section are for demonstration of the CPU/
cooler installation only. The appearance of your mainboard may vary depend­ing on the model you purchase.

1.Position the cooling set onto the re­tention mechanism.

Hook one end of the clip to hook
first.

3.Fasten down the lever.

2. Then press down the other end of
the clip to fasten the cooling set on
the top of the retention mechanism.
Locate the Fix Lever and lift up it .

Fixed Lever

4.Attach the CPU Fan cable to the CPU
fan connector on the mainboard.

2-5

MS-7376 Mainboard

1

2

3

Installed

Memory

These DIMM slots are used for installing memory modules.
For more information on compatible components, please visit http://global.msi.com.

tw/index.php?func=testreport

DDR2

240-pin, 1.8V

64x2=128 pin56x2=112 pin

Dual-Channel Memory Population Rules

In Dual-Channel mode, the memory modules can transmit and receive data with two
data bus lines simultaneously. Enabling Dual-Channel mode can enhance the system
performance. Please refer to the following illustrations for population rules under
Dual-Channel mode.

DIMM1
DIMM2

DIMM3
DIMM4

DIMM1
DIMM2
DIMM3
DIMM4

DIMM1
DIMM2
DIMM3
DIMM4

Empty

2-6

Hardware Setup

Installing Memory Modules

1. The memory module has only one notch on the center and will only fit in the right
orientation.

2. Insert the memory module vertically into the DIMM slot. Then push it in until the
golden finger on the memory module is deeply inserted in the DIMM slot.

Important

You can barely see the golden finger if the memory module is properly inserted
in the DIMM slot.

3. The plastic clip at each side of the DIMM slot will automatically close.

Volt

Notch

Important

-DDR2 memory modules are not interchangeable with DDR and the DDR2
standard is not backwards compatible. You should always install DDR2
memory modules in the DDR2 DIMM slots.

-In Dual-Channel mode, make sure that you install memory modules of the
same type and density in different channel DIMM slots.

-To enable successful system boot-up, always insert the memory modules
into the DIMM1 first.

- Due to the chipset resource deployment, the system density will only be
detected up to 7+GB (not full 8GB) when each DIMM is installed with a 2GB
memory module.

2-7

MS-7376 Mainboard

Power Supply

ATX 24-Pin Power Connector: ATX1

This connector allows you to connect an ATX 24-pin power supply.
To connect the ATX 24-pin power supply, make sure the plug of the
power supply is inserted in the proper orientation and the pins are
aligned. Then push down the power supply firmly into the connector.

You may use the 20-pin ATX power supply as you like. If you’d like
to use the 20-pin ATX power supply, please plug your power sup­ply along with pin 1 & pin 13 (refer to the image at the right hand).
There is also a foolproof design on pin 11, 12, 23 & 24 to avoid
wrong installation.

Pin Definition

pin 13

pin 12

PIN SIGNAL

13 +3.3V
14 -12V
15 GND
16 PS-ON#
17 GND
18 GND
19 GND
20 Res
21 +5V
22 +5V
23 +5V
24 GND

ATX1

12

1

24

13

PIN SIGNAL

1 +3.3V
2 +3.3V
3 GND
4 +5V
5 GND
6 +5V
7 GND
8 PWR OK
9 5VSB
10 +12V
11 +12V
12 +3.3V

ATX Power Connector: JPW1/ JPWR1

This 12V power connector JPW1 is used to provide power to the CPU. This power
connector JPWR1 is used to provide power to stable the operation of graphics card.

JPW1

4

JPW1 Pin Definition

PIN SIGNAL

2
13

1 GND
2 GND
3 12V
4 12V

JPWR1

1

JPWR1 Pin Definition

PIN SIGNAL

1 NC
2 GND
3 GND
4 12V

Important

1. Maker sure that all the connectors are connected to proper ATX power sup­plies to ensure stable operation of the mainboard.

2. Power supply of 450 watts (and above) is highly recommended for system
stability.

2-8

Back Panel

Hardware Setup

Mouse

Keyboard

IEEE 1394

Port (optional)

Optical

S/PDIF-Out

eSATA Port

(optional)

USB Port

LAN

USB Port

Line-In

Line-Out

Mic

RS-Out

CS-Out

SS-Out

Mouse/Keyboard

The standard PS/2® mouse/keyboard DIN connector is for a PS/2® mouse/keyboard.

IEEE 1394 Port (optional)

The 1394 port on the back panel provides connection to 1394 devices.

Optical S/PDIF-Out
This SPDIF (Sony & Philips Digital Interconnect Format) connector is provided for
digital audio transmission to external speakers through an optical fiber cable.

eSATA Port (optional)
The eSATA port is for attaching the eSATA external hard drive.

USB Port
The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard,
mouse, or other USB-compatible devices.

LAN
The standard RJ-45 LAN jack is for connection to

Green / OrangeYellow

the Local Area Network (LAN). You can connect
a network cable to it.

LED Color LED State Condition

Off LAN link is not established.

Left Orange On (steady state) LAN link is established.

On (brighter & pulsing)The computer is communicating with another computer on the LAN.

Green Off 10 Mbit/sec data rate is selected.

Right On 100 Mbit/sec data rate is selected.

Orange On 1000 Mbit/sec data rate is selected.

2-9

MS-7376 Mainboard

Audio Ports
These audio connectors are used for audio devices. You can differentiate the color
of the audio jacks for different audio sound effects.

Line-In (Blue) - Line In, is used for external CD player, tapeplayer or other

audio devices.

Line-Out (Green) - Line Out, is a connector for speakers or headphones.
Mic (Pink) - Mic, is a connector for microphones.
RS-Out (Black) - Rear-Surround Out in 4/ 5.1/ 7.1 channel mode.
CS-Out (Orange) - Center/ Subwoofer Out in 5.1/ 7.1 channel mode.
SS-Out (Gray) - Side-Surround Out 7.1 channel mode.

2-10

Hardware Setup

Connectors

Floppy Disk Drive Connector: FDD1

This connector supports 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB floppy disk drive.

FDD1

IDE Connector: IDE1

This connector supports IDE hard disk drives, optical disk drives and other IDE devices.

IDE1

Important

If you install two IDE devices on the same cable, you must configure the
drives separately to master / slave mode by setting jumpers. Refer to IDE
device’s documentation supplied by the vendors for jumper setting
instructions.

2-11

MS-7376 Mainboard

Serial ATA Connector: SATA1/ SATA2/ SATA3/ SATA4/ SATA5/ SATA6
(SATA5/ SATA6 are optinoal)

This connector is a high-speed Serial ATA interface port. Each connector can con­nect to one Serial ATA device.

SATA1/2/3/4 connectors are

supported by SB600

SATA1 SATA3

SATA4 SATA6

SATA2

SATA5

SATA5/6 connectors are

supported by Promise T3

(optional)

Important

Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
data loss may occur during transmission.

2-12

Hardware Setup

Fan Power Connectors: CPUFAN1, SYSFAN1~4

The fan power connectors support system cooling fan with +12V. When connecting
the wire to the connectors, always note that the red wire is the positive and should
be connected to the +12V; the black wire is Ground and should be connected to GND.
If the mainboard has a System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of the CPU fan control.

GND

+12V

SENSOR
Control

CPUFAN1

SENSOR

+12V

GND

SYSFAN1/2

GND
+12V

NC

SYSFAN4

+1 2V

NC

GND

SYSFAN3

Important

1.Please refer to the recommended CPU fans at processor’s official website
or consult the vendors for proper CPU cooling fan.

2.CPUFAN1 supports fan control. You can install Dual Core Center utility
that will automatically control the CPU fan speed according to the actual
CPU temperature.

3. Fan/heatsink with 3 or 4 pins are both available for CPUFAN1.

CD-In Connector: JCD1

This connector is provided for external audio input..

R

GND

L

JCD1

2-13

MS-7376 Mainboard

Front Panel Audio Connector: JAUD1

This connector allows you to connect the front panel audio and is compliant with
Intel® Front Panel I/O Connectivity Design Guide.

JAUD1

2
1

10

9

Pin Definition

PIN SIGNAL DESCRIPTION

1 AUD_MIC Front panel microphone input signal
2 AUD_GND Ground used by analog audio circuits
3 AUD_MIC_BIAS Microphone power
4 AUD_VCC Filtered +5V used by analog audio circuits
5 AUD_FPOUT_R Right channel audio signal to front panel
6 AUD_RET_R Right channel audio signal return from front panel
7 HP_ON Reserved for future use to control headphone amplifier
8 KEY No pin
9 AUD_FPOUT_L Left channel audio signal to front panel
10 AUD_RET_L Left channel audio signal return from front panel

TPM Module Connector: JTPM (optional)

This connector connects to a TPM (Trusted Platform Module) module (optional). Please
refer to the TPM security platform manual for more details and usages.

2

1

1413

Pin Signal Description Pin Signal Description
1 LCLK LPC clock 2 3V dual/3V_STB 3V dual or 3V standby power
3 LRST# LPC reset 4 VCC3 3.3V power
5 LAD0 LPC address & data pin0 6 SIRQ Serial IRQ
7 LAD1 LPC address & data pin1 8 VCC5 5V power
9 LAD2 LPC address & data pin2 10 KEY No pin
11 LAD3 LPC address & data pin3 12 GND Ground
13 LFRAME# LPC Frame 14 GND Ground

2-14
