MONITOR

MONITOR

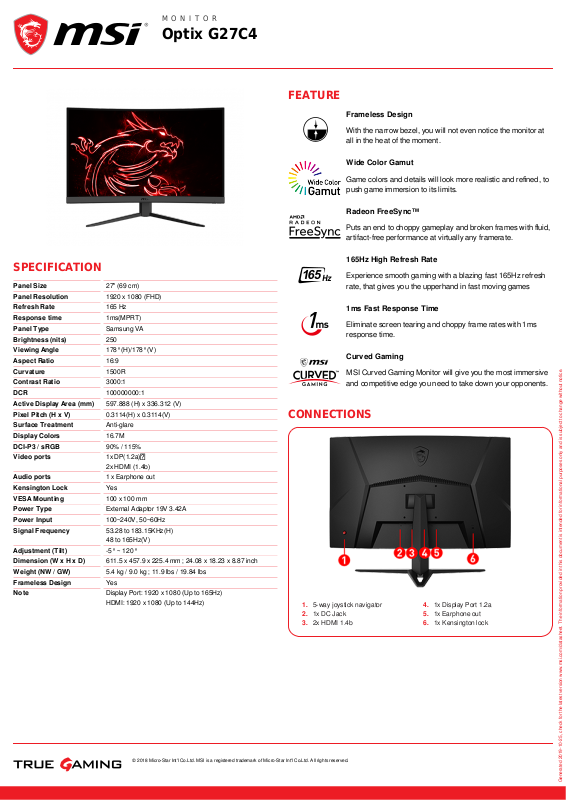

Optix G27C4

Optix G27C4

FEATURE

Frameless Design

With the narrow bezel, you will not even notice the monitor at
all in the heat of the moment.

Wide Color Gamut

Game colors and details will look more realistic and refined, to
push game immersion to its limits.

Radeon FreeSync™

Puts an end to choppy gameplay and broken frames with fluid,
artifact-free performance at virtually any framerate.

SPECIFICATION

Panel Size 27" (69 cm)

Panel Resolution 1920 x 1080 (FHD)

Refresh Rate 165 Hz

Response time 1ms(MPRT)

Panel Type Samsung VA

Brightness (nits) 250

Viewing Angle 178°(H)/178°(V)

Aspect Ratio 16:9

Curvature 1500R

Contrast Ratio 3000:1

DCR 100000000:1

Active Display Area (mm) 597.888 (H) x 336.312 (V)

Pixel Pitch (H x V) 0.3114(H) x 0.3114(V)

Surface Treatment Anti-glare

Display Colors 16.7M

DCI-P3 / sRGB 90% / 115%

Video ports 1x DP(1.2a)

2x HDMI (1.4b)

Audio ports 1 x Earphone out

Kensington Lock Yes

VESA Mounting 100 x 100 mm

Power Type External Adaptor 19V 3.42A

Power Input 100~240V, 50~60Hz

Signal Frequency 53.28 to 183.15KHz(H)

48 to 165Hz(V)

Adjustment (Tilt) -5° ~ 120°

Dimension (W x H x D) 611.5 x 457.9 x 225.4 mm ; 24.08 x 18.23 x 8.87 inch

Weight (NW / GW) 5.4 kg / 9.0 kg ; 11.9 lbs / 19.84 lbs

Frameless Design Yes

Note Display Port: 1920 x 1080 (Up to 165Hz)

HDMI: 1920 x 1080 (Up to 144Hz)

165Hz High Refresh Rate

Experience smooth gaming with a blazing fast 165Hz refresh
rate, that gives you the upperhand in fast moving games

1ms Fast Response Time

Eliminate screen tearing and choppy frame rates with 1ms
response time.

Curved Gaming

MSI Curved Gaming Monitor will give you the most immersive
and competitive edge you need to take down your opponents.

CONNECTIONS

5-way joystick navigator1.
1x DC Jack2.
2x HDMI 1.4b3.

1x Display Port 1.2a4.
1x Earphone out5.
1x Kensington lock6.
