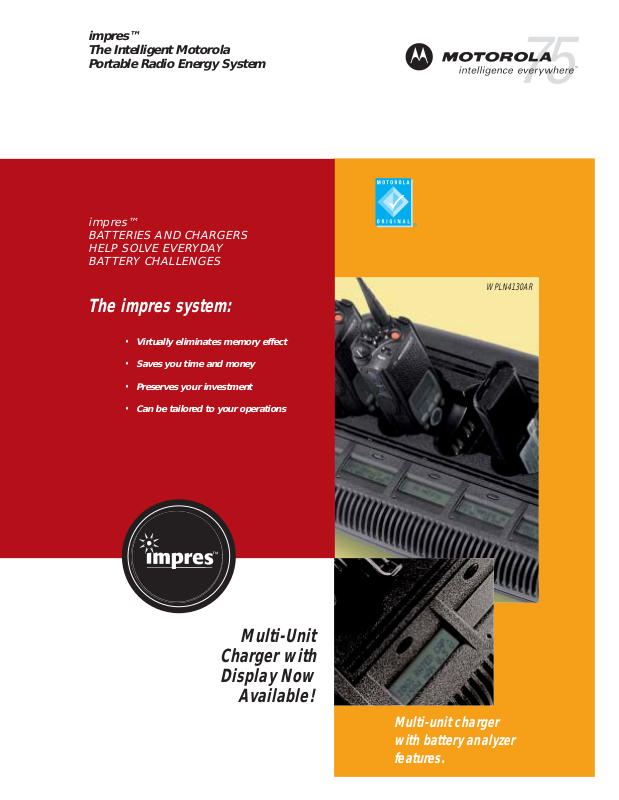

impres™
The Intelligent Motorola
Portable Radio Energy System
impres™
BATTERIES AND CHARGERS
HELP SOLVE EVERYDAY
BATTERY CHALLENGES
The impres system:
WPLN4130AR
•
Virtually eliminates memory effect
•
Saves you time and money
•
Preserves your investment
•
Can be tailored to your operations
Multi-Unit
Charger with
Display Now
Available!
Multi-unit charger
with battery analyzer
features.
impres charging systems deliver
these impressive features . . .
virtually eliminates memory effect
Nickel based batteries can suffer memory effect when recharged before
the battery’s energy has been fully consumed.
SOLUTION:
impres™ smart chargers help maximize battery operating time between
charge cycles — virtually eliminating memory effect in nickel-based
chemistries — by automatically customizing operation to the user’s
unique charging habits. Special patented circuitry assesses the battery
condition and charges it … reconditions it if necessary … keeps it fully
charged over time while controlling heat build-up … and even notifies
you if the battery is beyond its useful life. You can charge and recondition batteries individually, or while still attached to the radio.
save time and money
Even with trained personnel, battery maintenance can be a guessing
game: how long to charge, when to recondition, when to replace.
WPLN4130AR
SOLUTION:
impres batteries and chargers help provide a complete system that automatically assures batteries are providing the greatest possible power
during work shifts. The impres smart charger charges and optimizes batteries, performing a reconditioning cycle only when required so there’s
no guesswork and no wasted cycle life. Because this system is automated, it helps reduce the need to manually track and record battery usage.
preserve investments
Adopting new technologies often means having to scrap
existing hardware.
SOLUTION:
impres batteries and chargers are engineered to work with existing
Motorola two-way radio systems. The batteries and chargers are compatible with HT1000, JT1000, MT2000, MTS2000, MTX8000, MTX9000,
XTS3000, XTS3000R, XTS3500, XTS3500R, XTS5000, XTS5000R, Saber
and ASTRO Saber two-way radios. And standard Motorola batteries can
be charged in all impres smart chargers; they will not overheat even if
left in the charger pocket for an extended period of time.
customize operations
Different users in mixed fleets have different charger needs —
one size won’t fit all.
SOLUTION:
The impres system gives you a choice of smart chargers for mixed fleets.
A single-unit charger. A multi-unit charger. And an advanced multi-unit
charger with LED displays providing battery analyzer features. All are
backwards compatible; supporting legacy batteries as well as impres
smart batteries which makes it easy to migrate to this technology.
Multi-unit charger
with battery analyzer
features.
Maximize talk time
and battery life with advanced
impres technology . . .
In today’s fast-changing times, there’s no room for yesterday’s battery
technology. Today, there’s impres — the Intelligent Motorola Portable
Radio Energy System that help solve everyday challenges like memory effect, overheating, improper maintenance and cross-platform compatibility. The impres system — smart batteries and smart chargers
— automatically keep batteries at their peak of performance.
Now there are three smart impres chargers to choose from including
a new multi-unit adaptive charger with display modules. impres
chargers automatically customize operation to the user’s unique
charging habits. The system will charge, recondition if necessary,
keep fully charged over time and control damaging heat build up. It
also notifies you when the battery is beyond its useful life. Plus,
patented impres circuitry now allows for conditioning and reconditioning of a battery in the smart charger while it is still attached to
the radio.
Best of all, impres NiCd batteries are covered under a 24 month
workmanship and 24 month capacity warranty when used with an
impres adaptive charger. And impres NiMH and Li-ion batteries are
covered under a 24 month workmanship and a 18 month capacity
warranty when use with an impres adaptive charger.
Now There are Three Styles of
Chargers to Choose From!
Choose the impres charger that best matches your needs.
Each impres adaptive charger is actually three units in one: a rapid charger,
a conditioning charger, and when necessary, a battery reconditioner. The
impres system keeps batteries fully charged over time while controlling
damaging heat built-up. NiCd, NiMH and Li-ion batteries are supported.
impres chargers provide automatic ongoing battery maintenance when used
with impres batteries. In addition, they can be used used with existing legacy batteries in cross-platform environments.* Advanced algorithms keep
batteries cooler during charging; chargers automatically switch to a low-current trickle charge mode, and a zero-current maintenance mode with top-off
bursts. Batteries can be charged on or off the radio.
Compatible with impres batteries for HT1000, JT1000, MT2000, MTS2000,
MTX8000, MTX9000, XTS3000, XTS3000R, XTS3500, XTS3500R, XTS5000,
XTS5000R, Saber and ASTRO Saber Two-way radios.
impres Multi-Unit Charger
With Display Modules
Provides a host of battery analyzer features.
This charger has a two-line LCD screen for each of its six pockets that displays vital battery information when an impres battery is inserted. It provides “real-time” battery capacity available by displaying actual mAh and
the percentage of rated capacity. When the battery is charging, the time
remaining to charge is displayed for (NiCd and NiMH.) Other data readings
include unique battery serial and part number information, battery chemistry, voltage reading, charging status, and software version of the charger
and display modules.
impres
Standard Multi-Unit Charger
Ideal for mixed fleets – and upgradable.
This six-pocket charger handles multiple batteries, both impres and legacy,
at the same time. Optional display modules can be purchased for each
charging pocket to provide battery analyzer features.
impres
Single-Unit Charger
Durable charger fits almost anywhere.
This single unit charger is a rapid charger, a conditioning charger, and when
necessary, a battery reconditioner. . . just like the larger models.
TM
impres
Multi-unit
chargers are
available with
or without
display modules.
Display modules
give you vital
battery information. They may
be ordered separately for each
charging pocket
and installed
into an existing
impres multiunit charger.
A single-unit
charger makes
sense for users
who need to
conserve on
space or move
the charger
between
locations.
WPLN4111AR
WPLN4108B
RLN5382A
* Supports other Two-way radio families and batteries but with limited feature sets.
impres Batteries
Part Number Description Compatible With
HNN9028AR . . . . . . . . . . . . . NiCd 1500 mAh 7.5V . . . . . . . . . . . . . . . . . . . . . . HT1000, JT1000, MT2000
MTS2000, MTX8000, MTX9000
HNN9029AR . . . . . . . . . . . . . NiCd 1500 mAh 7.5V FM App . . . . . . . . . . . . . . . . HT1000, JT1000, MT2000, MTS2000, MTX8000,
MTX9000
HNN9031B . . . . . . . . . . . . . . NiCd 1525 mAh 7.5V . . . . . . . . . . . . . . . . . . . . . . . XTS3000, XTS3000R, XTS3500, XTS3500R, XTS5000,
XTS5000R
HNN9032B . . . . . . . . . . . . . . NiCd 1525 mAh 7.5V FM App . . . . . . . . . . . . . . . . XTS3000, XTS3000R, XTS3500, XTS3500R, XTS5000,
XTS5000R
HNN9033AR . . . . . . . . . . . . . NiCd 1800 mAh 7.5V . . . . . . . . . . . . . . . . . . . . . Saber, ASTRO Saber
HNN9034AR . . . . . . . . . . . . . NiCd 1800 mAh 7.5V FM App . . . . . . . . . . . . . . . . Saber, ASTRO Saber
NNTN4435B . . . . . . . . . . . . . NiMH 2000 mAh (1800 min) 7.5V . . . . . . . . . . . . . XTS3000, XTS3500, XTS5000, XTS3500R, XTS5000R
NNTN4436B . . . . . . . . . . . . . NiMH 2000 mAh (1750 min) 7.5V, FM App . . . . . . XTS3000, XTS3500, XTS5000, XTS3500R, XTS5000R
NNTN4437B . . . . . . . . . . . . . NiMH 2000 mAh (1750 min) 7.5V, FM App Rugged. . XTS3000, XTS3500, XTS5000, XTS3500R, XTS5000R
NTN9862A . . . . . . . . . . . . . . Li-ion 2000 mAh 7.2V . . . . . . . . . . . . . . . . . . . . . . . XTS3000, XTS3500, XTS5000, XTS3500R, XTS5000R
impresChargers
Part Number Description All Chargers Compatible With
WPLN4111AR . . . . . . . . . . . . impres Single-unit Charger . . . . . . . . . . . . . . . . . . . . . . . . . HT1000, JT1000, MT2000,
WPLN4108BR . . . . . . . . . . . . impres Multi-unit Charger . . . . . . . . . . . . . . . . . . . . . . . . . .MTS2000, MTX8000, MTX9000,
WPLN4130A . . . . . . . . . . . . . impres Multi-unit Charger with Display Modules . . . . . . . . XTS3000, XTS3000R, XTS3500,
XTS3500R, XTS5000, XTS5000R,
Saber and ASTRO Saber radios.
impres Display Modules
Part Number Description Compatible With
RLN5382A . . . . . . . . . . . . . . Display Module for Charger Version 1.3* or later.
RLN5591A . . . . . . . . . . . . . . Display Module for Charger Version 1.2* or earlier. . . . . . . . Requires software flash update
from the Radio Support Center.
*The version number is referenced on the label located on the bottom of the impres Multi-Unit Charger. If no version is
shown, it is version 1.2 or earlier. For example, version 1.3 will appear as V1.30. Detailed installation instructions included.
impres Single-unit Bundles
Includes two impres batteries and one impres
single-unit charger (WPLN4111AR.)
Part Number Description
RLN5261A . . . . . . . . . . . . . . .Consists of 2 HNN9033AR batteries and 1 charger
RLN5262B . . . . . . . . . . . . . . .Consists of 2 HNN9032B batteries and 1 charger
RLN5263B . . . . . . . . . . . . . . .Consists of 2 HNN9031B batteries and 1 charger
RLN5264A . . . . . . . . . . . . . . .Consists of 2 HNN9034AR batteries and 1 charger
RLN5265A . . . . . . . . . . . . . . .Consists of 2 HNN9029AR batteries and 1 charger
RLN5266A . . . . . . . . . . . . . . .Consists of 2 HNN9028AR batteries and 1 charger
RLN5485B . . . . . . . . . . . . . . .Consists of 2 NNTN4435B batteries and 1 charger
RLN5486B . . . . . . . . . . . . . . .Consists of 2 NNTN4436B batteries and 1 charger
RLN5487B . . . . . . . . . . . . . . .Consists of 2 NNTN4437B batteries and 1 charger
impres Multi-unit Bundles
Includes six impres batteries and one impres
multi-unit charger (WPLN4108BR.)
Part Number Description
RLN5439B . . . . . . . . . . . . . . .Consists of 6 HNN9029AR batteries and 1 charger
RLN5440B . . . . . . . . . . . . . . Consists of 6 HNN9028AR batteries and 1 charger
RLN5441C . . . . . . . . . . . . . . Consists of 6 HNN9032B batteries and 1 charger
RLN5442B . . . . . . . . . . . . . . Consists of 6 HNN9034AR batteries and 1 charger
RLN5443C . . . . . . . . . . . . . . Consists of 6 HNN9031B batteries and 1 charger
RLN5444B . . . . . . . . . . . . . . Consists of 6 HNN9033AR batteries and 1 charger
RLN5488C . . . . . . . . . . . . . . Consists of 6 NNTN4435B batteries and 1 charger
RLN5489C . . . . . . . . . . . . . . Consists of 6 NNTN4436B batteries and 1 charger
RLN5490C . . . . . . . . . . . . . . Consists of 6 NNTN4437B batteries and 1 charger
Comes with
six impres
batteries!
Radios not included.
Comes with
two impres
batteries!
impres:
The Intelligent Motorola
Portable Radio Energy System
Features:
• 24 month workmanship/24 month capacity
on NiCd and 24/18 month warranty on
NiMH/Li-Ion impres batteries when used with an
impres adaptive charger.
• Charger/Conditioner/Reconditioner even
Analyzer for multi-unit models — Up to four
functions in one unit.
• Automatic Adaptive Reconditioning —
Reconditions only when necessary based on
individual usage pattern.
• Advanced Charging/Trickle/Maintenance
Modes — advanced algorithms keeps batteries
cooler during charging...trickle charge is low
current and maintenance mode is zero current
with top off bursts keeping the battery fully
charged at all times.
• Tri-Chemistry Charging — Supports NiCd, NiMH,
and Li-ion battery chemistries.
• Universal Charging — Supports multiple two-
way radio models in one charger.
• “Safe” Battery Stand — Batteries can be safely
left on the charger for extended periods of time
without damage from overheating while
keeping batteries fully charged.
• Revert to Rapid Charging — Keeps batteries
fully charged at all times.
• Charge Resume — Resumes charge on batteries
briefly removed from charger from the point it
left off.
• Dual LED Alert — Full Charge/End of Service
Life...alerts users when a battery is fully
charged, but may be near end of life. This
ensures good batteries are used in the field.
• Motorola Battery ID Recognition — Smart
batteries contain unique IDs and store a
multitude of information about the battery, its
usage, and charge characteristics.
• Charges and conditions batteries while on or off
the radio.
•
Smart batteries and chargers operate with
older as well as newer Motorola radio platforms.
Radio Products and Services Division
1313 East Algonquin Road
Schaumburg, IL 60196
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office.
All other product and service names are the property of their respective owners.
© Motorola, Inc. 2003.
