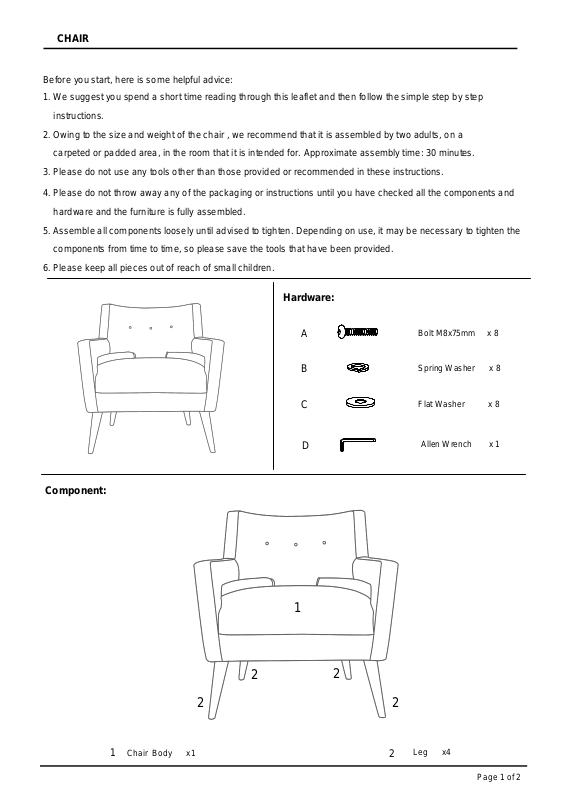

CHAIR
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the chair , we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.
Component:
Hardware:
A
B
C
D
Bolt M8x75mm x 8
Spring Washer x 8
Flat Washer x 8
Allen Wrench x 1
1
2
2
Chair Body x1
1
Page 1 of 2
2
2
2
Leg x4
CHAIR
STEP 1:
Please find the package of Legs (2) and hardware on the top of the seat.
Then put the Chair Body (1) upside down on a carpeted or padded area by two adults to
make the corners fully visible.
Position one of Legs (2) at one of the four wooden corners.
Insert 2 pieces of Spring Washer
Then insert assembled 2 pieces of Bolts (A) into the corner to connect one piece of the Leg (2).
Use Allen Wrench (D) to tighten the Bolts (A) clockwise until secure.
Repeat the same steps for the remaining three pieces of Legs (2).
(B)))), Flat Washer (C) into 2 pieces of Bolts
(((
(A)))) as shown.
(((
2
D
1
A
x8 Bx8 Cx8 Dx1
C
A
B
2
A
A
1
A
A
2
2
Hardware & Tool required
STEP 2:
Carefully turn over the chair .
Assembly is completed. The chair is ready to enjoy now!
Page 2 of 2
