Page 1

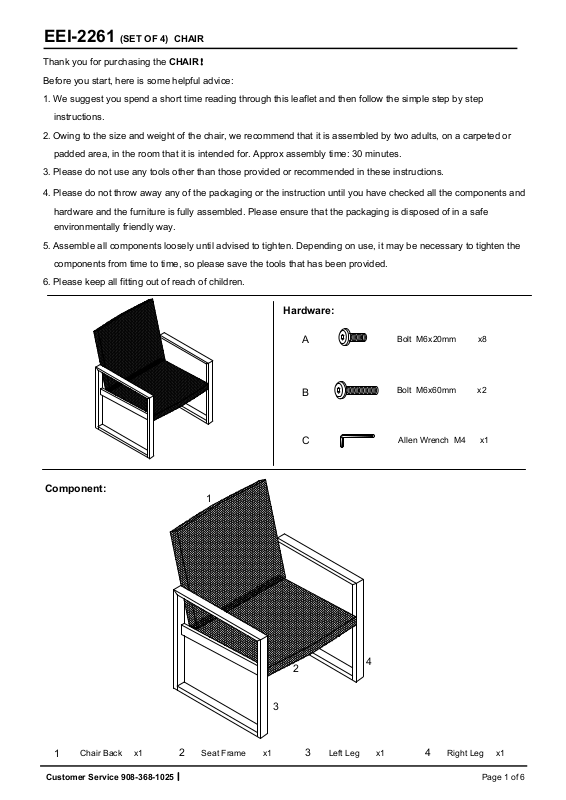

EEI-2261 (SET OF 4) CHAIR
Thank you for purchasing the CHAIR！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approx assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that has been provided.
6.Please keep all fitting out of reach of children.
Component:
1
Hardware:
A
B
C
Bolt M6x20mm x8
Bolt M6x60mm x2
Allen Wrench M4 x1
2
4
3
Seat Frame x1
Chair Back x1
1
Customer Service 908-368-1025︱ Page 1 of 6
2
Left Leg x1
3
Right Leg x1
4
Page 2
EEI-2261 (SET OF 4) CHAIR
STEP 1:
Please put Right Leg (4) on a carpeted or padded area.
Attach Chair Back (1) and Seat Frame (2) to Right Leg (4) as shown.
Insert 3 pieces of Bolt (A) from the pre-drilled holes at middle stretcher on the Right Leg (4) to the pre-drilled holes
at the bottom of Seat Frame (2).
Insert 1 piece of Bolt (A) from the pre-drilled holes on the top of the Right Leg (4) into the pre-drilled holes on the right
side of Chair Back (1) as shown.
Repeat the same steps for Left Leg (3).
Insert 2 pieces of Bolt (B) from the pre-drilled holes on the bottom of Seat Frame (2) into the pre-drilled holes on the right side of
Chair Back (1) as shown.
Use Allen Wrench (C) to tighten all Bolts (A&B) clockwise until secure.
1
4
The bottom of seat frame and chair Back
1
1
B
2
C
3
Ax8 Bx2 Cx1
STEP 2:
Carefully place the assembled chair at your desired position.
A
C
The side of chair back and legs
4
2
2
4
A
C
The bottom of seat frame and legs
Hardware & Tool required
Assembly is completed. The chair is ready to enjoy now!
Customer Service 908-368-1025︱ Page 2 of 6
Customer Service 908-368-1025 Page 2 of 6
Page 3
EEI-2261 (SET OF 4) LOVESEAT
Thank you for purchasing the LOVESEAT！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the loveseat, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approx assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that has been provided.
6.Please keep all fitting out of reach of children.
Component:
1
Hardware:
A
B
C
Bolt M6x20mm x8
Bolt M6x60mm x3
Allen Wrench M4 x1
4
2
3
Seat Frame x1
Loveseat Back x1
1
Customer Service 908-368-1025︱ Page 3 of 6
2
Left Leg x1
3
Right Leg x1
4
Page 4
EEI-2261 (SET OF 4) LOVESEAT
STEP 1:
Please put Right Leg (4) on a carpeted or padded area.
Attach Chair Back(1) and Seat Frame (2) to Right Leg (4) as shown.
Insert 3 pieces of Bolt (A) from the pre-drilled holes at middle stretcher on the Right Leg (4) to the pre-drilled holes
at the bottom of Seat Frame (2).
Insert 1 piece of Bolt (A) from the pre-drilled holes on the top of the Right Leg (4) into the pre-drilled holes on the right
side of Chair Back (1) as shown.
Repeat the same steps for Left Leg (3).
Insert 3 pieces of Bolt (B) from the pre-drilled holes on the bottom of Seat Frame (2) into the pre-drilled holes on the right side of
Chair Back (1) as shown.
Use Allen Wrench (C) to tighten all Bolts (A&B) clockwise until secure.
The bottom of seat frame and chair Back
1
1
B
C
2
The side of chair back and legs
4
1
4
A
C
3
Ax8 Bx3 Cx1
STEP 2:
Carefully place the assembled loveseat at your desired position.
2
2
4
A
C
The bottom of seat frame and legs
Hardware & Tool required
Assembly is completed. The loveseat is ready to enjoy now!
Customer Service 908-368-1025︱ Page 4 of 6
Page 5
EEI-2261 (SET OF 4) COFFEE TABLE
Thank you for purchasing the COFFEE TABLE！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the table, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approx assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that has been provided.
6.Please keep all fitting out of reach of children.
Component:
1
Hardware:
A
B
C
Bolt M6x10mm x4
Bolt M6x25mm x4
Allen Wrench M4 x1
2
2
Table Top x1
1
Customer Service 908-368-1025︱ Page 5 of 6
2
Leg x2
Page 6
EEI-2261 (SET OF 4) COFFEE TABLE
STEP 1:
Remove the plastic covers which pre-install in the end of the Table Top (1) by using Allen Wrench (C).
Please put 1 piece of Leg (2) on a carpeted or padded area.
Insert Table Top (1) into the leg (2) as shown.
Insert 2 pieces of Bolt (B) from the pre-drilled holes on the bottom of the Table Top (1) into each side on the bottom of Leg (2).
Insert 2 pieces of Bolt (A) from the pre-drilled holes on the side rail of the Table Top (1) into each end of Leg (2) as shown.
Do not fully tighten Bolts (A&B) at this step.
Repeat the same steps for the remaining 1 piece of Leg (2).
Use Allen Wrench (C) to tighten all the Bolts (A&B) clockwise until secure.
1
2
2
The bottom of table top and legs
2
1
A
C
2
C
B
1
Ax4 Bx4 Cx1
STEP 2:
Carefully place the assembled coffee table at your desired position.
The bottom of table top and legs
Hard-
Assembly is completed. The coffee table is ready to enjoy now!
Customer Service 908-368-1025︱ Page 6 of 6
