PART LIST HARDWARE LIST
ITEM DESCRIPTION QTY ITEM DESCRIPTION QTY
CAUTION :
1.Do not FULLY-TIGHTEN screws until they are all in place.
2.To prevent thread damage.do not over-tighten screws
3.Hardware is to be kept out of reach from children.
STEP 1

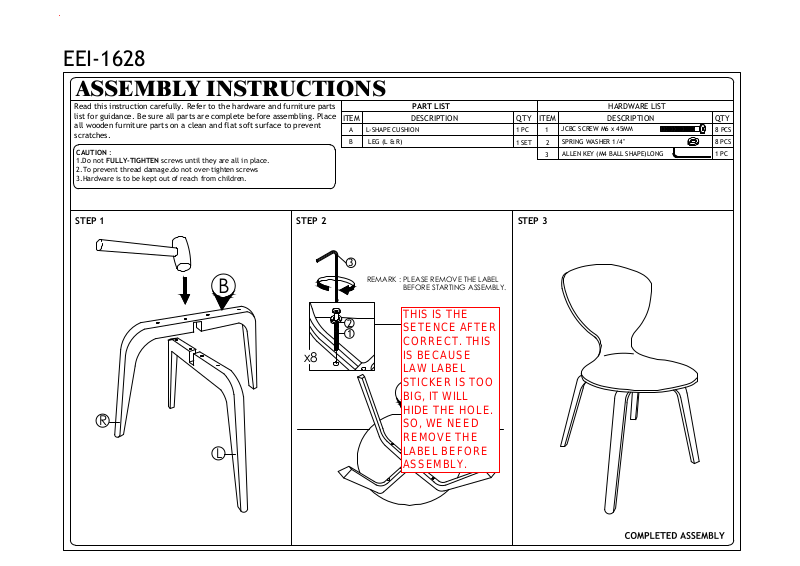

ASSEMBLY INSTRUCTIONS
Read this instruction carefully. Refer to the hardware and furniture parts
list for guidance. Be sure all parts are complete before assembling. Place
all wooden furniture parts on a clean and flat soft surface to prevent
scratches.
1
L-SHAPE CUSHION
1 PC
2
LEG (L & R)
1 SET
A
B
3
SPRING WASHER 1/4"
8 PCS
8 PCS
JCBC SCREW M6 x 45MM
EEI-1628
STEP 2 STEP 3
ALLEN KEY (M4 BALL SHAPE)LONG
1 PC
B
R
L
1
2
3
x8
A
REMARK : PLEASE REMOVE THE LABEL
BEFORE STARTING ASSEMBLY.
THIS IS THE
SETENCE AFTER
CORRECT. THIS
IS BECAUSE
LAW LABEL
STICKER IS TOO
BIG, IT WILL
HIDE THE HOLE.
SO, WE NEED
REMOVE THE
LABEL BEFORE
ASSEMBLY.
