STEP 1 :
Hook SIDE RAIL (D) TO HEAD BOARD (A) closely and push down to fit.
repeat step 2 with other end of rail to hook onto FOOTBOARD (B).
STEP 2 :
NOTE : MUST TIGHTEN SCREWS PERIODCALLY WITH USE SCREW WILL BECOME LOOSE CHECK TIGHTNESS OF ALL SCREW EVERY 6-8 WEEKS.
A
1 PC
Head Board
1 PC
Side Rail
Foot Board
2 PCS
D
Part List
No
Qty.
C
B
2 PCS
(L/R) Head Board Leg
Fix the Bed Slats Support ( F ) to Bed Slats ( E ) as Shown and fix the Bed Slats to Side Rail ( D ) by using CSK Screw ( G ). Loosen or Tighten the Adjuster as
necessary to level the bed. Bed assembly should be done in final location to ensure stability.

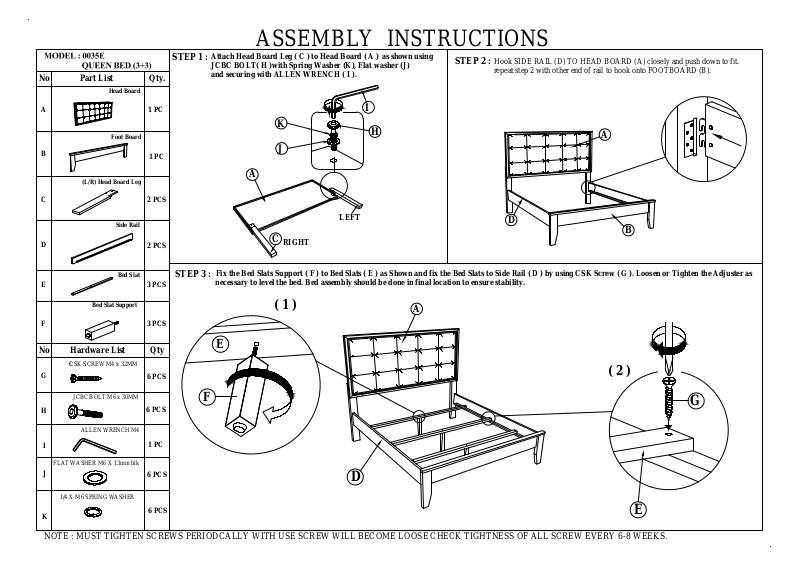

ASSEMBLY INSTRUCTIONS
CSK SCREW M4 x 32MM
Hardware ListNo
Qty
Bed Slat
E
1 PC
H
6 PCS
ALLEN WRENCH M4
JCBC BOLT M6 x 30MM
6 PCS
3 PCS
I
G
F
3 PCS
Bed Slat Support
J
K
6 PCS
6 PCS
Attach Head Board Leg ( C ) to Head Board ( A ) as shown using
JCBC BOLT( H )with Spring Washer (K), Flat washer (J)
and securing with ALLEN WRENCH ( I ).
FLAT WASHER M6 X 13mm blk
1/4 X M6 SPRING WASHER
B
D
A
A
RIGHT
C
LEFT
I
H
K
J
G
E
( 2 )
E
F
( 1 )
STEP 3 :
D
A
