MobiCom 2189 User Manual

©Mobicom Corp. 2005 www.mobicomcorp.com

Mobicom 2189

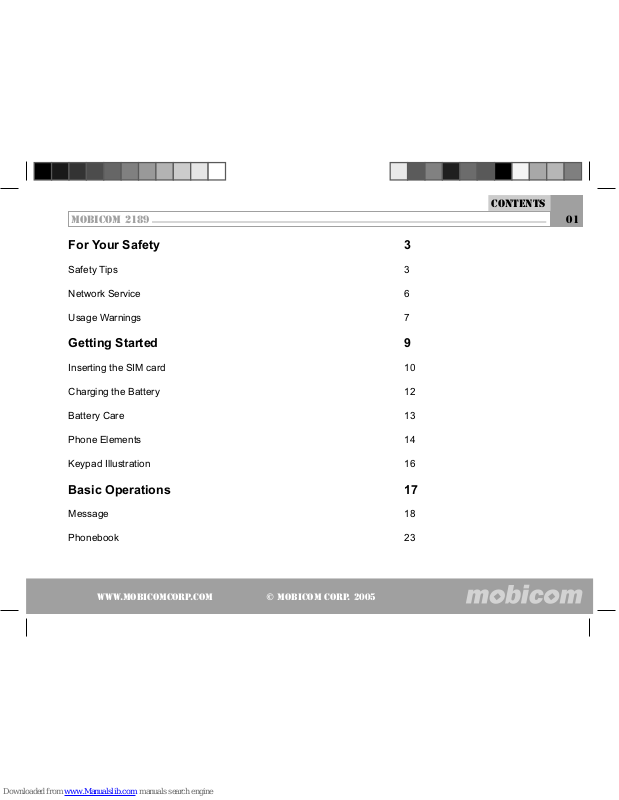

Contents

For Your Safety

Safety Tips

Network Service

Usage Warnings

Getting Started

Inserting the SIM card

Charging the Battery

Battery Care

Phone Elements

Keypad Illustration

Basic Operations

Message

Phonebook

3

6

7

9

10

12

13

14

16

17

18

23

01

Mobicom 2189

Contents

02

Call History

Network Service

Phone Settings

Organizer

Extra Features

FCC Notice and SAR Statement

Warranty Statement and Card

26

28

32

36

38

39

41

©Mobicom Corp. 2005 www.mobicomcorp.com

Mobicom 2189

For your safety

03

1. Safety Tips

2. Network Service

3. Usage Warnings

For Your safety

Mobicom 2189

For your safety

04

SWITCH ON SAFELY Do not switch the phone on when wireless phone use is prohibited or when it may cause interference or danger.

ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your ﬁ rst consideration while driving should be road safety.

INTERFERENCE Obey all local laws. Always keep your hands free to operate. All wireless phones may be susceptible to interference, which could affect performance.

SWITCH OFF IN HOSPITALS Follow any restrictions. Switch the phone off near medical equipment.

SWITCH OFF IN AIRCRAFT Follow any restrictions. Wireless devices can cause interference in aircraft.

Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information.

SWITCH OFF WHEN REFUELING Turn off your phone prior to entering fueling areas.

1. Safety Tips

©Mobicom Corp. 2005 www.mobicomcorp.com

Mobicom 2189

SWITCH OFF NEAR BLASTING Obey all sign, and instructions. Turn off your phone when you are in a blasting area.

USE SENSIBLY Use only in the normal position as explained in the product documentation. Don’t touch the antenna unnecessarily.

QUALIFIED SERVICE Only qualiﬁ ed personnel may install or repair this product.

ENHANCEMENTS AND BATTERIES Use only approved enhancements and batteries. Do not connect incompatible products.

WATER-RESISTANCE Your phone is not water-resistant. Keep it dry.

BACK-UP COPIES Remember to make back-up copies or keep a written record of all important information stored in your phone.

EMERGENCY CALLS Ensure the phone is switched on and in service. Press the End key as many times as needed to clear the display and return to the main screen. Enter the emergency number, then press the Talk key. Give your location. Do not end the call until given permission to do so.

05

For your safety

Mobicom 2189

To use the phone you must have service from a wireless network operator. Many of the features in this device depend on features in the wireless network to function. These Network Services may not be available on all networks or you may have to make speciﬁ c arrangements with your network operators before you can utilize Network Services.

Your service provider may need to give you additional instructions for their use and explain what charges will apply. Some networks may have limitations that effect how you can use Network Services. For instance, some networks may not support all language-dependent characters and services.

Your network operators may have requested that certain features be disabled or not activated in your device. If so, they will not appear on your device menu. Contact your network operators for more information.

06

2. Network Sevice

For your safety

©Mobicom Corp. 2005 www.mobicomcorp.com

Mobicom 2189

• Keep the phone and all its parts and accessories out of the reach of small children.

• Keep the phone clean. Do not use or store the phone in dusty, dirty areas, as its moving parts may be damaged.

• Keep the phone dry. Precipitation, moisture and liquids contain minerals that will corrode electronic circuits.

• Do not store the phone in hot areas. High temperature can shorten the life of electronic devices, damage batteries, warp or melt certain plastic parts.

• Do not store the phone in cold areas. When the phone warms up to its normal operating temperature, humidity can form inside the phone, which may damage electronic circuit boards.

• Phone should only be disassembled by an authorized service center. Unauthorized disassembly may void the warranty.

• Do not drop, knock or shake the phone. Rough handling can break internal electronic boards.

• Do not use harsh chemicals, cleaning solvents or strong detergents to clean the phone. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.

07

3. Usage Warnings

For your safety

Mobicom 2189

• Do not paint the phone. Paint can clog the device’s moving parts and prevent proper operation.

• If the phone, battery, charger or any other accessory is not working properly, take it to the nearest service facility.

08

For your safety

©Mobicom Corp. 2005 www.mobicomcorp.com

Mobicom 2189

Getting started

1. Inserting the SIM card

2. Charging the Battery

3. Battery Care

4. Phone Elements

5. Keypad Illustration

Getting started

09

Mobicom 2189

10

1. Inserting the SIM card Note: Before installing the SIM card, make sure that the phone is

switched off, and disconnected from the charger or any other device.

Remove the back cover:

(1) press the top and the bottom of the battery cover; (2) slide to open

Remove the battery.

(3) pull up the right side of the battery to take it out

Insert the SIM card

(4) place the SIM card into the slot, with the gold side down and the beveled edge to the right.

(5) push the SIM card to the left

Getting started

©Mobicom Corp. 2005 www.mobicomcorp.com

Mobicom 2189

11

(6) the SIM card stops at the left end of the slot

Replace battery

(7) put the battery back in, left side ﬁ rst, to make sure it goes into the right spot.

Replace the back cover

(8) align the two side clip on the cover with the housing

(9) slide the cover up and snap it into place

Getting started

Mobicom 2189

2. Charging the Battery

12

(1). Charging the battery with the travel charger

• Plug the travel charger into the bottom outlet.

• The indication bar of battery scrolls when battery charging is in process; In this process the mobile phone can be used but this will increase the charging time.

• When the indication bar of battery stops scrolling, it means charging is complete; Please switch off the power before disconnecting the charger. The charging time may vary with the residual battery level.

(2). Low Battery Indicator

• When the battery is weak and only a few minutes of talk time remain, you will hear a warning tone and a message of low battery will be repeated at regular intervals on the display;

• When the battery is too weak for the phone to operate, it switches off automatically.

(3). Battery Usage

• The battery will consume more power when the phone is in talk mode. Therefore, the longer the talk time, the shorter the standby time;

• The lifetime of battery may vary with the external environment (i.e., number of charging cycles, ambient temperature, method of usage, signal strength and duration of keypad lighting). Note: Use only the supplied charger because other chargers may damage the phone.

Note: The Charger Connector is the left one of the two connectors on the bottom of the phone.Please ﬁ nd a small charger icon next to the charger connector to avoid plugging the charger into the audio connector

by mistake.

Getting started

Mobicom 2189

• Do not charge the battery at improper temperatures because it can affect the battery capability.

• Do not charge the battery in sunny or damp environment.

• Keep the battery away from open ﬂ ames. It is prohibited to disassemble the battery or put it together with explosive substances.

• Please do not knock the battery with a sharp object or place it under weight, otherwise the electronic circuits and internal parts and components can be damaged, shortening the lifetime of battery.

• The battery is designed to be charged and discharged many times, but will eventually wear out. You should replace the battery when talk time and standby time is noticeably shorter than normal.

• Please use the supplied accessories, in order to avoid damaging the phone and battery.

• Please keep the battery pins and metal parts clean.. Charging may not be performed if the battery is too dirty.

• Please place the battery in dry and cool environment. Extreme high or low temperature may damage the battery capability and reduce the lifetime of battery.

3. Battery Care

13

Getting started

50

02 .pro

C mo

ci

b

o

M

©

moc.p

rocmocibo

m.www

9812 m

ocibo

M

stne

melE en

ohP .4

41

4

6x69 yalpsiD on

oM

)kcab(

draynaL

yeK tfo

S

yeK tfo

S

y

eK noitagivaN

eceipraE

syeK c

ire

muN

rotcennoC tesdaeH

r

otcennoC

gnigrahC

d

e

tr

a

ts

gnitteG
