Mobicom 2188A Users Manual

Mobicom 2188

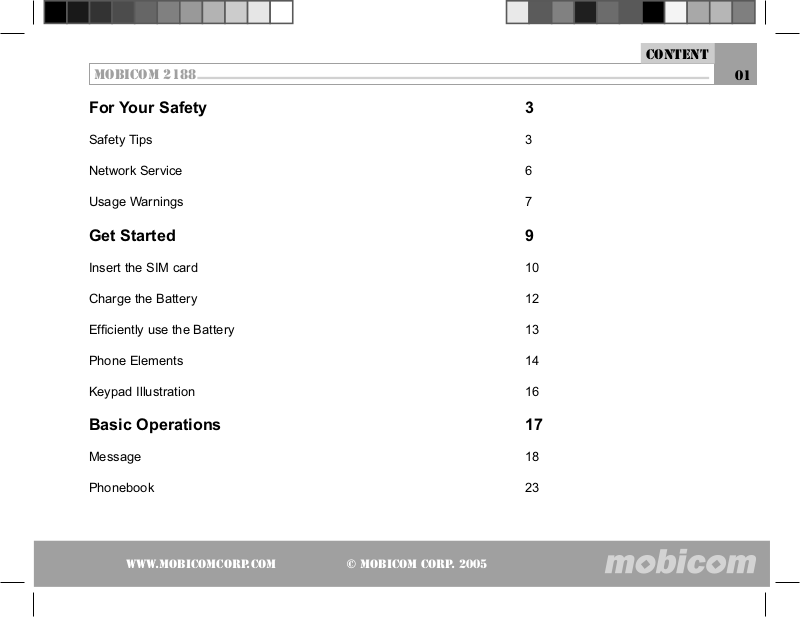

Content

01

For Your Safety

Safety Tips

Network Service

Usage Warnings

Get Started

Insert the SIM card

Charge the Battery

Efﬁ ciently use the Battery

Phone Elements

Keypad Illustration

Basic Operations

Message

Phonebook

3

6

7

9

10

12

13

14

16

17

18

23

©Mobicom Corp. 2005 www.mobicomcorp.com

02

Content

Mobicom 2188

For your safety

03

25

27

31

36

38

Call History

Network Service

Phone Settings

Organizer

Extra Features

©Mobicom Corp. 2005 www.mobicomcorp.com

For Your safety

©Mobicom Corp. 2005 www.mobicomcorp.com

1. Safety Tips

2. Network Service

3. Usage Warnings

For your safety

04

Mobicom 2188

For your safety

05

1. Safety Tips

Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information.

SWITCH ON SAFELY Do not switch the phone on when wireless phone use is prohibited or when it may cause interference or danger.

ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your ﬁ rst consideration while driving should be road safety.

INTERFERENCE Obey all local laws. Always keep your hands free to operate All wireless phones may be susceptible to interference, which could affect performance.

SWITCH OFF IN HOSPITALS Follow any restrictions. Switch the phone off near medical equipment.

SWITCH OFF IN AIRCRAFT Follow any restrictions. Wireless devices can cause interference in aircraft.

SWITCH OFF WHEN REFUELING Don’t use the phone at a refueling point. Don’t use near fuel or chemicals.

©Mobicom Corp. 2005 www.mobicomcorp.com

SWITCH OFF NEAR BLASTING Follow any restrictions. Don’t use the phone where blasting is in progress.

USE SENSIBLY Use only in the normal position as explained in the product documentation. Don’t touch the antenna unnecessarily.

QUALIFIED SERVICE Only qualiﬁ ed personnel may install or repair this product.

ENHANCEMENTS AND BATTERIES Use only approved enhancements and batteries. Do not connect incompatible products.

WATER-RESISTANCE Your phone is not water-resistant. Keep it dry.

BACK-UP COPIES Remember to make back-up copies or keep a written record of all important information stored in your phone.

EMERGENCY CALLS Ensure the phone is switched on and in service. Press the End key as many times as needed to clear the display and return to the main screen. Enter the emergency number, then press the Talk key. Give your location. Do not end the call until given permission to do so.

©Mobicom Corp. 2005 www.mobicomcorp.com

For your safety

06

Mobicom 2188

For your safety

07

2. Network Sevice

To use the phone you must have service from a wireless network operator. Many of the features in this device depend on features in the wireless network to function. These Network Services may not be available on all networks or you may have to make speciﬁ c arrangements with your network operators before you can utilize Network Services.

Your service provider may need to give you additional instructions for their use and explain what charges will apply. Some networks may have limitations that effect how you can use Network Services. For instance, some networks may not support all language-dependent characters and services.

Your network operators may have requested that certain features be disabled or not activated in your device. If so, they will not appear on your device menu. Contact your network operators for more information.

©Mobicom Corp. 2005 www.mobicomcorp.com

• Keep the phone and all its parts and accessories out of the reach of small children.

• Keep the phone clean. Do not use or store the phone in dusty, dirty areas, as its moving parts may be damaged.

• Keep the phone dry. Precipitation, moisture and liquids contain minerals that will corrode electronic circuits.

• Do not store the phone in hot areas. High temperature can shorten the life of electronic devices, damage batteries, warp or melt certain plastic parts.

• Do not store the phone in cold areas. When the phone warms up to its normal operating temperature, humidity can form inside the phone, which may damage electronic circuit boards.

• Phone should only be disassembled by an authorized service center. Inauthorized disassembly may void the warrenty.

• Do not drop, knock or shake the phone. Rough handling can break internal electronic boards.

• Do not use harsh chemicals, cleaning solvents or strong detergents to clean the phone. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.

©Mobicom Corp. 2005 www.mobicomcorp.com

3. Usage Warnings

For your safety

08

Mobicom 2188

• Do not paint the phone. Paint can clog the device’s moving parts and prevent proper operation.

• If the phone, battery, charger or any other accessory is not working properly, take it to your nearest qualiﬁ ed service facility.

Mobicom 2188

Get started

09

1. Insert the SIM card

2. Charge the Battery

3. Efﬁ ciently use the Battery

4. Phone Elements

5. Keypad Illustration

©Mobicom Corp. 2005 www.mobicomcorp.com

10

Get started

Mobicom 2188

Get started

11

1. Insert the SIM card Note: Before installing the SIM card, make sure that the phone is

switched off, and disconnected from the charger or any other device.

Remove the back cover:

(1) press the top and the bottom of the battery cover; (2) slide to open

Remove the battery.

(3) pull up the right side of the battery to take it out

Insert the SIM card

(4) place the SIM card into the slot, with the gold side down and the beveled edge to the right.

(5) push the SIM card to the left

©Mobicom Corp. 2005 www.mobicomcorp.com

(6) the SIM card stops at the left end of the slot

Replace battery

(7) put the battery back in, left side ﬁ rst, to make sure it goes into the right spot.

Replace the back cover

(8) align the two side clip on the cover with the housing

(9) slide the cover up to position it

©Mobicom Corp. 2005 www.mobicomcorp.com

12

Get started

Mobicom 2188

Get started

13

2. Charge the Battery

Note: The Charger Connector is the left one of the two connectors on the bottom of the phone.Please ﬁ nd a small charger icon next to the charger connector to avoid plugging the charger into the audio connector

by mistake.

©Mobicom Corp. 2005 www.mobicomcorp.com

(1). Charging the battery with the travel charger

• Plug the travel charger into the bottom outlet.

• The indication bar of battery scrolls when battery charging is in process; In this process the mobile phone can be used but this will increase the charging time.

• When the indication bar of battery stops scrolling, it means charging is complete; Please switch off the power before disconnecting the charger. The charging time may vary with the residual battery level.

(2). Low Battery Indicator

• When the battery is weak and only a few minutes of talk time remain, you will hear a warning tone and a message of low battery will be repeated at regular intervals on the display;

• When the battery is too weak for the phone to operate, it switches off automatically.

(3). Battery Usage

• The battery will consume more power when the phone is in talk mode. Therefore, the longer the talk time, the shorter the standby time;

• The lifetime of battery may vary with the external environment (i.e., number of charging cycles, ambient temperature, method of usage, signal strength and duration of keypad lighting). Note: Use only the supplied charger because other chargers may damage the phone.

• Do not charge the battery at improper temperatures because it can affect the battery capability.

• Do not charge the battery in sunny or damp environment.

• Keep the battery away from open ﬂ ames. It is prohibited to disassemble the battery or put it together with explosive substances.

• Please do not knock the battery with a sharp object or place it under weight, otherwise the electronic circuits and internal parts and components can be damaged, shortening the lifetime of battery.

• The battery is designed to be charged and discharged many times, but will eventually wear out. You should replace the battery when talk time and standby time is noticeably shorter than normal.

• Please use the supplied accessories, in order to avoid damaging the phone and battery.

• Please keep the battery pins and metal parts clean.. Charging may not be performed if the battery is too dirty.

• Please place the battery in dry and cool environment. Extreme high or low temperature may damage the battery capability and reduce the lifetime of battery.

©Mobicom Corp. 2005 www.mobicomcorp.com

3. Efﬁ ciently use the battery

14

Get started

Mobicom 2188

Get started

15

4. Phone Elements

Lanyard (back)

Earpiece

Mono Display 96x64

Soft Key Soft Key

Navigation Key

Numeric Keys

Charging Connecter

©Mobicom Corp. 2005 www.mobicomcorp.com

Headset Connecter

See Illustration on the left:

• Lanyard Holes (on the top of the back houseing)

Allows the lanyard to go through to carry the phone.

• Earpiece

Allows sound to be heard through the phone.

• LCD (Liquid Crystal Display)

Mono 96x64, displays the information and icons.

• Soft Keys

Perform the displayed functions.

• Navigation Keys

Help scrolling up and down Menu.

Shortcuts to Call History, Keypad and Ring Tone Setting, Messages, and Phone Book.

• Numeric Keys

Enter numbers, letters and characters. Quickly scroll through the menu options.

• Charging Connecter

Charge the phone by plugging the charger in the connecter.

• Headset Connecter

Allows the headset to be connected to the phone.

©Mobicom Corp. 2005 www.mobicomcorp.com

16

Get started

Mobicom 2188

Basic Operations

17

5. Keypad Illustration

Left Soft Key

Navigation Key

Send Key

• Send Key: Makes or answers a call.

• End Key: Stops prompt, ends a call or exits from the current menu. Used to switch phone on/off when pressing and holding down for longer.

• Left Soft Key: Performs the functions shown in the left bottom area of display. Scroll through menu options in idle mode.

• Right Soft Key: Performs the functions shown in the right bottom area of display.

• Navigation Keys: Scroll through the menu; shortcuts: Up Arrow Key: Keypad Tone setting and Ring tone setting. Down Arrow Key: Phone Book Left Arrow Key: Messages Right Arrow Key: Call History

©Mobicom Corp. 2005 www.mobicomcorp.com

Right Soft Key

End Key

Numeric Keys

Basic oPERATIONS

©Mobicom Corp. 2005 www.mobicomcorp.com

1. Messages

2. Phonebook

3. Call History

4. Network Service

5. Phone Settings

6. Organizer

7. Extra Features

Basic Operations

18

Mobicom 2188

Basic Operations

19

1. Messages

(1), Read (2). Write (3). Delete All (4). Settings (5). Broadcast (6). Voice Mail

The shortcut to Messages is the Left arrow key in idle mode.

(1). Read (read a message)

When a message is received, new messages will be displayed on the screen, and your phone will sound a tone in accordance with the settings you choose. Press read to quickly view the message contents.

I. To view the message immediately, select read

II. To view a saved message, From Menu, select messages >Read> Inbox or Draft

III. While viewing the message, select Options and one of the following:

• Delete — Delete the message you are viewing.

• Reply — While viewing a message, select Options > Reply. Compose your reply and send the message as described in “Write and send a message”.

• Edit — Edit the message.

• Forward — Forward the message to another recipient. i. While viewing a message, select Options > Forward ii. Edit the message if desired, and select Send. iii. Enter the recipient’s phone number or retrieve it from contacts, and select Send.

• Extr. Number --Automatically captures the numbers within the mes- sage. You can press Next to cycle through them and press Options to

©Mobicom Corp. 2005 www.mobicomcorp.com

i. Save the number ii. Call the number iii. Send a message to the number. You can also press the Send key directly to call this number.

• Call Number-- Call the number that sent you this message.

(2). Write (Write and send a message)

I. From Menu, select Messages > Write

II. Compose a message using the keypad. Entering text Press # to switch modes: Abc - ﬁ rst letter is capitalized ABC - upper case abc - lower case 123 - numeric entry Press * to select punction marks. Press 1 to enter a space (except in numeric entry mode).

III. For other options while composing the message, select Options and one of the following:

• Send — Send the message to more than one recipient.

• Save — Select Save to save the message in the Draft.

• Discard — Erase the text clipboard.

IV. To send the message, select Send, enter the recipient’s phone number or select Names to retrieve a number from contacts, and select Send

©Mobicom Corp. 2005 www.mobicomcorp.com

Basic Operations

20

Mobicom 2188

Basic Operations

21

Note: When sending messages, your device may display the line Sending Message.This is not an indication that the message has been received at the intended destination. For more details about messaging services, check with your network operators.

(3). Delete All

I. From Menu, select Messages > Delete All II. Select OK to delete all or Back to exit.

(4). Settings

I. From Menu, select Messages > Settings

II. If more than one message proﬁ le set is supported by your SIM card, select the set desired to change; then select one of the following:

• Service center—Save the phone number of the message center which is necessary for sending text messages; obtain this number from your network operators.

• Message validity—Deﬁ ne how long the network attempts to send your messages before it gives up.

• Status reports—Request the network to send delivery reports on your messages.

• Storage—Screen will display total space and free space.

• Save your message center number Messages sent by your phone are routed through your network operator message center. Normally, this number is saved to your phone by your

©Mobicom Corp. 2005 www.mobicomcorp.com

network operator. To save the number manually, do the following: I. From Menu, select Messages > Settings > Service center II. If the box in the display is empty or contains an incorrect number, enter the number given by your network operator, and select OK. OR If the box in the display contains the correct number, select OK. A message appears in the display conﬁ rming your number is saved.

(5). Broadcast

Broadcast messages are public messages delivered to all the end users, if the service is available from your network operator. The messages are categorized by different topics, such as weather forecast, bonus stock, ﬂ ight lines and so on. Please contact with your network operator for the category details.

From Menu, select messages>Broadcast The function options include the following:

I. Activate—Activate the message station: to receive messages. Shut down the message station: stop to receive the messages. II. Read—Read the messages send by the station. III. New Broadcast—check the programs categories, and add or delete programs in your cell phone. Please inquiry the network operator for the corresponding codes of programs. IV. List

©Mobicom Corp. 2005 www.mobicomcorp.com

Basic Operations

22

Mobicom 2188

Basic Operations

23

(6). Voice Mail

This option enables you to answer the voice mail. You should apply for this service from your network operator ﬁ rst, then you can use this function.

From Menu, select Messages> Voice Mail

There are two sub options of this option:

I. Voice Mail: When this option is selected, your phone will directly access to the set Voice Mail Box, then you can listen to the voice messages. If the Voice Mailbox is not yet set, a prompt will appear on the screen, requesting you to enter the Voice Mailbox Number ﬁ rst.

Note: You can quickly access your voice mail by pressing and holding down the “ 1 ” key.

II. Set voice mail box: Input the voice mail number provided by your network operators and press OK. This number will be saved.

©Mobicom Corp. 2005 www.mobicomcorp.com

You can save the phone numbers and corresponding names into the phone memory or SIM Card of your phone. Your phone memory allows you to store 100 names and phone numbers in total. The length and quantity of names and phone numbers to be stored into the SIM Card depends on the type of SIM Card provided.

The shortcuts to Phone Book are:

1. Press the Down arrow key at the idle screen

2. Select Names at the idle screen

(1). List -Find a name or select from a list.

From Menu, select PhoneBook > list Press Up/Down keys to scroll through the list of names. Press Send key to call the name or select Options by pressing the soft key to edit, as one of the following options:

• Send Message — Send a message to the number (See “Write and send a message”)

• Change — Edit the original information

• Details — From Menu, select Phonebook > List, and then check the details of the name you selected.

• Call Number — From Menu, select Phonebook > List, choose the desired number and select Call Number

• Copy — Copy entries from phone memory to SIM and vice versa.

• Move — Move entries from phone memory to SIM and vice versa with- out keeping them in the original locations.

• Delete — Delete a name and its associated numbers.

©Mobicom Corp. 2005 www.mobicomcorp.com

2. Phone Book

(1). List (2). Add new entry (3). My number (4). Memory Stat. (5). Select Book (6). One Touch Dial

Basic Operations

24

Mobicom 2188

Basic Operations

25

(2). Add New Entry From Menu, select PhoneBook > Add New Entry. or, you can also enter new numbers at idle screen and then press Save to add it to Phone Book.

(3). My Number From Menu, select PhoneBook > My Number Screen will suggest Edit or Back. Select Edit to edit the number.

(4). Memory Stat. From Menu, select PhoneBook > Memory Stat. The screen displays the content and available spaces of SIM card and the phone.

(5). Select Book From Menu, select PhoneBook > Select Book Use Up/Down arrow keys to select SIM card or cell phone. Phone book entries are stored in the selected phone book (SIM or phone’s memory)

(6). One Touch Dial Form Menu, select PB > 1 Touch Dial. Pick one from number keys 2 through 9, and then enter a phone number and press OK. To One Touch Dial a number in locations 2 through 9, press and hold down the appropriate number key.

©Mobicom Corp. 2005 www.mobicomcorp.com

Call History stores information about the last 10 missed, 10 received, and 10 dialed calls. It also adds the total duration of all calls. When the number of calls exceeds the maximum, the most recent call replaces the oldest. For Call History to work properly:

• Your network operators must support caller ID, and it must be enabled.

• Your calls cannot be blocked.

• Your phone must be on and within the service area.

The shortcut to Call History is the Right arrow key in idle mode.

(1). Missed Calls From Menu, select Call History > Missed Calls Missed Calls- Shows the phone numbers of unanswered calls.

(2). Answered Calls -Answered calls are calls that have been answered. I. From Menu, select Call History > Answered calls. II. Scroll to a name or number, and select Options and the desired option from the list.

(3). Outgoing Calls You can view dialed numbers in one of two ways: I. At the start screen, press the Talk key. OR From Menu, select Call History > Outgoing Calls. II. Scroll to a name or number, and select Options and the desired option from the list.

©Mobicom Corp. 2005 www.mobicomcorp.com

3. Call History

(1). Missed calls (2). Answered calls (3). Outgoing Calls (4). View calls options (5). Call timer

Basic Operations

26

Mobicom 2188

Basic Operations

27

(4). View calls options

Whether you are viewing missed, answered, or outgoing calls, the menu options are as the following:

Store Number — Enter a name for the number and save it to contacts. Send message — Send a message to the number. Details — Display the date\ number and time of the call. Delete — Clear the number from memory.

To clear any missed, outgoing, or answer calls from phone memory, select Call History > missed\outgoing or Answer > Delete

Delete All- To clear any missed, outgoing, or answer calls from phone memory, select Call History > Missed / Outgoing or Answer > Delete all

(5). Call Timers Call timers—View the duration of recent calls and clear the call timers. From Menu, select Call History > Call timers

©Mobicom Corp. 2005 www.mobicomcorp.com

(1). Divert

I. Not Reachable This allows you to forward incoming calls when your phone is power off or in an area where the network is unreachable.

• From Menu, select Network service > Divert

• Scroll to operate these options: Status, Set, Cancel

II. If busy Forward all calls when you are on a call. This allows you to forward the incoming calls when your phone is busy. When this function is activated, Your phone will forward the incoming call even when you refuse to answer it.

• From Menu, select Network service > Divert > If Busy

• Scroll to operate these options: Status, Set, Cancel

III. If No Answer Forward all calls to another number if you do not answer. You can also set a delay before forwarding takes place.

• From Menu, select Network Service > Divert > If No Answer

• Scroll to operate these options: Status, Set, Cancel

IV. All Calls This network service allows you to forward the incoming call to another phone number, enabling you to correctly handle the incoming call when you are unable to answer. When this function is activated, an icon will be displayed when the phone is in idle mode.

4. Network Service

(1). Divert (2). Network Sel. (3). Call barring (4). Call waiting (5). Hide ID

Basic Operations

28

Mobicom 2188

Basic Operations

29

This function allows forwarding all the incoming calls in any instance.

• From Menu, select Network service > Divert > All Calls

• Scroll to operate these options: Status, Set, Cancel

V. Cancel All Cancel any call forwarding options you may have set. From Menu, select Network service > Divert > Cancel All to cancel all settings.

(2). Network Sel. This option enables you to select or search your service network.

• From Menu, select Network service > Network Sel > Automatic or

Manual

You can choose Manual Net Sel or Auto Net Sel to search network

(3). Call Barring This service allows you to restrict your phone to make or answer any or some calls. You need to enter the network password if you want to use this function. You need to apply for the password from your network operator. From Menu, select Network service > Call Barring, the menu options are as the following:

I. Outgoing — When this option is activated, you are unable to dial any number

II. Intern. Calls — When this option is activated, you are unable to dial any international number.

III. Intern. But Home — It allows you to make a call only to your country and dial the domestic numbers when you are roaming.

IV. Incoming Call — When this option is activated, you are unable to answer any incoming call.

V. When Roaming — When this option is activated, and you are abroad, you are unable to answer any call except it comes domestically.

VI. Cancel All — When this option is activated, all the calling restrictions set before will be canceled. You need network password for this function.

VII. Change Password — enter original Phone Lock code, after it’s conﬁ rmed correct, enter new code for twice.

Except Cancel All, other options include the same following items: Sta- tus ,Set ,Cancel. When the functions are activated, you need to enter network password.

Basic Operations

30

Mobicom 2188

Basic Operations

31

(4). Call Waiting If supported by your network operators, call waiting notiﬁ es you of an incoming call even while you are in a call. You can accept, reject, or ignore the incoming call.

I. Check Status You can see whether call waiting is active, and for which type of calls. From Menu, select Network service > Call Waiting>Check Status

II. Activate or Deactivate From Menu, select Network service > Call Waiting > Activate or Deac- tivate.

(5). Hide ID From Menu, select Network service > Hide ID, and one of the following: I. Check Status II. Activate III. Deactivate This function can control whether receiver is able to see your number or not, please consult your network operator for this service.

(1). Languages

From Menu, select Phone Settings>Languages and one of the following:

• English

• Spanish

(2). Tones

I. Ringer From Menu, select Phone Settings>Ton es>Ringer, and one of the fol- lowing:

• Melody — Enables you to set how the phone informs you of an incom- ing call.

• Volume — Enables you to set tone volume level of incoming call

II. SMS tone From Menu, select Phone Settings > Ton es > SMS tone

• Melody — Enables you to set different SMS tones.

• Volume — Enables you to set tone volume level of SMS tone

III. Alarm From Menu, select Phone Settings > Ton es > Alarm

• Melody—Select an alarm tone from list.

• Volume— Enables you to set tone volume level.

5. Phone Settings

(1). Languages (2). Tones (3). Clock (4). Security (5). Auto Redial (6). Any-key Answer (7). Screen Saver (8). Factory reset

Basic Operations

32

Mobicom 2188

Basic Operations

33

IV. Keypad Tone From Menu, select Phone Settings>Ton es>Keypad Tone There are 2 choices:

• Tones--you can select Silent, Click, or DTMF

• Volume--you can adjust the volume by pressing up and down arrow

keys on the navigation key. The shortcut of the Keypad Tone control is the Up arrow key in idle mode.

(3). Clock

From Menu, select Phone Settings>Clock. This menu enables you to set date and time.

Enter Date: Enter the date, and select OK. Enter Time: Enter the time in hh:mm format, and select OK.

(4). Security

I. Fixed Names Once you set up and activate a ﬁ xed dialing list, your phone can make calls only to those numbers that you have deﬁ ned in the ﬁ xed dialing list. Fixed dialing is a network feature and must be supported by your network operators. This option allows you to restrict your outgoing calls to a limited set of phone numbers, if supported by your SIM Card. You need to enter your PIN2 before enabling or disenabling it.

• From Menu, Phone Settings > Security > Fixed Names After a brief pause, the following options appear in the display.

(I). Yes—Activate ﬁ xed dialing. (II). No—Deactivate ﬁ xed dialing. (III). FDN Number You can select On or Off. You need to enter PIN2 code in order to select On. When this function is activated, you can save, revise or delete numbers in Fixed Dialing list.

II. PIN From Menu, select Phone Settings > Security > PIN, The menu options are as follows: Status, Activate, Deactivate, Change- You will need to input your PIN code before you can perform any of PIN options. When this function is activated, you need to input your PIN code every time the phone is switch on.

PIN change(I). At the prompt, enter the original PIN code, and select OK. (II). At the prompt, enter the new PIN code, and select OK. (III). At the prompt, enter the new PIN code again, and select OK.

III. PIN2 The PIN2 code is required for features such as ﬁ xed dialing. If you enter an incorrect PIN2 code three times in succession, the PIN2 code is blocked and you will have to enter the PUK2 code. The original PIN2 code must be obtained from your network operators.

Use this procedure to change your PIN2 code:

Basic Operations

34

Mobicom 2188

Basic Operations

35

From Menu, select Phone Settings> Security >PIN2 Change PIN2

• At the prompt, enter the original PIN2 code, and select OK.

• At the prompt, enter the new PIN2 code, and select OK.

• At the prompt, enter the new PIN2 code again, and select OK.

(5). Auto Redial From Menu, select Phone Settings> Security > Auto Redial You can select On or Off. When this function is activated, your phone will automatically redial the number up to 10 times after 10 attempts the function will be terminated. (This function must be supported by your network operator). Press (END) key to stop auto redial.

(6). Any-key Answer Any-key answer allows you to answer an incoming call by brieﬂ y pressing any key except the End key. From Menu, select Phone settings > Any-key answer > On or Off.

(7). Screen Saver From Menu, select Phone settings>Screen Saver Select On to activate or Off to deactivate.

(8). Factory Reset You can reset some of Menu settings to their original values. However, data that you have entered or downloaded are not affected. For example, names and numbers in contacts are not affected. I. From Menu, select Phone settings > Restore factory

II. press OK to enter. Press again to reset some functions to factory set- tings.

Note: The stored phonebook information and messages will not be affected by restoring the factory settings.

Basic Operations

36

Mobicom 2188

Basic Operations

37

6. Organizer

(1). Alarm (2). Power On (3). Power Off (4). Caculator (5). Calendar (6). Global Time (7). Game

(1). Alarm I. Alarm From Menu, select Organizer > Alarm > Alarm Enter alarm time and choose frequency, Once, or Daily. II.Tones From Menu, select Organizer > Alarm > tones and one of the following:

• Melody— Enables you to set how the phone informs you of an alarm.

• Volume— Enables you to set tone volume level of alarm. III. Clear Alarm From Menu, select Organizer > Alarm > Clear Alarm

(2). Power On I. From Menu, select Organizer > Power On Choose ON and set put ON time , and press OK key . II. From Menu, select Organizer > Power on > Ton es and one of the following:

• Melody— Enables you to set how the phone informs you of ON music.

• Volume— Enables you to set tone volume level of ON music.

(3). Power Off I. From Menu, select Organizer > Power Off Choose Power Off and set off time , and press OK key . II. From Menu, select Organizer > Power Off > Clr Pwr off to clear power off setting

(4). Calculator The calculator adds, subtracts, multiplies, divides digits.

Note: This calculator has limited accuracy and is designed for simple calculations.

I. From Menu, select Organizer > Calculator II. In the calculator screen, enter the ﬁ rst number in the calculation.

Press the # key for a decimal point if necessary. III. To perform an arithmetic calculation, select Options to cycle through Equals, Plus, Minus, Divide By, Multiple By. IV. For an arithmetic calculation, enter the second number in your calculation and select Equals.The completed calculation appears in the display.

(5). Calendar The Calendar function allows the user to view a calendar through December 20049 From Menu, select Organizer > Calendar Current date, week, and month date are displayed

Note: Date checking ranges from 31st. Jan. 1900 to 31st. Dec. 2049

(6). Global Time This function provides you conveniences to consult the local time of main big cities in the world, in order to better control the time during your business trip, travel and business negotiation. From Menu, select Organizer >Global Time you can select the city you want to view.

(7). Games Two games, Four In A Row and Tetris, are available in this model. From Menu, select Organizer >Games>Four In A Row or Tetris.

Basic Operations

38

Mobicom 2188

FCC notice and SAR sTATEMENT

39

7. Extra Features (1). Shortcuts

In idle Mode: Up Arrow Key: Keypad Tone setting and Ring Tone setting. You can set them Normal or Slient. Down Arrow Key: Phone Book menu Left Arrow Key: Messages menu Right Arrow Key: Call History menu

(2). Key Lock and Unlock To lock the keypad: Select Menu and then press key To unlock the keypad: Select Unlock and then press key.

*

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modiﬁ cations not expressly approved by Mobicom Corporation will void the user’s authority to operate the equipment. Use only Mobicom approved chargers.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Notice and SAR sTATEMENT

40

Mobicom 2188

THIS PHONE MODEL HAS BEEN CERTIFIED TO BE IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.

Before a phone model is available to sale to the public, it must be tested and certiﬁ ed that it does not exceed government limits for exposure to radio frequency (RF) energy. Speciﬁ c Absorption Rate (SAR) is a value that corresponds to the relative amount of RF energy absorbed by the user of a wireless phone. The Federal Communications Commission of the United States government and Health Canada set SAR limits. The limits include a safety margin designed to assure the safety of all persons, regardless of age and health. The maximum allowed SAR value set by the FCC is 1.6 W/kg. Tests for SAR values are conducted using FCC approved operating positions at the highest possible power levels. Although the SAR is determined at the highest certiﬁ ed power level, the actual SAR level of the phone while operating is likely well below the maximum value.

The highest SAR values as reported to the FCC for this model phone are in full compliance with FCC limits.

For more information about RF exposure, visit the FCC website at www. fcc.gov. Additional information on Speciﬁ c Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) website: http://www.ctia.org/wireless_consumers/health_and_safety/index.cfm or the Canadian Wireless Telecommunications Association (CWTA) website: http://www.cwta.ca
