SPLIT-TYPE AIR CONDITIONERS
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS For customers
•
To use this unit correctly and safely, be sure to read this operating instructions before use.
Bedienungsanleitung Für Kunden
•
NOTICE D’UTILISATION A l’attention des clients
•
Pour avoir la certitude d’utiliser cet appareil correctement et en toute sécurité, veuillez lire attentivement cette notice d’instructions avant de mettre l’appareil en fonction.
GEBRUIKSAANWIJZING Voor de klant
•
Om dit apparaat op de juiste manier en veilig te gebruiken, dient u eerst deze gebruiksaanwijzing aandachtig door te lezen.
MANUAL DE INSTRUCCIONES Para los clientes
•
Para emplear correctamente este aparato y por razones de seguridad debe leer este manual de instrucciones de manejo antes de su utilización.
LIBRETTO D’ISTRUZIONI Per gli utenti
•
Per utilizzare correttamente quest’unità, leggere questo libretto d’istruzioni atten­tamente e per intero.
√¢∏°π∂™ §∂π∆√Àƒ°π∞™ °È· ÙÔÓ ÂÏ¿ÙË
•
°И· У· ¯ЪЛЫИМФФИ‹ЫВЩВ ·˘Щ‹ ЩЛУ МФУ¿‰· ЫˆЫЩ¿ О·И МВ ·ЫК¿ПВИ·, ‚В‚·ИˆıВ›ЩВ fiЩИ ¤¯ВЩВ ‰И·‚¿ЫВИ ·˘Щfi ЩФ ВБ¯ВИЪ›‰ИФ Ф‰ЛБИТУ ЪИУ ·fi ЩЛУ ¯Ъ‹ЫЛ.
INSTRUÇÕES DE OPERAÇÃO Para os clientes
•
BRUGSANVISNING Til kunden
•
Læs denne brugsanvisning før brugen så korrekt og forsvarlig anvendelse af klima­anlægget sikres.
BRUKSANVISNING För kunder
•
För att använda enheten på rätt och säkert sätt ska denna bruksanvisning läsas innan enheten tas i bruk.
‹fiLETME TAL‹MATLARI Sat›n al›c›lar için
•
Bu birimi do¤ru ve güvenli olarak çal›flt›rmak için, kullanmadan önce bu iflletme talimatlar›n› mutlaka okuyun.
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ Для пользователей
•
Для обеспечения правильного и безопасного использования прибора следует до начала его эксплуатации внимательно прочитать данное руководство.
English
Deutsch
Français
Nederlands
Español
Italiano
∂ППЛУИО¿
Português
Dansk
Svenska
Türkçe
INDOOR UNIT
MSZ-A09YV MSZ-A12YV
Русский
2
FRONT PANEL
ENCLOSURE
ENCLOSURE
AIR OUTLET
•
This air conditioner is NOT intended for use by children or infirm persons without supervisions.
Do not use intermediate connection of the power supply cord or the extension cord and do not connect many devices to one AC outlet.
• A fire or an electric shock may result from poor contact, poor insulation, exceeding the permissible current, etc.
Do not scratch or process the power supply cord, etc.
• Do not put heavy object on the power supply cord and do not scratch or process the cord. The cord may be damaged and this may cause a fire or an electric shock.
Do not turn the breaker off/on or disconnect/connect the power supply plug during operation.
• This may cause a fire due to spark, etc.
• Be sure to turn off the breaker or disconnect the power supply plug absolutely after switching the indoor unit off with the remote controller.
Do not expose your skin directly to cool air for a long time.
• This could damage your health.
The customer should not install this unit.
• If this is done incorrectly, it may cause a fire, an electric shock, or injury from the unit falling, water leaking, etc. Consult your dealer.
Do not insert your finger or a stick, etc. into the air inlet/outlet.
• Since the fan rotates at high speed, this may cause an injury.
• Young children should be supervised to ensure that they do not play with the air conditioner.
When an abnormality (burning smell, etc.) occurs, stop the air conditioner and disconnect the power supply plug or turn off the breaker.
• If the unit continues to be operated in an abnormal condition, it may cause a fire, trouble, etc. In this case, consult your dealer.
Repairs or relocation should not be done by the customer.
• If this is done incorrectly, it may cause a fire, an electric shock, or injury from the unit falling, water leaking, etc. Consult your dealer.
• If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
When the air filter is to be removed, do not touch the metal parts of the indoor unit.
• This may cause an injury.
Do not use an insecticide or flammable spray.
• This may cause a fire or deformation of the cabinet.
Do not put a pet or houseplant where it will be exposed to direct airflow.
• This could injure the pet or plant.
Do not leave the unit on an installation stand which is damaged.
• The unit may fall and this may cause an injury.
Do not step onto an unstable bench when maintaining the unit, etc.
• This may cause an injury, etc. if you fall down.
Do not pull the power supply cord.
• The core wire of the power supply cord may be disconnected and this may cause a fire.
Do not charge or disassemble the batteries and do not throw them into a fire.
• This may result in leakage, fire or an explosion.
Do not operate the unit for a long time in high humidity, e.g. leaving a door or window open.
• In the cooling mode, if the unit is operated in a room with high humidity (80% RH or more) for a long time, water condensed in the air conditioner may drop and wet or damage furniture, etc.
Do not operate the unit at low outside temperature (less than -10°C) in the cooling mode.
• In the cooling mode, if the unit is operated at low outside temperature (less than -10°C), water con­densed in the air conditioner may drop and wet or damage furniture, etc.
WARNING
CAUTION
CONTENTS
SAFETY PRECAUTIONS ........................................................................................................................................................ 2
NAME OF EACH PART ............................................................................................................................................................ 3
PREPARATION BEFORE OPERATION .................................................................................................................................. 4
I FEEL... AUTO OPERATION................................................................................................................................................... 6
AUTO CHANGEOVER... AUTO MODE OPERATION .............................................................................................................. 7
MANUAL OPERATION (COOL, DRY, HEAT) ........................................................................................................................... 7
AIR FLOW VELOCITY AND DIRECTION ADJUSTMENT ...................................................................................................... 8
ECONO COOL OPERATION................................................................................................................................................... 8
TIMER OPERATION (ON/OFF TIMER) ................................................................................................................................... 8
WHEN THE AIR CONDITIONER IS NOT GOING TO BE USED FOR A LONG TIME ............................................................ 9
MAINTENANCE ....................................................................................................................................................................... 9
CLEANING THE FRONT PANEL, HEAT EXCHANGER AND FAN ......................................................................................... 9
CLEANING THE CATECHIN AIR FILTER.............................................................................................................................. 10
REPLACEMENT OF THE AIR CLEANING FILTER ............................................................................................................... 10
CLEANING THE AIR OUTLET AND FAN OF THE INDOOR UNIT ....................................................................................... 11
BEFORE CONTACTING THE SERVICE REPRESENTATIVE, CHECK THE FOLLOWING AGAIN...................................... 12
WHEN YOU THINK THAT TROUBLE HAS OCCURRED ...................................................................................................... 12
INSTALLATION, RELOCATION AND INSPECTION .............................................................................................................. 13
SPECIFICATIONS ................................................................................................................................................................. 13

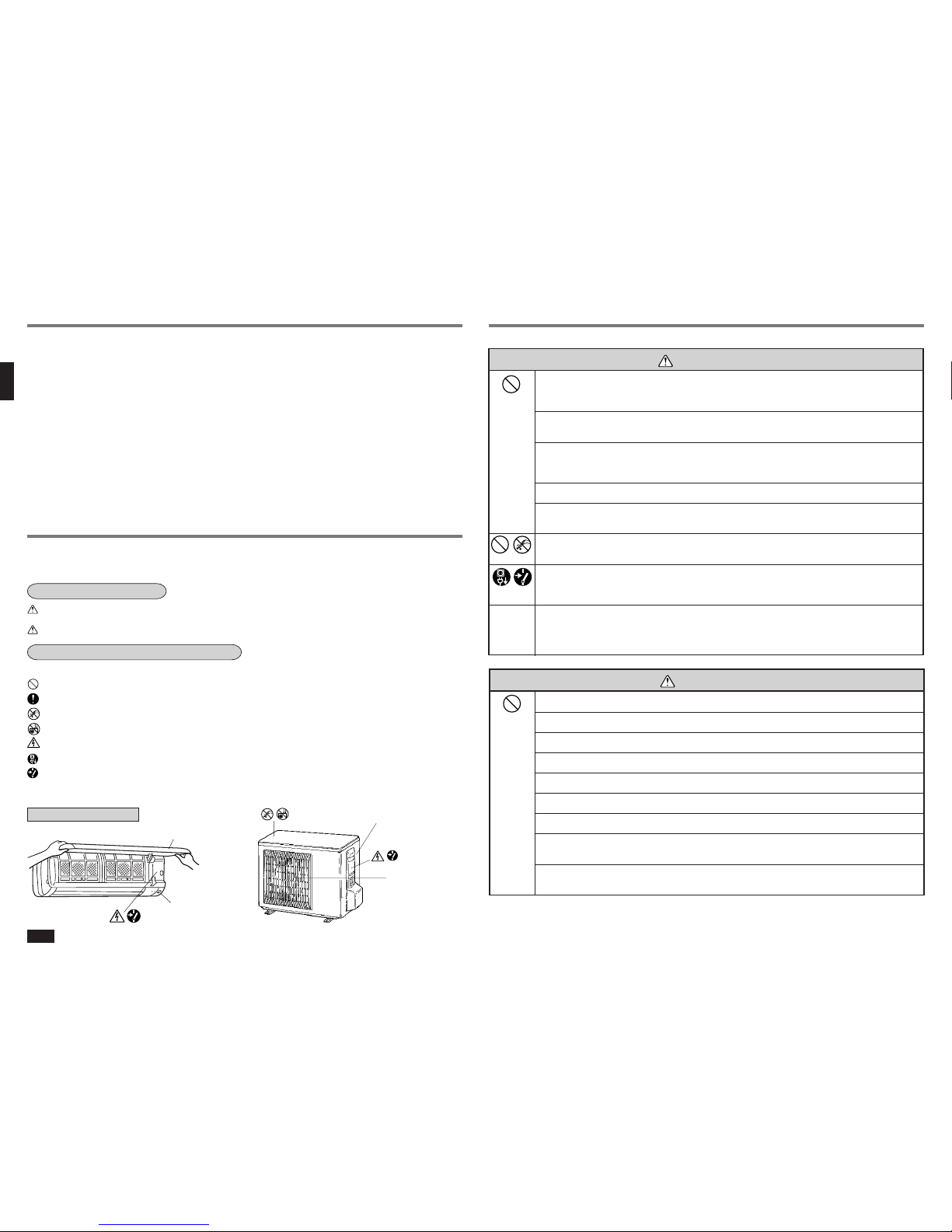

SAFETY PRECAUTIONS
• Since rotating parts and parts which could cause an electric shock are used in this product, be sure to read these “Safety Precautions” before use.
• Since the cautionary items shown here are important for safety, be sure to observe them.
Marks and their meanings
WARNING: Incorrect handling could cause a serious hazard, such as death, serious injury, etc. with a high prob-
ability.
CAUTION: Incorrect handling could cause a serious hazard depending on the conditions.
Meanings of symbols used in this manual
• The colour of the sticker affixed to the unit is written in the parentheses.
: Be sure not to do.
: Be sure to follow the instruction.
(Black) : Never insert your finger or stick, etc.
(Black) : Never step onto the indoor/outdoor unit and do not put anything on them.
(Yellow) : Danger of electric shock. Be careful.
(Blue) : Be sure to disconnect the power supply plug from the power outlet.
(Blue) : Be sure to shut off the power.
• After reading this manual, keep it together with the installation manual in a handy place for easy reference.
Warning mark positions
3
Do not use the unit for special purposes.
• Do not use this air conditioner to preserve precision devices, food, animals, plants and art objects. This may cause deterioration of quality, etc.
Do not put a stove, etc. where they are exposed to direct airflow.
• This may cause imperfect combustion.
When the unit is to be cleaned, switch it off and disconnect the power supply plug or turn off the breaker.
• Since the fan rotates at high speed during operation, this may cause an injury.
When the unit is not going to be used for a long time, disconnect the power supply plug or turn off the breaker.
• Otherwise, dirt may collect and this may cause a fire.
Replace the 2 batteries with new ones of same type.
• Using an old battery together with a new one may result in heat generation, leakage or an explosion.
If liquid from the batteries gets onto your skin or clothes, wash it well with clean water.
• If liquid from the batteries gets into your eyes, wash them well with clean water and consult a doctor at once.
Ventilate well in using the unit with a stove, etc.
• An oxygen shortage may occur.
Do not operate switches with wet hands.
• This may cause an electric shock.
Do not clean the air conditioner with water.
• Water may enter the unit and degrade the insulation. This may cause an electric shock.
Do not step or put anything on the indoor/outdoor unit.
• This may cause an injury, etc. if you or something falls down.
WARNING
• Consult your dealer for installation of the air conditioner.
CAUTION
Do not install the unit where flammable gas could leak.
• If gas leaks and collects around the unit, it may cause an explosion.
Earth the unit.
• Do not connect the earth to a gas pipe, water pipe, lightning rod or the earth of a telephone. If the earthing is incorrect, it may cause an electric shock.
Install an earth leakage breaker depending on the place where the air conditioner is to be installed (humid places, etc.).
• If the earth leakage breaker is not installed, it may cause an electric shock.
Drain should be fully drained.
• If the drainage route is incomplete, water may drop from the unit. This may wet and damage the furniture.
CAUTION
For installation

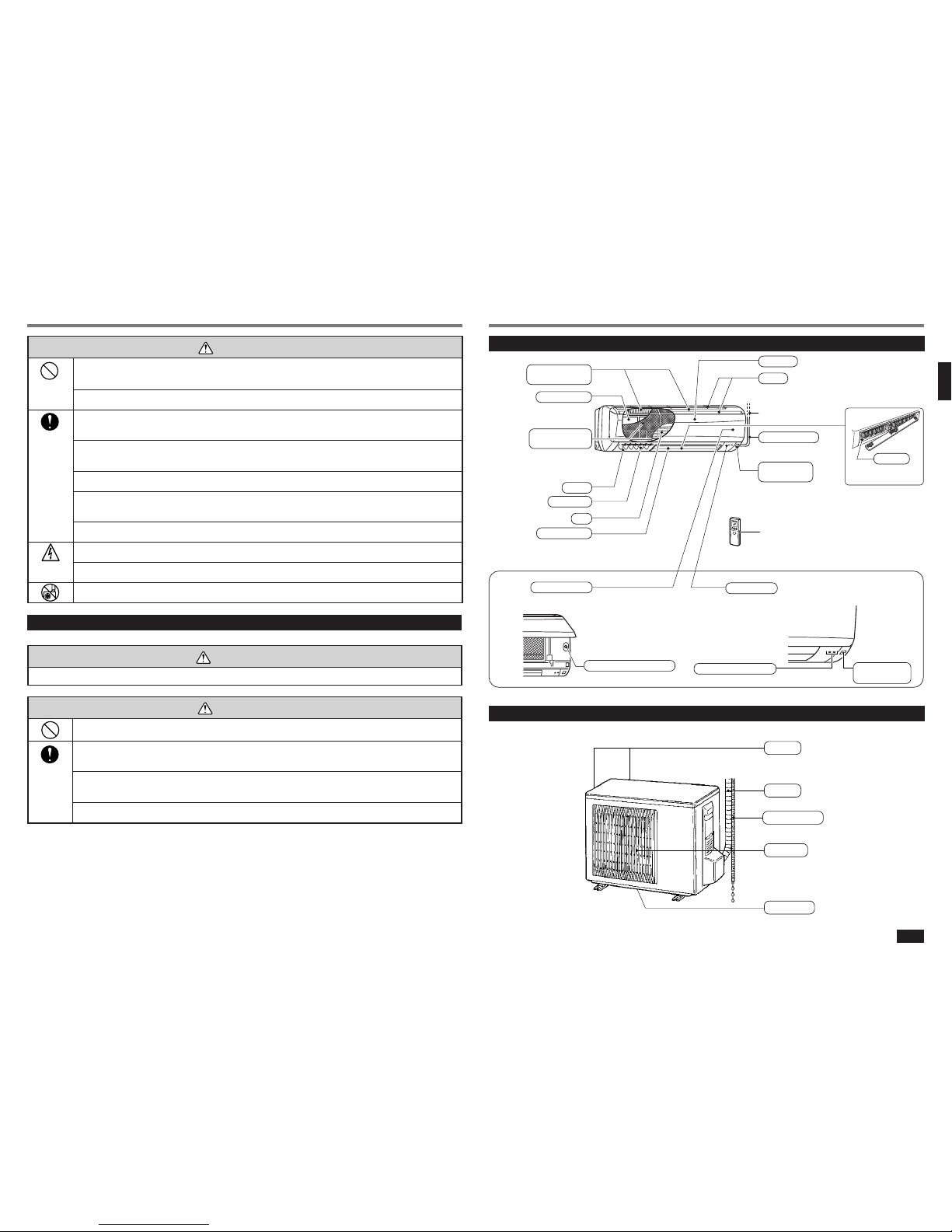

SAFETY PRECAUTIONS NAME OF EACH PART
Indoor unit
Outdoor unit
Air cleaning filter (White bellows type)
Vertical vane
Operation section
(When the front panel is opened)
Front panel
Air inlet
to Breaker
Power supply cord
Remote control receiving section
Display section
Air outlet
Emergency operation switch
Operation Indicator lamp
Remote control receiving section
Air inlet (back and side)
Piping
Drainage hose
Air outlet
Drain outlet
Horizontal vane
Remote controller
Catechin air filter (With deodorizer)
Heat exchanger
Fan
Fan guard
4

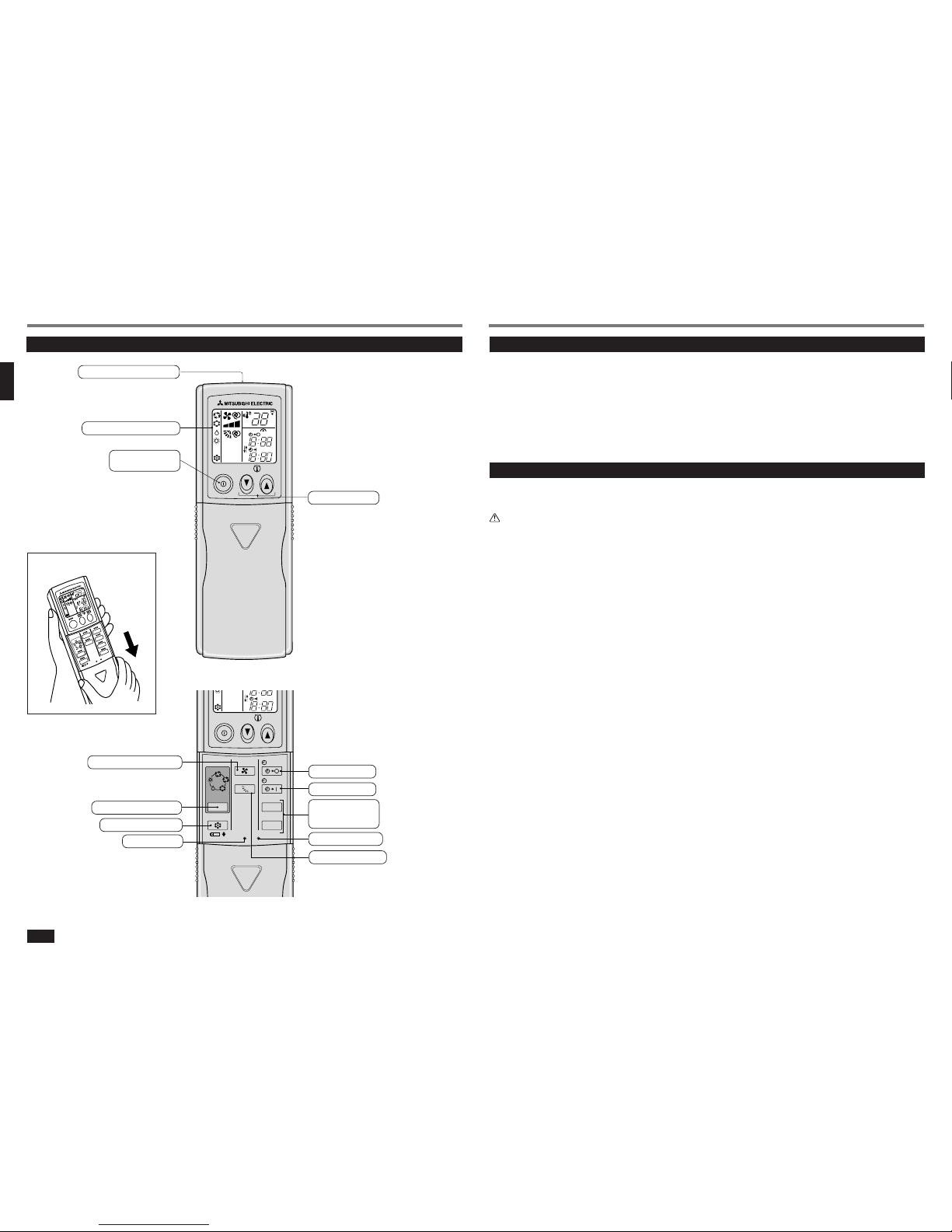

ON/OFF
FAN
TOO
WARM
TOO
COOL
VANE
MODE
ECONO COOL
STOP
START
HR.
MIN.
AMPM
RESET CLOCK
I FEEL
COOL
DRY
AUTO
HEAT
Signal transmitting section
Operation display section
Operation select button
Fan speed control button
ECONO COOL button
On-timer button
CLOCK set button
HR.button MIN.button (Time set buttons)
Temperature buttons
Vane control button
Off-timer button
RESET button
(This diagram shows an overall view.)
NAME OF EACH PART
Remote controller
PREPARATION BEFORE OPERATION
Auto restart function
■
These models are equipped with an auto restart function. If you do not want to use this function, please consult the service representative because the setting of the unit needs to be changed.
Auto restart function is ...
When the indoor unit is controlled with the remote controller, the operation mode, the set temperature and the fan speed are stored in the memory. If a power failure occurs or the main power is turned off during operation, “Auto restart function” sets automatically to start operating in the same mode as the one set with the remote controller just before the shutoff of the main power. (Refer to page 6 for details.)
Indoor unit
■
Insert the power supply plug into the power outlet and/or turn the breaker on.
WARNING: Remove dirt from the power supply plug and insert the plug securely. If dirt adheres to the plug or insertion is incomplete, it may cause a fire or an electric shock.
ON/OFF (operate/
stop) button
ON/OFF
TOO COOL
AMPM
CLOCK
˚C
AMPM
TOO
WARM
Open the front lid.
5
Remote controller

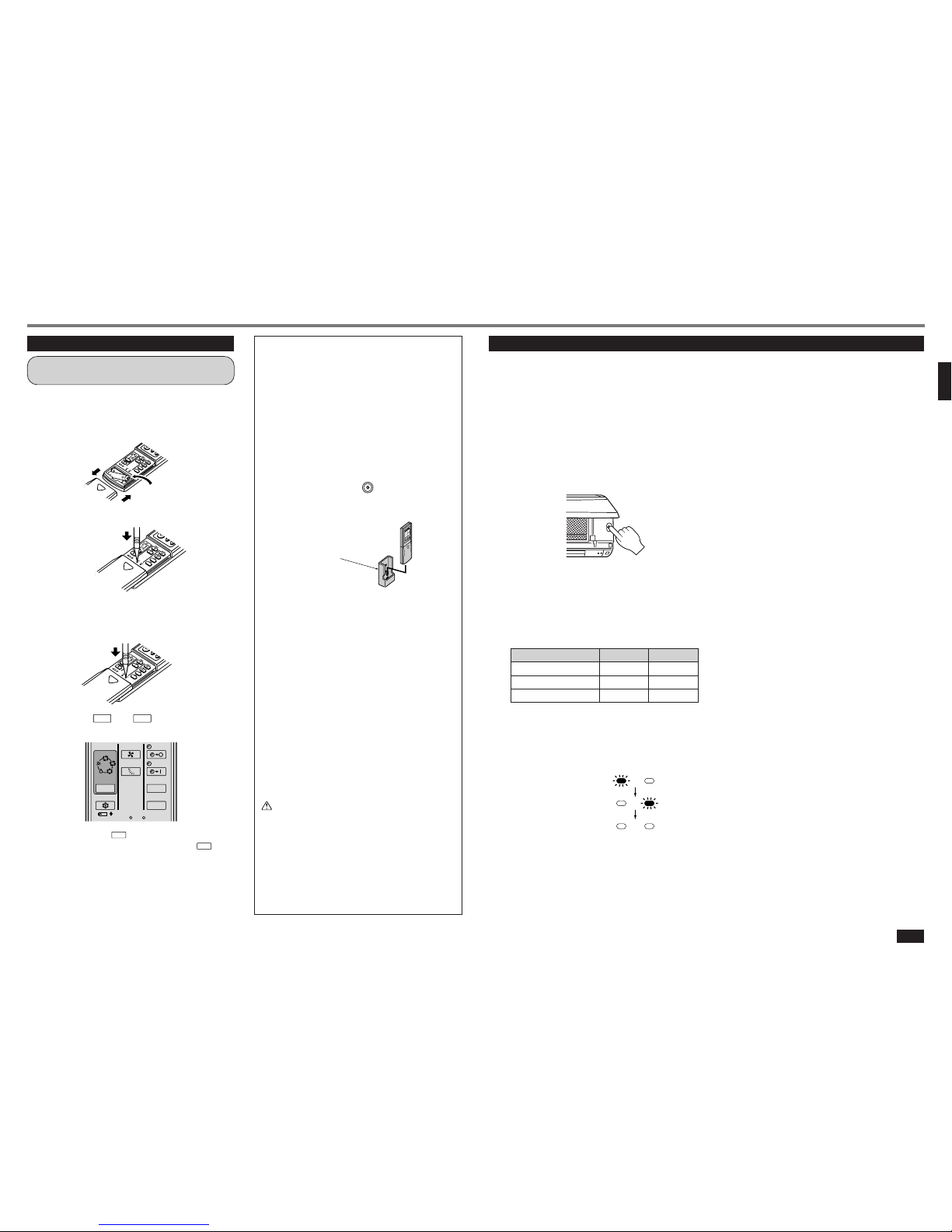

How to set the batteries and the current time
1 Remove the front lid and insert batteries.
Then reattach the front lid.
Insert the minus pole of the batteries first. Check if the polarity of the batteries is correct.
2 Press the RESET button.
• If the RESET button is not pressed, the remote con­troller may not operate correctly.
3 Press the CLOCK set button.
4 Press the
HR.
and
MIN.
buttons (TIME SET
buttons) to set the current time.
• Each time the
HR.
button is pressed, the set time
increases by 1 hour, and each time the
MIN.
button
is pressed, the set time increases by 1 minute.
5 Press the CLOCK set button again and close
the front lid.
Press using a thin stick.
Press using a thin stick.
Insert the minus pole of the batteries first.
Remote controller holder
1 Press the EMERGENCY OPERATION switch.
• Each time the EMERGENCY OPERATION switch is pressed, the unit will operate in order of EMER­GENCY COOL MODE, EMERGENCY HEAT MODE and STOP MODE. However, when the EMERGENCY OPERATION switch is once pressed, the unit will operate in test run for 30 minutes and then the operation mode shifts to EMERGENCY MODE.
• Details of EMERGENCY MODE are as shown be­low. However, the temperature control does not work for 30 minutes in test run and the unit is set to continuous operation. The fan speed is set to High in test run and shifts to Medium after 30 min­utes.
Operation mode COOL HEAT
Set temperature 24°C24°C
Fan speed Medium Medium
Horizontal vane Auto Auto
• The operation mode is indicated by the Operation Indicator lamp on the indoor unit as following fig­ure.
Operation Indicator lamp
When the remote controller cannot be used (emergency operation)
When the batteries of the remote controller run out or the remote controller malfunctions, the emergency operation can be done using the EMERGENCY OPERATION switch.
2 To stop the emergency operation, press the
EMERGENCY OPERATION switch once (in case of EMERGENCY HEAT MODE) or twice (in case of EMERGENCY COOL MODE).
Operation Indicator
Operation Indicator
Operation Indicator
EMERGENCY HEAT
EMERGENCY COOL
STOP
Handling of the remote controller
• The range that the signal can reach is about 6 m when the remote controller is pointed at the front of the in­door unit.
• When a button is pressed, one or two beeps will be heard from the indoor unit. If no sound is heard, op­erate again.
• Use the remote controller carefully. If it is dropped, thrown or it gets wet, the remote con­troller may not operate.
When installing on a wall, etc.
• Install the remote controller holder in a position where the signal reception sound (beep) can be heard from the indoor unit when the
ON/OFF
button is pressed.
How to install/remove the remote controller
Installing :Insert the remote controller downward. Removing :Pull it up.
Dry-cell batteries
■ Reference for replacing batteries Replace the batteries with new AAA alkaline batteries in the following cases:
· When the indoor unit does not respond to the remote
control signal.
· When the display on the remote controller becomes
dim.
· When a button of the remote controller is pressed, all
displays appear on the screen, and then disappear immediately.
Do not use manganese batteries. The remote controller could malfunction.
• The service life of an alkaline battery is about 1 year. However, a battery whose time limit is approaching may be exhausted soon. The recommended usable time limit is indicated (month/year) on the bottom of the battery.
• To prevent liquid leakage, take out all batteries when the remote controller is not going to be used for a long time.
CAUTION: If liquid from the batteries gets onto your skin or clothes, wash it well with clean water. If liquid from the batteries gets into your eyes, wash them well with clean water and consult a doctor at once.
• Do not use rechargeable batteries.
• Replace the 2 batteries with new ones of the same
type.
• Dispose of exhausted batteries in the correct man­ner.
PREPARATION BEFORE OPERATION
FAN
VANE
MODE
ECONO COOL
STOP
START
HR.
MIN.
RESET CLOCK
I FEEL
COOL
DRY
AUTO
HEAT
6
With the “ (I FEEL...)” auto operation mode, the optimum room condition can be set automatically with a one-touch operation.
To start operation:
■
Press the
ON/OFF
button.
When the “ (I FEEL...)” mode is selected, the air conditioner is automatically controlled at the optimum temperature.
To stop operation:
■
Press the
ON/OFF
button.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
If you feel slightly warm:
■
Press the
TOO
WARM
button to lower the temperature.
One press lowers the temperature by about 1°C.
If you feel slightly cool:
■
Press the
TOO COOL
button to raise the temperature.
One press raises the temperature by about 1°C.

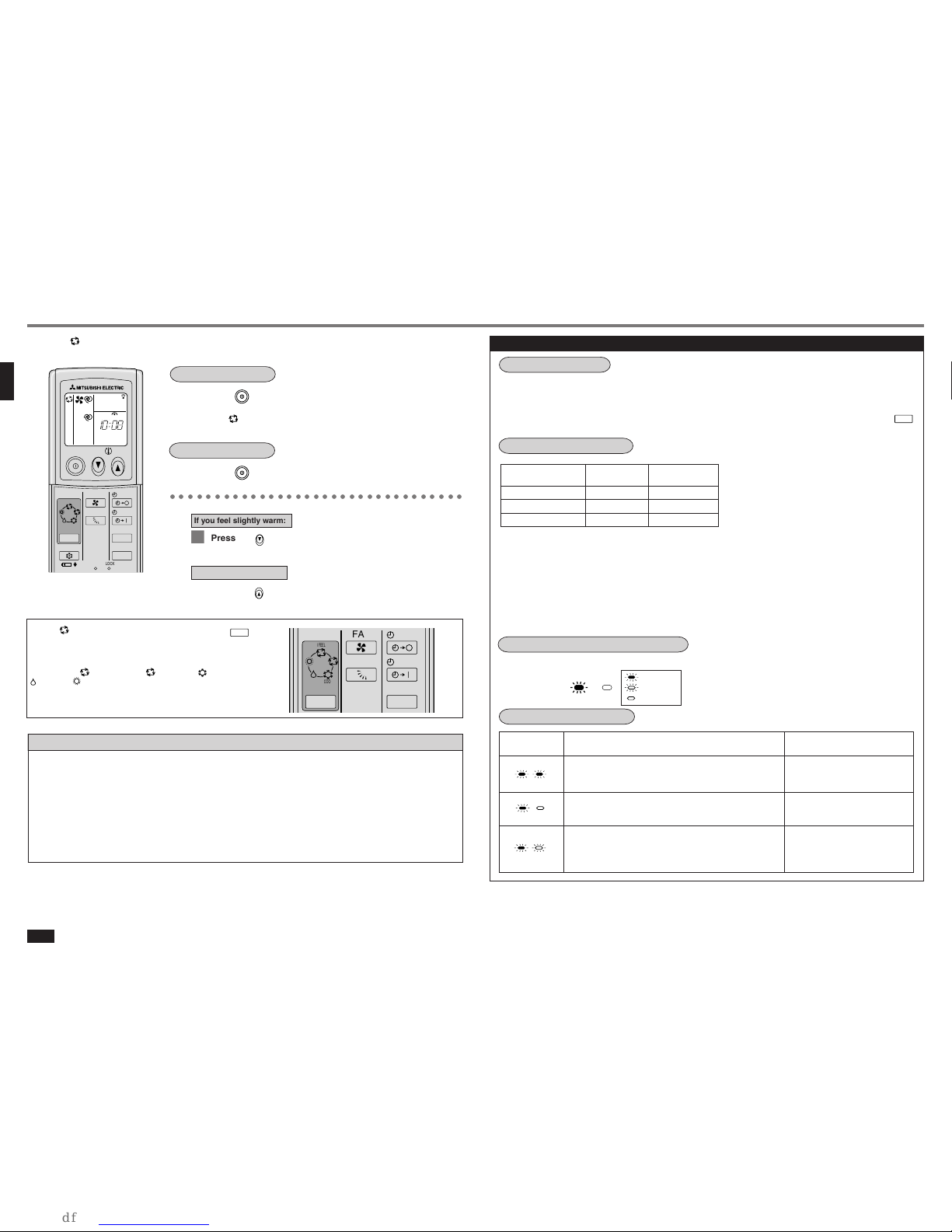

I FEEL... AUTO OPERATION
Details of operation
According to the room temperature when the operation starts, the operation mode is automatically set to COOL, DRY or HEAT. However, when operation is started again within 2 hours after it is stopped, the same operation mode before the operation is stopped is selected. The operation mode selected first is not changed even if the room temperature changes. If the operation mode does not match the room condition, select the appropriate operation mode by pressing the
MODE
button.
Details of auto operation
Operation state
This shows that the air conditioner is operating to reach the target temperature. Please wait until the target temperature is obtained.
This shows that the room temperature is approaching the target temperature.
(In case of outdoor unit MXZ series only) This shows a state of standby for operation. Please refer to Information for multi system air conditioner. (Page 7)
Indication
Difference between target
temperature and room temperature
About 2°C or more
About 2°C or less
—
Lighted Blinking
Not lighted
Operation Indicator
Description of “I FEEL...” mode
When “ (I FEEL...)” is not selected, press the
MODE
button until it is set.
Each time the button is pressed, the operation mode is changed in sequence:
(I FEEL...) → (AUTO) → (COOL) →
(DRY) → (HEAT)
NOTE: COOL: When the room temperature is 2°C higher than the set temperature, the set temperature may not be
changed since the air conditioner is operating to reach the target (set) temperature. In this case, please wait until the room temperature drops to within 2°C of the set temperature and then change the set temperature.
HEAT: When the room temperature is 2°C lower than the set temperature, the set temperature may not be
changed since the air conditioner is operating to reach the target (set) temperature. In this case, please wait until the room temperature rises to within 2°C of the set temperature and then change the set temperature.
Details of display on the indoor unit
The operation indicator at the right side of the indoor unit indicates the operation state.
Operation indicator lamp
Description of “AUTO RESTART FUNCTION”
• These units are equipped with an auto restart function. When the main power is turned on, the air conditioner will start operation automatically in the same mode as the one set with the remote controller before the shutoff of the main power.
• If the unit was set to off with the remote controller before the shutoff of the main power, it will remain stopped even after the main power is turned on.
• If the unit was in the emergency operation before the shutoff of the main power, it will start operation, when main power comes on, in the same mode as the one set with the remote controller before the emergency operation.
• If the unit is operated in “I FEEL...” or “AUTO” mode before power failure, the operation mode (COOL, DRY or HEAT) is not stored in the memory. When the main power is turned on, the unit decides the operation mode by the initial room temperature at restart and starts operation again.
Room temperature
Operation mode Target temperature
when started
(initial state)
About 25°C or higher COOL About 24°C
About 25°C to 23°CDRY —
About 23°C or lower HEAT About 26°C
ON/OFF
FAN
TOO
WARM
TOO
COOL
VANE
MODE
ECONO COOL
STOP
START
HR.
MIN.
AMPM
CLOCK
˚C
AMPM
I FEEL
COOL
DRY
AUTO
HEAT
RESET CLOCK
FAN
VANE
MODE
STOP
START
HR.
I FEEL
COOL
DRY
AUTO
HEAT
7

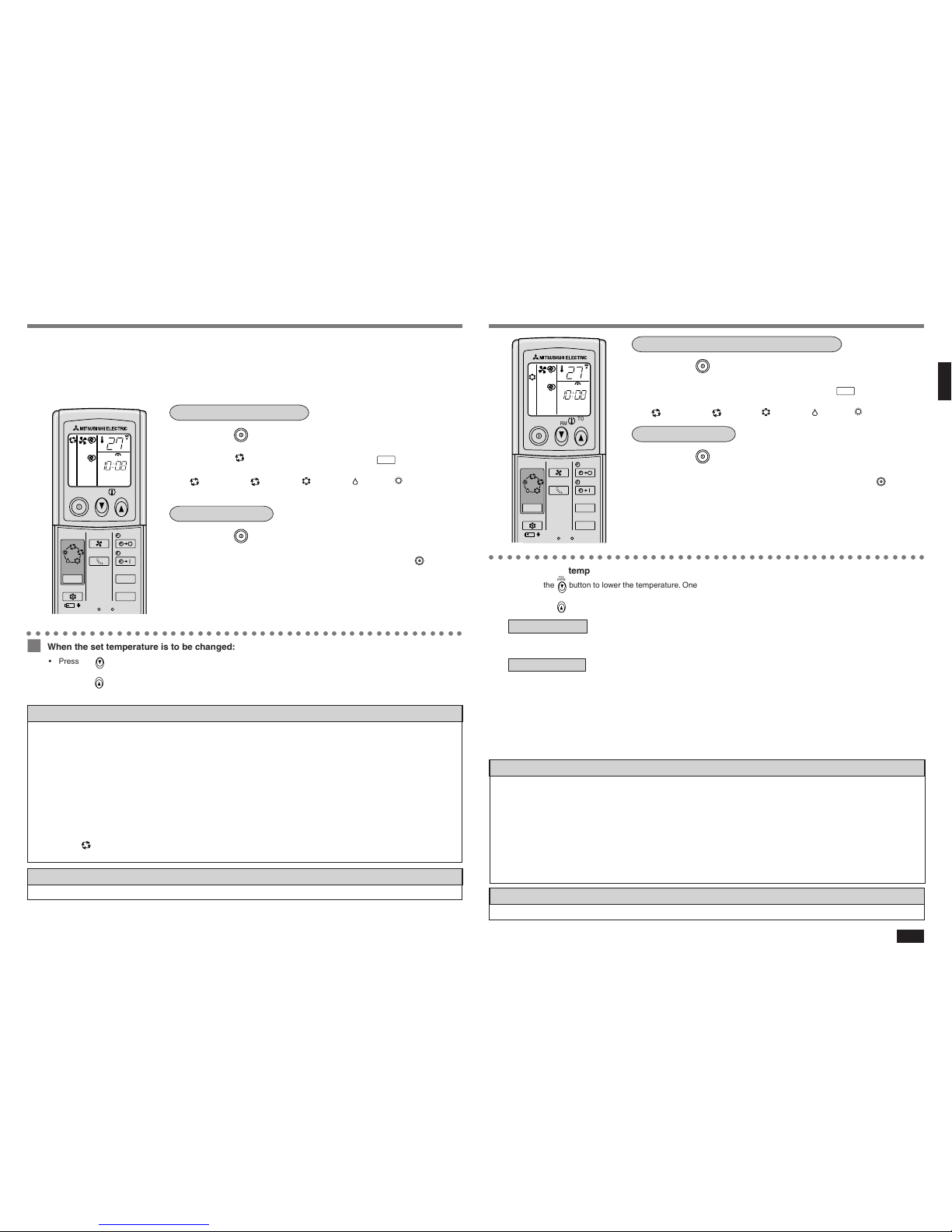

To select the AUTO mode:
1 Press the
ON/OFF
button.
2 Select the (AUTO) mode by pressing the
MODE
button.
Each time this button is pressed, the operation mode is changed in sequence:
(I FEEL...) → (AUTO) → (COOL) → (DRY) → (HEAT)
The set temperature is also displayed on the remote controller.
To stop operation:
■
Press the
ON/OFF
button.
After the operation mode is set once, the operation starts in the same mode as the one set previously from the next time by simply pressing the
ON/OFF
button.
AUTO CHANGEOVER... AUTO MODE OPERATION
An automatic cooling and heating changeover operation system ensures easy control and year-round air conditioning. Once the desired temperature is set, unit operation is switched automatically between cooling and heating according to the room temperature. In addition, fan control of the outdoor unit enables cooling operation at outside temperature as low as -10 °C.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
■
When the set temperature is to be changed:
• Press the
TOO
WARM
button to lower the temperature. One press lowers the temperature by about 1°C.
• Press the
TOO
COOL
button to raise the temperature. One press raises the temperature by about 1°C.
Description of “AUTO CHANGEOVER”
(1) Initial mode
1 When unit star ts the operation with AUTO operation from off;
• If the room temperature is higher than the set temperature, operation starts in COOL mode.
• If the room temperature is equal to or lower than the set temperature, operation starts in HEAT mode.
(2) Mode change
1 COOL mode changes to HEAT mode when 15 minutes have passed with the room temperature 2 degrees below the
set temperature.
2 HEAT mode changes to COOL mode when 15 minutes have passed with the room temperature 2 degrees above the
set temperature.
NOTE: If two or more indoor units are operating in multi system, there might be a case that the indoor unit, which is operating in
(AUTO), cannot change over to the other operating mode (COOL↔HEAT) and becomes a state of
standby. Refer to the detailed information for multi system air conditioner explained on the right.
Description of “AUTO RESTART FUNCTION”
Refer to page 6.
To select the COOL, DRY or HEAT mode:
1 Press the
ON/OFF
button.
2 Select the operation mode by pressing the
MODE
button.
Each time this button is pressed, the operation mode is changed in sequence:
(I FEEL...) → (AUTO) → (COOL) → (DRY) → (HEAT)
To stop operation:
■
Press the
ON/OFF
button.
After the operation mode is set once, the operation starts in the same mode as the one set previously from the next time by simply pressing the
ON/OFF
button.
MANUAL OPERATION (COOL, DRY, HEAT)
ON/OFF
FAN
TOO
WARM
TOO
COOL
VANE
MODE
ECONO COOL
STOP
START
HR.
MIN.
AMPM
CLOCK
˚C
AMPM
I FEEL
COOL
DRY
AUTO
HEAT
RESET CLOCK
ON/OFF
FAN
TOO
WARM
TOO
COOL
VANE
MODE
ECONO COOL
STOP
START
HR.
MIN.
AMPM
CLOCK
˚C
AMPM
I FEEL
COOL
DRY
AUTO
HEAT
RESET CLOCK
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
■
When the set temperature is to be changed:
• Press the
TOO
WARM
button to lower the temperature. One press lowers the temperature by about 1°C.
• Press the
TOO
COOL
button to raise the temperature. One press raises the temperature by about 1°C.
In COOL operation
• When the outside temperature is low, the fan of the outdoor unit turns on and off frequently to maintain sufficient cooling capacity.
In DRY operation
• The temperature control (temperature setting) cannot be done.
• The room temperature is slightly lowered in this operation mode.
■
The details of the display on the indoor unit are explained on page 6.
NOTE: When the ambient temperature is too high, the room temperature may not reach the set temperature since the unit operates to cool the room under a high load.
Information for multi system air conditioner (Outdoor unit: MXZ series)
Multi system air conditioner (Outdoor unit: MXZ series) can connect two or more indoor units with one outdoor unit. According to the capacity, two or more units can operate simultaneously.
• When you try to operate two or more indoor units with one outdoor unit simultaneously, one for the cooling and the other for heating, the operation mode of the indoor unit that operates earlier is selected. The other indoor units that will start the operation later cannot operate, indicating an operation state. (Refer to the table of Operation Indicator lamp on page 6.) In this case, please set all the indoor units to the same operation mode.
• When indoor unit starts the operation while the defrosting of outdoor unit is being done, it takes a few minutes (max. 10 minutes) to blow out the warm air.
• In the heating operation, the indoor unit that does not operate may get warm or the sound of refrigerant flowing may be heard. This is not a malfunction since the refrigerant continuously flows into the indoor unit that does not operate.
Description of “AUTO RESTART FUNCTION”
Refer to page 6.
8
1 2
3
4
5

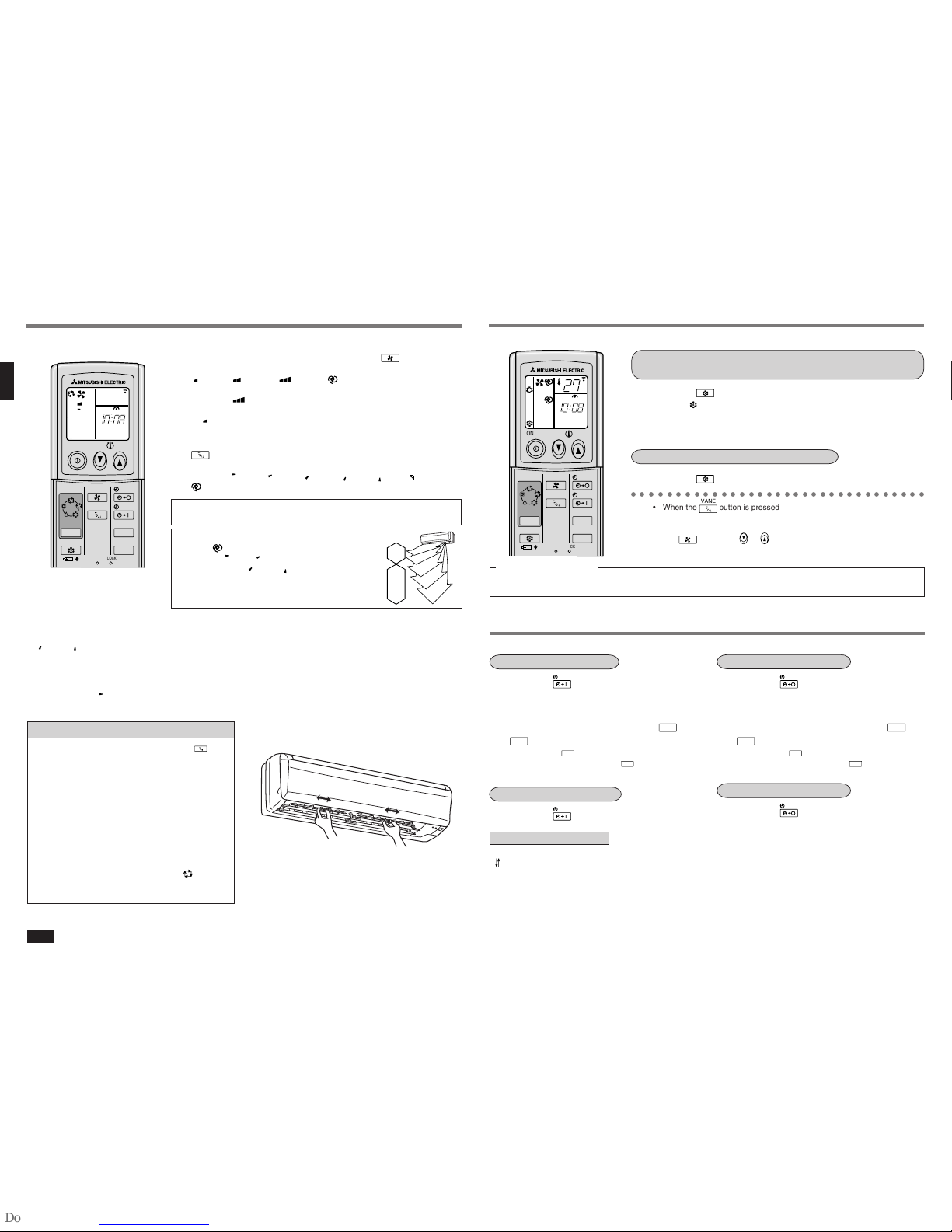

AIR FLOW VELOCITY AND DIRECTION ADJUSTMENT
AIR FLOW velocity and direction can be selected as required.
■
To change the AIR FLOW velocity, press the
FAN
button.
Each time the button is pressed, the fan speed is changed in sequence:
(Low) → (Med.) → (High) → (AUTO)
• Use the
(High) notch to cool/heat the room more.
• If the operating sound of the air conditioner disturbs your sleep, use the (Low) notch.
■
To change the AIR FLOW blowing direction vertically, press the
VANE
button.
Each time the button is pressed, the angle of the horizontal vane is changed in sequence:
(1) → (2) → (3) → (4) → (5) → (SWING) →
(AUTO)
SWING OPERATION
Use the swing operation for the air flow to reach all corners of the room.
Recommended horizontal vane range
Use the
(AUTO) position usually.
Use position
(1) or (2) in the COOL or DRY mode
and use positions
(3) to (5) in the HEAT mode
when adjusting to your requirements.
HEAT
NOTE:
• In the cooling operation, when the air conditioner is operated with setting the horizontal vane to (4) or (5) for 1 hour, the AIR FLOW direction is automatically set to horizontal to prevent condensed water from
dropping.
• Adjust the vertical AIR FLOW direction using the remote controller. If the horizontal vane is moved manually, it may
cause trouble.
• In the heating operation, if the air flow temperature is too low or when defrosting is being done, the horizontal vane
position is set to
(1).
COOL
DRY
Auto air flow direction control operation
When the AUTO mode is selected with the
VANE
but­ton, the position of the horizontal vane is automati­cally set to correspond to the operation mode for effective operation. (1) HEAT
• When the air flow temperature is too low, the air is
blown out horizontally.
• When the air flow temperature rises, the air is blown
out downwards.
(2) COOL, DRY
The air is blown out horizontally.
NOTE:
• When the operation mode changes in “
(AUTO)” mode, the horizontal vane is automatically changed to the position in each mode.
■
To change the horizontal direction of the air flow, move the vertical vane manually.
Adjust the vane before operation starts. Since the horizontal vane moves automatically, your fingers may be caught.
ECONO COOL OPERATION
Use this operation when you want to be comfortable in COOL mode even with energy saved.
TIMER OPERATION (ON/OFF TIMER)
It is convenient to set the timer when you go to bed, when you get home, when you get up, etc.
How to set the ON timer
1 Press the
START
button during operation.
Each time the button is pressed, the ON timer mode alternates between ON and OFF.
2 Set the time of the timer using the
HR.
and
MIN.
buttons.
Each time the
HR.
button is pressed, the set time in-
creases by 1 hour; each time the
MIN.
button is pressed,
the set time increases by 10 minutes.
To release the ON timer:
■
Press the
START
button.
How to set the OFF timer
1 Press the
STOP
button during operation.
Each time the button is pressed, the OFF timer mode alternates between ON and OFF.
2 Set the time of the timer using the
HR.
and
MIN.
buttons.
Each time the
HR.
button is pressed, the set time in-
creases by 1 hour; each time the
MIN.
button is pressed,
the set time increases by 10 minutes.
To release the OFF timer:
■
Press the
STOP
button.
Perform the following operations while the unit is operat­ing in the MANUAL COOL mode.
■
Press the
ECONO COOL
button.
When the (ECONO COOL) operation is selected in COOL mode, the air conditioner performs swing operation in various cycle according to the tempera­ture of air conditioner. Also SET TEMPERATURE is automatically set 2°C higher than in COOL mode.
To release the ECONO COOL operation:
■
Press the
ECONO COOL
button again.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
• When the
VANE
button is pressed or the operation mode is changed during
the ECONO COOL operation, ECONO COOL operation is released.
• The
FAN
button, the
TOO
WARM
or
TOO
COOL
button and ON/OFF timer (explained below)
are available.
Programming timer operation
The ON timer and the OFF timer can be used in combination. The timer of the set time that is reached first will operate first. (“ ” mark indicates the order of timer operations.)
• If the current time has not been set, the timer operation cannot be used.
NOTE: If the main power is turned off or a power failure occurs while AUTO START/STOP timer is active, the timer setting is cancelled. As these models are equipped with an auto restart function, the air conditioner starts operating with timer cancelled at the same time that power is restored.
What is “ECONO COOL”?
Swing air flow (change of air flow) makes you feel cooler than constant air flow. So, even though the set temperature is automatically set 2°C higher, it is possible to perform cooling operation with keeping comfort. As a result, energy can be saved.
ON/OFF
FAN
TOO
WARM
TOO
COOL
VANE
MODE
ECONO COOL
STOP
START
HR.
MIN.
AMPM
CLOCK
˚C
AMPM
I FEEL
COOL
DRY
AUTO
HEAT
RESET CLOCK
ON/OFF
FAN
TOO
WARM
TOO
COOL
VANE
MODE
ECONO COOL
STOP
START
HR.
MIN.
AMPM
CLOCK
˚C
AMPM
I FEEL
COOL
DRY
AUTO
HEAT
RESET CLOCK
9
WHEN THE AIR CONDITIONER IS NOT GOING TO BE USED FOR A LONG TIME
When it is not going to be used for a long time:
1 Perform the FAN operation for 3 or 4 hours
to dry the inside of the air conditioner.
• To perform FAN operation, set the remote control­ler to the highest temperature in the MANUAL COOL mode. (Refer to page 7.)
2 Turn off the breaker and/or disconnect the
power supply plug.
CAUTION: Turn off the breaker or disconnect the power supply plug when the air conditioner is not going to be used for a long time. Dirt may collect and this may cause a fire.
3 Remove the batteries from the remote con-
troller.
CAUTION: To prevent liquid leakage, take out all batteries when the remote controller is not going to be used for a long time.
When the air conditioner is to be used again:
1 Clean the air filter and install it in the indoor
unit.
(Refer to page 10 for cleaning instructions.)
2 Check that the air inlet and outlet of the in-
door/outdoor units are not blocked with any obstacles.
3 Check that the earth is connected correctly.
CAUTION: Earth the unit. Do not connect the earth to a gas pipe, water pipe, light­ning rod or the earth of a telephone. If the earthing is incorrect, it may cause an electric shock.
MAINTENANCE
Before starting maintenance
■
Turn off the breaker and/or disconnect the power supply plug.
CAUTION: When the unit is to be cleaned, switch it off and discon­nect the power supply plug or turn off the breaker. Since the fan rotates at high speed during operation, it may cause an injury.
Cleaning the indoor unit
■
Clean the unit using a soft dry cloth.
• If the dirt is noticeable, wipe the unit with a cloth soaked in a solution of mild detergent diluted in luke­warm water.
• Do not use gasoline, benzine, polishing powder, or insecticide. The unit may be damaged.
• The front panel may come off if it is lifted up past its level position. If the front panel comes off, refer to step 3 in CLEANING THE FRONT PANEL ex­plained on the right.
Front panel
1 Hold both ends of the front panel, lift the
panel up until its level, and then pull it to­wards you.
CAUTION:
• Do not drop the front panel or pull it out forcibly. The panel may be damaged.
• Do not step onto an unstable bench when removing or installing the front panel. This may cause an injury, etc. if you fall down.
2 Wipe the front panel with a soft dry cloth or
wash it with water. After washing the panel, wipe up the remain­ing water with a soft dry cloth and let it dry out of direct sunlight.
• If the dirt is noticeable, wipe the front panel with a cloth soaked in a solution of mild detergent diluted in lukewarm water.
• Do not use gasoline, benzine, thinner, polishing powder, or insecticide and do not wash the front panel with a scrubbing brush or the hard surface of a sponge.
• Do not soak the front panel in water/lukewarm wa­ter longer than two hours and do not expose the panel to direct sunlight, heat, or flames when dry­ing it. The panel may be deformed or discolored.
3 Hold both ends of the front panel, keep the
panel level, and insert the hinges into the holes on the upper part of the indoor unit until they click into place. (1) Then, close the front panel securely. (2)
1
2
Keep the panel level and insert the hinges into the holes.
CLEANING THE FRONT PANEL, HEAT EXCHANGER AND FAN
Hinge
Hole
Heat exchanger
You can sweep the surface of heat exchanger if you install the special-made brush to your vacuum cleaner. Please re­fer to the instructions described in Quick Clean Kit for de­tails.
WARNING:
• Do not touch the heat exchanger directly with your hands. Otherwise you may get injured. (It’s recom- mended to protect your hands with a pair of gloves.)
CAUTION:
• Do not step onto an unstable bench when cleaning. Otherwise you may fall down and get injured.
• Use only the special-made brush listed below. Do not use other stuffs. Otherwise the heat exchanger of the indoor unit may get damaged.
Optional product
Name of parts Quick Clean Kit Parts number MAC-093SS-E
Optional product is available from your local dealer.
NOTE: Only available for the hose diameter of vacuum cleaner : 32 - 39 mm (inside diameter).
Fan
Refer to page 11 for cleaning the fan.
Heat exchanger
1 Pull
3 Insert
10
1 Remove the catechin air filter.
2 Remove the air cleaning filter (White bellows
type).
REPLACEMENT OF THE AIR CLEANING FILTER
When the capacity is lowered because of dirt, etc., it is necessary to replace the air cleaning filter.
Air cleaning filter replacement (about once every 4 months)
Catechin air filter
Air cleaning filter
CLEANING THE CATECHIN AIR FILTER
Cleaning the catechin air filter (about once every 2 weeks)
3 After washing with water/lukewarm water,
dry the catechin air filter well in the shade.
• Do not expose the catechin air filter to direct sun­light or heat from a fire when drying it.
4 Install the catechin air filter.
1 Remove the catechin air filter.
CAUTION: When the catechin air filter is to be removed, do not touch the metal parts of the indoor unit. This may cause an injury.
2 Remove dirt from the catechin air filter us-
ing a vacuum cleaner or by washing the fil­ter with water.
• If the dirt is noticeable, wash the filter with a solu­tion of mild detergent diluted in lukewarm water.
• If hot water (50 °C or more) is used, the filter may be deformed.
Open the front panel, then remove/replace the filter.
Catechin air filter
Remove.
Install.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
What is “Catechin air filter”?
The air filter is dyed with a natural material, catechin, that is contained in tea. The catechin air filter deodorizes odor and noxious gases such as formaldehyde, ammonia, and acetaldehyde. Moreover, it restraints the activity of the viruses adhering to the filter.
3 Install a new air cleaning filter.
4 Install the catechin air filter and securely
close the front panel.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Air cleaning filter
• If the air cleaning filter is clogged, it may lower the unit’s capacity or cause condensation at the air outlet.
• The air cleaning filter is disposable. The standard usable term is about 4 months. However, if the colour of the filter tur ns
to dark brown, replace the filter at once.
Optional parts Optional parts are available from your local dealer.
Name of parts AIR CLEANING FILTER
Parts number MAC-1300FT
11
1 Manually tilt the horizontal vanes downward, and make sure the fan has stopped.
2 Remove the horizontal vanes. Be sure to hold each horizontal vane when unlocking the stoppers.
Upper vane
Follow procedures
1
to
3
to remove the upper vane.
Lower vane
Follow procedures
4
to
6
to remove the lower vane.
3 Swing the vertical vanes out one by one.
1
Grab the green tab of each vertical vane and pull it towards you to swing out each vertical vane.

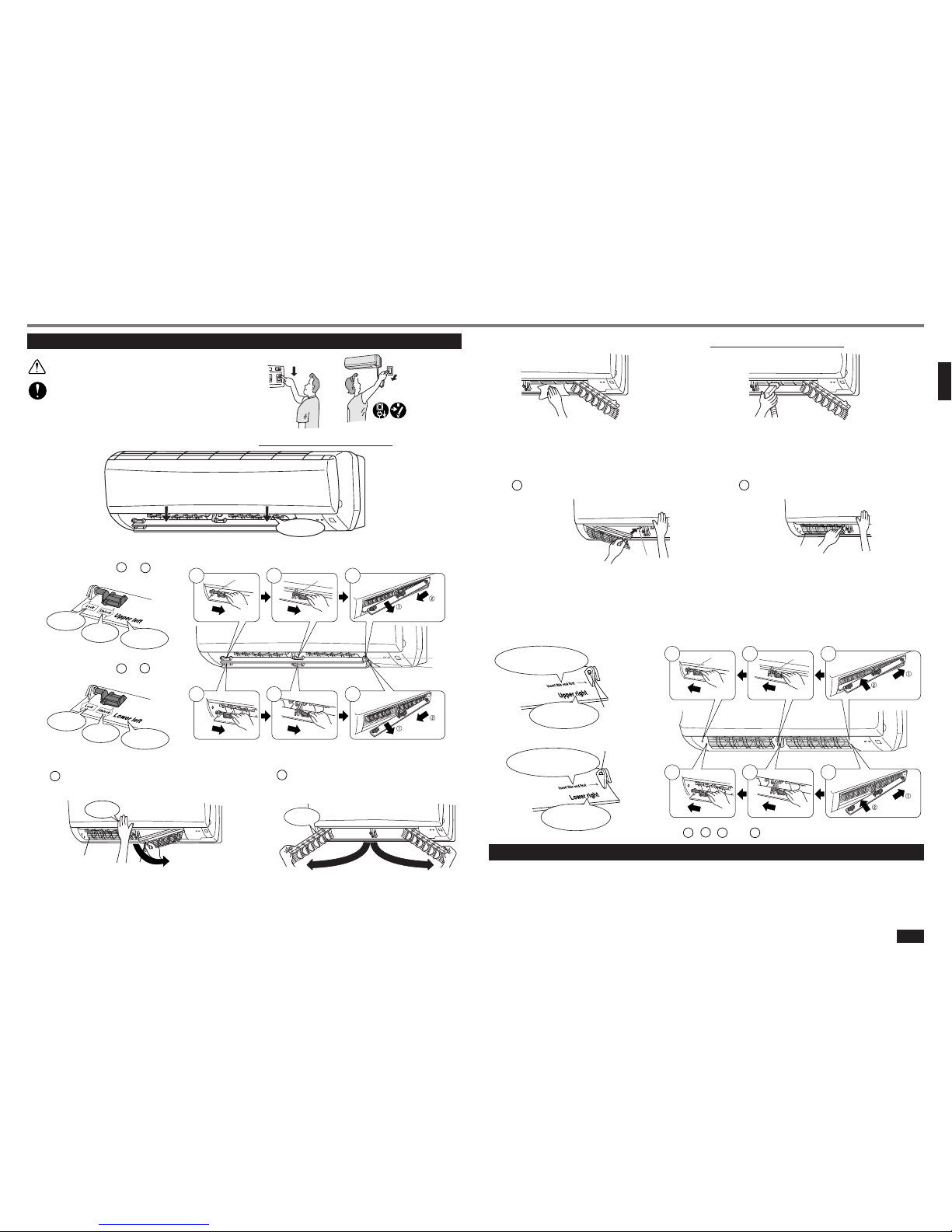

CLEANING THE AIR OUTLET AND FAN OF THE INDOOR UNIT
Before cleaning
Switch the indoor unit off with the remote controller and disconnect the power supply plug and/or turn off the breaker, otherwise you may get injured since the fan of the in­door unit rotates at high speed during op­eration.
Upper left
Unlock.
Lock.
Lower left
Unlock.
Lock.
4 Clean the air outlet and fan of the indoor unit. (Make sure the fan has stopped.)
• Be careful not to injure your hands.
• If the air outlet or fan is dirty, moldy, or dusty, clean with a wet or dry soft cloth or with a special-made brush which is
installed to a vacuum cleaner. If the dirt is noticeable around the air outlet, clean with a cloth soaked in a solution of mild detergent diluted in lukewarm water.
5 Put the vertical vanes back to their original positions one by one.
1
Hold the green tab of each vertical vane and insert the vertical vanes into their respective grooves.
2
Push each vertical vane until it clicks into place.
• Be sure to hold the green tabs to install the vertical vanes, otherwise the vanes can be damaged.
• Do not use excessive force to the fan guard during this procedure. The fan guard may be deformed and the vanes may
not work properly.
• Put the vertical vanes back correctly to their original positions. Otherwise, condensed water may drip down from the indoor unit or the horizontal vanes could malfunction.
6 Install the horizontal vanes. (Reverse the removal procedures.)
Upper vane
Lower vane
Insert this end first.
Upper right
Insert this end first.
Lower right
After Cleaning
Insert the power supply plug into the power outlet and/or turn on the breaker. Check that both of the operation indicator lamps are not blinking. If they are blinking, the horizontal vanes are not installed correctly. In this case, disconnect the power supply plug and/or turn off the breaker, and then reinstall the horizontal vanes by following the procedures in step 6.
• If you operate the air conditioner after cleaning the air outlet and fan, do not get close to the air outlet as any remaining dirt may be discharged.
In procedures
2
, 3, 5, and 6, lock the stoppers until they click into place.
2
Hold the green tab of each vertical vane and move the vertical vanes in the directions of the arrows. The vanes cannot be removed.
• Be sure to hold the green tabs to swing out the vertical vanes, otherwise the vanes can be damaged.
• Do not use excessive force to the fan guard during this procedure. The fan guard may be deformed and the vanes may
not work properly. Refer to the illustration of the fan guard in NAME OF EACH PART on the page 3.
Downward.
123
456
Stopper
Unlock.
Unlock.
Unlock.
Unlock.
Out.
Pull out.
Out.
Pull out.
Stopper
Upper vane
Lower vane
Pull towards you.
Hold.
Cannot be removed.
Swing to the left.
Swing to the right.
Green tab
Groove
654
321
Stopper
Lock.
In.
Insert.
Lock.
In.
Insert.
Lock.
Lock.
Stopper
The holes on the insertion ends of the upper and lower horizontal vanes have different shapes.
Fan guard
Fan guard
12
BEFORE CONTACTING THE SERVICE REPRE­SENTATIVE, CHECK THE FOLLOWING AGAIN
Question
The air conditioner cannot be operated for about 3 min­utes when restarted.
Cracking sound is heard.
The air from the indoor unit smells strange.
The fan of the outdoor unit does not rotate even though the compressor is running. Even if the fan starts to ro­tate, it stops soon.
The sound of water flowing is heard.
The sound as burbling is heard.
The room cannot be cooled sufficiently.
Mist is discharged from the air outlet of the indoor unit.
Mechanical sound is heard from the indoor unit.
Answer (not a malfunction)
• This protects the air conditioner according to in­structions from the microprocessor. Please wait.
• This sound is generated by the expansion/con­traction of the front panel, etc. due to change in temperature.
• The air conditioner may suck in an odor adher­ing to the wall, carpet, furniture, cloth, etc. and blow it out with the air.
• When the outside temperature is low, the fan may not operate to maintain sufficient cooling capacity.
• This is the sound of refrigerant flowing inside the air conditioner.
• This is the sound of condensed water flowing in the heat exchanger.
• This is the sound of the heat exchanger defrost­ing.
• This sound is heard when the outside air is ab­sorbed from the drain hose in turning on the range hood or the ventilation fan and that makes water flowing in the drain hose spout out. This sound is also heard when the outside air blows into the drain hose in case the outside wind is strong.
• When a ventilation fan or a gas cooker is used in a room, the cooling load increases, resulting in an insufficient cooling effect.
• When the outside air temperature is high, the cooling effect may not be sufficient.
• The cool air from the air conditioner rapidly cools moisture in the air inside the room, and it turns into mist.
• This is the switching sound in turning on/off the fan or the compressor.
WHEN YOU THINK THAT TROUBLE HAS OCCURRED
Question
The air conditioner cannot be operated.
Both of the operation indi­cator lamps on the indoor unit are blinking.
The horizontal vane does not move.
The room cannot be cooled or heated sufficiently.
The air from the indoor unit smells strange.
The display on the remote controller does not appear or it is dim. The indoor unit does not respond to the re­mote control signal.
When a power failure oc­curs.
Check points
• Is the breaker turned on?
• Is the fuse blown?
• Is the ON timer set? (Page 8)
• Is the horizontal vane attached to the indoor unit
correctly? (Page 11)
• Are the horizontal vane and the vertical vane attached to the indoor unit correctly? (Page 11)
• Is the fan guard deformed?
• Is the temperature setting correct? (Page 7)
• Is the filter clean? (Page 10)
• Is the fan of the indoor unit clean? (Page 11)
• Are there any obstacles blocking the air inlet or
outlet of the indoor or outdoor unit?
• Is a window or door open?
• Is the filter clean? (Page 10)
• Is the fan of the indoor unit clean? (Page 11)
• Are the batteries exhausted? (Page 5)
• Is the polarity (+, -) of the batteries correct?
(Page 5)
• Are any buttons on the remote controller of other electric appliances being pressed?
• Does the air conditioner start operating again? If the air conditioner had operated before the power failure, as these models are equipped with an auto restart function, the air conditioner should start operating again. (Refer to Descrip­tion of “AUTO RESTART FUNCTION” on page
6.)
Question
The air flow direction changes during operation. The direction of the hori­zontal vane cannot be ad­justed with the remote con­troller.
Water leaks from the out­door unit.
White smoke is discharged from the outdoor unit.
Air does not blow out soon in the heating operation.
The operation is stopped for about 10 minutes in the heating operation.
Hissing sound is some­times heard.
The room cannot be heated sufficiently.
In a multi-unit system, the indoor unit which is not op­erating becomes warm and a sound, similar to water flowing, is heard from the unit.
The air conditioner starts the operation only with the main power turned on, though you do not operate the unit with the remote controller.
Answer (not a malfunction)
• When the air conditioner is operated in COOL or DRY mode, if the operation continues with air blowing down for 1 hour, the direction of the air flow is automatically set to horizontal to prevent condensed water from dropping.
• In the heating operation, if the air flow tempera­ture is too low or when defrosting is being done, the horizontal vane position is automatically set to horizontal.
• During COOL and DRY operations, pipe or pipe connecting sections are cooled and this causes water to condense.
• In the heating operation, the defrosting opera­tion makes water frozen on the outdoor unit melt and drip down.
• In the heating operation, water condensed on the heat exchanger drips down.
• In the heating operation, vapor generated by the defrosting operation looks like white smoke.
• Please wait as the air conditioner is preparing to blow out warm air.
• Defrosting of the outdoor unit is being done (De­frosting operation). Since this is completed in 10 minutes, please wait. (When the external temperature is too low and humidity is too high, frost is formed.)
• This is the sound when the flow of refrigerant inside the air conditioner is switched.
• When the outside air temperature is low, the heating effect may not be sufficient.
• A small amount of refrigerant continues to flow into the indoor unit even though it is not operat­ing.
• These models are equipped with an auto restart function. When the main power is turned off with­out stopping the air conditioner with the remote controller and is turned on again, the air condi­tioner will start operation automatically in the same mode as the one set with the remote con­troller just before the shutoff of the main power.
Even if the above items are checked, when the air conditioner does not recover from the trouble, stop using the air conditioner and consult your dealer.
In the following cases, stop using the air conditioner and consult your dealer.
• When water leaks or drops from the indoor unit.
• When the left operation indicator lamp blinks.
• When the breaker trips frequently.
• The remote control signal may not be received in a room where an electronic
ON/OFF type fluorescent lamp (inverter-type fluorescent lamp, etc.) is used.
• Operation of the air conditioner may interfere with radio or TV reception in areas where the reception is weak. An amplifier may be required for the af­fected device.
• When thunder is heard, stop operation and disconnect the power supply plug or turn off the breaker. Otherwise, the electrical parts may be damaged.
13
INSTALLATION, RELOCATION AND INSPECTION
Installation place
Avoid installing the air conditioner in the following places.
• Where flammable gas could leak.
CAUTION: Do not install the unit where flammable gas could leak. If gas leaks and collects around the unit, it may cause an explosion.
• Where there is much machine oil.
• Salty places such as the seaside.
• Where sulfide gas is generated such as a hot spring.
• Where oil is splashed or where the area is filled with
oily smoke.
• Where there is high-frequency or wireless equipment.
CAUTION:
• Earth the unit. Do not connect the earth to a gas pipe, water pipe, lightning rod or the earth of a telephone. If the earthing is incorrect, it may cause an electric shock.
• Install an earth leakage breaker depending on the place where the air conditioner is to be installed (humid places, etc.). If the earth leakage breaker is not installed, it may cause an electric shock.
Inspection and maintenance
• When the air conditioner is used for several seasons, the capacity may be lowered due to dirt inside the unit.
• Depending on the condition, an odor may be generated or dehumidified water may not drain out smoothly due to dirt,
dust, etc.
• It is recommended that the unit be inspected and maintained (charged) by specialist in addition to normal maintenance. Consult your dealer.
Operating sound considerations
• Do not put an object around the air outlet of the outdoor unit. This may lower the capacity or increase the volume of the operating sound.
• If an abnormal sound is heard during operation, consult your dealer.
Relocation
• When the air conditioner is to be removed or re-installed because of rebuilding, moving, etc., special techniques and work are required.
WARNING: Repairs or relocation should not be done by the customer. If this is done incorrectly, it may cause a fire, an electric shock, or an injury from the unit falling, water leaking, etc. Consult your dealer.
Disposal
To dispose of this product, consult your dealer.
If you have any questions, consult your dealer.
WARNING: If the air conditioner operates but does not cool or heat (depending on model) the room, consult your dealer since there may be a refrigerant leak. Be sure to ask the service representative whether there is refrigerant leakage or not when repairs are carried out. The refrigerant charged in the air conditioner is safe. Refrigerant normally does not leak, however, if refrigerant gas leaks indoors, and comes into contact with the fire of a fan heater, space heater, stove, etc., harmful substances will be generated.
Electrical work
• Provide an exclusive circuit for the power supply of the air conditioner.
• Be sure to observe the breaker capacity.
WARNING :
• The customer should not install this unit.
If installation is done incorrectly, it may cause a fire, an electric shock, or injury from the unit falling, water leaking, etc.
• Do not use intermediate connection of the power supply cord or the extension cord and do not connect many
devices to one AC outlet. A fire or an electric shock may result from poor contact, poor insulation, exceeding the permissible current, etc. Consult your dealer.
SPECIFICATIONS
MSZ-A09YV(H) MSZ-A12YV(H)
MSZ-A09YV MSZ-A12YV
MUZ-A09YV(H) MUZ-A12YV(H)
Cooling Heating Cooling Heating
2.5 3.2 3.5 4.0
0.67 0.84 1.09 1.08 910
33 34
0.80 0.90
37/29/21 38/30/21 39/31/22 38/30/22
46 47 48
Set name
Model Indoor
Outdoor
Function Power supply Capacity kW Input kW
Weight
Indoor kg Outdoor kg
Refrigerant filling
kg
capacity (R410A)
IP code
Indoor Outdoor
Permissible
LP ps MPa
excessive operating
HP ps MPa
pressure
Indoor
dB(A)
Noise level
(High/Med./Low) Outdoor dB(A)
~ /N, 230V, 50Hz
IP 20 IP 24
1.64
4.15
NOTE:
1. Rating condition
Cooling — Indoor: 27°C DB, 19°C WB
Outdoor: 35°C DB
Heating — Indoor: 20°C DB
Outdoor: 7°C DB, 6°C WB
2. Guaranteed operating range
Indoor
Outdoor
MUZ-A09/A12YV
MUZ-A09/A12YVH
Upper limit
32°C DB 46°C DB 46°C DB
Cooling
23°C WB ——
Lower limit
21°C DB -10°C DB -10°C DB 15°C WB ——
Upper limit
27°C DB 24°C DB 24°C DB
Heating
— 18°C WB 18°C WB
Lower limit
20°C DB -10°C DB -15°C DB
— -11°C WB -16°C WB
To prevent the effects of a fluorescent lamp, keep as far apart as possible.
wall, etc.
Inverter-type fluorescent lamp
Keep a space to prevent the picture distortion or the noise.
1 m or more
Radio
100 mm or more
Well­ventilated dry place
200 mm or more
TV
Cordless phone or Portable phone
3 m or more
1 m or more
The installation location of the outdoor unit should be at least 3 m away from the antennas for TV sets, radios, etc. In areas where the reception is weak, pro­vide greater space between the outdoor unit and the antenna of the affected device if operation of the air conditioner interferes with radio or TV reception.
HEAD OFFICE: MITSUBISHI DENKI BLDG., 2-2-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
SG79Y280H01
This product is designed and intended for use in the residential, commercial and light-industrial environment.
The product at hand is based on the following EU regulations:
• Low Voltage Directive 73/23/ EEC
• Electromagnetic Compatibility Directive 89/336/ EEC

 
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
