Mitsubishi Lancer Evolution 2011 Owner's Manual

Introduction

N09200100703

Thank you for buying a MITSUBISHI LANCER EVOLUTION. We are confident you will enjoy your vehicle. It has been engineered for optimum performance, durability and comfort. By thoroughly reading this Owner’s Manual, you will gain an understanding of the many features that are included in the LANCER EVOLUTION. The Owner’s Manual contains descriptions and illustrations that will assist in the operation and maintenance of your vehicle.

Your Authorized Mitsubishi Motors Dealer will be happy to assist you with any further questions you may have regarding the operation of your vehicle. Please note that this manual applies to all LANCER EVOLUTION models and explains all features including options. Some features explained in this manual may not be installed on your vehicle.

Throughout this manual the words WAR N IN G and CAUTION appear. These are reminders to be especially careful. Failure to follow the instructions could result in personal injury or damage to your vehicle.

WAR NI NG

Indicates a strong possibility of severe personal injury or death if instructions are not followed.

CAUTION

Points out hazards or unsafe practices that could cause minor personal injury or damage to your vehicle.

You will see another important symbol:

NOTE Gives helpful information.

Please leave this Owner’s Manual in the vehicle at the time of resale. The next owner will appreciate having access to the information contained here.

This manual includes instructions for standard and optional equipment available at the time of printing. Mitsubishi Motors Corporation reserves the right to make changes in design and specifications and to make additions or improvements in its product without assuming any obligation to install these on previously manufactured products.

WAR NI NG

● Engine exhaust, some of its constituents, and certain

vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects and reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Table of contents

Overview

Quick index

General information

Seat and restraint systems

Features and controls

Vehicle care and maintenance

Customer assistance/

Driving safety

Comfort controls

For emergencies

Reporting Safety Defects

Specifications

Overview

Multi-information meter switch P.3-154

Combination headlights and dimmer switch P.3-201 Turn signal lever P.3-210 Front fog light switch P.3-211

Active stability control OFF switch P.3-130

Headlights leveling switch (if so equipped) P.3-209

Fuses P.7-37

Engine hood release lever P. 7 -4

AWC switch (if so equipped) P.3 - 1 2 0

Steering wheel audio remote control switches (if so equipped) P.5-105

Instruments and controls (Driver’s area)

Instrument cluster P.3-149

Supplemental restraint system - driver’s knee airbag P.2-43

Bluetooth

2.0 interface (if so equipped) P.3-222

N00100201332

Sportronic steering wheel paddle shifter (if so equipped) P.3-108

Wiper and washer switch P.3-212

Cruise control switches P.3-135

Ignition switch P.3-24, 3-33, 3-82

Supplemental restraint system

- airbag (for driver’s seat) P.2-32, 2-43 Horn switch P.3-221

Steering wheel tilt lock lever P. 3 -7 7

Overview

Vents P.5-2

Fuel tank filler door release lever P. 1 -4

Trunk lid release lever P.3-58

Instruments and controls (Instrument panel)

Gearshift lever P.3-92, 3-95

Supplemental restraint system - airbag (for front passenger’s seat) P.2-32, 2-43

Parking brake lever P. 3 -7 5

AWC switch (if so equipped) P.3-120

Cup holder (for front seats) P.3-268

Ashtray (Type 2) (if so equipped) P.3-255

N00100201345

Glove compartment P.3-265 USB input terminal (if so equipped) P.3-248

Twin Clutch SST control mode switch (if so equipped) P.3-104

Floor console box P.3-267

Heated seat switch (if so equipped) P. 2- 6

Overview

Center panel

Typ e 1 Typ e 2

Hazard warning flasher switch P.3-211

Passenger’s airbag off indicator P.2-41

Auxiliary Audio connecter (RCA) (if so equipped) P.5-103 Auxiliary Video connecter (RCA) (if so equipped) P.5-103

Audio (if so equipped) P.5-33, 5-52 Digital clock (if so equipped) P.5-119 Mitsubishi Multi-Communication System (if so equipped) Refer to the separated “Mitsubishi Multi-Communication System owner’s manual”

Front passenger seat belt warning light P.2-17

Electric rear window defogger switch P.3-220

Heater (if so equipped) P. 5 -6 Air conditioning (if so equipped) P.5-12, 5-22

Cigarette lighter (if so equipped) P. 3 -2 5 7 12 V power outlet (if so equipped) P. 3 -2 5 9

Ashtray (Type 1) P.3-255

Hazard warning flasher switch P.3-211

Passenger’s airbag off indicator P.2-41

Front console box P. 3 -2 6 7

N00100700138

Front passenger seat belt warning light P.2-17

Electric rear window defogger switch P. 3 -2 2 0

Air conditioning P.5-12, 5-22

Auxiliary Audio connecter (RCA) (if so equipped) P. 5 -1 0 3 Auxiliary Video connecter (RCA) (if so equipped) P. 5 -1 0 3

Cigarette lighter (if so equipped) P.3-257 12 V power outlet (if so equipped) P.3-259

Overview

Window lock switch P.3-71

Power window switches P.3-68

Adjustable seat belt shoulder anchor (for front seats) P.2-17 Seat belts P.2-11

Interior

Electric remote-controlled outside mirror switch P. 3 -8 0

Power door lock switch P.3-55

Dome light (Front)/Reading lights P.3-260, 7-49, 7-68

Bluetooth

2.0 interface microphone (if so equipped)

P.3-222

Inside rearview mirror P.3-78

Sun visors P.3-254 Vanity mirror P.3-254 Card holder P.3-254

Bottle holder P.3-269

N00100301115

Sunroof switch (if so equipped) P. 3- 7 2

Head restraints P.2-9

Front seats P.2-3

Supplemental restraint system - side airbag (for front seats) P.2-49

Overview

Coat hook P.3-270

Assist grip P.3-270

Interior

N00100301030

Supplemental restraint system - curtain airbag P.2-50

Dome light (Rear) (if so equipped) P.3-262, 7-49, 7-69

Rear seats P.2-7

Tether anchors for child restraint system P.2-26

AWC control fluid reservoir P.7-15

Arm rest P.2-7

Cup holder (for rear seat) P.3-269

Overview

Trunk area light P.7-49, 7-71

Windshield washer fluid reservoir P. 7- 1 6

Trunk area

N00100400249

Inside emergency trunk lid release lever P.3-61

Battery P.7-18

Spare tire P.6-10

Jack P.6-8

Tools P.6-8

Overview

Outside (Front)

Sunroof (if so equipped) P.3-72

Windshield wiper and washer P.3-212

Engine hood P.7-4 Engine compartment P.7-7

Headlights, high beam P.3-201, 7-46, 7-52 Front turn signal lights P.3-210, 7-46, 7-59 Headlights, low beam P.3-201, 7-46, 7-49 Daytime running lights (if so equipped) P.3-201, 7-46, 7-54 Front side-marker and parking lights P.3-201, 7-46, 7-56, 7-58

N00100601235

Locking and unlocking P.3-51 Keyless entry system (if so equipped) P.3-9 F.A.S.T.-key (Free-hand Advanced Security Transmitter) (if so equipped) P.3-17

Fuel tank filler P. 1 -4

Outside rearview mirrors P.3-80

Side turn signal lights P.3-210, 7-46

Front fog lights P.3-211, 7-46, 7-61

Overview

High-mounted stop light P.7-46

Trunk lid P.3-58

Trunk lid OPEN switch (if so equipped) P. 3 -2 1

License plate lights P.3-201, 7-46, 7-66

Back-up lights P.7-46, 7-62

Tail lights P.3-201, 7-46, 7-62

Outside (Rear)

Antenna P.5-119

Tail and stop lights P.3-201, 7-46, 7-62

N00100601192

Tire inflation pressures P.7-23 Changing tires P.6-9 Tire rotation P.7-26 Tire chains P.7-28 Tire pressure monitoring system P. 3 -1 4 3

Rear side-marker lights P.3-201, 7-46, 7-62

Rear turn signal lights P.3-210, 7-46, 7-62

Quick index

If this warning light comes on or flashes while you’re driving...

N00200701080

OTE

● For information regarding warning displays in the multi-information display, refer to “Multi-information display” on page 3-

153.

● These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON”.

Warning light Do this Ref. page

● Park your vehicle in a safe place and stop the engine.

Charging system warning light

Brake warning light

Engine malfunction indicator

(“SERVICE ENGINE SOON” or “Check

engine light”)

Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance.

● If this light comes on while driving, check to see that the parking

brake is fully released.

● If this light stays on after releasing the parking brake, stop and check

the brake fluid level.

● If the brake fluid level is correct, there may be a system malfunction.

Avoid hard braking and high speeds, and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance.

● Although your vehicle will usually be drivable and not need towing,

have the engine system checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible. If the vehicle is not drivable, contact emergency roadside assistance at 1888-648-7820 (for vehicles sold in U.S.A.) or 1-888-576-4878 (for vehicles sold in Canada), an authorized Mitsubishi Motors dealer, or local towing company for assistance.

P.3-198

P.3-196

P.3-197

Quick index

Warning light Do this Ref. page

Anti-lock braking system warning light

● When this light comes on, the anti-lock braking system is not func-

tioning and only the ordinary braking system is functioning.

● Park your vehicle in a safe place and stop the engine.

Test the system as described on page 3-126.

● If the light does not go out after the test, or if it comes on again, we

recommend that you have the system checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.

P.3-125,

3-126

SRS warning light

Tire pressure monitoring system warning light

● It is not necessary to stop the vehicle immediately, but we recommend

that you have the airbag and the pre-tensioner seat belt system checked at an authorized Mitsubishi Motors dealer as soon as possible.

● If the warning light comes on, you should stop and adjust the tires to

the proper inflation pressure as soon as possible. (See “Tire inflation pressures” on page 7-23.) Once adjustments have been made, the warning light will go off after a few minutes of driving.

● If the warning light blinks for approximately 1 minute and then

remains continuously illuminated, the system is not operating properly. If the system returns to normal, the warning light will go off. If the warning light does not go off, have the vehicle inspected at an authorized Mitsubishi Motors dealer.

P. 2 - 19 ,

2-42

P.3-144

Quick index

Problem Do this Ref. page

Cannot turn the key. (When using a key to start the engine)

(When using the F.A.S.T.-key to start the engine)

The F.A.S.T.-key does not operate. (for vehicles equipped with the F.A .S .T. -k ey)

If this problem occurs...

N00200900766

When using a key to start the engine

Will not turn from “LOCK” to “ACC”.

Turn the key while turning the steering wheel in either direction.

Will not turn from “ACC” to “LOCK”.

Vehicles with Twin Clutch SST:

Check the position of the gearshift lever. The key cannot be removed unless the gearshift lever is set to the “P” (PARK) position.

Vehicles with manual transaxle:

Place the key at the “ACC” position. Push the key in and turn it.

When using the F.A.S.T.-key to start the engine

Will not turn from “LOCK (PUSH OFF)” to “ACC”.

Push the ignition switch again, turn the steering wheel in both directions and then turn the ignition switch.

Will not turn from “ACC” to “LOCK”.

Vehicles with Twin Clutch SST:

Check whether the gearshift lever is set to the “P” (PARK) position.

Vehicles with manual transaxle:

Place the ignition switch at the “ACC” position. Push the ignition switch in and turn it.

Use the emergency key to lock and unlock the doors and start the engine. P.3-32

P.3-83,

3-85

P.3-17

Quick index

Problem Do this Ref. page

Cannot shift the gearshift lever from the “P” (PARK) position. (for vehicles with Twin Clutch SST)

The windows are fogged up.

Shift the gearshift lever while pressing the brake pedal. Check that the ignition key or ignition switch is in the “ON” position.

P.3-95

The engine does not start. The lights do not come on. The lights are dim. The horn does not honk. The horn sound is weak.

1. Set the mode selection dial to the “ ” or “ ” position.

2. Turn on the blower.

Have the battery checked. Recharge or replace as needed.

P.5-10, 5-20,

5-30

P. 6 -2 ,

7-18

Problem Do this Ref. page

The engine coolant tempera-

ture display “ ” in the multiinformation display is flashing. Steam comes out of the engine compartment.

The engine is overheated. Carefully stop the vehicle in a safe place.

Quick index

P. 6 -6

The vehicle is stuck in sand, mud, or snow.

WARNING

Rock your vehicle back and forth to free it. P.6-20

● When attempting to rock your vehicle out of a stuck position, be sure that no one is near the vehicle. The rocking

motion may cause the vehicle to suddenly lurch forward or backward, possibly injuring bystanders.

● Avoid revving the engine or spinning the wheels. Prolonged efforts to free a stuck vehicle may result in overheating

and transaxle failure. If the vehicle remains stuck after several rocking attempts, have a towing service pull the vehicle out.

Quick index

Problem Do this Ref. page

The brakes are not functioning properly after driving through water.

Twin Clutch SST does not shift. Vehicle cannot move. Acceleration is slow. The vehicle does not creep. A large shock is felt when shifting. Shifting occurs at higher engine speed. Response is slow. (for vehicles with Twin Clutch SST)

A tire is punctured.

Dry out the brakes by driving slowly while lightly pressing the brake pedal. P.4-6

The temperature of the Twin Clutch SST fluid is high, a safety device in the Twin Clutch SST has been activated due to a possible malfunction in the Twin Clutch SST, or there is a possible malfunction in the engine electronic control module.

P.3-99,

3-115,

3-197

1. Park the vehicle in a safe place where the surface is flat and level.

2. Replace the flat tire with the spare tire.

P. 6- 9

General information

Fuel selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 2

Filling the fuel tank . . . . . . . . . . . . . . . . . . . . . . . .1- 4

Modifications to and racing of your vehicle . . . . .1- 7

Mitsubishi Motors genuine parts . . . . . . . . . . . . . .1- 9

California Perchlorate Materials Requirements. . .1- 9

General information

Fuel selection

Your vehicle is designed to use unleaded gasoline only. It is equipped with a fuel filler tube especially designed to accept only a small diameter unleaded gasoline dispensing nozzle.

Gasoline detergent additives

In the United States, fuel suppliers are required by law to add detergents to their gasoline to minimize fuel-injector fouling and minimize intake-valve deposits. Detergent gasoline helps keep your engine in tune and your emission-control system working properly.

WARNING

● Gasoline is highly flammable and explosive. You

could be burned, seriously injured or killed when handling it. Whenever you refuel your vehicle, stop the engine and keep flames, sparks, and smoking materials away from the vehicle. Always handle fuel in well-ventilated outdoor areas.

CAUTION

● Using leaded gasoline in your vehicle will damage

the engine, catalytic converter, and the oxygen sensors. Also, using leaded gasoline is illegal, and will void your warranty coverage of the engine, catalytic converter, and oxygen sensors.

N00301000840

Octane requirement

Your vehicle is designed to operate on premium grade unleaded gasoline having a minimum octane number of 93 [(MON+RON)/2] or higher for optimum performance. In case premium grade unleaded gasoline 93 [(MON+RON)/2] is not available, unleaded gasoline rating of 91 [(MON+RON)/2] can be used. However, the performance level is reduced. In order to maintain exhaust system durability, premium unleaded gasoline having an octane number of at least 91 [(MON+RON)/2] must be used If the premium grade unleaded gasoline rating of 91 [(MON+RON)/2] or higher is not available on journey, etc., regular unleaded gasoline having an octane number of 87 [(MON+RON)/2] can be used temporarily as an emergency measure.

MON: Motor Octane Number RON: Research Octane Number

Oxygenated gasoline

Gasoline sold at some service stations contains oxygenates such as ethanol and MTBE, although the oxygenates may not be identified by those names. Oxygenates are required in some areas of the country. Such fuel can be used in your vehicle.

Ethanol (Gasohol)

A mixture of up to 10 % ethanol (grain alcohol) and 90 % unleaded gasoline may be used in your vehicle, provided the octane number is at least as high as that recommended for unleaded gasoline.

1-2

General information

Methanol

Do not operate your vehicle on gasoline containing methanol (wood alcohol). Using this type of alcohol could adversely affect the vehicle’s performance and damage critical parts of the vehicle’s fuel system.

Reformulated gasoline

Many areas of the country require the use of cleaner burning fuel referred to as “Reformulated Gasoline”. Reformulated gasoline contains oxygenates and is specially blended to reduce vehicle emissions and improve air quality. Mitsubishi Motors Corporation strongly supports the use of reformulated gasoline. Properly blended reformulated gasoline has no adverse effect on vehicle performance or the durability of engine and fuel system.

MMT (methylcyclopentadienyl manganese tricarbonyl)

MMT is a manganese-containing metallic additive that is blended into some gasolines to increase the octane number. Mitsubishi Motors Corporation recommends using gasolines without MMT. Use of gasolines blended with MMT may adversely affect performance, and cause the malfunction indicator on your instrument panel to come on. If this happens, contact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance.

Sulfur in gasoline

Your vehicle may have been designed to satisfy California’s low-emission regulations based on clean-burning low-sulfur gasoline. Gasoline sold in parts of the country other than California is allowed to have a higher sulfur content. Using such

gasoline could adversely affect the vehicle’s catalytic converter and cause the engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”) to come on. Illumination of this indicator while you are using high-sulfur gasoline does not necessarily mean the vehicle’s emission-control system is malfunctioning. Your authorized Mitsubishi Motors dealer may suggest you try using a different, lower-sulfur brand of unleaded gasoline to determine whether the problem is fuel-related.

OTE

● Poor-quality gasoline can cause problems such as poor

starting, stalling during idling, abnormal engine noise, and poor acceleration. If you experience any of these problems, try using a different brand of gasoline. If the engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”) flashes, have the vehicle inspected as soon as possible by the nearest authorized Mitsubishi Motors dealer or a repair facility of your choice.

● Repeatedly driving short distances at low speeds can

cause deposits to form in the fuel system and engine, resulting in poor starting and poor acceleration. If these problems occur, you are advised to add a detergent additive to the gasoline when you refuel the vehicle. The additive will remove the deposits, thereby returning the engine to a normal condition. Be sure to use a genuine Mitsubishi cleaning additive. Using an unsuitable additive could make the engine malfunction. For details, please contact the nearest authorized Mitsubishi Motors dealer.

1-3

General information

Filling the fuel tank

N00301100753

WARNING

● Gasoline is highly flammable and explosive. You

could be burned, seriously injured or killed when

handling it. When refueling your vehicle, always turn the engine off and keep away from flames, sparks, and smoking materials. Always handle fuel in well-ventilated outdoor areas.

● Before removing the fuel cap, be sure to get rid of

your body’s static electricity by touching a metal part of the car or fuel pump. Any static electricity on your body could create a spark that ignites fuel vapor.

● Perform the whole refueling process (opening the

fuel tank filler door, removing the fuel cap, etc.) by yourself. Do not let any other person come near the fuel tank filler. If you allowed a person to help you and that person was carrying static electricity, fuel vapor could be ignited.

● Do not move away from the fuel tank filler until

refueling is finished. If you moved away and did something else (for example, sitting on a seat) partway through the refueling process, you could pick up a fresh charge of static electricity.

● Be careful not to inhale fuel vapor. Fuel contains

toxic substances.

● Keep the doors and windows closed while refueling

the vehicle. If they were open, fuel vapor could get into the cabin.

Fuel tank capacity

14.5 gal (55.0 L)

Refueling

1. Before filling with fuel, stop the engine.

2. The fuel tank filler is located on the rear driver side of your vehicle. The fuel tank filler door can be opened from inside the vehicle with the fuel tank filler door release lever located at the left side of the driver’s seat.

1-4

General information

3. Open the fuel tank filler pipe by slowly turning the cap counterclockwise.

A- Remove B- Close

WARNING

● Since the fuel system may be under pressure,

remove the fuel tank filler cap slowly. This relieves any pressure or vacuum that might have built up in the fuel tank. If the cap is venting vapor or if you hear a hissing sound, wait until it stops before removing the cap. Otherwise, fuel may spray out, injuring you or others.

4. While filling with fuel, store the cap in the capholder located on the inside of the fuel tank filler door.

5. To fill with fuel correctly depends mainly on correct handling of the fuel filler nozzle. Do not tilt the nozzle. Insert the nozzle in the tank port as far as it will go.

CAUTION

● Your vehicle can only be operated using unleaded

gasoline. Serious engine and catalytic converter damage will result if leaded gasoline is used.

1-5

General information

6. When the nozzle stops automatically, do not try to add more fuel.

CAUTION

● To avoid fuel spillage and overfilling, do not “top-

off” the fuel tank. Spilled fuel could discolor, stain,

or crack the vehicle’s paintwork. If fuel spills on the paintwork, wipe it off with a soft cloth.

7. To close, turn the fuel tank filler cap slowly clockwise until you hear clicking sounds, then gently push the fuel tank filler door closed.

WARNING

● Make sure the fuel cap is securely closed. If the fuel

cap is loose, fuel could leak, resulting in a fire.

CAUTION

● If you need to replace the fuel tank filler cap, use

only the cap specified for your model vehicle.

OTE

● If the fuel tank filler cap is not tight while driving, the

engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”) may come on when the onboard diagnostic (OBD) system performs a self check. Always tighten the fuel tank filler cap until you hear clicking sounds. The indicator will go off after driving several times. If the indicator does not go off, contact your authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.

1-6

General information

Modifications to and racing of your vehicle

N00301600165

This vehicle should not be modified with non-Mitsubishi Motors genuine parts. Mitsubishi Motors designs and manufactures high quality vehicles with an emphasis on safety and durability. Modifications using non-Mitsubishi Motors genuine parts may affect the performance, safety and/or durability of your vehicle, and may violate applicable state and/or federal regulations.

DAMAGE OR PERFORMANCE PROBLEMS RESULTING FROM MODIFICATIONS TO OR RACING OF YOUR VEHICLE ARE NOT COVERED UNDER WARRANTY.

Examples of modifications to your vehicle that can cause damage or performance problems include the following:

● Failure to use Mitsubishi Motors genuine parts

● Failure to use required fuel and fluids

● Failure to use proper size tires and wheels

● Modification of the fuel, intake, exhaust, emission, sus-

pension, engine, drive train or electrical wiring systems

● Modification of any onboard computer/control module,

including reprogramming, or replacing/adding chips to any onboard computer/control module

Review the Warranty and Maintenance Manual for further details regarding warranty coverage.

Installation of accessories

N00301700023

CAUTION

● Before any electrical or electronic accessories are

installed, consult an authorized Mitsubishi Motors dealer.

● The installation of accessories, optional parts, etc., should

only be carried out within the limits prescribed by law in the driving area and in accordance with the guidelines and warnings contained within the documents accompanying this vehicle. Only Mitsubishi Motors approved accessories should be fitted to your vehicle.

● Improper installation of electrical parts could cause fire.

Refer to the “Modification/alterations to the electrical or fuel systems” section within this owner’s manual.

● Using a cellular phone or radio set inside the vehicle with-

out an external antenna may cause electrical system interference, which could lead to unsafe vehicle operation.

● Tires and wheels which do not meet specifications must

not be used. Refer to the “Specifications” section for information regarding wheel and tire sizes.

1-7

General information

WARNING

● If you choose to use a cellular phone while driving,

you must not allow that usage to distract you in the safe operation of your vehicle. Anything, including cellular phone usage, that distracts you from the

safe operation of your vehicle increases your risk of an accident. Refer to and follow all state and local laws in your area regarding cellular phone usage while driving.

Important point!

Due to the large number of accessory and replacement parts provided by different manufacturers in the market, it is not always possible for an authorized Mitsubishi Motors dealer to check whether the attachment or installation of non-Mitsubishi Motors genuine parts will affect the driving safety of your Mitsubishi-vehicle.

Modification/alterations to the electrical or fuel systems

N00301800154

Mitsubishi Motors manufactures high quality vehicles with an emphasis on safety. It is important to consult an authorized Mitsubishi Motors dealer before installation of any accessory which may involve modification of the electrical or fuel systems.

CAUTION

● Please consult an authorized Mitsubishi Motors

dealer concerning any such accessory fitment or modification. If the wires interfere with the vehicle body or improper installation methods are used (protective fuses not included, etc.), electronic devices may be adversely affected, resulting in a fire, vehicle damage, or other accident.

1-8

General information

Mitsubishi Motors genuine parts

N00301400105

Mitsubishi Motors Genuine Parts are designed and manufactured to meet high standards of performance, and are recommended for all of your maintenance needs. Also available from your Mitsubishi Motors dealer are a wide variety of accessories to personalize your new vehicle. Each Mitsubishi vehicle has a selection of Mitsubishi Motors authorized accessories to choose from to tailor your new vehicle to your own personal preference. Your Mitsubishi Motors dealer’s Parts Manager has information on various audio systems, protection items, as well as interior and exterior accessories available for your specific model.

California Perchlorate Materials Require-

ments

N00300100017

Certain components of this vehicle, such as airbag modules, seat belt pretensioners, and button cell batteries, may contain perchlorate materials. Special handling may apply. For additional information, see www.dtsc.ca.gov/hazardouswaste/perchlorate.

1-9

Seat and restraint systems

Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 2

Seats and restraint systems. . . . . . . . . . . . . . . . . . .2- 3

Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 3

Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 7

Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 8

Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 11

Seat belt use during pregnancy . . . . . . . . . . . . . . .2- 19

Seat belt pre-tensioner and force limiter

systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 19

Child restraint systems. . . . . . . . . . . . . . . . . . . . . .2- 21

Maintenance and inspection of seat belts. . . . . . . .2- 32

Supplemental Restraint System (SRS) - airbag . . .2- 32

Seat and restraint systems

1 - Front seats

● To adjust the seat forward or backward → P.2- 5

● To adjust the seatback → P.2 - 5

● Heated seats (if so equipped) → P.2 - 6

Seats

N00408400352

2 - Rear seats

● Arm rest → P.2 - 7

2-2

Seat and restraint systems

Seats and restraint systems

N00401600182

Your vehicle has seat belts and other features that help protect you and your passengers in an accident. Seat belts are the most important safety device. When worn properly, seat belts can reduce the chance of serious injury or death in various types of crashes. For added protection during a severe frontal collision, your vehicle has a Supplemental Restraint System (SRS) with airbags for the driver and passengers. The seats, head restraints, and door locks also are safety equipment, which must be used correctly.

Always check the following before you drive:

● That everyone in your vehicle is properly wearing their

seat belt.

● That infants and small children are properly secured in

appropriate child restraint systems in the rear seat.

● That all doors are fully closed and locked.

● That seatbacks are upright, with head restraints properly

adjusted.

Safety equipment cannot prevent injury or death in all motor vehicle accidents. You can help reduce the risk of injury or death, however, by following the instructions in this manual.

Front seats

N00401800302

Position the driver’s seat as far back as possible while maintaining a position that still enables you to fully apply the pedals, easily control the steering wheel and safely operate the vehicle.

2-3

Seat and restraint systems

WARNING

● Do not attempt to adjust the seat while driving. This

can cause loss of vehicle control and result in an accident.

● After adjusting the seat, make sure that the seat is

securely locked into position.

● To reduce the risk to the driver of serious injury or

death during deployment of the driver’s airbag,

always properly wear the seat belt and adjust the driver’s seat as far back as possible while maintaining a position that still enables you to fully apply the pedals, easily control the steering wheel, and safely operate the vehicle.

● To reduce the risk to the front passenger of serious

injury or death during deployment of the passenger’s airbag, always properly wear the seat belt and adjust the front passenger’s seat as far back as possible.

● Always place children 12 years old and under in the

rear seat and use appropriate child restraint systems.

CAUTION

● Make sure that the seat is adjusted by an adult. If it

is adjusted by a child, an unexpected accident might occur.

● Do not place a cushion or the like between your back

and the seatback while driving. The effectiveness of the head restraints will be reduced in the event of an accident.

● When sliding the seats, be careful not to catch your

hand or leg.

● When sliding or reclining the seat rearward, pay

careful attention to the rear seat passengers.

2-4

Seat and restraint systems

To adjust the seat forward or backward

N00401900231

Pull the seat adjusting lever up and slide the seat forward or backward to the desired position. Release the adjusting lever to lock the seat in place.

WARNING

● To make sure that the seat is securely locked, try to

move it forward or backward without using the adjusting lever.

To adjust the seatback

N00402000284

Adjust the seatback angle by turning the dial.

1- To move to forward direction 2- To recline backward

2-5

Seat and restraint systems

WARNING

● To reduce the risk of serious injury or death in the

performance will be adversely affected. If the seat belt is not properly positioned against the body during an accident, there is increased risk you will slide under the belt and receive serious injury or death.

Heated seats (if so equipped)

N00435600277

The heated seats can be operated when the ignition switch is in the “ON” position.

1 (HI)- Heater high (for quick heating) 2- Heater off 3 (LO)- Heater low (to keep the seat warm)

The indicator light (A) will illuminate while the heater is on.

2-6

Seat and restraint systems

CAUTION

● Switch off the seat heaters when not in use. Operate

the heaters at the “HI” position for quick heating. After the seat has become warm, set the heater switch to the “LO” position to keep it warm. Slight variations in the seat temperature may be felt while using the heated seats. This is caused by the operation of the heater’s internal thermostat and does not indicate a malfunction. If the following types of persons use the heated seats, they might become too hot or receive minor burns (red skin, heat blisters, etc.):

• Children, elderly persons, ill persons

• Person with sensitive skin

• Excessively fatigued persons

• Persons under the influence of alcohol or sleepinducing medication (cold medicine, etc.)

● Do not place heavy objects on the seat or stick pins,

needles, or other pointed objects into it.

● Do not use a blanket, cushion, or other material with

high heat insulation properties on the seat while using the heater; doing so could cause the heater element to overheat.

● When cleaning the seat, do not use benzine, kero-

sene, gasoline, alcohol, or other organic solvents; doing so could damage not only the surface of the seat, but also the heater.

● If water or any other liquid is spilled on the seat,

allow it to dry thoroughly before attempting to use the heater. Turn the heater off immediately if it appears to be malfunctioning during use.

Rear seats

N00402500029

Arm rest

N00403000281

Tilt the arm rest down for use as shown. The arm rest includes a cup holder. (Refer to “Cup holder” on page 3-269.)

2-7

Seat and restraint systems

Head restraints

RECARO seat

RECARO seats are equipped with padded head restraints integrated with the seatbacks. These head restraints can reduce the risk of a whiplash injury if your vehicle is hit from the rear. The head restraints are equipped in the illustrated position. To maximize the effectiveness of your head restraint, adjust your seatback to the upright position and sit back against the

seatback with your head close to the head restraint.

N00404300500

N00409500031

WARNING

● In order to minimize the risk of a neck injury due to

a rear impact, the driver and front passenger seatbacks must be adjusted to the upright position before vehicle operation. The driver should never adjust the seat while the vehicle is in motion.

● Never place a cushion or similar device on the seat-

back. This can adversely affect head restraint performance by increasing the distance between your head and the restraint.

2-8

Seat and restraint systems

Rear seat

N00409600016

Padded head restraints for the seats can reduce the risk of a whiplash injury if your vehicle is hit from the rear. The head restraints are equipped in the illustrated position. To maximize the effectiveness of your passenger’s head restraint, adjust the head restraint to the proper position. Sit back against the seatback with your passenger’s head close to the head restraint.

WARNING

● In order to minimize the risk of a neck injury due to

a rear impact, the head restraint must be adjusted to the proper position before vehicle operation.

● Driving without the head restraints in place can

cause your passengers serious injury or death in an accident. To reduce the risk of injury in an accident, always make sure the head restraints are installed and properly positioned when the seat is occupied.

● Never place a cushion or similar device on the seat-

back. This can adversely affect head restraint performance by increasing the distance between your passenger’s head and the restraint.

2-9

Seat and restraint systems

Adjustment of the head restraint height

To reduce the risk of injury in an accident, adjust the head restraint height so that the center of the restraint is at your eye level when seated. Any person too tall for the restraint to reach their eye level when seated should raise the restraint to the highest locked position.

● To raise the restraint, pull it straight up.

● To lower the restraint, push down on it while pressing the

lock knob (A) in the direction shown by the arrow.

● After adjusting the height, push down on the restraint to

make sure it is locked in position.

To r e mo v e

Press the lock knob (A) in the direction shown by the arrows. Then pull the head restraint up and out of the seatback.

WARNING

● To help minimize the risk of neck injury in the event

of an accident, the head restraints must be properly installed and positioned to proper height before vehicle operation.

2-10

Seat and restraint systems

To ins t a l l

First check that the head restraint is facing in the right direction as shown in the previous illustration, and then insert it into the seatback. Push the head restraint down while pressing the lock knob (A) until the restraint locks into place.

CAUTION

● Check that the lock knob (A) is extended out as

shown in the illustration. Then pull the head restraint up to make sure that it is locked in place and will not come out of the seatback.

Seat belts

N00406000413

Seat belts are installed in your vehicle to help reduce the risk of injury to the driver and passenger in the event of an accident. Always use the provided seat belts. Carefully review the following information for proper seat belt usage.

WARNING

● To help reduce the risk of injury or death in an acci-

dent, seat belts and child restraint systems must always be used. Refer to “Child restraint systems” on page 2-21 for additional information.

● Never use one seat belt for more than one person.

● Never carry more people in your vehicle than there

are seat belts.

● Always adjust the seat belt for a snug fit.

● Always place the shoulder belt over your shoulder

and across your chest. Never put it behind you or under your arm.

● Always wear the lap belt as low as possible across

your hips, not around your waist.

● Never modify or alter the seat belts in your vehicle.

● To reduce the risk to the driver of serious injury or

death during deployment of the driver’s airbag, always properly wear the seat belt and adjust the driver’s seat as far back as possible while maintaining a position that still enables you to fully apply the pedals, easily control the steering wheel, and safely operate the vehicle.

2-11

Seat and restraint systems

WARNING

● To reduce the risk to a front seat passenger of seri-

ous injury or death from a deploying airbag, make sure the passenger always wears the seat belt properly, remains seated all the way back and upright in their seat, and moves the seat as far back as possible. Refer to “Supplemental Restraint System (SRS) airbag” on page 2-32 for additional information.

● Never hold an infant or child in your arms or on

your lap when riding in this vehicle even when you are wearing your seat belt. Never place any part of the seat belt you are wearing around an infant or child. Failure to follow these simple instructions creates a risk of serious injury or death to your child in the event of an accident or sudden stop.

● Children 12 years old and under should always ride

in the rear seat and be properly restrained. This reduces their risk of serious injury or death in an accident, especially due to a deploying front passenger airbag. Refer to “Child restraint systems” on page 2-21 for additional information.

● Any child who is too small to properly wear a seat

belt must be properly restrained in an appropriate child restraint system. Children 12 years old and under should be seated only in the rear seat to reduce their risk of serious injury or death in an accident, especially from the deployment of a front passenger airbag.

● Infants MUST be placed in a rear-facing child safety

seat and positioned in the rear seat.

WARNING

● In the event of an accident, all seat belt assemblies,

including retractors and attachment hardware, should be inspected by an authorized Mitsubishi Motors dealer to determine whether replacement is necessary.

Seat belt instructions

N00406200415

All seats are equipped with a seat belt which uses one combined lap-and-shoulder belt with an emergency locking retractor.

This system is designed to provide both comfort and safety. It permits full extension and automatic retraction of the belts during normal vehicle operation. A sensing device inside the belt retractor is designed to lock the retractor in the event of a sudden change in the vehicle’s motion.

OTE

● For instructions on installing a child restraint system using

a seat belt, refer to “Installing a child restraint system using the seat belt” on page 2-28.

2-12

Seat and restraint systems

1. Occupants should always sit back in their seats with their backs against the upright seatback. To reduce the risk of serious injury or death during deployment of the airbag, adjust the driver’s seat as far back as possible while maintaining a position that still enables you to fully apply the pedals, easily control the steering wheel, and safely operate the vehicle. The front passenger seat should also be moved as far back as possible. Refer to “Supplemental Restraint System (SRS) - airbag” on page 2-32. Also refer to “To adjust the seat forward or backward” on page 2-5.

WARNING

● To reduce the risk of serious injury or death in the

event of an accident or sudden stop, all seatbacks should be kept in the upright position while the vehicle is in motion. Seat belt performance during an accident can be adversely affected if the seatbacks are reclined. The more a seatback is reclined, the more likely seat belt performance will be adversely affected. If the seat belt is not properly positioned against the body during an accident, there is increased risk you will slide under the belt and receive serious injury or death.

2-13

Seat and restraint systems

2. Grasp the latch plate and slide it up the webbing so that it easily pulls across your body.

3. Pull the seat belt out slowly while holding the latch plate. Push the latch plate into the buckle until you hear a “click”. Pull up on the belt to be sure the latch plate is locked securely in the buckle.

OTE

● If the seat belt locks up and cannot be pulled out, pull it

once with force and let it retract all the way. Then, pull the belt out slowly once again.

2-14

Seat and restraint systems

4. The lap part of the belt must always be worn low and snug across the hips. Pull up on the shoulder portion of the belt to take up any slack in the lap belt.

OTE

● With the exception of the seat belt for the driver, the seat

belts in all other seating positions are equipped with an Automatic Locking Retractor (ALR) function. If you pull the seat belt fully out of the retractor, the retractor will switch to its ALR child restraint installation function (see page 2-28). When the ALR function has been activated, the seat belt will only retract. If this happens, let the belt fully retract, then pull the seat belt back out, repeating steps 1 through

WARNING

● Be sure the lap belt portion fits snugly and is worn

as low as possible across the hips, not around the waist. Failure to follow this instruction will increase the risk of serious injury or death in the event of an accident.

● Be sure the seat belt webbing is not twisted when

worn. Twisted webbing may adversely affect seat belt performance.

5. To release the belt, press the button on the buckle and allow the belt to retract. If the belt does not retract smoothly, pull it out and check for kinks or twists in the webbing. Then make sure it remains untwisted as it retracts.

2-15

Seat and restraint systems

Driver’s seat belt reminder/warning light and display

Warning light

Warning display

A tone and warning light are used to remind the driver to fasten the seat belt. If the ignition switch is turned to the “ON” position without the driver’s seat belt being fastened, a warning light will come on and a tone will sound for approximately 6 seconds to remind you to fasten your seat belt. If you then drive with the seat belt unfastened for longer than a minute from when the ignition switch was turned to the “ON” position, the warning light will come on and blink repeatedly and the tone will sound intermittently. The warning light and the tone will stop after approximately 90 seconds.

N00418400326

If you then repeatedly stop and start your vehicle with the seat belt unfastened, the warning light/display and tone will remind you to fasten your seat belt every time the vehicle starts moving. You will also be reminded to fasten your seat belt in this way when you remove your seat belt while driving. The warning light and the tone go off when the seat belt is fastened.

WARNING

● In order to reduce the risk of serious injury or death

in an accident, always wear your own seat belt. Do not allow anyone to ride in your vehicle unless he or she is also seated and wearing a seat belt. Children should additionally be restrained in a secure child restraint system.

OTE

● At the same time, “FASTEN SEAT BELT” will be dis-

played on the information screen in the multi-information display.

2-16

Seat and restraint systems

Front passenger seat belt warning light

N00418300178

The front passenger seat belt warning light is located in the instrument panel.

When the ignition switch is turned to the “ON” position, this indicator normally comes on and goes off a few seconds later. The light comes on when a person sits on the front passenger seat but does not fasten the seat belt. It goes off when the seat belt is subsequently fastened.

WARNING

● Do not install any accessory or sticker that makes

the light difficult to see.

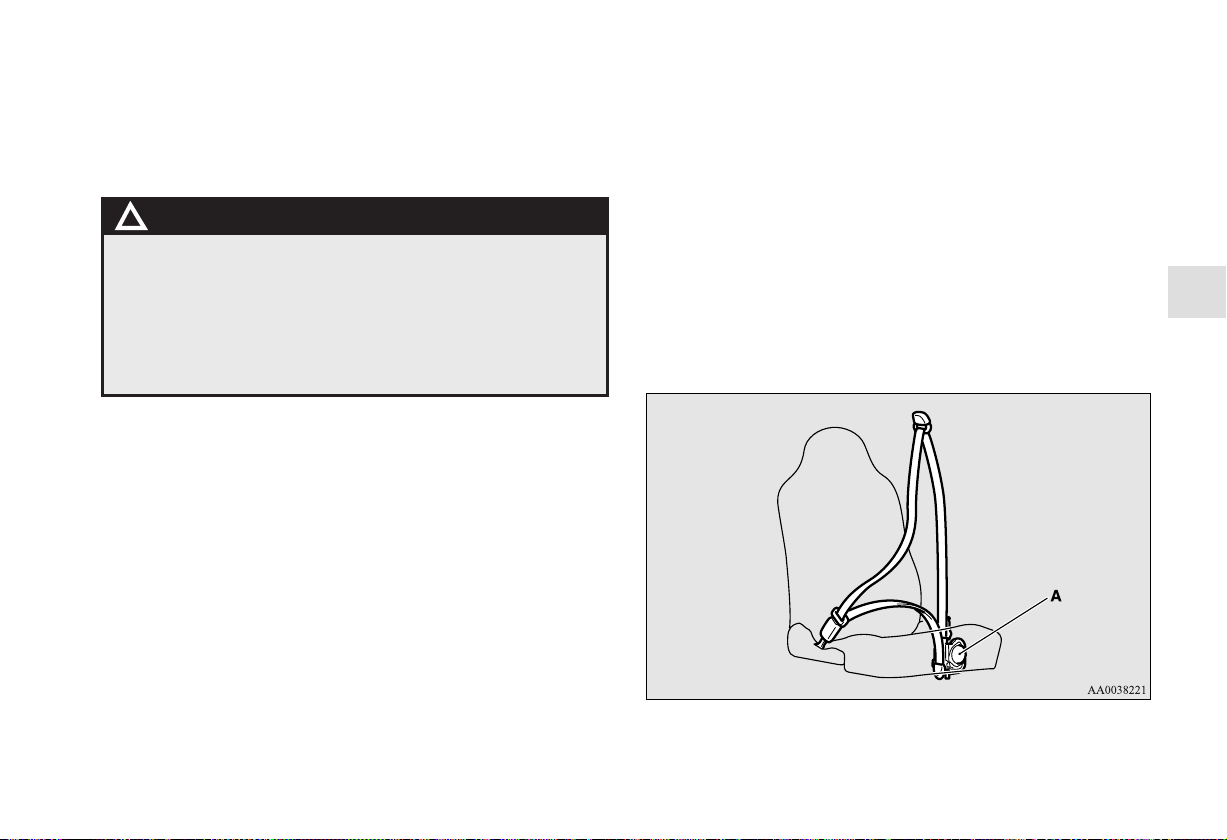

Adjustable seat belt shoulder anchor (front seats)

N00406300269

To move the anchor down, press the lock knob (A) and slide the anchor down to the desired position. To move the anchor up, slide the anchor up to the desired position.

Anchor down Anchor up

2-17

Seat and restraint systems

WARNING

● Always adjust the shoulder belt anchor so that the

shoulder belt is positioned across the center of your shoulder without touching your neck. The shoulder belt should not be able to fall off your shoulder. Failure to follow this instruction can adversely affect seat belt performance and increase the risk of serious injury or death in the event of an accident.

● Adjust the shoulder belt anchor only when the vehi-

cle is not in motion.

● Make sure the anchor is securely locked in position

after adjusting it.

Seat belt extender

N00406700087

When your seat belt, even fully extended, is not long enough, a seat belt extender must be obtained. The extender may be used for either of the front seats.

WARNING

● The extender should only be used if the existing belt

is not long enough. Anyone who can use the standard seat belt should not use an extender. Unnecessary use of an extender can adversely affect seat belt performance in an accident.

● When not required, the extender must be removed

and stowed.

2-18

Seat and restraint systems

Seat belt use during pregnancy

N00406800075

Seat belts work for everyone, including pregnant women. Like all occupants, pregnant women are more likely to be seriously injured or killed in an accident if they do not wear seat belts.

WARNING

● To reduce the risk of serious injury or death to preg-

nant women and unborn children in an accident, pregnant women should always wear a seat belt. The lap portion of the seat belt should be worn snug and low across the hips and below the rounding. Consult your doctor if you have any additional questions or concerns.

Seat belt pre-tensioner and force limiter

systems

N00417700553

The driver’s and front passenger’s seats each have a seat belt equipped with a pre-tensioner system.

Pre-tensioner system

The driver and front passenger seat belts are equipped with a seat belt pre-tensioner system. In moderate-to-severe frontal collisions, this system operates simultaneously with the deployment of the front airbags. The seat belt pre-tensioners are located within the seat belt retractors (A). When activated, the pre-tensioners quickly draw back seat belt webbing and increase seat belt performance.

2-19

Seat and restraint systems

The seat belt pre-tensioner system includes the following components:

1- SRS warning light 2- Front impact sensors 3- Seat belt pre-tensioners 4- Airbag control unit

The airbag control unit monitors the readiness of the electronic parts of the system whenever the ignition switch is in the “ON” or “START” position. These include all of the items listed above and all related wiring. The pre-tensioner seat belt system will operate only when the ignition switch is in the “ON” or “START” position.

When the seat belt pre-tensioners activate, some smoke is released and a loud noise will be heard. The smoke is not harmful, but care should be taken not to intentionally inhale it, as it may cause some temporary irritation to people with respiratory problems. The pre-tensioners activate in the event of moderate-to-severe frontal impact, even if the seat belt is not being worn. The seat belt pre-tensioners may not activate in certain frontal collisions, even though the vehicle may appear to be severely damaged. Such non-activation does not mean something is wrong with the seat belt pre-tensioner system, but rather that the collision forces were not severe enough or not of the type to activate the system.

WARNING

● The seat belt pre-tensioner system is designed to

work only once. After the seat belt pre-tensioners have been activated, they will not work again. They must promptly be replaced and the entire seat belt pre-tensioner system inspected by an authorized Mitsubishi Motors dealer.

2-20

Seat and restraint systems

SRS warning

N00408700108

This warning tells you if there is a problem involving the SRS airbags and the pre-tensioner seat belts. Refer to “SRS warning light/display” on page 2-42.

Force limiter system

N00408900113

In the event of an accident, the seat belt force limiter system will help reduce the force applied to the driver and front seat passenger.

Child restraint systems

N00407100642

When transporting infants or small children in your vehicle, an appropriate child restraint system must always be used. This is required by law in the U.S. and Canada. Child restraint systems specifically designed for infants and small children are offered by several manufacturers. Choose only a child restraint system with a label certifying that it complies with Federal Motor Vehicle Safety Standard 213 (FMVSS

213) or Motor Vehicle Restraint Systems and Booster Cushions Safety Regulations (RSSR). Look for the manufacturer’s statement of compliance on the box and child restraint system itself.

The child restraint system should be appropriate for your child’s weight and height, and should properly fit your vehicle’s seat. For detail information, refer to the instruction manual accompanying the child restraint system.

2-21

Seat and restraint systems

Guidelines for child restraint system selection

All children should be properly restrained in a restraint device that offers the maximum protection for their size and age. Be sure to check local, state, or provincial requirements for child size and age that may vary from the recommendations listed below.

● Children less than 1 year old and children less than 20

pounds (9 kg) MUST ride in a rear-facing child safety seat that MUST ONLY be used in the rear seat.

● Children older than 1 year of age and who weigh less than

40 pounds (18 kg) or who are less than 40 inches (100 cm) tall must be in a forward-facing restraint used only in the rear seat.

● Children who weigh more than 40 pounds (18 kg) or who

are more than 40 inches (100 cm) tall, regardless of age, should use a suitable child seat or a booster seat (including a booster cushion) in the rear seat until the vehicle’s lap/shoulder belt fits them properly.

WARNING

● All children must be seated in the rear seat, and

properly restrained. Accident statistics show that children of all sizes and ages are safer when properly restrained in the rear seat, rather than in the front seat.

WARNING

● Any child who is too large to use a child restraint

system should ride in the rear seat and wear the lap and shoulder belt properly. The shoulder belt must be positioned over the shoulder and across the chest, not across their neck, and with the lap belt positioned low on the child’s hips, not across their stomach. If necessary, a booster seat (including a booster cushion) should be used to help achieve a proper seat belt fit. Follow the booster seat (including a booster cushion) manufacturer’s instructions. Only use a booster seat (including a booster cushion) that is certified as complying with Federal Motor Vehicle Safety Standards or Motor Vehicle Restraint Systems and Booster Cushions Safety Regulations.

2-22

Seat and restraint systems

WARNING

● Never hold an infant or child in your arms or on

your lap when riding in this vehicle, even when you are wearing your seat belt. Never place any part of the seat belt you are wearing around an infant or child. Failure to follow these simple instructions creates a risk of serious injury or death to your child in the event of an accident or sudden stop.

WARNING

● Your vehicle is also equipped with a front passenger

airbag. Never put REAR-FACING CHILD RESTRAINT SYSTEMS or INFANT RESTRAINT SYSTEMS in the front passenger seat. This places the infant too close to the passenger airbag. During deployment of the airbag, the infant can be seriously injured or killed. Rear-facing child restraint systems or infant restraint systems must only be used in the rear seat.

Airbag

2-23

Seat and restraint systems

WARNING

● FRONT-FACING CHILD RESTRAINT SYS-

TEMS should be used in the rear seat whenever possible. If they must be used in the front passenger seat, move the seat to the most rearward position and make sure the child stays in the child restraint system, properly restrained. Failure to follow these instructions could result in serious injury or death to the child.

WARNING

● It is important to use an approved rear-facing infant

restraint until the infant is one year old (unless the infant outgrows the seat sooner). This allows the infant’s neck and spine to develop enough to support the weight of their head in the event of an accident.

● When installing a child restraint system, follow the

instructions provided by the manufacturer and follow the directions in this manual. Failure to do so can result in serious injury or death to your child in an accident or sudden stop.

● After installation, push and pull the child restraint

system back and forth, and side to side, to see that it is firmly secured. If the child restraint system is not installed securely, it may cause injury to the child or other occupants in the event of an accident or sudden stop.

● When not in use, keep your child restraint system

secured with the seat belt, or remove it from the vehicle, in order to prevent it from being thrown around inside the vehicle during an accident.

2-24

Seat and restraint systems

OTE

● Before purchasing a child restraint system, try installing it

in the rear seat to make sure there is a good fit. Because of the location of the seat belt buckles and the shape of the seat cushion, it may be difficult to securely install some manufacturer’s child restraint systems. If the child restraint system can be pulled forward or to either side easily on the seat cushion after the seat belt has been tightened, choose another manufacturer’s child restraint system. Depending on the seating position in the vehicle and the child restraint system that you have, the child restraint system can be attached using one of the following two methods:

• To the lower anchorage in the rear seat ONLY if the child restraint system is compatible with the LATCH system (See page 2-25).

• To the seat belt (See page 2-28).

Installing a child restraint system using the LATCH (Lower Anchors and Tethers for children) system

N00418800102

Lower anchor locations

The outboard seating positions in the rear seat of your vehicle are equipped with lower anchors for attaching child restraint systems compatible with the LATCH system.

OTE

● The symbols on the seatback show the location of the

lower anchor points.

2-25

Seat and restraint systems

Tether anchor locations

Your vehicle has 3 attachment points on the rear shelf, located behind the top of your rear seat. These are for securing a child restraint system tether strap to each of the 3 rear seating positions in your vehicle.

N00418900116

Examples of child restraint systems compatible with the LATCH system

N00419000172

A- Rear-facing child restraint system B- Front-facing child restraint system C- Child restraint system lower anchor connectors D- Tether strap

(These are only examples.)

2-26

Seat and restraint systems

Using the LATCH system

N00419100160

1. In order to securely fasten the tether strap, remove the head restraint from the location where you wish to install the child restraint system.

2. Push the anchor connectors (A) on the child restraint system into the slits (B) in accordance with the instructions provided by the child restraint system manufacturer. Remember, the lower anchors (E) provided with your vehicle are designed to secure suitable child restraint systems compatible with the LATCH system in the rear seat only.

OTE

● In order to secure a child restraint system compatible with

the LATCH system, use the lower anchor points in the outboard positions of the rear seat. It is not necessary to use the vehicle’s seat belt. The vehicle’s seat belt, however, MUST be used to secure a child restraint system in the center position of the rear seat.

WARNING

● If there is any foreign material in or around the

lower anchors, remove it before installing the child restraint system. Also, make sure the seat belt is away from, not looped through or otherwise interfering with, the child restraint system. If foreign matter is not removed and/or the seat belt interferes with the child restraint system, the child restraint system will not be secured properly, could detach and move forward in the event of sudden braking or an accident, and could result in injury to the child or other vehicle occupants.

● When the vehicle is moving, do not adjust the seat

where the child restraint system is installed.

A- Connector D- Vehicle seat cushion B- Slit E- Lower anchor C- Vehicle seatback

2-27

Seat and restraint systems

3. Open the cover for the tether anchor by pulling it back with your hand as illustrated below (3).

4. Latch the tether strap hook (F) of the child restraint system to the anchor (G) as illustrated below (4) and tighten the top tether strap so it is securely fastened.

5. Push and pull the child restraint system in all directions to be sure it is firmly secured.

WARNING

● Child restraint system tether anchors are designed

only to withstand loads from correctly fitted child restraint systems. Under no circumstances are they to be used for adult seat belts, or harnesses, or for attaching other items or equipment to the vehicle.

Installing a child restraint system using the seat belt (with emergency/automatic locking mechanism)

N00407300367

With the exception of the driver, the seat belt in all other seating positions can be converted from normal Emergency Locking Retractor (ELR) mode to Automatic Locking Retractor (ALR) mode. This means that when you pull the seat belt fully out of the retractor, the retractor will switch to its ALR child restraint installation function. Always use the ALR child restraint installation function when you install a child restraint system using the seat belt.

Children 12 years old and under should always be restrained in the rear seat, whenever possible, although the front passenger seat belt can also be converted to ALR mode.

WARNING

● When you install a child restraint system using the

seat belt, always make sure the retractor has been switched to the ALR child restraint installation function. The ALR function will keep the child restraint system tightly secured to the seat. Failure to convert the retractor to the ALR function may allow the child restraint system to move forward during sudden braking or an accident, resulting in serious injury or death to the child or other occupants.

2-28

Seat and restraint systems

Installation

1. Place the child restraint system in the rear seating position.

2. Route the seat belt through the child restraint system according to the instructions provided by the child restraint system manufacturer. Then insert the seat belt latch plate into the buckle. Make sure you hear a “click” when you insert the latch plate into the buckle.

3. To activate the ALR child restraint installation function, slowly pull the shoulder part of the belt all the way out of the retractor until it stops. Then let the belt feed back into the retractor.

4. After the belt has retracted, tug on it. If the belt is in the ALR function, you will not be able to pull it out. If the webbing can be pulled out from retractor, the ALR function has not been activated and you will need to repeat steps 3 and 4.

2-29

Seat and restraint systems

5. After confirming that the belt is locked, grab the shoulder part of the belt near the buckle and pull up to remove any slack from the lap part of the belt allowing the slack to feed into the retractor. Remember, if the lap belt portion is not tight, the child restraint system will not be secure. It may help to put your weight on the child restraint system and/or push on its seatback while pulling up on the belt (see illustration).

If your child restraint system requires the use of a tether strap, fasten the tether strap in accordance with the following procedures.

6. Open the cover from the tether anchor installation point by pulling it back with your hand as illustrated below (6).

7. Remove the head restraint from the location in which you wish to install a child restraint system.

8. Latch the tether strap hook (A) of the child restraint system to the tether anchor (B) as illustrated below (8) and tighten the top tether strap so it is securely fastened.

WARNING

● Child restraint system tether anchors are designed

2-30

Seat and restraint systems

9. Before putting your child in the restraint, push and pull the restraint in all directions to be sure it is firmly secured. Do this before each use. If the child restraint system is not firmly secure, repeat steps 1 through 8.

10. To remove a child restraint system from the vehicle and deactivate the ALR mode, remove the child from the restraint. Unlatch the buckle. Then remove the belt from the restraint and let the belt fully retract.

Children who have outgrown child restraint systems

N00407600575

Children who have outgrown a child restraint system should be seated in the rear seat and wear the seat belt. If the shoulder belt crosses their face or neck, and/or the lap belt crosses their stomach, a commercially available booster seat (including a booster cushion) must be used, to raise the child so that the shoulder belt crosses their shoulder and the lap belt remains positioned low across their hips. The booster seat (including a booster cushion) should fit the vehicle seat and have a label certifying compliance with Federal Motor Vehicle Safety Standards or Motor Vehicle Restraint Systems and Booster Cushions Safety Regulations.

WARNING

● Any child who is too small to properly wear a seat

belt must be properly restrained in an appropriate child restraint system, to reduce their risk of serious injury or death in an accident.

● A child should never be left unattended in, or unsu-

pervised, around your vehicle. When you leave the vehicle, always take the child out as well.

● Children can die from heat stroke if left or trapped

inside the vehicle, especially on hot days.

● Keep your vehicle locked and the trunk lid closed

when not in use. Keep your vehicle keys away from children.

● Never allow children to play in the trunk of your

vehicle.

2-31

Seat and restraint systems

Maintenance and inspection of seat belts

The seat belt webbing may be cleaned with mild soap or detergent solution. Do not use an organic solvent. Allow the belts to dry in the shade. Do not allow them to retract until completely dry. Do not attempt to bleach or re-dye the belts. The color may rub off and the webbing strength may be affected.

Regularly check your seat belt buckles and their release mechanisms for positive engagement and release of the latch plate. Check the retractors for automatic locking when in the Auto-

matic Locking Retractor function.

The entire seat belt assembly should be replaced if the webbing shows any obvious cuts, tears, increase in thickness in any section of the webbing from broken fibers, or severe fading from sunlight. All of these conditions indicate a weakening of the belt, which may adversely affect seat belt performance in an accident.

WARNING

● Do not attempt to repair or replace any part of the

seat belt assemblies. This work should be done by an authorized Mitsubishi Motors dealer. Failure to have an authorized Mitsubishi Motors dealer perform the work could reduce the effectiveness of the belts and could result in a serious injury or death in an accident.

N00407000221

Supplemental Restraint System (SRS) - air-

bag

N00407700651

This vehicle is equipped with a Supplemental Restraint System (SRS), which includes airbags for the driver and passengers.

The SRS front airbags are designed to supplement the primary protection of the driver and front passenger seat belt systems by providing those occupants with protection against head and chest injuries in certain moderate to severe frontal collisions. The SRS front airbags, together with sensors at the front of the vehicle and sensors attached to the front seats, form an advanced airbag system.

The SRS driver’s knee airbag is designed to supplement the primary protection of the driver’s seat belt system. It can reduce the forward movement of the driver’s lower legs and provide increased overall body protection in certain moderate to severe frontal collisions.

The SRS side airbags and the curtain airbags are also designed to supplement the seat belts. The SRS side airbags provide the driver and front passenger with protection against chest injuries by deploying the bag on the side impacted in moderate to severe side impact collisions. The SRS curtain airbags provide the driver and passengers on the front seat and rear outboard seat with protection against head injuries by deploying a bag on the side impacted in moderate to severe side impact collisions.

2-32

Seat and restraint systems

The SRS airbags are NOT a substitute for use of the seat belts. For maximum protection in all types of accidents, seat belts must ALWAYS be worn by everyone who drives or rides in this vehicle (with infants and small children in an appropriate child restraint system in the rear seat, and older children buckled in the rear seat). Refer to “Child restraint systems” on page 2-21.

WARNING

● IT IS VERY IMPORTANT TO ALWAYS WEAR

YOUR SEAT BELT PROPERLY EVEN WITH AN AIRBAG.

• Seat belts help keep the driver and passengers properly positioned. This reduces the risk of injury in all collisions, and reduces the risk of serious injuries or death when the airbags inflate. During sudden braking just before a collision, an unrestrained or improperly restrained driver or passengers can move forward into direct contact with, or within close proximity to, the airbag when it begins to inflate. The beginning stage of airbag inflation is the most forceful and can cause serious injuries or death if the occupant comes in contact with the airbag at this time.

• Seat belts reduce the risk of injury in rollovers, rear impact collisions, and in lower-speed frontal collisions, because the airbags are not designed to inflate in those situations.

• Seat belts reduce the risk of being thrown from your vehicle in a collision or rollover.

WARNING

● IT IS VERY IMPORTANT TO BE PROPERLY

SEATED.

• A driver or front passenger sitting too close to the steering wheel or instrument panel during airbag deployment can be seriously injured or killed.

• Airbags inflate very quickly and with great force. If the driver and front passenger are not properly seated and restrained, the airbag may not provide the proper protection and can cause serious injuries or death when it inflates.

• To reduce the risk to the driver of serious injury or death due to a deploying driver’s airbag, always properly wear your seat belt and adjust the driver’s seat as far back as possible, maintaining a position that still allows the driver to have good control of the steering wheel, brake, accelerator, and other vehicle controls.

• To reduce the risk to the front passenger of serious injury or death from a deploying passenger’s airbag, make sure the passenger always wears the seat belt properly, remains seated upright and all the way back in the seat, and positions the seat as far back as possible.

• Seat all infants and children in the rear seat, properly restrained in an appropriate child restraint system.

2-33

Seat and restraint systems

WARNING

● Airbags inflate very quickly and with great force.

Do not sit on the edge of the seat or sit with your lower legs too close to the instrument panel, or lean your head or chest close to the steering wheel or the instrument panel.

● Do not put your feet or legs on or against the instru-

ment panel.

WARNING

● Infants and small children should never ride unre-

strained, or lean against the instrument panel. They should never ride held in your arms or on your lap. They can be seriously injured or killed in an accident, especially when the airbags inflate. Infants and children should be properly seated in the rear seat in an appropriate child restraint system. Refer to “Child restraint systems” on page 2-21.

2-34

Seat and restraint systems

WARNING

● NEVER put REAR-FACING CHILD RESTRAINT

SYSTEMS or INFANT RESTRAINT SYSTEMS in the front passenger seat. This places the infant too close to the passenger airbag. During deployment of the airbag, the infant can be seriously injured or killed. Rear-facing child restraint systems or infant restraint systems must only be used in the rear seat.

Airbag

WARNING

● FRONT-FACING CHILD RESTRAINT SYS-

2-35

Seat and restraint systems

WARNING

● Older children should be seated in the rear seat with

How the Supplemental Restraint System works

N00407800447

The SRS includes the following components:

their seat belt properly worn, and with an appropriate booster seat (including a booster cushion) if needed. Refer to “Children who have outgrown child restraint systems” on page 2-31.

1- Driver’s airbag 2- SRS warning light 3- Passenger’s airbag off indicator 4- Passenger’s front airbag 5- Front impact sensors 6- Driver’s knee airbag 7- Driver’s seat position sensor 8- Passenger’s seat weight sensors 9- Airbag control unit

2-36

10- Side airbag modules 11- Curtain airbag modules 12- Side impact sensors

The airbags will operate only when the ignition switch is in the “ON” or “START” position.

Seat and restraint systems

When the impact sensors detect a sufficient front or side impact to deploy the airbag(s), the appropriate airbag(s) will be deployed.

When airbags deploy, some smoke is released accompanied by a loud noise. The smoke is not harmful, but do not intentionally inhale the smoke as it may cause temporary irritation to people with respiratory problems.

After deployment, the airbags will quickly deflate, so quickly that some people may not even realize the airbags inflated. Airbag inflation does not prevent the driver from seeing or being able to steer the vehicle, and does not prevent people from leaving the vehicle.

CAUTION

● Airbags inflate very quickly and with great force. In

certain situations, contact with an inflating airbag may cause small cuts, abrasions, and bruises.

2-37

Seat and restraint systems

Event Data Recording

Your vehicle is equipped with an “EDR” - Event Data Recorder which is capable of collecting and storing data in the event of an airbag deployment.

The EDR may record the following information:

● Condition of specific vehicle systems;

● Diagnostic code(s)

N00418600168

Driver’s seat position sensor

N00417900193

The driver’s seat position sensor is attached to the seat rail and provides the airbag control unit with information on the seat’s fore-aft position. The airbag control unit controls deployment of the driver’s front airbag in accordance with the information it receives from this sensor. If there is a problem involving the driver’s seat position sensor, the SRS warning in the instrument panel will come on. Refer to “SRS warning light/display” on page 2-42.

WARNING

● If the SRS warning comes on, have the vehicle

inspected by an authorized Mitsubishi Motors dealer as soon as possible.

● Please observe the following instructions to ensure

that the driver’s seat position sensor can operate correctly.

• Adjust the seat to the correct position, and sit well back against the seatback. Refer to “Front seats” on page 2-3.

• Do not recline the seatback more than necessary when driving.

• Do not place metallic objects or luggage under the front seat.

● If the vehicle is involved in a severe impact, have the

SRS sensor inspected by an authorized Mitsubishi Motors dealer as soon as possible.

2-38

Seat and restraint systems

Passenger’s seat weight sensors

N00418000306

The passenger’s seat weight sensors are attached to the seat rails and provide the airbag control unit with information regarding the weight on the front passenger seat. The airbag control unit controls deployment of the passenger’s front airbag in accordance with the information it receives from this sensor. The passenger’s front airbag will not deploy in an impact when the weight on the seat is sensed to be less than approximately 66 pounds (30 kg). In this case, the passenger’s airbag off indicator will come on. Refer to “Passenger’s airbag off indicator” on page 2-41. If there is a problem involving the passenger’s seat weight sensors, the SRS warning in the instrument panel will come on. Refer to “SRS warning light/display” on page 2-42.

WARNING

● If any of the following conditions occur, you should

immediately have your vehicle inspected by an authorized Mitsubishi Motors dealer as soon as possible:

• The SRS warning does not initially come on when the ignition switch is turned to the “ON” or “START” position.

• The SRS warning does not go out after several seconds.

• The SRS warning comes on while you are driving.

WARNING

● To ensure that the passenger’s seat weight sensors

can correctly sense the weight being applied to the seat, observe the following instructions. Failure to follow these instructions can adversely affect the performance of the passenger’s airbag system.

• Adjust the seat to the correct position, and sit well back against the seatback. Refer to “Front seats” on page 2-3.

• Do not recline the seatback more than necessary.

• Never have more than one person (adult or child) sitting on the seat.

• Do not place anything between the seat and the floor console.

• Do not hang anything on the front passenger’s seatback.

• When attaching a child restraint system, secure it firmly.

• Do not place luggage or other objects on the seat.

• Do not use a seat cover or a cushion.

• Do not modify or replace the seat and seat belt.

• Do not place luggage or other objects under the seat.

• Do not place the floor mat on the seat rails.

• Do not expose the sensors to liquids or vapors.

• Do not subject the sensors to shock.

• Do not allow rear-seat occupants to push the front passenger seat with their feet or force the front passenger seat upward.

2-39

Seat and restraint systems

WARNING

• Do not allow rear-seat occupants to grasp the front passenger’s seatback or put their arms around it.

• When attaching a child restraint system in the rear seat, make sure it does not interfere with the front seat.

WARNING

● If the vehicle is involved in a severe impact, have the

SRS sensors inspected by an authorized Mitsubishi Motors dealer as soon as possible.

2-40

Seat and restraint systems

Passenger’s airbag off indicator

N00418100251

The passenger’s airbag off indicator is located in the instrument panel.

The indicator normally comes on when the ignition switch is turned to the “ON” position and goes out a few seconds later. In the following situations, the indicator will stay on to show that the passenger’s front airbag is not operational.

● The passenger’s seat weight sensors sense a weight of less

than approximately 66 pounds (30 kg) on the front passenger seat.

● The front passenger’s seat is not occupied.

When the weight applied to the front passenger seat is sensed to be approximately 66 pounds (30 kg) or greater, the indicator goes out to show that the passenger’s front airbag is operational.

WARNING

● If any of the following conditions occur, you should

immediately have the airbag system in your vehicle inspected by an authorized Mitsubishi Motors dealer as soon as possible:

• The passenger’s airbag off indicator comes on when an adult is sitting on the front passenger seat.

• The passenger’s airbag off indicator does not come on when the front passenger’s seat is not occupied.

• The passenger’s airbag off indicator does not come on when the ignition switch is turned to the “ON” position.

• The passenger’s airbag off indicator comes on and goes out repeatedly.

● Do not attach any accessory to your vehicle that

makes the passenger’s airbag off indicator difficult or impossible to see. You must be able to see the passenger’s airbag off indicator and verify the status of the passenger’s airbag system.

2-41

Seat and restraint systems

SRS warning light/display

Warning light

Warning display

If there is an error in the system, the warning light will come on and the warning display will appear on the information screen in the multi-information display. Under normal conditions, the warning light comes on when the ignition switch is turned to the “ON” position and goes off a few seconds later. The warning light will also come on and remain on when the SRS airbags and the seat belt pre-tensioner system have been activated. The warning light/display is used for both SRS airbag warnings and seat belt pre-tensioner system warnings.

N00408300537

WARNING

● There may be a system error if the warning

light/display appears as indicated. In such cases, an SRS airbag or a seat belt pre-tensioner system may not function properly in a collision. Have your vehicle checked by an authorized Mitsubishi Motors dealer:

• Even when the ignition switch is in the “ON” position, the warning light does not come on or it remains on a few seconds later

• When warning light comes on while driving

• When warning display appears while driving

2-42

Seat and restraint systems

Driver’s and passenger’s front airbag system

N00407900028

The driver’s airbag is located under the padded cover in the middle of the steering wheel. The front passenger’s airbag is contained in the instrument panel above the glove compartment. The driver’s airbag and the front passenger’s airbag are designed to deploy at the same time. However, the front passenger’s airbag does not deploy when the front passenger seat is not occupied or when the weight sensor in the front passenger seat senses a weight on the seat of less than approximately 66 pounds (30 kg).

Driver

Front passenger

Driver’s knee airbag system

N00404500023

The driver’s knee airbag is located under the steering wheel. The driver’s knee airbag is designed to deploy at the same time as the driver’s front airbag.

2-43

Seat and restraint systems

Deployment of front airbags

The front airbags and driver’s knee airbag ARE DESIGNED TO DEPLOY when…

Head-on collision with a solid wall at speeds of approx. 15 mph (25 km/h) or higher

Moderate to severe frontal impact within the shaded area between the arrows

The front airbags and driver’s knee airbag are designed to deploy when the vehicle suffers a moderate to severe frontal impact. A typical condition is shown in the illustration to the left.

The front airbags and driver’s knee airbag are designed to deploy only in certain moderate to severe frontal collisions within the shaded area between the arrows in the illustration to the right. The front airbags and driver’s knee airbag will deploy if the impact to the vehicle’s main structure is above a specific threshold level. The threshold level is approximately 15 mph (25 km/h) for a frontal collision straight into a solid flat wall

that does not bend or deform. If the impact to the vehicle’s main structure is below this threshold level, the front airbags and driver’s knee airbag may not deploy. This threshold level may also be higher if the vehicle hits something that absorbs the impact, either by bending or moving (for example, another stationary vehicle, a pole or a guard rail). The beginning stage of airbag inflation is the most forceful, and can cause serious injuries or death if you are too close to the deploying airbag. Accordingly, it is important that you always wear the available seat belt.

N00408000518

2-44

Seat and restraint systems

The front airbags and driver’s knee airbag MAY NOT DEPLOY when …

In certain types of front collisions, the front airbags and driver’s knee airbag may not deploy, even if the deformation of the body seems to be large, because the vehicle’s body structure is designed to absorb the impact and deform in order to help protect the occupants. Some typical situations where the front airbags and driver’s knee airbag may not deploy are shown in the illustrations.

Because the front airbags and driver’s knee airbag do not protect the occupant in all types of frontal collisions, be sure to always wear your seat belts properly.

Collision with a utility pole, tree or other narrow objects

Collision where the vehicle slides under the rear body of a truck

Oblique frontal impact

2-45

Seat and restraint systems

The front airbags and driver’s knee airbag ARE NOT DESIGNED TO DEPLOY when …

The front airbags and driver’s knee airbag are not designed to deploy in situations where they cannot provide protection to the occupants. Some typical situations are shown in the illustrations.

Because the front airbags and driver’s knee airbag do not protect the occupants in all types of collisions, be sure to always wear your seat belts properly.

Rear end collision to your vehicle

Side collision to your vehicle

Vehicle rolls onto its side or roof

2-46

Seat and restraint systems

The front airbags and driver’s knee airbag MAY DEPLOY when …

The front airbags and driver’s knee airbag may deploy if the underside of the vehicle suffers a moderate to severe impact (undercarriage impact). Some typical situations are shown in the illustrations.

Because the front airbags and driver’s knee airbag may deploy in certain types of unexpected impacts, as shown in the illustrations, and these unexpected impacts can move you out of position, it is important to always wear your seat belts properly. When worn properly, seat belts can help maintain your distance from the airbags and driver’s knee airbag when they begin to inflate. The beginning stage of airbag inflation is the most forceful and can cause serious injury or death if you are close to the deploying airbag.

Collision with an elevated median/island or curb

Vehicle travels over a deep hole/pothole

Vehicle drives down a steep slope and hits the ground

2-47

Seat and restraint systems

WARNING

● Do not attach anything to the steering wheel’s pad-

ded cover, such as trim material, badges, etc. These could strike and injure an occupant if the airbag inflates.

● Do not set anything on, or attach anything to, the

instrument panel above the glove compartment. Such items could strike and injure an occupant if the airbag inflates.

WARNING

● Do not attach accessories to, or put them in front of,

the windshield. They could restrict the airbag inflation, or strike and injure an occupant, when the airbag inflates.

● Do not attach additional keys or accessories (hard,

pointed or heavy objects) to the ignition key. Such objects could prevent the driver’s knee airbag from inflating normally or could be propelled to cause serious injury if the airbag inflates.

● Do not attach accessories to the lower portion of the

driver’s side instrument panel. Such objects could prevent the driver’s knee airbag from inflating normally or could be propelled to cause serious injury if the airbag inflates.

2-48

Seat and restraint systems

WARNING

● Do not attempt to remove, install, disassemble or

repair the SRS airbags.

● Do not place objects, such as packages or pets,

between the airbags and the driver or the front passenger. Such objects can adversely affect airbag performance, or cause serious injury or death when the airbag deploys.

● Immediately after airbag inflation, some parts of the

airbag system will be hot. Do not touch them. You could be burned.

● The airbag system is designed to work only once.

After the airbags deploy, they will not work again. They must promptly be replaced and the entire airbag system must be inspected by an authorized Mitsubishi Motors dealer.

Side airbag system

N00408100333

The side airbags (A) are contained in the driver and front passenger seatbacks. The side airbag is designed to inflate only on the side of the vehicle that is impacted, even with no passenger in the front seat.

2-49

Seat and restraint systems

A label is attached to the seatbacks in vehicles with side airbags.

Curtain airbag system

N00419200132

The curtain airbags are contained in the front and rear pillars and roof side rail. The curtain airbag is designed to inflate only on the side of the vehicle that is impacted, even with no passenger in the front seat.

2-50

Seat and restraint systems

WARNING

● The side airbag and curtain airbag can cause serious

injury or death to anyone too close to the airbag when it deploys. To reduce the risk of injury from a deploying side airbag and curtain airbags, all occupants must be properly restrained and seated well back, upright, and in the middle of the seat. Do not lean against the door.

WARNING

● In order to reduce the risk of injury from a deploy-

ing side airbag, do not allow any rear seat passengers to hold onto the back of either front seat. Special care should be taken with children.

● Do not place any objects near or around the front of

either front seatback. Such objects can interfere with proper side airbag deployment and cause injury during deployment of the side airbag.

● Do not place stickers, labels or additional trim on

the back of either front seat. They can interfere with proper side airbag deployment.

● Do not install seat covers or re-cover seats that have

side airbags. Covers can interfere with proper side airbag deployment and adversely affect side airbag performance.

2-51

Seat and restraint systems

WARNING

● Do not attach a microphone (A) or any other object

around the part where the curtain airbag (B) deploys, such as on the windshield, side door glass or front and rear pillars and roof side rail. When the curtain airbag inflate, the microphone or other object may be hurled with great force or the curtain airbag may not inflate correctly, resulting in death or serious injury.

WARNING

● Do not put a hanger or any heavy or pointed object

on the coat hook. If the curtain airbag was activated, any such item could be propelled away with great force and could prevent the curtain airbag from inflating correctly. Hang clothes directly on the coat hook (without using a hanger). Make sure there are no heavy or sharp objects in the pockets of clothes that you hang on the coat hook.

● Never install a rear-facing child restraint system in

the front passenger seat. Rear-facing child restraint systems MUST ONLY be used in the rear seat.

● Front-facing child restraint systems should also be

used ONLY in the rear seat. If a front-facing child restraint system must be used in the front passenger seat, move the seat as far back as possible, and make sure that the child stays in the child restraint system, properly restrained and away from the door.

● Do not allow a child to lean against or sit close to the

passenger door, even if the child is seated in a child restraint system. The child’s head should also not lean against or be close to the section of the seatback where the side airbag and curtain airbag are located. It is dangerous if the side airbag and curtain airbag deploys. Failure to follow all of these instructions could lead to serious injury or death to the child.

2-52

Seat and restraint systems

WARNING

● Work done on or in the vicinity of the side airbag

and curtain airbag system components should be done only by an authorized Mitsubishi Motors dealer. Improper work methods can cause accidental side airbag and curtain airbag deployment, or render a side airbag and curtain airbag inoperable. Either of these situations can result in serious injury or death.

Deployment of side airbag and curtain airbag

N00408200389

The side airbag and curtain airbag ARE DESIGNED TO DEPLOY when …

A side airbag and curtain airbag are designed to deploy when the vehicle suffers a moderate to severe side impact to the middle of the passenger compartment. The typical situation is shown in the illustration.

Moderate to severe impact to the middle of the vehicle body’s side structure

The seat belts in your vehicle are your primary means of protection in an accident. The SRS (Supplemental Restraint System) side airbags and curtain airbags are designed to provide additional protection. Therefore, for your safety and the safety of all occupants, be sure to always wear your seat belts properly.

2-53

Seat and restraint systems

The side airbag and curtain airbag MAY NOT DEPLOY when …

In certain types of side collisions, the side airbag and curtain airbag may not deploy, even if the deformation of the body seems to be large, because the vehicle’s body structure is designed to absorb the impact and to deform in order to help protect the occupants. Also, depending on the location of the impact, the side airbags and curtain airbags may not deploy simultaneously. Some typical situations where the side airbag and curtain airbag may not deploy are shown in the illustra-

tions.

Because the side airbags and curtain airbags do not protect the occupant in all types of side collisions, be sure to always wear your seat belts properly.

Side impact in an area away from the passenger compartment

Motorcycle or other similar small vehicle collision with the side of vehicle

Collision with a utility pole, tree or other narrow object

2-54

Seat and restraint systems

Oblique side impact

Vehicle rolls onto its side or roof

The side airbag and curtain airbag ARE NOT DESIGNED TO DEPLOY when …

The side airbag and curtain airbag are not designed to deploy in situations where they cannot provide protection to the occupants. Some typical situations are shown in the illustrations.

Because the side airbags and curtain airbags do not protect the occupants in all types of collisions, be sure to always wear your seat belts properly.

Head-on collision

Rear end collision

2-55

Seat and restraint systems

SRS servicing

● Any maintenance performed on or near the compo-

● Do not modify your steering wheel or any other SRS

● If your vehicle has received any damage, you should

N00408500601

WARNING

nents of the SRS should be performed only by an authorized Mitsubishi Motors dealer. Do not permit anyone else to do any service, inspection, maintenance or repair on any SRS components or wiring. Similarly, no part of the SRS should ever be handled, removed or disposed by anyone except an authorized Mitsubishi Motors dealer. Improper work methods on the SRS components or wiring could result in an accidental airbag deployment or could make the SRS inoperable. Either of these situations could result in serious injury or death.

component or related vehicle part. For example, replacement of the steering wheel, or modifications to the front bumper or body structure can adversely affect SRS performance and may lead to injury.

have the SRS inspected by an authorized Mitsubishi Motors dealer to make sure it is in proper working order.

WARNING

● Do not modify your front seats, center pillar or cen-

ter console. Such modifications can adversely affect SRS performance and may lead to injury. Also, if you discover any tear or open seam in the seat fabric near the side airbag, have the seat inspected by an authorized Mitsubishi Motors dealer.

● If you find a crack in or damage to the front pillar,

rear pillar, or roof side rail where the curtain airbag is located, have the SRS inspected by an authorized Mitsubishi Motors dealer.

OTE

● When you transfer ownership of the vehicle to another

person, we urge you to alert the new owner that it is equipped with the SRS and refer that owner to the applicable sections in this owner’s manual.

● If you decide to junk or scrap your vehicle, we urge you to

first take it to an authorized Mitsubishi Motors dealer so that the SRS can be made safe for disposal.

● If any of the following parts needs to be modified for use

by a handicapped person, the advanced airbag system will be greatly affected. Please consult an authorized Mitsubishi Motors dealer for assistance.

• Driver’s seat

• Front passenger seat

• Front seat belt

• Steering wheel

• Instrument panel

2-56

Seat and restraint systems

[For vehicles sold in U.S.A.]

To contact Mitsubishi Motors North America, Inc. call 1-888-648-7820 or write to:

Mitsubishi Motors North America, Inc. Customer Relations Department P. O. Box 6400 Cypress, CA 90630-0064

[For vehicles sold in Canada]

To contact Mitsubishi Motor Sales of Canada, Inc. call 1-888-576-4878 or write to:

Mitsubishi Motor Sales of Canada, Inc. Customer Relations Department P.O. Box 41009 4141 Dixie Road Mississauga, ON L4W 5C9

[For vehicles sold in Puerto Rico]

To contact Mitsubishi Motor Sales of Caribbean, Inc. call 1-800-981-0452 or write to:

Mitsubishi Motor Sales of Caribbean, Inc. Customer Service Department P.O. Box 192216 SAN JUAN PR 00919-2216

[For vehicles sold in Guam]

To contact Triple J Enterprises Inc. call (671) 649-3673 or write to:

Triple J Enterprises, Inc. P.O. Box 6066 TAMUNING GUAM 96931

[For vehicles sold in Saipan]

To contact Triple J Motors call (670) 234-7133 or write to:

Triple J Motors P.O. Box 500487 SAIPAN, MP96950-0487

[For vehicles sold in American Samoa]

To contact Pacific Marketing Inc. call 684 (699) 9140 or write to:

Pacific Marketing, Inc. P.O. B o x 6 9 8 PAG O PAGO, AMERICAN SAMOA AS, 96799

2-57

Seat and restraint systems

Warning labels

Occupant restraint warning labels for the SRS are located in the vehicle as shown in the illustration.

N00408600309

* - Located in the passenger’s side as well.

2-58

Features and controls

Break-in period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2

Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2

Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . .3- 4

Keyless entry system (if so equipped). . . . . . . . . . . . . . . . . . . . . . . .3- 9

Free-hand Advanced Security Transmitter

(F.A.S.T.-key) (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 17

Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 51

Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 55

“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 57

Trunk lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 58

Inside emergency trunk lid release . . . . . . . . . . . . . . . . . . . . . . . . . .3- 61

Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 62

Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 68

Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 72

Parking brake. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 75

Steering wheel tilt lock lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 77

Inside day/night rearview mirror. . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 78

Outside rearview mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 80

Ignition switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 82

Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 85

Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 86

Turbocharger operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 90

Clutch pedal operation (if so equipped) . . . . . . . . . . . . . . . . . . . . . .3- 91

Manual transaxle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 92

Twin Clutch SST (Sportronic Shift Transmission)

(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 94

All-wheel drive system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 116

Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . . . . .3- 116

S-AWC (Super-All Wheel Control). . . . . . . . . . . . . . . . . . . . . . . . . .3- 118

Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 124

Active stability control (ASC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 128

Limited-slip differential. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 132

Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 132

Brake assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 134

Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 135

Cruise control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 135

Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 143

Instrument cluster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 149

Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 153

Indicator light, warning light, and information

screen display list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 184

Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 196

Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 196

Information screen display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 199

Combination headlights and dimmer switch . . . . . . . . . . . . . . . . . . 3- 201

Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 210

Hazard warning flasher switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211

Front fog light switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211

Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 212

Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . 3- 220

Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 221

Link System (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 222

Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 222

USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 3- 248

Sun visors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 254

Ashtray (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 255

Cigarette lighter (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 257

12 V power outlet (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 259

Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 260

Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 264

Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 268

Bottle holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 269

Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 270

Coat hook. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 270

Features and controls

Break-in period

For future performance and economy of your vehicle, we recommend that you carry out the following precautions.

● Avoid revving the engine. Do not exceed 5,000 rpm for

the first 600 miles (1,000 km).

● Avoid rough driving such as fast starts, prolonged high-

speed driving and rough shifting for the first 300 miles (500 km).

● The high-performance brake pads on your vehicle require

a short break-in period. Avoid hard braking for the first 300 miles (500 km) to prevent future abnormal brake

noise and vibration from your vehicle’s brake pads.

● The standard-equipment tires use a high-grip compound.

Thus drive with extra care for the first 200 miles (300 km).

● Do not overload the vehicle. Observe the seating capacity

(See “Cargo loads precautions” on page 4-12).

● Do not use this vehicle for trailer towing.

N00508700301

Keys

N00508800588

Type 1

Two keys are provided. The keys fit all locks. Keep one in a safe place as a spare key.

1- Key for the electronic immobilizer and keyless entry system 2- Key number plate

3-2

Features and controls

Type 2

Two F.A.S.T.-keys and two emergency keys are provided. Keep one F.A.S.T.-key and one emergency key in a safe place together as a set of spare keys.

1- F.A.S.T.-key

(with electronic immobilizer and keyless entry system func-

tion) 2- Emergency key 3- Key number plate

OTE

● The key is a precision electronic device with a built-in sig-

nal transmitter. Please observe the following in order to prevent damage.

• Do not leave where it may be exposed to heat caused by direct sunlight, such as on top of the dashboard.

• Do not take the remote control transmitter apart.

• Do not excessively bend the key or subject it to strong impacts.

• Keep the remote control transmitter dry.

• Keep away from magnetic objects such as key rings.

• Keep away from devices that produce magnetism, such as audio systems, computers and televisions.

• Keep away from devices that emit strong electromagnetic waves, such as cellular phones, wireless devices and high frequency equipment (including medical devices).

• Do not clean with ultrasonic cleaners.

• Do not leave the key where it may be exposed to high temperature or high humidity.

● If you lose your key, to prevent the theft of the vehicle

immediately contact an authorized Mitsubishi Motors dealer. If you notify an authorized Mitsubishi Motors dealer of the key number, they can make a new key. The key number is stamped on the key number plate. Keep the key number plate in a safe place separate from the key itself.

3-3

Features and controls

● No keys other than those registered in advance can be

used to start the engine. Refer to “Electronic immobilizer (Anti-theft starting system)” on page 3-4. Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-key)”: “Electronic immobilizer (Anti-theft starting system)” on page 3-40.

● When the theft-alarm is in the system operational status,

the alarm operates if a door is opened after using the key, the door lock knob or the power door lock to unlock the vehicle.

● The system does not enter the preparation status if the

keyless entry system or the F.A.S.T.-key operation was not used to lock the vehicle.

Electronic immobilizer (Anti-theft starting

system)

N00509100663

[For vehicles equipped with the Free-hand Advanced Security Transmitter (F.A.S.T.-key)] For information on operations for vehicles equipped with the Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-key)”: “Electronic immobilizer (Anti-theft starting system)” on page 3-40.

[Except for vehicles equipped with the Free-hand Advanced Security Transmitter (F.A.S.T.-key)] The electronic immobilizer is designed to significantly reduce the possibility of vehicle theft. The purpose of the system is to immobilize the vehicle if an invalid start is attempted. A valid start attempt can only be achieved (subject to certain conditions) using a key “registered” to the immobilizer system. All of the keys provided with your new vehicle have been programmed to the vehicle’s electronics.

3-4

OTE

● Do not attach additional keys or accessories to the ignition

key. Such objects could prevent the driver’s knee airbag from inflating normally. Refer to “Deployment of front airbags” on page 2-44.

● In the following cases, the vehicle may not be able to rec-

ognize the registered ID code from the key. This means the engine will not start even when the key is turned to the “START” position.

• When the key contacts a key ring or other metallic or magnetic object (Type A)

• When the key grip contacts metal of another key (Type B)

• When the key contacts or is close to other immobilizer keys (including keys of other vehicles) (Type C)

● In cases like the above, move the offending object(s) away

from the key and turn the key back to the “ACC” or “LOCK” position. Then try to start the engine again. If the engine does not start, contact an authorized Mitsubishi Motors dealer.

Features and controls

3-5

Features and controls

OTE

● Electronic immobilizer is not compatible with commer-

cially available remote starting systems. Use of commercially available remote starting systems may result in vehicle starting problems and a loss of security protection.

● A system failure is suspected when the ignition switch is

turned to the “START” position, and the engine does not start. In such a case, contact an authorized Mitsubishi Motors dealer.

WARNING

● Do not make any alterations or additions to the

immobilizer system. Alterations or additions could cause failure of the immobilizer.

Replacement keys

Only keys that have been programmed to the vehicle’s electronics can be used to start the vehicle.

If you lose the key, you can order a key from an authorized Mitsubishi Motors dealer by referring to the key number. To prevent vehicle theft, the ID code for the vehicle keys must be changed. Take your vehicle and all remaining keys to an authorized Mitsubishi Motors dealer to have your ID code changed.

Additional keys

To add a key, you need to register the ID code to the vehicle. Registering the ID code can be done by an authorized Mitsubishi Motors dealer. Or it can be done by yourself (except for vehicles sold in Canada). For you to register the ID code yourself, follow the “Customer key programming” procedure below. If you choose to have an authorized Mitsubishi Motors dealer register the ID code, take your vehicle and all remaining keys to an authorized Mitsubishi Motors dealer.

OTE

● You are provided with two keys, but you may register up

to eight keys.

3-6

Features and controls

Customer key programming (Except for vehicles sold in Canada)

N00562200070

You can program new keys to the system if you have two valid (already registered) keys and blank (not registered) immobilizer key (specially cut for your vehicle at your Mitsubishi Motors dealer) by doing the following:

1. Insert the first valid key into the ignition switch and turn the key to the “ON” position for 5 seconds.

2. Turn the key to the “LOCK” position and remove the first key.

3. Within 30 seconds of turning the first key to the “LOCK” position, insert the second valid key into the ignition and turn it to the “ON” position. About 10 seconds later, the immobilizer display will start to blink.

4. When the immobilizer display starts blinking, turn the second valid key to the “LOCK” position and remove it. Within 30 seconds after doing so, insert a blank immobilizer key into the ignition switch and turn it to the “ON” position. Perform this operation no more than 30 seconds after the immobilizer display starts blinking. When registration of the ID code is complete, the immobilizer display will come on for 3 seconds then go off. If an error occurs, the immobilizer display will go off during the procedure.

5. If you wish to register another key, perform the process again from step 1.

3-7

Features and controls

OTE

● Perform the operation when the interrupt display screen is

not showing. The interrupt display screen may prevent you from seeing the immobilizer display.

● It is not possible to register a key if:

• the immobilizer display goes off during the procedure

• the immobilizer display does not come on within 30 seconds after turning the ignition switch to the “ON” position with a blank immobilizer key

● The procedure will be terminated automatically if:

• a period of 30 seconds or longer elapses from the moment when the first key is turned to the “LOCK”

position to the moment when the second key is turned to the “ON” position

• a period of 30 seconds or longer elapses from the moment when the second key is turned to the “LOCK” position to the moment when the blank immobilizer key is turned to the “ON” position

● To use the new remote control transmitters, it is necessary

to register the key with both the electronic immobilizer and keyless entry system. Also refer to “Keyless entry system: Customer remote control transmitter programming” on page 3-13.

General information

N00562300042

Your electronic immobilizer operates on a radio frequency subject to Federal Communications Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This device complies with part 15 of the FCC Rules and RSS-Gen of the Industry Canada Rules. Operation is subject to the following two conditions.

● This device may not cause harmful interference.

● This device must accept any interference received, includ-

ing interference that may cause undesired operation.

CAUTION

● Changes or modifications not expressly approved by

the manufacturer for compliance could void the user’s authority to operate the equipment.

3-8

Features and controls

Keyless entry system

(if so equipped)

N00509000835

Press the remote control transmitter buttons to lock or unlock the doors and to open the trunk lid. It can also help you signal for attention by setting off the panic alarm.

LOCK ( ) button

UNLOCK ( ) button

Trunk ( ) button 4- PANIC button 5- Indicator light

To l oc k

N00542700053

Press the LOCK button (1) to lock all the doors. The turn signal lights will also blink once.

OTE

● If you press the LOCK button (1) twice quickly, the horn

will sound once.

To u nl o c k

N00543300069

Press the UNLOCK button (2) to unlock the driver’s door only. Within about 2 seconds, press the UNLOCK button one more time to unlock all the doors. The dome light will turn on for 30 seconds. The turn signal lights will also blink twice. The front side-marker and parking lights will also turn on for about 30 seconds. Refer to “Welcome light” on page 3-207.

OTE

● On a vehicle equipped with a Mitsubishi Multi-Communi-

cation System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.

● The door unlock function can be set so that all doors

unlock when the UNLOCK button (2) is pressed once. Refer to “Setting of door unlock function” on page 3-12.

3-9

Features and controls

To open the trunk lid

Press the trunk button (3) twice within about 5 seconds and the trunk lid will be opened. The trunk lid must be closed manually after it has been opened.

Answerback function

Setting of the horn and turn signal lights of the keyless entry system answerback function can be changed as required. This is done with the key removed from the ignition switch.

OTE

● The answerback function does not operate when the key is

in the ignition switch or any doors is opened.

N00543400028

N00543500061

Horn deactivation/reactivation

The horn answerback function can be set to the following three conditions. Each time the horn answerback function is set, a chime will sound to tell you the condition of the answerback function.

Number of

chimes

One chime The horn will not sound.

Two chimes The horn will sound.

Four chimes

The horn will sound if the LOCK button (1) is pressed twice quickly.

Condition

1. Remove the key from the ignition switch.

2. Open the driver’s door and turn the combination headlights and dimmer switch to the “OFF” position.

3. Press the LOCK button (1) for 4 to 10 seconds and press the UNLOCK button (2) during this time.

4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the UNLOCK button in step

OTE

● On a vehicle equipped with a Mitsubishi Multi-Communi-

cation System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.

3-10

Features and controls

Changing the setting of the turn signal lights answerback function

The turn signal lights answerback function can be set to the following seven conditions. Each time the turn signal lights answerback function is set, a chime will sound to tell you the condition of the answerback function.

Condition

Number of chimes

To l o c k To unl o ck

One chime One flash Two flashes

Two chimes One flash No flash

Three chimes No flash Two flashes

Four chimes Two flashes One flash

Five chimes No flash One flash

Six chimes Two flashes No flash

Seven chimes No flash No flash

1. Remove the key from the ignition switch.

2. Open the driver’s door and turn the combination headlights and dimmer switch to the “OFF” position.

3. Press the UNLOCK button (2) for 4 to 10 seconds and press the LOCK button (1) during this time.

4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the LOCK button in step 3.

OTE

● On a vehicle equipped with a Mitsubishi Multi-Communi-

cation System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.

3-11

Features and controls

Setting of door unlock function

The door unlock function can be set to the following two conditions. Each time the door unlock function is set, a chime will sound to tell you the condition of the door unlock function.

Number of

chimes

One chime All doors unlock

Two chimes Driver’s door unlock only

1. Remove the key from the ignition switch.

2. Open the driver’s door and turn the combination headlights and dimmer switch to the “OFF” position.

3. Press the LOCK button (1) for 4 to 10 seconds and press the UNLOCK button (2) during this time.

4. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 3.

OTE

● On a vehicle equipped with a Mitsubishi Multi-Communi-

cation System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.

Condition

N00543600059

Using the panic alarm

N00543700047

If you are near your vehicle and feel threatened, you may activate the alarm to call attention as follows:

1. Press the PANIC button (4) for more than 1 second.

2. The headlights will blink on and off and the horn will sound intermittently for about 3 minutes.

3. To turn off the alarm, press any button on the remote control transmitter.

Replacement remote control transmitters

N00543800022

Only remote control transmitters programmed with the vehicle’s electronics can lock or unlock all doors.

If you lose the remote control transmitter, you can order a remote control transmitter from an authorized Mitsubishi Motors dealer by referring to the key number. To prevent vehicle theft, the ID codes for all the remote control transmitters except the one for the lost key must be programmed again. Take your vehicle and all the remaining remote control transmitters to an authorized Mitsubishi Motors dealer to have your ID codes programmed again.

3-12

Features and controls

Additional remote control transmitters

N00543900023

To add a remote control transmitter, you must already have one registered remote control transmitter. Registering the ID code can be done by yourself or by your authorized Mitsubishi Motors dealer. For you to register the ID code yourself, follow the “Customer remote control transmitter programming” procedure below. If you choose to have an authorized Mitsubishi Motors dealer register the ID code, take your vehicle and all remaining keys to an authorized Mitsubishi Motors dealer.

OTE

● You are provided with two remote control transmitters,

but you may register up to eight remote control transmitters.

Customer remote control transmitter programming

N00544000076

You can program new remote control transmitters to the system if you have one valid (already registered) remote control transmitter by doing the following:

1. Have available all (current and new) remote control transmitters you wish to register.

2. With a valid (already registered) remote control transmitter, press the UNLOCK button (2) for 4 to 10 seconds. Then press and hold the LOCK button (1).

3. Within 10 seconds of pressing the LOCK button, release the LOCK and UNLOCK buttons in sequence. At this time, ID codes for all remote control transmitters except for the transmitter used in steps 2 and 3 are erased and the answerback function (door is locked and unlocked) informs you that the registration mode has been activated.

4. Within 60 seconds after step 3, complete the following ID code registration operation using the next remote control transmitter you wish to register within 4 seconds.

i. Press both the LOCK and UNLOCK buttons for 2 sec-

onds.

ii. Release both the LOCK and UNLOCK buttons for 1

second.

iii. Press the UNLOCK button. The answerback function

informs you that the ID code registration of the transmitter is completed.

5. To register the ID codes of additional remote control transmitters, repeat step 4 within 60 seconds after step 4.

3-13

Features and controls

6. If no ID code of a remote control transmitter is registered within 60 seconds after step 4, the registration mode is canceled and the normal mode returns.

OTE

● For verification purposes, try to lock and unlock the doors

after the registration is completed.

● The indicator light (5) comes on each time a button is

pressed.

● The keyless entry system does not work if the key is in the

ignition switch.

● The remote control transmitter can be used from about 40

feet (12 m) away. However, this distance may change if

your vehicle is near a TV transmitting tower, a power station, or a radio station.

● If the UNLOCK button (2) is pressed when all doors are

locked and no doors are opened within about 30 seconds, the doors will automatically re-lock. On a vehicle equipped with a Mitsubishi Multi-Communication System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.

● If the following conditions are observed after pressing the

buttons on the remote control transmitter, the battery in the remote control transmitter may need to be replaced.

• The doors cannot be locked or unlocked.

• The trunk lid cannot be opened.

• The panic alarm cannot be operated.

• The indicator light (5) is dim or does not come on.

● If you lose your remote control transmitter, please contact

an authorized Mitsubishi Motors dealer for a replacement.

● If you wish to obtain an additional remote control trans-

mitter, please contact an authorized Mitsubishi Motors dealer. A maximum of eight remote control transmitters can be programmed for your vehicle.

● To use the new remote control transmitters, it is necessary

to register the key with both the electronic immobilizer and keyless entry system. Also refer to “Electronic immobilizer (Anti-theft starting system): Customer key programming” on page 3-7.

General information

N00546100055

Your keyless entry system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This device complies with Part 15 of the FCC Rules and RSS-Gen of the Industry Canada Rules. Operation is subject to the following two conditions.

● This device may not cause harmful interference.

● This device must accept any interference received, includ-

ing interference that may cause undesired operation.

CAUTION

● Changes or modifications not expressly approved by

the manufacturer for compliance could void the user’s authority to operate the equipment.

3-14

Features and controls

Procedure for replacing the remote control transmitter battery

N00544100035

1. With the Mitsubishi mark facing you, insert the cloth-covered tip of a flat blade screwdriver into the notch in the remote control transmitter case and use it to open the case.

OTE

● Be sure to perform the procedure with the Mitsubishi

mark facing you. If the Mitsubishi mark is not facing you when you open the remote control transmitter case, the buttons may come out.

2. Remove the remote control transmitter from the remote control transmitter case. Then, open the remote control transmitter using the method described in step 1.

3. Remove the old battery.

3-15

Mitsubishi Lancer Evolution 2011 Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
