CONFIGURATION DIAGRAMS
OVERALL CONFIGURATION DIAGRAM
OVERALL CONFIGURATION DIAGRAM
OVERALL WIRING DIAGRAM <SEDAN (LHD) >
M1801000100569
Front wiring
harness (RH)
Front bumper
wiring harness
Control wiring
harness
Instrument panel
wiring harness
Roof wiring
harness
Floor wiring
harness (RH)
Rear bumper
wiring harness
Rear door
wiring harness
*
Battery wiring
harness
Front wiring
harness (LH)
Floor wiring
harness (LH)
NOTE: .
1. This illustration shows only major wiring harnesses.
2. *: also equipped at the right side.
Front door
wiring harness
Fuel wiring
*
harness
AC301175
AB
CONFIGURATION DIAGRAMS
OVERALL CONFIGURATION DIAGRAM
OVERALL WIRING DIAGRAM <SEDAN (RHD) >
M1801000100581
80-3
Front wiring
harness (RH)
Front bumper
wiring harness
Control wiring
harness
Instrument panel
wiring harness
Roof wiring
harness
Floor wiring
harness (RH)
Rear bumper
wiring harness
Rear door
wiring harness
*
Battery wiring
harness
Front wiring
harness (LH)
Floor wiring
harness (LH)
NOTE: .
1. This illustration shows only major wiring harnesses.
2. *: also equipped at the right side.
Front door
wiring harness
Fuel wiring
*
harness
AC301176
AB
80-4
CONFIGURATION DIAGRAMS
OVERALL CONFIGURATION DIAGRAM
OVERALL WIRING DIAGRAM <WAGON (LHD) >
M1801000100592
Front wiring
harness (RH)
Front bumper
wiring harness
Control wiring
harness
Instrument panel
wiring harness
Roof wiring
harness
Floor wiring
harness (RH)
Tailgate wiring
harness
Rear bumper
wiring harness
Rear door
wiring harness
*
Battery wiring
harness
Front wiring
harness (LH)
Floor wiring
harness (LH)
NOTE: .
1. This illustration shows only major wiring harnesses.
2. *: also equipped at the right side.
Front door
wiring harness
Fuel wiring
*
harness
AC301177
AB
CONFIGURATION DIAGRAMS
OVERALL CONFIGURATION DIAGRAM
OVERALL WIRING DIAGRAM <WAGON (RHD) >
M1801000100600
80-5
Front wiring
harness (RH)
Front bumper
wiring harness
Control wiring
harness
Instrument panel
wiring harness
Roof wiring
harness
Floor wiring
harness (RH)
Tailgate wiring
harness
Rear bumper
wiring harness
Rear door
wiring harness
*
Battery wiring
harness
Front wiring
harness (LH)
Floor wiring
harness (LH)
NOTE: .
1. This illustration shows only major wiring harnesses.
2. *: also equipped at the right side.
Front door
wiring harness
Fuel wiring
*
harness
AC301178
AB
80-6
ENGINE COMPARTMENT
ENGINE COMPARTMENT <LHD>

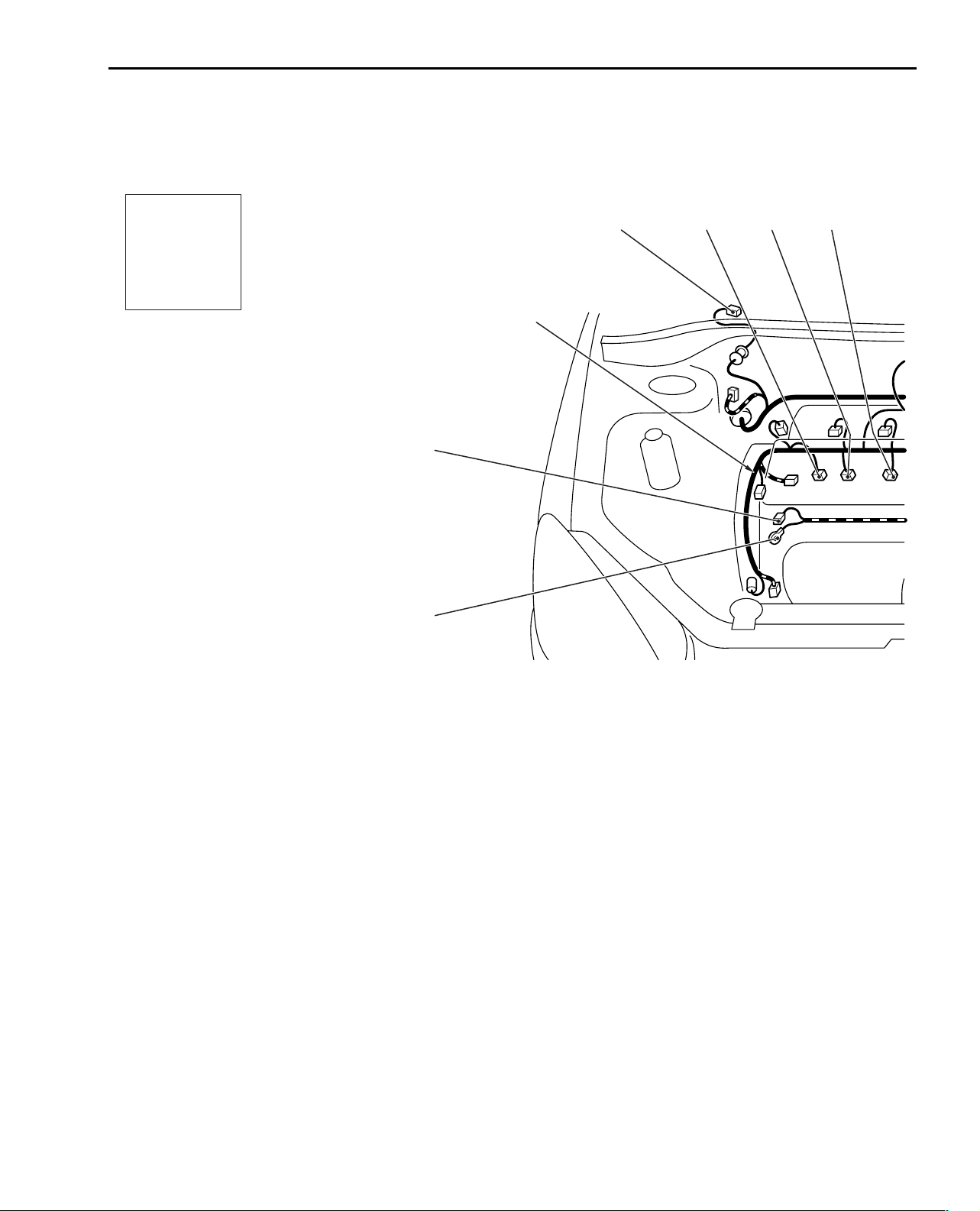

CONFIGURATION DIAGRAMS
ENGINE COMPARTMENT
M1801000300767
Connector
symbol
A
A-32
A-31
A-29
A-28
A-27
A-01
1
Front wiring
harness (RH)
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
A-01 (2-GR) Side turn signal lamp (RH)
A-02 (2-GR) Side turn signal lamp (LH)
A-03 (2-B) ABS sensor (Front: LH)
A-04X (4) Front fog lamp relay or spare connector
(for front fog lamp)
A-05X (4) Horn relay
A-09X (4) Fan control relay
A-10X (11) Front-ECU
A-11X (11) F ront-ECU
A-26
A-25
Front bumper
A-23A-24 A-22
A-12 (2-B) Front wiring harness (LH) and control
wiring harness combination
A-13 (12-B) Front wiring harness (LH) and control
wiring harness combination
A-14 (3-B) Headlamp (LH)
A-15 (6-B) Front combination lamp (LH)
A-16 (2) Front turn signal lamp (LH)
A-17 (2-B) Front fog lamp (LH)
wiring harness
AC301123
AB
CONFIGURATION DIAGRAMS
ENGINE COMPARTMENT
A-02
A-03
A-04X
A-05X
A-09X
A-10X
A-11X
A-12
80-7
Front wiring
harness (LH)
A-21
A-18A-19A-20
A-18 (3-GR) Cooling fan motor drive control unit
A-19 (1-B) Horn (HI)
A-20 (2-B) Front wiring harness (LH) and front
bumper wiring harness combination
A-21 (1-B) Horn (LO)
A-22 (2-B) Front fog lamp (RH)
A-23 (2) Front turn signal lamp (RH)
A-24 (1) Spare connector (for front fog lamp)
A-13
12
A-14
A-15
A-16
A-17
A-25 (6-B) Front combination lamp (RH)
A-26 (2) Windshield washer motor
A-27 (2-G) Rear washer motor
A-28 (2-B) Headlamp washer motor
A-29 (3-B) Headlamp (RH)
A-31 (2-BR) Dual pressure switch
A-32 (2-B) ABS sensor (Front: RH)
AC301124
AB
80-8
CONFIGURATION DIAGRAMS
ENGINE COMPARTMENT
ENGINE COMPARTMENT <RHD>
Connector
symbol
A
M1801000300778
A-32
A-31
A-30
A-29
A-01
Front wiring
harness (RH)
1
A-27
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
A-26
A-25
A-01 (2-GR) Side turn signal lamp (RH)
A-02 (2-GR) Side turn signal lamp (LH)
A-03 (2-B) ABS sensor (Front: LH)
A-04X (4) Front fog lamp relay or spare connector
(for front fog lamp)
A-05X (4) Horn relay
A-09X (4) Fan control relay
A-10X (11) Front-ECU
Front bumper
A-23A-24 A-22
wiring harness
AC301126
A-11X (11) Front-ECU
A-12 (2-B) Front wiring harness (LH) and control
wiring harness combination
A-14 (3-B) Headlamp (LH)
A-15 (6-B) Front combination lamp (LH)
A-16 (2) Front turn signal lamp (LH)
A-17 (2-B) Front fog lamp (LH)
A-18 (3-GR) Cooling fan motor drive control unit
AB
CONFIGURATION DIAGRAMS
ENGINE COMPARTMENT
A-02
A-03
A-04X
A-05X
A-09X
A-10X
A-11X
A-12
80-9
Front wiring
harness (LH)
A-21
A-18A-19A-20
A-19 (1-B) Horn (HI)
A-20 (2-B) Front wiring harness (LH) and front
bumper wiring harness combination
A-21 (1-B) Horn (LO)
A-22 (2-B) Front fog lamp (RH)
A-23 (2) Front turn signal lamp (RH)
A-24 (1) Spare connector (for front fog lamp)
12
A-14
A-15
A-16
A-17
A-25 (6-B) Front combination lamp (RH)
A-26 (2) Windshield washer motor
A-27 (2-G) Rear washer motor
A-29 (3-B) Headlamp (RH)
A-30 (2-GR) No connection
A-31 (2-BR) Dual pressure switch
A-32 (2-B) ABS sensor (Front: RH)
AC301127
AB
80-10
CONFIGURATION DIAGRAMS
ENGINE AND TRANSMISSION
ENGINE AND TRANSMISSION
ENGINE AND TRANSMISSION <4G1-MPI (LHD) >
M1801000400634
Connector
symbol
-01
B
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
B-01 (5-GR) Windshield wiper motor
B-02 (2-GR) Fuel injector 1
B-03 (2-GR) Fuel injector 2
B-04 (2-GR) Fuel injector 3
B-05 (2-GR) Fuel injector 4
thru
-26
B-26
B-25
Control wiring
harness
Earth cable
B-24
B-01
B-06 (3-GR) Throttle body throttle sensor
B-07 (3-B) Vehicle speed sensor <M/T>
B-09 (2-GR) Brake fluid level indicator switch
B-10X (1) Engine speed detection connector
B-15X (4) A/T control relay
B-02
B-03
B-23
B-04
B-05
B-22
AC301129
*
AB
CONFIGURATION DIAGRAMS
ENGINE AND TRANSMISSION
80-11
B-06
10
B-07
B-09
13
11
B-10X
B-15X
B-16X
B-17X
B-18
Battery wiring
harness
*
9
B-21
B-20
B-16X (4) Engine control relay
B-17X (4) A/C compressor relay
B-18 (6-B) Control wiring harness and battery wiring
harness combination
B-19 (10-GR) A/T control solenoid valve assembly
B-20 (10-B) Inhibitor switch <A/T>
B-21 (4-B) Engine control oxygen sensor (Front)
B-22 (1) Starter
B-23 (1-B) Starter
B-24 (1-B) Engine oil pressure switch
B-19
AC301130
B-25 (1) Alternator
B-26 (4-GR) Alternator
NOTE: .
• On A/T only, the standard routing positions for the
corrugated tube and wiring harness are marked
by*.
AB
80-12
CONFIGURATION DIAGRAMS
ENGINE AND TRANSMISSION
ENGINE AND TRANSMISSION <4G1-MPI (LHD) > (CONTINUED)
Connector
symbol
-101
B
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
B-101 (2-BR) Emission solenoid valve (EGR system)
B-102 (4-GR) Inlet manifold absolute pressure sensor
B-103 (6-B) Throttle body idle speed control servo
B-104 (3-GR) Ignition coil 1
B-105 (2-B) Emission solenoid valve (Purge control
thru
-118
system)
B-118
B-117
Earth cable
B-116
B-101 B-102
Control wiring
harness
B-115
B-107 (3-B) Camshaft position sensor
B-108 (3-GR) Output shaft speed sensor <A/T>
B-109 (3-B) Input shaft speed sensor <A/T>
B-110 (2-B) Back-up lamp switch <M/T>
B-114
B-113
*
AC301129
AC
CONFIGURATION DIAGRAMS
ENGINE AND TRANSMISSION
80-13
B-103
10
B-104
*
B-105
B-107
13
B-108
Battery wiring
harness
11
9
B-112
B-111
B-110
B-111 (2-B) Water temperature sensor unit
B-112 (1-B) Water temperature gauge unit
B-113 (3-GR) Ignition coil 2
B-114 (1-B) A/C compressor
B-115 (1) Power steering fluid pressure switch
B-116 (3-B) Engine crank angle sensor
B-117 (2-GR) Engine control detonation sensor
B-109
AC301130
B-118 (28-GR) ABS-ECU
NOTE: On A/T only, the standard routing positions
for the corrugated tube and wiring harness are
marked by*.
AC
80-14
CONFIGURATION DIAGRAMS
ENGINE AND TRANSMISSION
ENGINE AND TRANSMISSION <4G1-MPI (RHD) >
M1801000400656
Connector
symbol
-01
B
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
B-01 (5-GR) Windshield wiper motor
B-02 (2-GR) Fuel injector 1
B-03 (2-GR) Fuel injector 2
B-04 (2-GR) Fuel injector 3
B-05 (2-GR) Fuel injector 4
B-06 (3-GR) Throttle body throttle sensor
thru
-26
B-26
B-25
Control wiring
harness
B-24
B-09
Earth cable
B-07 (3-B) Vehicle speed sensor <M/T>
B-09 (2-GR) Brake fluid level indicator switch
B-10X (1) Engine speed detection connector
B-14X (4) Ignition coil relay
B-15X (4) A/T control relay
B-02
B-03
B-23
B-04 B-05
B-22
AC301132
*
AB
CONFIGURATION DIAGRAMS
ENGINE AND TRANSMISSION
80-15
B-06
10
B-07
B-01
13
11
B-10X
B-14X
B-15X
B-16X
B-17X
B-18
Battery wiring
harness
*
9
B-21
B-20
B-16X (4) Engine control relay
B-17X (4) A/C compressor relay
B-18 (6-B) Control wiring harness and battery wiring
harness combination
B-19 (10-GR) A/T control solenoid valve assembly
B-20 (10-B) Inhibitor switch <A/T>
B-21 (4-B) Engine control oxygen sensor (Front)
B-22 (1) Starter
B-23 (1-B) Starter
B-24 (1-B) Engine oil pressure switch
B-19
AC301133
B-25 (1) Alternator
B-26 (4-GR) Alternator
NOTE: .
• On A/T only, the standard routing positions for the
corrugated tube and wiring harness are marked
by*.
AB
80-16
CONFIGURATION DIAGRAMS
ENGINE AND TRANSMISSION
ENGINE AND TRANSMISSION <4G1-MPI (RHD) > (CONTINUED)
Connector
symbol
-101
B
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
B-101 (2-BR) Emission solenoid valve (EGR system)
B-102 (4-GR) Inlet manifold absolute pressure sensor
B-103 (6-B) Throttle body idle speed control servo
B-104 (3-GR) Ignition coil 1
B-105 (2-B) Emission solenoid valve (Purge control
thru
-118
B-117
Control wiring
harness
Earth cable
B-116
system)
B-101 B-102
B-115
B-107 (3-B) Camshaft position sensor
B-108 (3-GR) Output shaft speed sensor <A/T>
B-109 (3-B) Input shaft speed sensor <A/T>
B-110 (2-B) Back-up lamp switch <M/T>
B-114
B-113
AC301132
*
AC
CONFIGURATION DIAGRAMS
ENGINE AND TRANSMISSION
80-17
B-103
10
B-104
*
B-105
13
11
B-118
B-107
B-108
Battery wiring
harness
9
B-112
B-111
B-110
B-111 (2-B) Water temperature sensor unit
B-112 (1-B) Water temperature gauge unit
B-113 (3-GR) Ignition coil 2
B-114 (1-B) A/C compressor
B-115 (1) Power steering fluid pressure switch
B-116 (3-B) Engine crank angle sensor
B-117 (2-GR) Engine control detonation sensor
B-118 (28-GR) ABS-ECU
B-109
AC301133
NOTE: .
• On A/T only, the standard routing positions for the
corrugated tube and wiring harness are marked
by*.
AC
80-18
CONFIGURATION DIAGRAMS
ENGINE AND TRANSMISSION
ENGINE AND TRANSMISSION <4G6-MPI (LHD) >
M1801000400667
Connector
symbol
-01
B
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
B-01 (5-GR) Windshield wiper motor
B-02 (2-GR) Fuel injector 1
B-03 (2-GR) Fuel injector 2
B-04 (2-GR) Fuel injector 3
B-05 (2-GR) Fuel injector 4
thru
-26
B-26
B-25
Control wiring
harness
B-01
B-06 (4-B) Throttle body throttle sensor
B-07 (3-B) Vehicle speed sensor
B-08 (7-B) Air cleaner air flow sensor
B-09 (2-GR) Brake fluid level switch
B-10X (1) Engine speed detection connector
B-02
B-03
B-04
AC301135
AB
CONFIGURATION DIAGRAMS
ENGINE AND TRANSMISSION
80-19
Earth
cable
10
B-05
9
B-06
B-07
13
B-08
11
B-09
B-10X
B-16X
B-17X
B-18
Battery wiring
harness
B-24
B-23
B-22
B-16X (4) Engine control relay
B-17X (4) A/C compressor relay
B-18 (6-B) Control wiring harness and battery wiring
harness combination
B-21 (4-B) Engine control oxygen sensor (Front)
B-21
B-22 (1) Starter
B-23 (1-B) Starter
B-24 (1-B) Engine oil pressure switch
B-25 (1) Alternator
B-26 (4-GR) Alternator
AC301136
AB
80-20
CONFIGURATION DIAGRAMS
ENGINE AND TRANSMISSION
ENGINE AND TRANSMISSION <4G6-MPI (LHD) > (CONTINUED)
Connector
symbol
-101
B
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
B-101 (2-BR) Emission solenoid valve (EGR system)
B-103 (6-B) Throttle body idle speed control servo
B-104 (3-GR) Ignition coil 1
B-105 (2-B) Emission solenoid valve (Purge control
thru
-118
system)
B-118
B-117
B-116
Control wiring
harness
B-105
B-115
B-106 (1-B) Capacitor
B-107 (3-B) Camshaft position sensor
B-110 (2-B) Back-up lamp switch
B-114
B-113
B-101
AC301135
AC
CONFIGURATION DIAGRAMS
ENGINE AND TRANSMISSION
80-21
Earth cable
10
9
B-103
B-104
13
B-106
B-112
Battery wiring
harness
11
B-110
B-107
B-111 (2-B) Water temperature sensor unit
B-112 (1-B) Water temperature gauge unit
B-113 (3-GR) Ignition coil 2
B-114 (1-B) A/C compressor
B-111
AC301136
B-115 (1-B) Power steering fluid pressure switch
B-116 (3-B) Engine crank angle sensor
B-117 (2-GR) Engine control detonation sensor
B-118 (28-GR) ABS-ECU
AC
80-22
CONFIGURATION DIAGRAMS
ENGINE AND TRANSMISSION
ENGINE AND TRANSMISSION <4G6-MPI (RHD) >
M1801000400678
Connector
symbol
-01
B
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
B-01 (5-GR) Windshield wiper motor
B-02 (2-GR) Fuel injector 1
B-03 (2-GR) Fuel injector 2
B-04 (2-GR) Fuel injector 3
B-05 (2-GR) Fuel injector 4
thru
-26
B-09
Control wiring
harness
B-26
B-02
B-25
B-06 (4-B) Throttle body throttle sensor
B-07 (3-B) Vehicle speed sensor
B-08 (7-B) Air cleaner air flow sensor
B-09 (2-GR) Brake fluid level switch
B-10X (1) Engine speed detection connector
B-03
B-04
AC301138
AB
CONFIGURATION DIAGRAMS
ENGINE AND TRANSMISSION
80-23
Earth
cable
10
B-05
B-06
9
B-07
B-01
13
11
B-08
B-10X
B-14X
B-16X
B-17X
B-18
Battery wiring
harness
B-24
B-23
B-22
B-14X (4) Ignition coil relay
B-16X (4) Engine control relay
B-17X (4) A/C compressor relay
B-18 (6-B) Control wiring harness and battery wiring
harness combination
B-21 (4-B) Engine control oxygen sensor (Front)
B-21
B-22 (1) Starter
B-23 (1-B) Starter
B-24 (1-B) Engine oil pressure switch
B-25 (1) Alternator
B-26 (4-GR) Alternator
AC301139
AB
80-24
CONFIGURATION DIAGRAMS
ENGINE AND TRANSMISSION
ENGINE AND TRANSMISSION <4G6-MPI (RHD) > (CONTINUED)
Connector
symbol
-101
B
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
B-101 (2-BR) Emission solenoid valve (EGR system)
B-103 (6-B) Throttle body idle speed control servo
B-104 (3-GR) Ignition coil 1
B-105 (2-B) Emission solenoid valve (Purge control
thru
-118
B-117
B-116
Control wiring
harness
B-115
system)
B-105 B-101
B-114
B-106 (1-B) Capacitor
B-107 (3-B) Camshaft position sensor
B-110 (2-B) Back-up lamp switch
B-113
AC301138
AC
CONFIGURATION DIAGRAMS
ENGINE AND TRANSMISSION
80-25
Earth cable
10
B-103
9
B-104
B-106
B-118
13
B-112
Battery wiring
harness
11
B-107
B-111 (2-B) Water temperature sensor unit
B-112 (1-B) Water temperature gauge unit
B-113 (3-GR) Ignition coil 2
B-114 (1-B) A/C compressor
B-111
B-110
AC301139
B-115 (1-B) Power steering fluid pressure switch
B-116 (3-B) Engine crank angle sensor
B-117 (2-GR) Engine control detonation sensor
B-118 (28-GR) ABS-ECU
AC
80-26
DASH PANEL <LHD>
CONFIGURATION DIAGRAMS
DASH PANEL
DASH PANEL
M1801000600649
Connector
symbol
-01
C
thru
-36
C-36
C-35
C-34
C-33
C-32
C-31
C-29
C-01
C-02
16
C-04C-03
C-05
C-06
6
J/B
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
C-01 (6) Fog lamp switch
C-02 (1) Spare connector (for front fog lamp
switch)
C-03 (22-B) J/C (5)
C-04 (21) Combination meter
C-05 (4) Stop lamp switch
C-06 (21-L) Combination meter
C-08 (1-B) Spare connector (for audio)
C-09 (14) Spare connector (for audio)
C-10 (1) Instrument panel wiring harness and
antenna feeder cable combination
C-11 (16-B) Diagnosis connector
C-27
C-25
C-24
C-22
C-21
AC301141
C-12 (33) J/C (6)
C-13 (25) Instrument panel wiring harness and
control wiring harness combination
C-14 (10-GR) Instrument panel wiring harness and
control wiring harness combination
C-15 (22-L) Instrument panel wiring harness and
control wiring harness combination
C-19 (12) Diagnosis connector
C-21 (3) Front wiring harness (LH) and instrument
panel wiring harness combination
AB
CONFIGURATION DIAGRAMS
DASH PANEL
80-27
Instrument panel
wiring harness
C-08
5
C-09
C-10
C-11
C-12
Control wiring
harness
14
15
C-19
C-15
C-22 (13) Instrument panel wiring harness and floor
wiring harness (LH) combination
C-24
(6
*1
Instrument panel wiring harness and roof
)
wiring harness combination
*2
C-25
(11-B
Instrument panel wiring harness and floor
)
wiring harness (LH) combination
C-27 (25) Front wiring harness (LH) and instrument
panel wiring harness combination
C-29 (20) Instrument panel wiring harness and front
door wiring harness (LH) combination
C-31 (6) Instrument panel wiring harness and roof
wiring harness combination <Wagon>
C-32 (22-B) J/C (4)
C-13
C-14
AC301142
C-33 (6-L) Rheostat
C-34 (6-GR) Headlamp leveling switch
C-35 (22-L) J/C (2)
C-36 (11-B) Remote controlled mirror switch
NOTE: .
1. The connector colour marked by
*1
is for the
female side.For the male side, the colour is blue.
*2
2. The connector colour marked by
is for the
female side.For the male side, the colour is grey
for Sedan, and milky white for Wagon.
AB
80-28
DASH PANEL <LHD> (CONTINUED)
CONFIGURATION DIAGRAMS
DASH PANEL
Connector
symbol
-101
C
thru
-140
C-140
C-139
Instrument panel
wiring harness
C-101
C-102
C-103
4
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
C-133
C-101 (4) Hazard warning lamp switch
C-102 (4) Clock
C-103 (22-GR) J/C (1)
C-104 (22-GR) J/C (3)
C-106 (7) Instrument panel wiring harness and A/C
wiring harness combination
C-107 (7) Outside /Inside air selection damper
control motor
C-108 (2-R) Air bag module (squib) <Passenger’s
side>
C-109 (4) Resistor
Y
C-132
C-131
C-130
AC301144
C-110 (2) Blower motor
C-112 (16) Instrument panel wiring harness and front
door wiring harness (RH) combination
C-114 (25) Front wiring harness (RH) and instrument
panel wiring harness combination
*
C-116
(9-GR
Instrument panel wiring harness and floor
)
wiring harness (RH) combination
C-119 (13) Instrument panel wiring harness and floor
wiring harness (RH) combination
AB
Antenna
feeder
cable
CONFIGURATION DIAGRAMS
DASH PANEL
C-104 C-106 C-107
A/C wiring
harness
80-29
C-108
C-109
Control wiring
harness
C-128
C-129
C-126
C-127
C-124
C-125
C-122
C-123
C-122 (35-GR) Engine-A/T-ECU <A/T>
C-123 (26-Y) Engine-ECU <M/T>
C-124 (26-GR) Engine-A/T-ECU <A/T>
C-125 (16-Y) Engine-ECU <M/T>
C-126 (28-GR) Engine-A/T-ECU <A/T>
C-127 (12-Y) Engine-ECU <M/T>
C-128 (30-GR) Engine-A/T-ECU <A/T>
C-129 (22-Y) Engine-ECU <M/T>
C-130 (4) Engine control oxygen sensor (Rear)
C-131 (20-Y) SRS-ECU
C-132 (28-Y) SRS-ECU
C-119
3
2
C-110
C-112
C-114
C-116
C-133 (20-Y) SRS-ECU
C-139 (16-B) A/C-ECU or heater control unit
C-140 (6) Blower switch
NOTE: .
• The connector colour marked by
female side.For the male side, the colour is grey
for Sedan, and milky white for Wagon.
AC301145
*
is for the
AB
80-30
DASH PANEL <LHD> (CONTINUED)
Connector
symbol
-201
C
thru
-227
CONFIGURATION DIAGRAMS
DASH PANEL
STEERING COLUMN
Clock spring
C-207
C-206
C-201 (6) Ignition switch
C-202 (7) Key reminder switch
C-203 (10) Column switch
C-204 (6) Clock spring
C-205 (4-Y) Clock spring
C-206 (1) Horn switch
C-207 (2) Air bag module (squib) <Driver’s side>
C-208 (13) Instrument panel wiring harness and J/B
combination
Y
Instrument panel
wiring harness
C-201C-202C-203C-203C-204C-205
AC301179
C-209 (14) Instrument panel wiring harness and J/B
combination
C-210 (6) Instrument panel wiring harness and J/B
combination
C-211 (1-B) Instrument panel wiring harness and J/B
combination
C-212 (28) Instrument panel wiring harness and J/B
combination
AB
CONFIGURATION DIAGRAMS
DASH PANEL
JUNCTION BLOCK
80-31
C-224
C-223
C-222
C-221
C-220
(Front view)
C-208 C-209 C-210 C-211
(Rear view)
C-225
C-212
C-213
C-214
C-215
C-217C-218C-219
C-213 (5) Rear window defogger relay
C-214 (5) Blower relay
C-215 (15) Floor wiring harness (LH) and J/B
combination
C-217 (3) Roof wiring harness and J/B combination
C-218 (4) Rear fog lamp relay
C-219 (4) Accessory socket relay
C-220 (4) Fuel pump relay (2)
C-226C-227
C-221 (4) Heated seat relay
C-222 (4) Fuel pump relay (1)
C-223 (5) Power window relay
C-224 (2) No connection
C-225 (20) ETACS-ECU
C-226 (24) ETACS-ECU
C-227 (24-GR) ETACS-ECU
AC302010
AB
80-32
CONFIGURATION DIAGRAMS
DASH PANEL
DASH PANEL <RHD>
Connector
symbol
-01
C
thru
-37
M1801000600661
C-09 C-08
Instrument panel
wiring harness
C-10
C-11
C-37
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
C-16
C-01 (6) Fog lamp switch
C-02 (1) Spare connector (for front fog lamp
switch)
C-04 (21) Combination meter
C-05 (4) Stop lamp switch
C-06 (21-L) Combination meter
C-07 (22-GR) J/C (3)
C-08 (1-B) Spare connector (for audio)
C-09 (14) Spare connector (for audio)
Control wiring
harness
C-17 C-18
4
Y
C-19
AC301150
C-10 (1) Instrument panel wiring harness and
antenna feeder cable combination
C-11 (16-B) Diagnosis connector
C-16 (20-Y) SRS-ECU
C-17 (28-Y) SRS-ECU
C-18 (20-Y) SRS-ECU
C-19 (12) Diagnosis connector
C-20 (2) No connection
AB
CONFIGURATION DIAGRAMS
DASH PANEL
C-04 C-07 C-06 C-05 C-02 C-01
6
2
80-33
C-36
C-32
C-34
C-33
J/B
C-35
C-23
C-24C-20
C-23 (13) Instrument panel wiring harness and floor
wiring harness (RH) combination
C-24 (6-L) Instrument panel wiring harness and roof
wiring harness combination
C-26 (9-GR) Instrument panel wiring harness and floor
wiring harness (RH) combination
C-28 (25) Front wiring harness (RH) and instrument
panel wiring harness combination
C-30 (20) Instrument panel wiring harness and front
door wiring harness (RH) combination
C-31
C-30
C-28
C-26
AC301151
AB
C-31 (6) Instrument panel wiring harness and roof
wiring harness combination <Wagon>
C-32 (22-B) J/C (4)
C-33 (6-L) Rheostat
C-34 (6-GR) Headlamp leveling switch
C-35 (22-L) J/C (2)
C-36 (11-B) Remote controlled mirror switch
C-37 (4) Engine control oxygen sensor (Rear)
80-34
DASH PANEL <RHD> (CONTINUED)
CONFIGURATION DIAGRAMS
DASH PANEL
Connector
symbol
-101
C
thru
-140
C-109
Instrument panel
wiring harness
C-110
C-111
C-113
16
C-106C-107C-108
Antenna
feeder
cable
A/C wiring
harness
Y
3
Control wiring
harness
C-105
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
C-115
C-117
C-118
C-101 (4) Hazard warning lamp switch
C-102 (4) Clock
C-103 (22-GR) J/C (1)
C-105 (13) J/C (5)
C-106 (7) Instrument panel wiring harness and A/C
wiring harness combination
C-107 (7) Outside /Inside air selection damper
control motor
C-108 (2-R) Air bag module (squib) <Passenger’s
side>
C-109 (4) Resistor
C-110 (2) Blower motor
C-120
C-121
C-128
C-129
C-126
C-127
C-124
C-125
C-122
C-123
AC301147
C-111 (12) Front wiring harness (LH) and control
wiring harness combination
C-113 (16) Instrument panel wiring harness and front
door wiring harness (LH) combination
C-115 (25) Front wiring harness (LH) and instrument
panel wiring harness combination
*1
C-117
(11-B
Instrument panel wiring harness and floor
)
wiring harness (LH) combination
*2
C-118
(6-L
Instrument panel wiring harness and floor
)
wiring harness (LH) combination
C-120 (13) Instrument panel wiring harness and floor
wiring harness (LH) combination
AB
CONFIGURATION DIAGRAMS
DASH PANEL
80-35
C-103
5
C-102
C-101
C-139
C-140
C-138
15
14
C-134
C-135
C-121 (3) Front wiring harness (LH) and instrument
panel wiring harness combination
C-122 (35-GR) Engine-A/T-ECU <A/T>
C-123 (26-Y) Engine-ECU <M/T>
C-124 (26-GR) Engine-A/T-ECU <A/T>
C-125 (16-Y) Engine-ECU <M/T>
C-126 (28-GR) Engine-A/T-ECU <A/T>
C-127 (12-Y) Engine-ECU <M/T>
C-128 (30-GR) Engine-A/T-ECU <A/T>
C-129 (22-Y) Engine-ECU <M/T>
C-134 (33) J/C (6)
C-135 (22-L) Instrument panel wiring harness and
control wiring harness combination
C-136 (10-GR) Instrument panel wiring harness and
control wiring harness combination
C-137
C-136
C-137 (25) Instrument panel wiring harness and
control wiring harness combination
C-138 (3) Instrument panel wiring harness and
Instrument panel wiring harness
combination
C-139 (12-B) A/C-ECU or heater control unit
C-140 (6) Blower switch
NOTE: .
*1
1. The connector colour marked by
is for the
female side.For the male side, the colour is grey.
*2
2. The connector colour marked by
is for the
female side.For the male side, the colour is milky
white.
AC301148
AB
80-36
DASH PANEL <RHD> (CONTINUED)
Connector
symbol
-201
C
thru
-227
CONFIGURATION DIAGRAMS
DASH PANEL
STEERING COLUMN
Y
Instrument panel
wiring harness
C-201 (6) Ignition switch
C-202 (7) Key reminder switch
C-203 (10) Column switch
C-204 (6) Clock spring
C-205 (4-Y) Clock spring
C-206 (1) Horn switch
C-207 (2) Air bag module (squib) <Driver’s side>
C-208 (13) Instrument panel wiring harness and J/B
combination
Clock spring
C-207
C-206
C-205C-204C-203C-203C-202C-201
AC206572
C-209 (14) Instrument panel wiring harness and J/B
combination
C-210 (6) Instrument panel wiring harness and J/B
combination
C-211 (1-B) Instrument panel wiring harness and J/B
combination
C-212 (28) Instrument panel wiring harness and J/B
combination
AC
CONFIGURATION DIAGRAMS
DASH PANEL
JUNCTION BLOCK
80-37
C-224
C-223
C-222
C-221
C-220
(Front view)
C-208 C-209 C-210 C-211
(Rear view)
C-225
C-212
C-213
C-214
C-216
C-217C-218C-219
C-213 (5) Rear window defogger relay
C-214 (5) Blower relay
C-216 (15) Floor wiring harness (RH) and J/B
combination
C-217 (3) Roof wiring harness and J/B combination
C-218 (4) Rear fog lamp relay
C-219 (4) Accessory socket relay
C-220 (4) Fuel pump relay (2)
C-221 (4) No connection
C-222 (4) Fuel pump relay (1)
C-223 (5) Power window relay
C-224 (2) No connection
C-225 (20) ETACS-ECU
C-226 (24) ETACS-ECU
C-227 (24-GR) ETACS-ECU
C-226C-227
AC302011
AB
80-38
CONFIGURATION DIAGRAMS
FLOOR AND ROOF

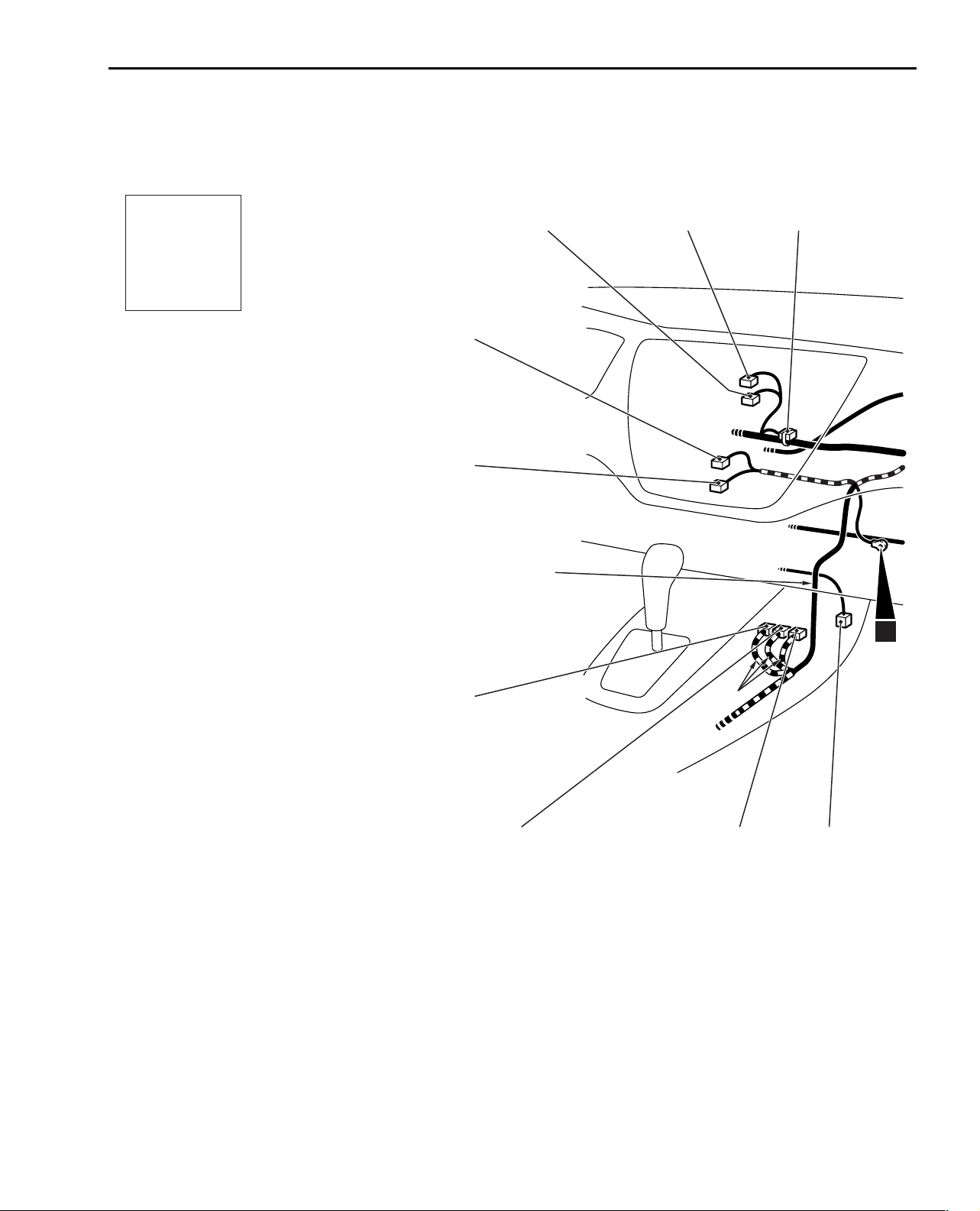

FLOOR AND ROOF <SEDAN (LHD) >
M1801000900521
FLOOR AND ROOF
Connector
symbol
D
D-35
D-34
D-33
D-32
D-31
Antenna
feeder cable
Instrument panel
wiring harness
D-03D-02D-01
Floor wiring
harness (RH)
Y
D-04
D-05
D-06
Y
D-07
Roof wiring
harness
Floor wiring
harness (LH)
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
D-30
D-29
D-28
D-27 D-24
D-01 (2) Side impact sensor (Front: RH)
D-02 (3) Door switch (Front: RH)
D-03 (8) Floor wiring harness (RH) and rear door
wiring harness (RH) combination
D-04 (2) Front room lamp
D-05 (2-B) ABS sensor (Rear: RH)
D-06 (2-GR) Rear room lamp
D-07 (3) Door switch (Rear: RH)
D-08 (2-Y) Side impact sensor (Rear: RH)
D-13 (3-B) Fuel tank gauge unit
Y
D-26
D-25
D-23
AC301156
AB
D-14 (2-Y) Side impact sensor (Rear: LH)
D-15 (3) Door switch (Rear: LH)
D-16 (5-GR) Fuel tank pump
D-17 (2-B) ABS sensor (Rear: LH)
D-18 (8) Floor wiring harness (LH) and fuel wiring
harness combination
D-19 (8) Floor wiring harness (LH) and rear door
wiring harness (LH) combination
D-20 (3) Door switch (Front: LH)
CONFIGURATION DIAGRAMS
FLOOR AND ROOF
80-39
D-08
7
Y
Fuel wiring
harness
D-13
17
<Vehicles with curtain air bag>
D-04 D-36 D-06 D-37
Y
D-14
Antenna
feeder cable
Y
D-15
D-16
D-17
Roof wiring
harness
Y
Y
Y
D-18
D-22
D-21
D-19D-20
D-21 (2) Side impact sensor (Front: LH)
D-22 (2-B) Seat belt pre-tensioner (LH)
D-23 (2-R) Side air bag module (squib) (LH)
D-24 (3) Heated seat assembly (LH)
D-25 (9) Heated seat switch
D-26 (4) Instrument panel wiring harness and
console wiring harness combination
D-27 (6) Shift switch assembly
D-28 (1) Cigarette lighter
AC301180
D-29 (1-B) Cigarette lighter
D-30 (2-B) Cigarette lighter illumination lamp
D-31 (2-B) Ashtray illumination lamp
D-32 (3) Heated seat assembly (RH)
D-33 (2-R) Side air bag module (squib) (RH)
D-34 (1-B) Parking brake switch
D-35 (2-B) Seat belt pre-tensioner (RH)
D-36 (2-B) Curtain air bag module (squib) (RH)
D-37 (2-B) Curtain air bag module (squib) (LH)
AB
80-40
CONFIGURATION DIAGRAMS
FLOOR AND ROOF

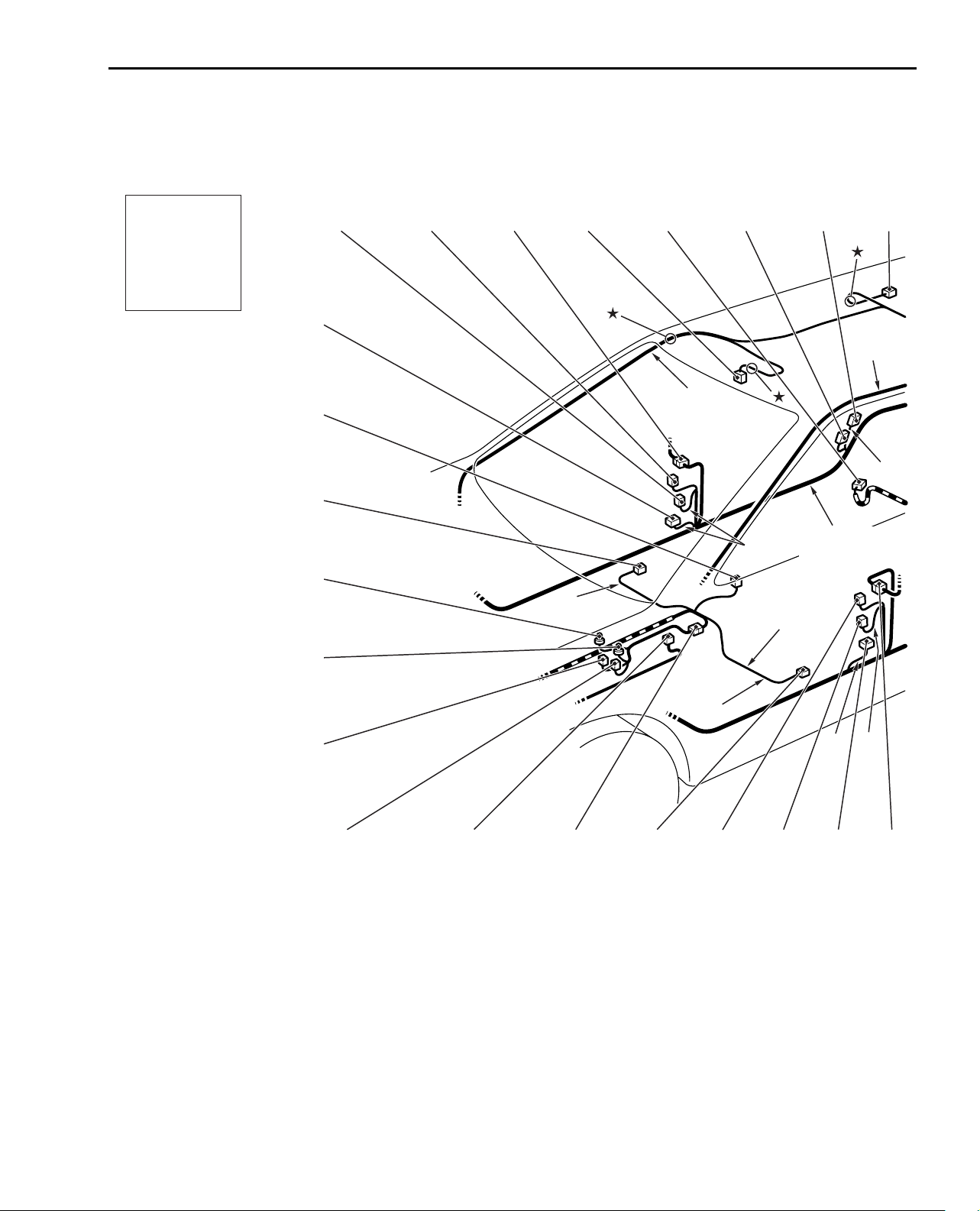

FLOOR AND ROOF <SEDAN (RHD) >
M1801000900543
Connector
symbol
D
D-35
D-34
Roof wiring
harness
D-33
D-03D-02D-01
Floor wiring
harness (RH)
D-04
D-05
D-06
Y
D-07
Instrument panel
wiring harness
D-31
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
D-30
D-29
D-28
D-01 (2) Side impact sensor (Front: RH)
D-02 (3) Door switch (Front: RH)
D-03 (8) Floor wiring harness (RH) and rear door
wiring harness (RH) combination
D-04 (2) Front room lamp
D-05 (2-B) ABS sensor (Rear: RH)
D-06 (2-GR) Rear room lamp
D-07 (3) Door switch (Rear: RH)
D-08 (2-Y) Side impact sensor (Rear: RH)
D-13 (3-B) Fuel tank gauge unit
Y
D-27
D-26
Floor wiring
harness (LH)
Y
D-23
AC301159
AB
D-14 (2-Y) Side impact sensor (Rear: LH)
D-15 (3) Door switch (Rear: LH)
D-16 (5-GR) Fuel tank pump
D-17 (2-B) ABS sensor (Rear: LH)
D-18 (8) Floor wiring harness (LH) and fuel wiring
harness combination
D-19 (8) Floor wiring harness (LH) and rear door
wiring harness (LH) combination
D-20 (3) Door switch (Front: LH)
CONFIGURATION DIAGRAMS
FLOOR AND ROOF
80-41
D-08
Antenna
feeder cable
7
Y
Fuel wiring
harness
D-13
17
<Vehicles with curtain air bag>
D-04 D-36 D-06 D-37
Y
D-14
Y
D-15
D-16
D-17
Antenna
feeder cable
Roof wiring
harness
Y
Y
Y
D-18
D-22
D-21
D-19D-20
D-21 (2) Side impact sensor (Front: LH)
D-22 (2-B) Seat belt pre-tensioner (LH)
D-23 (2-R) Side air bag module (squib) (LH)
D-26 (4) Instrument panel wiring harness and
console wiring harness combination
D-27 (6) Shift switch assembly
D-28 (1) Cigarette lighter
D-29 (1-B) Cigarette lighter
AC301181
D-30 (2-B) Cigarette lighter illumination lamp
D-31 (2-B) Ashtray illumination lamp
D-33 (2-R) Side air bag module (squib) (RH)
D-34 (1-B) Parking brake switch
D-35 (2-B) Seat belt pre-tensioner (RH)
D-36 (2-B) Curtain air bag module (squib) (RH)
D-37 (2-B) Curtain air bag module (squib) (LH)
AB
80-42
CONFIGURATION DIAGRAMS
FLOOR AND ROOF

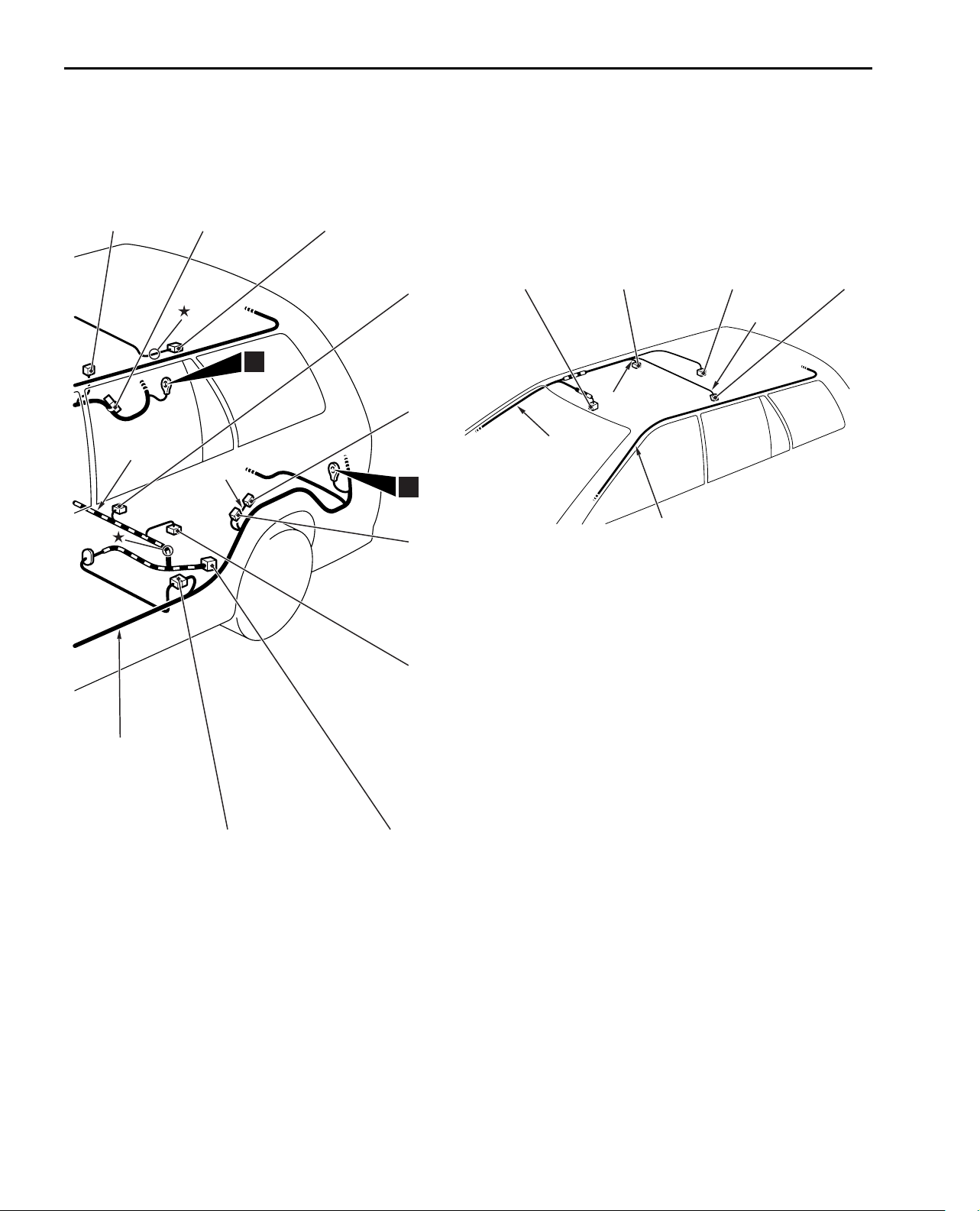

FLOOR AND ROOF <WAGON (LHD) >
M1801000900554
Connector
symbol
D-01
D
D-35
D-34
D-33
D-32
D-27
D-03D-02
D-04
Antenna
feeder
cable
D-05
D-07
Roof wiring
harness
D-08
Y
Floor wiring
harness (RH)
D-09
Y
D-31
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
D-30
D-29
D-28
D-26
D-01 (2) Side impact sensor (Front: RH)
D-02 (3) Door switch (Front: RH)
D-03 (8) Floor wiring harness (RH) and rear door
wiring harness (RH) combination
D-04 (2) Front room lamp
D-05 (2-B) ABS sensor (Rear: RH)
D-06 (2-GR) Rear room lamp
D-07 (3) Door switch (Rear: RH)
D-08 (2-Y) Side impact sensor (Rear: RH)
D-09 (3) Rear personal lamp (RH)
Instrument panel
wiring harness
Y
D-20
D-21
Y
D-22
AC301162
Y
D-25
Y
D-24
D-23
D-10 (3) Luggage room lamp
D-11 (2-B) Diode (for luggage room lamp circuit)
D-12 (3) Rear personal lamp (LH)
D-13 (3-B) Fuel tank gauge unit
D-14 (2-Y) Side impact sensor (Rear: LH)
D-15 (3) Door switch (Rear: LH)
D-16 (5-GR) Fuel tank pump
D-17 (2-B) ABS sensor (Rear: LH)
D-18 (8) Floor wiring harness (LH) and fuel wiring
harness combination
D-19
AB
CONFIGURATION DIAGRAMS
FLOOR AND ROOF
80-43
D-10
Fuel wiring
harness
D-11
D-12
<Vehicles with curtain air bag>
D-13
7
D-14
Y
17
D-15
D-16
D-04 D-36 D-06 D-37
Y
Antenna
feeder cable
Y
Roof wiring
harness
Floor wiring
harness (LH)
D-17D-18
D-19 (8) Floor wiring harness (LH) and rear door
wiring harness (LH) combination
D-20 (3) Door switch (Front: LH)
D-21 (2) Side impact sensor (Front: LH)
D-22 (2-B) Seat belt pre-tensioner (LH)
D-23 (2-R) Side air bag module (squib) (LH)
D-24 (3) Heated seat assembly (LH)
D-25 (9) Heated seat switch
D-26 (4) Instrument panel wiring harness and
console wiring harness combination
D-27 (6) Shift switch assembly
AC301824
D-28 (1) Cigarette lighter
D-29 (1-B) Cigarette lighter
D-30 (2-B) Cigarette lighter illumination lamp
D-31 (2-B) Ashtray illumination lamp
D-32 (3) Heated seat assembly (RH)
D-33 (2-R) Side air bag module (squib) (RH)
D-34 (1-B) Parking brake switch
D-35 (2-B) Seat belt pre-tensioner (RH)
D-36 (2-B) Curtain air bag module (squib) (RH)
D-37 (2-B) Curtain air bag module (squib) (LH)
AB
80-44
CONFIGURATION DIAGRAMS
FLOOR AND ROOF
FLOOR AND ROOF <WAGON (RHD) >
M1801000900565
Connector
symbol
D-01
D
D-35
D-34
D-33
D-03D-02
D-04
D-05
Roof wiring
harness
D-07
Y
D-08
Antenna
feeder
cable
Floor wiring
harness (RH)
D-09
Y
D-31
D-30
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
D-29
D-28 D-19
D-27
D-01 (2) Side impact sensor (Front: RH)
D-02 (3) Door switch (Front: RH)
D-03 (8) Floor wiring harness (RH) and rear door
wiring harness (RH) combination
D-04 (2) Front room lamp
D-05 (2-B) ABS sensor (Rear: RH)
D-06 (2-GR) Rear room lamp
D-07 (3) Door switch (Rear: RH)
D-08 (2-Y) Side impact sensor (Rear: RH)
D-09 (3) Rear personal lamp (RH)
Y
D-26
D-23
Instrument panel
wiring harness
Y
D-20
Y
D-22D-21
AC301165
Y
AB
D-10 (3) Luggage room lamp
D-11 (2-B) Diode (for luggage room lamp circuit)
D-12 (3) Rear personal lamp (LH)
D-13 (3-B) Fuel tank gauge unit
D-14 (2-Y) Side impact sensor (Rear: LH)
D-15 (3) Door switch (Rear: LH)
D-16 (5-GR) Fuel tank pump
D-17 (2-B) ABS sensor (Rear: LH)
D-18 (8) Floor wiring harness (LH) and fuel wiring
harness combination
CONFIGURATION DIAGRAMS
FLOOR AND ROOF
80-45
D-10
Fuel wiring
harness
D-11
D-12
D-13
7
D-14
Y
17
D-15
<Vehicles with curtain air bag>
D-04 D-36 D-06 D-37
Y
Y
Roof wiring
harness
Antenna
feeder cable
D-16
Floor wiring
harness (LH)
D-17D-18
D-19 (8) Floor wiring harness (LH) and rear door
wiring harness (LH) combination
D-20 (3) Door switch (Front: LH)
D-21 (2) Side impact sensor (Front: LH)
D-22 (2-B) Seat belt pre-tensioner (LH)
D-23 (2-R) Side air bag module (squib) (LH)
D-26 (4) Instrument panel wiring harness and
console wiring harness combination
D-27 (6) Shift switch assembly
AC301825
D-28 (1) Cigarette lighter
D-29 (1-B) Cigarette lighter
D-30 (2-B) Cigarette lighter illumination lamp
D-31 (2-B) Ashtray illumination lamp
D-33 (2-R) Side air bag module (squib) (RH)
D-34 (1-B) Parking brake switch
D-35 (2-B) Seat belt pre-tensioner (RH)
D-36 (2-B) Curtain air bag module (squib) (RH)
D-37 (2-B) Curtain air bag module (squib) (LH)
AB
80-46

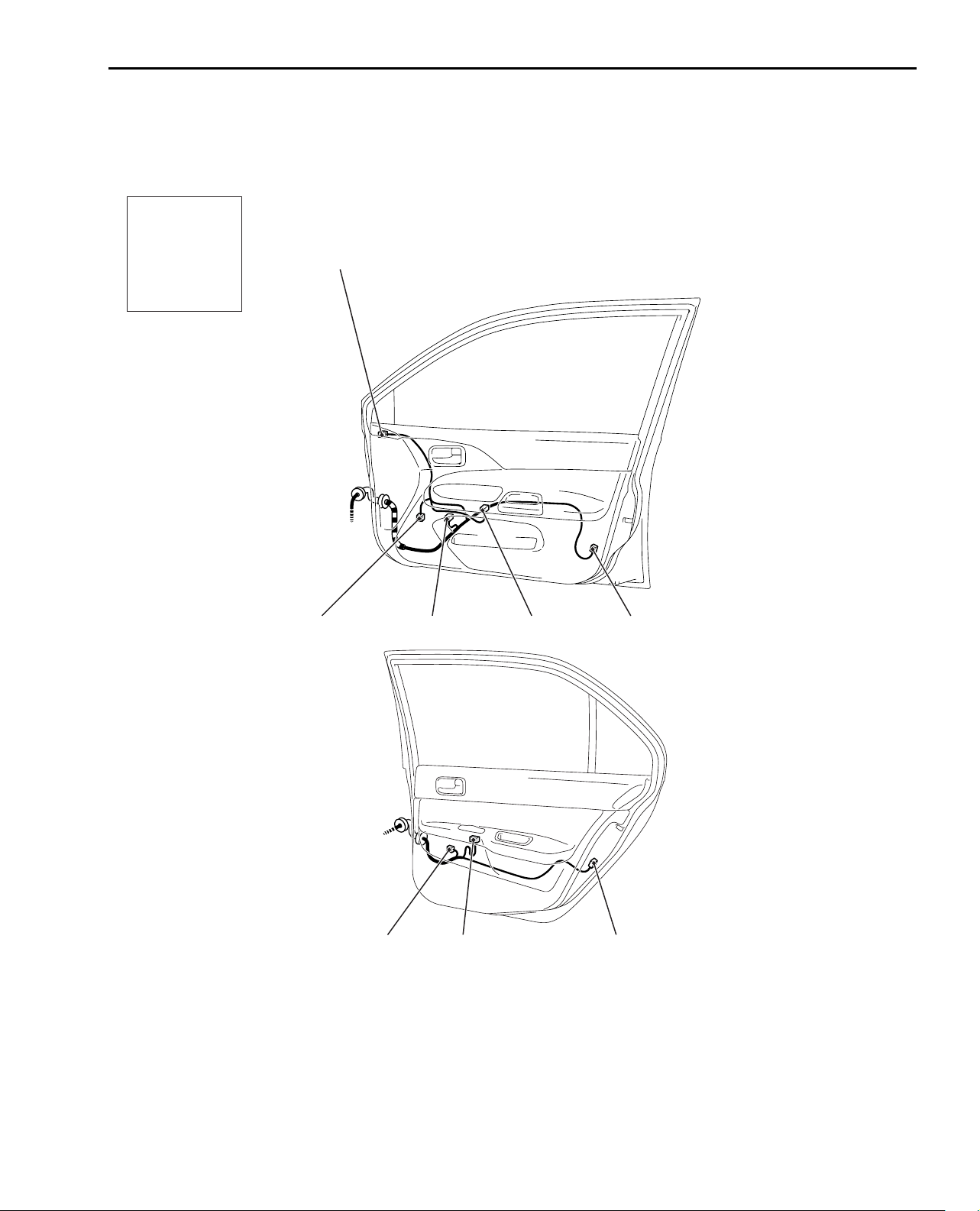

DOOR <LHD>
Connector
symbol
E
Front
CONFIGURATION DIAGRAMS
DOOR
DOOR
M1801001400552
Driver's side
E-01
E-02
E-06
Rear
E-09
E-01 (3) Remote controlled mirror (LH) <Vehicles
without door mirror heater>
E-02 (7) Remote controlled mirror (LH) <Vehicles
with door mirror heater>
E-03 (2) Front door speaker (LH)
E-04 (6-GR) Front power window motor (LH)
E-05 (14) Power window main switch
E-05
E-04
E-08
E-06 (6-B) Front door lock actuator (LH)
E-07 (6-GR) Rear power window motor (LH)
E-08 (8) Rear power window sub switch (LH)
E-09 (6-B) Rear door lock actuator (LH)
E-10 (3) Remote controlled mirror (RH) <Vehicles
E-07
without door mirror heater>
E-03
AC301826
AB
CONFIGURATION DIAGRAMS
DOOR
80-47
Front
E-10
E-11
E-16
Passenger's side
E-15
E-14
E-13
E-12
Rear
E-19
E-11 (7) Remote controlled mirror (RH) <Vehicles
with door mirror heater>
E-12 (3-B) Door lock key cylinder switch
E-13 (6-B) Front door lock actuator (RH)
E-14 (8) Front power window sub switch (RH)
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
E-18
E-17
Y : Yellow
E-15 (6-GR) Front power window motor (RH)
E-16 (2) Front door speaker (RH)
E-17 (6-B) Rear door lock actuator (RH)
E-18 (8) Rear power window sub switch (RH)
E-19 (6-GR) Rear power window motor (RH)
AC301827
AB
80-48
CONFIGURATION DIAGRAMS
DOOR
DOOR <RHD>
Connector
symbol
E
Front
E-10
E-11
M1801001400574
Driver's side
E-16
Rear
E-19
E-01 (3) Remote controlled mirror (LH) <Vehicles
without door mirror heater>
E-02 (7) Remote controlled mirror (LH) <Vehicles
with door mirror heater>
E-03 (2) Front door speaker (LH)
E-04 (6-GR) Front power window motor (LH)
E-05 (14) Power window main switch
E-15
E-18
E-05
E-06 (6-B) Front door lock actuator (LH)
E-07 (6-GR) Rear power window motor (LH)
E-08 (8) Rear power window sub switch (LH)
E-09 (6-B) Rear door lock actuator (LH)
E-10 (3) Remote controlled mirror (RH) <Vehicles
E-13
E-17
without door mirror heater>
AC301883
AB
CONFIGURATION DIAGRAMS
DOOR
80-49
Front
E-12
E-06
Passenger's side
E-20
E-04
E-01
E-02
E-03
Rear
E-09
E-11 (7) Remote controlled mirror (RH) <Vehicles
with door mirror heater>
E-12 (3-B) Door lock key cylinder switch
E-13 (6-B) Front door lock actuator (RH)
E-15 (6-GR) Front power window motor (RH)
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
E-08
E-07
Y : Yellow
AC301885
E-16 (2) Front door speaker (RH)
E-17 (6-B) Rear door lock actuator (RH)
E-18 (8) Rear power window sub switch (RH)
E-19 (6-GR) Rear power window motor (RH)
E-20 (8) Front power window sub switch (LH)
AB
80-50
CONFIGURATION DIAGRAMS
TRUNK (LUGGAGE COMPARTMENT)
TRUNK (LUGGAGE COMPARTMENT)
TRUNK (LUGGAGE COMPARTMENT) <SEDAN (LHD) >
Connector
symbol
F-01 F-04 F-05 F-06
M1801001500322
F-03
F
F-22
Floor wiring
harness (LH)
Antenna
feeder cable
Defogger
earth
F-08
Floor wiring
harness (RH)
F-10
F-11
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
F-01 (2) Rear speaker (LH)
F-03 (1) Roof antenna
F-04 (2) Luggage compartment lamp
F-05 (2-B) High mount stop lamp <Rear shelf>
F-06 (1-B) Rear window defogger (−)
F-08 (2) Rear speaker (RH)
F-10 (2) High mount stop lamp <Rear spoiler>
F-11 (6-B) Rear combination lamp (RH)
F-21
F-20
Rear bumper
wiring harness
F-18
F-15 (2-GR) Licence plate lamp (RH)
F-16 (1-B) Trunk lid latch switch
F-18 (2-GR) Licence plate lamp (LH)
F-19 (2-GR) Floor wiring harness (LH) and rear
F-20 (2) Rear fog lamp
F-21 (6-B) Rear combination lamp (LH)
F-22 (1) Rear window defogger (+)
F-16F-19
bumper wiring harness combination
F-15
AC301171
AB
CONFIGURATION DIAGRAMS
TRUNK (LUGGAGE COMPARTMENT)
TRUNK (LUGGAGE COMPARTMENT) <SEDAN (RHD) >
M1801001500333
Connector
symbol
F-04 F-05 F-07 F-08 F-22
F-03
80-51
F
Defogger
earth
F-06
F-01
Floor wiring
harness (LH)
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
F-21
Antenna
feeder cable
F-01 (2) Rear speaker (LH)
F-03 (1) Roof antenna
F-04 (2) Luggage compartment lamp
F-05 (2-B) High mount stop lamp <Rear shelf>
F-06 (1-B) Rear window defogger (−)
F-07 (4) No connection
F-08 (2) Rear speaker (RH)
F-10 (2) High mount stop lamp <Rear spoiler>
F-11 (6-B) Rear combination lamp (RH)
F-10
Floor wiring
harness (RH)
F-11
F-14
Rear bumper
wiring harness
F-18
F-16F-19
F-15
AC301172
F-14 (2) Rear fog lamp
F-15 (2-GR) Licence plate lamp (RH)
F-16 (1-B) Trunk lid latch switch
F-18 (2-GR) Licence plate lamp (LH)
F-19 (2-GR) Floor wiring harness (LH) and rear
bumper wiring harness combination
F-21 (6-B) Rear combination lamp (LH)
F-22 (1) Rear window defogger (+)
AB
80-52
TAILGATE <WAGON (LHD) >
Connector
symbol
CONFIGURATION DIAGRAMS
TAIL G ATE
TAILGATE
M1801001900193
F
Floor wiring
harness (LH)
F-21
F-01 F-02
F-06
Tailgate wiring
harness
Defogger
earth
F-03
Antenna
feeder cable
Floor wiring
harness (RH)
F-10
F-22
F-07
F-08
F-09
F-11
8
F-12
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
F-20
F-01 (2) Rear speaker (LH)
F-02 (6) Floor wiring harness (LH) and Floor
wiring harness (RH) combination
F-03 (1) Roof antenna
F-06 (1) Rear window defogger (−)
F-07 (4) Rear wiper motor
F-08 (2) Rear speaker (RH)
F-09 (2) Accessory socket
F-10 (2) High mount stop lamp <Rear spoiler>
F-11 (6-B) Rear combination lamp (RH)
F-12 (8) Floor wiring harness (RH) and tailgate
wiring harness combination
Rear bumper
wiring harness
F-18
F-17F-19
F-15
AC301173
F-13 (2-B) Tailgate lock actuator
F-15 (2-GR) Licence plate lamp (RH)
F-17 (1) Tailgate switch
F-18 (2-GR) Licence plate lamp (LH)
F-19 (4-GR) Floor wiring harness (LH) and rear
bumper wiring harness combination
F-20 (2) Rear fog lamp
F-21 (6-B) Rear combination lamp (LH)
F-22 (1) Rear window defogger (+)
F-13
AB
CONFIGURATION DIAGRAMS
TAIL G AT E
80-53
TAILGATE <WAGON (RHD) >
Connector
symbol
F-01
F-06
F
Floor wiring
harness (LH)
M1801001900212
F-03
Antenna
feeder cable
Defogger
earth
F-10
F-22
F-07
Floor wiring
harness (RH)
F-08
F-09
F-21
Tailgate wiring
harness
Rear bumper
wiring harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
F-19
F-01 (2) Rear speaker (LH)
F-03 (1) Roof antenna
F-06 (1) Rear window defogger (−)
F-07 (4) Rear wiper motor
F-08 (2) Rear speaker (RH)
F-09 (2) Accessory socket
F-10 (2) High mount stop lamp <Rear spoiler>
F-11 (6-B) Rear combination lamp (RH)
F-12 (8) Floor wiring harness (RH) and tailgate
wiring harness combination
F-18
F-17
F-15
F-13 (2-B) Tailgate lock actuator
F-14 (2) Rear fog lamp
F-15 (2-GR) Licence plate lamp (RH)
F-17 (1) Tailgate switch
F-18 (2-GR) Licence plate lamp (LH)
F-19 (4-GR) Floor wiring harness (LH) and rear
bumper wiring harness combination
F-21 (6-B) Rear combination lamp (LH)
F-22 (1) Rear window defogger (+)
8
F-11
F-12
F-13
F-14
AC301174
AB
127(6
Loading...
