Mitsubishi Diamante 1999 Sedan 3.5L SOHC Workshop Manual

mitsubishi :: Mitsubishi Diamante Sedan V6-3.5L
SOHC (1999)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Locations

Alarm Module: Locations

Control Unit Locations Overall View

Control Unit Location View E-K

Component View

ETACS ECU K

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Locations > Page 7

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Antitheft Relay > Component Information > Locations

Antitheft Relay: Locations

Relay Locations Overall View

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Antitheft Relay > Component Information > Locations > Page 11

Diamante Sedan V6-3.5L SOHC (1999)

Relay Locations Views A-G

Relay View

Theft Relay G

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Keyless Entry Module > Component Information > Testing and Inspection

Keyless Entry Module: Testing and Inspection
ETACS-ECU (KEYLESS ENTRY) TERMINAL VOLTAGE CHECK

Connector Terminal No 1 - 53

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Keyless Entry Module > Component Information > Testing and Inspection > Page 15

Diamante Sedan V6-3.5L SOHC (1999)

PART 1 OF 2

Connector Terminal No 55 - 66

PART 2 OF2

For ETACS-ECU code related diagnosis refer to: Computers and Control Systems, Information Bus, Testing and Inspection.NOTE:

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Keyless Entry Module > Component Information > Testing and Inspection > Page 16

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Keyless Entry Module > Component Information > Testing and Inspection > Page 17

> Relays and Modules > Relays and Modules - Body and Frame > Door Module > Component Information > Locations

Door Module: Locations

Overall View

View F

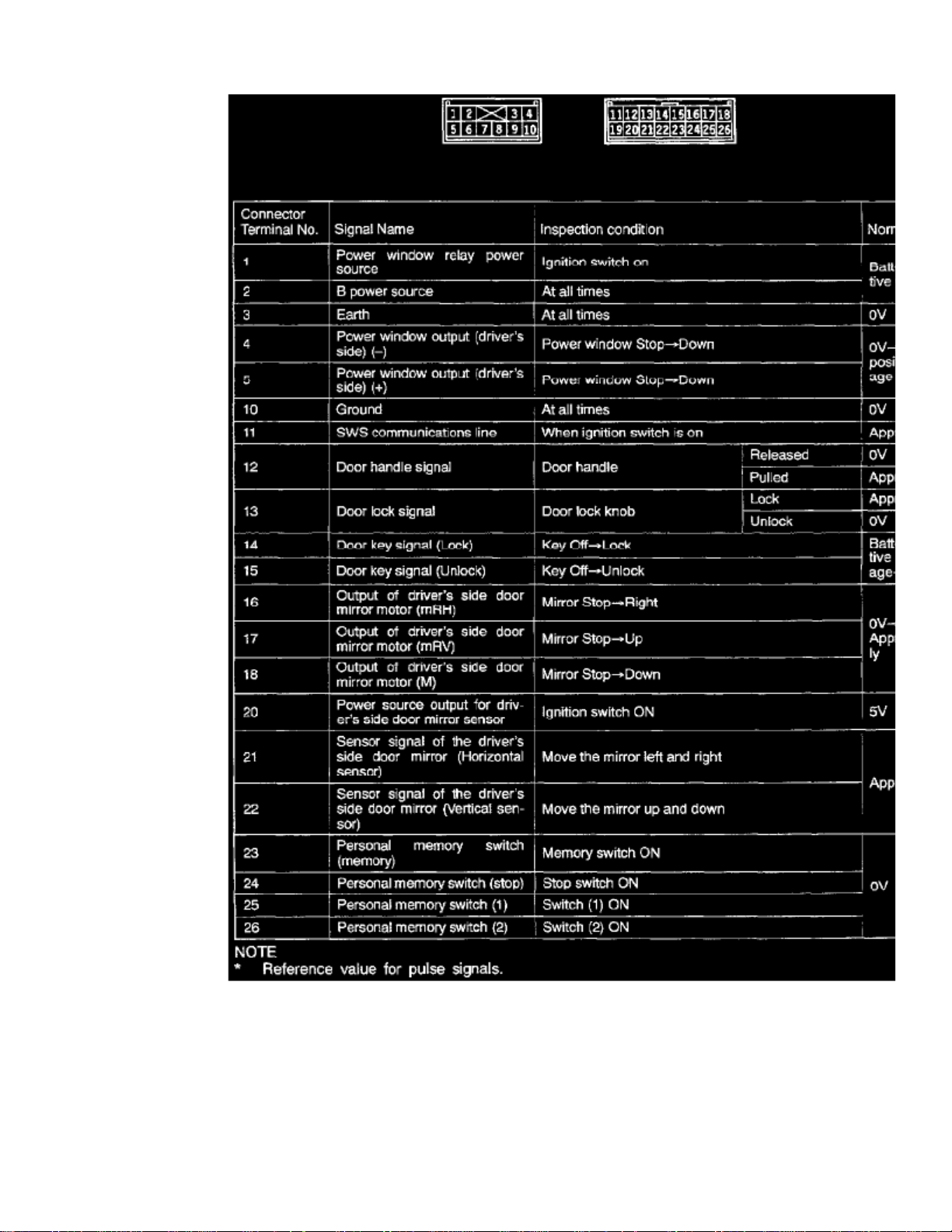

> Relays and Modules > Relays and Modules - Body and Frame > Door Module > Component Information > Locations > Page 22

> Relays and Modules > Relays and Modules - Body and Frame > Fuel Door Release Relay > Component Information > Locations

Fuel Door Release Relay: Locations

Overall View

View G

> Relays and Modules > Relays and Modules - Body and Frame > Fuel Door Release Relay > Component Information > Locations > Page 26

Fuel Door Release Relay: Testing and Inspection

Trunk Lid And Fuel Filler Door Opener Relay Continuity Check

Trunk Lid And Fuel Filler Door Opener Relay Continuity Check

> Relays and Modules > Relays and Modules - Body and Frame > Keyless Entry Module > Component Information > Testing and Inspection

Keyless Entry Module: Testing and Inspection
ETACS-ECU (KEYLESS ENTRY) TERMINAL VOLTAGE CHECK

Connector Terminal No 1 - 53

> Relays and Modules > Relays and Modules - Body and Frame > Keyless Entry Module > Component Information > Testing and Inspection > Page 30

Diamante Sedan V6-3.5L SOHC (1999)

PART 1 OF 2

Connector Terminal No 55 - 66

PART 2 OF2

For ETACS-ECU code related diagnosis refer to: Computers and Control Systems, Information Bus, Testing and Inspection.NOTE:

> Relays and Modules > Relays and Modules - Body and Frame > Keyless Entry Module > Component Information > Testing and Inspection > Page 31

> Relays and Modules > Relays and Modules - Body and Frame > Keyless Entry Module > Component Information > Testing and Inspection > Page 32

> Relays and Modules > Relays and Modules - Body and Frame > Power Mirror Control Module > Component Information > Description and Operation

Power Mirror Control Module: Description and Operation

-

When the remote-controlled mirror switch is operated while the ignition key is in "ACC" or "ON" position, the front door module (LH) determinesoperator requirements according to switch output signals.The front door module (LH) positions the LH door mirror by driving the mirror motors or sends a signal to the assist-ECU via the SWScommunication line.The assist-ECU drives the RH door mirror motors to position the mirror according to the signal received.

> Relays and Modules > Relays and Modules - Body and Frame > Power Seat Control Module > Component Information > Locations

Power Seat Control Module: Locations

Control Unit Locations Overall View

Control Unit Location View E-K

Component View

Memory Power Seat ECU E

> Relays and Modules > Relays and Modules - Body and Frame > Power Seat Control Module > Component Information > Locations > Page 39

Power Seat Control Module: Testing and Inspection

> Relays and Modules > Relays and Modules - Body and Frame > Power Seat Control Module > Component Information > Locations > Page 40

Diamante Sedan V6-3.5L SOHC (1999)

Part 1 Of 3

> Relays and Modules > Relays and Modules - Body and Frame > Power Seat Control Module > Component Information > Locations > Page 41

Diamante Sedan V6-3.5L SOHC (1999)

Part 2 Of 3

Part 3 Of 3

> Relays and Modules > Relays and Modules - Body and Frame > Sunroof / Moonroof Module > Component Information > Locations

Sunroof / Moonroof Module: Locations

Overall View

View C

> Relays and Modules > Relays and Modules - Body and Frame > Trunk / Liftgate Relay > Component Information > Locations

Trunk / Liftgate Relay: Locations

Overall View

View G

> Relays and Modules > Relays and Modules - Body and Frame > Trunk / Liftgate Relay > Component Information > Locations > Page 48

Trunk / Liftgate Relay: Testing and Inspection

Trunk Lid And Fuel Filler Door Opener Relay Continuity Check

Trunk Lid And Fuel Filler Door Opener Relay Continuity Check

> Relays and Modules > Relays and Modules - Brakes and Traction Control > Electronic Brake Control Module > Component Information > Locations

Electronic Brake Control Module: Locations

Control Unit Locations Overall View

Control Unit Location View A-D

Component View

ABS ECU B

> Relays and Modules > Relays and Modules - Brakes and Traction Control > Traction Control Module > Component Information > Service and Repair

Traction Control Module: Service and Repair

REMOVAL STEPS

1. TCL-ECU

INSTALLATION STEPS

1. TCL-ECU

> Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Motor Relay > Component Information > Locations

Radiator Cooling Fan Motor Relay: Locations

Relay Locations Overall View

> Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Motor Relay > Component Information > Locations > Page 60

Diamante Sedan V6-3.5L SOHC (1999)

Relay Locations Views A-G

Relay View

Radiator Fan Relay (HI) A
Radiator Fan Relay (LO) A
Radiator Fan Relay (MI) A

> Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Motor Relay > Component Information > Locations > Page 61

Radiator Cooling Fan Motor Relay: Testing and Inspection

Radiator Relay Continuity Check

> Relays and Modules > Relays and Modules - Cruise Control > Cruise Control Module > Component Information > Locations

Cruise Control Module: Locations

Control Unit Locations Overall View

Control Unit Location View E-K

Component View

Auto Cruise ECU I

> Relays and Modules > Relays and Modules - HVAC > Blower Motor Relay > Component Information > Locations

Blower Motor Relay: Locations

Relay Locations Overall View

> Relays and Modules > Relays and Modules - HVAC > Blower Motor Relay > Component Information > Locations > Page 70

Diamante Sedan V6-3.5L SOHC (1999)

Relay Locations Views A-G

Relay View

Blower Relay E

> Relays and Modules > Relays and Modules - HVAC > Blower Motor Relay > Component Information > Locations > Page 71

Blower Motor Relay: Testing and Inspection

BLOWER RELAY CONTINUITY CHECK

> Relays and Modules > Relays and Modules - HVAC > Compressor Clutch Relay > Component Information > Locations

> Relays and Modules > Relays and Modules - HVAC > Compressor Clutch Relay > Component Information > Testing and Inspection > Component Inspection

Compressor Clutch Relay: Testing and InspectionComponent Inspection

Location/Connector View

Continuity Test

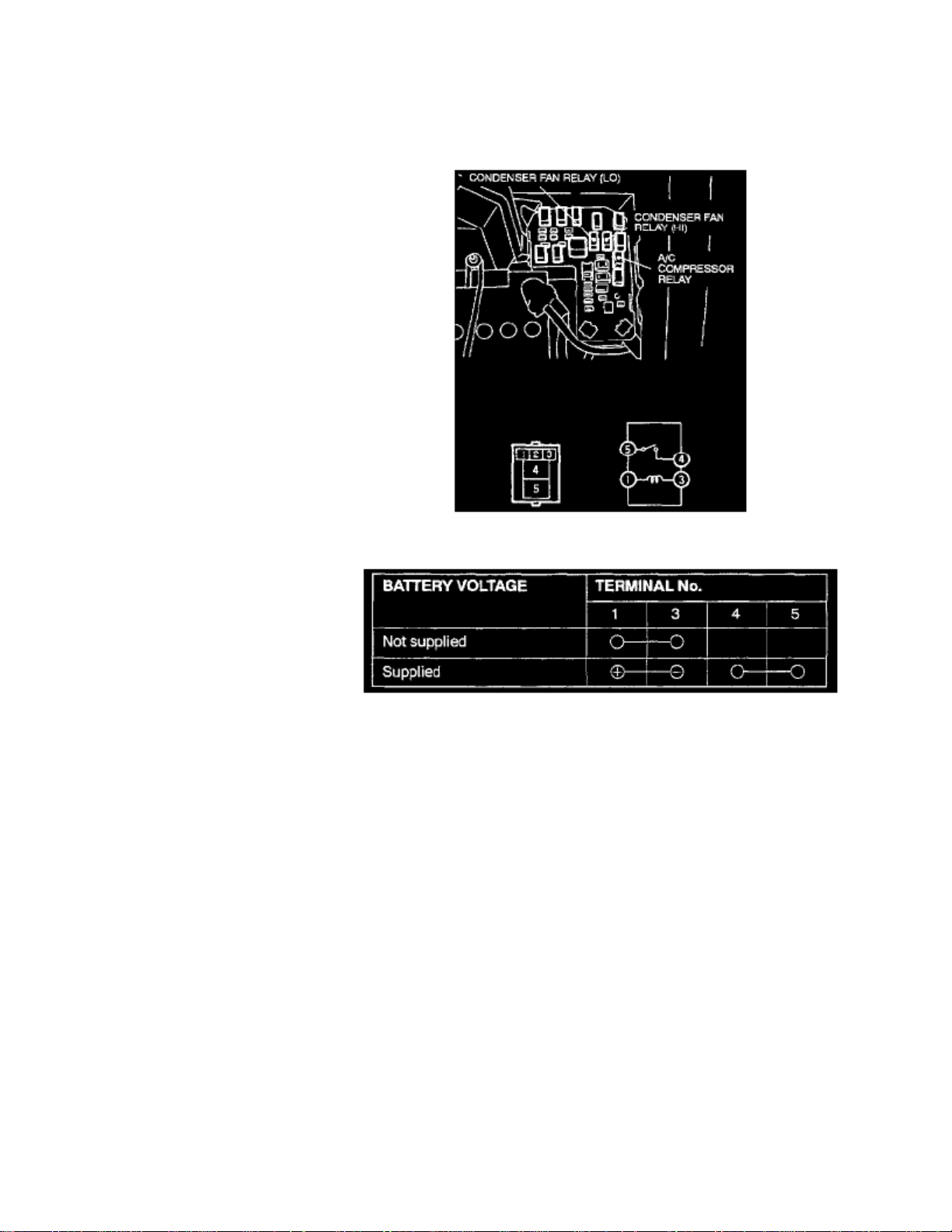

A/C COMPRESSOR CLUTCH RELAY, CONDENSER FAN RELAY (LO) AND (HI) TEST

> Relays and Modules > Relays and Modules - HVAC > Compressor Clutch Relay > Component Information > Testing and Inspection > Component Inspection > Page 77

> Relays and Modules > Relays and Modules - HVAC > Condenser Fan Motor Relay, HVAC > Component Information > Locations

Condenser Fan Motor Relay: Locations

Relay Locations Overall View

> Relays and Modules > Relays and Modules - HVAC > Condenser Fan Motor Relay, HVAC > Component Information > Locations > Page 81

Diamante Sedan V6-3.5L SOHC (1999)

Relay Locations Views A-G

Relay View

Condenser Fan Relay (HI) A
Condenser Fan Relay (LO) A

> Relays and Modules > Relays and Modules - HVAC > Condenser Fan Motor Relay, HVAC > Component Information > Testing and Inspection > Component Inspection

Condenser Fan Motor Relay: Testing and InspectionComponent Inspection

Location/Connector View

Continuity Test

A/C COMPRESSOR CLUTCH RELAY, CONDENSER FAN RELAY (LO) AND (HI) TEST

> Relays and Modules > Relays and Modules - HVAC > Condenser Fan Motor Relay, HVAC > Component Information > Testing and Inspection > Component Inspection > Page 84

> Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Locations > Blower Motor Speed Control

Control Module HVAC: LocationsBlower Motor Speed Control

Other Devices Location Overall View And Views A-F

Component View

Power Transistor F

> Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Locations > Blower Motor Speed Control > Page 89

Control Module HVAC: LocationsElectronic Climate Control Module

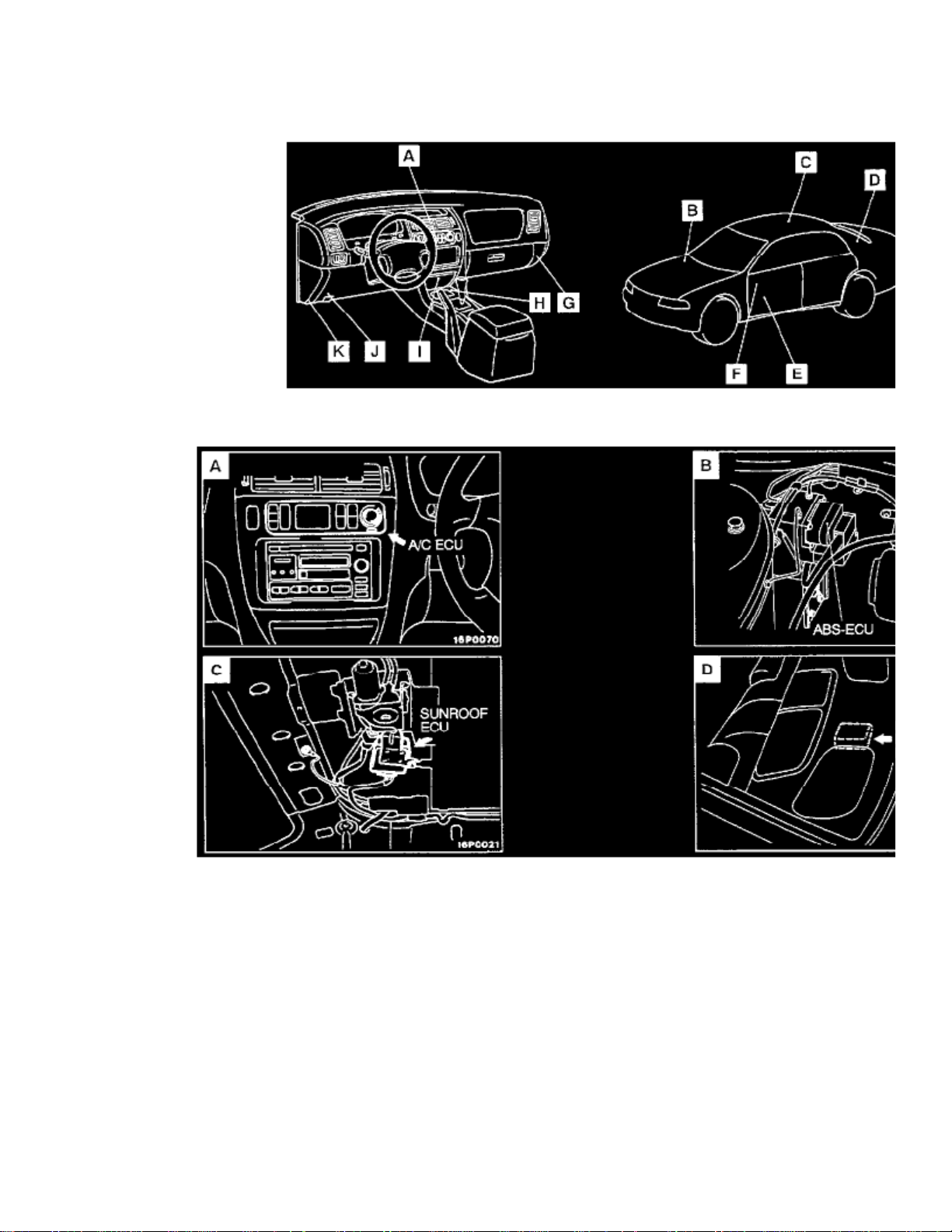

Control Unit Locations Overall View

Control Unit Location View A-D

Component View

A/C ECU A

> Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Locations > Page 90

> Relays and Modules > Relays and Modules - Instrument Panel > Instrument Panel Control Module > Component Information > Locations

Instrument Panel Control Module: Locations

Control Unit Locations Overall View

Control Unit Location View E-K

Component View

Instrument Panel ECU J

> Relays and Modules > Relays and Modules - Instrument Panel > Instrument Panel Control Module > Component Information > Locations > Page 95

Instrument Panel Control Module: Testing and Inspection

Connector View/Pinout Values Part 1 Of 2

> Relays and Modules > Relays and Modules - Instrument Panel > Instrument Panel Control Module > Component Information > Locations > Page 96

Diamante Sedan V6-3.5L SOHC (1999)

Pinout Values Part 2 Of 2

> Relays and Modules > Relays and Modules - Instrument Panel > Instrument Panel Control Module > Component Information > Locations > Page 97

> Relays and Modules> Relays and Modules - Lighting and Horns> Fog/Driving Lamp Relay > Component Information > Locations

Fog/Driving Lamp Relay: Locations

Relay Locations Overall View

> Relays and Modules> Relays and Modules - Lighting and Horns> Fog/Driving Lamp Relay > Component Information > Locations > Page 102

Diamante Sedan V6-3.5L SOHC (1999)

Relay Locations Views A-G

Relay View

Fog Light Relay A

> Relays and Modules> Relays and Modules - Lighting and Horns> Fog/Driving Lamp Relay > Component Information > Locations > Page 103

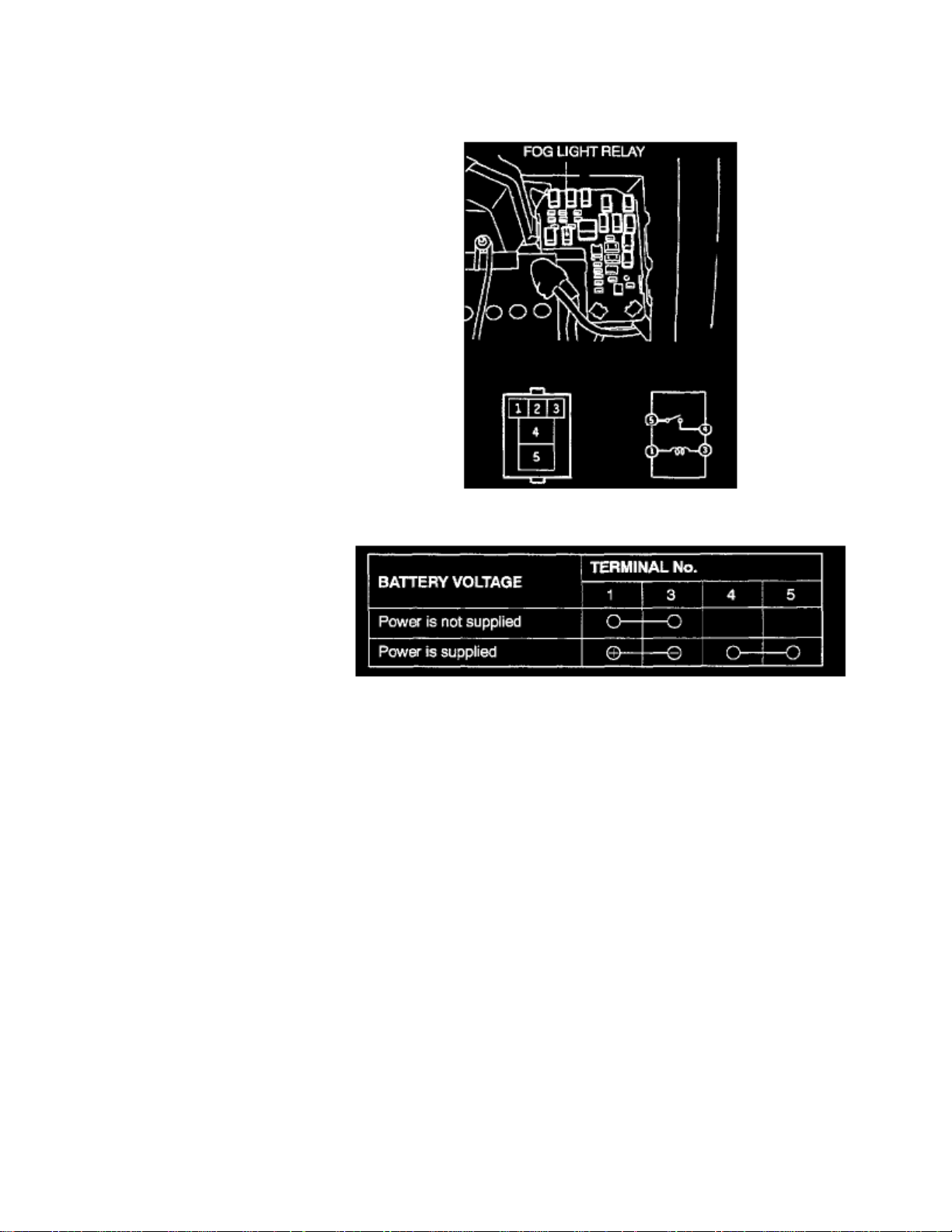

Fog/Driving Lamp Relay: Testing and Inspection

Connector View

Continuity Test

FOG LIGHT RELAY CONTINUITY CHECK
