Mitsubishi Canter 2014 User Manual
Owner’s Manual
2014 Model
Pub. No. MH996888
OWNER AND VEHICLE INFORMATION
OWNER NAME:
USER/COMPANY NAME:
MAILING ADDRESS:
CITY, STATE: ZIP:
VEHICLE IDENTIFICATION NUMBER:
DATE OF DELIVERY (WARRANTY START DATE): / /
MO. DAY YR.
SELLING DEALER IMPRINT HERE
Foreword
Thank you for purchasing a Mitsubishi Fuso FE, FG Truck.
This Owner’s Manual explains proper vehicle handling, simple maintenance practices, and the periodic maintenance schedule to ensure that you are able to drive
your vehicle safely and comfortably.
As improper use of the vehicle may result in a breakdown or cause an accident, we
urge you to read this handbook thoroughly before operating the vehicle.
Please keep this manual in the vehicle so it is always available for reference. If you
sell the vehicle, make sure the next owner receives this manual and is aware of its
contents.
© 2012 Mitsubishi Fuso Truck & Bus Corporation Printed in Japan
Reading the handbook
Q The information in this manual is accurate as of the time of printing. Because of differ-
ences in specifications and improvements that may be added after preparation of this
manual, some of the explanations and illustrations in this handbook may not apply to your
vehicle.
Q The following symbols are used throughout this handbook:
: optional equipment
: requests that reader should refer to the page of the number indicated.
Q This manual contains important cautionary instructions and supplementary information
under the following four headings which identify the nature of the instructions and information:
DANGER
WARNING
CAUTION
NOTE: Suggestions or supplementary information for more effi-
Q California Proposition 65 Warning
Precautions that should be taken when handling dangerous substances such as battery fluid in order to prevent a
serious injury or death
Precautionary instructions, which, if not observed, could
result in serious injury or death.
Precautionary instructions, which, if not observed, could
result in damage to or destruction of equipment or parts.
cient use of equipment or better understanding.
DANGER
THIS PRODUCT CONTAINS OR EMITS CHEMICALS KNOWN TO THE STATE OF
CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.
CONTENTS
1. Recommendation to drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
2. Warning labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
3. Opening and closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
4. Seat and steering wheel adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
5. Switches and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
6. Instruments and warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
7. Starting and driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
8. 4WD operation <FG models> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
9. Heating and air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
10. Interior equipment and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
11. In cold weather . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
12. Simple inspection and service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
13. Useful advice for emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1
14. Service data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1
15. Maintenance schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1
16. Alphabetical index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-1
17. Maintenance record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-1
Each chapter has a table of contents on its first page.
1-1
1. Recommendation to drivers
Chassis and engine numbers ............................................................................................ 1-2
Vehicle identification number (VIN) .................................................................................... 1-3
Maintenance ...................................................................................................................... 1-4
Fuels .................................................................................................................................. 1-5
DEF (Diesel exhaust fluid) ................................................................................................. 1-8
Handling of the new vehicle ............................................................................................. 1-13
Reporting safety defects .................................................................................................. 1-14
Obtaining service ............................................................................................................. 1-14
1-2 Recommendation to drivers
Chassis and engine numbers
1 Chassis number
The chassis number is indicated on the left
frame, near the left front wheel.
Example: FEC52 -
Chassis number
2 Engine number
The engine number is indicated on the front side
of the cylinder head.
Example: 4P10 -
Vehicle model
Z21444
Z21326
Engine number
Engine model
A label indicating the vehicle information including the vehicle model, chassis number, and engine
model is affixed to the pillar of the assistant driver’s
door.
<Crew-cab model>
Country J: Japan
, Vehicle type L, 6: Incomplete vehicle
Gross vehicle weight / A: 10,001 to 14,000 lbs. / Hydraulic
Brake system B: 14,001 to 16,000 lbs. / Hydraulic
Line M: FEC52S
Series (wheel base) C: 2.6 to 2.89 m (8.53 to 9.48 ft.)
Cab chassis type 1: Chassis cab for Mitsubishi Fuso
and make
Engine A: 2.998 L Diesel turbo charged and charge air cooled
Check digit
Model year E: 2014
Plant K: Kawasaki
Plant sequential number
1-3
Vehicle identification number (VIN)
The VIN is stamped on a plate that is located as
shown in the illustration.
The VIN comprises 17 numbers and letters, the
meanings of which are listed below.
Z11959
Z11769
J RA6L G EA1 K
C: 16,001 to 19,500 lbs. / Hydraulic
N: FEC72S
P: FEC72W
R: FEC92S
S: FGB72S
E: 3.2 to 3.49 m (10.49 to 11.44 ft.)
G: 3.8 to 4.09 m (12.46 to 13.41 ft.)
H: 4.1 to 4.39 m (13.45 to 14.40 ft.)
K: 4.7 to 4.99 m (15.41 to 16.37 ft.)
1-4 Recommendation to drivers
4,000 km
(2,500 miles)
Z21323
Maintenance
Checking your vehicle at regular intervals is very
important for maximizing performance and extending service life. It is recommended that you make a
habit of performing the following inspections.
This manual describes simple maintenance checks
and procedures that can be carried out by the
owner. If you have difficulty or your vehicle needs
maintenance work that is not shown in this manual,
please refer to an authorized dealer.
1 First maintenance at 4,000 km (2,500
miles)
After you have driven the first 4,000 km (2,500
miles), your vehicle requires a special inspection
and adjustments to compensate for the initial settlement of various parts. When the distance has been
reached, have your vehicle inspected by an authorized dealer by showing them this Owner’s Manual.
2 Pre-operational check
Make a habit of checking your vehicle at the start of
every day’s operation. This will ensure safe and
comfortable operation. P. 12-11
Z01367
3 Periodic inspection
In addition to maximizing the vehicle’s working life,
regular inspections also help prevent accidents.
Periodic inspection is based on either the distance
traveled (odometer reading) or period of use
(months/years).
The intervals between and content of periodic
inspections are as shown in the Maintenance
Schedule section. Please adhere to the maintenance schedule carefully.
1-5
Fuels
Use only diesel fuels conforming to the following
recommendations, without any additives, for diesel
engines installed in Mitsubishi Fuso trucks.
1 Diesel-fuel properties
The following recommendations concerning diesel
fuel used with Mitsubishi Fuso diesel engines are
given for optimum fuel economy and performance.
Use condition Recommendation
Normal operation at
temperatures above
–12°C (10°F).
Operation at temperatures below –12°C
(10°F), or long-hour noload operation.
Biodiesel fuel can be used if it has a 5% or lower
blend ratio and complies with ASTM D-6751.
NOTE:
* ASTM is an acronym for the American Society for
Testing and Materials which recommends fuel containing 0.0015% – basis 15 ppm sulfur or less sulfur
content.
Note that a sulfur content exceeding 0.0015% –
basis 15 ppm sulfur deteriorates the performance of
emission control device.
ASTM D-975
Grade Ultra Low Sulfur
Grade 2-D*
ASTM D-975
Grade Ultra Low Sulfur
Grade 1-D*
To meet fuel requirements, it is necessary to obtain
cooperation from a reputable fuel oil supplier. Both
fuel suppliers and users are responsible for keeping
fuel clean.
2 Diesel fuel to be used in your engine
Use only a ultra low sulfur diesel fuel (with a sulfur
content of 15 ppm or lower) for refueling your Mitsubishi Fuso diesel engine. Otherwise, the catalyst
inside the diesel particulate filter (DPF) will not work
effectively and the DPF’s performance of removing
small particles (particulate matter or PM) in exhaust
gases will be degraded. Furthermore, your truck will
not meet emission regulations if you replenish it
with a non-approved fuel.
1-6 Recommendation to drivers
3 Danger of fire and explosion by using
mixed fuel
Fuel containing 5% gasoline has a flash point as
low as 0°C (32°F), which can lead to a fire or explosion while the engine is running.
DANGER
NEVER MIX DIESEL FUEL WITH GASOLINE,
GASOHOL OR ALCOHOL.
USE OF FUEL MIXED WITH ONE OR MORE
OF THESE COULD LEAD TO A FIRE OR
EXPLOSION INVOLVING SERIOUS INJURY,
DEATH OR PROPERTY DAMAGE. IF YOU
ACCIDENTALLY USE GASOLINE OR ALCOHOL WHEN REFUELING THE VEHICLE,
REMOVE ALL OF IT FROM THE FUEL SYSTEM.
4 Adverse effects of mixed fuel on engine
Using diesel fuel mixed with gasoline, alcohol, or
both, has the following adverse effects on the
engine:
• Fuel viscosity becomes lower, resulting in
excessive wear, damage, and failure of fuel system parts.
• Difficulty in starting the engine will result due to
a reduced cetane number.
CAUTION
• The lower the cetane number, the more likely
internal engine damage will occur.
• Do not add antifreeze agents or other sub-
stances to the fuel. They could damage the
engine’s fuel injection system.
• If the fuel tank cap and breather (air hole)
become so dirty that the breather gets
blocked, the fuel tank may deform and the
fuel injection system may fail. Be sure to
clean them regularly.
1-7
5 Refueling
WARNING
• Stop the engine before fueling.
• Never smoke when fueling since diesel
fuel could ignite or explode.
Never operate lighters or other items that
emit sparks.
• If you inadvertently put gasoline in the fuel
tank, pump it all out. Running the engine
with gasoline in the tank could cause a fire
or explosion endangering your or other
people’s lives.
CAUTION
Be careful not to allow the engine to run out of
fuel. Engine stall resulting from an empty tank
could cause damage to the fuel injection system.
NOTE:
If the vehicle runs out of fuel, air will enter the fuel
system. Simply refueling the vehicle will not make
the engine startable ; the air must be bled out of the
fuel system. P. 1 3 - 3 1
1-8 Recommendation to drivers
Z23257
• 113-liter fuel tank
The fuel tank is at the rear of the vehicle. To open
the fuel tank cap, slowly turn it counterclockwise. To
close the cap, turn it clockwise until you hear a click.
Fuel tank capacity
113 liters (29.8 gallons)
• 125-liter fuel tank
The fuel tank is on the left-hand side of the vehicle.
To open the cap, slowly turn it counterclockwise. To
close the cap, turn it fully clockwise.
Fuel tank capacity
125 liters (33 gallons)
WARNING
• When filling the fuel tank using a gun-type
fuel pump, do not continue pumping after
the pump automatically stops. (The tank is
full at this point.) When filling the fuel tank
using any other method, stop as soon as
the surface of the fuel becomes visible
through the opening of the fuel filler. If you
supply so much fuel that it comes up to
the opening, fuel may leak though the
check valve when the vehicle starts
moving and when it stops moving. If fuel
leaks, carefully wipe it all up to prevent the
risk of fire.
• If the pointer of the fuel gauge is above the
“F” mark, do not add the fuel any more.
DEF (Diesel exhaust fluid)
DEF is injected into the exhaust gas inside the muffler in order to break down NOx (oxides of nitrogen)
in the exhaust gas into water and nitrogen, and thus
reduces the amount of NOx. P. 5-49
1-9
WARNING
DEF is a colorless, transparent, odorless and
harmless water solution (urea 32.5%, water
67.5%; Freezing temperature -11°C (12°F)), so
no problem will occur if you get it on your
skin. However, some persons with delicate
skin may in very rare cases get a rash, so
carry out the following procedure.
• If DEF gets on your skin, wash it off with
water. If there is any change in your skin or
it is painful, promptly see a doctor to
receive treatment.
• In the event that you accidentally ingest
DEF, drink one to two cupfuls of water or
milk, and promptly see a doctor to receive
treatment.
• If DEF gets into your eyes, immediately
wash your eyes with a copious amount of
water, then see a doctor to receive treatment.
1DEF used
Be sure to use DEF that conforms to ISO 22241.
ISO: International Organization for Standardization.
CAUTION
Do not carry out the following when using DEF
because this may cause damage to the
BlueTec
®
exhaust gas aftertreatment.
• Do not dilute the DEF.
• Do not mix the DEF with another reagent.
• Do not use DEF that does not conform to ISO
22241.
2Replenishing DEF
WARNING
Do not pour anything other than DEF into the
DEF tank. Particularly, never pour diesel fuel
or gasoline into the DEF tank, because this
may cause a fire or damage the BlueTec
exhaust gas aftertreatment.
If you accidentally fill the DEF tank with any
fluid other than DEF, immediately turn the
starter switch to the “LOCK” position, and
contact an authorized dealer to have the
incorrectly added fluid drained off and the
vehicle inspected.
®
1-10 Recommendation to drivers
Z24225
CAUTION
Do not rest your foot on the DEF tank or step on
it, because this may damage the tank and/or the
sensors on it.
NOTE:
• Replenish the DEF well before it is used up.
• It is recommended that you obtain portable DEF
for use in the event that the DEF tank becomes
empty.
• You can obtain DEF at any of the following
places:
• Authorized dealer
• Authorized Parts and Service Center (PSC)
• Old World Industries distributor
• Exxon Mobil service station
DEF tank capacity 12 liters (3 gallon)
1. Turn the starter switch to the “LOCK” position to
stop the engine.
2. Wipe away dirt, mud, or other contamination in
the vicinity of the replenishment port.
3. Turn the cap counterclockwise and remove it.
4. While observing the level gauge , replenish
the DEF to the FULL line on the tank.
Z24226
CAUTION
• Do not use a steel container to hold DEF.
DEF reacts with steel and produces a corrosive material. If the tank is refilled with DEF
containing this corrosive material, the
BlueTec
damaged.
• Containers and appliances used to handle
DEF must not have been used for other purposes. Impurities that may remain in them
could adversely affect the quality of DEF and
prevent the engine from starting.
5. Install the cap securely by turning it clockwise.
NOTE:
If you spill the DEF during replenishment, wipe it
away with a cloth, or the like, and then wash the
area with water.
6. If the DEF tank becomes empty, a driving
restriction automatically engages, locking the
gear in first or reverse, so the vehicle can be
driven only slowly.
®
exhaust gas aftertreatment will be
Z22085
1-11
3 Method for canceling the driving restric-
tion that has engaged due to an empty
DEF tank
If the DEF tank becomes empty, a driving restriction
automatically engages, locking the gear in first or
reverse, so the vehicle can be driven only slowly.
In the event of a driving restriction, replenish the
DEF and then disengage the restriction as follows.
1. After refilling the tank with DEF, turn the starter
switch from “LOCK” to “ON”.
2. Wait until the following changes in state have
completed.
• The warning lamp and DEF level warn-
ing lamp go out.
• The DEF level indicator lamp stops flash-
ing.
• The buzzer stops sounding.
Do not turn the starter switch to the “ACC” or
“LOCK” position before all the above changes
have completed.
NOTE:
• It may take a while after placing the starter
switch to “ON” for the warning lamp to go out
and for the buzzer to stop sounding.
• If the DEF tank becomes empty in cold weather,
perform the driving restriction canceling procedure immediately after refilling the tank with
DEF.
4 Storing the DEF
Seal the DEF container, and store it indoors in a
well-ventilated place away from direct sunlight.
The temperature of the storage place should be
between –5°C (23°F) and 25°C (77°F).
WARNING
Do not store DEF in a high temperature location.
If the temperature is high, DEF may release
ammonia, which is toxic. When storing the
container, seal it. Also, open it outdoors in a
well-ventilated area. If a pungent odor is
emitted from the container, do not carelessly
go near it.
1-12 Recommendation to drivers
NOTE:
• You can use frozen DEF after allowing it to thaw,
without loss of quality.
• If you seal the container so as to prevent the
water from evaporating, the quality of the DEF
will not change.
• Although DEF is a non-flammable liquid, it may
emit a pungent odor if it is heated due to a fire,
for example. In the event that a fire breaks out,
promptly move the container to a safe place.
• It is strongly recommended to store or carry
DEF in the original container in which it was
sold. If unavoidable, you can also use a polypropylene tank usually used for drinking water or
the like instead, after thoroughly cleaning the
inside with DEF and making sure that it contains
absolutely no water or other impurities.
CAUTION
Do not store DEF in a non-specified container. If
DEF is stored in a steel container and then used
for replenishing, corrosive material produced
by chemical reactions will damage the BlueTec
exhaust gas aftertreatment.
®
• DEF must be handled as industrial waste when
discarding it.
CAUTION
Do not discard DEF in a lake or marsh, in the
sea, or in a river because this may cause environmental destruction.
1-13
4000 km
(2500 miles)
Z18524
Z21323
Handling of the new vehicle
The way the vehicle is handled when new greatly
affects its subsequent performance and service life.
Observe the following precautions when handling
the new vehicle.
1 Maintenance
The “first maintenance at 4,000 km (2,500 miles)” is
very important for extending the service life of your
vehicle. We strongly recommend that you have this
inspection carried out by an authorized dealer. Be
sure to give the dealer this manual at that time.
2 Maximum engine speed during run-in
period
To avoid overburdening a new engine, limit engine
RPM to that indicated below for the first 1,000 km
(600 miles).
Then, run in your vehicle step by step at various
speeds, beginning with low gears.
Maximum engine RPM during run-in period
2,800 rpm
1-14 Recommendation to drivers
Reporting safety defects
If you believe that your vehicle has a defect that
could cause a crash or could cause injury or death,
you should immediately inform both the National
Highway Traffic Safety Administration (NHTSA) and
the Mitsubishi Fuso Truck of America, Inc. (MFTA).
If NHTSA receives similar complaints, it may open
an investigation, and if it finds that a safety defect
exists in a group of vehicles, it may order a recall
and remedy campaign. However, NHTSA cannot
become involved in individual problems between
you, your dealer, or MFTA.
To contact NHTSA, you may either call the Vehicle
Safety Hotline at 1-888-327-4236 (TTY: 1-800-424-
9153) or write to: Administrator, U.S. Department of
Transportation National Highway Traffic Safety
Adminstration Office of Defects Investigation -NVS210 1200 New Jersey Ave. SE West Building Washington, DC 20590.
You can also obtain other information about motor
vehicle safety from the Vehicle Safety Hotline.
For further information, please visit the following
NHTSA website:
http://www.safercar.gov
Obtaining service
At Mitsubishi Fuso Truck of America, Inc. (MFTA),
we are proud of the quality and workmanship that is
built into every MFTA Truck. We are equally proud
of our corporate commitment to promote the highest
possible degree of customer satisfaction with our
products and services.
Today’s trucks are extremely complex and are comprised of an enormous number of individual parts.
Occasionally, a failure of one of these parts may
occur. Should you experience such a failure, we are
confident that you will find an Authorized Dealer
prepared to provide you with high quality service.
Every Authorized Dealer has trained personnel,
plus the tools and equipment necessary to provide
for your various service needs. In the event that a
problem arises, we ask you to follow the procedure
outlined as follows, and in the sequence listed:
1-15
STEP 1: Contact your Nearest Authorized Dealer
This is the most direct and expedient way to obtain
service. Each Authorized Dealer has the ultimate
responsibility for providing the services and repairs
you may need. We recommend that you contact the
Service Manager of your nearest Authorized Dealer
for assistance. In the event that you feel additional
assistance is required, ask to speak to the General
Manager of the Authorized Dealer.
STEP 2: Contact MFTA
After the completion of Step 1, and in the event that
your nearest Authorized Dealer has been unable to
satisfactorily resolve the problem, please contact
MFTA’s Customer Service Representative at 1-877-
711-0707.
Please be prepared to provide the following information when you call:
• Your Name, Company Name, Address, Tele-
phone Number
• Vehicle Model
• Vehicle Model Year
• Vehicle Identification Number
• Mileage
• Name of Dealer contacted under Step 1, if appli-
cable
• Details of the Complaint/Comment
You also may correspond with the Customer Service Representative in writing, addressed to:
MITSUBISHI FUSO TRUCK OF AMERICA, INC.
CUSTOMER SERVICE REPRESENTATIVE
2015 CENTER SQUARE RD.
LOGAN TOWNSHIP, NJ 08085
2-1
2. Warning labels
Labels inside the cab ......................................................................................................... 2-3
Exterior labels .................................................................................................................... 2-5
2-2 Warning labels
• The caution and warning labels show important
information. Be sure to read them before using
the vehicle.
• If any label has peeled so it is difficult to read, is
scratched or otherwise damaged, or has peeled
off completely, please inform an authorized
dealer. The warning and caution labels apply
only to the vehicle itself, not to any equipment
mounted on the vehicle. For information on caution and warning labels that apply to equipment
mounted on the vehicle, please refer to the
Owner’s Manual supplied by the manufacturer
of the equipment.
• The locations of these labels and the informa-
tion on them may vary with the vehicle model.
Check the information on each label on your
vehicle.
Labels inside the cab
1 Around the driver’s seat
2-3
Z23258
Location Category Information Ref. page
WARNING High temperatures of exhaust system components 5-51
WARNING Handling of DPF system with regeneration control 5-51
WARNING Handling of DEF 1-8
WARNING Use of specified fuses 13-10
WARNING Engine oil level check 12-23
WARNING Fuel to use 1-5
WARNING DPF indicator lamp 5-51
2-4 Warning labels
2 On driver’s door and door pillar
Z21446
Location Category Information Ref. page
CAUTION Handling of PTO <option> 5-46

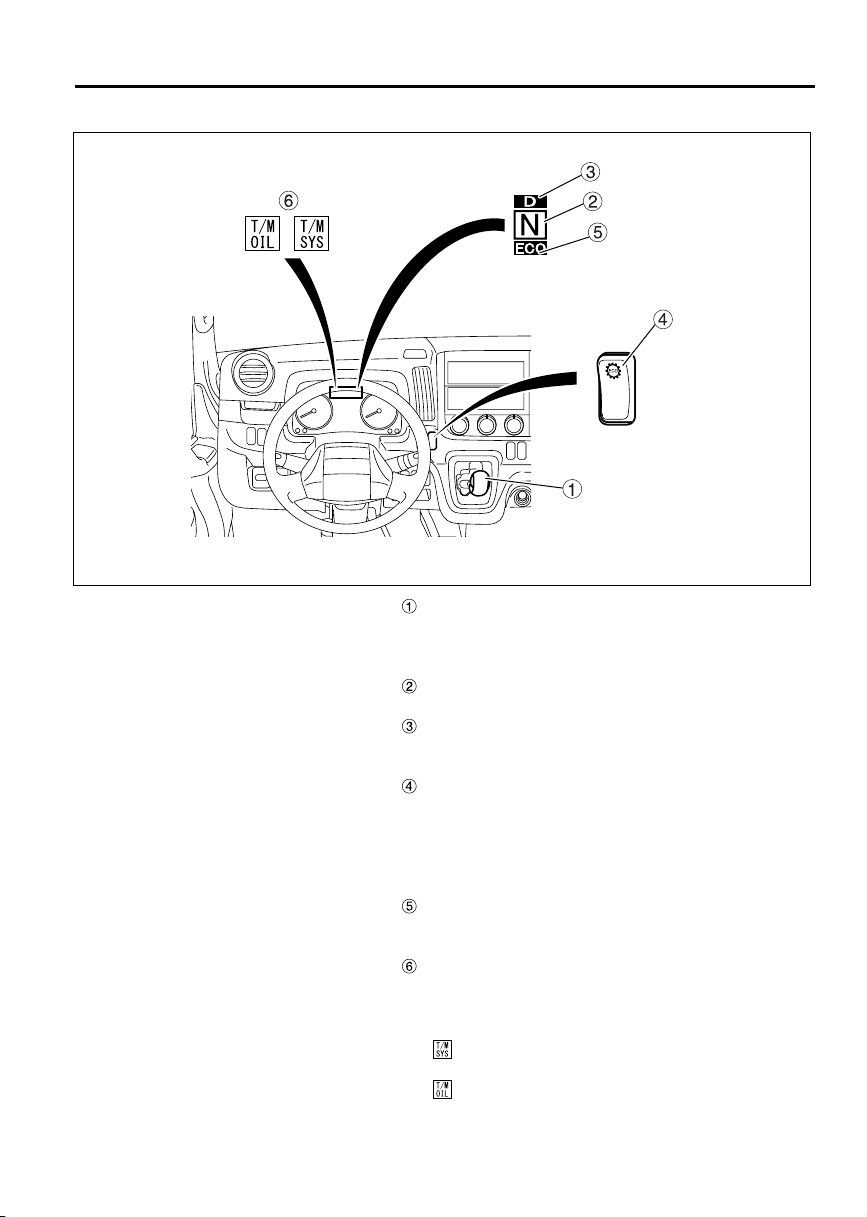

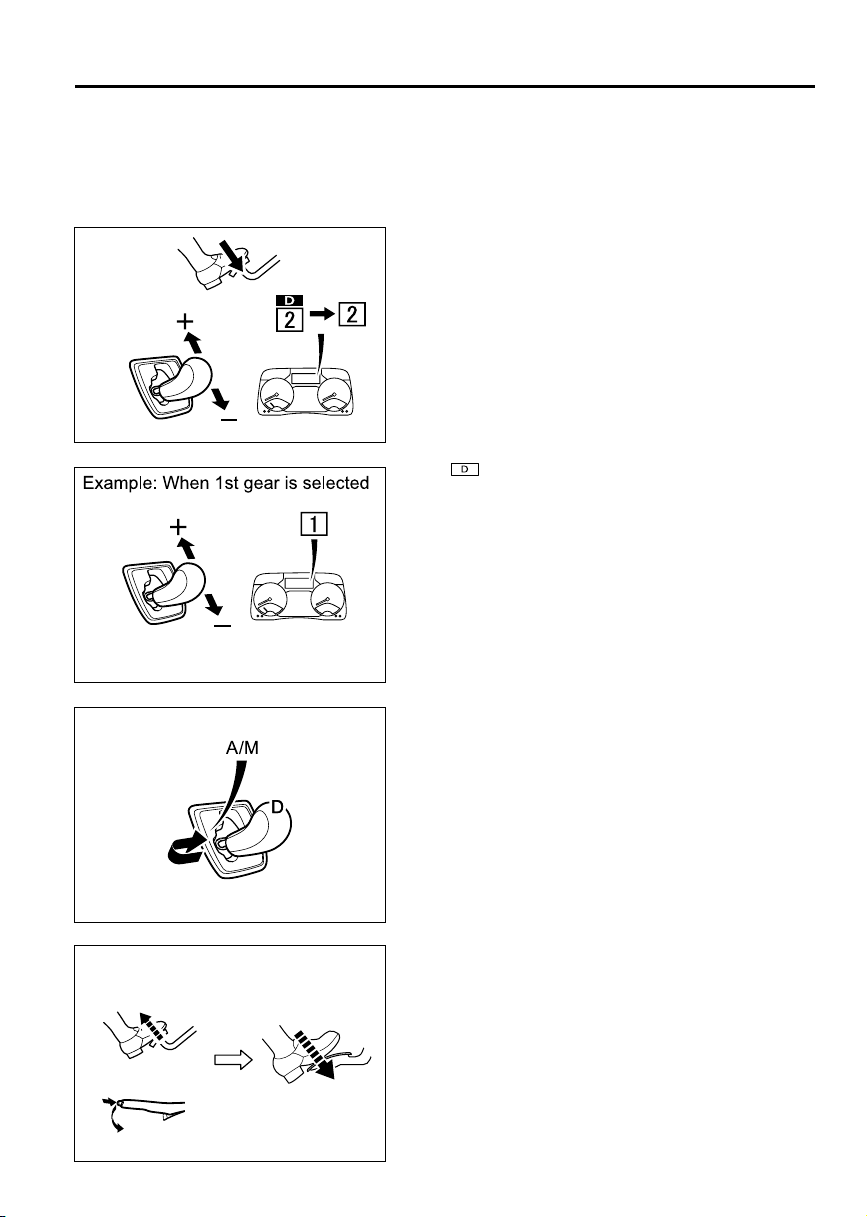

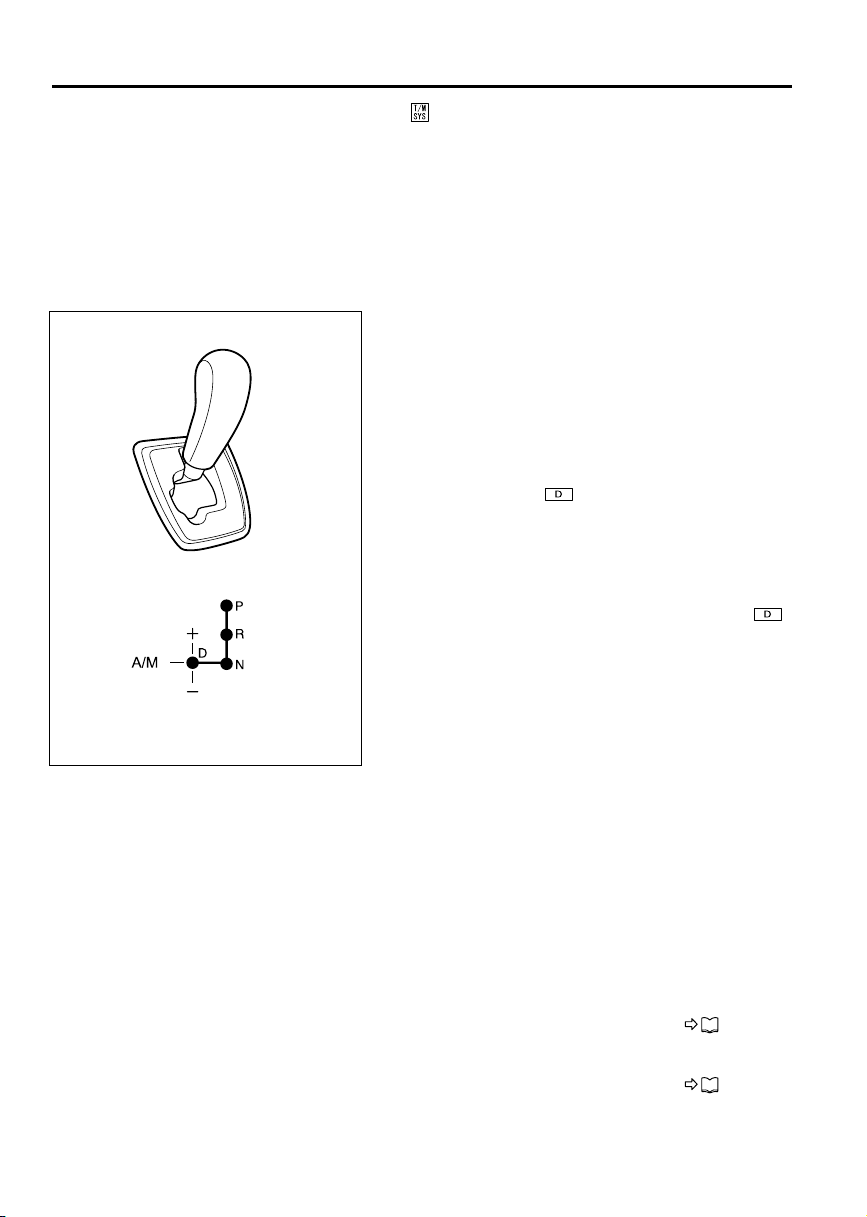

WARNING Handling of DUONIC
WARNING 4WD <FG> 8-1
CAUTION Towing precautions 13-32
Standard value Tire pressure 12-67
WARNING 113-liter fuel tank refilling precaution 1-5
WARNING
Precautions for vehicles with limited slip differential
<FE: option; FG: standard>
®
5-20
12-70
Exterior labels
1 On frame and exterior equipment
2-5
Z24666
Location Category Information Ref. page
DANGER High temperatures of exhaust system components 5-51
CAUTION Use of diesel fuel 1-5
WARNING Fuel to use 1-5
WARNING 113-liter fuel tank refilling precautions 1-5
CAUTION Prohibition against standing on DEF tank 1-8
CAUTION Use of DEF 1-8
CAUTION Oil to use for limited slip differential <option> 12-34
DANGER Precautions when handling the battery 12-83
WARNING Use of specified fuses 13-10
2-6 Warning labels
2 On cab outside and engine
Z21197
Location Category Information Ref. page
WARNING
WARNING Handling of pressure cap 12-57
CAUTION Inspection and replacement of engine oil 12-23
CAUTION Oil to use for clutch and transmission 12-28
Handling of cab tilt function (Vehicles other than
Crew-cab models)
12-6
3-1
3. Opening and closing

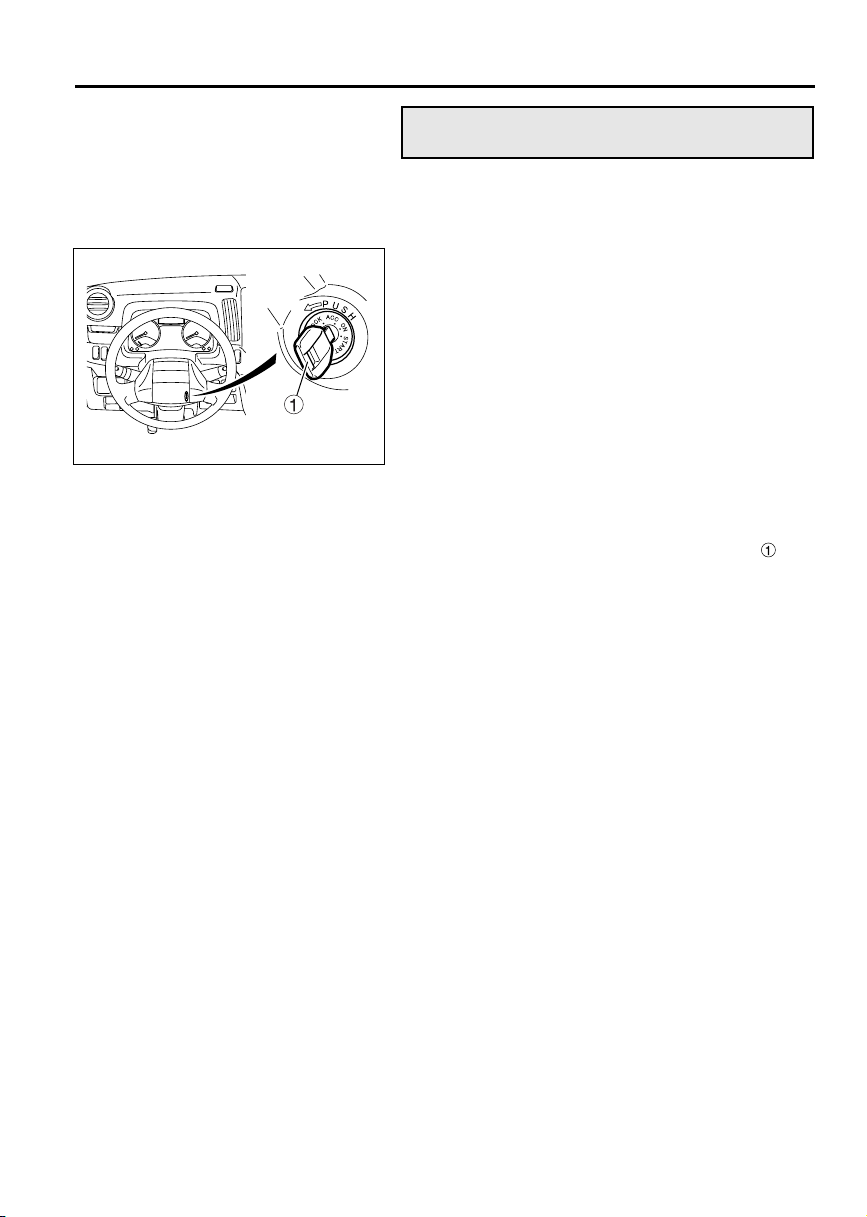

Starter key .......................................................................................................................... 3-2
Engine immobilizer (theft prevention device) ..................................................................... 3-3
Doors ................................................................................................................................. 3-6
Central door locks .............................................................................................................. 3-8
Keyless entry system ......................................................................................................... 3-9
Entering and leaving the vehicle ...................................................................................... 3-13

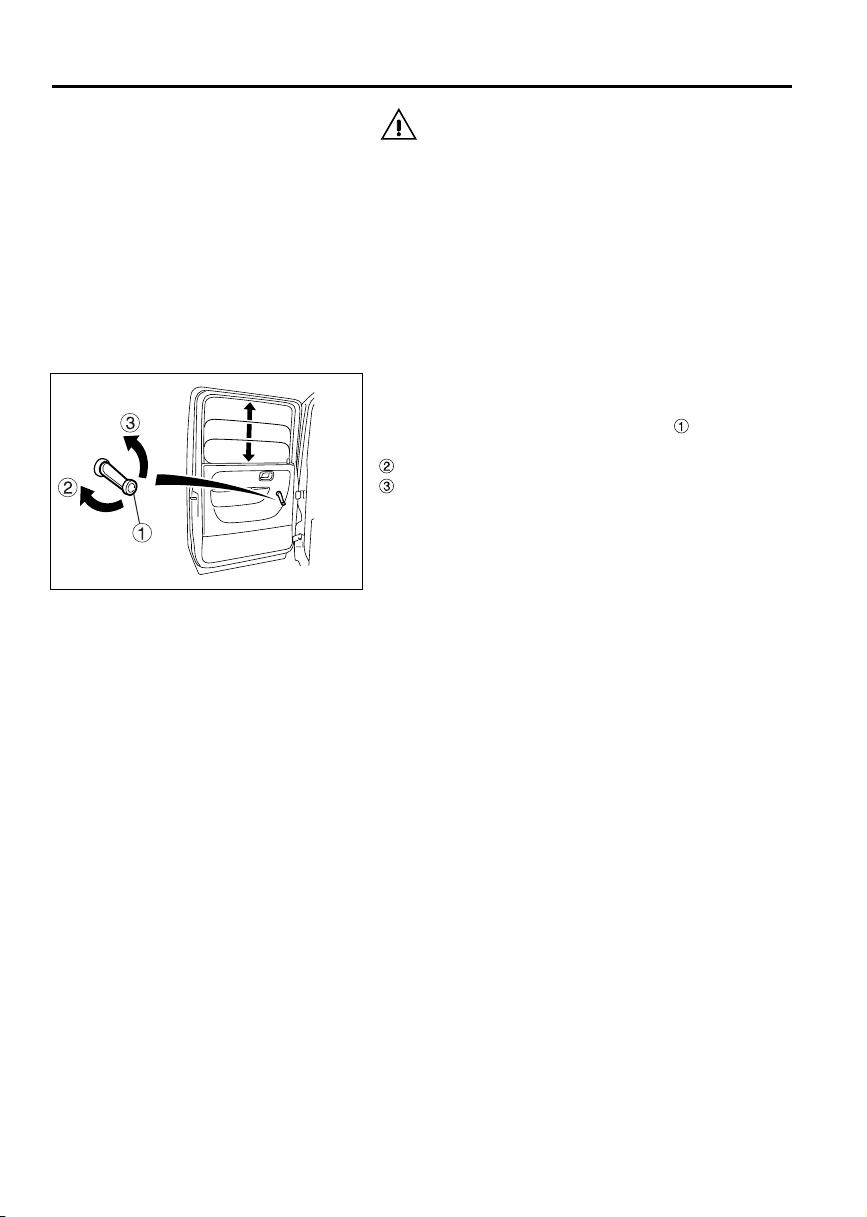

Door window glass ........................................................................................................... 3-15
Loading...
