Introduction

The Mitel Superconsole 2000 is an attendant console and PBX administration application for the SX-2000 telephone system. It features a specialized keypad and an intuitive user interface for smooth, efficient call handling.

A note about feature availability

The features available on your telephone system have been selected by your company and may not include all the features described in this guide.

Before you begin using the console

Take a few minutes to explore this guide — it contains all the information you need to operate the Superconsole 2000.

The first section introduces you to the console. You will learn about the console keypad and what the Function keys on the computer keyboard do. You will also learn about the console screen and how to interpret the information it displays.

If any problems occur while you are using the console, contact your communications department for assistance.

Are you an experienced Superset 700™ user?

The Superconsole 2000 will look familiar to users of the Superset 700 at tend ant co nsole. The cons oles also wo rk alike – enough that experienced Superset 700 users can probably begin handling calls with the Superconsole 2000 right away. Still, it may help to read the sect ion of pa ge 52, wh ich de scri bes th e differ ence s between the conso les.

Console Components

Your Superconsole 2000 Attendant Console consists of a personal computer (PC) with monitor, a standard computer keyboard, a keypad, a mouse and a handset with cradle.

The monitor displays call-handling prompts and call status information. Use the keypad for all call-handling functions, including dialing. The handset (or optional headset) is for talking with callers.

You use the computer keyboard to find entries in the Phone Book or to type in the Scratch Pad or Bulletin Board. The Function keys (F1, F2, F3, etc.) at the top of the keyboard execute the softkey commands that appear on the screen.

Conventions used in this guide

Throughout this guide, the fixed-function keys and firmkeys (both key types are explained later in this section) are in bold type—for example, Answer or Release.

Softkey commands that appear on your screen and correspond to the Function keys (F1, F2, F3, etc.) at the top of your keyboard are shown in brackets— for example, [Source] or [Destination]. See page 7 for more information about softkeys.

4 ▼ Getting Started

Console Screen

The Superconsole 2000 screen is divided into five areas:

Console Status Area

Application Area

• The Console Status area shows you at a glance what state the console and the system are in—for example whether the console ringer is on or off and whether the system is in Day or Night Service.

• The Application area is divided into four sections: The top left section displays information about calls on hold; the top right, a Phone Book for finding users on the system and other tools such as an electronic scratch pad for taking notes. The bottom two areas display information on the Source (calling party) and Destination (called party) of all calls handled by the console.

The information displayed includes the name of the party, extension or trunk number or trunk label, type of extension (e.g., Superset), status of call (e.g., ringing), privileges assigned to the trunk or extension, and the type of call (e.g., Conference, Recall, Serial).

Call Waiting Area

Softkey Area

Response Area

• The Call Wa it in g area displays an icon ( as a visual indication of incoming calls. The icon appears above the softkey that’s used to answer the call. You can tell how many calls are waiting by the color of the icon: yellow

(

) for one call; blue ( ) for two calls and

red (

• The Softkey areas at the bottom of the screen and above the Destination area display the Softkey commands. The commands correspond to the Function keys on the computer keyboard. See the next section for more information on the Soft keys.

• The Response area at the bottom of the screen displays the date and time, the number of calls waiting to be answered, and messages received from the system.

) for three or more calls.

Getting Started ▼ 5

)

Console Keypad

The console keypad is used for dialing, call processing and accessing PBX features. You can adjust the slope of the keypad and detach (or attach) it from the handset cradle.

The keys on the keypad are arranged in three groups:

Firmkeys

Volume and

Mute Keys

Callprocessing Keys

Volume and Mute Keys – used to increase (+) or decrease (-) the ringer volume and the volume of the earpiece in the handset or headset. The Mute key turns the microphone in the headset or handset on or off.

Call-processing Keys – fixed-function keys that are used to answer and manage calls. They include Retrieve, Hold, Answer Cancel, Recover and Release.

Firmkeys – programmable keys that provide access to the following console features and system services:

SCRATCH

PAD

Displays an electron ic notepad wher e you can type messages from calle rs, reminde rs, que stions, o r anything else yo u woul d wri te on note p aper. You can also use the S crat ch Pad to store tele phone numbers for speed d iali ng.

BULLETIN

BOARD

Displays an area where you can type messages that can be viewed from all other Supersconsole 2000s on the system.

GUEST

SERVICE

Displays room status information and softkeys for managing guest services in a Hotel/Motel installation.

PAGER

Accesses paging equipment for making announcements.

HELP

Opens Help, which provides information to help you accomplish your tasks.

OPERATOR

MODE

PHONE

BOOK

Re-displays the main console screen.

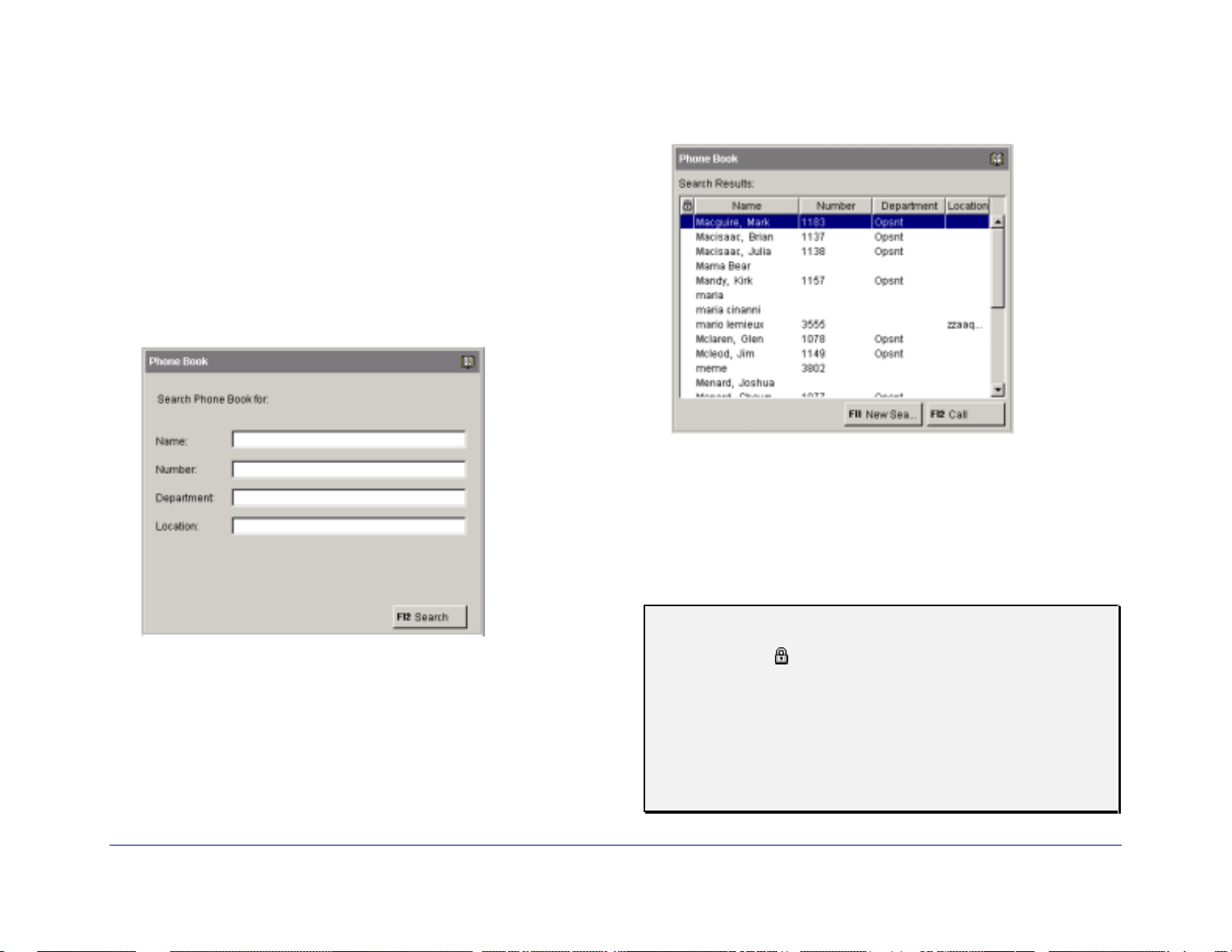

Allows you to find and call an extension by typing the user’s name, extension number or other information.

APPL

Starts another application that extends the capabilities of the Superconsole 2000. Your communications department selects the application.

TRUNK

STATUS

MESSAGE

Displays information about trunk (outside line) usage.

Displays softkeys for setting or clearing the Message Waiting indicator on the dialed

TONES

extension. Sends subsequently dialed digits as tones (used

when dialing into voicemail systems.)

VOICE

MAIL

Transfers a recall to an extension user’s voicemail box.

Note: Some of the features shown are optional and may not

appear on your console keypad. Other features can also be programmed to the keypad; see Firmkey Programming on page 33.

6 ▼ Getting Started

Softkeys (F1 – F12)

The softkeys are the F1 to F12 keys on your computer keyboard. You use them to enter commands shown in the softkey area on the screen. The commands are not fixed to a specific softkey; instead, they change depending on the state of the call you are handling or the feature you are using. For example, when you call a busy extension, the F4 key might be used to request a Callback. At another time, the same key, F4, could be used to set up a conference call.

Handset and Cradle

The Superconsole 2000 is equipped with a handset and cradle. You can adjust the slope of the cradle and detach (or attach) it from the console keypad.

Mitel-appr ov ed h ea ds ets a re also a v ail ab le fo r u se w ith t he co nso le. See page 9 for more information about using the handset or a

headset.

Getting Started ▼ 7

Starting and Closing the Superconsole 2000

The Superconsole 2000 starts with the operator status set to “Operator Absent.” To begin receiving calls, you must change the status to “Operator Present.” For more information, see page 35.

To start the Superconsole 2000 application

• Start Windows.

• Type your user name and password.

For turnkey consoles, the default user name and password are mitelconsole and mitel1 respectively. Type both in lowercase letters.

• Click

To close the Superconsole 2000 application

• On the File menu, click Exit.

on your Windows desktop.

Questions about Starting and Closing the Superconsole 2000 application

What happens to incoming calls when I clos e the Superconsole 2000 application?

If yours is the only console on the system, the system automatically switches to Night Service 1. Calls then ring night bells or another designated answering point. If there are other consoles, yours will switch to Operator Absent status when you close the application. Other answering points will receive the calls that would otherwise go to your console. For more information, see Day and Night Service on page 31 and Operator Status on page 35.

What happens to calls if my computer stops working?

Usually, a nearby extension will serve as a backup answering position in the event of a power failure or other problem that causes your computer to stop working. Calls that normally ring the console would then ring the backup extension.

Starting a CDE Session

Starting a CDE session provides access to the PBX for programming and maintenance purposes. Access requires authorization (i.e., a user name and password) and is usually restricted to trained technicians. A connection to your local area network is also required—see the Superconsole 2000 Help for more information.

To start a CDE Sessi on

• On the File menu, click Connect to CDE.

8 ▼ Getting Started

Can I use other applications while the Superconsole 2000 is running?

Yes, but keep in mind that having multiple applications open at the same time as the Superconsole 2000 can adversely affect its performance. If possible, try to limit your use of other applications to periods when call traffic is low.

My screen goes blank sometimes—why?

A power-saving feature built into the computer automatically reduces the screen intensity when there has been no keyboard or mouse activity for approximately two minutes. After approximately five m inute s, the sc ree n goes bl ank. Wh en you pr ess th e spacebar on the keyboard, the console screen will reappear.

Adjusting the Console

The console is designed with your comfort in mind. You can make adjustments to the ringer, the language of text on the screen, the angle of the keypad, whether you want to handle calls using a handset or headset and more.

Console Ringer

To turn the console ringer on or off

• Select Ringer On or Ringer Off from the list in the

Console Status area.

To detach the clamp from the keypad

• Grasp the keypad as shown.

• Place your thumbs along

the edge of the clamp, and then press down and away from the keypad.

When the ringer is off, the call waiting icon ( indication that you have calls waiting.

To adjust the ringer volume

• While the console is ringing, press the key on the console keypad to set the volume to the level you want.

You can also use the Options command on the Tools menu to adjust the ringer volume.

) is the only

Console Keypad and Handset Cradle

You can adjust the slope of the keypad and detach (or attach) it from the handset cradle.

To attach the handset cradle to the console keypad

• Align the tabs on the clamp with the slots on the bottom of the keypad.

• Press to seat the tabs in the slots.

To detach the clamp from the cradle

• Using your finger or a tool such as a screwdriver, push against either of the tabs as shown.

• While pushing on the tab, use the other hand to twist the U-clamp upward.

Getting Started ▼ 9

Handset/Headset

The console keypad provides jacks for connecting a handset and a headset. One jack is labeled for headset use only, the other for either handset or headset use. Both jacks can be in use at the same time but when they are, the dual-use jack is used for listening only. (Typically, a supervisor uses the dual-use jack to monitor a new attendant during training.)

Connect Mitel-app roved headsets on ly to the keypad. For a l ist of approved headsets , see t he Sup erconsol e 2000 Install ation G uide.

The dual-use jack pro vides diff erent audio leve ls for headsets an d handsets. Use the handset— is connected to the jack.

list to indicate which one—headset or

Console Language

Text on the console screen can appear in English (the default) or French.

To change the console language

1. Choose Options on the Tools menu.

2. Select Language.

3. Select the language you want.

4. Click Apply or OK.

The change takes effect when you restart the Superconsole 2000.

To set the dual-use jack for handset or headset operation

1. Plug the handset or headset into the dual-use jack ( back of the console keypad.

2. Select Handset or Headset from the Status area.

To adjust the handset (or headset ) volume during a call

• Press the key on the console keypad to set the volume to the level you want.

You can also use the Options command on the Tools menu to adjust the volume. After selecting the command (either during a call or while the console is idle) click Audio, and then drag the slider to set the volume to the level you want.

list in the Console

) on the

Unplugging the Handset or Headset

Unplugging the handset or headset from the console keypad automatically enables the other if it is plugged in. If neither is plugged in, the console changes to Operator Absent status. Or, if you are the last active attendant, the system goes into Night Service 1 mode.

Console Time

You can use either the PBX clock or the clock in your PC as the time source for the console. Using the PBX clock is recommended since it’s the time source for extensions in the system.

You should also use t he PB X clock if yo u set wake-up cal ls for g uest s. (Setting wake-up ca ll applies to hotel/m otel system s only.)

To set the console time

1. Choose Options on the Tools menu.

2. Select Time.

3. Select the option you want.

4. Click Apply or OK.

Note that plugging the handset/headset back in does not change the Operator status back to Present.

10 ▼ Getting Started

Call Handling

Basics

Call Handling Basics

Contents

Answering Calls.................................................................................................................14

Dialing Telephone Numbers ..............................................................................................16

Extending (Transferring) Calls...........................................................................................18

Holding and Retrieving Calls .............................................................................................20

Conference Calls ...............................................................................................................21

Answering Recalls ............................................................................................................. 22

Recovering the Last Released Call ..................................................................................... 22

Call Handling Basics ▼ 13

Answering Calls

When a new call a rrives at the cons ole th e bel l rin gs (if it is turn ed on) and a call waiting icon (

with the call.

) appears above the softkey associated

About the Call Answering Softkeys

The call answering softkeys are assigned by your communications department to suit the types of calls your company receives.

Call Waiting indicator

Total Calls Waiting

You can answer calls on a “first-come, first-served basis,” using the Answer key or use the softkeys for “selective answer.”

Note: You cannot answer a new call until the one you are

engaged in is transferred, disconnected, or put on hold.

Answering calls on a first-come, first-served basis,

With both the Source and Destination areas clear,

• Press Answer to greet the caller who was waiting the longest. Information

about the call, such as the trunk name and number for an external call or the caller’s name and extension number for an internal call, is displayed in the Source area.

Note: The Answer key has a hierarchy; recalls are answered first,

then any other call in order of arrival, regardless of whether it is an internal or external call. You can assign answering priorities to calls based on the telephone number that callers dial to reach the console. For more information, see page 27.

The leftmost softkey is reserved for recalls (see Answering Recalls on page 22), but the other softkeys may be programmed in a variety of ways. For example, you might have Dial “0” and “External” to indicate whether a call is from outside the system or inside; or WATS or TIE to tell you the type of trunk the call arrived on; or you might see the department name assigned to the trunk.

You can use the softkeys to guide you when answering a call. For instance, when you see that a call is from outside the system, your company might want you to answer with a different greeting than you use for internal calls or recalls. Use the form provided on page 49 to record your company’s preferred greetings.

Selectively answering calls

You can select the call you want to answer by pressing a softkey ([Recall], [Dial 0], [External], [WATS], etc. ) inst ead of th e Answer key. If you have more than one call waiting at a particular softkey, then they will be answered on a “first-come, first-serve d” basis.

Use the call waiting icons ( you decide which type of calls to answer first. The icon appears above the softkey associated with the various call types (external, recalls, etc.). The number below the icon shows you how many calls of a particular type are waiting. The color of the icon also indicates the number of calls waiting: yellow for one call, blue for two calls, and red for three or more calls.

) in the Call Waiting area to help

14 ▼ Call Handling Basics

In the example above, note that one internal [Dial 0] call is waiting and two external calls are waiting. If you:

Questions about Answering Calls

Why do I sometimes hear a short burst of ringing while I’m handling calls?

Either a new call has arrived or a call on hold has recalled. As you are already handling a call, the console only rings once. You may turn down your volume control if you wish. You can also turn off the bell completely by using the list in the Console Status area. (WARNING: This also turns off all other bell indications, including the Critical Alarm bell.)

• press Answer, you will be connected to whichever of the three calls arrived at the console first;

• press [Dial 0], you will answer the internal call; or

• press [External], you will answer the outside call which

arrived at the console first.

Your communications department can give you instructions on which types of calls it prefers you to answer first.

What does the caller hear while I’m dialing the extension number?

Once you start to dial, the caller is on Consultation Hold until you have completed dialing, established communication with the called party, and released the caller to the called party. If music on hold is provided on your system, the caller will hear music; otherwise silence.

Can I answer another call while still connected to the first?

No. Before you can answer a new call, you must transfer the current call to another destination (see page 18), put it on hold (see page 20), or disconnect it from the console by pressing Release.

Why do extension numbers appearing in the Source and Destination area sometimes have a ‘p’ n front of them?

When it appears next to an extension, it means that the extension is designated as private. Attendants see the number of the extension on their screens; other extension users see only the user’s name (if available) on their display.

In the Phone Book, the icon indicates a private extension.

Call Handling Basics ▼ 15

Dialing Telephone Numbers

You can dial an internal extension number or the number of a telephone outside the system. Either the Source or Destination areas must be clear.

To call an extension

1. Dial the extension number from the console keypad. Information about the extension appears in the Destination

area. If information about an answered call is currently in the Destination area, that information moves to the Source area as soon as you start dialing.

2. Press Release to release the call. If the extension is busy, the transferred

call will automatically camp on to the line to wait until it becomes free. You can also handle the call in one of the following ways:

To call an outside number

1. Dial the External Line Access Code ( ______ )

2. Dial the telephone number. Information about the outside call appears in the

Destination area.

Leaving a Callback

You can request a Callback after reaching a busy line (extension or trunk). The system monitors the line and rings the console when the line becomes free. Note that Callbacks on outside lines are used when all system trunks are busy, not when the called party is busy.

To leave a Callback after reaching a busy line

• Press [Callback].

If the extension is busy

• Press [Source] and ask what the Source party would like to do. This leaves

the Destination information displayed so that you can easily take a message and set Message Waiting on the destination extension, if required. (See Message Waiting on page 34.)

• Press Cancel to cancel the call. The caller remains in the Source area, but

the information in the Destination area is lost, which makes setting Message Waiting more difficult.

• Press [Override] to intrude into the Destination party’s call if permitted by

your and the extension’s Class of Service (see Override on page 35).

16 ▼ Call Handling Basics

Placing an outside call for an extension

Extension users can usually place their own calls. However, they could ask you to place a call for them. Before dialing, you may want to note the exte nsio n’s COR number (see Class of Restriction on page 58). Chec k with y our comm uni catio ns dep artm ent fo r spec ifi c instructio ns on ho w to h a n dle s uch req ues ts .

To place an outside call for an extension

1. Answer the call from the extension.

2. Dial the External Line Access Code ( ______ )

3. Dial the telephone number.

4. Press Release to release the call from the console and connect the extension

to the outside line.

* Use this space to record the digits you dial to access

an outside line.

Options

Questions about Dialing Telephone Numbers

Other ways of dialing

You can use the following alternate ways of dialing a telephone number:

Last Number Redial – instead of redialing the number of the last outside call you placed, let the system do it for you by dialing the

Last Number Redial code ( ______ ). System Speed Call – allows you to dial a telephone number by

entering a short access code. See System Speed Call on page 40. Dial from Phone Book – useful when you don’t know the full

name of the person you are asked to find or you only know the person’s location or department. See Phone Book on page 37.

Dial from th e Sc r atch P ad – allows you to dial a telep hone number you typed on an elect ronic notepad. S ee Scr atch Pa d on pa ge 3 8.

* Use this space to record the code you dial to use the Last Number

Redial feature.

Can I access a specific trunk?

Yes, you can select a specific trunk to dial out on.

• Dial the Individual Trunk Access Code ( ______ ).*

• Dial the three-digit trunk number.

• When you hear dial tone, continue dialing the

telephone number.

If you hear busy tone, the trunk is in use. You can,

• press [Override] to interrupt the call in an emergency Or

• press Release or Cancel to release the conso le from the trunk.

What do I do if I make a mistake while dialing?

If you notice the mistake before you complete dialing, press Cancel, and then re-enter the number.

If you realize you transferred a call to the wrong extension, press Recover to cancel the transfer and reconnect the caller. You can only recover a call while it is still ringing at the extension to which it was originally transferred.

* Use this space to record the digits you dial to access a specific

trunk.

Call Handling Basics ▼ 17

Extending (Transferring) Calls

You can transfer a call to an extension or an outside number.

To transfer a call

1. Dial the destination number. The caller is automatically placed on Consultation Hold while

you complete the transfer.

2. Press Release to connect the caller to the ringing phone. If the called party fails to answer within a time-out period,

the transferred call (if it is an outside line) returns to the console as a Recall.

Reaching a Busy Number or an Extension with Do Not Disturb Activated

If the dialed number is busy or the extension has Do Not Disturb activated, do one of the following:

• Press [Source] to talk with the caller in Source without losing the Destination

information. Tell the caller the requested number is busy and ask if the caller wants to try again later or leave a voice mail message for the busy party (see Options on the right). You can also take a message and send the busy party a message waiting indication (see Message Waiting on page 34).

• Press Cancel and then dial a different number

• Press [Override]

to intrude into the extension user’s call (if permitted by your and the extension’s Class of Service. See Override on page 35.)

• Press Release to camp the caller on to the busy extension. (Camp-on is not

allowed if the extension has Do Not Disturb activated.) The extension user hears two beeps to indicate a call is waiting. When the user hangs up, the extension rings and the waiting call is automatically connected.

Notes: If there is no answer after a time-out period, the

transferred call (if it is an outside line) returns to the console as a Recall.

Options

Introducing the caller before completing the transfer

After your call is answered and you’ve had the chance to speak with the person privately,

1. Press Release to complete the transfer. Or

2. Press [Source] to speak privately to the party in Source; the party in

Destination is on Consultation Hold. To speak privately to the party in Destination again, press [Destination].

if you think you can locate the requested party elsewhere. Or

• Press [Source], and then [Redial Dest] to redial the same destination number Or

18 ▼ Call Handling Basics

Transferring a call to a voicemail box

The Voicemail key on the console keypad allows you to transfer calls directly to an extension user’s mailbox. You can use the key for transferring recalls only—that is, calls returned to the console because the extension went unanswered.

Note: This feature requires an access code, which must be

entered into the console using the Options command on the Tools menu. For more information, see page 33.

Transferring a call to an outside number

You can request a meter pulse count for the call from the telephone company operator. Upon completion of the call, the console will ring. When you answer, the meter pulse count will display on the console screen. Ask your communications department for further information about this feature.

Questions about Transferring Calls

What do I do if the destination to which I am transferring a call is not answering?

• Press [Source] to reconnect the Source call and retain the Destination information. This gives you more options to handle the call because softkeys, such as [Redial Dest], remain on screen.

• Dial a different number if you think you can locate the requested party elsewhere.

• Press Cancel to reconnect to the Source call but clear the Destination information.

Do I need to press Release when answering several calls in a row?

No. If you use the Answer key to answer calls, pressing the key will transfer the current call to the dialed destination and connect you to the next call waiting. This only works if you have calls in both the Source and Destination areas.

What should I do if a caller wants to speak to one person, and then another?

If an outside party wants to speak with several people in a row, use the Serial Call feature (see page 38). When the outside party completes the first call, you receive a Recall and can then dial the next person’s number.

Can I transfer a call to another console?

Yes, by dialing the extension number of the other console. You can transfer calls to other consoles but you cannot put another attendant on hold.

Call Handling Basics ▼ 19

Holding and Retrieving Calls

You can place up to six callers on hold while you check for information or page the person that the caller is requesting.

Options

To connect a call on hold to the Source or Destination party

To place a call on hold

• Press Hold. Information about the call appears in the Calls On Hold area.

To retrieve a call on hold

You can retrieve a call on hold only when the Source and/or Destination area on the screen is clear.

• Press Retrieve, and then dial the position number of the call (1-6) you want to retrieve.

• Press Retrieve and then the star key ( retrieve the longest-held call.

) on the keypad to

1. Press Retrieve.

2. Dial the position number of the call (1-6) you want to retrieve.

3. Press [Source] or [Destination] if you want to speak privately to either party.

4. Press Release to connect the parties and release the console from the call.

To connect two calls on hold

Be sure the Source and Destination areas are both clear.

1. Press Retrieve, and then dial the position number of the first call on hold.

Information about the call appears in the Source area.

2. Press Retrieve and dial the position number of the second call on hold.

Information about the second call appears in the Destination area.

3. Press Release to connect the parties and release the console from the call.

Questions about Hold and Retrieve

Hold Recall

If a call is left on hold longer than the time-out period, it recalls the console. The console beeps (or rings if you are not engaged in

a call) and a Call Waiting icon ( area next to the call that is recalling. Answer the recall using the procedure for retrieving a call on hold.

) appears in the Calls On Hold

20 ▼ Call Handling Basics

Can I place a conference on hold?

Yes. If you can’t find a person needed for the conference, you can place the conference on hold until you locate the person. For more information, see page 21.

What does in the Calls On Hold area signify?

It signifies that the call was the last one placed on Hold.

Conference Calls

Up to eight parties (including yourself) may be connected to form a conference call.

To set up a conference call

• With the two parties connected to the console—one in the

Source area and the other in the Destination area—press

[Conference].

To split a conference to speak privately to either call er

• Press either [Source] or [Destination].

To add more parties to a conference

1. Dial the number of the next party. The word “Conference” and a Conference number now appear

in the Source area, and the number of the dialed party appears in the Destination area.

2. Press [Conference]. The new party is a dded to t he confe rence. The par ties a lread y in

the conference hear a brief tone each time a party is added.

If the line is busy or unanswered or the person is unavailable,

Options

Placing a Conference on Hold

If you can’t find someone needed for the conference, yo u can place the conference on ho ld un til yo u are able to locat e the p erso n.

To place a conference on hold

• Press Hold. The conference is on hold. The parties in the conference can

speak to each other—only you are removed from the call. Check on the conference periodically, because the parties in

the conference cannot get in touch with you.

To retrieve a held conference

You can retrieve a conference only when the Source and/or Destination area on your screen is clear.

1. Press Retrieve.

2. Dial the hold number of the held conference.

• Press Cancel. to reconnect to the conference. You may continue dialing to

add more parties to the conference.

To release the console from the conference

• Press Release.

Once you release the conference, you cannot re-enter it.

Call Handling Basics ▼ 21

Answering Recalls

If an external call transferred from the console to an extension is not answered with a certain time, the call returns to the console

as a recall. The call waiting icon ( softkey. Because Recalls are given priority, they will be answered first when you press Answer. You can also use the [Recall] softkey to answer recalls.

To answer a Recall

The Source and Destination areas must both be clear.

1. Press [Recall]. Or

2. Press Answer. You are now connected and may ask if the caller wants to

continue waiting or wants you to ring another extension.

3. Depending on what the caller wants, you have several options at this point:

• Press [Redial Dest] if the caller wants to continue

waiting.

• Dial another extension.

• Press Release to disconnect the call.

) appears above the [Recall]

Recovering the Last Released Call

Use the Recover key on the console keypad to retrieve a call that you transferred to the wrong extension. To successfully recover the call, you must press Recover while the extension is still ringing. Also, you cannot have started another action, such as dialing or answering a call, following the transfer.

To retrieve the last call transferred from the console

• Press Recover.

Note: This feature requires an access code, which must be

entered into the console using the Options command on the Tools menu. For more information, see page 33.

• Press Voicemail to transfer the caller to the extension’s

voicemail box.

Note: Serial calls will also recall the console. See Serial Call on

page 38.

22 ▼ Call Handling Basics

Advanced

Features

Advanced Features

Contents

Account Codes .................................................................................................................. 26

Bulletin Board...................................................................................................................26

Call Answer Priority...........................................................................................................27

Call Park ........................................................................................................................... 28

Call Waiting Threshold......................................................................................................29

Cancel Call Forwarding .....................................................................................................29

Clear All Features..............................................................................................................29

Data Calls .........................................................................................................................30

Day and Night Service .......................................................................................................31

Do Not Disturb (Extensions)..............................................................................................32

Feature Access Codes (Programming)................................................................................ 33

Firmkey Programming....................................................................................................... 33

Message Waiting................................................................................................................ 34

Override ............................................................................................................................35

Operator Absent/Present Status .......................................................................................36

Paging ............................................................................................................................... 36

Phone Book.......................................................................................................................37

Scratch Pad.......................................................................................................................38

Serial Call .........................................................................................................................38

Status Display (Traffic Monitoring) .................................................................................... 39

System Speed Call............................................................................................................. 40

Tone Signaling................................................................................................................... 40

Advanced Features ▼ 25

Account Codes

An Account Code is a type of password for the system. You may need to enter an account code to access certain features or to record a call on the SMDR log for billing or accounting purposes.

To enter an Account Code

1. Dial the Verified or Non-Verified Account Access Code. A Verified code provides access to features; a Non-Verified

Code records calls on the SMDR log.

2. Dial the Account Code, ending in #. If you make a mistake, press Cancel and try again.

3. Continue dialing.

For more information about Account Codes, contact your communications department.

Bulletin Board

The Bulletin Board is shared by all Superconsole 2000s on the system that have a network connection. Use it to post information that you want other attendants to see and to store speed dial numbers that all attendants can access.

To post information on the Bulletin Board

1. Press Bulletin Board.

2. Press [Edit]. Only one person at a time can edit the Bulletin Board; if

someone else is editing it, the Bulletin Board background will remain gray after you press [Edit].

3. Type the information you want to post.

4. Press [Save]. To view the most recent changes to the Bulletin Board, press

[Refresh].

To dial a telephone number posted on the Bulletin Board

1. Select the telephone number using the mouse or the computer keyboard.

2. Press [Call] or double-click the selected number.

Note: Information posted on the Bulletin Board is stored in a file

on your network. The actual location of the file is determined during installation of the console. If the file is moved, enter the new location, using the Options command on the Tools menu.

26 ▼ Advanced Features

Call Answering Priority

The console is usually set up to answer incoming calls on a ‘first- come, first-served’ basis. When you pres s the Answer key with multiple calls waiting, the call that has been waiting longest will be answered first. Alternatively, you can assign priorities to calls based on their dest inat ion. For ex amp le, yo u mig ht give high er pri or ity to calls to your company’s main listed directory number (LDN) than to “Dial 0” calls (i.e., internal calls to the console). Your communications department will tell you which type of call it prefers you to answer first.

Note: The Answer key has a hierarchy when the console is set up

to answer calls on a first-come, first-served basis: recalls are answered first, followed by other calls in order of arrival. If more than one call is waiting at a particular softkey, they will be answered on a “first-come, first-served” basis.

To specify which calls are answered first

1. Choose Options on the Tools menu.

2. Click Answer Priority.

3. Do one of the following:

• To answer calls on a first-come, first-served basis, select

First-Come, First-Served.

• To prioritize calls by line, select Assigned line priorities

and then enter a number from 1 to 7 for each line. The lower the number the higher the priority.

4. Click Apply or OK.

Advanced Features ▼ 27

Call Park

Provided the appropriate access code is programmed into the system, this feature allows an extension user to retrieve a call that you put on hold, by dialing the Call Park - Remote Retrieve access code, followed by the console identity number and the hold position number displayed on your screen.

When the called party retrieves the call, the call is removed from the hold position on your screen.

Up to six calls can be parked at the console at any one time.

Questions about Call Park

To park a call for retrieval by an extension user

1. Put a call on hold (see Holding and Retrieving Calls on page 20).

The screen displays the call in the first available Hold position—for example,

2. Page the requested party, informing him or her of the hold position number.

In the example above, assuming that the caller on Trunk 25 (hold position 2) wants to talk to Mr. Smith, and that the Call Park - Remote Retrieve Code is 69, you could page Mr. Smith in the following manner: “Mr. Smith, please dial 69 152.”

What happens if the called party does not retrieve the call?

After a predetermined period of time, the call will automatically recall your console.

What happens if I change the status of the console to “Operator Absent” while I have parked calls?

The parked call will remain in the attendant hold position for the same predetermined period of time. This allows system users to retrieve calls parked at a console whose attendant just left. After the predetermined period of time, all parked calls (external and internal) are automatically routed to a programmed answering point.

The called party can then retrieve the call by dialing the Call Park - Remote Retrieve access code (69 in the example), followed by the two-digit console identity number (15 in the example), and the hold position number (2 in the example).

28 ▼ Advanced Features

Call Waiting Threshold

To reduce call-waiting times, your system may be programmed to present incoming calls to other consoles or answering positions. If your system is programmed this way, you can specify the number of calls that must be waiting before the system presents them to your console.

Clear All Features

From your console you can disable features activated on any extension in the system.

These are the features you can clear:

• All Call Forwarding

To set the call waiting threshold

1. Choose Options on the Tools menu.

2. Click Miscellaneous.

3. Enter a number in the Call Waiting Threshold box.

Cancel Call Forwarding

Call Forwarding lets an extension user route some or all calls to other extensions. You can cancel Call Forwarding on behalf of individual extension users, or for all extensions in the system.

To cancel all types of Call Forwarding for a single extension

1. Select Cancel All CFWD on the Program menu.

2. Enter the extension number using the computer keyboard.

3. Click Yes.

To cancel Call Forward - Follow Me for a single extension

You can cancel Call Forward - Follow Me on an extension and leave the other types of Call Forward (Busy and No Answer) alone.

1. Select Cancel Station CFFM on the Program menu.

2. Enter the extension number using the computer keyboard.

3. Click Yes.

• Do Not Disturb

• Callbacks to other users

• Advisory Messages on SUPERSET telephones

• Auto-answer on SUPERSET telephones

• Timed Reminder on SUPERSET telephones

To cancel all features on an extension

1. Select Cancel Station Features on the Program menu.

2. Enter the extension number using the computer keyboard.

3. Click Yes.

Questions about Clear All Features

Will using Clear All Features on an extension have any effect on Messages or Callbacks set on that extension by other users?

No, it only affects features activated by the extension user. Any Message notifications or Callbacks set on the extension by others will still be in place. Similarly, Clear All Features will have no effect on the station user’s Account Codes or Class of Service.

To cancel all Call Forwarding for all extension users

1. Select Cancel All CFWD on the Program menu.

2. Click Yes.

3. Click Yes again to confirm the cancellation.

Advanced Features ▼ 29

Data Calls

You may be asked to connect an outside caller to a data connection for data communications.

To connect a caller to a modem

1. Advise caller to switch local modem to “Data” when they hear the high-pitched modem tone.

2. Dial the modem number. ‘Modem Call’ appears in status area.

3. Dial the destination data terminal number. ‘Ringing’, and then ‘Connected’ appear in the Destination area

to confirm that you are connected.

4. Listen for the high-pitched modem tone.

5. Press Release to connect the caller to the modem.

If the number is busy or there is no answer, press Cancel to return to the caller in the Source area.

To set up a local Associated Data Linecall

1. Dial the Associated Data Line code.

To set up an Associated Data Line Call to a remote facility

1. Dial the Data Access Code. If you hear silence, continue.

2. Dial the modem hunt group number. ‘Modem Call’ appears in status area.

3. Dial the remote data facility number. ‘Seized’, and then ‘Connected’ appear in Destination.

4. Listen for Connect Tone.

5. Press Release.

Note: For faster dialing using Phone Book, ask your

communications department to add frequently dialed data numbers to the system directory

If you hear silence, continue. If you hear busy tone, the Associated Data Line is in use, or

is not ready.

2. Dial the destination data terminal number. ‘Ringing’, then ‘Connected’ appear in Destination. Listen for

Connect Tone.

3. Press Release. Your data line is connected.

30 ▼ Advanced Features

Day and Night Service

Office telephone systems are typically placed in Night Service after regular hours, or whenever the last available console is left unattended.

Calls then ring alternate answering points—either designated extensions, or a night bell.

Extension users can dial the Trunk Answer From Any Station (TAFAS) Code to answer incoming calls ringing the night bell.

If the last available attendant console has not processed a call after a programmable time-out period, the system is automatically placed in Night Service 1.

To change the service mode

• Select the appropriate mode from the list in the

Console Status area.

Note: Contact your communications department for information

about where the answer points are and when you should select the different services.

Questions about Day and Night Service

What services are affected by Day or Night Service?

The change from Day to Night service may effect some users depending on their COS and COR. For example, a user might have a COR that allows external calls when the system is in Day service but not when in it is in Night service.

Advanced Features ▼ 31

Do Not Disturb (Extensions)

Extension users usually set and cancel Do Not Disturb (DND) on their own phones but you may be asked to do it for them. When set, DND prevents calls from ringing the extension.

To set up Do Not Disturb on behalf of an extension user

1. Select Set Station DND on the Program menu.

2. Enter the extension number using the computer keyboard.

3. Click Yes.

To cancel Do Not Disturb on behalf of an extension user

1. Select Cancel Station DND on the Program menu.

2. Enter the extension number using the computer keyboard.

3. Click Yes.

To cancel Do Not Disturb for all extensions

1. Select Cancel All DND on the Program menu.

2. Click Yes.

3. Click Yes again to confirm the cancellation.

Questions about Do Not Disturb

Why would an extension user want to use Do Not Disturb?

Do Not Disturb prevents most calls from ringing the extension. Only recalls, overrides, and special trunks dialing in directly to the extension will ring it. If extension users want protection from tone intrusion (for instance, during a data call) they should use Call Privacy instead.

What kind of tones does another extension user or attendant get when calling an extension that has Do Not Disturb set?

They hear slow busy signal. Anyone who is permitted to override the other extension may then do so.

32 ▼ Advanced Features

Feature Access Codes

To use the Recover and Voicemail keys on the console keypad, your console must be programmed with the correct access codes.

To program the Recover and Voicemail access codes

1. Choose Options on the Tools menu.

2. Click Miscellaneous.

3. Type the access codes in the appropriate boxes.

4. Click Apply or OK.

Firmkey Programming

You can reprogram the top two rows of keys on the console keypad with other features or remove a feature from a key if the feature is unavailable.

To program features to keys

1. Choose Options on the Tools menu.

2. Click Keypad.

3. Using the right mouse button, click on the key that you want to program.

A list of features appears.

4. Select the feature you want to assign to the key.

5. Repeat sets 3 and 4 to program other keys.

6. Click Apply or OK.

To restore the original key programming

• Click Restore Defaults.

Advanced Features ▼ 33

Message Waiting

You can set (activate) a message waiting indicator on an extension, to notify the user that you have a message for him or her. You can also check whether an extension has a message waiting and clear the message waiting indication.

To check whether an extension has a message waiting

1. Press Message.

2. Press [Check MSG Waiting].

3. Dial extension number.

If a dialed extension is busy, unanswered or has activated Do Not Disturb

1. Press [Source] and take the message.

2. Press Message.

3. Press [Set MSG Waiting].

4. You can then,

• press Cancel to return to the call in Source (if necessary), and then

• press Release to release the call in Source.

To set message waiting if you are not currently connected or trying to connect with an extension

1. Press Message.

2. Press [Set MSG Waiting].

3. Dial extension number.

To cancel a Message Waiting indication

You can cancel a message waiting indication whether you are connected to the extension or not.

1. Press Message.

2. Press [Clear MSG Waiting].

The words ‘MSG Waiting ON’ appear in the Destination area if the extension has a message waiting.

Questions About Message Waiting

How do extension users know there is a message waiting for them?

The indication depends on the type of telephone being used. A SUPERSET 3™ SUPERSET 3DN™ telephone or standard telephone user hears Message Waiting Tone upon lifting the handset. (If the user’s phone has a message lamp, the light flashes). Users with a SUPERSET 4, SUPERSET 4DN™ or SUPERSET 4000-series telephone receive a Message Waiting indication on the set’s liquid crystal display.

When should I cancel Message Waiting notifications?

You can do it whenever it is convenient for you; however, it saves time and effort to do so at the same time as you deliver the message to the extension user.

While you are delivering the message to the extension,

1. Press Message.

2. Press [Clear MSG Waiting].

3. Press Release when you finish the call.

3. Dial the extension number (if not connected to the extension).

34 ▼ Advanced Features

Operator Absent/Present Status

You can change the Operator status to Absent when you plan to be away from your desk and do not want calls sent to your console. All new and waiting calls will ring another destination determined by system programming.

Override

You can interrupt a busy extension or intrude on a busy outside line.

To intrude on a busy extension

To change the Operator Present/Absent status

• Select the state you want from the

Status area.

If you are the only Attendant on the system and you attempt to change the console status to Absent, a warning message will appear on your screen: ‘Absent Feature Disallowed for Last Attendant. Select Night Service.’ For more information about Night Service, see page 31.

Note: Unplugging the handset or headset will automatically

change the Attendant Status to Absent. See Unplugging Handset or Headset on page 10 for more information.

list in the Console

Questions about Operator Absent/Present Status

What happens to my calls when I activate Operator Absent?

All new and waiting calls to your console are automatically rerouted to programmed destinations. Calls that you may have put on hold will time-out and either be given reorder tone or redirected to the programmed destination. However, you can still originate calls.

Note: If a console has not processed a call after a program-

mable time-out period, the console status automatically changes to Operator Absent.

1. Press [Override]. All parties in the conversation hear Override Tone (a brief

tone every six seconds) for as long as you are connected to the call.

Everything you say is overheard by all connected parties. The message ‘Feature not allowed’ appears if your Class of

Service does not allow you to override the extension.

2. After the override, you may,

• press Release to disconnect the console from the call. Or

• press Cancel to reconnect to the call in Source and

disconnect from the call in Destination.

To intrude on a busy trunk (outside line)

1. Dial Individual Trunk Access Code.

2. Dial trunk number. For a list of trunk numbers, use the Trunk Group Status

Display feature described on page 39.

3. Press [Override]. The callers hear Override Tone as long as you are connected

to the call. When they hang up, the line is available for your use.

Advanced Features ▼ 35

Paging

If your system has paging equipment, you can use it to make announcements to one or more areas or “zones.”

Use the Paging Zones table in the Reference section to record the location of the paging zones.

To make a page

The Source and Destination areas of your screen must be clear.

1. Press Pager. If you have only one paging zone, you will be immediately

connected to the pager.

2. Make your announcement.

If you have more than one paging zone

• After pressing Pager, dial the 2-digit Paging Zone Code—(01-

15) or 00 for all zones. Listen for a long beep. Once you are connected to the paging

circuit, one of these messages appears on your screen: ‘Page Zone Busy’ — someone else is accessing the paging

equipment. Try again later, or press [Override] (if this is allowed in either your or the paging unit’s Class of Service) to interrupt the page in progress.

To end a page

• Press Cancel or Release. You are disconnected from the paging equipment.

‘Page Zone Unassigned’ — you do not have access to that paging zone.

‘Connected to Pager’ — you are connected and can make your announcement.

36 ▼ Advanced Features

Phone Book

Use the Phone Book to search your system’s telephone directory for people and extensions. You can search by entering a person’s name, an extension number, a department, or a location. Searching by department is useful when a caller requests to speak to “someone in Sales” rather than a specific person. A location could be a conference room, the lobby of your building, or other place that has a phone. You can also make a call from the Phone Book.

To access your system directory

You can access the directory at any time.

1. Press Phone Book.

3. Press [Search]. Entries that match what you typed appear in the

Phone Book area.

4. Use the mouse or the arrow keys or the PageUp/PageDown keys on the keyboard to scroll through the list until you find the desired entry.

5. Press [Call] to call the selected entry. You can also doubleclick the entry to call it.

2. Type the p erson’s name or other information in the appropriate boxes. (Use the mouse or the Tab key to move between boxes.)

Press Backspace to erase incorrect keystrokes.

6. To begin a new search, press [New Search].

Questions about Phone Book

What does the icon mean?

In the Source and Destinati on areas, a private extension appears with a ‘p’ before the extension number—for example, p2030.

Advanced Features ▼ 37

Scratch Pad

The Scratch Pad is your own personal phone directory and Speed Dial list. Use it to save telephone numbers for faster dialing or to store the names and numbers of callers for future reference.

To enter information into the Scratch Pad

You can use the Scratch Pad while connected to a caller.

1. Press Scratch Pad.

2. Type a name, a telephone or extension number, and any other information you want to save.

Include the Outside Line Access Code for external phone numbers and omit spaces between digits.

3. Press [Save] to save the information.

To delete information in the Scratch Pad

• Select the information using the mouse or the arrow keys, and then press Delete.

To dial a telephone number in the Scratch Pad

• Select the number you want to dial, and then press [Call].

Serial Call

If a caller wants to talk to several people in a row, use the Serial Call feature. When the first call ends, the caller returns to the console instead of being disconnected. You can then dial the next call. The serial call keeps returning to the console until all the intended calls have been made.

To set up a serial call for a caller in the Source or Destination area:

1. Tell the caller to remain on the line after completing each call.

2. Press [Set Serial Call].

3. Dial an extension number.

4. Press Release. The console is released from the call. When the extension you

dialed hangs up, the Serial Call returns to the console as a Recall (see Recall on page 22).

To cancel a Serial Call

• When the caller has finished the series of calls, press

[Cancel Serial]. If the serial call recalls and no one is there, it means the

caller has hung up.

38 ▼ Advanced Features

Trunk Group Status Display

Trunk Group Status Display is an optional feature that lets you monitor traffic on the system. During peak traffic periods, some users could experience problems making external calls and may contact you to find out why. The Trunk Group Status Display feature enables you to confirm excessive traffic as the most likely cause. You can then tell users that the situation is temporary and suggest that they try making their calls later.

You can display traffic information by specifying trunk group numbers or the digits dialed to access them—for example, the digit 9.

The use of this feature does not disrupt call processing.

To display traffic information by trunk group number

1. Press Trunk Status.

2. Select Search by group number.

3. Enter the starting trunk group number, and then press [Search].

The displays shows a list of the trunk groups, the number of trunks in each group, and the number of those trunks currently in use—for example,

To display only the information on the trunks that are accessed by dialing a given leading digit string

1. Press Trunk Status.

2. Select Search by dialed digits.

3. Enter the leading digit string—for example, area code “416.”

4. Press [Search].

Options

After displaying traffic information you can...

• Click [Print] to print status information for the displayed trunk groups only.

• Click [Print All] to print status information for all trunks groups, including those not displayed.

The Timestamp shows the time of your last search.

Advanced Features ▼ 39

System Speed Call

Frequently dialed telephone numbers may be saved for you and other extension users for speed dialing. Use the table provided in the Reference section to record the System Speed Call numbers you will most likely need.

• Dial the System Speed Call Number The stored telephone number is dialed automatically.

Notes:

• If you find that you are frequently dialing the same numbers, add them to your personal Speed Call list in the Scratch Pad. For more information, see page 38. You can also use the Bulletin Board to store speed call numbers for use by all attendants. For more information, see page 26.

• Programming system speed call numbers is done by your communications department and cannot be done from the console.

Tone Signaling

You may have noticed that when you dial a number at your console, you don’t hear any of the tones or pulses normally associated with telephones. This is because your console ‘communicates’ with the rest of your telephone system with different types of signals. However, there are times when you need to send tones in order to complete your call. Typically, special services such as voicemail require passwords or other information in the form of tones before allowing access.

To generate tones

Once the connection is made and you are prompted to enter digits:

1. Press Tones. The Tones indicator in the Console Status area appears

dimmed when tone signaling is turned off.

2. Dial the code.

To turn off tone signaling

• Press Release. to disconnect your console from the call. Tone signaling stops

automatically.

40 ▼ Advanced Features

• Press Tones again.

Hotel/Motel

Features

Hotel/Motel Features

Contents

Displaying and Changing Room Information .....................................................................44

Searching for Rooms ......................................................................................................... 45

Changing Room Occupancy and Condition Status ............................................................45

Checking-In/Checking-Out...............................................................................................46

Setting/Canceling Wake-up Calls...................................................................................... 46

Setting Room Call Restrictions .......................................................................................... 47

Blocking Room-to-Room Calls ........................................................................................... 47

Monitoring Guest Rooms................................................................................................... 48

Displaying/Clearing a Message Register............................................................................ 48

Printing Reports ................................................................................................................48

Hotel/Motel Features ▼ 43

Displaying and Changing Room

Options

Information

Room information includes guest name, room occupancy and condition status (Vacant, Clean, Out of Service, etc.), outgoing call charges and restrictions, and the status of message waiting, wake-up call, and other guest services.

To display, enter, or change room inform ation

You can display, change, or enter new room information while the console is idle, or when you are on a call to the room.

1. Press Guest Service, or if you are already on a call to the room, press the [Guest Service] softkey.

2. Enter the room extension using the computer keyboard (not necessary if you are already on a call to the room).

The display shows, for example:

After displaying the room information, you can...

• Enter or change the name of the guest and the company or group he or she is affiliated with. The guest’s name can have a maximum of 20 characters.

• Check the guest in or out (see page 46).

• Change the room’s occupancy or condition status (see

page 45).

• Enter, change, or clear the wake-up call time (see page 46).

• Set or change outgoing call restrictions (see page 47).

• Allow or block room-to-room calling (see page 47).

• Clear the Message Cost and information for calls placed from

the room (see page 48).

Note: Guest Services shows only whether Do Not Disturb (DND)

or Message Waiting (MW) are on or off. For information on changing the status of these features, see pages 32 and 34.

In this example, John Smith from Mitel Corp is checked into room 1026, allowed to make long distance calls, has a message waiting and a wake-up call for 7:30 AM. The room is occupied and clean and is unaffected by Call Blocking.

3. Make the required changes (if any), and then press [Save] to save them.

44 ▼ Hotel/Motel Features

Searching for Rooms

You can search for a room using the occupancy and condition states as search parameters. This enables you to find, for example, all rooms that are vacant and clean or that have maids in them. You can also search using a guest’s last name to determine which room they are in.

4. To view information for a room in the list, click to select it and then press [Select]. Use the arrow keys or the Page Up and Page Down keys to scroll through the rooms.

If a printer is attached to the console, you can print the occupancy and condition status for all rooms in the hotel or motel. For more information, see Printing Reports on page 48.

To search for rooms

1. Press Guest Service.

2. Do one of the following:

• To display information for a specific room, use the computer keyboard to type the room number in the Room Number box.

• To find rooms by occupancy and condition status, click Room Status, and then select states from the Occupancy and Condition lists.

To begin searching from a particular room, type the number of the room in the Starting at room box.

• To find a guest’s room, click Last Name of Guest, and then type the guest’s last name.

3. Press [Search]. The screen shows, for example,

Changing Room Occupancy and Condition Status

The room occupancy and condition states are as follows:

Occupancy Condition

Vacant Occupied Reserved

Note: The Maid status can also be changed

from the room by dialing a code.

To change a room’s occupancy and condition status

1. Press Guest Service, or if you are already on a call to the room, press the [Guest Service] softkey.

2. Enter the room extension using the computer keyboard (not necessary if you are already on a call to the room).

3. Press [Search].

Clean Not Clean Maid Present (see note) To Be Inspected Out of Service

4. Select the desired states from the Occupancy and Condition lists.

5. Press [Save] to save the changes.

Note: Depending on system programming, all ‘occupied and

clean’ rooms may automatically change to ‘occupied and not clean’ at a specified time each day.

Hotel/Motel Features ▼ 45

Checking-In/Checking-Out

Checking in a guest changes the status of a room to Occupied; checking out changes the room to Vacant. Both check-in and check-out clear the guest name, affiliation and wake-up time (if set). The Call Block and Call Restriction settings for the room are also reset to values specified by system programming.

Setting and Clearing Wake-up Calls

Both you and the guest can set, change, and cancel wake-up calls for a guest room. The system does not distinguish whether a wake-up call is set, changed, or canceled from the console or guest room telephone. So, for example, a guest can cancel a wake-up call that you set and vice-versa.

To check in or check out a guest

1. Press Guest Service, or if you are already on a call to the room, press the [Guest Service] softkey.

2. Enter the room extension using the computer keyboard (not necessary if you are already on a call to the room).

3. Press [Check-In] or [Check-Out].

4. Press [Save] to save the changes. To cancel changes you made and return to the previous

screen, press [Previous].

To set, change, or cancel a wak e-u p time while viewing the guest room’s information

1. Click in the Wake-up box, and then type the hour and minutes in 24-hour format. You must enter four digits—for example 0630 for 6:30 AM (or 1830 for 6:30 PM)

To cancel a wake-up call, delete the time from the Wake-up box.

2. Press [Save] to save the changes.

To set, change, or cancel a wake-up time when NOT viewing the guest room’s information

1. Press Guest Service.

2. Enter the room number using the computer keyboard.

3. Follow steps 1 and 2 from the previous procedure.

Notes:

• If the guest fails to answer the wake-up call, the system will ring the room up to four more times at intervals of two to seven minutes. If the guest still does not answer, the wakeup call could be routed to the console.

• Some display phones can set their own timed reminder. The above procedures will also clear or change a reminder already set by the user.

46 ▼ Hotel/Motel Features

• If a printer is attached to the console, a report may print each time you set, change, or cancel a wake-up call.

Setting Call Restrictions

You can control the type of telephone calls that guests can place from the phones in their rooms. There are three levels of call restriction: Internal, Local, and Long Distance.

Blocking Room-to-Room Calls

Call Blocking stops guests from placing calls to other rooms. You can control when Clock Blocking takes effect and the rooms affected by it.

The system provides three more levels (labeled Option 1, 2, and

3) that can be used to impose special call restrictions. Ask your communications department for instructions about the use of these restrictions.

To set or remove call restrictions for a room

1. Press Guest Service, or if you are already on a call to the room, press the [Guest Service] softkey.

2. Enter the room extension using the computer keyboard (not necessary if you are already on a call to the room).

3. Press [Search].

4. In the Call Restriction list, select one of the following:

• Internal to allow internal calls only.

• Local to allow internal and local calls.

• Long Distance to allow internal, local, and long distance

calls

• Option 1, Option 2, Option 3 to impose special call

restrictions determined by system programming.

Note:

Your system may be programmed to automatically change

call restrictions for rooms at check-in and check-out time.

To control whether Call Blocking affects a room

1. Press Guest Service, or if you are already on a call to the room, press the [Guest Service] softkey.

2. Enter the room extension using the computer keyboard (not necessary if you are already on a call to the room).

3. Press [Search].

4. In the Call Block list, select the option you want.

5. Press [Save].

To turn Call Blocking on or off for the entir e system

1. Select Guest Services on the Tools menu.

2. Select Toggle Call Block. The C all Block indicator in the Console Status area appears

dimmed when Call Blocking is turned off.

Note: Your system may be programmed to turn Call Blocking on

and off for all affected rooms at certain times of the day and for individual rooms at check-in/check-out time.

Hotel/Motel Features ▼ 47

Monitoring Guest Rooms

Guests can use their room phone as a listening device to monitor their room from a remote station. The remote station can be an attendant console, an extension, or an outside phone calling into the system on a special line (i.e., a DISA trunk).

To use the console to listen in on a room that has room monitoring activated

You can only monitor a room from an idle console.

Clearing the Message Register

The message register is a record of the number and cost of all external calls placed from a guest room telephone. The system uses meter pulses received from the local telephone company to calculate costs. If pulses are not received, then only the number of external calls are counted.

A guest’s message register is automatically cleared when the guest is checked out. If a guest prefers to pay for calls on a daily basis, you can manually clear the register after each payment is made.

1. Select Guest Services on the Tools menu.

2. Select Room Monitor.

3. Dial the room number using the console keypad.

4. Listen for three short beeps followed by audio from the room. If room monitoring is not activated on the room phone, you

will hear reorder tone or a beep. If you see ‘Monitor Busy,’ then another extension is already

monitoring the room. If you see ‘Class Restricted’ or ‘Access Disallowed,’ then the

room cannot be monitored because of restrictions on the console or the room phone.

To disconnect the cons ole from the room

• Press Cancel or Release.

To display or clear a room’s message register

1. Press Guest Service, or if you are already on a call to the room, press the [Guest Service] softkey.

2. Use the computer keyboard to type the room number in the Room Number box (not necessary if you are already on a call to the room).

The Message Cost and Calls fields show the total cost and number of all external calls placed from the room.

3. Click Clear to erase the Message Cost and Calls totals.

If a printer is attached to the console, a report may print showing the contents of the register before it was cleared.

Printing Reports

If a printer is connected to the console, you can request printed reports of message registers, room status and automatic wake-up calls. Some reports print automatically. For example, whenever a wake-up call is set, changed, or canceled, a record of the event is printed.

To print a report

• On the Tools menu, select Guest Services followed by the command that corresponds to the report that you want to print.

48 ▼ Hotel/Motel Features

Reference

Contents

Superset 700 vs. Superconsole 2000................................................................................. 52

Alarms .............................................................................................................................. 54

Greetings........................................................................................................................... 54

Rerouted Calls...................................................................................................................55

Class of Restriction ...........................................................................................................56

Class of Service .................................................................................................................56

Feature Access Codes........................................................................................................ 57

Glossary............................................................................................................................58

Hunt Groups.....................................................................................................................60

Paging Zones.....................................................................................................................60

System Speed Call List ...................................................................................................... 61

System Messages ..............................................................................................................62

Telephone Directory ..........................................................................................................68

Trunk Numbers................................................................................................................. 68

Reference ▼ 51

Superset 700 vs. Superconsole 2000

The inform atio n belo w summa rize s the di ffer ence s betwe en the Superset 70 0 and th e Supe rconso le 20 00 appl ic atio ns.

OPER MODE OPERATOR MODE

STAT STATUS

MSG MESSAGE

PAGER PAGER

Keyboard changes

The Superconsole 2000 keypad and PC keyboard replace the single Superset 70 0 keybo ard. The fol lowi ng tab le l ists the Su pers et 700 keys and their equivalents on the Superconsole 2000.

Note: You can use a mouse instead of keys to operate the

Superconsole 2000.

Superset 700 Key(s) Equivalent

Superconsole 2000 Key(s)

S1 – S7 F1 – F12 on computer

keyboard

Cursor Control Keys (← ↑ → ↓) ← ↑ → ↓ keys on computer

keyboard

WORD LINE Not supported/applicable

HELP HELP APPL APPL

DESKTOP Not supported

REVRS Not supported/applicable

BELL None; use on screen

TONES TONES

DEL

INSRT Not supported

SRCH Not supported

CLEAR Not supported

CMND Not supported

QUIT

CANCEL CANCEL

HOLD HOLD

RETRIEV RETRIEVE

RELEASE RELEASE

ANSWER ANSWER

← Backspace

Not supported

UNDEL Not supported

CALL NAME Not supported (use PHONE

PHONE BOOK PHONE BOOK

GUEST SERVICE GUEST SERVICE

PROG Not supported

52 ▼ Reference

BOOK instead)

Screen changes

Discontinued/Changed Features

The Superconsole 2000 features a Windows-style interface with support for a mouse. Other changes to the screen include:

• Call Waiting indicator and time display moved to the bottom of screen.

• Console and system messages moved from the Command and Response area to the Status area at the bottom of the screen.

• Command entry feature removed.

• Softkeys for Phone Book, Guest Services and Trunk Group

Status have moved from the bottom of the screen to below the Tools area (i.e., the area of the screen that the Phone Book and other tools occupy.)

• The Phone Book cannot be resized.

• Indicat o r (

call was last placed on Hold.

• Call waiting icon ( indicate that a call on Hold is recalling.

) added to the Calls On Hold area to indicate which

) added to the Calls On Hold area to

New features

The Superconsole 2000 adds these new features:

• Scratch Pad

• Bulletin Board

• Recover Last Call

• Transfer to Voicemail

Superset 700

Feature

System Login (for CDE programming)

Message Center None

Call by Name Phone Book

Command Line (Cmnd) Functions

• Change Screen Colours • Use Windows Control Panel

• Change Alarm Colours • None

• Change Language • Tools > Options command

• Set System Date/Time • Use File > Connect to CDE

• Set Console Clock • Tools > Options command

• Operator Absent/Present

• Warbler (Ringer) On/Off

• Day/Night Service

• Enable Headset/Handset

Superconsole 2000

Equivalent

File > Connect to CDE

command

• Firmkey Programming

• Call Answering Priority

• Call Waiting Threshold

• Synchronize Console Clock with PBX Clock

• Guest room searching by guest name (Hotel/Motel feature)

• Dual headset/handset jacks

Reference ▼ 53

Alarms

Your telephone system uses automatic monitoring and fault diagnosis to check the system for faults.

Greetings

Record your company’s preferred greetings for each of the following situations.

An alarm status appearing in the upper-right corner of the screen notifies you when a fault occurs. When there are no faults, this area is blank. If a critical alarm occurs, you’ll hear a recurring beep.

The alarm display is cleared automatically when the fault is corrected.

Alarm types

There are three classes of alarms: Minor, Major and Critical.

MINOR

There is a minor alarm within the telephone system, which probably does not affect the telephone users.

MAJOR

An alarm affecting service has occurred, but calls can still be made. Contact your communications department.

CRITICAL

The telephone system is not providing normal service and should automatically switch itself to System Fail Transfer Mode (if this is available on your system). You MUST contact your communications department.

Calls on Outside Lines

Calls On Inside Lines

Recalls

Calls Camped on to a Line

Taking Messages

54 ▼ Reference

Rerouted Calls

Some users may decide to reroute their calls to your console, or the system may be programmed to reroute certain types of calls or all calls made at given times to your console.

The calls that are rerouted to your console may be one of four types:

• Calls a user has forwarded (Follow Me, Busy or No Answer).

• Calls to a given number rerouted by system programming.

• Calls on certain trunks if incoming calls on certain trunks

are always “transferred” to your console.

• If the user dials a number that is rejected by the system for any reason, Intercept Handling may be programmed to reroute the call to your console.

Call Forwarding

When a user has forwarded his or her calls to your console, incoming calls to that extension will ring your console. When you answer, the called party information will appear in the Destination area.

Note that the Destination area displays the name of the called party, the called party’s number, and the type of Call Forwarding that the called party programmed and that caused the call to be rerouted to your console (Follow Me, Busy or No Answer).

System Rerouting

When the system is programmed to redirect calls to an extension to your console at all times, the message “Call Forward - Always Reroute” appears in the Destination area, below the user’s name and extension number.

Transferred Calls

If you transfer an incoming call to an extension, and the extension user transfers the call back to your console, the message ‘‘Transferred’’ appears in the Destination area.

Intercept Handling

When a user dials a number that the system rejects, the call is rerouted to your console. When you answer, the appropriate Intercept Handling message displays in the Destination area. See System Messages on page 62 for information about the messages that may display in that situation.

Also, two softkeys are always available in this situation: [Set Serial Call] and [Redial Dest]. Pressing [Redial Dest] will automatically redial the called party, overriding the Call Forwarding to your console.

Reference ▼ 55

Class of Restriction

Each extension and trunk in the system is assigned a Class of Restriction. As its name implies, a Class of Restriction (COR) may restrict an extension (or a trunk) from accessing an external route at a given time.

The extension’s COR is displayed in the Source or Destination area of the console screen, along with its Class of Service and the other information on the caller.

Here are a few examples on how the Class of Restriction can affect users:

Class of Service

Not all the features described in this Guide are available on your console or on other extensions.

An extension’s Class of Service (COS) appears, with the information about that extension, in the Source or Destination area of the console screen.

Each COS defines which features an extension or console can activate. The message “Feature not allowed” appears on the console screen when you try to access a feature not allowed in your or the extension’s COS.

• The extensions with a given COR may not dial outside the system at all, having to ask the assistance of the attendant to do so.

• Extensions with another COR may have to go through the attendant in order to dial long distance.

• Extensions with yet another COR may only dial certain longdistance numbers and at given times of the day.

• Extensions with the least restrictions programmed could dial anywhere at any time.

• The extension’s COR may change with Day, Night 1 and Night 2 services.

• Routing may change according to the time of the day and the day of the week, indicating different outside dialing privileges according to the time of dialing.

Here are some examples of how a COS could affect users:

• COS could change depending on whether the system is in Day, Night 1, or Night 2 Service.

• Extensions without an appropriate COS could be denied access to certain features, such as Call Override, Paging Access or Setting Message Waiting Notification.

• You and other extension users may be required to enter an Account Code for additional system access or when you want to use your COS at a different extension.

• Some extension users cannot be overridden.

56 ▼ Reference

Feature Access Codes

FEATURE CODE

Account Code Access

- Verifiable ____________________________

- Non-Verifiable ____________________________

Associated Dataline Access ____________________________ Loopback ____________________________ Call Hold

- Retrieve _______________ _____________

- Remote - Retrieve _______________ _____________

Callback ____________________________

- Cancel ____________________________

Call Forward

- Busy (External) ____________________________

- Busy (Internal) _______________ _____________

- Follow Me ____________________ ________

- Follow Me Enchaining ____________________________

- I Am Here ____________________________

FEATURE CODE

Clear All Features

- Remote _______________ _____________

Conference ____________________________ Do Not Disturb ____________________________

- Remote

- Cancel Remote

External Line Access __________________ __________ Forced Release ____________________________ Last Number Redial ____________________________ Individual Trunk Access __________________ __________ Message Waiting Inquire ____________________________ Message Notification ____________________________

- Cancel _____________________________

Override Paging ____________________________

____________________________ ____________________________

____________________________

- No Answer (Extern a l) ___ _________________________

- No Answer (Internal) _______________ _____________

Call Park Remote Retrieve _______________ _____________ Call Privacy _______________ _____________ Camp-on ____________________________

- Retrieve _______________ _____________

Personal Speed Call

- Invoke ____________________________

- Store ____________________________

Pickup

- Dialed Call _______________ _____________

- Directed Call _______________ _____________

TAFAS -Remote Retrieve ____________________________

Reference ▼ 57

Glossary

Account Code

A code you dial to access certain system features; to apply your Class of Service (COS) at a different extension; or to associate a caller with an SMDR record for accounting purposes.

ARS - Automatic Route Selection

This is an application that handles long distance call routing automatically.

Broadcast Group

When a line has an appearance on another SUPERSET™ telephone, it is said to be in a broadcast group. This means that all extensions with that line appearance have access to and may use that line.

Consultation Hold

A temporary hold applied to a call while an extension or console user activates a feature or makes a call.

Customer Data Entry (CDE)

The entry of programmed data, specific to the customer’s requirements. Customer data includes such items as directory information, COS and COR allocations, and trunk data.

Direct Inward Dialing (DID)

This feature allows outside trunks to reach pre-programmed extensions directly, without going through the Attendant console.

Direct Inward System Access (DISA)

A feature which allows callers to dial directly into the telephone system and activate features and facilities.

Call Privacy (Data Line Security)

A COS feature which prevents an extension from receiving Campon Tone -- which could interfere with data transmission.

Camp-on

A feature allowing the system to queue calls directed to a busy extension, then automatically connects the waiting party to the extension when it becomes free. The busy extension user hears Camp-on Tone indicating a call is camped-on. The waiting caller is put on hold and hears music or silence.

Class of Restriction (COR)

Control of a station or trunk’s access to trunk circuits. A station may have up to three different CORs specified for Day, Night 1 or Night 2 Service.

Class of Service (COS)

A level of service defined by a specific set of features that controls an extension’s access to these features. A station may have up to three different COSs specified for Day, Night 1 or Night 2 Service.

External Line Access Code

A code which precedes a dialed number to indicate to the telephone system that the telephone number is outside the system.

Firmkeys

Keys on the console keypad that can be programmed to access console features and system services.

Hunt Group

Extensions linked together in a group with a common (pilot) telephone number as well as their own personal extension numbers. Two types of hunting are available with your telephone system: Circular Hunting and Terminal Hunting.

Circular Hunting: A new call to the Hunt Group is directed to the first idle extension found after the extension which received the last call. This provides equitable call distribution to all the extensions.

Terminal Hunting: Hunting takes place in the order in which the extensions were programmed into the hunt group. It always starts with the first extension in the list and the hunting ends with the first idle extension found.

58 ▼ Reference

Line

A telephone communications channel between switching centers or the Central Office and the PABX.

Night Answer Point(s)

An extension user can answer incoming calls ringing the Night Answer Point by dialing the TAFAS code.

Night Service

A system mode of operation that routes incoming calls to the Night Answer Point(s) when the system is in Night Service and the Attendant consoles are in Absent mode.

SMDR - Station Message Detail Recording

This is an application that automatically logs call information such as “length of call” and “caller extension number”, among other things.

Switchhook Flash

Used by extension users to signal the telephone system that they want to activate a feature.

TAFAS Code

(Trunk Answer From Any Station) A code used to answer calls ringing the Night Answer Point(s).

Pickup Group

Extensions located in one area, or with similar departmental functions, are often placed in the same answer group.

Recall

A call returns to the console for further handling by the attendant.

Trunk

An outside line which links two switching systems. This link can be between one or more private telephone systems and/or between your private system and the public telephone system (Central Office).

Reference ▼ 59

Hunt Groups

Dialing a Hunt Group Pilot Number either from the keypad or through the Phone Book feature, connects you to the first available extension in that area. Contact your communications department for more information

Paging Zones

Use this table to record the paging zones your system uses. Contact your communications department for more information.

Pilot

Number

Hunt Group

Name

Extensions

Location Zone Code

All Zones 00

01 02 03 04 05 06 07 08 09 10 11

60 ▼ Reference

12 13 14 15

System Speed Call List

Name Number

Reference ▼ 61

System Messages

These messages appear in the various areas of your screen.

Absent Feature Disallowed for Last Attendant. Select Night Service

As the last or only attendant in the group, you cannot place your consol e into absent mode.

Call Forward - Always Reroute

This extension user has all calls rerouted to you.

Call Forward - Busy

This extension user is busy and has forwarded calls (Call Forward - Call Fwd Busy) to you.

Access Disallowed

The feature access code you’ve dialed is not available to an Attendant.

Attendant Gr(oup)

Displayed when one attendant calls another number belonging to one or more attendants.

Attendant Operation Re-enabled

You are back in the Operator screen from Program mode.

Broadcast Gr(oup)

Group of extensions sharing the same line. Actually, every line in the system is part of a broadcast group, even if it appears on only one extension (private lines, for example).

Busy

The number you just dialed is busy.

Call Announce Mode

The SUPERSET 4 telephone you have overridden has a Call Announce facility and you are overriding without being conferenced.

Callback - Recall

The busy extension or trunk you requested the system to monitor is now available.

Callback Queue Full

Your request for a Callback has been denied because of insufficient system resources.

Call Forward - Follow Me

This extension user has all calls forwarded to you (Call Forward Follow Me).

Call Forward - No Answer

This extension user is not available, and has forwarded calls (Call Forward - No Answer) to you.

Cancel All Features for Station # :

Enter the number of the extension for which you wish to cancel all features.

Cancel CFFM for Station # :

Enter the number of the extension for which you wish to cancel Call Forward- Follow Me.

Cancel Do Not Disturb for All Stations ... Completed

Confirms that the requested action has been taken.

Cancel DND for Station # :

Enter the number of the extension for which you wish to cancel Do Not Disturb.

Cancel Forwarding for All Stations ... Completed

Confirms that the requested action has been taken.

Cancel All CFWD for Station # :

Enter the number of the extension for which you wish to cancel all types of Call Forwarding.

62 ▼ Reference

Cancel Operation Abandoned

You have just pressed Quit or [No] to exit from your request without cancelling anything.

COR

Indicates the Class of Restriction applicable to that station or trunk.

Cancelling Do Not Disturb for All Stations

Your request is in progress.

Cancelling Forwarding for All Stations

Your request is in progress.

Cannot Activate Feature if a Party in DESTINATION

Release party in DEST and try again.

Cannot Put Connected Party On Consultation Hold

You already have a party on Consultation Hold, and you cannot perform certain functions - for example, activating message waiting for an extension until you clear the destination field.

Check MSG Waiting for Station # :

Enter the number of the station for which you want to check the message waiting notification(s).

Completed

Confirmation message when the number you’ve entered is valid and the action requested has been taken.

Class Restricted

Your Class of Service does not allow this feature.

Conference

Indication that a conference has been set up or is on hold.

Connected

Confirmation message when your call is connected to a data call.

Connected to Pager

Confirmation message that you have accessed the paging zone and can make your announcement.

COS

Indicates the Class of Service applicable to that station or trunk.

COS Violation

The caller tried to access an unavailable feature. Intercept handling has rerouted the call to your console.

Data Line

Equipment name displayed when a data line is called.

Data Group

Equipment name when a data group is called.

Directory Number Out of Service

The caller has dialed a directory number that does not exist. The call has been rerouted to your console.

Do Not Disturb

The extension user you dialed has activated Do Not Disturb. You cannot call this extension unless you use the override feature.

External

Indicates a call from outside your system (a trunk call).

Feature Activated

A feature such as Do Not Disturb is activated.

Feature Cancelled

A feature such as Do Not Disturb is cancelled.

Feature Not Allowed

There is a restriction preventing you from using this feature, or performing this action.

Reference ▼ 63

Guest Service

Part of the Hotel/Motel Feature package. This prompt appears in several attendant mode operations. Pressing it places the console in Guest Service mode immediately.

Headset or handset required for attendant operation

Plug in your headset or handset.

Holding Party Locked Out

You have left the caller on Key hold for too long, and the call is returning to your console.

Hunt Group

Indicates that a station or trunk is a member of a hunt group.

In Auto-Answer Mode

The SUPERSET 4 telephone you have reached has activated “Auto-Answer”.

Interconnect Failure

There are local interconnect restrictions which do not allow you to connect the requested devices.

Interconnect Restriction

The caller’s extension is programmed with Inter connect Restr iction. Intercept Hand ling h as rero uted the ca ll to y our conso le.

Invalid Trunk Number

You attempted to select an incorrect or out-of-service trunk.

Language selection option not installed

The language you requested is not installed on your telephone system.

Locked out

Indicates a station which is out of service and cannot be accessed or make a call.

Modem

You are connected to a modem.

Modem Busy

The modem dialed is already busy.

Modem Call

Confirmation message when you dial a modem.

Modem Group

Indicates that the modem you are connected to is in a group of modems.

Modem Out of Service

The modem dialed is out of servic e and ca nnot be used at this ti me.

Internal

Indicates a call from inside your system.

Invalid Account Code

Verify your Account Code and try again.

Invalid Dialing

Verify what you dialed and try again.

Invalid Number

You attempted to dial an incorrect number. Verify your number and try again.

64 ▼ Reference

Monitor Busy

The extension you are trying to monitor is already being monitored from another stat ion.

MSG Waiting

After pressing the [Check MSG Waiting] softkey, this indicates that the extension has message(s) waiting.

MSG Waiting OFF

Confirmation that you turned off an extension’s message waiting indicator by pressing the [Clear MSG Waiting] softkey.

MSG Waiting ON

Confirmation that you turned on an extension’s message waiting indicator by pressing the [Set MSG Waiting] softkey.

Page Zone Busy

The zone number you dialed is busy; dial another zone code, or try again later.

Must CANCEL before dialling

Press Cancel on the console keypad, and the try dialing again.

Must Press Retrieve Key then 1 - 6 or * to Retrieve Held Call. Request Ignored.

Try again, but dial the position number of held call (1-6), or dial * (to retrieve the longest held call).

Must RELEASE before changing language

You cannot change the language while talking to someone. End your call before proceeding.

Network

Shows if you have dialed over a MSDN/DPNSS (Digital Private Network Signalling System) line, which connects two SX-2000 PABXs in a private network.

No Answer

There was no answer at the extension called.

No One on Hold at Specified Hold Position

Verify your position number and try again.

Not Ready

The data call cannot be completed at this time. Try again later.

Operator Absent

If you have changed the status of your console to Operator Absent, this message is displayed in the DEST area of the console of another attendant who calls you.

Page Zone Unassigned

Verify the number you dialed. If it still doesn’t work, contact your communications department.

Press “Yes” to Confirm Request or “No” to Quit

Press the appropriate softkey.

Problems in changing language

System problem. Contact your communications department.

Recall

A previously extended call has returned to your console after a time-out period.

Recall – Busy

A previously extended call has returned to your console because the extension is busy.

Recall - Busy, Campon Not Allowed

There is a restriction preventing you from camping a call on to the requested destination.

Recall – No Answer

A previously extended call has returned to your console because the extension did not answer.

Remove MSG Waiting for Station # :

Enter the number of the extension from which you wish to remove a Message Waiting notification.

Out of Service

The device you dialed is not in service.

Overriding

Confirmation message when you override a busy party.

Request Denied

Verify what you’ve just done, and try again.

Ringing

The number you dialed is ringing.

Reference ▼ 65

Route

You are calling a route.

Seized

Confirmation message when you access a trunk.

SUPERSET x...x

The station in question is a SUPERSET telephone.

SUPERSET 7 Console

You are connected to a SUPERSET 7 console.

Select Paging Zone

Enter the number of the zone which you wish to access by the Pager.

Selected Operation Not Being Acknowledged. Request is Abandoned

The telephone system is not processing your request. Try again later or verify your operation.

Selected Trunk

Indicates that a particular trunk has been selected for use.

Serial

Indicates a caller who wants to talk to several people in succession.

Serial - Busy

The Serial call has returned to your console because the destination is busy.

Serial - No Answer

The Serial call has returned to your console because the destination did not answer before a predetermined period of time.

Serial - Recall

The Serial call you made was successful.

Set MSG waiting for Station # :

Enter the number of the extension on which you wish to set a Message Waiting notification.

Setup DND for Station # :

Enter the number of the extension for which you wish to set up Do Not Disturb.

SUPERSET 700 Console

You are connected to a SUPERSET 700 console.

SUPERSET 7000 Console

You are connected to a SUPERSET 7000 console.

SC 1000 Console

You are connected to a SUPERCONSOLE 1000.

System is in Night Service 1

The call has been rerouted because the system is in Night Service 1.

System is in Night Service 2

The call has been rerouted because the system is in Night Service 2.

System Unable to Complete Selected Operation. Please Try Again

The telephone system is not processing your request. Try again later.

Toll Denial - Illegal Dialing

The caller dialed a toll number wrong, and the call has been rerouted to your console.

Toll Denial - Route Restriction

The caller tried to dial a toll number not allowed in his/her Class of Restriction and the call has been rerouted to your console.

Tone Timer Expired

You’ve been listening to busy or ringing tone for too long and the system has disconnected your call. Cancel the call and try again.

66 ▼ Reference

Transferred

The call has been transferred from an internal extension.

Trunk Access Denied

You are not allowed access to the trunk because of your or the trunk’s Class of Restriction.

Unable to Setup or Add to Conference

Either:

• there is a restriction in your COS/COR preventing you from setting up a conference;

• you have reached the maximum number of trunks allowed in a conference;

• you have reached the maximum number of conferees allowed in a conference; or

• you cannot have two attendants in a conference.

Unassigned Directory Number

The number you dialed is not recognized by the telephone system. Verify your number and try again.

Wake-up Call Not Acknowledged

Part of the Hotel/Motel Feature package. The guest has not answered the automatic wake-up. (Note: The Hotel/Motel package is an optional feature.)

Wake-up Call - System Error

Part of the Hotel/Motel Feature package. The Wake-up function is not operating properly. Contact your communications department.

You are already using the selected language. Language not changed.

You made a mistake in selecting the language. Repeat the procedure.

Reference ▼ 67

Telephone Directory

Name Number

Trunk Numbers

Use this table to record the trunk numbers your system uses. Contact your communications department for more information about the trunk numbers.

Trunk Number Use

68 ▼ Reference

Absent, Operator status, 36 Access Codes, programming, 33 Account Codes, 26 Answer calls, 14 Answer key, 14 Answering priority, changing, 27 Application area, 5 Associated data line, 30

Bulletin Board, 26 Busy number, transfer to, 18

Index

Close console. See Conference calls, 21 Console

Adjustments, 9 components, 4 Keypad, 6 Keys, 6 Language, 10 Ringer, 9 Screen, 5 Starting and closing, 8

Time, 10 COR (Class or Restriction), 56 COS (Class of Service, 56

Call Answer Priority, 27 Call Block, 47 Call Forwarding, canceling on

extensions, 29 Call Park, 28 Call restrictions, setting for guest

rooms, 47 Callback, 16 Cancel

All features on extensions, 29 Call Forwarding on extensions, 29 Do Not Disturb on extensions, 32

Message Waiting on extensions, 34 Check-in/Check-out. See Guest Rooms Class of Restriction, 56 Class of Service (COS), 56 Clear All Features, 29

Data Calls, 30 Day and Night Service, 31 Dialing telephone numbers, 16 DND, 32 Do Not Disturb, 32

Errors

Correcting, 17

Extend calls. See Transfer calls

Feature Access Codes, 33 Features, clear all, 29 Firmkeys, 6 Firmkeys, programming, 33

Index ▼ 69

Guest room

Find rooms, 45

Guest Room

Condition status, change, 45 Display/change room information, 44 Occupany status, change, 45

Guest Rooms

Call Blocking, 47 Call Restrictions for, 47 Check-in/Check-out, 46 Message Register, clear, 48 Monitoring, 48 Reports, printing, 48 Wake-up calls, 46

Handset, 7

Enabling, 10 Volume, adjusting, 10

Headset

Enabling, 10

Volume, adjusting, 10 Hold, place call on, 20 Hunt Groups, 60

Message Register, clearing for guest

rooms, 48 Message Waiting, 34 Mistakes, correcting, 17 Monitoring

Guest Rooms, 48

Night and Day Service, 31 Non-verified Account Code, 26

Operator Present/Absent status, 36 Override, 35

Paging, 36 Paging Zones, 60 Park, Call, 28 Phone Book, 37 Present, Operator status, 36 Programming Firmkeys, 33

Keypad, console, 6

Language, changing on console, 10

70 ▼ Index

Recalls, 20, 22 Recover, last call released, 22 Rerouted Calls, 55 Retrieve

Calls on hold, 20

Ringer

Mute, 9 Volume, adjusting, 9

Room-to-room calls, blocking, 47

Scratch Pad, 38 Selective call answer, 14 Serial Call, 38 Sofkeys, 7 Softkeys, 4, 5, 14 Speed Call, System, 40 Start console, 8 Status area, 5 Status Display, Trunk Group, 39 System Messages, 62 System Speed Call, 40 System Speed Call List, 61

Tone Signaling, 40 Traffic Monitoring. See Trunk Group

Status Display Transfer calls, 18 Trunk Numbers, 68 Trunks

Direct access, 17

Verified Account Code, 26 Volume

Headset/Handset, adjusting, 10 Ringer, 9

Telephone Directory, 68 Telephone numbers, dialing, 16 Time, setting, 10

Wake-up calls. See Guest Rooms

Index ▼ 71

Mitel Superconsole 2000 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
