Mipro Electronics Co ACT30HR Users manual

MIPRO Electronics Co., Ltd.

2CE401A

Headquarters: 814 Pei-Kang Road, Chiayi, 60096, Taiwan.
Web: www.mipro.com.tw
E-mail: [e-mail]

Handheld Transmitter Microphone

User Guide

ACT-30Hr

ACT-30H

Design and specifications are subject to change without prior notice

As110215

Handheld Transmitter Handheld Transmitter

Contents

1 Profile

2 Key Features

3 Handheld Controls and Indicators

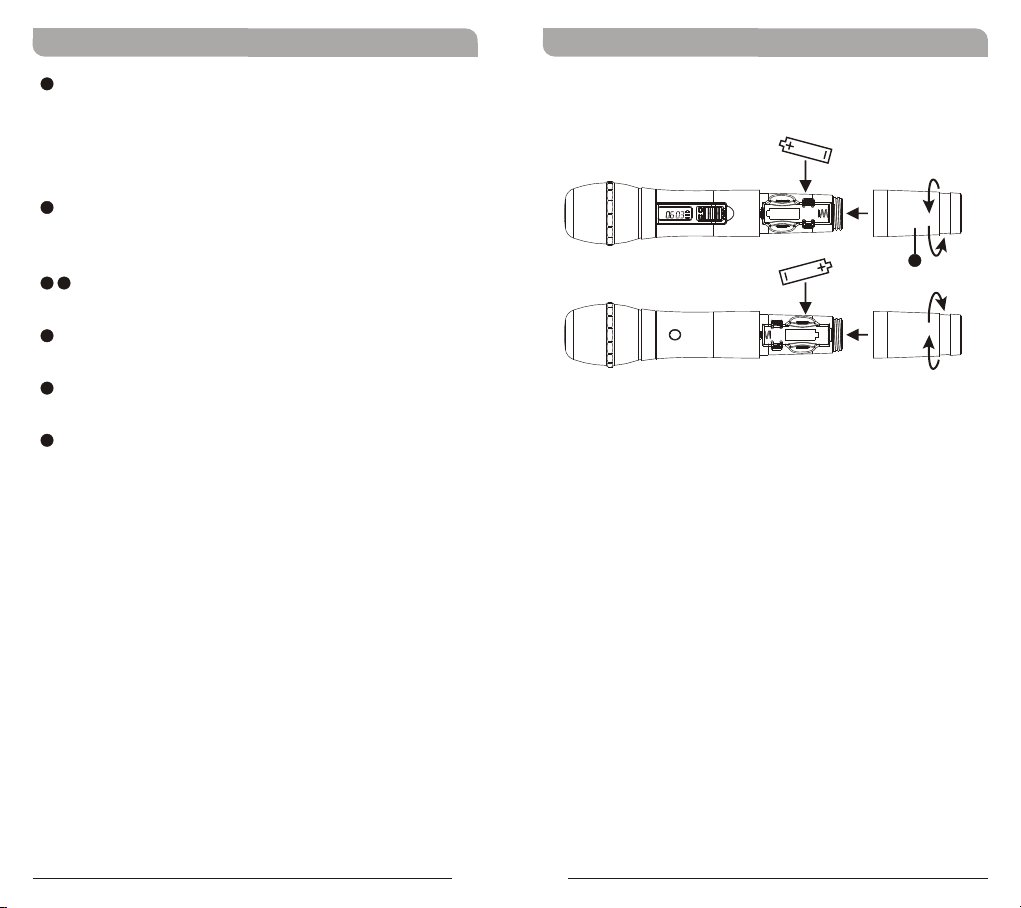

perating Instructions for Insertion &

5 O

Removing Battery

6 Operating Instructions

7 Lcd Screen

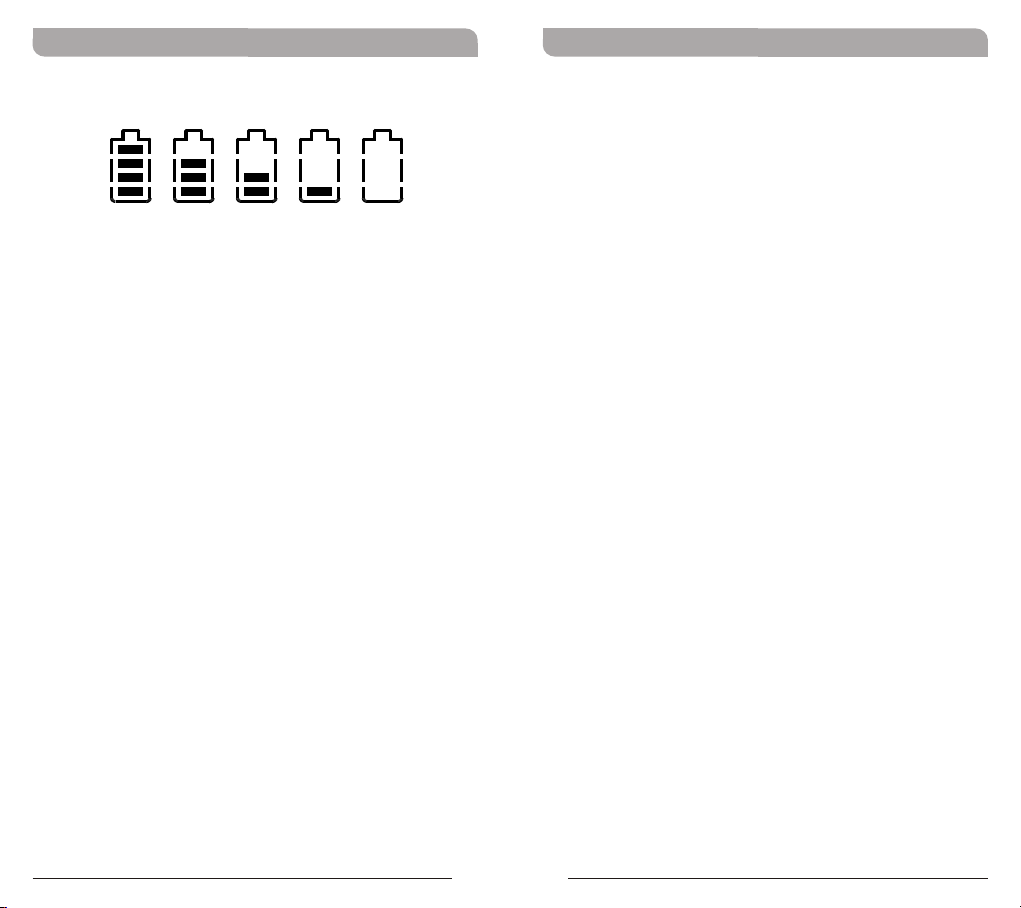

8 Battery Status

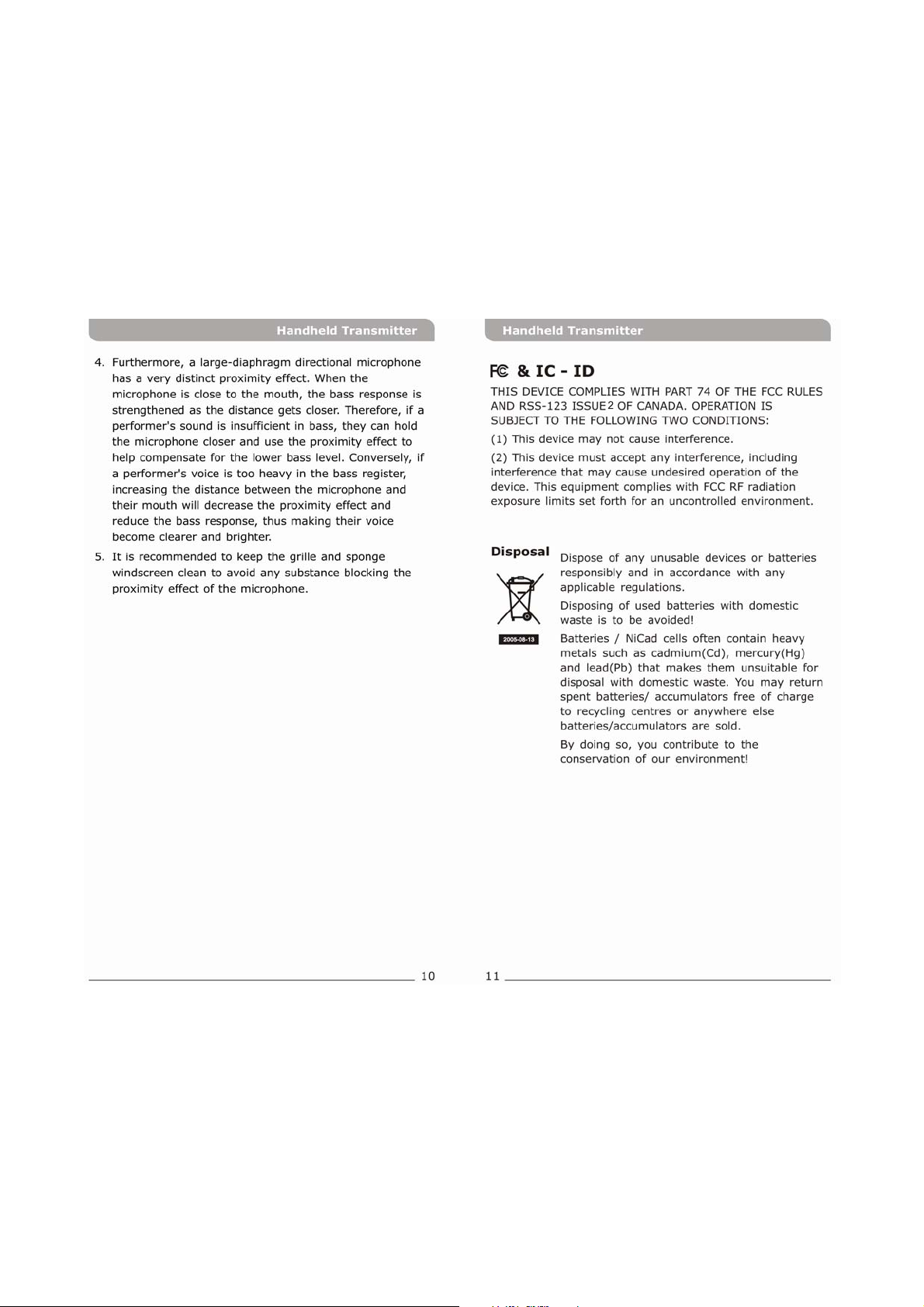

9 General Tips for Improving System

Performance

Profile

There are two types of antenna design for the
handheld transmitter microphones “built-in” and
“external”. The “built-in” design is normally
incorporate upper side of PCB in the housing and
the microphone capsule module as transmitting
antenna. The advantages are to avoid the antenna
breakage due to external design, inconvenience and
able to shorten the microphone housing design.
However, its drawbacks are poor transmission
efficiency especially when replacing microphone
capsules, unstable and deteriorated transmission
efficiency if it is gripped over the antenna area. The
“external” design enhances transmission efficiency
and stability, however, it causes inconvenience and
it may be damaged by accidental crashing.

MIPRO's patented design provides an ideal solution.
The antenna is integrated in the battery holder at
the bottom side of the housing, so it successfully
combines the advantages of both “built-in” and
“external” design.

The matched antenna and transmitter circuit
enhance transmission efficiency and stability
regardless capsules and battery replacement, or
change of grip positions and housing materials.

0 1

Microphone capsule, audio modulation, RF output
and antenna transmission constitute the perfect
straight-line layout of the transmitter PCB so that it
can achieve the best transmission quality and
efficiency. ACT-30H/30Hr are the most evolved
design model for built-in antenna transmitters
nowadays.

Handheld Transmitter Handheld Transmitter

Key Features

! Proprietary anti-dismantle design prevents the separation

of the microphone grille from the microphone housing.

! The microphone capsule is connected to the transmitter

PCB and then screwed onto the housing to prevent the
potential malfunction caused by improper contact.

! Modularized PCB and microphone capsule can be easily

detached and assembled. Optional premium microphone
capsule modules are available.

! ACT-30H is constructed of sturdy plastic housing to enhance the

transmission efficiency. Special coated treatment prevents from
handling noise and paint stripping.

! ACT-30Hr is equipped with remote-control volume buttons.

! Proprietary lockable on/off switch to avoid accidental

power off.

! Durable construction of integrated housing and battery

compartment, allowing 2 AA type batteries easily to be
inserted and replaced.

! Battery housing design secures the battery installation to

prevent the malfunction when knocked. Multi-color rings
for easy channel identification.

! LCD on the housing displays working group, channel,

battery level and error codes.

! High-efficiency low spurious emissions UHF PLL

synthesized RF technology.

! An interference-free working channel can be

synchronized quickly and precisely by MIPRO's
proprietary ACT function.

! MIPRO vocal condenser microphone capsule exhibits high

fidelity, wide dynamic range, fast transient responses,
low feedback howling, accurate sound image
characteristics, transparent sound quality and extremely
low handling noise.

! Proprietary high dynamic range modulation circuitry

sustains a maximum SPL of 140dB so performers can be
confident it won't distort when sing loudly.

! Optional MU-89b true condenser microphone capsule is

ideal for natural sound reproduction.

2 3

Handheld controls and indicators

ACT-30Hr

BAT

GROUP

CHANNEL

2103114 5 6 7 8 91

ACT-30H

BAT

GROUP

CHANNEL

2

4 5 6 7 8 91

10 11

1

Top Grille: Protects detachable microphone

capsule module and internal foam prevents
breathing, wind and POP noises.

2

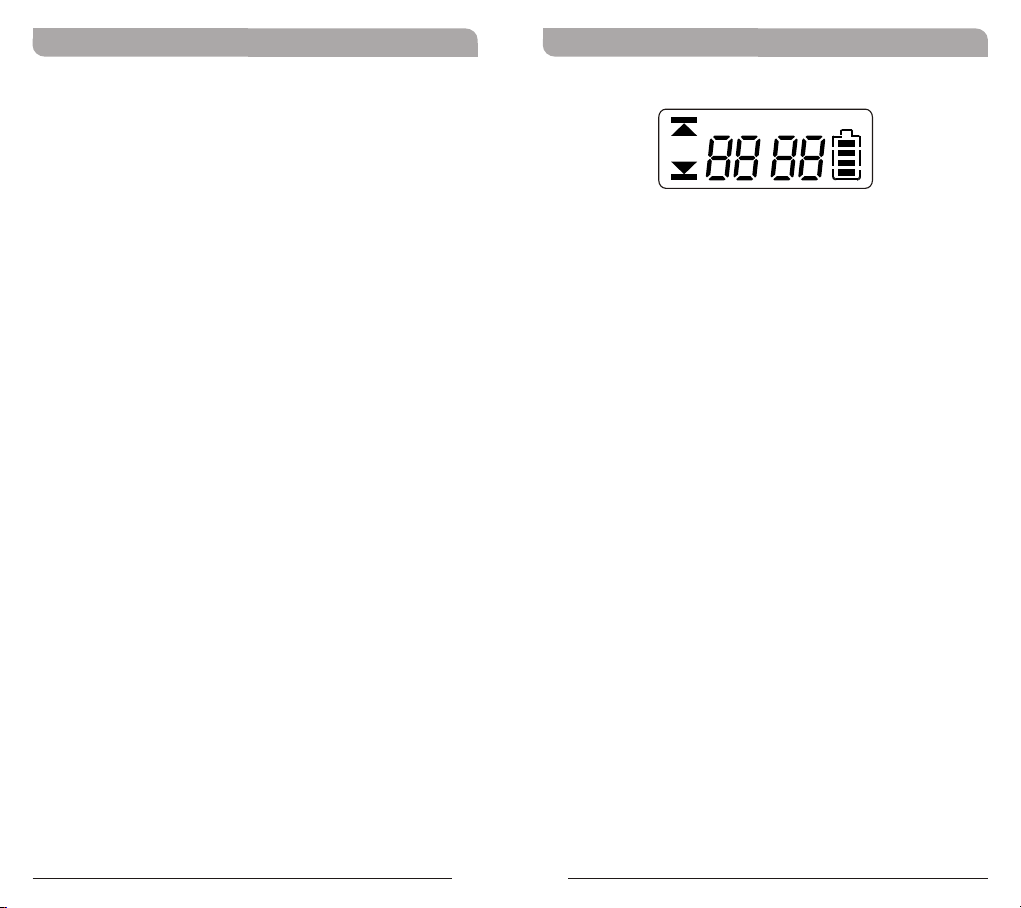

LCD Screen: Displays group, channel, battery

status and error codes.

3

Remote Volume Control Buttons: Press to

decrease or to increase volume wirelessly.

4

Power On/Off Switch: Slide the power switch

to the “ON” position for use or to the “OFF”
position when not in use.

(圖一)
