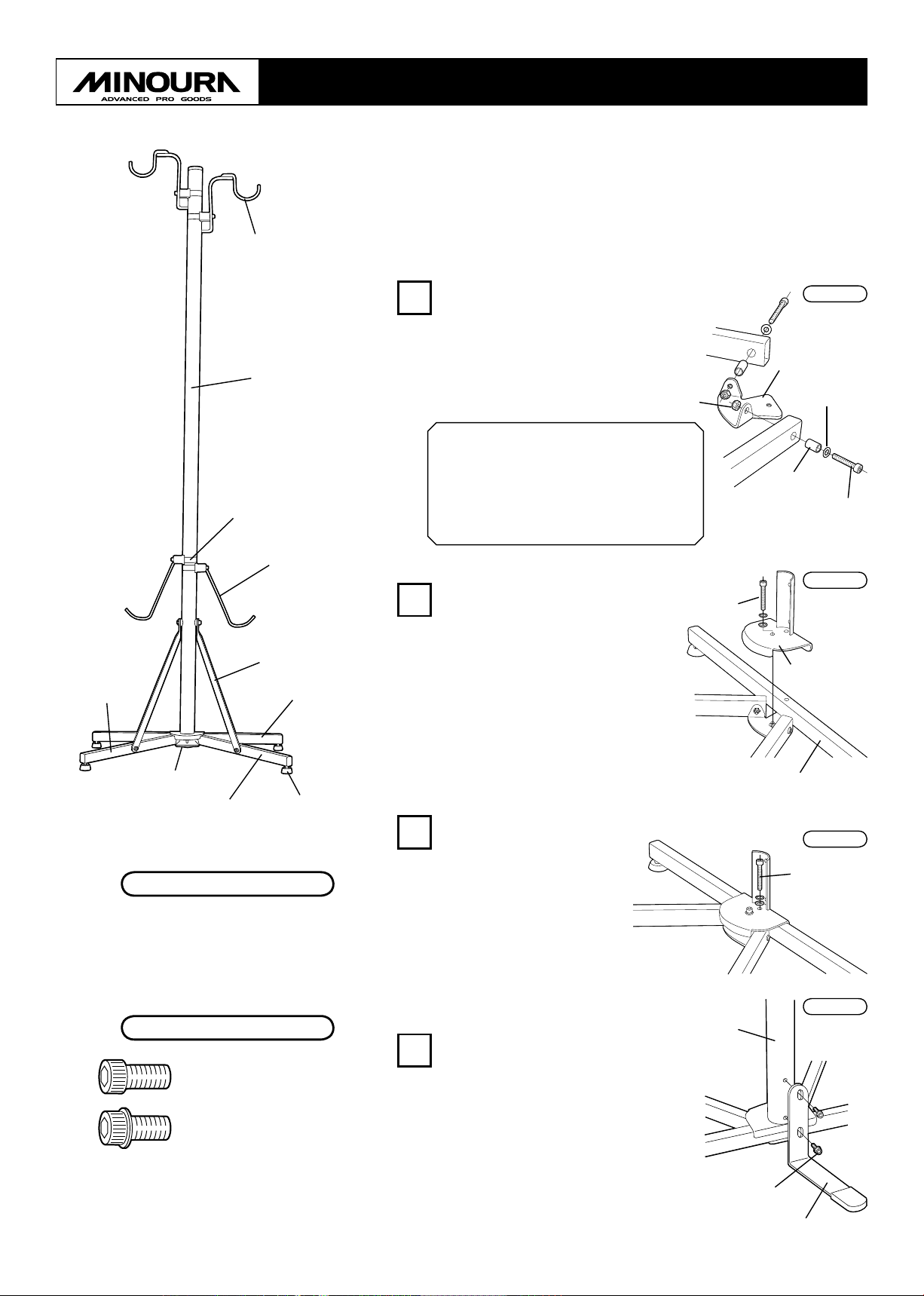

Minoura P-600AL User Manual

P-600AL "Closet Cyclist 2" instructions manual

Upper Hook

Main Pillar

Stainless Band Clip

Lower Hook

Thank you for purchasing Minoura "

P-600AL Closet Cyclist 2

" bicycle

display stand. This stand can hold up to two bikes in a narrow space

vertically in order to save your storage space as much as possible.

Please read this instructions manual to assemble and use the stand correctly

and safely.

Install both side Front Legs to the

1

Fig. A

Leg Base Plate with supplied M6x35

type-A bolt, Flat washer, Collar and

Leg Base Plate

M6 Nylon nut. (see Fig. A)

M6 Nylon Nut

Flat Washer

The Legs are different for right

side and left side.

Each Reinforcement Bar must be

Collar

M6x35 Bolt

inward.

Place the Rear Leg on the Leg

2

M6x40 Bolt

Fig. B

Base Plate, and apply the Pillar

Left Side

Front Leg

Leg Base Plate

Reinforcement Bar

Right Side Front Leg

Required Tools for Assembling

1 x 5mm Hex Wrench

1 x 13mm Open Wrench

Bolt Type Variation

Type-A: plain type bolt

Height Adjuster

Rear Leg

Base Plate onto the assembled legs.

Put the M6x40 type-A bolt with

Spring and Flat washer into the

front side hole and tighten them

temporarily. (see Fig. B)

Put the M6x40 type-A

3

bolt with Spring and Flat

washer into the backside

hole and tighten rmly.

After that, tighten the front

side bolt rmly too.

(see Fig. C)

Insert the Main Pillar onto the

4

Pillar Base Plate.

Pillar Base

Plate

Rear Leg

Fig.C

M6x40 Bolt

Fig. D

Main Pillar

Type-B: with Spring Washer

MADE IN JAPAN

Apply the Backside Leg on the

back of the Main Pillar, then

tighten with the supplied two

M6x18 type-B bolts temporarily

(not rmly). (see Fig. D)

M6x18 Bolt

Backside Leg

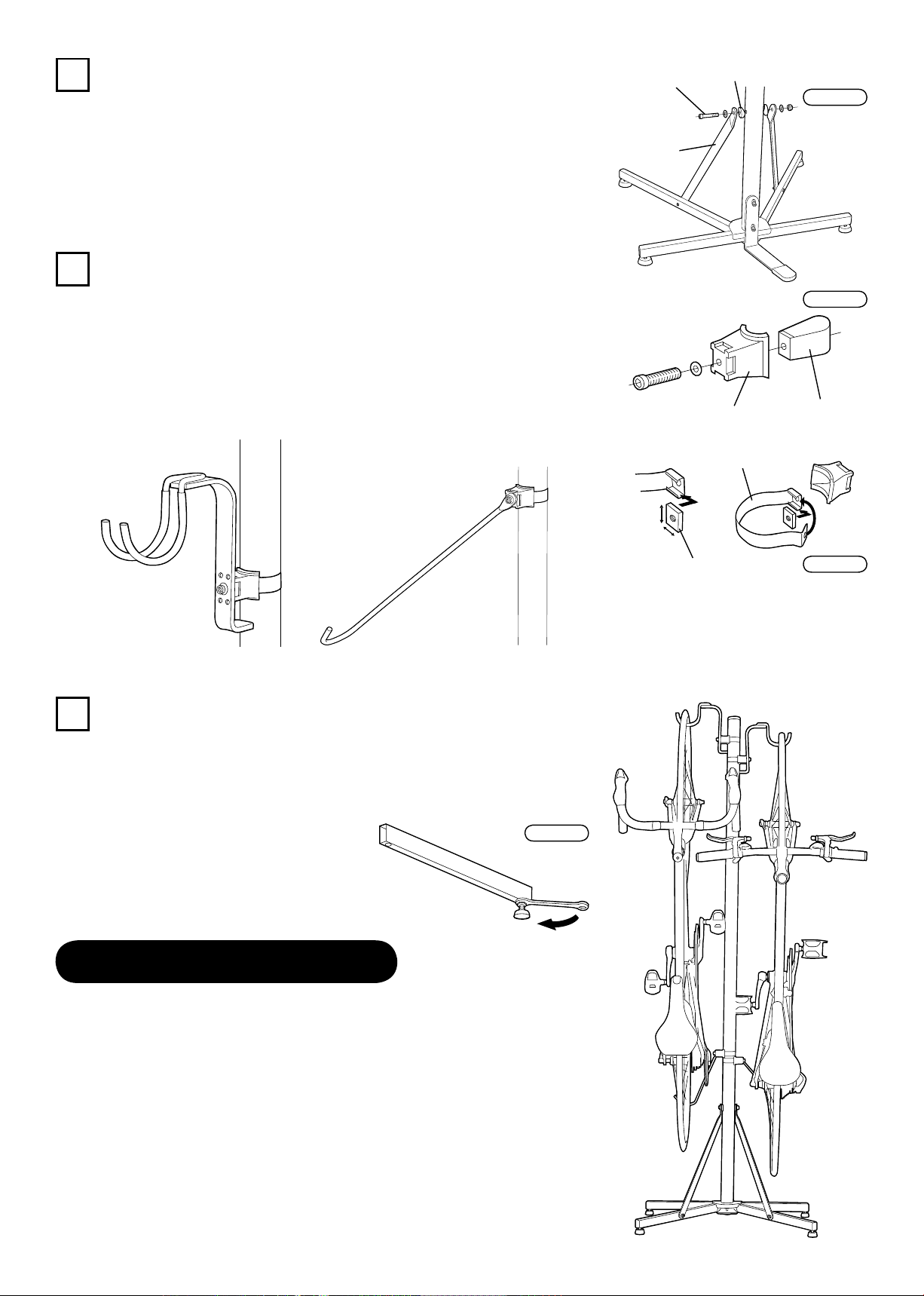

Install the Reinforcement Bars to the Main Pillar with supplied

5

M6x70 type-A bolt, Plastic washer, M6 at washer and M6

Nylon nut.

Then tighten the M6x18 bolts on the Backside Leg rmly.

(see Fig. E)

Once disassemble the Stainless Band Clip.

6

Wind the Stainless Band around the Main Pillar, insert the tip

between the Rectangle Nut and the box part of the band, and

apply the Plastic Bracket.

Attach the Upper Hook or Lower Hook onto the Plastic Bracket,

M6x70 Bolt

Reinforcement Bar

Plastic Washer

Fig.E

Fig.F

then tighten the bolt securely. (see Fig. F & G)

Upper Hook

P-600 is a tall stand, so you must maintain the balance whenever you

7

Lower Hook

use it to prevent from any accident.

Adjust the Height Adjuster on each legs to keep the Main Pillar

vertically, then tighten the Lock Nut rmly with 13mm open wrench.

(see Fig. H)

Fig.H

Longer Side

Shorter Side

Plastic Bracket

Stainless Band

Rectangle Nut

< Complete Style with Bikes >

Assembled

Stainless Band

Fig.G
