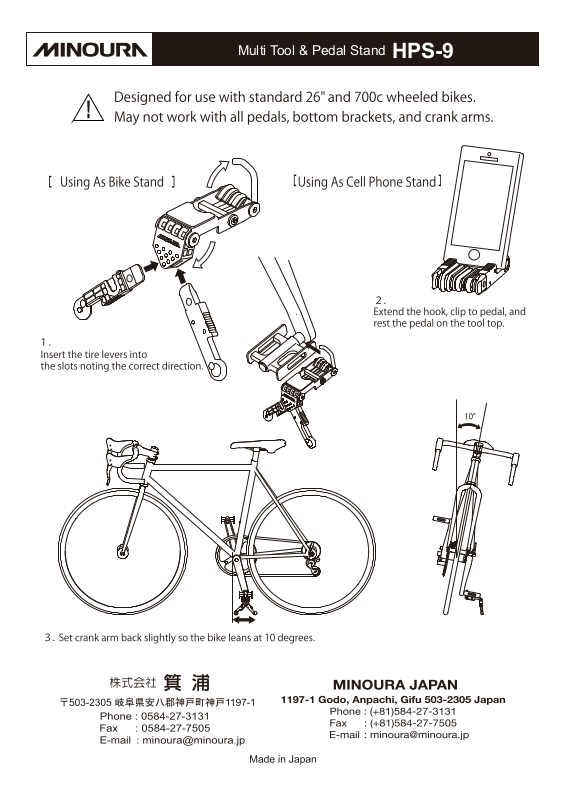

MINOURA HPS-9 User Manual

Multi Tool & Pedal Stand

HPS-9

How To Remove Tire Lever

Additional Cautions

●When using phillips screwdriver, straighten the tool,

pushing toward the screw.

●The pivot bolt may loosen with use. Tighten as

needed with an M4 hex wrench.

or closing the tool.

●The tire levers can only be stored one way.

●Make sure your bike is stable before letting go after

set up.

or similar may be used under the leg for stability.

●Do not mount or apply a load to bike when it's in

the stand.

To remove the tire lever, simply turn upward then
pull out.
To store, insert the projection on the lever tail

down.

Remove any luggage or excess weight before

using stand.

sizes and bike types.

●If tool becomes wet, wipe dry immediately. Do not

put into tool box wet or rust may occur.

●Minoura assumes no responsibility or lability for

damage to your bike or person from misuse of this

stand.

Warranty Period :

1 year from your purchase

Do not force to push down the lever.

!
