MINOURA 971-3H User Manual

Bicycle Display Stand

Thank you for choosing Minoura 971-3H.
Read this instructions carefully to understand
well how this stand is constructed before starting
assembling.

920mm

971-3H

instructions manual

(ver.2.1 2013/7)

1,620mm

1,340mm

1,090mm

840mm

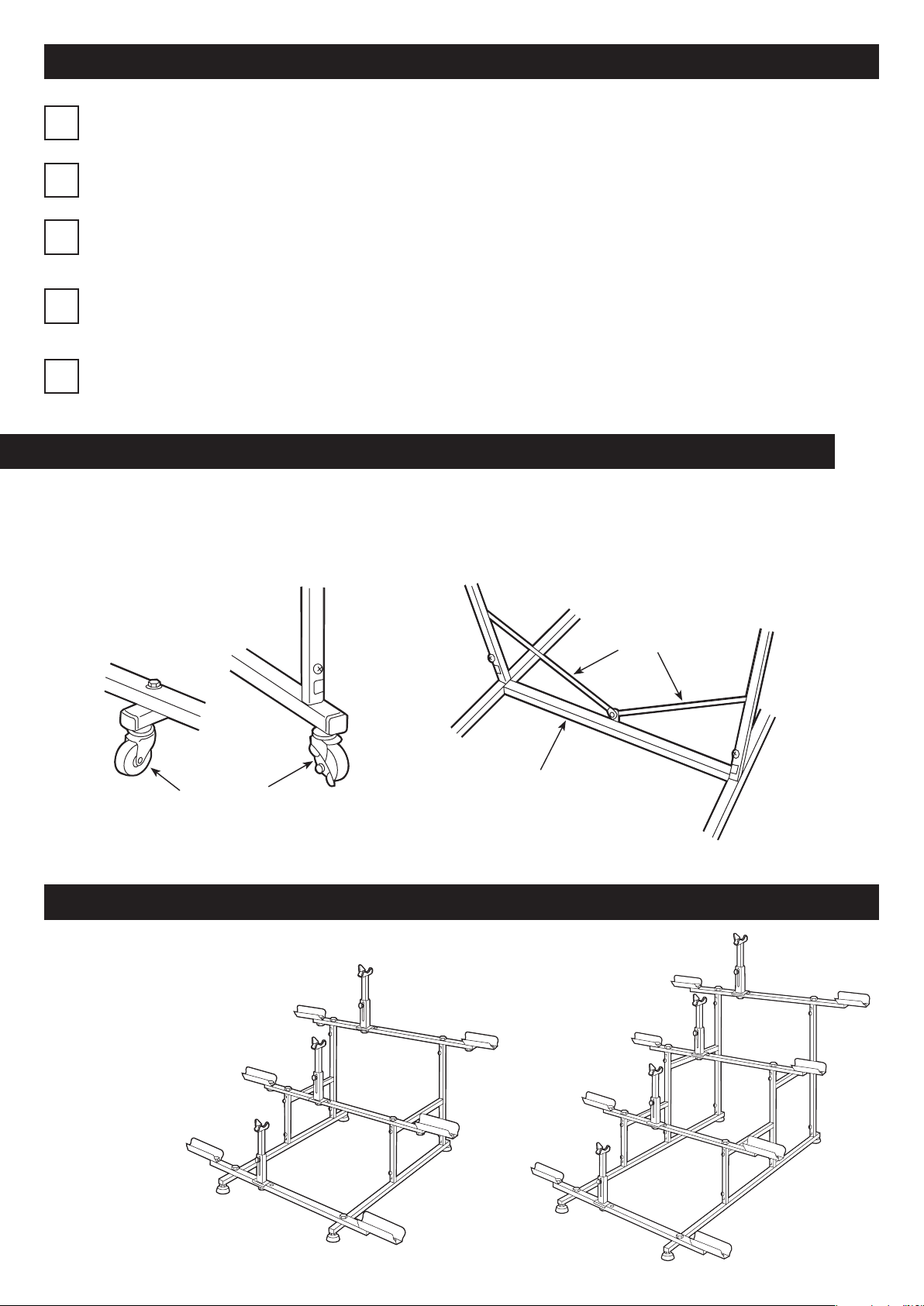

Completed image and dimensions of 971-3H

(in the settings the bikes facing rightward)

850mm

IMPORTANT NOTES

!

• For standard 2-wheel bike only. No recumbent, tandem and any other type of bikes.

• For 24-inch wheel or larger only. Any bike with smaller wheel such as BMX or juvenile bike, and a special bike
with too low bottom bracket height or carbon monocoque frame may not t to this stand.

• In the case of electric bike, the weight limit is 30 kgs each.

• The bike is supported at just 3 points; front tire, rear tire and the bottom bracket. Adjust the BB Support height

precisely in each case to expect maximum stability.

• The bike direction is xed as per the Stair Frame direction. Wrong direction cannot mount the bike properly.

• Do not step on this stand. The stand body is not so durable to support your weight.

• Setup this stand on horizontal and level oor, especially when installing the optional Caster Kit.

• When moving this stand, get off all bikes from the stand before action.

• Check regularly if each bolt and nut are rmly tightened.

Contact

MINOURA JAPAN

1197-1 Godo, Anpachi, Gifu 503-2305 Japan

Phone [phone] / Fax [phone]

[e-mail] http://www.minoura.jp

Made in Japan

How To Assemble 971-3H

Required Tools

First of all, check all small parts are correctly prepared.

1

Parts List

2 x Base Frame 8 x Round Head Screw M5x40

3 x Stair Frame 9 x Hex Head Bolt M8x35

2 x Pillar-S (792mm) 12 x Hex Head Bolt M8x45

2 x Pillar-M (1,042mm) 15 x Metal Collar (short)

2 x Pillar-M (1,292mm) 6 x Metal Collar (long)

4 x Joint Frame 8 x M5 Spring Washer

3 x B.B. Support 21 x M8 Spring Washer

6 x Tire Cradle 21 x M8 Flat Washer

4 x Foot Adjuster 6 x M8 Nut

Assemble 2 sets of Side Frame.

2

At first, connect Pillar (1,292mm) and Pillar (1,042mm)
with Joint Frame. Make sure you attach Joint Frame to
the tube end hole on Pillar (1,042mm).
Then connect Pillar (792mm) to this assembly.

Pillar

(1,292mm)

1 x Phillips Screwdriver (#2)
2 x 13mm Socsket Wrench

Foot Adjuster

Collar (long)
M8 Flat Washer
M8 Spring Washer
Hex Bolt M8x45

Base Frame

Joint Frame

Pillar

(1,042mm)

Pillar

(792mm)

M5x40 Screw
M5 Spring Washer

Do not miss the direction of Pillar (1,042mm).

!

Failure causes a problem that the pillars won't
align.

Install Stair Frames on the pillars.

5

Set all frames in the same direction if you wish to set the
bikes in same direction.

Hex Bolt M8x45
M8 Spring Washer
M8 Flat Washer
Collar (short)

Stair Frame

Assemble Base Frame with each Side Frame.

3

Install Foot Adjusters on both ends of Base Frame.
The larger hole on Base Frame must be downward.

To avpoid stain to the oor or carpet, put

!

the supplied round transparent lm on each
back of Foot Adjuster.

- 2 -

Make sure there are two (2) holes on each Stair

!

Frame for mounting Bottom Bracket Support.
To set the bike heading right, place Stair Frame
to have the holes in left side.
