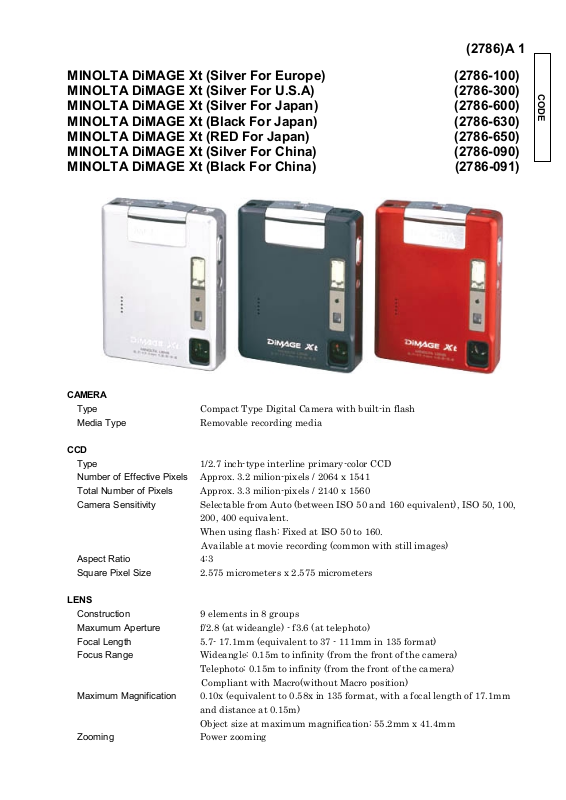

MINOLTA DIMAGE XT Service Manual Specifications

(2786)A 1

MINOLTA DiMAGE Xt (Silver For Europe) (2786-100)
MINOLTA DiMAGE Xt (Silver For U.S.A) (2786-300)
MINOLTA DiMAGE Xt (Silver For Japan) (2786-600)
MINOLTA DiMAGE Xt (Black For Japan) (2786-630)
MINOLTA DiMAGE Xt (RED For Japan) (2786-650)
MINOLTA DiMAGE Xt (Silver For China) (2786-090)

MINOLTA DiMAGE Xt (Black For China) (2786-091)

CODE

CAMERA

Type Compact Type Digital Camera with built-in flash
Media Type Removable recording media

CCD

Type 1/2.7 inch-type interline primary-color CCD
Number of Effective Pixels Approx. 3.2 milion-pixels / 2064 x 1541
Total Number of Pixels Approx. 3.3 milion-pixels / 2140 x 1560
Camera Sensitivity Selectable from Auto (between ISO 50 and 160 equivalent), ISO 50, 100,

200, 400 equivalent.
When using flash: Fixed at ISO 50 to 160.
Available at movie recording (common with still images)

Aspect Ratio 4:3
Square Pixel Size 2.575 micrometers x 2.575 micrometers

LENS

Construction 9 elements in 8 groups
Maxumum Aperture f/2.8 (at wideangle) - f3.6 (at telephoto)
Focal Length 5.7- 17.1mm (equivalent to 37 - 111mm in 135 format)
Focus Range Wideangle: 0.15m to infinity (from the front of the camera)

Telephoto: 0.15m to infinity (from the front of the camera)
Compliant with Macro(without Macro position)
Maximum Magnification 0.10x (equivalent to 0.58x in 135 format, with a focal length of 17.1mm

and distance at 0.15m)
Object size at maximum magnification: 55.2mm x 41.4mm
Zooming Power zooming

2 (2786)A

AUTO FOCUS

Control Video AF System
Autofocus Sensitivity Range Wideangle: BV –4.5 to 11.5, Telephoto: BV –4.0 to 12.2
Focus Lock Available (by pressing the shutter-release button partway down)

CODE

Focus Frame Selectable from wide focus / spot focus.

EXPOSURE CONTROL

Control Programmed AE
Metering Multi-segment (256 segments), Spot metering
Metering Range Wideangle: BV –4.5to 11.5, Telephoto: BV –4.0 to 12.2
Exposure Range Wideangle: EV 1.0 to 15.5, Telephoto: EV 1.7 to 16.2

(ND filter cuts luminance value by 2.5EV in bright condition)

AE Lock Available (by pressing the shutter-release button partway down)
Exposure Compensation -2 to +2EV (in 1/3EV step)
Shutter CCD electronic shutter and mechanical shutter in combination
Shutter Speed 1/1000 to 4 sec.

WHITE BALANCE CONTROL

Type TTL
Modes Auto, Preset (Daylight, Cloudy, Tungsten, Fluorescent)

Available at movie recording (common with still images)

FLASH

Type P-TTL
Built-in Flash Angle Fixed (coverage is equivalent to 37mm lens in 135 format)
Modes Autoflash, Autoflash with red-eye reduction, Fill-flash, Flash cancel,

Guide Number 7.2 (at ISO 100 in meters)
Flash Range

Recycling Time Approx. 6 sec.

VIEWFINDER

Type Optical real-image zoom viewfinder
Field-of-view Approx. 70 %
Eye-Relief 15.3mm (from the eyepiece)

14mm (from the eyepiece frame)

Magnification 0.32 to 0.91 x
Diopter -1 diopter

IMAGE DATA STORAGE

A/D conversion 10bit
Data Storage Media SD (Secure Digital) Memory Card, Multimedia Card
File Format JPEG, TIFF, Motion JPEG (MOV), DCF 1.0-compliant

DPOF-compliant (Supported by printing functions in ver. 1.1)

Night portrait (with red-eye reduction)

Sensitivity

AUTO 0.15 to 3.2m 0.15 to 2.5m
ISO50 0.15 to 1.8m 0.15 to 1.4m

ISO100 0.15 to 2.5m
ISO200 0.15 to 3.6m 0.15 to 2.8m

ISO400 0.15 to 5.1m 0.15 to 4.0m

W T

0.15 to 2.0ｍ

Folder name Std. Form, date form
Exif Print Compliant (Exif 2.2)
PRINT Image Matching II Compliant
Recorded Image Size Still Images 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480

Movie 320x240, 160x120

Image Quality Modes Economy, Standard, Fine, TIFF
Color Modes Color, B&W, sepia
Noise Reduction Selectable

Compression Ratio and File Size


Quality
Economy 1/16 440 KB 290KB 210KB 90KB
Standard 1/8 820KB 520KB 360KB 130KB

Fine 1/4 1.6MB 990KB 660KB 210KB

TIFF Uncompressed 9.1MB 5.5MB 3.6MB 950KB

Movie

(320X240)

Movie

(160X120)

Audio file size Approx: 8KB/s

Storage Capacity 16MB SD Memory Card

32MB SD Memory Card

64MB SD Memory Card

Compression

Ratio

Actual compression ratio and file size are depending on the subject.

Quality

Movie(320x140) 41 seconds

Movie(160X120) 2 min 30 sec.

Quality

Movie(320x240) 1 min 26 seconds
Movie(160x120) 5 min 15 sec.

Quality

2048 x 1536 1600 x 1200 1280 x 960 640 x 480

340KB/sec. (NTSC)

285KB/sec. (PAL)

340KB/sec.(NTSC)

285KB/sec.(PAL)

Image Size

2048 x

Economy 32 47 69 150
Standard 17 27 39 100

Fine 9 14 22 69

TIFF 1 2 3 14

Audio Rec. 30min 51 sec.

Image Size

2048 x

Economy 67 99 145 315
Standard 36 57 82 210

Fine 18 30 46 145

TIFF 3 5 8 31

Audio Rec. 64 min 38 sec.

Image Size

2048 x

Economy 138 203 298 645
Standard 74 117 168 430

Fine 38 61 94 298

File Size (Approx.)

Storage Capacity (Approx.)

1536

Storage Capacity (Approx.)

1536

Storage Capacity (Approx.)

1536

1600 x

1200

1600 x

1200

1600 x

1200

1280 x

960

1280 x

960

1280 x

960

(2786)A 3

640 x 480

640 x 480

640 x 480

CODE
