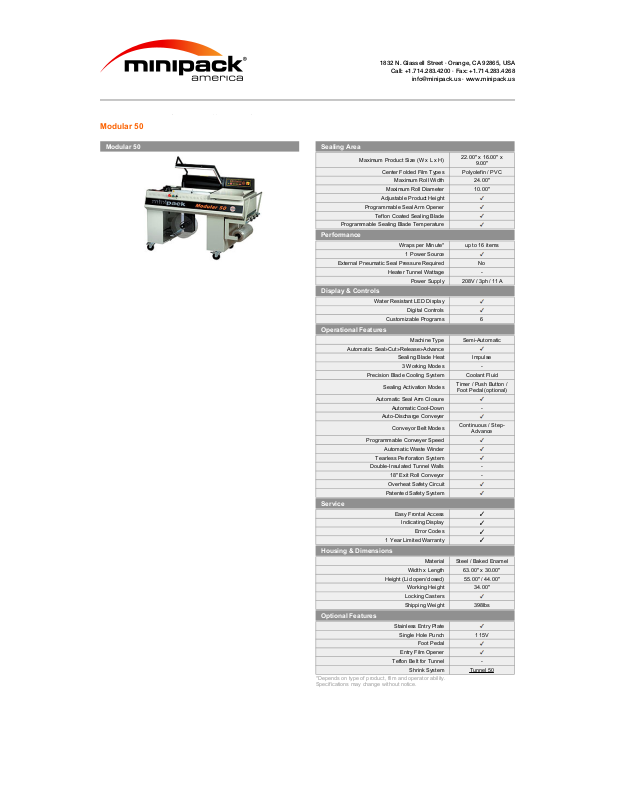

Modular 50

Modular 50

Sealing Area

Performance

Display & Controls

Operational Features

Service

Housing & Dimensions

Optional Features

*Depends on type of product, film and operator ability.
Specifications may change without notice.

Maximum Product Size (W x L x H)

Center Folded Film Types Polyolefin / PVC

Maximum Roll Width 24.00"

Maximum Roll Diameter 10.00"

Adjustable Product Height

Programmable Seal Arm O pener

Teflon Coated Sealing Blade

Programmable Sealing Blade Temperature

Wraps per Minute* up to 16 items

1 Power Source

External Pneumatic Seal Pressure Required No

Heater Tunnel Wattage -

Power Supply 208V / 3ph / 11A

Water Resistant LED Display

Digital Controls

Customizable Programs 6

Machine Type Semi-Automatic

Automatic: Seal»Cut»Release»Advance

Sealing Blade Heat Impulse

3 Working Modes -

Precision Blade Cooling System Coolant Fluid

Sealing Activation Modes

Automatic Seal Arm Closure

Automatic Cool-Down -

Auto-Discharge Conveyer

Conveyor Belt Modes

Programmable Conveyer Speed

Automatic Waste Winder

Tearless Perforation System

Double-Insulated Tunnel Walls -

18" Exit Roll Conveyor -

Overheat Safety Circuit

Patented Safety System

Easy Frontal Access

Indicating Display

Error Codes

1 Year Limited Warranty

Material Steel / Baked Enamel

Width x Length 63.00" x 30.00"

Height (Lid open/closed) 55.00" / 44.00"

Working Height 34.00"

Locking Casters

Shipping Weight 398lbs

Stainless Entry Plate

Single Hole Punch 115V

Foot Pedal

Entry Film Opener

Teflon Belt for Tunnel -

Shrink System Tunnel 50

22.00" x 16.00" x

9.00"

Timer / Push Button /
Foot Pedal (optional)

Continuous / Step-

Advance

✓
✓
✓
✓
