Page 1

Engine

Engine Model Cat®C9 ACERT™ Net Flywheel Power 200 kW 268 hp

Weights

General Forestry (HW) 41 426 kg 91,344 lb Log Loader (U/U) 45 801 kg 100,991 lb Log Loader (O/U) 46 261 kg 102,005 lb

• Operating weight with front linkage, without bucket or grapple.

330D FM

Forest Machine

Page 2

330D FM Forest Machine

The D Series incorporates innovations for improved performance, rugged durability and maximum productivity.

Caterpillar®Grapples

Cat®Log Loading Grapples combined with Cat Forest Machines make the 330D FM flexible, versatile and efficient enough, allowing you to maximize productivity on your forestry job. pg. 12

Versatility

Designed and purpose-built to meet diverse forestry applications, the 330D FM can help improve productivity in various forestry and millyard applications. pg. 11

Operator Comfort

Spacious purpose built forestry cab with excellent sightlines to the work area with 8 lights and all scratch resistant polycarbonate windows. pg. 6

Hydraulics

Forest Machine hydraulic systems are designed to provide reliability, outstanding controllability and proven performance in various forestry applications. pg. 5

Power Train

The Cat®C9 with ACERT™ Technology gives the 330D FM exceptional power and fuel efficiency unmatched in the industry. The C9 meets U.S. EPA Tier 3 emissions requirements. pg. 4

Customer Focus

Down time is minimized by the utilization of a worldwide computer network that can help find in-stock parts and minimize your down time. Your Cat dealer can also offer a wide range of other services that can be set up to meet your equipment needs. The dealer will help choose the plan that can cover everything from machine and attachment selection to replacement. pg. 15

Page 3

Serviceability

The new FM cooling package provides easy access to all radiator cores for faster cleanouts. Regularly scheduled maintenance extends machine service life and lowers overall operating costs.

pg. 14

Owning and Operating Costs

Proven fuel efficiency combined with easier access and extended service intervals maximize uptime, reduce operating costs and maximize productivity. pg. 13

Undercarriage

Heavy Duty link assemblies provide toughness and durability. The FM track will maximize undercarriage life and minimize operating costs. pg. 10

Guarding

Factory forestry cab guarding, shoe support guards and heavy-duty access doors help extend component life, reduces downtime and helps to protect your forestry machine investment. pg. 9

Structures

Purpose-built carbody design uses the most advanced manufacturing processes, ensuring durability and reliability in the most rugged forestry applications. pg. 8

Page 4

Cat C9 ACERT™. The Cat®C9 with ACERT™ Technology gives the 330D FM exceptional power and fuel efficiency unmatched in the industry. The C9 meets U.S. EPA Tier 3 emissions requirements. The forestry designed hydraulics give the 330D FM exceptional power, efficiency and controllability unequaled in the industry for consistently high performance in all forestry applications.

Performance. The 330D FM, equipped with the C9 engine with ACERT Technology, provides 9% more horsepower as compared to the C9 in the 330D FM.

Automatic Engine Speed Control.

The two-stage, one-touch control maximizes fuel efficiency and reduces sound levels.

ADEM™ A4 Engine Controller.

The ADEM A4 electronic control module manages fuel delivery to get the best performance per liter of fuel used. The engine management system provides flexible fuel mapping, allowing the engine to respond quickly to varying application needs. It tracks engine and machine conditions while keeping the engine operating at peak efficiency.

Electronic Control Module.

The Electronic Control Module (ECM) works as the “brain” of the engine’s control system, responding quickly to operating variables to maximize engine efficiency. Fully integrated with sensors in the engine’s fuel, air, coolant, and exhaust systems, the ECM stores and relays information on conditions such as RPM, fuel consumption, and diagnostic information.

Fuel Delivery. The Cat C9 ACERT features electronic controls that govern the fuel injection system. Multiple injection fuel delivery involves a high degree of precision. Precisely shaping the combustion cycle lowers combustion chamber temperatures, generating fewer emissions and optimizing fuel combustion. This translates into more work output for your fuel cost.

Cooling System. The cooling fan is directly driven from the engine. An optional programmable reversible fan allows for radiator blowout, to increase service intervals and to maintain engine operational temperatures. The optimum fan speed is calculated based on the target engine speed, coolant temperature, hydraulic oil temperature and actual fan speed. The Cat C9 ACERT delivered a completely new layout that separates the cooling system from the engine compartment.

Air Cleaner. The radial seal air filter features a double-layered filter core for more efficient filtration and is located in a compartment behind the cab. A warning is displayed on the monitor when dust accumulates above a preset level.

Noise Reduction Technologies.

The engine mounts are rubber-isolating mounts matched with the engine package. Further noise reduction has been achieved through design changes to the isolated top cover, oil pan, multiple injection strategy, insulated timing cover, sculpted crankcase and gear train refinements.

Power Train

The Cat®C9 has exceptional power and fuel efficiency unmatched in the industry for consistently high performance in both forestry and millyard applications.

Page 5

Component Layout. The 330D FM hydraulic system and component locations have been designed to provide a high level of system efficiency. The main pumps, control valves and hydraulic tank are located close together to allow for shorter tubes and lines between components that reduce friction loss and pressure drops in the lines. The layout further provides greater operator comfort by placing the radiator on the cab side of the upper structure.

This allows incoming air to enter the engine compartment from the operator side and hot air and corresponding engine sound to exit on the opposite side away from the operator. This reduces engine compartment heat and sound being transmitted to the operator.

Pilot System. The pilot pump is independent from the main pumps and controls the front linkage, swing and travel operations.

Hydraulic Cross Sensing System.

The hydraulic cross sensing system improves productivity with faster implement speeds and quicker, stronger pivot turns.

Boom and Stick Regeneration Circuit.

Boom and stick regeneration circuit saves energy during boom-down and stick-in operation which increases efficiency, reduces cycle times and pressure loss for higher productivity, lower operating costs and increased fuel efficiency.

Fine Swing Control. Standard fine swing control cushions start and stop for better implement control.

Controllability. The hydraulic system offers precise control to the 330D FM reducing operator fatigue, improving operator effectiveness and efficiency, which ultimately translates into enhanced performance.

Auxiliary Hydraulic Valve. The auxiliary valve is standard on the 330D FM. Control Circuits are available as attachments, allowing for operation of high and medium pressure tools such as grapples.

Hydraulic Cylinder Snubbers.

Snubbers are located at the rod-end of the boom cylinders and both ends of the stick cylinders to cushion shocks, reduce sound and increase cylinder life, increasing uptime and productivity.

Hydraulics

Cat®hydraulics provide the power and control needed for a variety of applications.

Page 6

Operator Station. The workstation is spacious, quiet and comfortable, assuring high productivity during a long work day. Controls, joysticks and an ergonomically designed seat reduces operator fatigue.

Pre-Start Check. Prior to starting the machine, the system will check for low fluid levels for the engine oil, hydraulic oil and engine coolant and warn the operator through the monitor in the event display area.

Monitor. The monitor is a full color 400  234 pixels Liquid Crystal Display (LCD) graphic display. The monitor angle can be adjusted to minimize sun glare and has the capability of displaying information 27 different languages.

The purpose built forestry cab interior layout maximizes operator space, provides exceptional comfort, provides excellent sightlines and reduces operator fatigue.

Operator Comfort

Page 7

Gauge Display. Three analog gauges,

fuel level, hydraulic oil temperature and coolant temperature, are displayed in this area.

Event Display. Machine information is displayed in this area with the icon and language.

Multi-Information Display. This area is reserved for displaying various information which is convenient for the operator. The “Cat” logo is displayed when no information is available to be displayed.

Seat. Seat provides a variety of adjustments to suit the operator’s size and weight including fore/aft, height and weight. Wide adjustable armrests and a retractable seat belt are also included.

Joystick Control. Joystick controls have low lever effort and are designed to match the operator’s natural wrist and arm position. The operator can operate joystick controls with an arm on the armrest and the horizontal and vertical strokes have been designed to reduce operator fatigue. Exclusive proportional control and push buttons are programmable to operator personal preferences, allowing maximum productivity.

Hydraulic Activation Control Lever.

For added safety, this lever must be in the operate position to activate the machine control functions.

Console. Redesigned consoles feature a simple, functional design to reduce operator fatigue, ease of switch operation and excellent visibility.

Skylight. An enlarged skylight with sunshade provides excellent upwards visibility.

Viewing. Cab design optimizes post structures, and scratch-resistant polycarbonate window placement to provide excellent operator visibility to front, sides and rear. Forestry cab is designed with heavy-duty guarding, meeting FOPS/OPS/FOGS/TOPS and CB requirements.

Page 8

Rugged main frame design maximizes durability.

• Outer frame utilizes curved side rails, which are di-formed for excellent uniformity and strength.

• Box-section channels improve upper frame rigidity under the cab.

• Inverted U-channels span the width of the main frame and are formed, rather than fabricated, for superior strength and reduced weight.

• Boom tower and main rails are constructed of solid, high-tensile strength, steel plates.

• Boom foot and engine mount areas are reinforced for additional strength.

• Sheet metal supporting structure is improved by integrating the mounting into the upper frame structure.

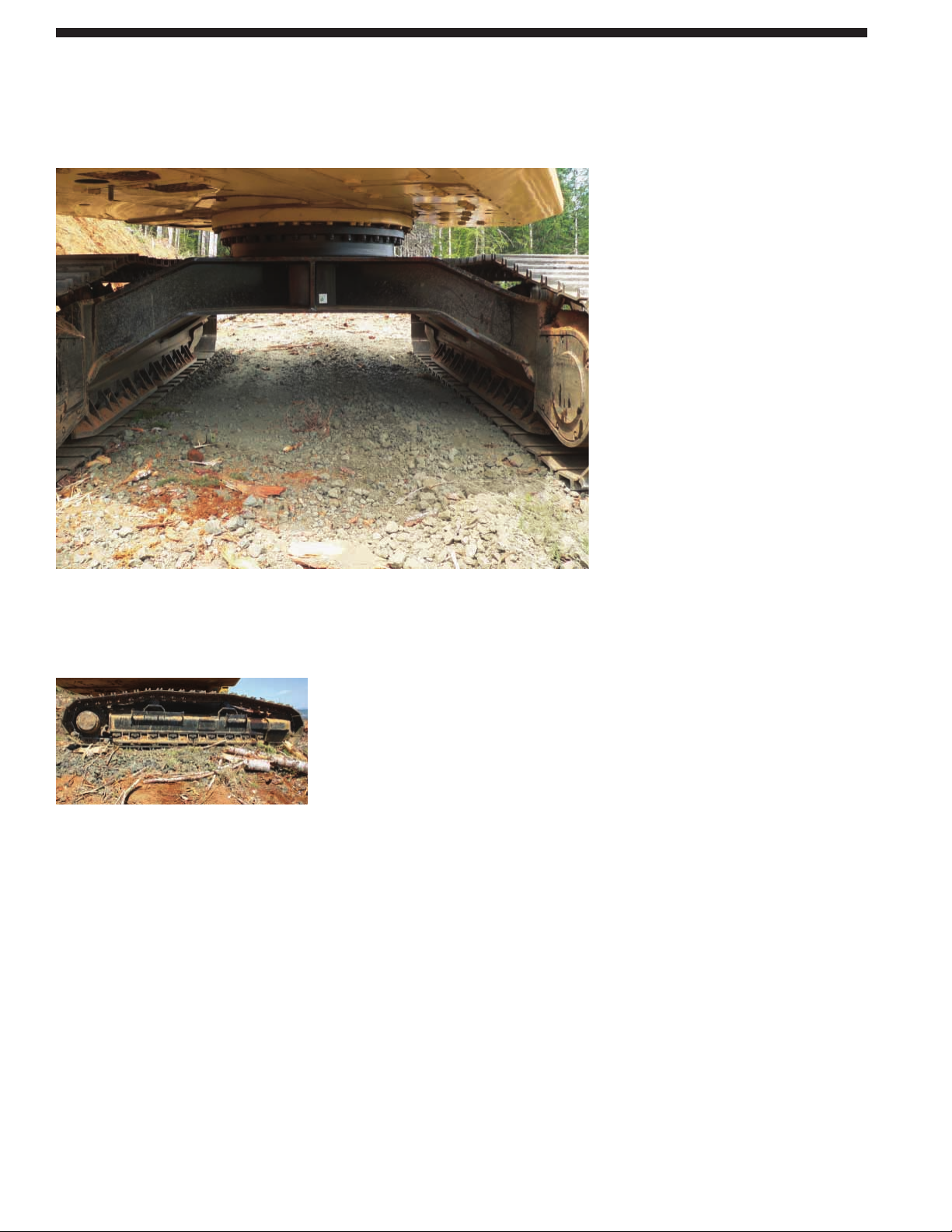

Carbody Design. Advanced, reinforced, purpose-built carbody design stands up in the toughest forest applications.

Carbody Structure. Wide, tall, and thick carbody structure provides operating stability and durability while improving operation’s effectiveness.

• Upper structure weight and stresses are distributed evenly across the full length of the track roller frame.

• Smooth transitions and long welds help reduce stresses at the carbodyto-roller frame junctions for excellent durability.

• Robot welding helps ensure consistent, high-quality welds throughout the manufacturing process.

Structures

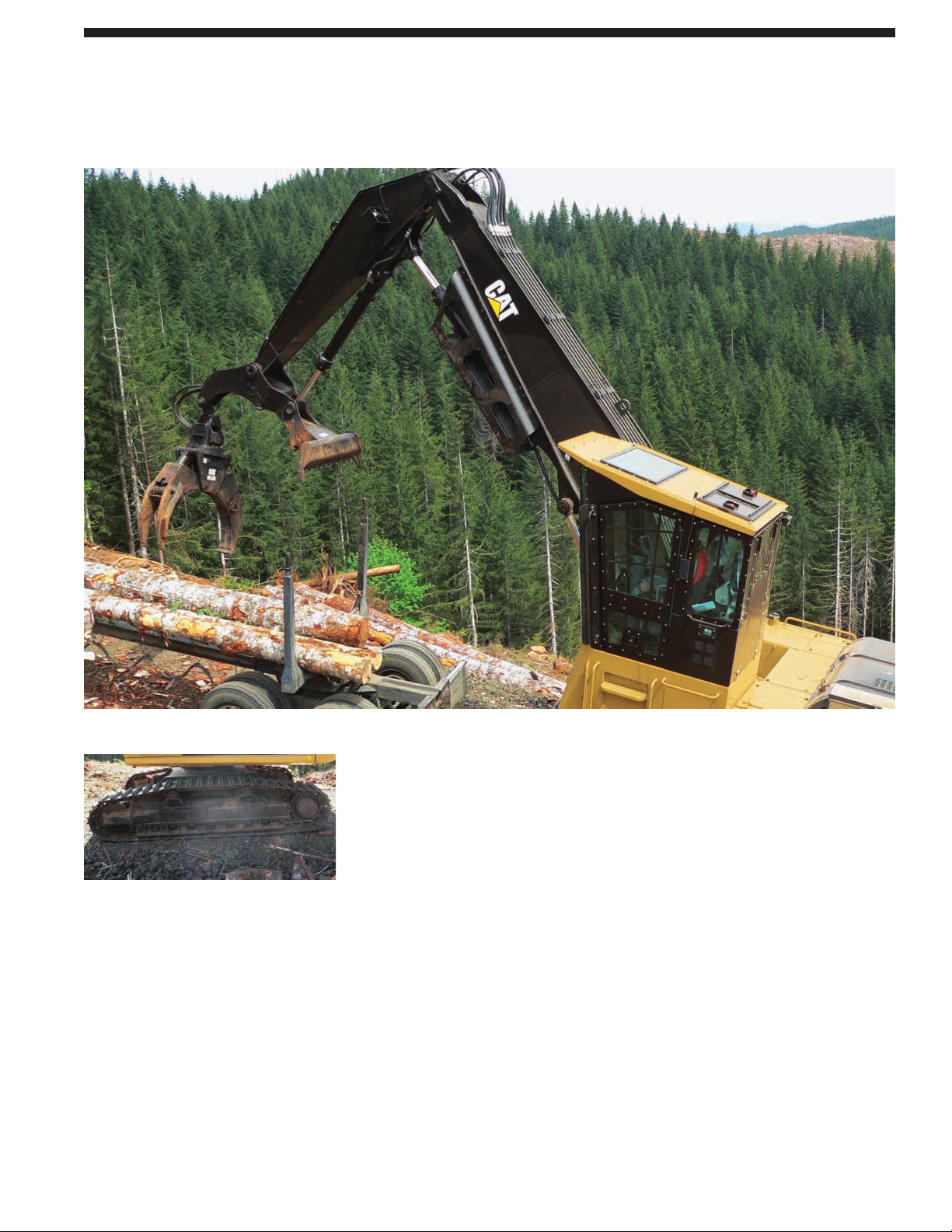

Purpose-built forest applications with reinforced carbody, rugged swing bearing, heavy doors and extra guarding.

Page 9

Shoe Support Guards. Standard full length track shoe support guards help protect rollers and provide increased rigidity to track links in rough underfoot conditions.

Factory Forestry Cab. Caterpillar factory forestry designed and built FOPS cab has options for windshield guard and window guards to meet local guarding requirements. The right side and rear windows are made from impact resistant polycarbonate.

Heavy-Duty Access Doors. Heavy-duty access doors are standard on the 330D FM and are made from 6 mm (0.24 in), highstrength, low alloy steel. Positive locking latch stays closed in forestry applications. Hinges have larger diameter pins over standard doors. The smooth door profile enhances machine appearance.

Guarding

Caterpillar guarding protects your forestry machine investment.

Page 10

Heavy-Duty Top Rollers. Track rollers with dual supports replace carrier rollers to assure superior endurance.

Heavy-Duty Track Rollers. Heavy-duty track rollers stand up to the toughest forest applications. Features include greater sealability, higher resistance to deformation and greater load carrying capacity.

Heavy-Duty Grease Lubricated Track.

The 345 HD Track Link with 216 mm (8.5 inch) pitch and 9 bottom rollers is standard on the 330D FM.

1) Grease Lubricated Track.

• Extends internal bushing wear life

• Reduces noise

• Provides more usable horsepower because of decreased internal friction

• Reduces chance for frozen track joints

2) 10% Larger Bushing Diameter.

• Extends external bushing wear life

3) Greased Pin and Larger

Bushing Combined.

• Extends system life

• Reduces sprocket wear because the system stays matched longer

• Improves balance in component wear life

4) 15% Increase in Link Height.

• Increases link wear life

5) 36% Wider Bushing Strap.

• Improves bushing-to-link retention

6) Unique Pin Retention System.

• Locks the pin to the link

Undercarriage

Durable undercarriage absorbs stresses and provides excellent stability.

Page 11

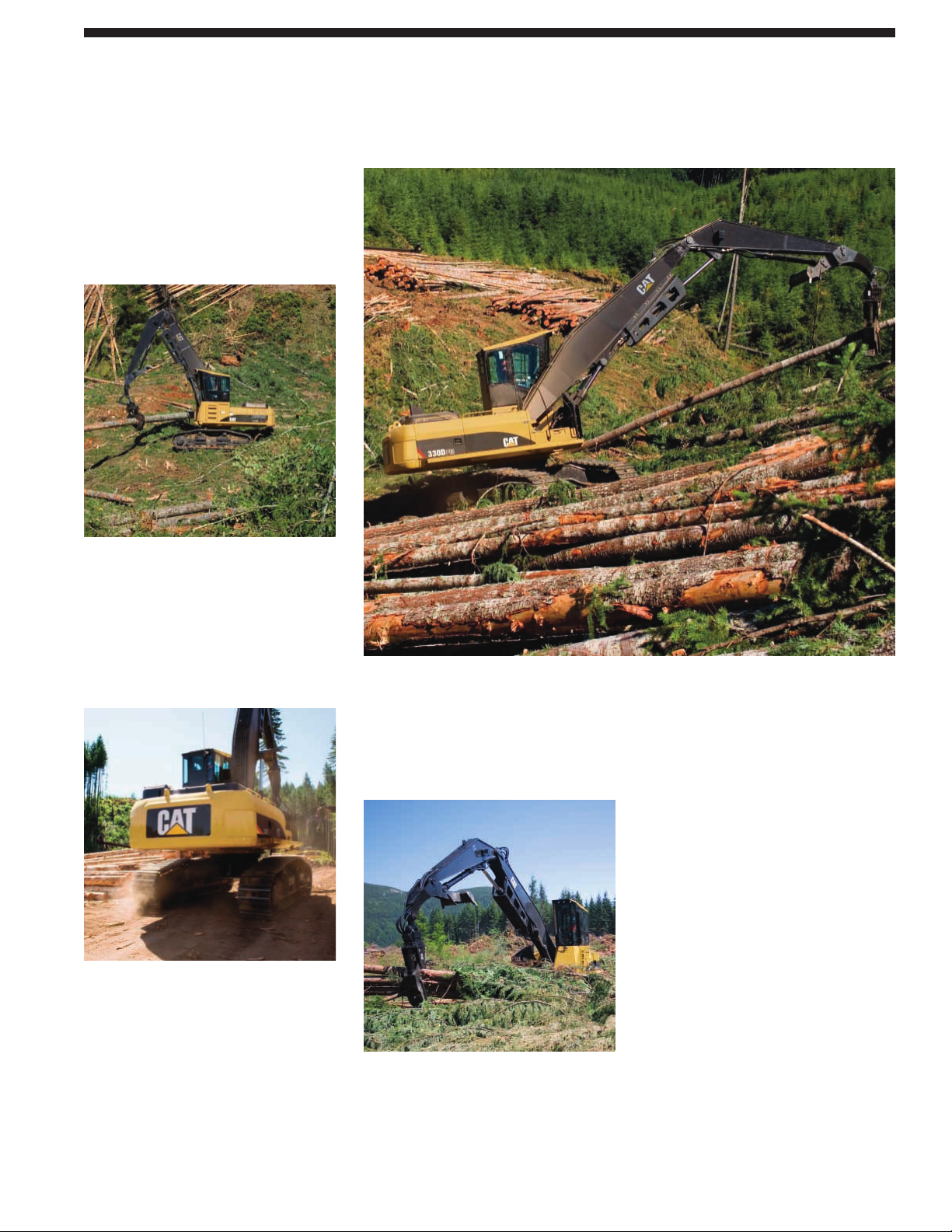

The Caterpillar Log Loader is Purpose Built. The Caterpillar log loader is

purpose built for forest applications. Completely assembled, heel-type log loaders (including grapple) are available from the factory.

The Caterpillar Heel-Type Loader Arrangements. The Caterpillar heel-

type loader arrangements fit a wide variety of log handling and loading applications in the woods and millyards. Heel booms are especially well-suited for use with large diameter sawlogs and tree length loads.

Caterpillar Roadbuilders. Caterpillar Roadbuilders can be equipped with buckets, thumbs, clamshells and clearing grapples to fit a wide range of forest road jobs.

Applications Include. Moving right-ofway logs, stumping, pioneering, stripping organic material, excavating shot rock, truck loading, back sloping, ditching, finish grading and slash piling.

Butt-N-Top. The 330D FM can be shipped from the factory with an optional hydraulic arrangement and controls for AEM Butt-N-Top grapple installation, and a 11.3 m (37 foot) front ready for AEM installed rear entry cab.

Versatility

A wide selection of Forest Machine configurations meet diverse forestry applications and improve your productivity.

Page 12

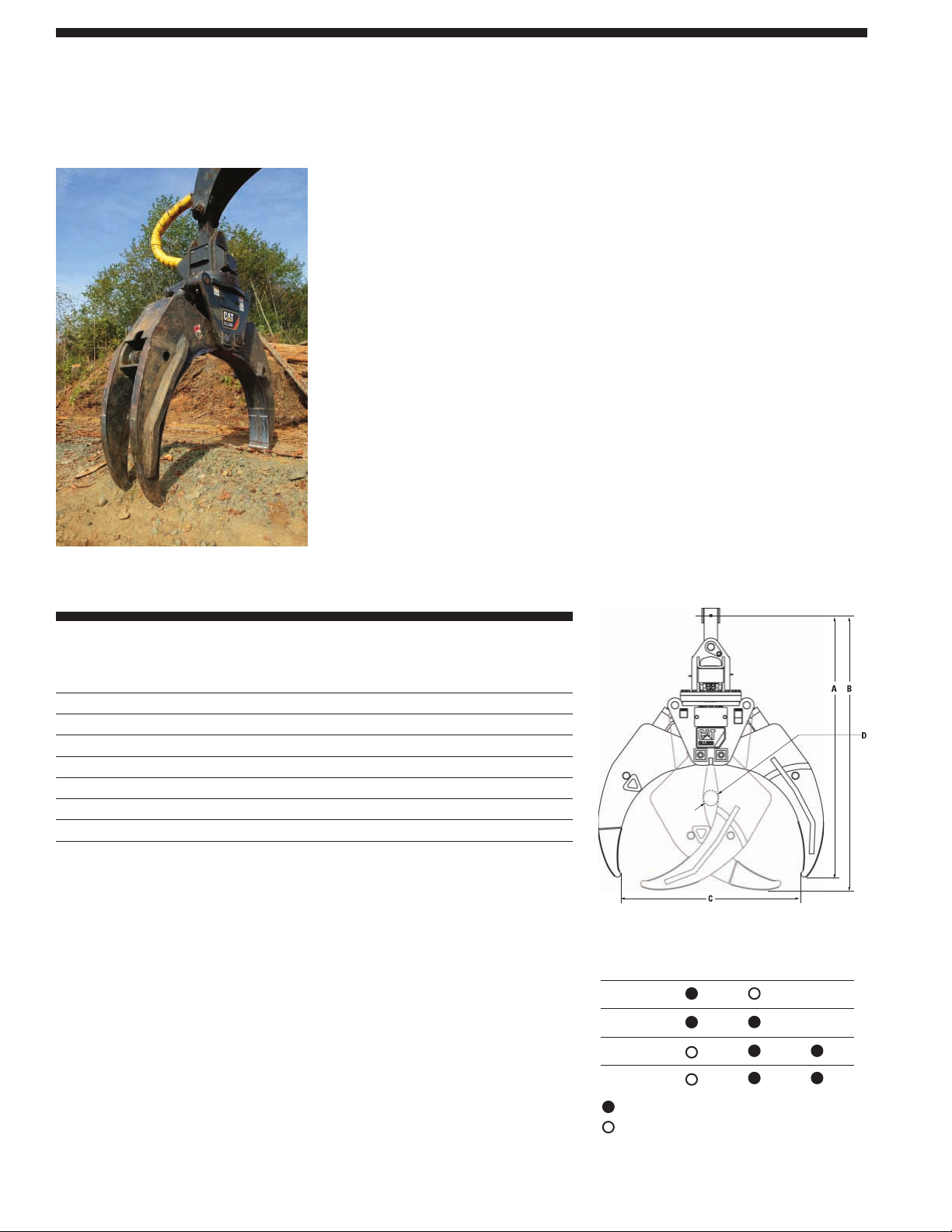

Cat 360 Degree Continuous Rotating Log Loader Grapples. Cat 360 Degree

Continuous Rotating Log Loading Grapples for Forestry Machines are high capacity tools, built for endurance in high-volume logging applications. GLL grapple legs are made of highstrength alloy steel with unique leg profiles for maximum performance in picking/sorting, bunching/loading or shoveling applications. Large bunches of stems or single large logs are easily handled by the wide grapple opening 1524 mm (60 inch), while interlocking legs close down to 127 mm (5 inch) for picking and sorting. Cat grapples have bolt-on access panels allowing for easy serviceability and are backed by the world-class Caterpillar Dealer Network.

360-Degree Continuous Rotation.

High torque hydraulic motor positions the grapple precisely for rapid sorting and loading.

Hydraulic Cylinders. Heavy-duty wall construction delivers durability and maximum closing power move the maximum amount of wood per pass.

Legs. Built with high-strength alloy steel for maximum durability. Optimized profile performs equally well whether sorting, bunching or shoveling.

Pin. Induction-hardened alloy pins float, decreasing wear.

Serviceability. Bolt-on access panels protect the grapples internal components, while providing easy access. Long service intervals and infield servicing result in more uptime and lower operating costs.

Caterpillar Grapples

Caterpillar Forest Machines combined with Cat Log Loading Grapples mean optimal performance, reliability and on-the-job productivity.

GLL Specifications/Dimensions

GLL52B GLL55B GLL60B

Weight (kg/lb) 1255/2,767 1291/2,840 1344/2,965

Width (mm/in) 1725/68 1765/70 1935/76

A Height, open (mm/in) 2134/84 2184/86 2261/89

B Height, closed (mm/in) 2159/85 2210/87 2286/90

C Maximum Opening (mm/in) 1321/52 1397/55 1524/60

D Minimum Opening (mm/in) 127/5 127/5 127/5

Rotation, continuous 360° 360° 360°

Rotation torque at 1,200 psi (N·m/ft lb) 1153/850 1153/850 1153/850

Matching Guide

GLL52B GLL55B GLL60B

320 FM

324 FM

325 FM

330 FM

Provides optimum machine match. Provides acceptable machine match.

Page 13

ACERT™ Technology Fuel Economy.

Based on Caterpillar testing, the fuel economy of Cat engines with ACERT technology is 3 to 5 percent better than current competing technologies. This fuel economy is directly related to the complete combustion of fuel due to the integration between the electronic control that monitors conditions, the air management system that controls air volume and the fuel injection system that delivers just the right amount of fuel as needed.

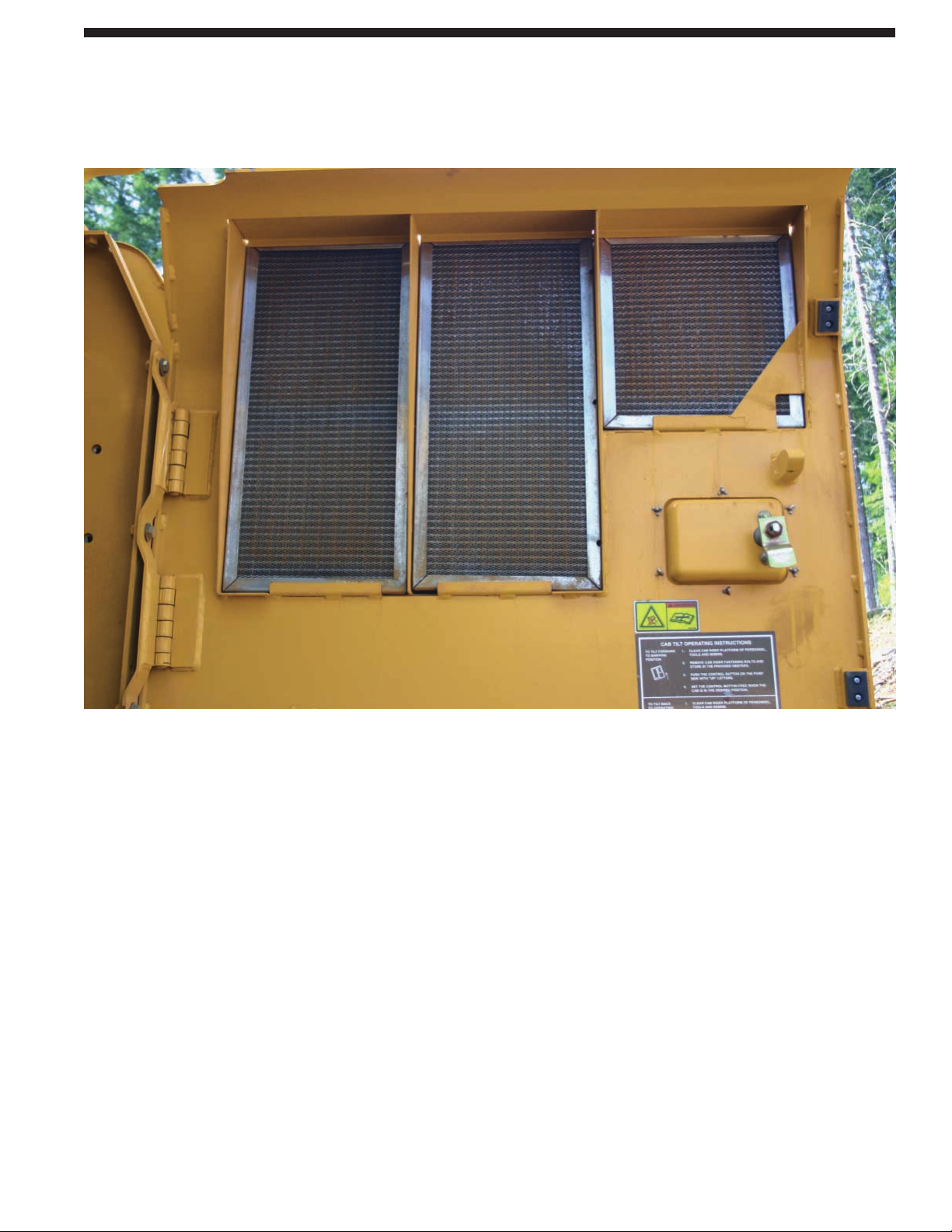

Radiator Compartment. The radial air filter has a double layered filter core for more efficient filtration and is located in a compartment behind the cab. Easy access doors allows for easy, faster cleanout minimizing down time. Heavy-duty screen filters assembled on the door keep debris away from the radiator compartment, extending service intervals.

Owning and Operating Costs

Caterpillar Forest Machines provide the best value for your forestry and millyard applications.

Page 14

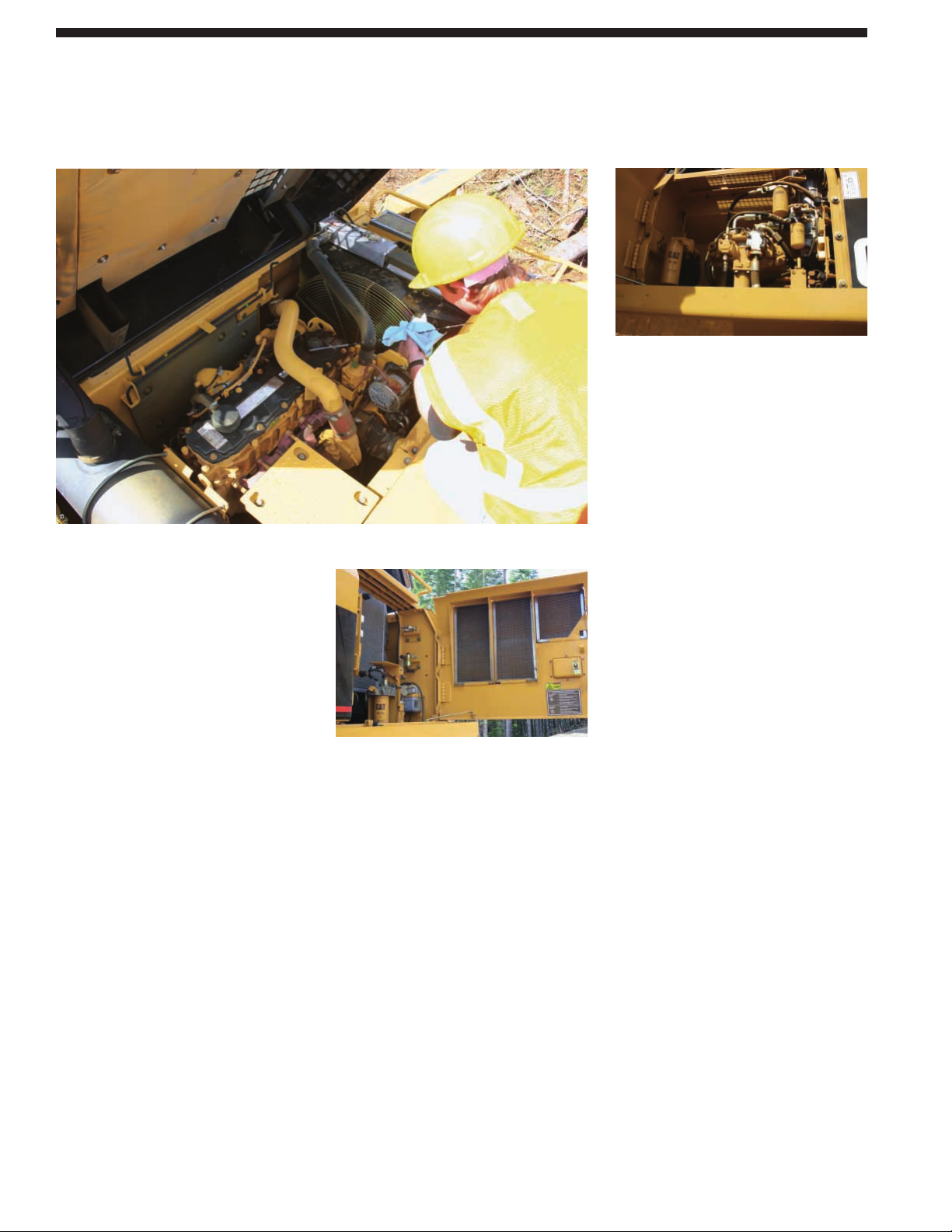

Ground Level Service. The design and layout of the 330D FM was made with the service technician in mind. Many service locations are easily accessible at ground level allowing critical maintenance to get done quickly and efficiently.

Air Filter Compartment. The air filter features a double-element construction for superior cleaning efficiency. When the air cleaner plugs, a warning is displayed on the monitor screen inside the cab. Pump Compartment. A service door on the right side of the upper structure allows ground-level access to the pump and pilot filter.

Radiator Compartment. The left rear service door allows easy access to the engine radiator, oil cooler and air-to-air aftercooler. A reserve tank and drain cock are attached to the radiator for simplified maintenance.

Grease Lubricated Track. Grease lubricated seals protect the track link and deliver long track pin and bushing inner wear life.

Capsule Filter. The hydraulic return filter, a capsule filter, is situated outside the hydraulic tank. This filter prevents contaminants from entering the system when hydraulic oil is changed and keeps the operation clean.

Fan Guard. Engine radiator fan is completely enclosed by fine wire mesh, reducing the risk of an accident.

Anti-Skid Plate. Anti-skid plate covers top of storage box and upper structure to prevent slipping during maintenance.

Diagnostics and Monitoring.

The 330D FM is equipped with S

•O•

sampling ports and hydraulic test ports for the hydraulic system, engine oil, and for coolant. A test connection for the Cat Electronic Technician (Cat ET) service tool is located in the cab.

Extended Service Interval. 330D FM service and maintenance intervals have been extended to reduce machine service time and increase machine availability.

Serviceability

Simplified service and maintenance features save you time and money.

Page 15

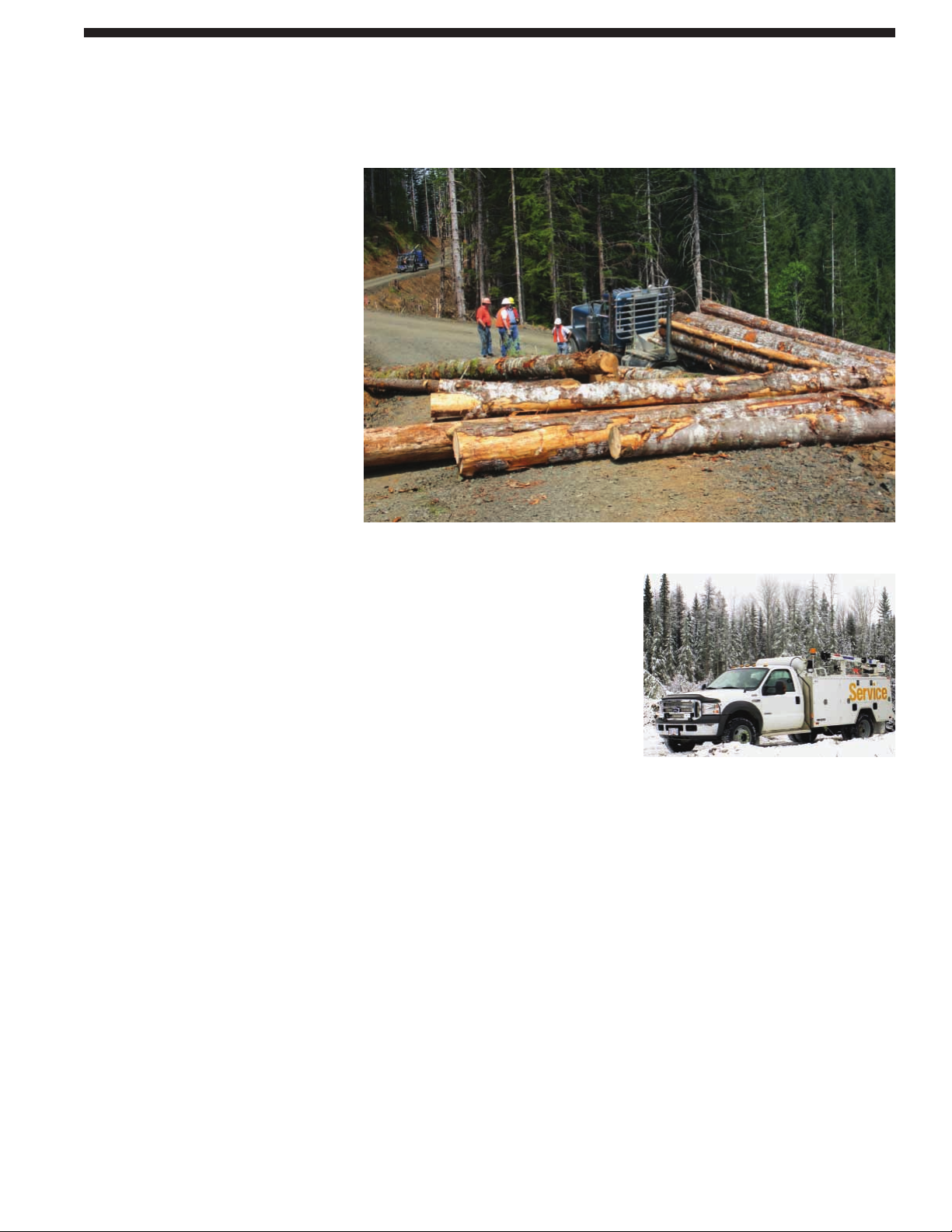

Product Support. You will find nearly all parts at our dealer parts counter. Cat dealers utilize a worldwide computer network to find in-stock parts to minimize machine down time. Save money with remanufactured components.

Machine Selection. Make detailed comparisons of the machines you are considering before you buy. What are the job requirements, machine attachments and operating hours? What production is needed? Your Cat dealer can provide recommendations.

Customer Support Agreements.

Cat dealers offer a variety of product support agreements, and work with customers to develop a plan the best meets specific needs. These plans can cover the entire machine, including attachments, to help protect the customer’s investment.

Operation. Improving operating techniques can boost your profits. Your Cat dealer has videotapes, literature and other ideas to help you increase productivity, and Caterpillar offers certified operator training classes to help maximize the return on your investment.

Maintenance Services. Repair option programs guarantee the cost of repairs up front. Diagnostic programs such as Scheduled Oil Sampling, Coolant Sampling and Technical Analysis help you avoid unscheduled repairs. Replacement. Repair, rebuild, or replace? Your Cat dealer can help you evaluate the cost involved so you can make the right choice.

Customer Focus

Caterpillar dealer services help you operate longer with lower costs.

Page 16

330D FM Forest Machine specifications

Hydraulic System

Main Implement System – 280 L/min 74 gal/min Maximum Flow (2x)

Max. pressure – Implements 35 000 kPa 5,075 psi Max. pressure – Travel 35 000 kPa 5,075 psi Max. pressure – Swing 27 900 kPa 4,046 psi Pilot System – Maximum flow 37 L/min 9.8 gal/min Pilot System – Maximum pressure 4100 kPa 595 psi Boom Cylinder – Bore 150 mm 5.9 in Boom Cylinder – Stroke 1440 mm 56.7 in Stick Cylinder – Bore 170 mm 6.7 in Stick Cylinder – Stroke 1738 mm 68.4 in

Log Loader Linkage

Boom Cylinder – Bore 170 mm 6.7 in Boom Cylinder – Stroke 1340 mm 52.8 in Stick Cylinder – Bore 180 mm 7.1 in Stick Cylinder – Stroke 1661 mm 65.4 in Under/Under Heel Cylinder – Bore 150 mm 5.9 in Under/Under Heel Cylinder – Stroke 1155 mm 45.5 in Over/Under Heel Cylinder – Bore 160 mm 6.3 in Over/Under Heel Cylinder – Stroke 1465 mm 57.7 in

Swing Mechanism

Swing Torque – General Forestry 113.9 kN·m 84,024 lb ft Swing Torque – Log Loaders 148 kN·m 109,560 lb ft Swing Speed – General Forestry 10 rpm Swing Speed – Log Loaders 6.3 rpm

Excavator Linkage

CB2 Family Bucket Cylinder – Bore 150 mm 5.9 in CB2 Family Bucket Cylinder – Stroke 1151 mm 45.3 in

Standards

Brakes SAE J1026 APR90 Cab/FOGS/OPS/TOPS/FOPS SAE J1356 FEB88 ISO 10262/

SAE J1084/ISO 8084/ OR-OSHA 437-007-0775/ WCB G602, G603, G604, G608

Engine

Engine Model Cat®C9 ACERT™ Net Flywheel Power 200 kW 268 hp ISO 9249 200 kW 268 hp J1349 188 kW 252 hp EEC 80/1269 200 kW 268 hp Bore 112 mm 4.4 in Stroke 149 mm 5.9 in Displacement 8.8 L 537 in

• The 330D FM meets U.S. EPA Tier 3 and EU Stage IIIa emissions requirements.

• Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator.

• No engine derating required below 2300 m (7,500 ft) altitude.

Weights

General Forestry (HW) 41 426 kg 91,344 lb Log Loader (U/U) 45 801 kg 100,991 lb Log Loader (O/U) 46 261 kg 102,005 lb

• Operating weight with front linkage, without bucket or grapple.

Service Refill Capacities

Fuel Tank 600 L 158.5 gal Fuel Tank – Optional Auxiliary 410 L 108.3 gal

Right Front Optional Counterweight 600 L 158.5 gal

with Fuel Tank Maximum Fuel with 1610 L 425.4 gal

all Optional Tanks Cooling System 38 L 10 gal Engine Oil 34 L 9.5 gal Swing Drive 19 L 5 gal Hydraulic System (including tank) 410 L 108.3 gal Hydraulic Tank 175 L 46.2 gal Final Drive (each) 8 L 2 gal

Drive

Maximum Drawbar Pull 317 kN 71,264 lb Maximum Travel Speed 4.8 km/h 3 mph

Page 17

330D FM Forest Machine specifications

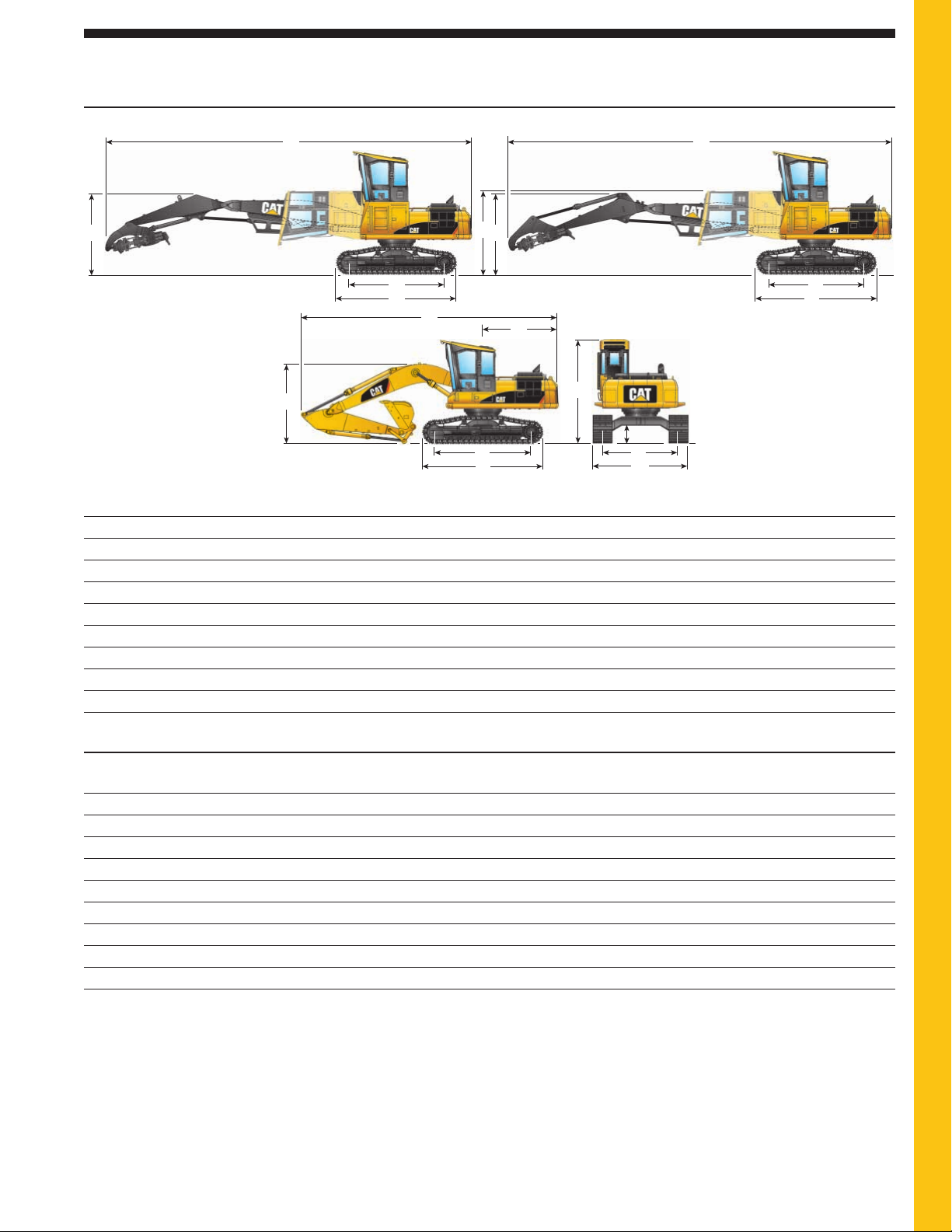

Dimensions

All dimensions are approximate.

6 7

330D FM General Forestry HD GF 1 Shipping height. (All risers with cab tilted) 3470 mm (11'5") 2 Boom height 3780 mm (12'5") 3 Overall height 4180 mm (13'9") 4 Shipping length 11 150 mm (36'7") 5 Tail swing radius 3490 mm (11'5") 6 Length to centers of rollers 4020 mm (13'2") 7 Track length 5060 mm (16'7") 8 Ground clearance 760 mm (2'6") 9 Track gauge 2920 mm (9'7") 10 Transport width with 700 mm (27.5") shoes (DG) 3650 mm (11'11")

6 7

330D FM Log Loaders Under/Under Over/Under 1 Shipping height. (All risers with cab tilted) 3470 mm (11'5") 3470 mm (11'5") 2 Boom height 3080 mm (10'1") 3030 mm (10'1") 3 Overall height 4950 mm (16'3") 4950 mm (16'3") 4 Shipping length 16 630 mm (54'7") 17 320 mm (56'10") 5 Tail swing radius 3490 mm (11'5") 3490 mm (11'5") 6 Length to centers of rollers 4020 mm (13'2") 4020 mm (13'2") 7 Track length 5060 mm (16'7") 5060 mm (16'7") 8 Ground clearance 760 mm (2'6") 760 mm (2'6") 9 Track gauge 2920 mm (9'7") 2920 mm (9'7") 10 Transport width with 700 mm (27.5") shoes (DG) 3650 mm (11'11") 3650 mm (11'11")

Page 18

330D FM Forest Machine specifications

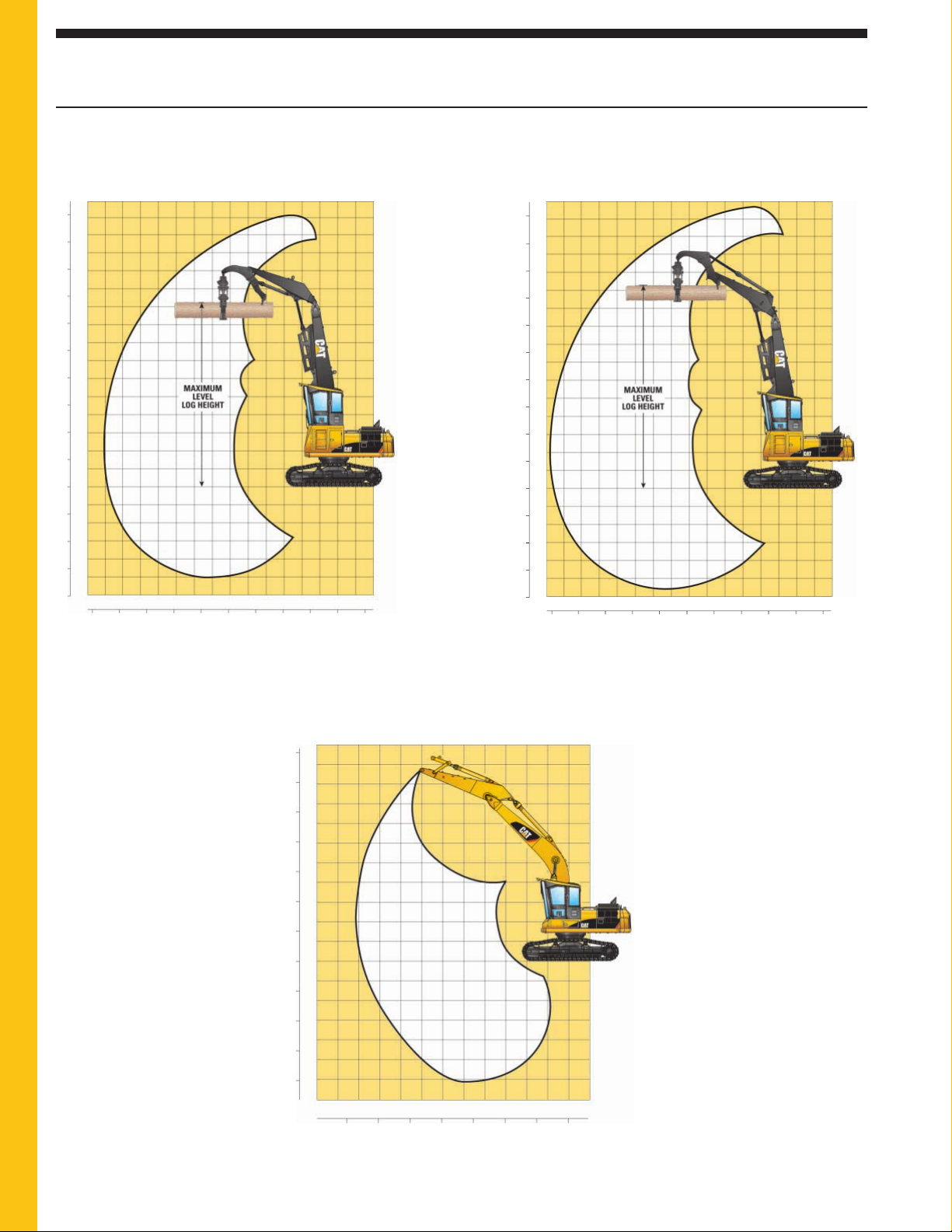

330D FM Working Ranges

Heel Boom (Under/Under, Over/Under), and Reach ranges

Heel Boom

(Under/Under)

stMeter

Fee

111213 10 9

8765

3040 1520253545 10 5 -50

321 -1

sMeter

Feet

Meters

111213 10 9

Heel Boom

(Over/Under)

87654

3040 1520253545 10 5 -50

321 -10

Meters

Feet

General Forestry

HD LC U/C, 6.5 m (21'2") Reach Boom

with 3.9 m (12'9") Reach Stick

Meters

01234567891011 -1

Meters

05101520253035 Feet

Page 19

330D FM Forest Machine specifications

330D FM LL Heel Boom Under/Under Lift Capacities

CONFIGURATION – 13.1 m (43') Boom/Stick/Heel Linkage,

SHOES – 700 mm (28") Double Grouser

Heavy Counterweight

Load Point Over Over Over Over Over Over Over Over Over Over Over Over Over Over Over Over m Height Front Side Front Side Front Side Front Side Front Side Front Side Front Side Front Side ft

10.5 m kg *11 700 11 400 *10 450 8350 *6750 6500 10.23

35.0 ft lb *25,600 24,450 *22,200 17,850 15,100 14,650 33.11

9.0 m kg *11 700 11 500 *10 650 8500 8550 6450 *6200 5550 11.28

30.0 ft lb *25,550 24,650 *23,300 18,150 18,250 13,750 *13,700 12,350 36.71

7.5 m kg *11 900 11 400 *10 750 8450 8600 6500 *6300 5000 *5850 4950 12.05

25.0 ft lb *26,000 24,450 *23,400 18,100 18,400 13,900 12,900 11,000 39.35

6.0 m kg *10 450 *10 450 *12 450 11 150 10 950 8300 8500 6450 6800 5050 *5650 4600 12.59

20.0 ft lb *23,300 *23,300 *27,150 23,950 23,550 17,850 18,300 13,800 14,500 10,800 *12,450 10,150 41.22

4.5 m kg *11 650 *11 650 *13 250 10 800 10 750 8100 8400 6300 6750 5050 *5550 4350 12.94

15.0 ft lb *25,900 *25,900 *28,700 23,200 23,050 17,400 18,000 13,550 14,450 10,750 *12,200 9,650 42.41

3.0 m kg *17 250 14 500 13 850 10 350 10 450 7850 8250 6150 6650 4950 *5550 4250 13.10

10.0 ft lb *37,350 31,250 29,850 22,250 22,500 16,850 17,700 13,250 14,300 10,650 *12,200 9,400 42.98

1.5 m kg *18 250 13 700 13 400 9900 10 200 7550 8050 6000 6600 4900 *5650 4250 13.10

5.0 ft lb *39,500 29,500 28,800 21,300 21,900 16,300 17,350 12,900 14,150 10,450 *12,400 9,350 42.97

Ground kg 18 250 13 050 13 000 9500 9950 7350 7950 5850 6550 4800 *4900 4350 12.91

Line lb 39,150 28,150 27,950 20,500 21,350 15,800 17,050 12,600 14,050 10,350 *10,750 9,550 42.36

–1.5 m kg *6700 *6700 *17 000 12 700 12 700 9250 9750 7200 7850 5800 *5800 4800 *3950 *3950 12.53

–5.0 ft lb *15,700 *15,700 *36,850 27,300 27,350 19,950 21,000 15,450 16,850 12,450 *11,650 10,350 *8,750 *8,750 41.07

–3.0 m kg *4150 *4150 *8750 *8750 *14 600 12 500 *11 600 9150 *9100 7100 *6700 5750 *4400 *4400 11.57

–10.0 ft lb *9,500 *9,500 *20,250 *20,250 *31,450 26,950 *24,900 19,650 *19,400 15,300 *13,900 12,400 *9,700 *9,700 37.83

–4.5 m kg *10 900 *10 900 *8700 *8700 *6500 *6500 *5550 *5550 9.56

–15.0 ft lb *23,250 *23,250 *18,400 *18,400 *13,400 *13,400 *12,500 *12,500 30.83

3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft 9.0 m/30.0 ft 10.5 m/35.0 ft 12.0 m/40.0 ft

* Limited by hydraulic capacity rather than tipping load. The above loads are in compliance with hydraulic excavator lift capacity standard ISO 10567.

They do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity.

Weight of all lifting accessories must be deducted from the above lifting capacities.

Load at Maximum Reach

330D FM LL Heel Boom Over/Under Lift Capacities

CONFIGURATION – 13.7 m (45') Boom/Stick/Heel Linkage,

Heavy Counterweight

Load Point Over Over Over Over Over Over Over Over Over Over Over Over Over Over Over Over m Height Front Side Front Side Front Side Front Side Front Side Front Side Front Side Front Side ft

10.5 m kg *10 050 8550 *7950 6400 *5900 5750 10.99

35.0 ft lb *23,450 *23,450 *21,650 18,250 *15,550 13,450 *13,150 12,850 35.62

9.0 m kg *4350 *4350 *3900 *3900 *5450 4950 11.97

30.0 ft lb *9,650 *9,650 *9,500 *9,500 *8,250 *8,250 *12,050 11,000 38.99

7.5 m kg *10 100 8600 8650 6500 *5150 4450 12.70

25.0 ft lb *23,050 *23,050 *22,050 18,400 18,450 13,900 *11,350 9,850 41.49

6.0 m kg *10 250 *10 250 *10 200 8500 8600 6500 6800 5050 *5000 4100 13.21

20.0 ft lb *22,800 *22,800 *22,200 18,300 18,450 13,900 14,450 10,750 *10,950 9,100 43.26

4.5 m kg *10 500 *10 500 *10 500 8350 8500 6400 6750 5050 *4900 3900 13.54

15.0 ft lb *23,300 *23,300 *22,800 17,900 18,250 13,750 14,450 10,750 *10,750 8,650 44.40

3.0 m kg *8850 *8850 *11 600 10 850 10 750 8100 8350 6250 6700 4950 *4900 3800 13.70

10.0 ft lb *19,850 *19,850 *25,650 23,350 23,100 17,350 17,900 13,400 14,300 10,600 *10,750 8,400 44.95

1.5 m kg *12 050 *12 050 *13 350 10 350 10 400 7750 8150 6050 6550 4850 *4950 3800 13.69

5.0 ft lb *26,650 *26,650 *28,900 22,250 22,350 16,700 17,500 13,000 14,100 10,350 *10,850 8,350 44.93

Ground kg *17 550 13 650 13 300 9800 10 050 7450 7950 5850 6450 4750 *4450 3900 13.52

Line lb *37,950 29,400 28,600 21,050 21,600 16,000 17,050 12,550 13,850 10,150 *9,800 8,500 44.35

–1.5 m kg *7000 *7000 *17 100 12 300 12 400 8950 9500 6900 7600 5550 5550 6300 *3550 *3550 13.17

–5.0 ft lb *16,450 *16,450 *37,050 26,450 26,700 19,250 20,450 14,850 16,350 11,900 11,900 13,500 *7,800 *7,800 43.18

–3.0 m kg *3800 *3800 *8450 *8450 *15 150 12 050 *11 950 8750 9350 6800 *7300 5500 *4700 4600 *3750 *3750 12.34

–10.0 ft lb *8,650 *8,650 *19,600 *19,600 *32,700 25,900 25,750 18,850 21,150 14,600 *15,350 11,800 *9,050 *9,050 *8,300 *8,300 10.38

–4.5 m kg *10 750 *10 750 *12 000 *12 000 *9550 8700 *7350 6750 *5000 *5000 *4500 *4500 10.78

–15.0 ft lb *24,750 *24,750 *25,650 *25,650 *20,300 18,750 *15,400 14,600 *10,000 *10,000 *9,950 *9,950 35.01

* Limited by hydraulic capacity rather than tipping load. The above loads are in compliance with hydraulic excavator lift capacity standard ISO 10567.

They do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity.

Weight of all lifting accessories must be deducted from the above lifting capacities.

3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft 9.0 m/30.0 ft 10.5 m/35.0 ft 12.0 m/40.0 ft

SHOES – 700 mm (28") Double Grouser

Load at Maximum Reach

s refer to the appropriate Operation and Maintenance Manual for specific product information.

Alwa

Page 20

330D FM Forest Machine specifications

330D FM LL Butt-N-Top Lift Capacities

CONFIGURATION – 12.2 m (40') Boom/Stick Linkage

Load Point Over Over Over Over Over Over Over Over Over Over Over Over Over Over m Height Front Side Front Side Front Side Front Side Front Side Front Side Front Side ft

10.5 m kg *14 650 *14 650 *13 100 11 750 *9050 8500 *8950 8500 9.01

35.0 ft lb *32,250 *32,250 *28,800 25,100 *20,000 19,200 29.04

9.0 m kg *12 900 11 850 11 500 8800 *8050 7050 10.19

30.0 ft lb *31,650 *31,650 *28,150 25,400 24,700 18,850 *17,900 15,700 33.10

7.5 m kg *14 100 *14 100 *13 100 11 750 11 500 8800 8950 6850 *7550 6200 11.03

25.0 ft lb *31,200 *31,200 *28,450 25,250 24,750 18,900 19,150 14,600 *16,650 13,750 36.01

6.0 m kg *14 650 *14 650 *13 550 11 500 11 400 8700 8950 6800 *7250 5700 11.63

20.0 ft lb *32,400 *32,400 *29,400 24,750 24,500 18,700 19,200 14,600 *15,950 12,600 38.04

4.5 m kg *17 150 15 600 *14 150 11 150 11 200 8500 8850 6700 *7150 5400 *7100 5400 12.00

15.0 ft lb *37,150 33,600 *30,650 24,000 24,050 18,250 19,000 14,450 *15,650 11,900 39.33

3.0 m kg *18 300 14 850 14 350 10 750 10 950 8250 8700 6600 7150 5400 7000 5250 12.18

10.0 ft lb *39,550 31,950 30,850 23,150 23,550 17,800 18,750 14,150 15,350 11,600 39.95

1.5 m kg *18 650 14 150 13 900 10 350 10 700 8050 8600 6450 7100 5350 *6450 5250 12.17

5.0 ft lb *40,450 30,450 29,950 22,300 23,050 17,300 18,450 13,900 *14,250 11,550 39.93

Ground kg *17 950 13 650 13 600 10 050 10 500 7850 8500 6400 *5450 5400 11.97

Line lb *38,850 29,400 29,300 22,650 22,650 16,900 18,250 13,750 *12,000 11,800 39.28

–1.5 m kg *7200 *7200 *15 900 13 400 *12 700 9900 10 050 7750 *7500 6350 *4750 *4750 11.49

–5.0 ft lb *16,800 *16,800 *34,500 28,900 *27,400 21,300 *21,550 16,700 *15,700 13,650 *10,500 *10,500 37.66

–3.0 m kg *10 200 *10 200 *12 700 *12 700 *10 250 9850 *7850 7750 *5450 *5450 10.23

–10.0 ft lb *23,550 *23,550 *27,350 *27,350 *21,950 21,200 *16,500 *16,500 *12,050 *12,050 33.38

4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft 9.0 m/30.0 ft 10.5 m/35.0 ft 12.0 m/40.0 ft

SHOES – 700 mm (28") Double Grouser

Load at Maximum Reach

* Limited by hydraulic capacity rather than tipping load. The above loads are in compliance with hydraulic excavator lift capacity standard ISO 10567.

They do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity.

Weight of all lifting accessories must be deducted from the above lifting capacities.

330D FM GF Reach Boom Lift Capacities

CONFIGURATION – 6.5 m (21'4") Boom, 3.95 m (13'0") Stick,

SHOES – 700 mm (28") Double Grouser

Heavy Counterweight

Load Point Over Over Over Over Over Over Over Over Over Over Over Over Over Over m Height Front Side Front Side Front Side Front Side Front Side Front Side Front Side ft

9.0 m kg *6500 *6500 *5950 *5950 7.62

30.0 ft lb *13,200 *13,200 24.55

7.5 m kg *7450 *7450 *5600 *5600 8.72

25.0 ft lb *16,400 *16,400 *12,400 *12,400 28.37

6.0 m kg *7850 *7850 *7650 *7650 *5500 *5500 9.46

20.0 ft lb *17,100 *17,100 *15,450 *15,450 *12,100 *12,100 30.91

4.5 m kg *9650 *9650 *8600 *8600 *8000 *8000 *5550 *5550 9.92

15.0 ft lb *20,900 *20,900 *18,650 *18,650 *17,450 *17,450 *12,150 *12,150 32.49

3.0 m kg *15 050 *15 050 *11 350 *11 350 *9500 *9500 *8450 8150 *5700 *5700 10.14

10.0 ft lb *32,350 *32,350 *24,550 *24,550 *20,650 *20,650 *10,400 17,500 *12,550 *12,550 33.24

1.5 m kg *17 750 *17 750 *12 900 *12 900 *10 400 10 200 *8950 7950 *6050 *6050 10.12

5.0 ft lb *38,300 *38,300 *27,850 *27,850 *22,550 21,950 *19,400 17,150 *13,300 *13,300 33.22

Ground kg *8700 *8700 *19 000 *19 000 *13 900 13 400 *11 050 9950 *9250 7850 *6600 *6600 9.88

Line lb *19,650 *19,650 *41,200 *41,200 *30,050 28,900 *23,900 21,450 *20,050 16,900 *14,550 *14,550 32.43

–1.5 m kg *9200 *9200 *13 300 *13 300 *19 050 *19 050 *14 200 13 200 *11 250 9800 *9200 7750 *7500 7350 9.40

–5.0 ft lb *20,500 *20,500 *29,900 *29,900 *41,350 *41,350 *30,750 28,500 *24,350 21,150 *19,850 16,750 *16,550 16,250 30.80

–3.0 m kg *14 050 *14 050 *19 150 *19 150 *18 100 *18 100 *13 700 13 200 *10 800 9800 *8950 8250 8.62

–10.0 ft lb *31,400 *31,400 43,250 43,250 *39,200 *39,200 *29,650 28,450 *23,300 21,150 *19,650 18,250 28.19

–4.5 m kg *21 800 *21 800 *15 900 *15 900 *12 150 *12 150 *9050 *9050 7.47

–15.0 ft lb *47,000 *47,000 *34,300 *34,300 *26,050 *26,050 *19,950 *19,950 24.29

–6.0 m kg *11 600 *11 600 *8700 *8700 5.71

–20.0 ft lb *24,300 *24,300 *20,400 *20,400 17.46

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft 9.0 m/30.0 ft

* Limited by hydraulic capacity rather than tipping load. The above loads are in compliance with hydraulic excavator lift capacity standard ISO 10567.

They do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity.

Weight of all lifting accessories must be deducted from the above lifting capacities.

Always refer to the appropriate Operation and Maintenance Manual for specific product information.

Load at Maximum Reach

Page 21

330D FM Forest Machine specifications

330D FM GF Mass Boom Lift Capacities

CONFIGURATION – 6.18 m (20'3") Boom, 3.5 m (11'6") Stick,

SHOES – 700 mm (28") Double Grouser

Standard Counterweight

Load Point Over Over Over Over Over Over Over Over Over Over Over Over Over Over m Height Front Side Front Side Front Side Front Side Front Side Front Side Front Side ft

9.0 m kg *6300 *6300 6.67

30.0 ft lb *14,050 *14,050 21.41

7.5 m kg *8100 *8100 *5850 *5850 7.91

25.0 ft lb *15,900 *15,900 *12,900 *12,900 25.70

6.0 m kg *8650 *8650 *5650 *5650 8.73

20.0 ft lb *18,950 *18,950 *12,450 *12,450 28.49

4.5 m kg *10 450 *10 450 *9300 *9300 *7500 7200 *5700 *5700 9.22

15.0 ft lb *22,600 *22,600 *20,250 *20,250 *13,750 *13,750 *12,500 *12,500 30.19

3.0 m kg *15 950 *15 950 *12 050 *12 050 *10 150 9200 *9050 7100 *5900 *5900 9.45

10.0 ft lb *34,300 *34,300 *26,100 *26,100 *22,000 19,800 *18,900 15,250 *12,900 *12,900 31.00

1.5 m kg *18 500 *18 500 *13 500 12 100 *10 900 8950 9350 6950 *6250 *6250 9.44

5.0 ft lb *39,950 *39,950 *29,200 26,150 23,700 19,250 20,100 15,000 *13,750 *13,750 30.98

Ground kg *10 650 *10 650 *19 500 17 850 *14 350 11 800 *11 400 8750 9250 6850 *6900 6700 9.18

Line lb *24,100 *24,100 *42,300 38,400 *31,050 25,400 *24,750 18,800 *16,350 14,800 *15,200 14,750 30.12

–1.5 m kg *11 300 *11 300 *16 400 *16 400 *19 250 17 700 *14 400 11 650 *11 350 8650 *8000 7200 8.66

–5.0 ft lb *25,200 *25,200 *37,000 *37,000 *41,750 38,100 *31,200 25,100 *24,600 18,650 *17,650 15,900 28.36

–3.0 m kg *17 250 *17 250 *24 000 *24 000 *17 800 *17 800 *13 500 11 650 *10 350 8700 *9650 8300 7.81

–10.0 ft lb *38,550 *38,550 *53,450 *53,450 *38,450 *38,450 *29,150 25,150 *22,050 18,800 *21,300 18,350 25.51

–4.5 m kg *19 750 *19 750 *14 700 *14 700 *10 900 *10 900 *9550 *9550 6.51

–15.0 ft lb *42,400 *42,400 *31,450 *31,450 *23,000 *23,000 *20,950 *20,950 21.10

* Limited by hydraulic capacity rather than tipping load. The above loads are in compliance with hydraulic excavator lift capacity standard ISO 10567.

They do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity.

Weight of all lifting accessories must be deducted from the above lifting capacities.

Always refer to the appropriate Operation and Maintenance Manual for specific product information.

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft 9.0 m/30.0 ft

Load at Maximum Reach

Forestry Grapples

Specification GLL 52 GLL 55 GLL 60

Part # 271-1533 271-1534 271-1535

For use with 320C FM, 324D FM 324D FM, 325D FM 325D FM, 330D FM

Rotation Continuous Continuous Continuous

Rotation torque 1153 N•m (850 ft-lb) 1153 N•m (850 ft-lb) 1153 N•m (850 ft-lb)

Max. Opening 1321 mm (52") 1397 mm (55") 1524 mm (60")

Min. Opening 126 mm (5") 126 mm (5") 126 mm (5")

Weight 1255 kg (2,767 lb) 1291 kg (2,840 lb) 1344 kg (2,965 lb)

Width 673 mm (26.5") 673 mm (26.5") 673 mm (26.5")

Height, open 2134 mm (84") 2184 mm (86") 2261 mm (89")

Page 22

Standard Equipment

Standard equipment may vary. Consult your Caterpillar dealer for details.

Power Train

Cat C9 with ACERT™ Technology U.S. EPA Tier 3

emissions compliant with 24-volt electric starting

and air intake heater Automatic engine speed control with one touch low idle Water separator in fuel line Two speed auto-shift travel Easy clean swing out radiator Muffler

Undercarriage

Hydraulic track adjusters Track type undercarriage with grease lubricated seals Idler and full-length track shoe support

Other Standard Equipment

Heavy-duty upper frame with catwalks, bottom guards,

heavy duty side doors Core hydraulic lines and controls with standard main valves

on upper structures Door locks, cap locks and Caterpillar one key security system Automatic swing parking brake Travel alarm Counterweight with lifting eye Right front corner guard

330D FM General Forestry Arrangement also includes:

Forestry cab, hydraulic tilt 457 mm (18 inch) riser High-wide undercarriage High drawbar Heavy-Duty recoil springs Heavy-Duty track roller frame Heavy-Duty travel motor covers Straight travel third pedal Heavy-Duty swivel grapple/rotator hydraulic arrangement Heavy-Duty swivel guard Forestry Heavy-Duty upper frame with catwalk Heavy-Duty bottom guard Heavy-Duty side doors Right front corner guard Travel alarm and full length shoe support

Electrical

80 Ampere alternator 4 Front working lights, cab top mounted 2 Front working lights, riser mounted 1 Left side working light, cab mounted 1 Rear working light, cab mounted Horn

Operator Environment

Purpose built forestry cab with 8 lights and all scratch

resistant polycarbonate windows

Seat, four-way adjustable suspension seat with adjustable

armrest, retractable seatbelt, headrest and lumbar support Integrated seat, console and joystick type controls Language display monitor with gauges Warning information

• Filter/fluid change information

• working hour information

• machine condition

• error code and tool mode setting information

• start up level check for hydraulic oil, engine oil and

engine coolant Full time clock on monitor (2 weeks) Seat mounted joystick with extra functions for grapple Fixed polycarbonate skylight with retractable sun shade Interior lighting Lower and upper windshield wipers and washer Positive filtered ventilation, pressurized cab with bi-level

air conditioner, heater and defroster with manual control Forced air fan 2 post mounted fresh air vents Behind seat storage tray with tie down points 2 CB radio mounts 1 Fire extinguisher mount 1 Attachment computer control mount Secondary roof exit openable from inside and outside 2 Coat hooks Ashtray with lighter Literature holder Cup holder Neutral lever for all controls Travel control pedals with removable hand levers Washable floor mat Radio/CD player (12V) 1 Converter/2 sockets – 12V-10A power supply

330D FM Forest Machine specifications

Page 23

330D FM Forest Machine specifications

Standard Equipment

Standard equipment may vary. Consult your Caterpillar dealer for details.

330D FM Log Loader Arrangement for AEM Cab also includes:

AEM cab platform High-wide undercarriage High drawbar Heavy-Duty recoil springs Heavy-Duty track roller frame Heavy-Duty travel motor covers Standard excavator hydraulic arrangement Heavy-Duty swivel grapple/rotator hydraulic arrangement Heavy-Duty swivel guard Forestry Heavy-Duty upper frame with catwalk Heavy-Duty bottom guard Heavy-Duty side doors Right front corner guard Travel alarm Full length shoe support Counterweight with removable segments fuel tank

330D FM Log Loader Arrangement also includes:

Forestry cab Hydraulic tilt 1219 mm (48 inch) riser High-wide undercarriage High drawbar Heavy-Duty recoil springs Heavy-Duty track roller frame Heavy-Duty travel motor covers Straight travel third pedal Heavy-Duty swivel grapple/rotator hydraulic arrangement Heavy-Duty swivel guard Forestry Heavy-Duty upper frame with catwalk Heavy-Duty bottom guard Heavy-Duty side doors Right front corner guard Travel alarm and full length shoe support

Optional Equipment

Optional equipment may vary. Consult your Caterpillar dealer for details.

Engine/Power Train

Auto Reverse Fan Prefilter, air Cold Weather Staring Aid Extended Life Cooling with 50% concentration

of protection –34° C (–30º F)

Undercarriage (Track Shoes)

700 mm (28 in) Double Grouser Shoes with Trap Holes 850 mm (34 in) Heavy-Duty Triple Grouser Shoes

with Trap Holes

Electrical

Product Link (PL 321 SR)

General Optional Equipment

Auxiliary Pump Driver (for additional pump) Right Front Corner Fuel Tank (additional 409 L – 108 gal) Counterweight with Fuel Tank Adds (602 L – 159 gal) Heavy Counterweight (additional 2960 kg – 4,620 lb).

For General Forestry (Standard on Log Loader).

GLL and GLLS Family Grapples. For General Log Loader.

Front Linkage: For General Forestry

Reach Boom 6.5 m (21 ft 4 in) Reach DB Stick 3.2 m (10 ft 6 in) Reach DB Stick 3.9 m (12 ft 10 in) Mass Boom 6.2 m (20 ft 3 in) Mass DB Stick 3.5 m (11 ft 7 in) Bucket Linkage DB Family Boom lowering Control Device

Front Linkage: For Log Loader

Over/Under Boom/Stick/Heel linkage 12.8 m (42 ft 0 in) Under/Under Boom/Stick/Heel linkage 12.2 m (40 ft 0 in) Butt-n-Top Boom/Stick linkage 11.3 m (37 ft 0 in) Stick Cylinder Guard

Hydraulic Arrangements: For General Forestry

Rotating Grapple Butt-n-Top Grapple (also available on Log Loader) Thumb

Auxiliary Hydraulic Lines: For General Forestry

Auxiliary lines HP & MP, Reach and Mass Boom Auxiliary lines HP & MP, Reach and Mass Stick

Page 24

For more complete information on Cat products, dealer services,

and industry solutions, visit us on the web at www.cat.com

Printed in U.S.A.

Materials and specifications are subject to change without notice.

Featured machines in photos may include additional equipment.

See your Caterpillar dealer for available options.

CAT, CATERPILLAR, SAFETY.CAT.COM, ACERT, their respective logos, “Caterpillar Yellow”

and the POWER EDGE trade dress, as well as corporate and product identity used herein,

are trademarks of Caterpillar and may not be used without permission.

AEHQ5917-01 (1-09)

Replaces AEHQ5917

330D FM Forest Machine
