Guide to the machine
Guide to the machine
1 Electric supply cable

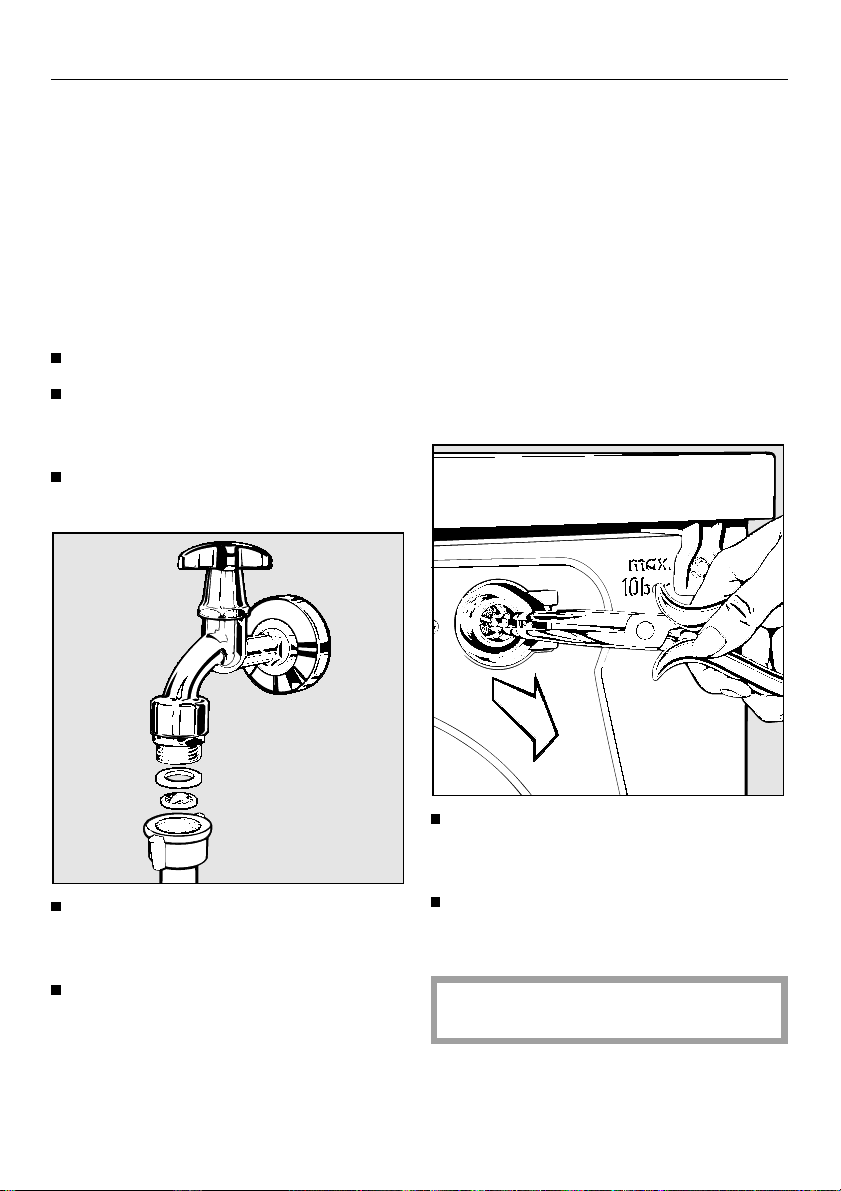

2 Inlet hose (able to withstand
pressures up to 70 bar)
3 Flexible drain hose (with detachable
swivel elbow)
4 Detergent dispenser drawer
5 Facia panel with controls
6 Drum door
7 Panel for access to fluff filter, drain
pump and emergency door release
8 Four height adjustable feet
3
Guide to the machine

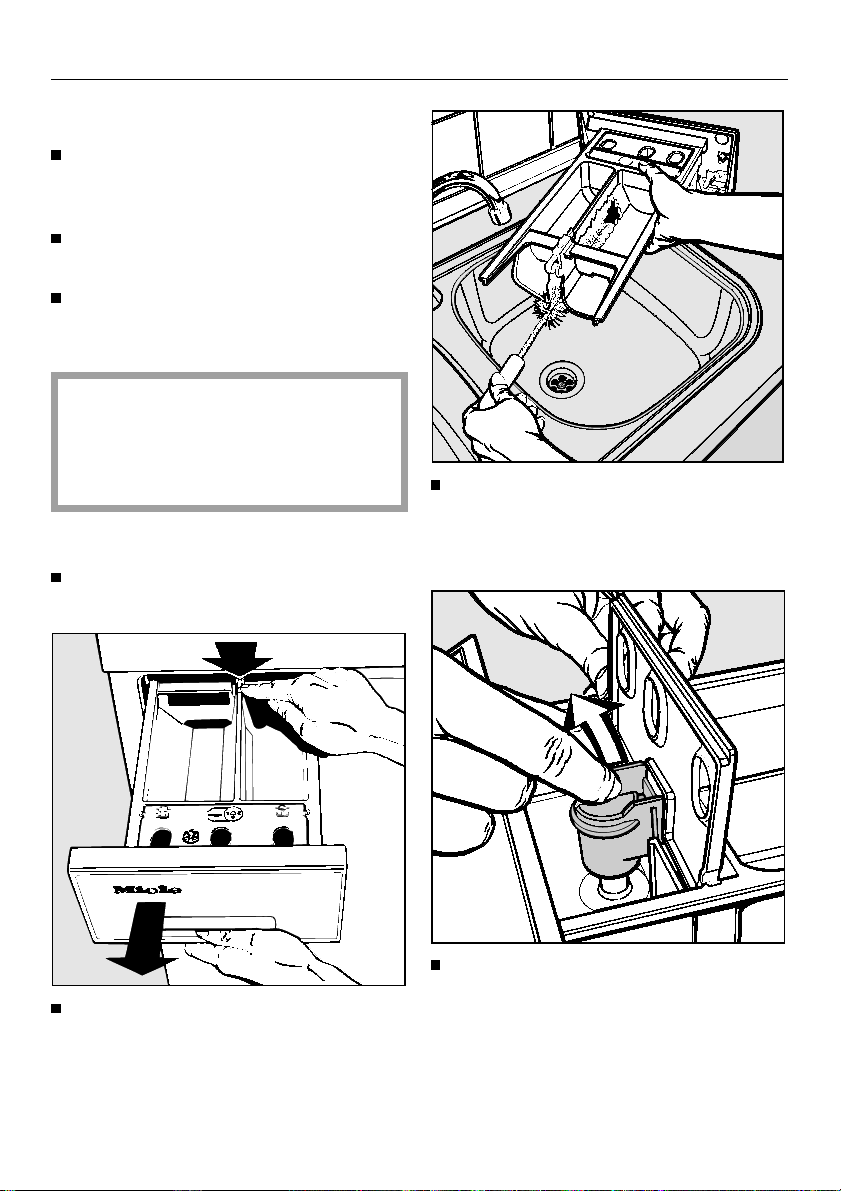

Detergent dispenser drawer
Compartment i - Pre-wash
Compartment j - Main wash
b
“Door" pushbutton
opens the drum door
c “I - ON / O - OFF” pushbutton
switches the machine on or off
or interrupts a programme
Compartment
e
Spin speed selector
p (with lid) -Conditioner
f Programme sequence
indicator and control lights
g Programme selector

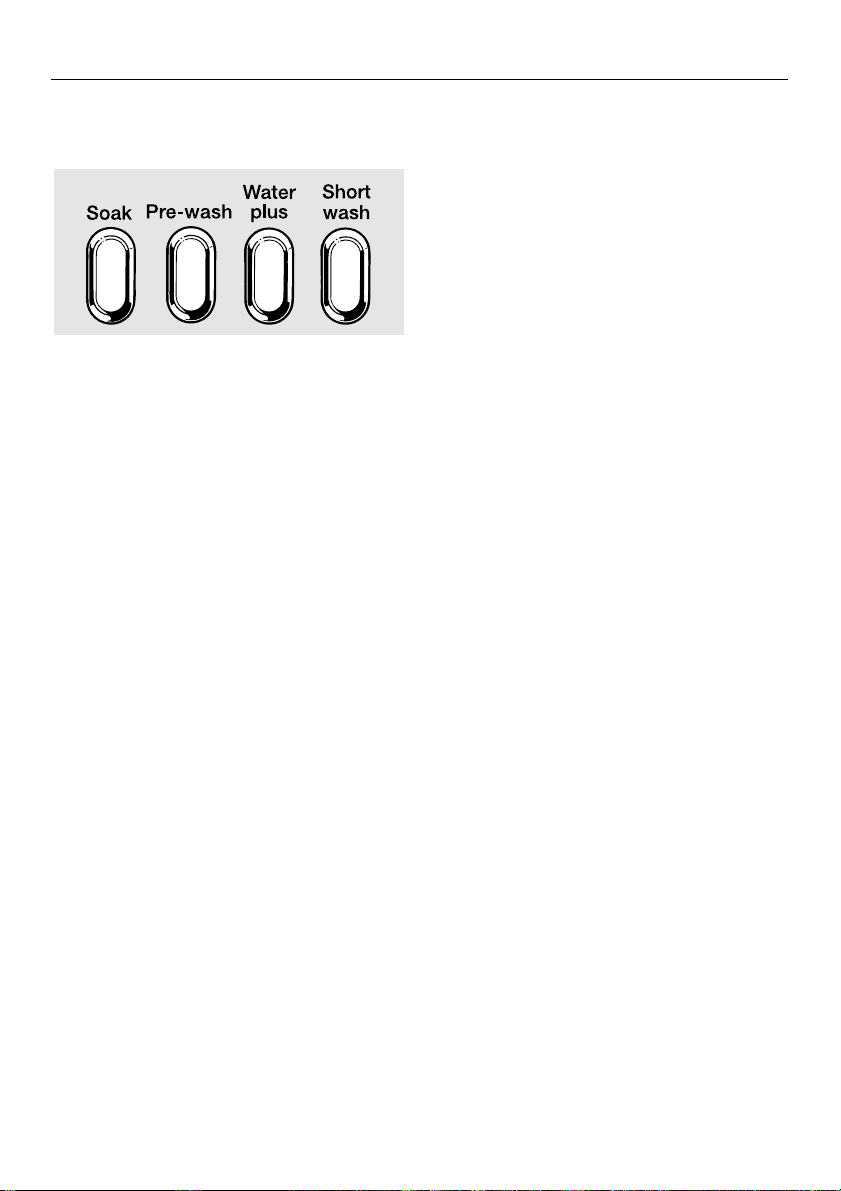

d Pushbuttons for additional
options
4
Warning and Safety Instructions
Warning and Safety Instructions
Read the operating instructions before using this machine for the first
time. They contain important information about the safety, use and
maintenance of the machine. This
will avoid the risk of accidents and
damage to the machine.
Keep these operating instructions in
a safe place and ensure that new
users are familiar with the content.
Pass them on to any future owner of
the machine.
Correct usage
Only use the washing machine to
wash items which are declared by
the manufacturer to be machine-washable on the wash-care label.
Any other applications may be dangerous. The manufacturer is not liable
for damage resulting from improper
use or operation.
This appliance should not be oper-
ated by children. Supervise its use
by the elderly or infirm.
The electrical safety of this ma-
chine can only be guaranteed
when continuity is complete between
the machine and an effective earthing
system which complies with local and
national regulations. It is most important that this basic safety requirement is
regularly tested by a qualified electrician.
The manufacturer cannot be held responsible for the consequences of an
inadequate earthing system.
For safety reasons do not operate
this appliance on an extension
cable. Danger of overheating.
The machine is built in accordance
with current safety requirements.
Unauthorised repairs could result in unforeseen dangers for the user, for
which the manufacturer cannot accept
responsibility. Repairs should only be
undertaken by a Miele approved engineer.
The machine is only completely iso-
lated from the electricity supply
when:
Technical safety
Before setting up the machine,
check it for any externally visible
damage. Do not install and use a damaged machine.
Before connecting the machine, en-
sure that the connection data on
the data plate (fusing, voltage and frequency) matches the mains electricity
supply. If in any doubt, consult a qualified electrician.
– it is switched off at the wall socket
and the plug is withdrawn, or
– it is switched off at the mains, or
– the mains fuse is withdrawn.
5
Warning and Safety Instructions
The best materials are used in the
manufacture of this machine, and
every care is taken to check all parts.
However, with time, deterioration of
parts can occur, especially with such
components as hoses, giving rise to
leaks. This should be borne in mind if
operating the machine without supervision. Check the hose regularly for signs
of wear, and change in good time, to
avoid leaks and subsequent damage.
Faulty components must only be
exchanged for Miele original spare
parts. Only when these parts are fitted
can the safety standards of the machine be guaranteed.
Use
Do not install your washing ma-
chine in rooms where temperatures below freezing may occur.
Frozen hoses may burst under pressure. The reliability of the electronic control system may be impaired at temperatures below freezing point.
In countries where there are areas
which may be subject to infestation by cockroaches or other vermin,
pay particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be
covered by the appliance guarantee.

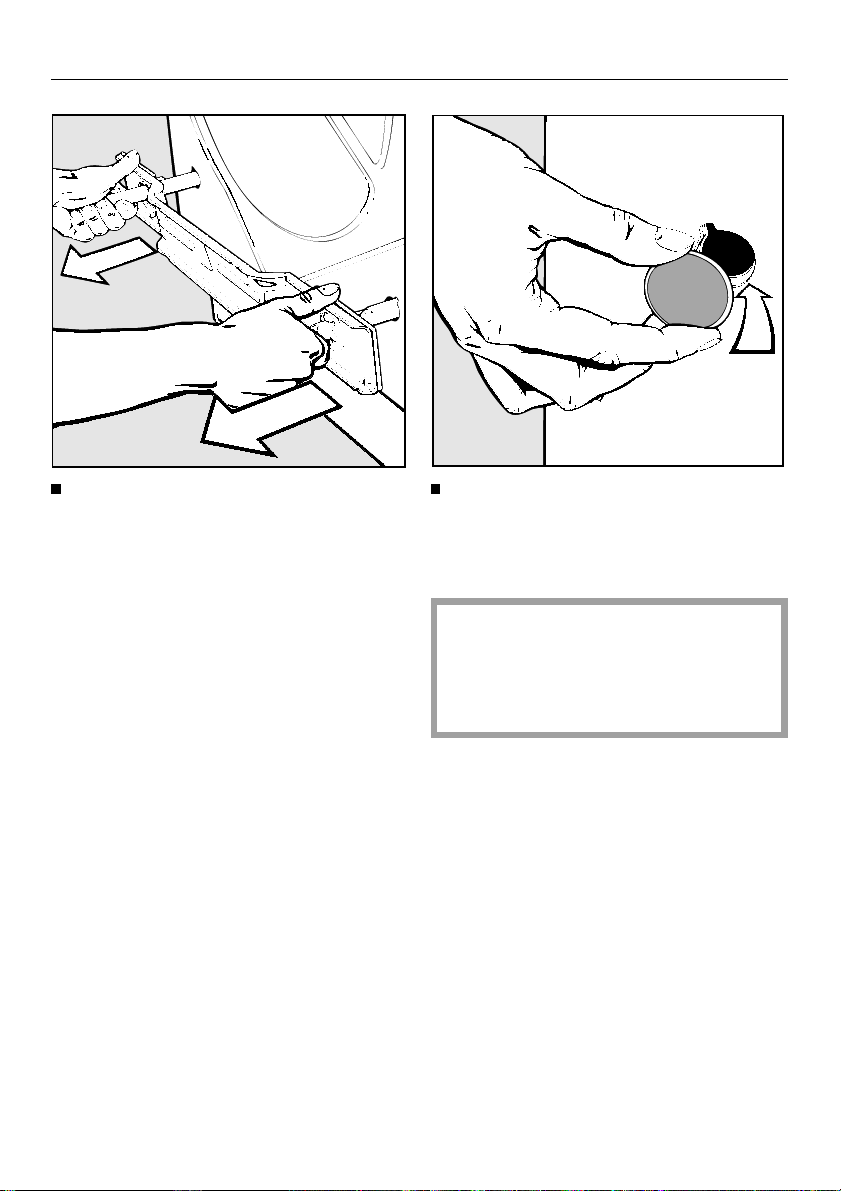

Before using the machine for the
first time, check that the transit fitting at the rear of the machine has
been removed (see section on “Installation”). During spinning, a transit fitting
which is still in place may result in damage to both the machine and adjacent
furniture or appliances.
Turn off the stopcock if the ma-
chine will be left for any length of
time (e.g. holiday), especially if there is
no floor drain (gully) in the immediate vicinity.
Flooding danger.
If hooking the drain hose into a
wash basin, check that the water can
drain off quickly enough to prevent the
sink from overflowing.
Make sure the drain hose is secure, so
that the force of the water flowing out of
the hose does not dislodge it. Otherwise this will result in flooding.
Take care to ensure that foreign ob-
jects (e.g. nails, needles, coins,
paper clips, etc.) do not find their way
into the machine with the washing (e.g.
in pockets). Foreign objects can damage components of the machine, which
in turn can result in damage to the
washing.
6
Warning and Safety Instructions
If the correct amount of detergent
is dispensed, the machine should
not need to be descaled. If, however,
you do wish to descale the machine
only use proprietary non-corrosive descaling agents and strictly observe the
instructions. Consult the Miele Customer Service Department.
Textiles which have been pre-
treated in solvent based cleaning
agents must be thoroughly rinsed in
clean water before being washed in the
machine.
Never use solvent based cleaning
agents in this machine, as this may
result in damage to component parts
and create toxic fumes. Such detergents also pose a fire and explosion hazard.
Only use dyes specified by the
manufacturer as being suitable for
use in a washing machine. Always observe the manufacturer’s instructions
carefully.
Always make sure the drum is sta-
tionary before reaching in to
remove washing. Reaching into a moving drum is extremely dangerous.
Accessories
Accessory parts may only be fitted
when expressly approved by
Miele. If other parts are used, guarantee, performance and product liability
claims may be invalidated.
Disposal of your old machine
Before discarding an old machine
unplug it. Render the plug useless.
Cut off the cable directly behind the appliance to prevent misuse.
Dye removers may contain sulphur
compounds which cause damage
such as corrosion to the machines. Do
not use dye removers in this machine.
For machines with a ’porthole’
door, remember that the porthole
glass will be hot when washing at very
high temperatures. Do not let children
touch it during a hot wash programme.
7
Help to protect our environment
Help to protect our environment
Disposal of the packing
material
The transport and protective packing is
mostly manufactured from the following
recycled or re-useable materials:
– corrugated paper/card
– polystyrene - CFC-free
– untreated surplus wood
– chipboard, contains no phenolic
resins
– polyethylene foil (PE)
– packaging straps: polyropylene (PP)
Rather than just throwing these ma-
terials away, please take them to the
nearest local authority collection point
for specific waste.
Disposal of your old machine
Old machines may contain material
which can be reclaimed or recycled.
Please contact your dealer, your local
waste collection centre or scrap merchant about potential recycling
schemes.
Ensure that the machine presents no
danger to children while being stored
for disposal.
See the appropriate section in the
Warning and Safety instructions.
8
Washing environmentally and economically
Washing environmentally and economically
Caring for the environment means saving water, energy and detergent when
washing but without compromising on
results.
The key to a good wash result is finding
the best combination of amount of
detergent, temperature, length of programme and the machine’s technology.
If necessary, some programmes take
longer to achieve this effect. With the
"Hydromatic" system, the drum can revolve at different speeds. Longer and
slower action together with pauses for
steeping, work towards a good result.
The automatic load control facility ensures the correct water level for the
type of fabric and laundry load being
washed. Sometimes it even appears
that there is no water in the drum.
Normally, main wash is sufficient for a
clean result, so a pre-wash is not automatically included in the programmes.
If it is wanted, a simple press on the
pre-wash selector includes it.
Economy tips
To help you wash most economically,
remember the following tips:
– The automatic load control facility
allows you to wash individual loads
of between 1 and 5 kg. Ideally wash
with the maximum load specified for
each programme. This uses the energy to the best advantage.
– Only use the correct amount of deter-
gent required for the water hardness
level in your area, according to the
detergent manufacturer’s recommendations.
– If washing is not heavily stained, se-
lect a lower temperature setting than
indicated on the wash care label but
do not additionally select "Short".
– Use the "Short wash" option for wash-
ing that is only very lightly soiled, but
do not additionally reduce the temperature.
– Using the additional "Soak" option
allows you to reduce the temperature used in the main wash.
9
Before using for the first time
Before using for the first time
Flush out any residual test
water still in the machine as
follows:
Do not load the machine.
Add a little detergent to compart-
ment j.
Switch on the machine.
Press the “Short wash” selector.
Select the “COTTONS 60°C” pro-
gramme.
This operation will flush out any
residues.
Water hardness reminder
The amount of detergent will depend
on various factors including the
water hardness level in your area.
The dial located in the detergent dispenser box can be turned to the relevant setting as a water hardness reminder, (using 1 = soft, 4 = very
hard).
10
Use the spatula supplied with the
machine. It is located at the rear of
the dispenser drawer.
If you do not know how hard the water
is in your catchment area, please contact your local water authority.
Brief guide to correct washing
Brief guide to correct washing
The headings numbered (
offer a brief step by step guide to the
operating sequence.
1, 2, 3,...)
Before washing
1 Prepare the wash load
Empty all pockets.
eral times before being included in a
mixed load.
Delicate textiles should be washed separately in a delicates programme.
Only wash textiles made from wool or
wool mixtures if the textile care label
states that they are suitable for machine washing.
Pre-treating the washing
Badly soiled areas, e.g. collars and
cuffs, and water soluble stains can be
pre-treated with bar soap, liquid detergent or detergent mixed into a solution
or paste.
With particularly stubborn stains ask
your Dry Cleaner for advice.
Do not use solvent based cleaning
agents in this machine.
2 Open the door by pressing the door
button
Foreign objects (e.g. nails, coins,
paper clips etc) can cause damage
to textiles and components in the
machine.
Sort the washing
Most textiles have a care label in the
collar or side seam. Sort the washing
by care label symbols. (See Symbols
chart). Only wash items in this machine
which are declared by the manufacturer as being machine washable on
the textile care label.
Dark textiles often contain excess dye
and should be washed separately sev-
11
Brief guide to correct washing
3 Load the drum
Unfold washing and load loosely in the
drum. To achieve best results it is advisable to make up mixed loads consisting of both large and small items.
This improves the washing effect and
helps distribute the load evenly during
spin.
Overloading reduces the wash result
and causes more creasing.
Please note maximum load weights:
COTTONS . . . . . . . . . . . . . . . . . . 5.0 kg
MINIMUM IRON. . . . . . . . . . . . . . 2.5 kg
DELICATES/SYNTHETICS . . . . . 1.0 kg
WOOL . . . . . . . . . . . . . . . . . . . . . 1.0 kg
QUICK WASH 40°C. . . . . . . . . . . 2.5 kg
Curtains:
Remove lead weights and strips or
place in a laundry bag.
Any loose wiring in bras etc.,should be
removed or sewn in.
Woollens, knitted garments, T-shirts
etc:
Turn inside out, if the manufacturer recommends it.
4 Close the drum door.
Make sure no items of washing are
caught between the drum door and
the door seal.
5 Turn on the stopcock
(if it is not already on)
6 Add detergent.
See Section on Detergent for details.
To start a programme
1 Turn the programme selector
to “Finish/Start”.
2 Press the “I-ON / O-OFF button.
3 Press buttons for additional
options if required
4 Select the spin speed.
(See Section on Additional options).
5 Turn the programme selector to
the wash programme desired.
The programme selector can be turned
to the left or the right.
12
Brief guide to correct washing
After washing
1 Turn the programme selector
to “Finish/Start”.
2 Press the “Door” button.
Only remove washing from the machine once the drum has stopped
turning, otherwise you may seriously injure yourself.
3 Press the I-ON / O-OFF button.
4 Remove the washing.
Make sure the drum is empty. Items
left behind could shrink or colour
run in the next wash.
7 Close the drum door
Otherwise there is a danger of objects
being placed inadvertently in the drum.
If these remained unnoticed and were
washed in the next load, they could
damage the washing.
5 Check the folds in the door seal
for buttons etc.
6 Turn off the stop cock at the end
of the day
13
Changing the programme sequence
Changing the programme sequence
Stopping a programme
Turn the programme selector to “Finish/Start”.
To omit a programme stage.
Turn the programme selector to “Fin-
ish/Start”
Interrupting a programme
Press the “I-ON/0-OFF” buttton.
To continue the programme, switch the
machine back on.
Changing an incorrectly selected programme:
Turn the programme selector to “Finish/Start”.
A new programme can be selected
when only the “ON” indicator light is
still on.
Changing a programme which has
been locked, see Section on Activating
programmable functions.
As soon as the programme sequence
light for the stage at which the programme should continue starts flashing:
Turn the programme selector switch
to the appropriate programme within
3 seconds.
14
Adding or removing washing
Washing can be added or removed
after the programme has already
started, when using the following programmes:
– COTTONS
– MINIMUM IRON
– QUICK WASH 40°C
– WOOLLENS
–Starch
Press the “Door” button in and hold it
until the door springs open.
Add or remove items of washing.
Press any option buttons that had
previously been selected.
Shut the door.
COTTONS and QUICK WASH 40°C
The door can be opened in the following programme stages:
Adding or removing washing
MINIMUM IRON and WOOLLENS
The door can be opened during the following programme stage:
– Main wash
Washing cannot be added or removed
later if the following additional options
or programmable functions have been
selected:
– “Water plus” (the water level is in-
creased)
– Programme lock (e.g. to prevent
children from opening the door dur-
ing the wash cycles).
– Main wash
– Rinses
Please note that the door can only be
opened when the suds temperature is
less than 55°C.
15
Loading...
