Operating instructions
for heat pump tumble dryer
T 8947 WP
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the
first time.
en - AU, NZ
M.-Nr. 09 264 070
Caring for the environment
Disposal of the packing
material
The packing material protects the dryer
from transport damage. The transport
and protective packing has been
selected from materials which are
environmentally friendly for disposal
and can normally be recycled.
Rather than just throwing these
materials away, please ensure they are
recycled.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Therefore, please do not dispose of it
with your household waste.
Energy saving tips
To avoid unnecessarily long drying
times and high consumption of energy:
Make sure that your laundry is
–
thoroughly spun before drying.
The higher the spin, the greater the
savings that can be made in energy
and time during drying.
Load according to the optimum
–
amount of laundry recommended for
the programme being used.
Underloading is uneconomical.
Overloading gives poorer quality of
drying and may cause unnecessary
creasing.
– Make sure that the room temperature
is not too high. If there are other heat
producing appliances in the room in
which the dryer is located, make sure
the room is well ventilated and switch
the other appliances off, if possible.
– After every cycle, remove the fluff
from the surfaces and the fluff filters
(see "Cleaning and Care").
Please dispose of it at your local
community waste collection/recycling
centre, or contact your Chartered
Agent for advice.
Ensure that your old appliance presents
no danger to children while being
stored for disposal.
2
–
Clean the fine filter when the prompt
to do so appears in the display.
Contents
Caring for the environment..........................................2
Warning and Safety instructions .....................................6
Operating the tumble dryer.........................................15
Control panel .....................................................15
Display ..........................................................16
Before using for the first time.......................................18
Notes on laundry care .............................................19
Garment care label symbols .........................................19
Tips on drying ....................................................19
How to dry correctly ..............................................20
Brief instructions ..................................................20
Extra options ....................................................25
Freshen up.......................................................25
Anti-crease.......................................................25
Gentle tumble ....................................................25
Buzzer ..........................................................25
Delay start.......................................................26
Programme chart .................................................27
Changing the programme sequence .................................31
Once a programme has started ......................................31
- changing the programme........................................31
- cancelling the programme and then selecting a different programme .....31
- cancelling the programme and then removing the laundry ..............31
Altering Delay start ................................................31
Adding or removing laundry after a programme has started ................31
Time remaining ...................................................31
3
Contents
Cleaning and care ................................................32
Emptying the condensed water container...............................32
Make sure you clean all the filters at the correct intervals...................33
When to clean the surfaces of the fluff filters ..........................33
When to clean additional fine filters .................................33
Cleaning the surfaces of the fluff filter ..................................34
1. In the door. ..................................................34
2. In the door opening. ...........................................34
Cleaning the fine filters .............................................35
1. Cleaning the fine filter in the door.................................35
2. Cleaning the fine filters in the door opening. ........................37
3. Cleaning the fine filter in front of the heat exchanger unit ..............38
Cleaning the tumble dryer ...........................................39
Problem solving guide ............................................40
What to do if...?..................................................40
Fault messages in the display ........................................40
An unsatisfactory drying result .......................................42
Other problems ...................................................43
Cleaning the cooling fins (Grille at bottom right) ..........................45
Changing the lamp ................................................46
After Sales service................................................47
Future updates (PC) ...............................................47
Optional accessories ...............................................47
Installation and connection ........................................48
Front view........................................................48
Rear view ........................................................49
Transporting the dryer ..............................................49
Installation site ....................................................50
Building under a continuous worktop/in a row of kitchen units ............50
Levelling the machine............................................51
Washer-dryer stack..............................................51
4
Contents
External condensed water outlet ......................................52
Arranging the drain hose .........................................52
External drainage via a sink or gully ................................53
Installation conditions requiring a non-return valve .....................53
Electrical connection ...............................................55
Consumption data ................................................56
Technical data ...................................................57
Settings menu ...................................................58
To open the Settings menu........................................58
To select a setting...............................................58
To close the Settings menu .......................................58
Language F......................................................58
Time ............................................................58
Drying levels .....................................................59
Lock code .......................................................59
Buzzer ..........................................................60
Keypad tone .....................................................60
Contrast .........................................................60
Brightness .......................................................60
Standby Display...................................................61
Memory .........................................................61
Anti-crease.......................................................61
5
Warning and Safety instructions
It is essential to read these instructions.
~
This tumble dryer conforms to current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the tumble dryer,
please read these instructions carefully before using it for the first
time. They contain important information on its safety, installation,
use and maintenance.
Keep these instructions in a safe place and ensure that new users
are familiar with the content. Pass them on to any future owner.
Correct application
This tumble dryer is designed for domestic use and for use in
~
similar environments by guests in hotel or motel rooms, bed &
breakfasts and other typical living quarters. This does not include
common/shared facilities or commercial facilities within hotels,
motels or bed & breakfasts.
This tumble dryer must only be used to dry items which have
~
been washed in a water solution and which are marked on the
manufacturer's care label as being suitable for tumble drying. "Dry
cleaning kits" for freshening up garments in a tumble dryer are
increasingly available on the market. If using, do so at your own risk,
and follow the instructions provided on the packaging.
Any other usage is not supported by the manufacturer and could be
dangerous. Miele cannot be held liable for damage resulting from
incorrect or improper use or operation of the tumble dryer.
6
Warning and Safety instructions
The tumble dryer is not intended for outdoor use.
~
This appliance is not intended for use by persons (including
~
children) with reduced physical, sensory or mental capabilities, or
lack of experience or knowledge, unless they are supervised whilst
using it or have been shown how to use it correctly by a person
responsible for their safety.
This tumble dryer must not be installed and operated in mobile
~
installations (e.g. on a ship).
Safety with children
Keep children away from the tumble dryer at all times. It is not a
~
toy! To avoid the risk of injury do not allow them to play on or near it
or to play with its controls. Supervise children whilst you are using it.
Older children may only use it if its operation has been clearly
~
explained to them, and they are able to use it safely, recognising the
dangers of incorrect use.
7
Warning and Safety instructions
Technical safety
Before setting up the tumble dryer, check it for any externally
~
visible damage.
Do not install or use a damaged tumble dryer.
Before connecting the appliance, make sure that the connection
~
data on the data plate (voltage and rated load) match the mains
electricity supply. If in doubt, consult a qualified electrician.
The electrical safety of this appliance can only be guaranteed
~
when continuity is complete between it and an effective earthing
system. It is most important that this basic safety requirement is
present and regularly tested, and where there is any doubt, the
household wiring system should be inspected by a qualified
electrician. Miele cannot be held liable for the consequences of an
inadequate earthing system (e.g. electric shock).
The heat pump technology in the
~
tumble dryer uses a refrigerant which is condensed by a
compressor. It is led in a closed circuit through the heat exchanger
unit where heat exchange with the circulating drying air takes place.
It is normal for humming noises caused by the heat pump
technology to be heard during the drying process. This does not
impair the efficient functioning of the dryer.
–
The refrigerant is not flammable or explosive.
–
In general it is not necessary to leave the dryer standing for any
length of time before it is connected to the mains provided it has
been transported and installed correctly (see "Installation").
Do not connect the tumble dryer to the mains electricity supply by
~
an extension lead. Extension leads do not guarantee the required
safety of the appliance (e.g. danger of overheating).
8
Warning and Safety instructions
Unauthorised repairs could result in unforeseen dangers for the
~
user, for which Miele cannot accept liabilty. Repairs should only be
undertaken by a Miele approved service technician.
Faulty components must only be replaced by genuine Miele
~
spare parts. Only when these parts are fitted can the safety
standards of the tumble dryer be guaranteed.
If the connection cable is faulty, it must only be replaced by a
~
Miele approved service technician to protect the user from danger.
In the event of a fault or for cleaning purposes, the tumble dryer
~
is only completely isolated from the electricity supply when:
– it is switched off at the wall socket and the plug is withdrawn, or
– it is switched off at the mains, or
– the mains fuse is withdrawn.
Do not make any alterations to the tumble dryer, unless
~
authorised to do so by Miele.
In areas which may be subject to infestation by cockroaches or
~
other vermin, pay particular attention to keeping the appliance and
its surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the warranty.
9
Warning and Safety instructions
Correct use
Caution! Risk of fire.
,
To avoid the possible danger of fire, please
read these warnings carefully.
A clogged filter is a fire hazard!
,
The fluff filter must be cleaned after every programme.
Remove all objects from pockets such as lighters and matches.
~
To prevent the risk of fire, the following textiles must not be dried
~
in this tumble dryer:
– Items which have not been washed.
– Items, such as workwear, which have not been thoroughly
cleaned and which are still soiled with grease, oil or other
desposits (such as cosmetics, lotions etc).
If items have not been thoroughly cleaned, there is a danger that
these might ignite when heated, even after they have been
removed from the dryer at the end of the programme.
–
Items that have been soiled with substances such as cooking oil,
acetone, petrol, kerosene, spot removers, turpentine, waxes, wax
removers and other chemicals (e.g. mops and floor cloths) should
be washed in hot water with extra detergent before being dried in
the tumble dryer.
–
Items which have been splashed with hair lacquer, hair spray, nail
polish remover or similar substances.
10
Warning and Safety instructions
When washing such heavily soiled items, ensure that you use
sufficient detergent and select a high temperature. If in doubt,
wash the items several times.
Oil-affected items can ignite spontaneously, especially when
~
exposed to heat sources such as in a tumble dryer.
The items become warm, causing an oxidation reaction in the oil.
Oxidation creates heat.
If the heat cannot escape, the items can become hot enough to
catch fire. Piling, stacking or storing oil-affected items can prevent
heat from escaping and so create a fire hazard.
If it is unavoidable that fabrics contaminated with vegetable or
cooking oil, or hair care products, be placed in a tumble dryer, they
should first be washed in hot water with extra detergent - this will
reduce, but not eliminate, the hazard.
To prevent the risk of fire, the following textiles or products must
~
not be dried in this tumble dryer:
– Items which have been dry-cleaned (for example with a chemical
treatment).
–
Fabrics which contain a large proportion of rubber, foam rubber or
rubber-like materials. For example, products made from latex
foam rubber, shower caps, waterproof textiles, rubberised articles
and items of clothing and pillows with foam rubber filling.
–
Fabrics which contain padding or fillings (e.g. pillows, jackets). If
these were damaged, the filling could get out with the risk of
igniting in the dryer.
11
Warning and Safety instructions
In many programmes, the heating phase is followed by a cooling
~
down phase to ensure that the items are not too hot to handle when
you remove them (this also avoids the danger of the laundry
self-igniting). The programme is not finished until the cooling down
phase is complete.
Ensure that you always wait until the end of the programme before
removing the laundry.
Warning: Do not switch the tumble dryer off before the end of the
~
drying programme. If this was done, remove and spread out all
items quickly so that the heat is dissipated.
Fabric conditioner and similar products must be used according
~
to the instructions on the manufacturer's packaging.
The tumble dryer is not to be used if industrial chemicals have
~
been used to clean it.
12
Warning and Safety instructions
The tumble dryer must not be used
~
without the fluff filters in place or if the fluff filters are damaged.
–
without the fine filter in place or if the fine filters are damaged.
–
This would cause an excessive build-up of fluff which in turn would
cause a fault!

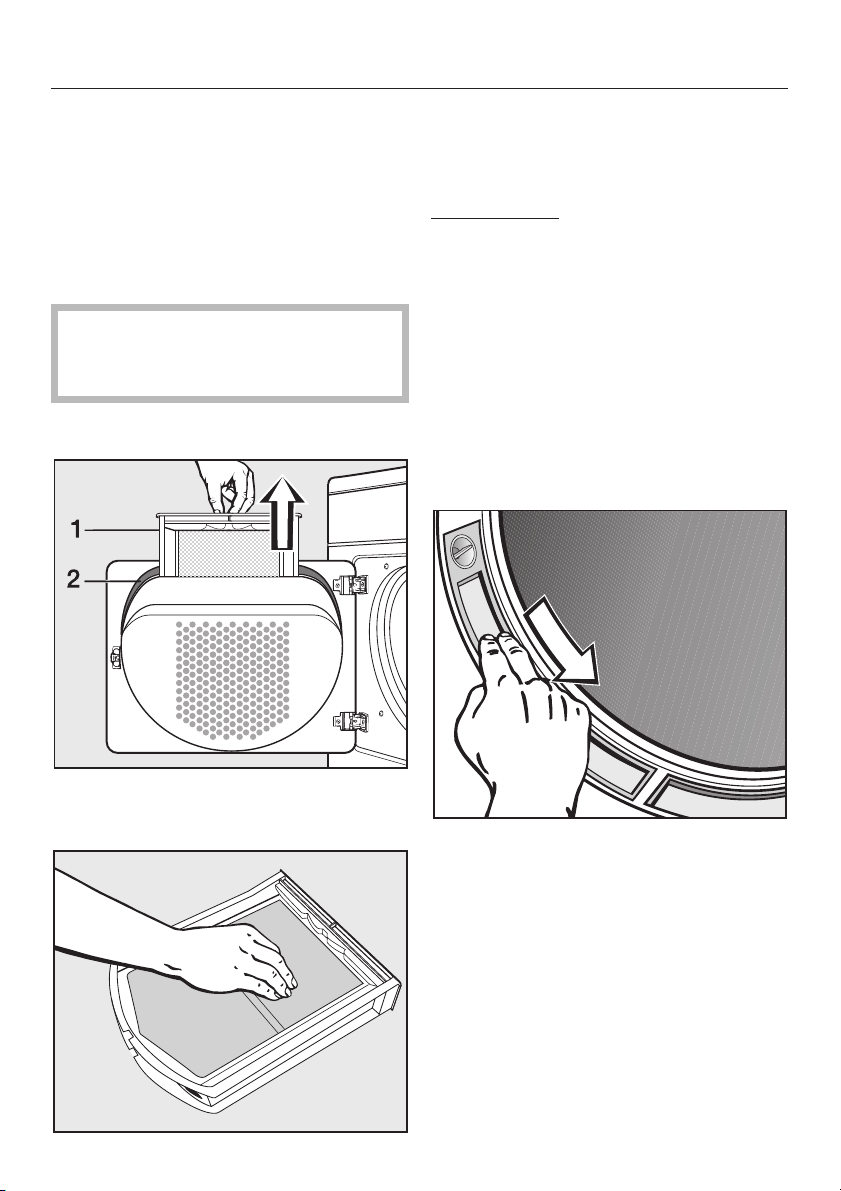

After every cycle, remove the fluff from the surfaces and the fluff
~
filters (see "Cleaning and care").
Fluff must not be allowed to accumulate around the tumble dryer.
~
The fluff filters and the fine filter must be thoroughly dried after
~
cleaning. Damp or wet filters could cause operational faults.
Do not install the tumble dryer in a room where there is a risk of
~
frost occurring. At temperatures around freezing point the tumble
dryer may not be able to operate properly.
There is a risk of damage if the condensed water is allowed to
freeze in the pump and in the drain hose.

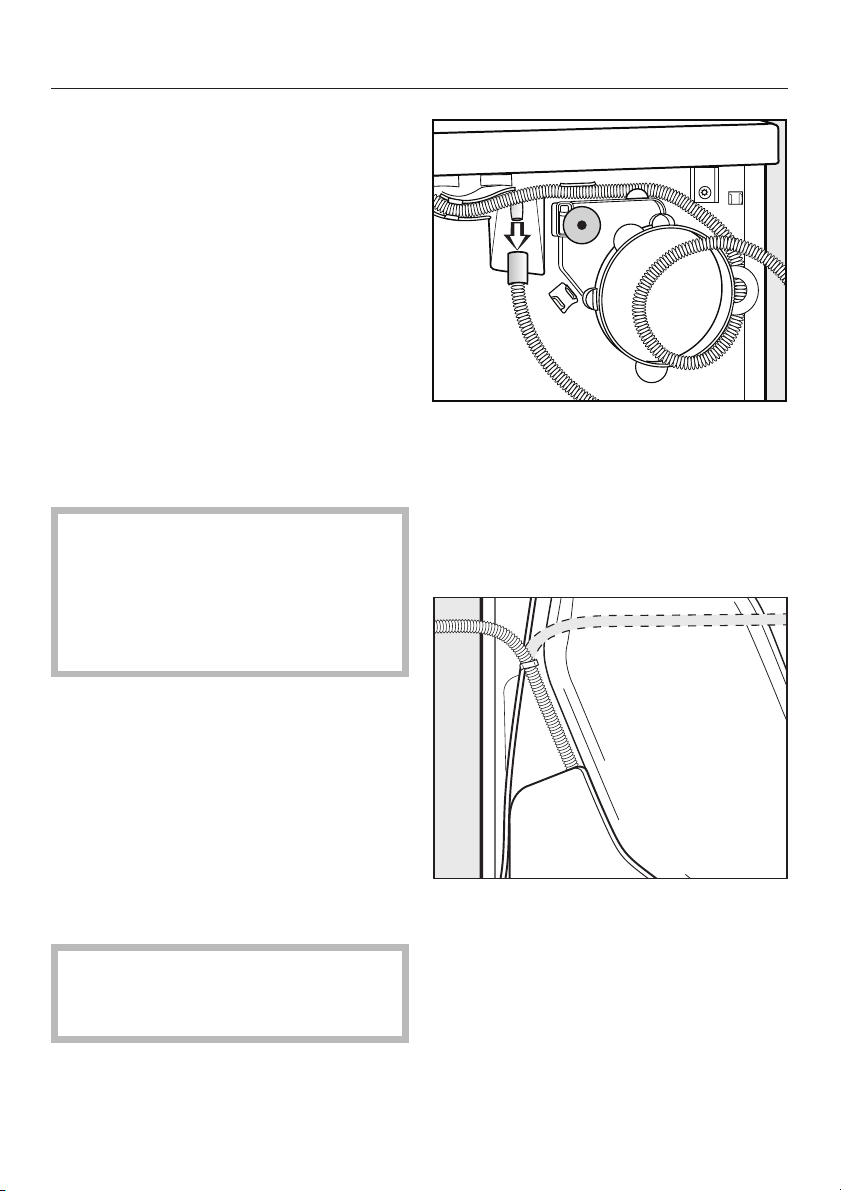

If the water is drained externally through the drain hose instead of
~
being collected in the condensed water container, make sure the
drain hose is securely attached if you hang it in a sink or basin to
avoid the hose slipping and the water causing damage.
Condensed water is not drinking water. It can cause health
~
problems in both people and animals.
13
Warning and Safety instructions
Always keep the area around the tumble dryer free of dust and
~
fluff.
Dust drawn into the tumble dryer can cause blockages in the
condenser unit over time.
Do not lean on the door. This can cause the tumble dryer to tip
~
over.
Always close the door after use. This way you will avoid the
~
danger of
children climbing onto or into the dryer or hiding things in it.
–
pets or other small animals climbing into it.
–
The tumble dryer must not be hosed down.
~
Accessories
Only use genuine Miele spare parts and accessories with this
~
tumble dryer. If non-Miele parts are used, warranty, performance
and product liabilty claims may be invalidated.
Miele cannot be held liable for damage caused by
non-compliance with these Warning and Safety instructions.
14
Control panel
Operating the tumble dryer
a Start/Stop button
For starting the programme selected
and cancelling a programme once it
has started.
b Display with X, OK and Y buttons
See the following pages for more
information.
c + button
For selecting Delay start.
d PC / Optical interface
This is used by service technicians
to run diagnostic checks on your
dryer and can also be used to
update programming data in the
future.
e Perfect Dry indicator
For all drying level programmes.
See next page.
f Extra option buttons with indicator
lights
Various Extra options can be added
to the drying programmes.
g Programme selector
The programme selector can be
turned clockwise or anti-clockwise.
h K On/Off button
For switching the dryer on and off.
To save energy, the dryer will switch
off automatically 15 minutes after the
end of the programme/Anti-crease
phase or 15 minutes after the dryer is
switched on if it is not operated.
i Door button
Pressing this button will open the
door even when the dryer is
switched off at the mains.
15
Operating the tumble dryer
Display
The display is operated using the X,
OK and Y buttons. The text or value
currently selected will appear
highlighted.
– Press the X button
to scroll to the next text or decrease
the value highlighted in the display.
– Press the Y button
to scroll to the previous text or
increase the value highlighted in the
display.
–
Press the OK button
to confirm the value highlighted in
the display.
Programme selection examples
To select a
Further programme
programme.
Press the OK button to confirm the
selection of the highlighted programme.
To increase or decrease a value
Cottons
Extra dry
Duration: 2:21
O O O O O O
h
Press the X button to select a lower
drying level and the Y button to select
a higher drying level.
Single option selection
Here one of the values is always
selected. A tick
( will appear next to
the one currently selected. The other
values are deselected automatically.
Memory
Off (
On ,
;
Press the X and Y buttons to scroll up
or down the values available.
Press the OK button to confirm your
selection of the value highlighted.
To come out of a sub-menu
Select Back # to come out of a
sub-menu.
Further programmes
Sportswear
Outerwear ,
;
Press the X button to scroll to the next
programme which will then appear
highlighted or press the Y button to
scroll to and highlight the previous
16
Operating the tumble dryer
The following are selected via the
display
the drying level (e.g. Hand iron,
–
Normal...)
the duration of the timed drying
–
programmes: Cool air, Warm air,
Drying basket programme
Delay start
–
cancellation of a programme.
–
The following are selected via
Further programmes/Settings 4
Further programmes
– Sportswear
– Outerwear
– Standard pillows
– Large pillows
– Drying basket prog.
The Miele drying basket (optional
accessory) must be used with this
programme.
Settings
The Settings menu J is used to alter the
tumble dryer's electronics to suit
different requirements. See "Settings
menu" at the end of this booklet for
more details.
Perfect Dry indicator
The Perfect Dry system measures the
laundry's residual moisture in
programmes with drying levels and
provides a more precise drying result.
remaining). The Perfect Dry indicator
light will flash during this time.
The programme duration will be shown
after a short time and the indicator light
will go out.
Once the selected drying level has
been reached, the Perfect Dry indicator
light will remain on until the end of the
programme.
The Perfect Dry indicator light always
remains dark during the following time
controlled programmes: Woollens,
Silks, Cool air, Warm air, Gentle
smoothing, Drying basket prog.
Programme duration /
Estimated time remaining
The estimated duration (time remaining)
will appear in the display.
The following factors all affect the
estimated time remaining: residual
moisture content after spinning; type of
fabric; size of load; room temperature;
fluctuations in power supply.
The electronics continually assess
conditions in the appliance and adjust
the estimated time remaining for a more
accurate reading. Because of this, the
time displayed can alter during the
course of a programme.
Programmes can also finish earlier than
expected – if, for example, particularly
fine fabrics are being dried, the load is
very small or items were partially dry
beforehand.
After starting the programme, the
electronics will measure the duration of
the programme (Estimated time
17
Before using for the first time
Before using the dryer for the
,
first time, ensure that it is correctly
installed and connected. If the
tumble dryer has not been
transported as described in
"Installation" then it must be left to
stand for at least 1 hour before
connected to the electricity supply.
Press the K button in.
^
When the tumble dryer is switched on
for the first time, the welcome screen
will appear.
Setting the language for the display
You will be asked to select the
language you require for the display. It
is possible to select another language
at any time via Further programmes/
Settings 4 in the Settings sub-menu.
Sprache
deutsch
it is
;
Setting the time (of day) (if
necessary)
Time
12:00
Press the X button to decrease or the
^
Y button to increase the hour.
Confirm the hour selected with the
^
OK button. Then do the same to set
the minutes.
Completing the "Before using for the
first time" procedure
The entry menu showing the current
time of day will appear after the tumble
dryer has been switched on, until you
select a programme.
12:00
Select programme
english ,
^
Press the X and Y buttons to scroll
through the options until the
language that you want is
highlighted. Press the OK button to
confirm your selection.
18
^
You can now load the laundry into the
dryer and select a programme as
described in "How to dry correctly".
The "Before using for the first time
procedure" is completed when a
programme lasting longer than 1 hour
has been carried out. The welcome
screen will appear again the next time
the dryer is switched on if a programme
shorter than 1 hour is selected but not if
a programme longer than 1 hour is
selected.
Notes on laundry care
Garment care label symbols
Drying
q/r Normal/low temperature
Drying is carried out at a low
temperature in every
programme, so you do not need
to sort your garments according
to whether they have the q or
r symbol.
s Do not tumble dry
Tips on drying
– Always observe the maximum
recommended loads given in the
"Programme chart". Never overload
the drum.
Overloading can cause unnecessary
wear and tear to the laundry, give a
disappointing drying result and
cause more creasing.
– Do not put soaking wet items into the
tumble dryer. Spin fabrics for at least
30 seconds before drying.
–
Use the Automatic plus programme
for drying mixed loads of cotton and
minimum iron fabrics.
–
Open jackets
evenly.
–
Pure linen
dried if specified as suitable by the
manufacturer on the garment care
label, as the surface of the fabric
may otherwise become rough.
so that they can dry
should only be machine
Loopknit garments
–
underwear) tend to shrink depending
on their quality. Do not overdry these
textiles. When purchasing these
garments, it is advisable to take their
shrinkage properties into account.
Minimum iron fabrics
–
more, the larger the load. This is also
the case for garments made from
very fine weave fabrics, such as
shirts or blouses.
Make sure you select a suitable
programme. If in doubt, divide the
garments into smaller loads and
select the Gentle tumble Extra
option.
– Starched laundry
tumble dryer. To achieve the usual
finish, double the amount of starch
should be used.
– New dark coloured garments
be washed and dried separately
from light coloured garments to avoid
the danger of colours running and
discolouring other garments or even
plastic components in the dryer.
Dark coloured fibres can also settle
on light coloured garments and vice
versa.
–
Use the Basket programme for
drying / airing items which are not
suitable for drying with mechanical
action. Important: You must use a
Miele drying basket (optional
accessory).
(e.g. T-shirts and
tend to crease
can be dried in the
should
19
How to dry correctly
Brief instructions
The headings numbered (A, B, C ...)
show the operating sequence and can
be used as a brief guide to using your
dryer.
A Sort the laundry
To ensure an even drying result,
separate out the washed laundry and
sort it according to:
. . . the drying level required
. . . the type of fibre or weave
. . . size
. . . the moisture content after spinning.
Make sure that objects e.g.
,
detergent dispensing balls have
been removed from the laundry.
They could melt, and cause damage
to the dryer or the laundry.
– Remove all objects from pockets
such as lighters and matches.
– Check seams and stitching to ensure
that padding and linings are intact.
C Load the tumble dryer
Press the Door button to open the
^
door.
Load the laundry loosely into the
^
drum.
Do not overload the drum. See the
"Programme chart" for
recommended loads for each
programme.
Overloading can cause unnecessary
wear and tear to the laundry and
give a disappointing drying result.
^ Before closing the door, make sure
the fluff filter is correctly positioned in
–
Fasten duvet covers and pillow
cases to prevent small items from
being trapped inside them.
–
Fasten zips, hooks and eyes etc.
–
Tie fabric belts and apron strings.
–
Sew in or remove underwiring from
bras.
B Turn on the tumble dryer
^
Switch the dryer on by pressing the
s button in.
The tumble dryer may be switched on
after loading, saving energy as the light
will not come on.
20
the door.
Check the laundry is right inside the
drum so that it cannot get trapped or
damaged when the door is shut.
^
Shut the door either with a gentle
swing, or lean against it and push it
shut.
How to dry correctly
D Select a programme
Select the programme you want.
^
The programme name will appear in the
display.
Further programmes/Settings
4
^ Turn the programme selector to
Further programmes/ Settings 4, for
additional programmes and settings.
Further programmes
Settings !
Sportswear ,
^
Press the X or Y button to scroll
;
through the options until the
programme you want is highlighted.
^
Confirm your selection by pressing
the OK button.
The programme name will appear in the
display.
Drying level programmes
You can select a drying level for
–
many of the programmes.
Cottons
Extra dry
Duration: 2:21
Select the drying level by pressing
^
O O O O O O
h
the X or Y button.
Any of the six drying levels can be
selected for the Cottons and Express
programmes. A more limited range is
available when using other
programmes and only the "Normal"
drying level is available for the Stan-
dard pillows / Large pillows
programmes.
Bars will also appear briefly to show the
range of the drying levels available.
Note
You can alter the drying levels for some
programmes (see "Settings menu").
The following programmes:
–
Gentle smoothing, Woollens, Silks
cannot be altered.
Using the Cottons Normal +
programme is recommended for a
mixed cotton load and is the
programme used in energy
consumption tests to AS/NZS 2442
(Refer to www.energyrating.gov.au
website for consumption data).
21
How to dry correctly
Select the duration of a timed drying
programme
Cool air: 20 mins - 1 hour
–
Warm air: 20 mins - 2 hours
–
Drying basket programme*:
–
40 mins - 2:30 hours
Warm air
0:20 h:min
(0:20 - 2:00 h)
Press the X or Y button to increase
^
or decrease the duration.
* The Miele drying basket (optional
accessory) must be used with this
programme.
If an option is selected which is not
compatible with the programme
which has been chosen, Option not
possible will appear in the display.
E Select any Extra options / Delay
start
^ Select any Extra options by pressing
the appropriate button. The relevant
indicator light will come on to show
which Extra option has been
selected.
See "Extra options" for more
information.
22
^
You can also select Delay start (see
"Delay start" for more details).
How to dry correctly
F Start the programme
The indicator light for the Start/Stop
button will flash when a programme is
being selected. The flashing indicates
that a programme can be started.
Press the Start/Stop button.
^
The indicator light for the Start/Stop
button will now light up constantly.
Drying will appear in the display.
Perfect Dry only flashes/illuminates
during programmes with drying levels.
It remains dark during time controlled
programmes (see "Operating the
tumble dryer").
Note: The duration shown in the display
is an estimate and can vary.
With programmes with drying levels,
the tumble dryer senses the residual
moisture of the laundry and the drying
level reached e.g. Machine iron ...
Hand iron ... etc. will be shown in the
display.
Before the end of a programme
There is a cooling down phase at the
end of the drying sequence: Cooling
down will appear in the display. The
programme is not finished until the
cooling down phase has been
completed.
G Remove the laundry when the
programme has finished
Anti-crease (if selected) and Finished
will appear in the display to indicate
that the programme has finished. The
buzzer (if selected) will sound at
intervals.
The dryer has a standby mode: After
the programme has finished, the
display will go out and the indicator
light for the Start/Stop button will start to
flash slowly (see also "Settings menu Standby display" at the end of this
booklet).
If the Anti-crease function has been
selected, the drum will rotate at
intervals to prevent creasing. In this
instance, the display going dark and
the drum only rotating at intervals
(standby mode) do not indicate a fault
with the dryer.
^ Press the Door button to open the
drum door.
^
Remove the laundry.
Check that all items have been
removed from the drum. If items are
left in the dryer, they could be
damaged by overdrying when the
dryer is next used.
If the dryer is switched on at the mains
and the door is opened, the drum
lighting will come on. It will go out a few
minutes later to save energy.
The dryer will switch off automatically
15 minutes after the end of a
programme/the end of the anti-crease
phase.
23
How to dry correctly
Switch the dryer off by pressing the
^
K button.
Clean the fluff filters in the door and
^
the door opening.
Close the door.
^
Empty the condensed water container.
^
We recommend connecting the dryer
for external drainage as you will not
need to empty the condensed water
container.
See also "Cleaning and care".
^
24
Extra options
Freshen up
The drying air is heated up for a
specific length of time. After this, the
garments are aired to the Normal
drying level without any more heat
being added.
Use the Freshen up Extra option to
eliminate or reduce unwanted smells in
clean clothing. Items must be suitable
for drying in a tumble dryer. Dampen
the garments a little beforehand or add
a fabric conditioner sheet. Odours will
not be removed as effectively from any
parts of the garments which are made
of synthetic fibres.
Anti-crease
After the programme has finished, the
drum will rotate, depending on the
programme selected, for 2 hours in a
special rhythm. This "anti-crease
rhythm" helps to prevent laundry
creasing if you do not wish to remove it
immediately.
Gentle tumble
For drying items which can be dried in
a tumble dryer but which are
particularly susceptible to creasing or
which are not suitable for drying with a
great deal of mechanical action. When
this option is selected, the drum will
rotate less frequently.
The programme duration is longer.
Buzzer
A buzzer sounds (at intervals for a
maximum of 1 hr) to let you know the
programme has finished.
The buzzer will always sound when
there is a fault, even if it has been
switched off.
Note:
You can alter the duration of the
anti-crease phase, the volume of the
buzzer and the drying levels of some
programmes (see "Settings menu").
Optional extras available
Anti-crease
Buzzer
Freshen up
Gentle tumble
Automatic plus ##
Cottons ###
Express ##
Denim ###
Standard pillows ##
Large pillows ##
Drying basket prog. #
Cool air ##
Warm air ## #
Shirts ###
Outerwear ##
Minimum iron ###
Gentle smoothing ##
Silks ##
Sportswear ## #
Delicates ##
Woollens #
# available
1
#
either Freshen up or Gentle tumble.
1#1
1#1
1#1
1#1
25
Delay start
With Delay start you can choose when
you want the programme to end. The
start of a programme can be delayed
from 15 minutes up to a maximum of 24
hours, allowing you to make use of
night-time economy electricity rates, for
example.
The current time of day needs to
have been set for Delay start to work
correctly.
To select Delay start
A Select the programme you want and
then press the + button.
The display shows:
Delay start 8:20
Start time
Finish time
8:20
9:39
B Press the Y button to select the time
you want the programme to end at.
The first press on the button will adjust
the programme end time to the next 15,
30, 45 minutes or full hour. Each
subsequent press on the button will
delay the programme end time by 15
minutes.
Delay start 8:20
The display will show the hours and
minutes remaining until the start of the
programme.
The drum will turn briefly every hour to
help prevent creasing.
To change Delay start
You can select a different programme
end time, if you wish.
Press the + button.
^
Use the X or Y button to change the
^
programme end time.
^ Confirm your selection by pressing
the OK button.
You can also alter the drying level or
select or deselect Extra options.
To cancel Delay start
^ Press the Start/Stop button.
The following will appear in the display:
Cancel delay start.
^
Confirm by pressing the OK button.
^
Now you can select a different
programme, or
^
Press the Start/Stop button to start
the programme straight away.
Start time
Finish time
10:41
12:00
C Confirm your selection by pressing
the OK button.
D Press the Start/Stop button.
26
Programme chart
Cottons Max. load 7 kg*
Extra dry, Normal+, Normal
Fabric type Single and multi-layered cotton fabrics such as towelling, T-shirts,
underwear, flannelette bed linen.
Notes
Hand iron r, Hand iron rr, Machine iron
Fabric type Cotton or linen fabrics, e.g.: table linen, bed linen, starched
Note To prevent laundry from drying out, it should be rolled up until you
Minimum iron Max. load 3.5 kg*
Normal+, Normal, Hand iron r
Fabric type Minimum iron items made of cotton, synthetic or blended fabrics,
Delicates Max. load 2.5 kg*
Normal+, Normal, Hand iron r, Hand iron rr
Fabric type Delicate items made of synthetic fibres, easy care cotton or
* Weight of dry laundry
Select Extra dry for multi-layered and very thick fabrics.
–
Do not use Extra dry for loopknit fabrics (e.g. T-shirts, underwear,
–
baby clothes), as they have a tendency to shrink.
laundry.
are ready for ironing.
e.g.: dresses, trousers, skirts and table cloths.
blended fabrics, e.g. shirts, blouses, lingerie and appliquéd
garments.
27
Programme chart
Woollens Max. load 2 kg*
Fabric type Woollen fabrics. Fabrics containing wool blends.
Notes
Silks Max. load 1 kg*
Fabric type Silks (suitable for drying in a tumble dryer), e.g. blouses and shirts.
Notes
Express Max. load 3.5 kg*
Extra dry, Normal+, Normal, Hand iron r, Hand iron rr, Machine iron
Fabric type Fabrics which can tolerate high temperatures and which can be
Note – The programme duration is shorter.
Gentle smoothing Max. load 1 kg*
Fabric type – Cotton and linen fabrics.
Notes – Smooths out creasing caused during the spin cycle in the
* Weight of dry laundry
This programme only fluffs up woollen garments. They are not
–
dried completely.
Remove garments as soon as the programme has finished and
–
leave to finish drying at room temperature.
Smooths out creasing.
–
Remove garments as soon as the programme has finished.
–
dried using the Cottons programme.
– Minimum iron items made of mixed fibres, cottons or synthetics,
e.g.: trousers, anoraks, shirts.
washing machine.
–
Remove garments as soon as the programme has finished so
that they are easy to iron.
28
Programme chart
Automatic plus Max. load 5 kg*
Normal+, Normal, Hand iron r
Fabric type Mixed loads of garments suitable for the Cottons and Minimum iron
programmes. Sort according to colour.
Shirts Max. load 2 kg*
Normal, Hand iron r
Fabric type Shirts and blouses.
Denim Max. load 3 kg*
Normal, Hand iron r
Fabric type Denim garments, e.g. jeans, jackets, skirts, shirts.
Cool air Max. load 7 kg*
Fabric type Any item which only needs airing.
Warm air Max. load 7 kg*
Fabric type – Voluminous and multi-layered fabrics whose layers have different
drying characteristics, e.g. jackets, pillows.
– For drying individual items, e.g. bath towels, swimwear, tea
towels.
Note – Do not select the longest drying time to start with. Check the
items as you are drying them to find the optimum time.
Sportswear Max. load 3 kg*
Normal+, Normal, Hand iron r
Fabric type Sportswear which is suitable for drying in a tumble dryer.
Outerwear Max. load 2.5 kg*
Normal, Hand iron r
Fabric type Outerwear which is suitable for drying in a tumble dryer.
* Weight of dry laundry
29
Programme chart
Standard pillows 1-2 pillows up to 80 x 40 cm
Large pillows 1 pillow up to 80 x 80 cm
Fabric type Pillows suitable for drying in a tumble dryer, with feather, down or
synthetic fillings.
Note Please observe the instructions on the care label. Pillows can still
feel damp after being dried. You can use this programme several
times until the pillow feels dry.
Drying basket prog. Max. load for basket: 3 kg
Notes
Fabric type/
items
The drum does not rotate in this
–
programme.
For this reason, airing and drying may
only be carried out if the Miele drying
basket (optional accessory) is fitted
in the drum.
– Use this programme to dry items
which are suitable for drying in a
tumble dryer but which are not suitable for drying using
mechanical action.
– A satisfactory drying result cannot be achieved without the
drying basket.
– It is essential to observe the Operating instructions for the
drying basket.
–
See the Operating instructions supplied with the drying basket.
30
Changing the programme sequence
Once a programme has started
- changing the programme
You cannot change to another
programme once a programme has
started (this prevents unintentional
alterations).
If an attempt is made to change a
selection: Option not possible will
appear in the display.
It is still possible to select or deselect
the Anti-crease and Buzzer Extra
options.
You will need to cancel the current
programme before you can select a
new one.
- cancelling the programme and then
selecting a different programme
^ Press the Start/Stop button.
Cancel programme will appear in the
display.
^
Press the OK button.
The items will be cooled down,
depending on the temperature
reached and how long they have
been dried for.
If you press the Start/Stop button
during the cooling down phase and
confirm by pressing the OK button,
Finished will appear in the display.
Note: A programme can also be
cancelled by turning the programme
selector to Stop.
- cancelling the programme and then
removing the laundry
Proceed as described below in
^
"Adding or removing laundry after a
programme has started".
Switch the dryer off after closing the
^
door.
Altering Delay start
^ See "Delay start".
Adding or removing laundry
after a programme has started
^ Press the Door button.
^ Open the door.
^ Add or remove items as required.
^ Close the door.
^
Press the Start/Stop button.
Time remaining
The time left shown in the display may
now vary from the actual drying time.
^
Press the Door button.
^
Close the door.
^
Select another programme and start
it.
31
Cleaning and care
Emptying the condensed water
container
The condensed water will be collected
in the condensed water container
unless the dryer has been connected
for external drainage (see "Installation").
Empty the condensed water
container after every drying
programme.
Empty container will appear in the
display if the maximum level of the
condensed water container is reached.
The message will go out when the dryer
is switched off and then back on again.
Empty the container.
^
^ Replace the container in the dryer.
Condensed water should not be
,
consumed. It could lead to health
problems for people and animals.
Condensed water can be put to
household use (e.g. in a steam iron or
humidifier). To ensure that any residual
particles of fluff in the condensed water
are removed before use, pass it
through a fine sieve or paper filter first.
^
Pull out the condensed water
container.
^
To prevent water running out, hold it
at the front and towards the back and
keep it in a horizontal position when
carrying it.
32
Cleaning and care
Make sure you clean all the
filters at the correct intervals
This tumble dryer has a multistage filter
system, consisting of the fluff filters in
the door and the door opening and
additional fine filters.
The filters are located in the
following positions:
1. In the door.
2. In the door opening.
3. In front of the heat exchanger unit.
When to clean the surfaces of the
fluff filters
The surfaces of the fluff filters:
1. in the door,
2. in the door opening
should be cleaned after each drying
programme.
See "Cleaning the surfaces of the
fluff filters".
A clogged filter is a fire hazard!
,
The fluff filter must be cleaned after
every programme.
When to clean additional fine filters
The additional fine filters do not
need to be cleaned after each
drying programme. They should
only be cleaned with the prompt* to
do so appears in the display.
See "Cleaning the fine filters".
* When
Clean door filter appears:
,
The dryer must not be used
without the fluff filters in place or if
the fluff filters are damaged in any
way. This would cause an excessive
build-up of fluff which in turn would
cause a fault!
1. Clean the fine filter in the door.
2. Clean the fine filters in the door
opening.
* When
3. Clean the fine filter in front of the heat
Clean plinth appears:
exchanger unit.
33
Cleaning and care
Cleaning the surfaces of the
fluff filter
Hair and fluff on garments are collected
by the fluff filters in the door and the
door opening.
Tip: You can use a vacuum cleaner to
remove the fluff.
Clean the surfaces of the fluff filters
in the door and the door opening
after each drying programme.
1. In the door.
Use your fingers or a vacuum cleaner
^
to remove the fluff from the surface of
the filter.
Extra cleaning
Remove any fluff from the hollow part
^
of the door with a bottle brush or a
vacuum cleaner.
Also clean the door seal (2) with a
^
damp cloth.
Push the filter back into the door
^
holder until it clicks into position.
Ensure it is facing the correct way.
2. In the door opening.
^
Open the door and pull the fluff filter
(1) out of the door as illustrated.
34
^
Use your fingers or a vacuum cleaner
to remove the fluff from the two fluff
filters in the door opening.
^
Close the door.
Cleaning and care
Cleaning the fine filters
The additional fine filters collect finer
fluff, hair and detergent residues which
have got through the surfaces of the
fluff filters in the door and the door
opening.
The additional fine filters
do not need to be cleaned after
–
each drying programme. They
should only be cleaned when the
prompt* to do so appears in the
display.
*See "Make sure you clean all the
filters at the correct intervals".
– must be cleaned under running
water.
,The fine filters must not be
replaced in the dryer dripping wet.
If the fluff filters in the door and the
door opening have also been
cleaned under running water, they
must be dried.
Otherwise they could cause
operational faults.
1. Cleaning the fine filter in the door
Components of the fluff filter in the door
1 Fluff filter
2 Fine filter frame holder
3 Fine filter frame
4 Fine filter
^ Open the door and pull the fluff filter
out of the door as described
previously.
^
Remove the fine filter (4) as
described on the following pages.
,
Always replace the fine filters if
they are damaged (Miele optional
accessory, available to order).
35
Cleaning and care
Removing
Place the fluff filter (1) on a flat
^
surface.
a Press holder (2) on the fine filter
frame gently
frame disengages from the fluff filter.
b Pull the fine filter frame (3) out of the
fluff filter by the holder.
^ Remove the fine filter (4).
Cleaning
^
Clean the fine filter thoroughly under
running water.
^
Then squeeze the fine filter
thoroughly.
inwards until the filter
Replacing
^ Place the fluff filter (1) on a flat
surface.
^ Place the fine filter (4) exactly in the
middle of the hollow area in the fluff
filter.
^ Place the fine filter frame (3) onto the
fine filter - the handle (2) must face
upwards.
^ Press the fine filter frame at the top
and bottom until you feel it click into
position in the fluff filter.
^
Push the filter back into the door
holder until it clicks into position.
Ensure it is facing the correct way.
^
Clean the fine filter frame if
necessary.
^
The surface of the fluff filter must also
be cleaned under running water if
there is a great deal of compacted
fluff on it.
^
Dry the fluff filter and the filter frame.
36
Cleaning and care
2. Cleaning the fine filters in the door
opening.
Removing
^ Turn dial a until you feel it click.
^ Pull the filter out of the door opening
by the dial as shown b.
Cleaning
Clean both fine filters thoroughly
^
under running water.
Then squeeze the fine filters
^
thoroughly.
The surface of the fluff filters must
^
also be cleaned under running water
if there is a great deal of compacted
fluff on it.
Dry both fluff filters.
^
If necessary, clean the hollow area in
^
the door opening (underneath the
fluff filters) with a vacuum cleaner.
Replacing the fine filters (bottom
pictures)
^ Insert the holder of the fine filter with
its groove on top of the ridge (see
detail).
^ Insert the bottom end of the fine filter
under the edge.
^
Grasp the fine filter by its holder and
pull the fine filter upwards.
Both fine filters must lie flush in the
middle of the hollow area.
Replacing the fluff filters (top picture)
^
Replace the fluff filters by inserting
them at the bottom and pressing
them into place at the top.
^
Lock both dials (you will feel them
click into position).
37
Cleaning and care
3. Cleaning the fine filter in front of
the heat exchanger unit
Removing
^ Use the yellow opener to open the
service panel at the bottom left of the
front of the tumble dryer.
^ Now remove the panel by pulling it
diagonally upwards.
Pull the fine filter out by the handle.
^
^ Then place it to one side.
^
Turn the lever on the inner cover
downwards to the vertical position.
^
Pull the cover forwards.
^
Remove it by pulling it diagonally
upwards.
38
^
Press the stoppers gently together
and then pull them out of the handle.
^
Pull the handle out of the fine filter.
Cleaning
^
Clean the fine filter thoroughly under
running water.
^
Then squeeze the fine filter
thoroughly.
Cleaning and care
Replacing
Insert the fine filter on the handle.
^
Press the stoppers into the openings
^
of the handle (until you feel them
click into position).
Push the fine filter back into the
^
opening in front of the heat
exchanger unit.
When replacing the inner cover after
cleaning, ensure that the rubber seal
fits correctly into the groove.
^ Replace the cover making sure the
hooks locate correctly. Hold it at an
angle and push it gently downwards.
^ Then turn the lever upwards into the
horizontal position to lock the cover.
^ Replace the service panel and press
the upper edge until it clicks into
position.
Cleaning the tumble dryer
Disconnect the machine from the
mains electricity supply.
Clean the housing and control panel
^
with a slightly damp cloth and a mild
detergent or soapy water.
The drum and other stainless steel
^
parts can be cleaned with a suitable
propietary stainless steel cleaner
following the manufacturer's
instructions.
Do not use solvents, abrasive
cleaners, glass cleaners or
all-purpose cleaners. These could
damage plastic surfaces and other
parts.
^ Dry all parts with a soft cloth.
,
The cover must be replaced and
locked correctly to ensure that no
water can leak from the heat
exchanger unit.
39
Problem solving guide
What to do if...?
With the help of the following notes, minor faults in the performance of the
machine, some of which may result from incorrect operation, can be put right
without contacting Miele. A call-out charge will be applied for unnecessary service
visits where the problem could have been rectified as described in these
Operating instructions.
Repair work to electrical appliances must only be carried out by a suitably
,
qualified and competent person in strict accordance with current local and
national safety regulations. Repairs and other work by unqualified persons
could be dangerous. The manufacturer cannot be held liable for unauthorised
work.
Fault messages in the display
Problem Possible cause Remedy
You are asked to enter a
code.
Adjust the load
The programme is
cancelled, the buzzer
sounds.
Empty the container
The programme is
cancelled, the buzzer
sounds.
Access via a code has
been activated.
This is not a fault.
In some programmes, if
the drum has been
overloaded or
underloaded, the
programme will be
cancelled. This can also
happen if the items are
already dry.
The condensed water
container is full or there is
a kink in the drain hose.
Enter the code (see
"Settings menu").
Use the Warm air
programme (timed
drying) to dry individual
items.
– Switch the dryer off
and then on again.
–
Open and close the
door.
–
Empty out the
condensed water
container or check the
drain hose.
–
Switch the dryer off
and then on again.
40
Problem solving guide
Problem Possible cause Remedy
Clean door filter
appears at the end of
a programme.
Clean plinth filter
appears at the end of
a programme.
Clean out airways
appears after a
programme is
cancelled. The
laundry is not
completely dry. *
Extra cooling
A prompt which has
not been described
previously appears in
the display. *
This is a reminder to clean
the fine filter in the door
and the door opening
under running water.
This is a reminder to clean
the fine filter in front of the
heat exchanger unit under
running water.
The cool air intake panel at
the front of the dryer is
covered.
Too much fluff has
accumulated.
The temperature in the
room has risen sharply.
The drying programme has
been interrupted by a
cooling phase to protect
the heat pump from
overheating.
The programme has
finished but the laundry is
still cooling down.
A programme cannot be
started while there is a
fault message in the
display.
Clean the fine filters.
–
See "Cleaning and
care".
To delete the fault
message:
Select OK.
–
Remove the laundry
–
basket or other objects.
Check and clean the
–
surfaces of the fluff
filters and all of the fine
filters.
– Carefully vacuum up
(with dusting brush) any
soiling from the dryer
interior in front of the
heat exchanger unit.
– Open a door or window
while the machine is in
operation for increased
air flow.
–
Start the programme
again once the room
has cooled down.
–
You can remove the
laundry and spread it
out to allow the heat to
dissipate, or leave it in
the dryer to cool down
more.
–
Note what is shown in
the display.
–
If a programme still
cannot be started, call
Miele.
* To delete the fault message: Switch the dryer off and then on again.
41
Problem solving guide
An unsatisfactory drying result
Problem Possible cause Remedy
The laundry is not
sufficiently dry.
Feather filled pillows
smell after drying.
Items made of synthetic
fibres are charged with
static electricity after
drying.
There is a build-up of
fluff.
* You can alter the drying levels for some programmes (see "Settings menu").
The load consisted of
different fabrics.
Feathers are a natural
product and this is quite
normal.
Synthetic fibres tend to
attract static charge.
Fluff is principally the
result of friction when
garments are being worn
and to some extent when
they are being washed.
Machine drying hardly
causes any fluff to form
and has no appreciable
effect on the lifetime of
the fabric.
Finish drying using the
–
Warm air programme.
Select a different
–
programme next time*.
The smell will dissipate
after sufficient airing.
Static charge can be
reduced by adding a
fabric conditioner to the
final rinse in the washing
programme or a fabric
conditioner sheet to the
load when drying.
Fluff is collected by the
fluff filters and can be
easily removed (see
"Cleaning and Care").
42
Problem solving guide
Other problems
Problem Possible cause Remedy *
The drying
process goes
on too long or
even switches
off.
* Before starting a programme, switch the dryer off and then on again.
Ventilation to and from the
dryer may be insufficient
(e.g. because it is installed
in a small room). This has
caused the temperature in
the room to rise sharply.
Detergent residue, hair
–
and fine fluff may have
blocked the fluff filters
and fine filters.
– The cooling fins may be
blocked.
The cool air intake panel at
the front of the dryer is
covered.
The fluff filters and the fine
filters were still wet when
they were replaced.
The laundry has not been
spun sufficiently.
The tumble dryer has been
overloaded.
Metallic components, e.g.
zippers have prevented the
dryer from registering the
correct moisture level.
Open a door or window while
–
the machine is in operation for
increased air flow.
Clean the fluff filters and fine
–
filters.
Remove any fluff:
–
. . . from the heat exchanger
unit at the bottom left (see
"Cleaning and care").
. . . from the cooling fins behind
the grille at the bottom right.
– Remove the laundry basket or
other objects.
– The fluff filters and fine filters
must be dry before replacing
them.
–
Make sure that your laundry is
thoroughly spun at the
appropriate spin speed in the
washing machine.
–
Do not exceed the maximum
load for the programme
selected.
–
Open the zippers next time.
–
If the problem occurs again,
dry garments with long zippers
using the Warm air programme
(timed drying).
43
Problem solving guide
Problem Possible cause Remedy
There are humming
noises.
The display is dark.
The programme
selector is not lit up.
The Start/Stop button
light flashes slowly.
A programme cannot
be started.
Power cut When power is restored to the dryer after a power cut,
The display is in a
different language.
The Start/Stop button
light flashes when a
programme is being
selected.
The interior drum
lighting does not
come on.
The compressor is
operating.
The display has
switched off
automatically to save
energy (Standby mode).
The light of the
programme selector
goes out when selecting
Menu J.
There is no immediate
cause.
the programme will continue as long as the cooling
down phase had not been reached.
A different language has
been selected.
This is not a fault.
The flashing indicates
that a programme can
be started.
The lighting switches off
automatically (to save
energy).
None. These noises are quite
normal and do not indicate a
fault.
The display will light up
when one of the buttons is
pressed.
Is the dryer switched on?
–
– Is the mains plug plugged
in?
– Is the door closed
properly?
– Has the fuse or circuit
breaker tripped?
Set the language you want.
The flag symbol J will guide
you.
After the programme has
started, the flashing will
change to a constant light.
–
Switch the dryer off and
then on again.
–
If the lamp needs to be
replaced, follow the
instructions in "Changing
the lamp" at the end of this
section.
44
Cleaning the cooling fins
(Grille at bottom right)
Generally, the cooling fins do not
,
need to be cleaned. They should
only be cleaned if excessive
quantities of dust and lint are
causing unusually long drying times.
Use the yellow opener supplied to open
the grille at the bottom right of the front
of the tumble dryer.
Problem solving guide
To avoid damaging the cooling
,
fins, run the vacuum cleaner (using
dusting brush or crevice nozzle)
lightly across them without pressure.
^ Carefully vacuum up any dust or lint
on the cooling fins which may be
causing a blockage.
^
Insert the opener in the top-centre of
the grille and carefully lift the opener
to pry open (see arrow) the grille.
^
Now remove the grille by pulling it
diagonally upwards.
^
Check whether the cooling fins are
blocked.
,
Danger of injury!
Do not touch the cooling fins as they
are very sharp and may cut your
fingers.
^
Replace the grille by inserting at the
bottom first.
^
Then click it into position at the top.
45
Problem solving guide
Changing the lamp
Disconnect the machine from the
mains electricity supply.
The lamp specification and
maximum wattage are stated on the
data plate and on the lamp cover.
Open the door.
^
You will find the interior lamp cover at
the top of the drum aperture.
^ Insert a suitable tool, such as a wide
bladed screwdriver, under the side
edge of the lamp cover as illustrated.
^
Apply a little pressure and, whilst
doing so, turn your wrist in the
direction of the arrow to open the
cover.
Replace the lamp.
^
To close the cover, push it upwards
^
and press it on the left and right until
you hear it click into position.
Ensure that it is fitted into
,
position securely, as any moisture
could cause a short circuit.
The cover will open downwards.
The temperature resistant lamp should
only be ordered from your Miele
Chartered Agent or from Miele.
46
After Sales service
In the event of any faults which you
cannot remedy yourself, please contact
Your Miele Chartered Agent or
–
Miele (see back cover for address).
–
When contacting Miele, please quote
the model and serial numbers, both of
which are located on the data plate
situated on the right-hand side below
the drum aperture.
Future updates (PC)
The indicator or check light marked PC
on the control panel is the interface
used by the Miele service technicians
during service work for testing
purposes and for updating the
machine's programme data.
Optional accessories
Optional accessories for these dryers
are available from your Miele Chartered
Agent or from Miele.
Please note that telephone calls may
be monitored and recorded to
improve our service.
47
Installation and connection
Front view
a Mains connection cable
b Control panel
c Condensed water container
d Door
e Service panel for heat exchanger
unit (for cleaning or replacing the
fine filter)
48
f Four height adjustable screw feet
g Cool air intake panel
h External drainage of condensed
water hose (see "External condensed
water outlet")
Rear view
a Protruding lid for holding when
moving the machine (see arrows)
b Mains connection cable
c Hose for external drainage of
condensed water
d Accessories for connection to a sink
drain outlet
Installation and connection
If transporting the dryer at an
,
angle, only tip towards the left side.
Transporting the dryer
When moving the dryer, hold it by the
lid where it protrudes to the rear. To
manoeuvre the machine out of its
packing case to its installation site, hold
it by the front feet as well as by the
edge of the lid where it protrudes to the
rear of the washing machine.
,
Only transport the dryer as
shown in the following illustrations.
,
If the tumble dryer has not been
transported as described, then it
must be left to stand for at least 1
hour before
electricity supply. Otherwise the
heat pump can be damaged.
it is connected to the
49
Installation and connection
Installation site
The appliance must not be
,
installed behind a lockable door, a
sliding door or a door with a hinge
on the opposite side to that of the
tumble dryer, in such a way that a
full opening of the tumble dryer door
is restricted.
The cool air intake panel at the
,
front of the dryer must not be
blocked or covered, e.g. by a
laundry basket, as this would cause
a fault.
Building under a continuous
worktop/in a row of kitchen units
,
It is very important to avoid a
build-up of heat.
The warm air which is expelled from
the rear of the dryer must be able to
dissipate.
Warm air which cannot dissipate
could cause a fault.
A build-up of heat can be avoided by:
–
Adjusting the screw feet so that there
is a gap of at least 20 mm between the
floor and the bottom of the dryer.
–
Creating a gap for the dryer in the
kitchen furniture plinth facing.
The dryer should not be installed
,
next to a refrigeration appliance. The
warm air expelled from the rear of
the dryer would increase the
temperature around the refigeration
appliance's heat exchanger causing
the compressor to run continuously.
If it is not possible to install the dryer
anywhere else, then the refrigeration
appliance must be sealed off from
the dryer.
A building-under kit (Miele
,
accessory, available to order) with a
coverplate to replace the appliance's
lid is required if building under a
worktop. It must be fitted by a suitably
qualified person to ensure electrical
safety. The coverplate included in the
building-under kit replaces the
appliance's lid. It is necessary to fit the
coverplate for electrical safety
reasons.
–
Fitting instructions are supplied with
the conversion kit.
–
N.B. When built under, drying times
may be longer.
–
The electrical socket must be
located in an accessible position
near the machine.
–
Creating ventilation gaps in the
kitchen unit.
N.B. When built under, drying times
may be longer.
50
Installation and connection
With niche heights of:
830-840 mm, longer screw feet* are
–
required.
870-885 mm / 915-930 mm, one or
–
two raising kits* are required.
* accessory available to order
N.B. If you wish to push the tumble
dryer under a worktop and there is
space to do this without removing the
lid, the building-under kit is not
necessary. Otherwise the
building-under kit is essential.
Levelling the machine
The screw feet can be adjusted to
^
compensate for any unevenness in
the floor.
The gap between the tumble
,
dryer and the floor must not be
minimized by a plinth facing,
high-piled carpets etc., as this
would prevent sufficient ventilation.
Before moving the tumble dryer
again (e.g. when moving houses)
After each use a small quantity of
condensed water will collect in the area
around the pump. This water can run
out if the tumble dryer is tipped up
when it is being moved. It is a good
idea to run the Cool air programme for
approximately 1 minute before moving
it. Any remaining condensed water will
then be fed into the condensed water
container or out through the drain hose.
Washer-dryer stack
The machine must be perfectly level to
ensure safe and proper operation.
The tumble dryer can also be
combined with a Miele washing
machine in a washer-dryer stack. The
appropriate "WTV" stacking kit* to
match your dryer is required.
* accessory available to order
,
Stacking kits must only be
installed by a suitably qualified fitter.
51
Installation and connection
External condensed water
outlet
General notes
When drying is in progress, condensed
water is pumped into the condensed
water container through the drain hose at
the back of the dryer. The condensed
water can also be drained off directly if
the machine is installed near a sink, drain
outlet etc. so that the condensed water
container does not have to be emptied.
Drain hose length ............1.50 m
Maximum delivery head .......1.50 m
Maximum drain hose length ....4.00 m
If the on-site water drainage
,
system is not fitted with a non-return
valve or an appropriate air gap, one
must be fitted to prevent the risk of
back-flow (See "Installation conditions
requiring a non-return valve").
Pull the hose off its connection (see
^
arrow).
^ Allow any residual water to run into
the container.
^ Unwind the hose and pull it carefully
out of the holders.
The following optional accessories are
available:
–
an extension hose
–
a non-return valve kit for connection
to an external condensed water
outlet (includes an extension hose).
Maximum delivery head with
non-return valve fitted: 1.00 m
Arranging the drain hose
,
Do not pull on the drain hose and
do not stretch it or allow it to become
kinked as it could get damaged.
^
There will be a small amount of
residual water in the drain hose.
Have a container ready to collect this.
52
^
Position the hose to the right or
left-hand side as necessary.
Leave the hose in the middle holder to
prevent it from becoming kinked
inadvertently.
Installation and connection
External drainage via a sink or gully
See "Front view" illustration.
^
If you want to drain the water off
,
into a sink, you will need to secure
the hose carefully, e.g. by tying it to
a tap to make sure it cannot slip
during use. Otherwise there is a risk
of overflowing water which could
cause damage.
Use the bow-shaped guide to
^
prevent the drain hose from
becoming kinked.
Installation conditions requiring a
non-return valve
Certain installation conditions
,
require the fitting of a non-return
valve (available as an optional
accessory). A non-return valve will
prevent the risk of back-flow out of
the dryer which could cause
damage.
Example: Connection to a sink drain
outlet
The drain hose with non-return valve
fitted can be connected directly to a
suitable sink drain outlet.
^ Remove the following from the back
of the dryer at the top:
Adapter 1 and hose clip 3 behind it.
A non-return valve is required:
–
If the tumble dryer is connected to a
sink drain outlet (see the following
section).
–
If the tumble dryer is connected to a
drainage system already in use by
another appliance, e.g. a dishwasher
or washing machine.
53
Installation and connection
1 Adapter
2 Nut
3 Hose clip
4 End of the hose
5 Non-return valve
6 Tumble dryer drain hose
Fit adapter 1 to the sink drain outlet
^
using nut 2.
If this nut has a flat disc in it, you
should take the disc out first.
Attach the end of the hose 4 to
^
adapter 1.
Use a screwdriver to tighten hose
^
clip 3 up close to the nut.
Non-return valve 5 has to be
,
fitted with the arrow pointing in the
direction of flow (i.e. towards the
sink). Otherwise water will not drain
out of the machine.
^ Fit non-return valve 5 to the tumble
dryer drain hose 6, making sure it is
fitted in the correct direction (see
arrow on non-return valve).
^ Secure the non-return valve using
hose clips.
54
Installation and connection
Electrical connection
This tumble dryer is supplied ready for
connection to an AC single phase
supply. The machine is supplied with a
mains cable with moulded plug.
The accesibility of the plug must be
always ensured in order to separate the
dryer from the mains.
The appliance should be connected up
only by a qualified electrician, in
accordance with national and local
safety regulations.
For extra safety, it is advisable to install
a residual current device (RCD) with a
trip current of 30 mA.
The voltage, rated load and plug rating
are given on the data plate. Please
ensure that these match the household
mains supply.
Important
The wires in the mains lead are
coloured in accordance with the
following code:
Green/yellow = earth
Blue = neutral
Brown = live
As the colours of the wires in the mains
lead of this appliance may not
correspond with the coloured markings
identifying the terminals in your plug,
proceed as follows:
The wire which is coloured green and
yellow must be connected to the
terminal in the plug which is marked
with the letter E or by the earth symbol
z or coloured green or green and
yellow.
The wire which is coloured blue must
be connected to the terminal which is
marked with the letter N or coloured
black.
The wire which is coloured brown must
be connected to the terminal which is
marked with the letter A or coloured
red.
WARNING
THIS APPLIANCE MUST BE
EARTHED
55
Consumption data
Load1Final spin speed
Cottons Normal
Cottons Normal 7.0
Cottons Normal
+ Freshen up
+ Gentle tumble
Cottons Hand iron rr
Cottons Hand iron rr 7.0
Minimum iron Normal
Minimum iron Normal
+ Freshen up
+ Gentle tumble
Minimum iron Hand iron 3.5 1200 40 0.60 39
Automatic plus Normal 5.0 800 50 1.45 88
Shirts Normal 2.0 600 60 0.75 47
Delicates Normal 2.5 700 50 0.70 45
Sportswear Normal 3.0 600 50 1.05 64
Standard pillows (80x40 cm, 2x) – 1200 30 2.10 125
Large pillows (80x80 cm, 1x) – 1200 30 1.40 86
Outerwear Normal 2.5 800 50 1.20 75
Denim Normal 3.0 900 60 1.55 92
Express Normal 3.5 1000 60 1.25 75
1
Weight of dry laundry
2
EN 61121:2005 test programme
All data was calculated using EN 61121:2005 unless otherwise stated.
Notes for test institutes:
Results based on European Standards
Before testing in accordance with EN 61121, drya3kgload of cotton laundry with 70% residual
moisture as per the above standard using the Cottons Normal programme without any Extra options.
Consumption data can vary from the nominal values given above depending on the size of the
load, types of textiles, residual moisture levels after spinning, fluctuations in the electricity
supply and any Extra options selected.
2
2
2
kg rpm % kWh min.
7.0 1000 60 2.00 112
7.0
7.0
7.0
7.0
7.0
7.0 1000 60 1.55 88
7.0
7.0
7.0
3.5 1200 40 0.70 44
3.5
3.5
in a domestic
washing machine
1200
1400
1600
1800
1000
1000
1200
1400
1600
1800
1200
1200
Residual
moisture
53
50
48
43
60
60
53
50
48
43
40
40
Energy Duration
1.80
1.70
1.65
1.50
1.10
2.10
1.35
1.25
1.20
1.05
0.75
0.70
102
97
94
85
67
129
78
73
69
61
48
47
56
Height 850 mm
Width 595 mm
Depth 596 mm
Depth with door open 1071 mm
Height for building under 820 mm
Width for building under 600 mm
Depth for building under 600 mm
Suitable for pushing under a
worktop
Suitable for stacking Yes
Weight 69 kg
Drum volume 111 l
Maximum capacity 7 kg dry weight
Capacity of condensed water
container
Drain hose length 1.5 m
Maximum delivery head 1.5 m
Maximum drain hose length 4 m
Length of connection cable 2 m
Voltage
Rated load
Rated rating See data plate
Lamp wattage
Test certificates awarded
Type of refrigerant R134a
Maximum quantity of refrigerant 480 g
Energy consumption see "Consumption data"
Yes
approx. 4.2 l
Technical data
57
Settings menu
The Settings menu is used to alter the
dryer's electronics to suit different
requirements.
Settings can be altered at any time.
To open the Settings menu
Switch the dryer on.
^
Select: Further programmes/Settings
^
4.
Language F
The display can be set to appear in
one of several different languages.
You can change the language via the
Language sub-menu.
The flag after the word Language acts
as a guide to prevent a language which
will not be understood from being set.
The following will appear in the display:
Further programmes
Settings !
Express ,
;
^ Confirm the selection of the
highlighted Settings
! option by
pressing the OK button.
To select a setting
^ Press the X or Y button to scroll
through the options until the setting
you want is highlighted.
^
Confirm your selection by pressing
the OK button.
^
A tick L or a bar beside an option
indicates that it is currently selected.
^
Use the X or Y button to highlight the
option you want to select.
^
Confirm your selection by pressing
the OK button.
Time
First select either a 24-hour or 12-hour
clock. Then set the current time of day.
Clock format
^ Use the X or Y button to highlight the
clock format you want and confirm
your selection with the OK button.
To set the time of day
^ Set the hour with the X or Y button
and confirm by pressing the OK
button.
^
Then set the minutes with the X or Y
button and confirm by pressing the
OK button.
To close the Settings menu
^
Select Back
# or select a
programme.
58
Settings menu
Drying levels
You can alter the drying levels for the
Cottons, Minimum iron and Automatic
plus programmes.
The bars
which level is set.
Factory default: a medium setting.
Drier: the programme duration is
–
longer.
Damper: the programme duration is
–
longer.
P P P P P P P show you
Lock code
The code prevents the dryer being
used without your knowledge.
When the code has been activated, you
have to enter a code after switching the
dryer on. Otherwise the dryer cannot be
operated.
To activate the lock code
Lock code
Activate
Back #
^ Press the OK button.
The display will now request that a
code is entered. The code is 250 and
cannot be altered.
To enter the lock code
Lock code
0 00
^
Use the Y button to enter the first
number. Confirm your selection of
this number by pressing the OK
button. Now enter the second
number.
^
Repeat the process until all three
numbers have been entered and
confirm your entry of the last number
by pressing the OK button.
59
Settings menu
The following will appear in the display:
0 Lock code activated
Once the tumble dryer is switched off, it
can only be used again if the lock code
is entered.
To use the dryer when the lock code
is activated
When the tumble dryer is switched on
again, the display will request the code.
^ Enter code 250 as described above
and confirm the entry.
The dryer is now unlocked and ready
for use.
To deactivate the code
Proceed as for activating the code.
Buzzer
The buzzer has two volumes.
Normal (Factory default setting)
The buzzer sounds at the end of a
programme.
Loud
The buzzer sounds at maximum volume
at the end of a programme.
Keypad tone
An audible tone sounds each time a
button is pressed.
Factory default: Off.
Contrast
Brightness
There are ten different display
contrast and display brightness
settings.
60
The bars
level which is set.
Factory default: a medium setting.
If you make an alteration it will appear
in the display immediately.
O O O O O O O O O O show you the
Settings menu
Standby Display
To save energy, the indicator lights
and the display go out and the
indicator light for the Start/Stop
button starts flashing slowly.
To come out of standby mode
Press any button.
^
This will have no effect if a
programme is running.
On
The standby function is activated.
The indicator lights and the display will
go out after 10 minutes,
– if a programme is not selected after
the dryer has been switched on.
– after a programme has started.
However, the display will switch on for
10 minutes at the beginning of the
anti-crease phase or at the end of the
programme.
The buzzer (if selected) will sound for
10 minutes at the end of the
programme.
Not in current programme
(Factory default)
Memory
The electronics will memorise the
drying level and some of the Extra
options selected for the current
drying programme and the duration
of a timed drying programme.
When the programme is chosen again,
these settings will appear in the
display.
Off
(Factory default)
On
Anti-crease
Anti-crease helps prevent creasing, if
laundry is not normally removed immediately after the end of a
programme.
After the programme has finished, the
drum will continue to rotate at intervals
for:
2 hours
(Factory default)
1 hour.
As described under "On" above.
However, the indicator lights and
display do not go out 10 minutes after
the programme has started but remain
visible during the programme.
616263
Alteration rights reserved/2112
M.-Nr. 09 264 070 / 01
Loading...
