Operating Instructions Vacuum cleaner S 8000

Instructions d'utilisation Aspirateur S 8000

Manual de Uso y Manejo Aspiradora S 8370, S 8380, S 8390

en, fr, es - US, CA, MX

HS15

M.-Nr. 09 752 900

Only Miele FilterBags, filters and accessories with the "Original Miele" logo can be used with this vacuum. Only then can the suction power of the

vacuum cleaner reach its optimum potential creating the best possible cleaning results.

USE OF NON-MIELE COMPONENTS MAY VOID THE WARRANTY.

The use of FilterBags made of paper or a similar

material, or FilterBags with a cardboard retaining plate can lead to serious damage to the vacuum cleaner and may void the warranty, just as with the use of FilterBags without the "Original Miele" logo.

The "Original Miele" Logo will appear on the packaging or directly on the FilterBag.

Purchasing new FilterBags and filters

Original Miele FilterBags and filters can be purchased from an authorized Miele vacuum dealer or by visiting the Miele store at www.mieleusa.com.

en - Contents

IMPORTANT SAFETY INSTRUCTIONS Guide to the vacuum Before using the vacuum cleaner Using the included accessories Use

Power cord. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Turning the vacuum cleaner on and off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Selecting the suction power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Opening the auxiliary air regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

While vacuuming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Illuminating the work area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Parking, transport and storage

Park-System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Park-System for storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Maintenance and care

Purchasing new filter bags and filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Which filter bags and filters are the right ones? . . . . . . . . . . . . . . . . . . . . . . . . . . 15

When to change the filter bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

How to change the filter bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

When should I change the dust compartment filter?. . . . . . . . . . . . . . . . . . . . . . . 17

How to change the dust compartment filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

When should I change the exhaust filter? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

How to replace the Air Clean exhaust filter? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

How do I change the ActiveAirClean 50 or the HEPA AirClean 50 exhaust filter? 17

Exchanging exhaust filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Service indicator with reset button ....................................18

Changing the batteries on the LED handle ..............................18

When to change the thread catcher of the standard floor brush . . . . . . . . . . . . . 19

Replacing the thread catchers .......................................19

Cleaning and care Frequently asked questions Technical service Optional accessories Caring for the environment LIMITED WARRANTY - VACUUM CLEANERS USA

en - IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

Keep these operating instructions in a safe place and pass them on to any fu ture user.

WARNING-

To reduce the risk of fire, electric shock or injury:

Before using

Check the voltage rating of the

vacuum cleaner before connecting the power cord to an electrical outlet. Your power source should correspond with the voltage rating plate located on the underside of the vacuum. Use only household AC outlets. Never use DC power sources. If you are not sure of your home’s voltage supply, consult a qualified electrician. Connecting the vacuum cleaner to a higher voltage than indicated in these instructions may result in damage to the vacuum cleaner or injury.

To reduce the risk of electric shock,

this appliance has a polarized plug (one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not alter the plug in any way.

A damaged vacuum cleaner can be

dangerous. Check the packaging, vacuum cleaner and accessories for any signs of damage. Do not use a damaged appliance.

Do not use with a damaged cord or

plug. If the appliance is not working as it should, has been dropped, damaged, left outdoors or submerged in water, bring it to a service center.

The electrical outlet must be fitted

with a 15 A fuse.

en - IMPORTANT SAFETY INSTRUCTIONS

Use

Do not use on people or animals.

Do not use outdoors or on wet

surfaces. Only dry surfaces should be vacuumed.

Use only as described in this

manual. Use only Miele recommended accessories.

Do not alter or modify the vacuum

cleaner.

This appliance is intended for

household use only.

Do not allow the vacuum cleaner to

be used as a toy. Close attention is necessary when used near children.

Keep batteries out of the reach of

children.

Important information on the

handling of batteries:

- Do not short circuit or recharge batteries, or throw them into a fire.

- Disposing of batteries: Remove the batteries from the LED handle and dispose of them in your recycling bin. Do not dispose of them

with the normal household waste.

Never use the vacuum cleaner

without the filter bag or filters in place. Otherwise it could be damaged.

If a filter bag is not inserted, the dust

compartment lid will not close. Do not force it shut.

Do not leave the vacuum plugged

in. Unplug it from the outlet when not in use and before servicing.

On the underside of the vacuum

handpiece is a metal insert designed to absorb static electricity. Please make certain that your hand remains around this metal insert when vacuuming.

Persons which lack physical,

sensory or mental abilities or experience with the machine should not use it without supervision or instruction by a responsible person.

Unwind the cord completely to aid

the vacuum cleaner in dissipating heat.

This vacuum should not be used to

entrap or retain any hazardous materials.

Do not use the vacuum cleaner to

pick up liquids or damp dirt. This could impair the electrical safety of the vacuum cleaner. Wait for freshly shampooed carpets to dry.

Do not vacuum anything that is

burning or smoking such as cigarettes, matches or hot ashes. The vacuum cleaner could catch fire.

Do not vacuum toner dust. Toner,

such as that used in printers and photocopiers can conduct electricity.

Do not use to pick up any flammable

or combustible liquids, such as gasoline, or use in areas where they may be present. The vacuum cleaner could explode.

Do not vacuum up items which are

heavy, hard or have sharp edges. They could cause a blockage and damage the appliance.

en - IMPORTANT SAFETY INSTRUCTIONS

Do not pull or carry by the cord, use

the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep the cord away from heated surfaces.

Do not unplug by pulling on the

cord. To unplug, grasp the plug, not the cord.

Do not handle the plug or vacuum

with wet hands.

Keep the power cord, hair, loose

clothing, fingers and all parts of the body away from openings and moving parts.

Do not place anything into the

openings of the vacuum cleaner. Do not use if any openings are blocked; keep them free of dust, lint, hair, or anything that may reduce air flow.

This appliance is equipped with a

power cord reel. Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.

Turn off all controls before

unplugging.

Use extra care when cleaning on

stairs.

Floor attachments, accessories and

wands must not be used at head level to avoid injury to eyes and ears.

Monitor the filter bag change

indicator and inspect all filters regularly. For best performance, the filter bag and filters should be replaced when necessary. A full bag or blocked filter will reduce the vacuum cleaner’s suction power. A temperature limiter automatically switches the vacuum cleaner off if it gets too hot, see "Frequently asked questions".

Using accessories

The socket on the vacuum cleaner is

only to be used with the Miele Powerbrush.

Unplug the vacuum when changing

accessories, especially when using the Powerbrush.

The Miele Powerbrush is a

motor-driven accessory for use only with Miele vacuum cleaners. The vacuum must not be used with another manufacturer's Powerbrush.

Do not use the vacuum without an

accessory attached. The rim could be damaged and injuries could result from sharp edges.

Miele filter bags are disposable and

intended to be used only once. Do not attempt to reuse them. An over stuffed filter bag will reduce the efficiency of the vacuum cleaner.

en - IMPORTANT SAFETY INSTRUCTIONS

Only use genuine Miele filter bags

with the Miele quality signet and original Miele filters and accessories. Only then will the manufacturer guarantee its safety. Only use genuine Miele filter bags with the Miele quality signet and original Miele filters and accessories. Only then will the manufacturer guarantee its safety.

The hose contains electrical wires.

Do not use when damaged, cut, or punctured. Avoid picking up sharp objects.

Always turn off this appliance before

connecting or disconnecting either hose or motorized nozzle.

Cleaning, maintenance and repairs

Turn the vacuum cleaner off after

each use and before every cleaning / maintenance. Pull the plug from the outlet.

Disposing of an old appliance

Before discarding an old vacuum

cleaner, please cut off the power cord and render the plug useless. Ensure the appliance presents no danger to children while being stored for disposal.

SAVE THESE INSTRUCTIONS

Never submerge the vacuum

cleaner in water. Clean only with a dry cloth or slightly damp cloth when disconnected from the mains supply. If moisture gets into the appliance there is a risk of electric shock.

Repairs must only be performed by

an authorized service agent in accordance with national and local safety regulations. Unauthorized repairs could cause injury or machine damage.

If the power cord is damaged it

should be replaced along with a new cable reel by Miele Technical Service.

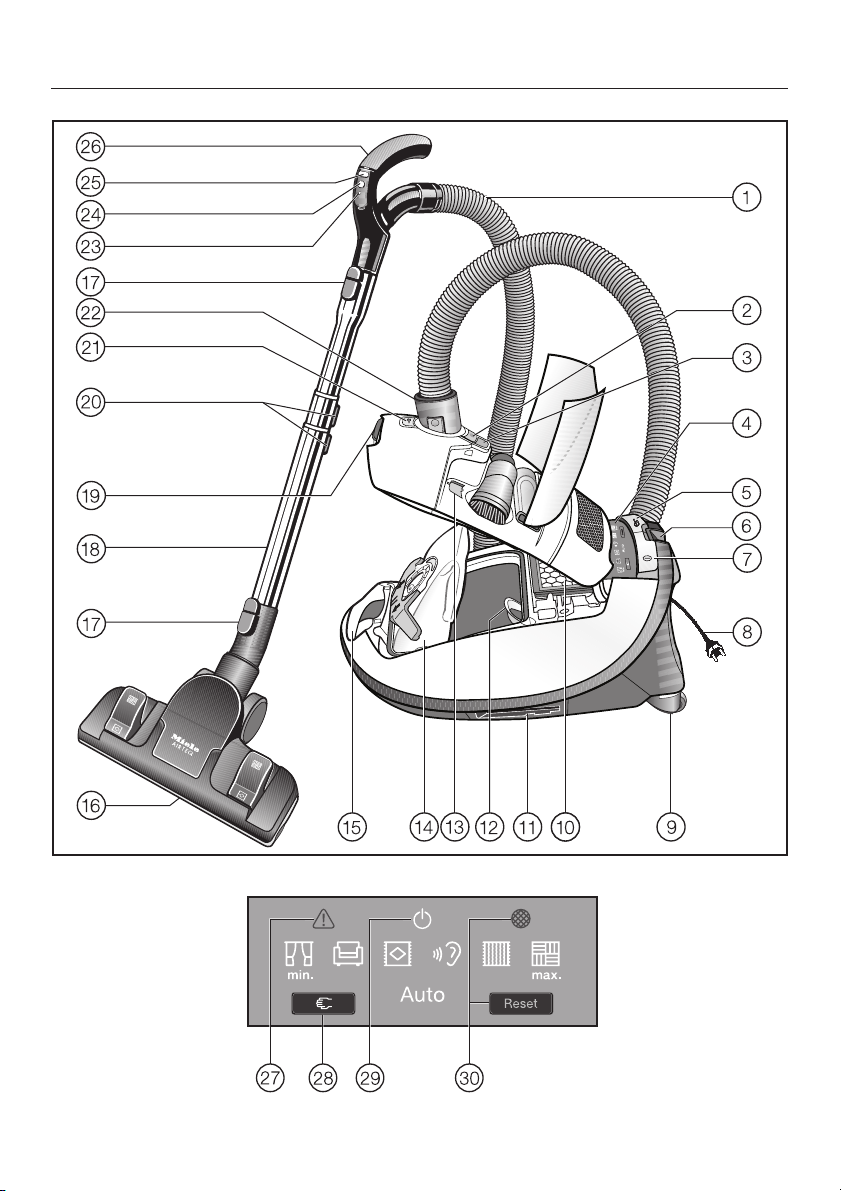

en - Guide to the vacuum

The illustrations show the vacuum cleaner and all available options.

a Suction hose * b Accessory compartment lid release c Airflow indicator d Display panel * e Foot switch for automatic cord rewind f Park-System for breaks in vacuuming g Foot switch On/Off s h Power cord * i Swivel casters * j Exhaust filter * k Park-System for storage (on both sides of the vacuum) l Dust compartment filter (motor protection) m Bracket cover for the Powerbrush outlet n Original Miele filter bag o Carrying handle p Floor tool * q Lock release button r Telescopic wand * s Dust compartment lid release t Telescopic wand release buttons * u Powerbrush outlet v Elbow * w LED * x Standby button for brief breaks in vacuuming * y Suction power buttons + / -* z Handpiece (depending on model with auxiliary air regulator) * { Thermo indicator light § * | Reset button * } Standby indicator * ~ Service indicator with reset button *

The features marked * may vary or not be available on your model.

The illustrations referred to in the text are shown on the fold-out pages at the end of these operating instructions.

Before using the vacuum cleaner

Attaching the suction hose (see fig. 1)

Insert the elbow into the suction

socket until it clicks into place.

Disconnecting the hose (see fig. 2)

^ Press the release buttons on the

sides of the elbow and lift the hose from the socket.

Connecting the suction hose and handpiece (see fig. 3)

Depending on the model, the handpiece is already pre-fitted at the other end of the hose at the factory. If the handpiece of your model is separate, it just needs to be connected to the hose.

Insert the hose into the handpiece until it clicks into place.

Connecting the telescopic wand and handpiece (see fig. 4)

Insert the handpiece into the telescopic wand until it clicks into place. Use the inlet guides of both parts to direct insertion.

To separate the parts from each other, press the wand release button and pull the handpiece away from the telescopic wand with a slight rotation.

Adjusting the two-piece telescopic wand (see fig. 5)

This telescopic wand is composed of two interlocking tube sections that can be adjusted to the desired length.

Press the adjustment button and

slide the tubes to the desired length.

Attaching the standard floor brush (see fig. 6)

Observe the cleaning instructions of the floor manufacturer.

^ Place the floor brush on the

telescopic wand and twist back and forth until it clicks into place.

^ To remove the floor brush from the

telescopic wand, press the release button.

The floor brush is intended for everyday use on carpets, rugs, and hard flooring that is not susceptible to scratching. For other floor coverings, we recom mend using the special Miele brushes (see the section on "Optional accesso ries").

Adjusting the floor brush (see fig.7+8)

Observe the cleaning instructions of the floor manufacturer.

To clean carpets and rugs, lower the bristles by

pressing the foot switch marked with a %.

To clean hard flooring, raise the tool by

pressing the foot switch marked with a ).

Always use the floor tool with the bristles raised to clean floors with very deep joints or gaps.

AirTeQ floor tool (see fig. 8)

This floor tool is specially designed to achieve good cleaning results with low energy consumption. It is especially aerodynamic and powerful.

After about 10-15 seconds, a small

red marker will appear in the left-hand side of the display (see fig.

13). Close the dust compartment lid until

it clicks into place. Take care not to catch the dustbag in the lid.

How the exhaust filter change indica tor works

If the floor tool is difficult to move

across the carpeting reduce the suction power.

Activating the exhaust filter change indicator

Depending on the model, one of the following standard exhaust filters is installed (see fig. 9).

a Air Clean Filter b ActiveAirClean 50 Filter (black) c HEPA AirClean 50 Filter (white)

If your vacuum cleaner is equipped with a type b or c exhaust filter, you will need to activate the exhaust filter change indicator.

Open the dust compartment lid and raise until it clicks into place (see fig.

10).

Remove the marker strip (see fig. 11).

The exhaust filter change indicator displays the useful life of the exhaust filter. The indicator will turn fully red after approx. 50 hours of operation, which is equivalent to one year of average use (see fig. 14).

Inserting batteries into the LED handle (see fig. 15 + 16)

a Loosen the screws on the cover. b Press down on both sides of the

cover to remove.

c Take out the battery holder and insert

the three batteries supplied making sure they are inserted correctly.

d Replace the batter holder in the

direction of the arrows on the holder and battery compartment, so that both line up.

e Replace the cover and tighten the

screws.

Press the exhaust filter change indicator ~ (see fig. 12).

Using the included accessories (see fig. 17)

The following accessories are included:

a Crevice nozzle

For cleaning in folds, crevices and corners.

b Dust brush with natural bristles

For cleaning moldings, ornate, carved or especially sensitive items. The brush head can be swiveled to the optimal cleaning position.

c Upholstery tool

For cleaning upholstery, mattresses, cushions, curtains, covers, etc.

Certain models come with one of the following accessories that are not shown.

– Powerbrush – Turbobrush

These vacuum cleaners have separate operating instructions for the corresponding accessory.

Removing the accessories (see fig. 18)

Press the release button.

Use

Power cord

Unwind the cord completely to

aid the vacuum in dissipating heat.

Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep the cord away from heated surfaces.

Do not unplug by pulling the cord. To unplug grasp the plug, not the cord.

This appliance is equipped with a power cord reel. Hold the plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.

Unwinding (see fig. 20)

^ Pull the cord out to the desired length

(max. approx. 21.4 ft. / 6.5 m).

Plug the power plug into the electrical outlet.

The accessory compartment opens.

Take out the accessory needed.

Close the accessory compartment by pressing on the lid.

Standard floor brush (see fig. 19)

Also suitable for vacuuming stairs.

For your own safety, always

vacuum stairs from bottom to top.

If you intend to use the vacuum cleaner for more than 30 minutes, you will need to pull the cord all the way out. This is to help prevent overheating and damage to the appliance.

Rewinding (see fig. 21)

Unplug the power plug from the electrical outlet.

Press the rewind foot switch and the power cord will automatically rewind.

Turning the vacuum cleaner on and off (see fig. 22)

Press the On/Off foot switch s.

Selecting the suction power

You can adjust the suction power to suit the situation. When you reduce the suction power, the floor brush can be moved with less effort.

On the vacuum cleaner you will see various symbols showing examples of which power level is recommended for which purpose.

The selected power level light is yellow.

#- Draperies, fabrics $- Upholstery, pillows %- Thick pile carpets, rugs and

runners.

Auto = Automatic adjustment of the

suction power to the flooring

Depending on the model, your vacuum cleaner will be equipped with one of the following suction settings.

Foot switches (see fig. 23)

When used for the first time, the vacuum cleaner will turn itself on to the highest power level. The next time it is used, it will turn on to the power level last selected.

To select a higher power setting,

press the + foot switch. To select a lower power setting,

press the - foot switch.

Automatic foot switches (see fig. 24 +

25)

When used for the first time, the vacuum cleaner turns on to the "Auto" power level.

Auto = Automatic adjustment of the

suction power to the flooring

Do NOT use the "Auto" power level to vacuum draperies or other lightweight fabrics. Excessive suction may cause damage to such items.

*- Energy-efficient everyday

vacuuming, low noise

(- Low pile carpets )- Hard flooring and intensive

cleaning of carpets.

If the floor tool is difficult to move across the carpeting reduce the suction power.

Do NOT use the "Auto" power level to vacuum draperies or other lightweight fabrics. Excessive suction may cause damage to such items.

To select a higher power setting, press the + foot switch.

To select a lower power setting, press the - foot switch.

The next time it is used, it turns on to the power level last selected.

Opening the auxiliary air regulator (see fig. 26)

(depending on model) You can easily reduce the suction

power briefly to prevent the brush from sticking to textile flooring, for example.

Open the auxiliary air regulator just

far enough so that the suction nozzle moves easily.

This reduces the suction so the floor tool is easier to push.

While vacuuming (see fig. 27 + 28)

The vacuum cleaner can also stand on its end for vacuuming stairs, drapes etc.

To prevent static electricity your

hand must touch the metal inlay on the underside of the vacuum handpiece. Be certain to continuously touch this inlay when vacuuming fine dust, flour or sawdust as these materials are more likely to create a static electricity. To further prevent static discharge while vacuuming, pull the vacuum along by the hose with one hand while continuing to hold the handpiece in the other hand.

Illuminating the work area (see fig. 29)

Parking, transport and storage

Park-System (see fig. 30)

(not for use with Powerbrushes SEB 228 / EB03 and SEB 236 / EB01)

The Park-System allows you to park the telescopic wand and the suction unit on the vacuum cleaner during brief pauses.

Insert the parking clip attachment on

the suction unit into the parking slot from above.

If the vacuum is on an incline, e.g. a ramp, slide the tube sections of the telescopic wand all the way in.

Turning on and off with the Park-System

(depending on model) The vacuum cleaner is automatically

turned off if you insert the suction unit with the parking slot into the Park-System. Lifting the suction unit out turns the vacuum cleaner automatically back on using the last selected power level.

Park-System for storage (see fig. 31)

Turn the vacuum cleaner off after use. Unplug the power plug from the electrical outlet.

Your vacuum cleaner is equipped with an LED on the handle to illuminate the work area (depending on model).

Press the I button on the LED handle.

It will turn itself off automatically after approx. 30 seconds.

Stand the vacuum cleaner upright.

It is helpful to completely insert the tubes into the telescopic wand.

Insert the suction unit with the

parking slot from above into either side of the Park-System (cannot be used with Powerbrushes SEB 228 / EB03 and SEB 236 / EB01), see figure 25 for details.

This makes the vacuum cleaner easier to carry and store.

Maintenance and care

Turn off and unplug the vacuum

cleaner before performing any maintenance work.

The Miele filter system consists of the following three components.

– Filter bag – Exhaust filter – Dust compartment filter

Each of these components must be changed periodically to maintain the vacuum cleaner’s efficiency.

Only use Miele filter bags, filters and accessories with the "Original Miele" logo. Only then can the suction power of the vacuum cleaner reach its optimum potential for the best possible cleaning results.

Purchasing new filter bags and filters

Original Miele filter bags and filters can be purchased from an authorized Miele vacuum dealer or by visiting the Miele store at http://store.miele.com.

Which filter bags and filters are the right ones?

This vacuum cleaner uses Original Miele filter bags Type G/N and Original Miele filters, the "Original Miele" Logo will appear on the packaging or directly on the filter bag.

An "Air clean" exhaust filter and a dust compartment filter are supplied with every box of Miele filter bags. If you would like to purchase additional Miele filters separately, contact your vacuum cleaner dealer or Miele, please quote the model number of your Miele vacuum cleaner to ensure correct parts are ordered. These parts are also available to order from the online Miele store.

The use of filter bags made of paper or a similar material, or filter bags with a cardboard retaining plate can lead to serious damage to the vacuum cleaner and may possibly voiding the warranty, just as with the use of filter bags without the "Original Miele" logo.

The exhaust filter supplied with the vacuum cleaner can be exchanged with another type of Original Miele filter (see "Exchanging exhaust filters").

When to change the filter bag (see fig. 32)

Change the filter bag when the colored marker in the airflow indicator completely fills the display in red.

Filter bags are disposable and are designed to be used only once. Dispose of full filter bags. Do not attempt to reuse. Clogged pores reduce the suction power of the vacuum cleaner.

Check the airflow indicator

^ Attach the standard floor brush,

AllTeQ or AirTeQ to the vacuum cleaner. All other suction tools may affect the function of the airflow indicator.

^ Switch the vacuum cleaner on and

select the highest power level.

^ Lift the floor brush slightly off the

floor. If the marker completely fills the indicator window, the filter bag needs to be changed.

How the airflow indicator works

The airflow indicator is designed to show when the bag is full of common household dust and measures the amount of air flow through the filter bag. Normal household dust is a mixture of dust, hair, carpet fluff, threads, sand, etc. However, if fine dust, such as drill dust, sand, plaster or flour is vacuumed, the pores of the filter bag may become blocked. The marker will indicate that the bag is "full" even when it is not. The filter bag should be changed as the suction power is greatly reduced.

If the bag is bulging with pet fur, hair, carpet fluff, etc. the indicator may not register "full". This is because the air flow of the filter bag may still be high enough not to activate the marker to show maximum. The filter bag should still be changed.

How to change the filter bag (see fig. 33 + 34)

Lift the release button and open the

dust compartment lid upwards until it clicks into place.

The filter bag has a flap that automatically closes to prevent dust from escaping when the bag is removed.

^ Grasp the collar and remove the filter

bag from the holder.

^ Insert the new filter bag into the blue

holder as far as it will go. Note: Do

NOT unfold the filter bag when you take it out of the box.

Unfold the filter bag in the dust compartment when possible.

Now close the dust compartment lid until it clicks into place, take care not to catch the filter bag in the lid.

If you do not insert a replacement filter bag, the dust compartment lid is designed not to close. Do not use force!

When should I change the dust compartment filter?

Change the filter each time you open a new box of genuine Miele filter bags. A dust compartment filter is supplied with every box of Miele filter bags.

How to change the dust compartment filter (see fig. 35)

Open the dust compartment lid.

Grasp the finger grip and pull the

filter bag out of the holder. Open the blue filter frame until it

clicks into place, use the clean corner to remove the used dust compartment filter.

^ Insert a new dust compartment filter. ^ Close the filter frame. ^ Insert the new filter bag into the blue

holder as far as it will go.

^ Close the dust compartment lid until

it clicks into place.

When should I change the exhaust filter?

The indicator light will come on after approx. 50 hours of operation, which is equivalent to one year of average use. The vacuum cleaner can still be used however, the filter performance and suction power will be reduced.

How to replace the Air Clean exhaust filter? (see fig. 36 + 37)

Make sure that only one exhaust filter is inserted in the frame.

Open the dust compartment lid.

Squeeze the release for the filter

frame and open until it clicks.

^ Grasp one of the two clean corners

(see arrow) to remove the used Air Clean exhaust filter.

^ Insert a new Air Clean exhaust filter.

But if you want to install an ActiveAirClean 50 filter or HEPA AirClean 50 filter, you must heed the section "Maintenance and care - Exchanging exhaust filters".

Depending on the model, your vacuum cleaner will use one of the following standard exhaust filters (see fig. 9):

a Air Clean Filter Change the exhaust filter each time you

open a new box of Miele filter bags. A new Air Clean exhaust filter is included in every box of Miele filter bags.

b ActiveAirClean 50 Filter (black) c HEPA AirClean 50 Filter (white)

If the display of the exhaust filter change indicator has turned fully red (see fig. 14).

Close the filter frame.

Close the dust compartment lid until it clicks into place.

How do I change the ActiveAirClean 50 or the HEPA AirClean 50 exhaust filter? (see fig. 38 + 39)

Make sure that only one exhaust filter is inserted in the frame.

Open the dust compartment lid.

Lift the exhaust filter and remove it.

Install the new ActiveAirClean 50 or

HEPA AirClean 50 exhaust filter and press it downwards.

Press the exhaust filter change

indicator ~ (see fig. 12). After about 10-15 seconds, a small

red marker will appear in the left-hand side of the display (see fig. 13).

If you want to install an Air Clean exhaust filter, you must adhere to the section "Maintenance and care - Exchanging exhaust filters".

^ Close the dust compartment lid until

it clicks into place.

Exchanging exhaust filters

Depending on the model, your vacuum cleaner will use one of the following standard exhaust filters (see fig. 9):

a Air Clean Filter b ActiveAirClean 50 Filter (black)

Make sure that only one exhaust filter is inserted in the frame.

Service indicator with reset button (see fig. 40)

The indicator light will come on after approx. 50 hours of operation, which is equivalent to one year of average use. Check if the motor protection filter and the exhaust filters need to be replaced as well. You will need to reset the indicator after replacing any of these components. To do this, the vacuum cleaner must be turned on.

^ Press the reset button. The service indicator will go out and be

reset to its original position.

The reset feature only works properly if the indicator light has already come on, but not if the reset button is pressed in between filter changes.

c HEPA AirClean 50 Filter (white)

Important

1. If you replace exhaust filter a with exhaust filter b or c, you must be sure to remove the filter frame before inserting the new filter type. The exhaust filter change indicator must also be activated (see fig. 12).

2. If you replace exhaust filter b or c with exhaust filter a, you must be sure to place the new filter in the filter frame

* (see fig. 37). * Filter frame - see section on "Optional

accessories"

Changing the batteries on the LED handle (see fig. 15 + 16)

You will need three AAA (1.5V) batteries.

a Loosen the screws on the cover. b Press down on both sides of the

cover to remove. c Take out the battery holder and

change the 3 batteries, making sure they are inserted correctly.

d Replace the battery holder in the direction of the arrows on the holder and battery compartment, so that both line up.

e Replace the cover and tighten the screws.

Cleaning the floor roller (see fig. 41)

(not required with the AirTeQ floor tool)

a Release the roller pin using a coin. b Push and take out the roller axle. c Take out the roller.

Remove all threads, hair etc. and

reinstall the roller and lock the roller pin.

When to change the thread catcher of the standard floor brush

The thread catcher on the standard floor brush can be replaced when the pile is worn out.

Replacing the thread catchers (see fig. 42 + 43)

^ Use a screwdriver or similar object to

remove the thread catchers from the

slots. ^ Insert the new thread catchers. New thread catcher pads can be

purchased from any authorized Miele vacuum dealer or Miele.

Cleaning and care

Turn off the vacuum and unplug

it from the outlet before performing any maintenance work.

Vacuum cleaner and accessories

The vacuum cleaner and other plastic accessories can be cleaned with a damp cloth or a cleaner suitable for plastics.

Do not use abrasive, oil-based,

glass or all purpose cleaners!

Dust compartment

The dust compartment can, if necessary, be cleaned using a dry cloth, dusting brush or a second vacuum to remove any dust.

Monitor the filter bag change indicator and inspect all filters regularly. Clean or replace them when necessary according to these Operating Instructions.

Do not submerge the vacuum in water. If moisture gets into the appliance there is the risk of an electric shock.

Frequently asked questions

The vacuum cleaner shuts off automatically. A warning light § comes on to indi cate overheating (see fig. 44).

A temperature sensor will turn off the vacuum cleaner if it becomes too warm. This is indicated by a thermal protection indicator § on the display panel of the vacuum.

This problem can occur if, for example, an object is blocking the suction hose or the filter bag pores have become clogged with fine dust. The cause could also be a heavily soiled exhaust or dust compartment filter. If this happens, turn off the vacuum cleaner (press the On/Off foot switch s) and unplug the power plug from the electrical outlet.

Once the cause has been addressed, allow the vacuum cleaner to cool for approx. 20 - 30 minutes before resuming vacuuming.

Optional accessories

Always follow the flooring manufacturer's cleaning and care instructions.

You can order these and many other products via the Miele website.

Some models come with the one or more of the following accessories.

Powerbrushes

To connect a Powerbrush, you also need :

– Electro telescopic wand SET 210 or

SET 220

– Electro hose SES 121

Powerbrush SEB 217-3 (EB02)

For intensive cleaning of heavy-duty textile flooring. It removes ground-in dirt and helps prevent matting in high-traffic areas.

Technical service

In the event of a fault which you cannot fix yourself please contact the Miele Service Department at the phone number listed on the back of this booklet.

Please quote the model type of your appliance.

This can be found on the data plate on the bottom of the vacuum.

Powerbrush SEB 228 (EB03)

Compared to the SEB 217-3, this Powerbrush also has a height adjustment for adjusting to different carpet heights and is particularly suitable for cleaning large areas.

Powerbrush SEB 236 (EB01)

Compared to the SEB 228, this Powerbrush also has a multifunction control light and LEDs for illuminating the work area.

Turbo/Floor brushes

Turbobrush Turbo Comfort (STB 205-3)

For cleaning low carpet and textile floorings.

Hand Turbobrush Turbo Mini / Turbo Mini Compact (STB 101 / STB 20)

For vacuuming upholstery, mattresses or car seats.

Floor brush Hardfloor (SBB 235-3)

To vacuum sturdy hard floors, e.g. tiles.

Floor brush Parquet -3

With natural bristles for use on hardwood-type floors that may be susceptible to scratching, such as parquet and laminates.

Floor brush - Parquet Twister with swiveling head (SBB 300-3)

For vacuuming all hard flooring and tight spaces.

Floor brush - Parquet Twister XL with swiveling head (SBB 400-3)

Accessory case CarCare (SCC 10)

Accessories for cleaning the interior of vehicles.

Accessory case Cat&Dog (SCD 10)

Accessories for cleaning homes with pets.

Accessory case HomeCare (SHC 10)

Accessories for cleaning living areas.

Universal brush (SUB 20)

For dusting books, shelves etc.

Radiator brush (SHB 30)

For cleaning radiators, narrow shelves and crevices.

Mattress tool (SMD 10)

For use on mattresses, upholstery, and deeper crevices.

Crevice nozzle, 300 mm (SFD 10)

Extra long crevice nozzle for cleaning in folds, crevices and corners.

Crevice nozzle 22" (560 mm) (SFD 20)

For vacuuming large areas of hard flooring and tight spaces.

Other accessories

Accessory case MicroSet (SMC 20)

Accessories for use on small or hard-to-reach items (stereos, keyboards, models, etc).

Flexible crevice nozzle for vacuuming hard to reach places.

Upholstery nozzle, 7 1/2" (190 mm) (SPD 10)

Extra wide upholstery nozzle for cleaning upholstered furniture, mattresses and pillows.

Comfort handle with light (SGC 20)

To illuminate the work area.

Flexible hose extension (SFS 10)

For extending the suction hose by approx. 5 ft. / 1.5 m.

Hygiene seal with activated charcoal

Prevents dust and odors from escaping when the suction hose is removed.

Filter

ActiveAirClean 50 exhaust filter (SF-AA 50)

Absorbs odors from the dirt in the filter bag.

HEPA AirClean exhaust filter (SF-HA 50)

Exceptional exhaust filter for purest exhaust air. Especially suitable for those with allergies.

Filter frame

Caring for the environment

Disposal of the packing material

The cardboard box and packaging protect the vacuum cleaner during shipping. These materials are recyclable. Please recycle.

Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of children. Danger of suffocation!

Disposal of an old machine

Old vacuum cleaners may contain materials that can be recycled. Please contact your local recycling authority about the possibility of recycling these materials.

Required if you want to use an Air Clean exhaust filter instead of an ActiveAirClean 50 or HEPA AirClean 50 exhaust filter.

LIMITED WARRANTY - VACUUM CLEANERS USA

What The Warranty Covers And For What Period The Coverage Extends

Miele, Inc. (hereinafter "Miele") warrants to the original purchaser of this product, living in the United States of America, who purchased their vacuum from a Miele authorized distributor or dealer:

a. That this product, including all of its Miele authorized parts is free of defects

in material and workmanship.

b. That this product, if found to be defective within the stated warranty period,

will be repaired free of charge to the consumer (both parts and labor) by an authorized Miele service agent.

c. The warranty period for vacuum cleaners and accessories, excluding

vacuum cleaner motors, and vacuum cleaner casings (body), is one (1) year from the date of purchase.

d. For vacuum cleaner casings (body), the warranty period will be as follows:

- The structural integrity of the vacuum cleaner casing (body) will be covered for seven (7) years from the date of purchase against defects in material and workmanship on the S2xxx, S4xxx, S5xxxx, S6xxx, S7xxx, S8xxx and S160 product series.

e. For vacuum cleaner motors, the warranty period will be as follows:

- Vacuum motors will be covered for seven (7) years from the date of purchase on the S2xxx, S4xxx, S5xxx, S6xxx, S7xxx, S8xxx and S160 product series.

Vacuum cleaners used for commercial purposes, except for their motors, will be warranted for a period of six (6) months from the date of purchase. The motors of commercially used upright vacuums will be warranted for one (1) year and the motors of all other commercially used vacuum cleaners will be warranted for two (2) years. Thereafter this Limited Warranty shall be null and void.

This warranty only applies while the product remains within the United States, and shall be null and void in any other US territories, possessions, or foreign countries.

What is not covered by this Warranty

This warranty does not cover damage or defects caused by or resulting from repairs, service or alterations to the product or any of its parts or accessories which have been performed by service centers or repairmen not authorized by Miele, or damage or defects caused by negligence, accident, abuse, misuse, improper or abnormal usage or maintenance of the product, its parts or accessories. Ordinary wear and tear or cosmetic damage (scuffs, scratches, gauges, dents, etc.) shall not be considered a defect in materials or workmanship.

LIMITED WARRANTY - VACUUM CLEANERS USA

Exclusion of Other Warranties

Except for the limited warranty provided herein, Miele disclaims any and all other express warranties with respect to the product. Any warranty of merchantability or fitness for a particular purpose is limited in its duration to the term of the limited warranty provided herein.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Limitation of Liability for Special, Incidental or Consequential Damages

Miele will assume no liability, or other obligation with respect to any personal injury or property damage resulting from the use of a vacuum cleaner, or its accessories, replacement parts, etc., which has not been purchased from, or serviced by an Authorized Miele Dealer. Any purchaser who obtains a vacuum cleaner, accessories, replacement parts, etc., from someone other than an Authorized Miele dealer proceeds at their own risk.

Miele specifically disclaims any and all liability, whether directly or by way of indemnity, for special incidental, consequential or other damages, whether based on breach of contract, tort, strict or product liability, or any other legal theory.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.

Special State Laws

This Limited Warranty gives you specific legal rights; you may have other rights, which vary, from state to state.

Service

For service under this Limited Warranty, or for information you may need about the product, please contact Miele at the US address listed on the back of this booklet, or visit us at www.mieleusa.com.

Authorized Miele Dealers

To find an authorized Miele dealer in your area, please visit our website www.mieleusa.com.

fr - Table des matières

INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ ....................28

Guide de l'appareil................................................32

Avant d'utiliser l'aspirateur.........................................34

Utiliser les accessoires fournis .....................................36

Utilisation .......................................................37

Cordon d'alimentation ..............................................37

Mettre en marche et arrêter l’aspirateur ................................37

Sélectionner le niveau de puissance d'aspiration .........................37

Ouvrir le régulateur de débit d'air auxiliaire .............................39

Durant l'utilisation..................................................39

Éclairer la zone de travail ............................................39

Immobilisation, transport et rangement ..............................39

Système d'immobilisation ............................................39

Système d'immobilisation pour le rangement ............................40

Nettoyage et entretien .............................................40

Achat de nouveaux sacs à poussière et de filtres.........................40

Sacs à poussière et filtres convenant à votre appareil .....................40

Quand remplacer le sac à poussière ..................................41

Comment remplacer le sac à poussière ................................42

Quand remplacer le filtre du réservoir à poussière ........................42

Comment remplacer le filtre du réservoir à poussière......................42

Quand remplacer le filtre d'évacuation .................................42

Comment remplacer le filtre d'évacuation Air Clean .......................43

Comment changer le filtre d'évacuation ActiveAirClean 50 ou

le filtre d'évacuation HEPA AirClean 50.................................43

Remplacer un type de filtre par un autre................................44

Voyant d'entretien avec bouton de réinitialisation .........................44

Changer les piles du voyant DEL se trouvant sur la poignée ................44

Quand remplacer le capteur de fils de la brosse à plancher standard ........45

Remplacer les capteurs de fils .......................................45

Nettoyage et entretien .............................................45

Foire aux questions ...............................................45

Service technique ................................................46

Accessoires offerts en option ......................................46

Protection de l'environnement ......................................48

Limited Warranty CDN.............................................49

Garantie limitée ..................................................51

Seuls des sacs à poussière, des filtres et des accessoires portant le logo "Original Miele" doivent être utilisés avec cet aspirateur.

Ceux-ci permettent de maximiser la puissance d'aspi ration de l'aspirateur et de produire des résultats de nettoyage optimaux.

L'UTILISATION DE COMPOSANTES D'UNE AUTRE MARQUE POURRAIT INVALIDER LA GARANTIE.

Tout comme l'utilisation de sacs à poussière

n'arborant pas le logo "Original Miele", l'utilisation de sacs à poussière faits de papier ou de matériau similaire, ou de sacs à poussière munis d'une plaque de retenue en carton, peut endommager gravement l'aspirateur et risquer d'en annuler la garantie.

Le logo "Original Miele" se trouve sur l'emballage ou directement sur le sac à poussière.

Vous pouvez vous procurer des sacs à poussière et des filtres

Miele d'origine auprès d'un détaillant autorisé d'aspira teurs Miele ou à notre magasin Miele en ligne, à www.miele.ca.

+ 61 hidden pages
