Miele PT 5136, PT 7136 Installation Guide
Installation Plan
Vented Dryer
PT 5136
PT 7136
Read all operation and installation instructions prior to
assembly, installation, and initial operation
to prevent injury and machine damage.
en - US
10 145 530 / 01
Legend:
Connection required
Connection optional or required for
a specific model
AL
Exhaust air
KLZ
Cooling air inlet
ASK
Condensate drain hose
PA
Equipotential bonding
B
Appliance fastening
SLA
Peak load connection
EL
Electrical connection
UG
Base, closed
F
Adjustable appliance mounts
UO
Base, open
KG
Payment device
WTV
Washer/dryer connection
KGA
Payment device connection
XKM
Communication module
KLA
Cooling air outlet
ZL
Inlet air
Alteration rights reserved 08/14/167
2 10 145 530 / 01
PT 5136/7136 en -

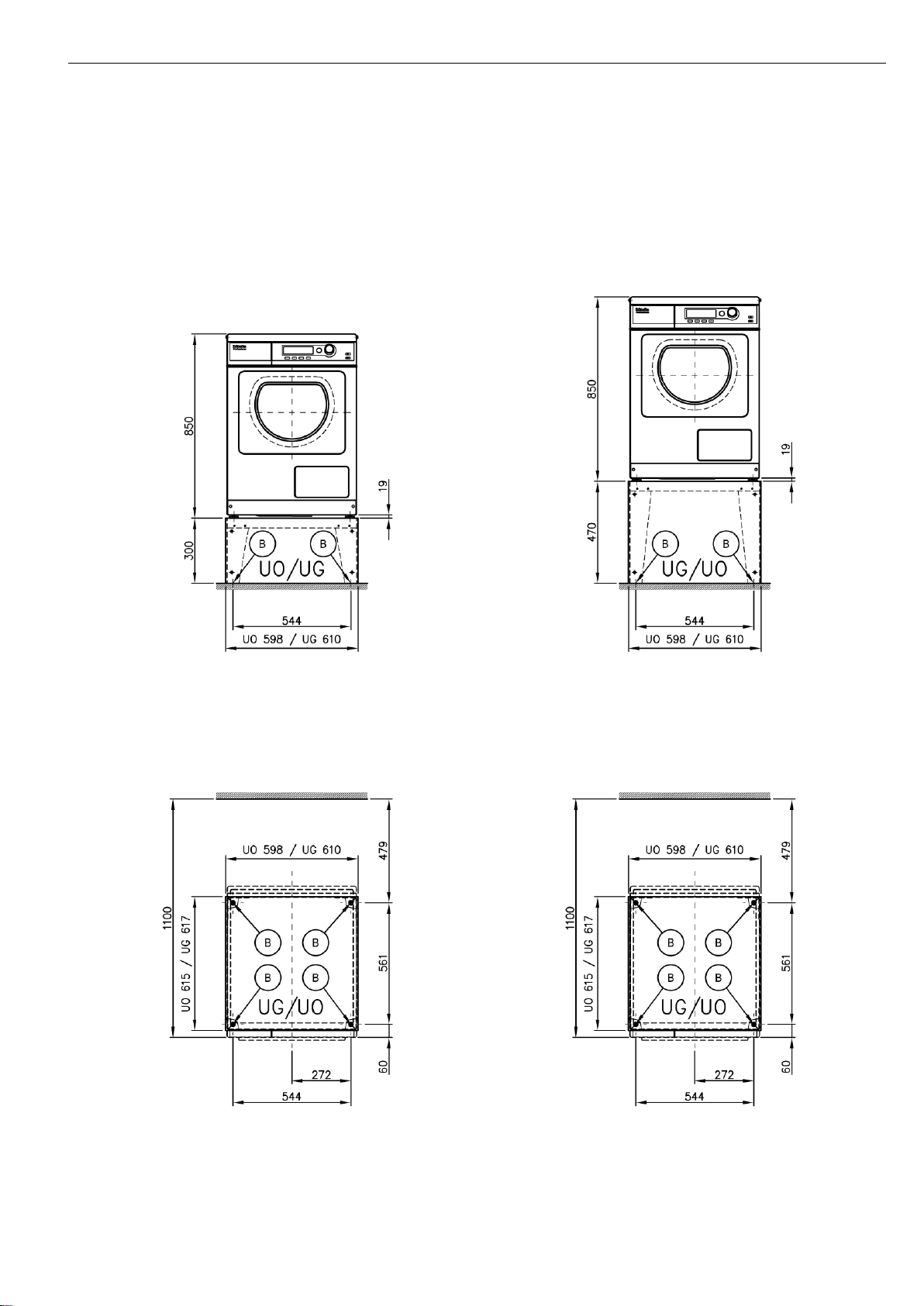

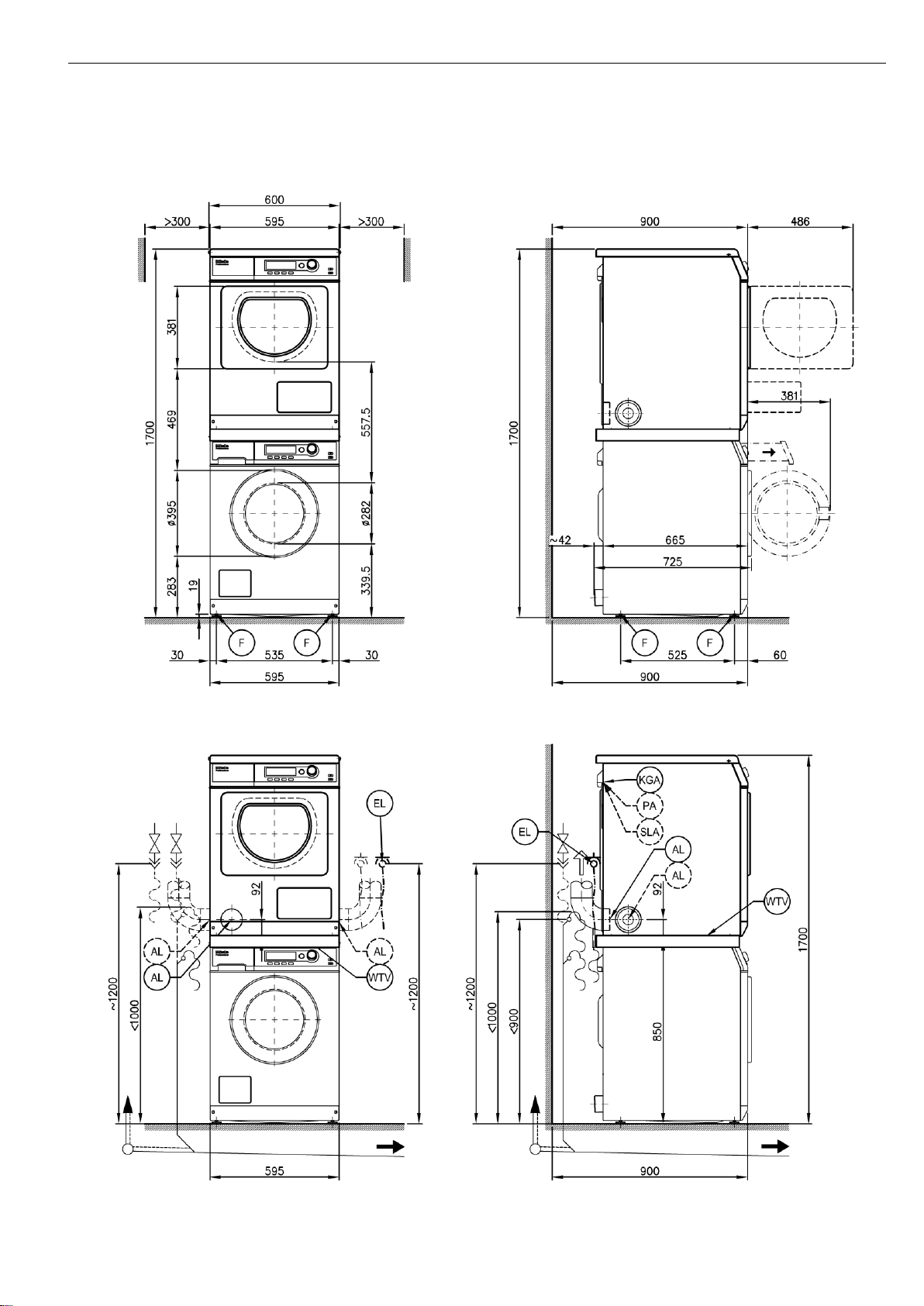

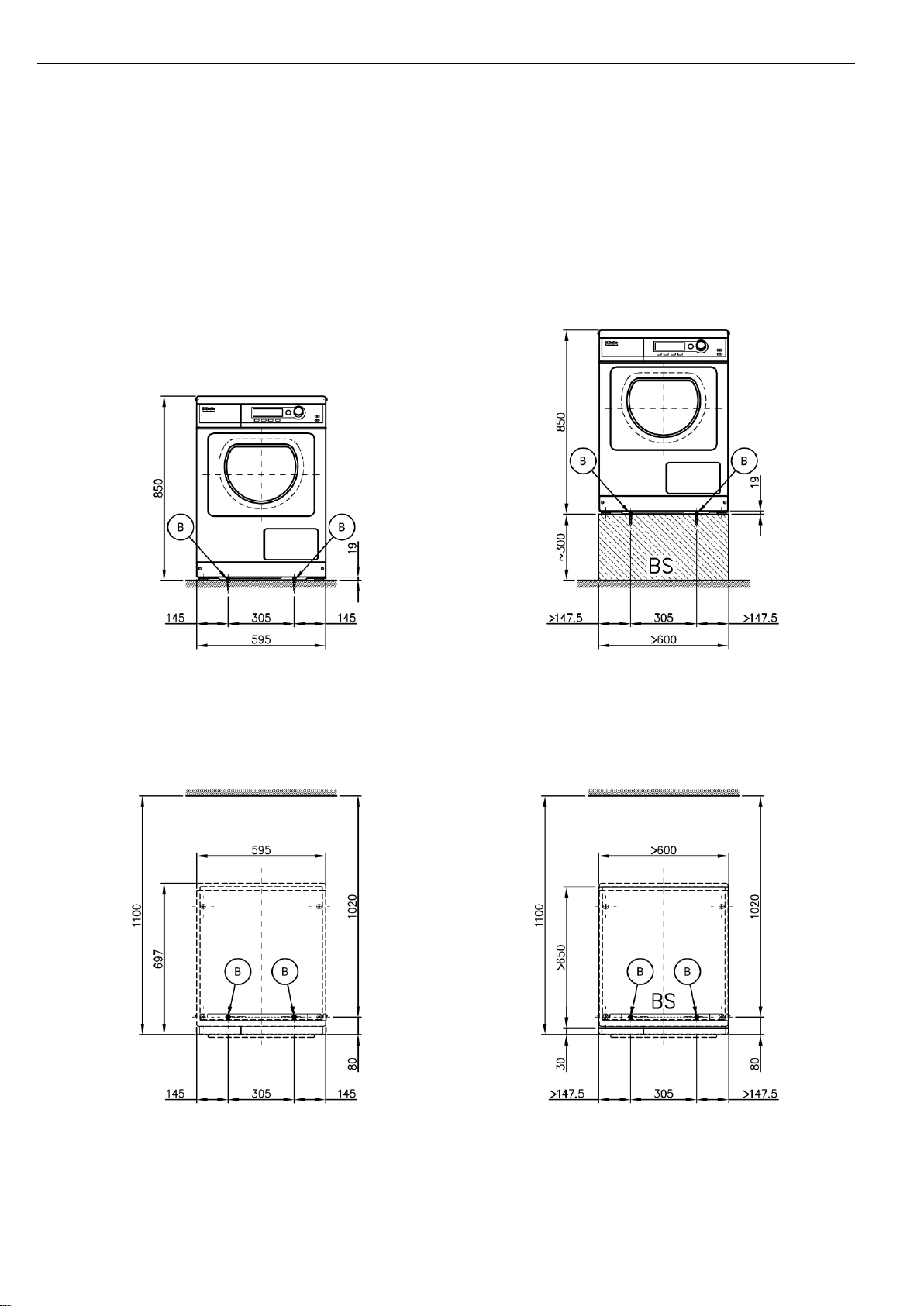

Appliance Dimensions
10 145 530 / 01 3
en - PT 5136/7136
Installation
4 10 145 530 / 01
