Miele Paragon Plus Operating instructions

Operating instructions
for Washing machine
Paragon Plus

To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed and used for the
first time.

en-GB

M.-Nr. 07 285 670

Caring for our environment

Disposal of the packing
material

The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.

Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!

Rather than just throwing these
materials away, please ensure they are
offered for recycling.

Disposal of your old appliance
or machine

Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Please do
not therefore dispose of your old
machine or appliance with your
household waste.

Please dispose of it at your local
community waste collection / recycling
centre or contact your Dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.

It should be unplugged or disconnected
from the mains electricity supply by a
competent person.

2

Contents

Caring for our environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Description of the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Control panel .....................................................10

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Washing environmentally and economically . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Energy and water consumption ....................................13

Detergent .....................................................13

Degree of soiling................................................13

When drying with a tumble dryer ...................................13

How to wash correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Degree of soiling, Water plus, Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Light ............................................................19

Normal ..........................................................19

Heavy...........................................................19

Water plus .......................................................19

Buzzer ..........................................................19

Spinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Final spin speed ..................................................20

Rinse and interim spin ...........................................20

To omit the final spin (Rinse hold) ..................................20

To omit rinse and interim spin and the final spin .......................20

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Garment care label symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

3

Contents

Changing the programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Cancelling a programme ............................................26

Interrupting a programme ...........................................26

Changing a programme ............................................26

Adding or removing laundry after a programme has started ................27

Safety lock .......................................................27

System lock ......................................................28

Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

The correct detergent ..............................................29

Water softener ....................................................30

Washing with several components ....................................30

Fabric conditioners and liquid starch ..................................31

Automatic dispensing of fabric conditioner or liquid starch to laundry at the

end of a programme .............................................31

Colour run and dye removers / dyes ...................................31

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

External casing and fascia panel .....................................32

Extra cleaning ..................................................32

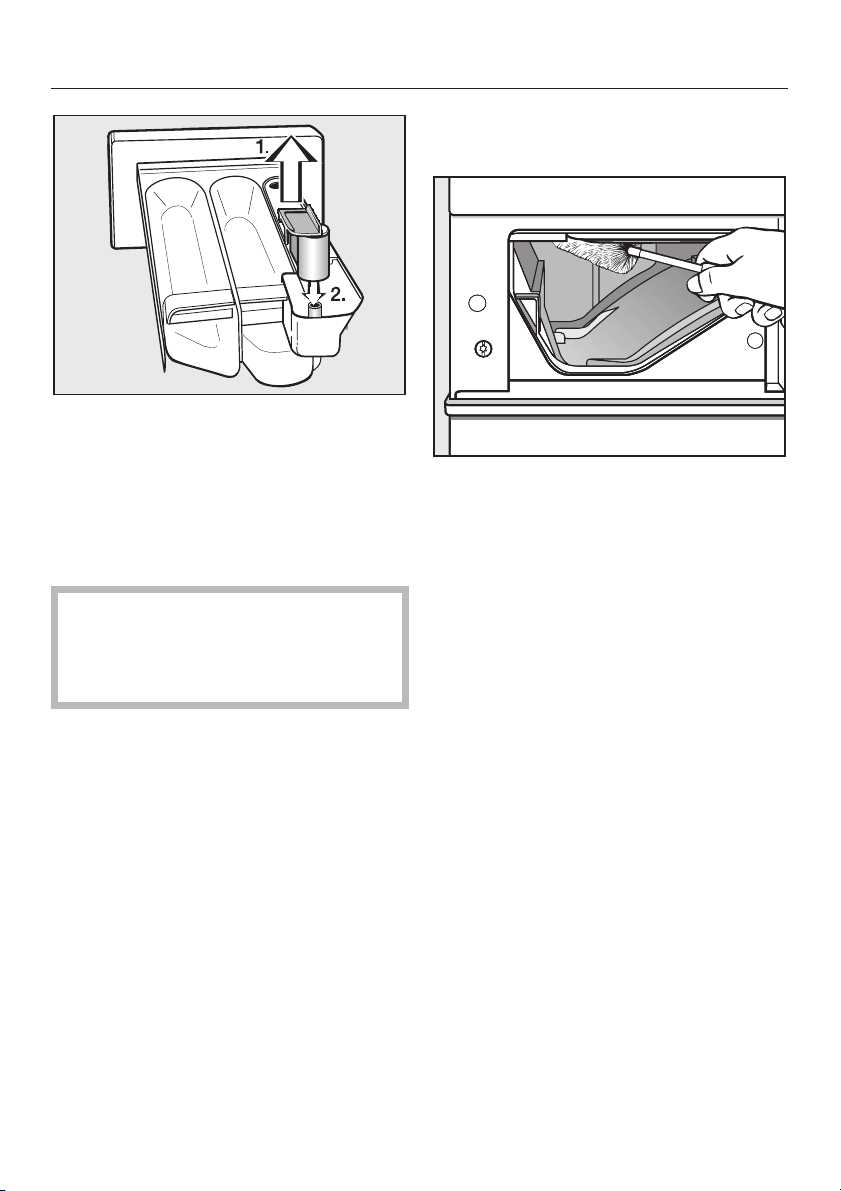

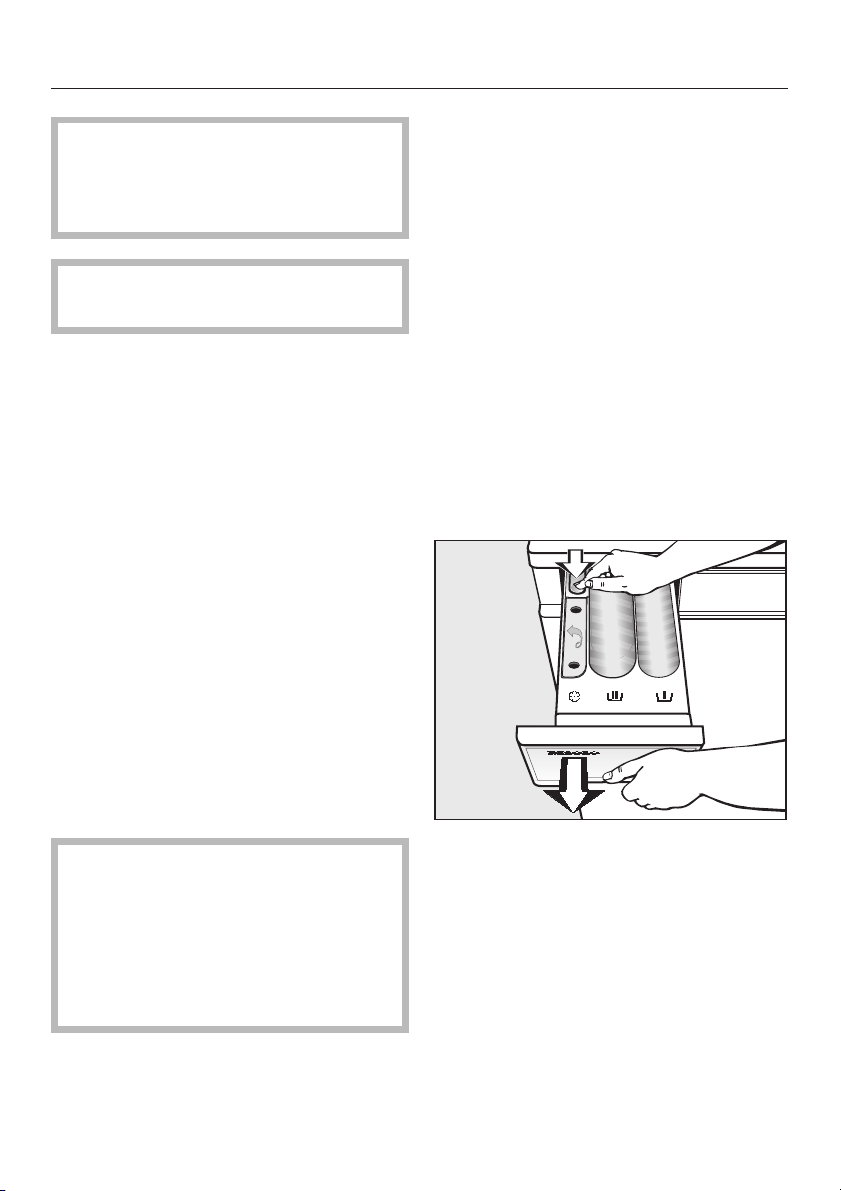

Cleaning the detergent dispenser drawer...............................32

Descaling the machine .............................................33

Cleaning the water inlet filters ........................................34

The programme does not start .......................................35

The wash programme stops and a fault indicator light comes on. ............36

General problems .................................................37

An unsatisfactory wash result ........................................38

The drum door does not open when you press the Door button..............39

Opening the drum door in the event of a blocked drain outlet and/or power failure . 40

Blocked drain outlet .............................................40

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Future updates (PC) .............................................42

Appliance guarantee ............................................42

Optional accessories ............................................42

4

Contents

Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

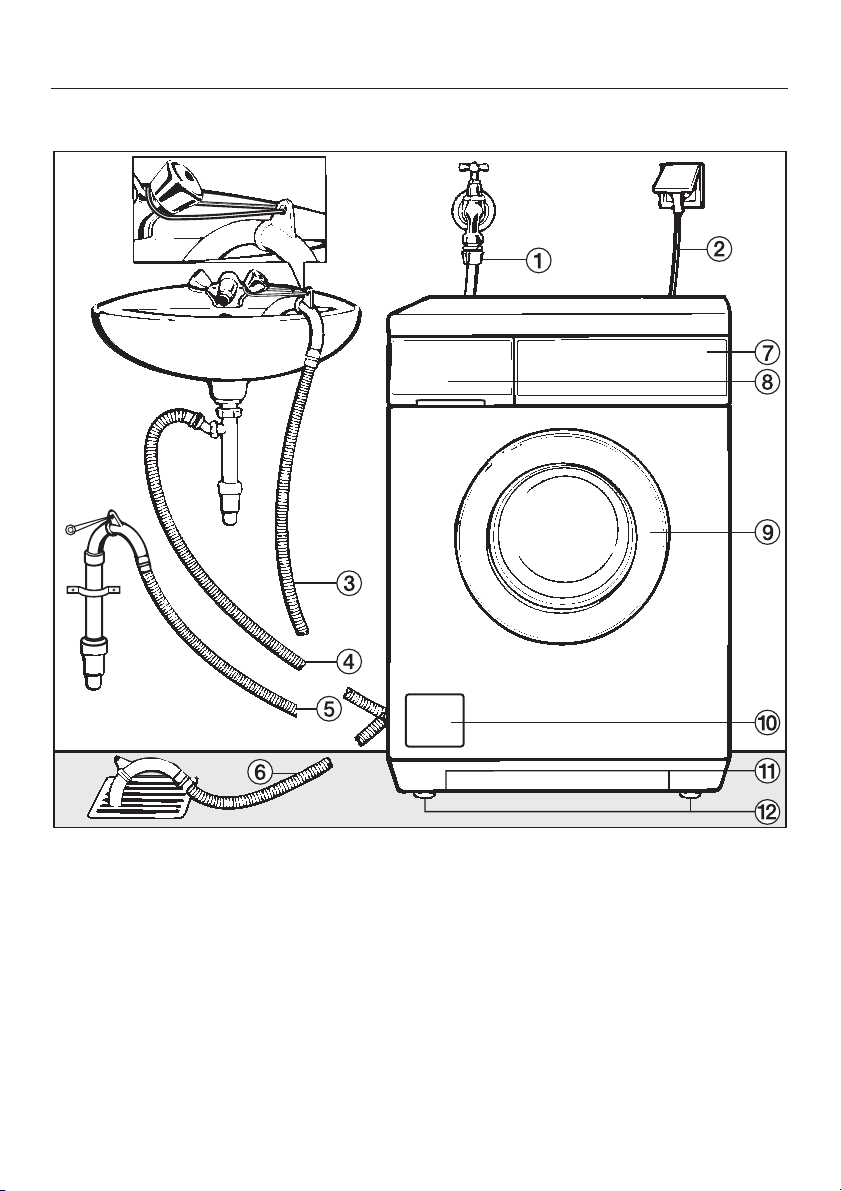

Front view........................................................43

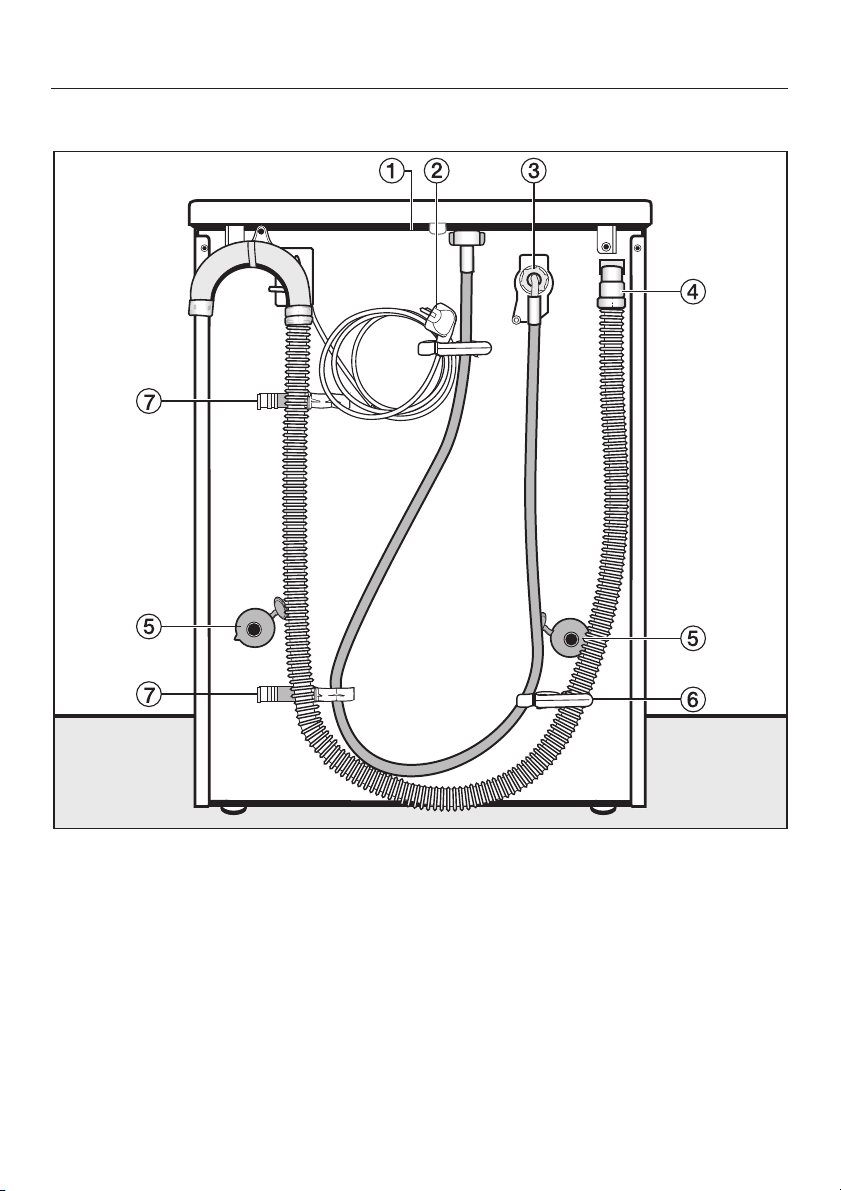

Rear view ........................................................44

Installation surface.................................................45

Installing the washing machine ....................................45

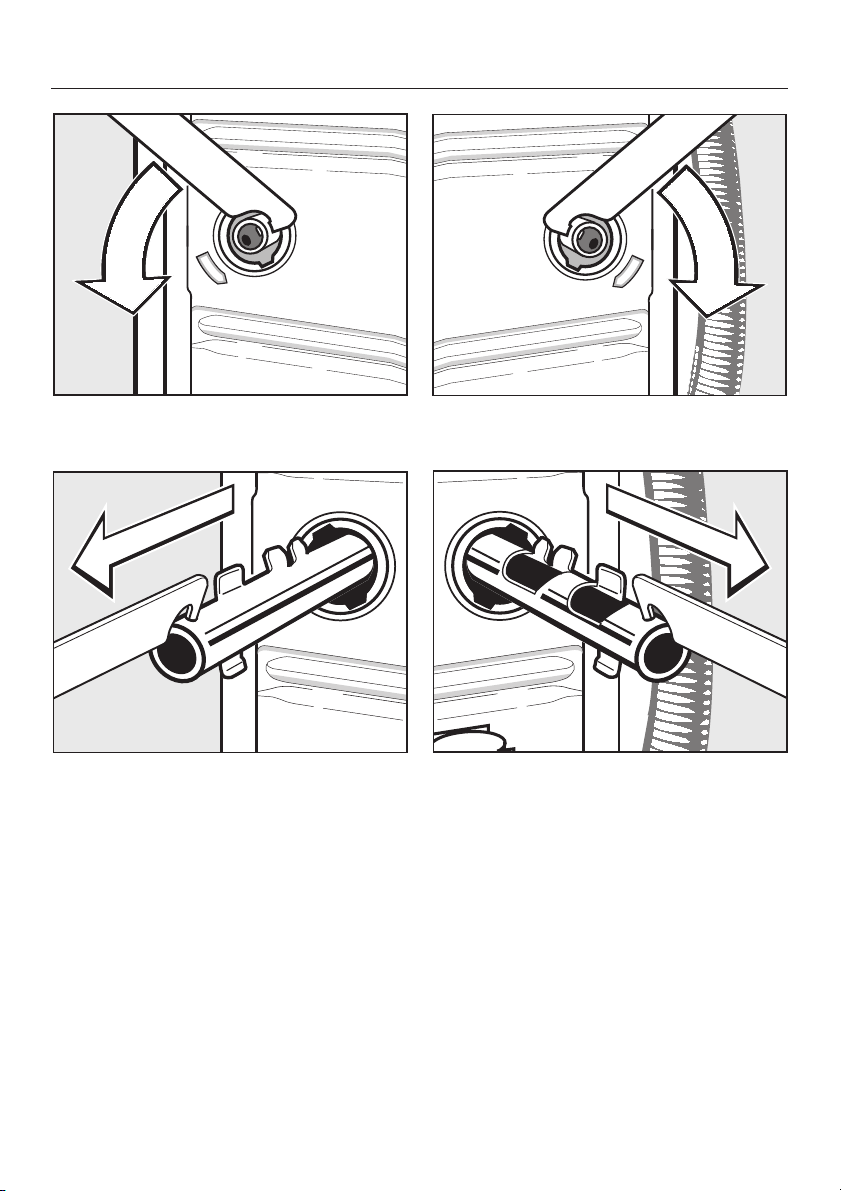

Removing the transit bars ...........................................45

Re-fitting the transit bars ............................................47

Levelling the machine ..............................................48

Screwing out and adjusting the feet .................................48

Building under a continuous worktop/in a kitchen run ...................49

Washer and Dryer stack ..........................................49

The Miele water protection system ....................................50

Connection to the water supply .......................................51

Connection to the drainage system....................................52

Electrical connection U.K. ...........................................53

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Water plus system .................................................57

Gentle action .....................................................58

Suds cooling in the Cottons programme ................................59

Increase the duration of the main wash.................................60

Buzzer ..........................................................61

Keypad tones.....................................................62

Memory function ..................................................63

Pre-wash with the Heavy Degree of soiling option ........................64

Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

CareCollection ....................................................65

5

Warning and Safety instructions

This washing machine is not
This washing machine conforms to
current safety requirements.
Inappropriate use can, however,
lead to personal injury and damage
to property.

To avoid the risk of accidents and
damage to the washing machine,
please read these instructions
carefully before using it for the first
time. They contain important
information on its installation, safety,
use and maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner.

Correct application

This washing machine is for

~

domestic use only and can only be
used to wash items which are specified
by the manufacturer to be
machine-washable on the wash care
label, and textiles composed of
hand-washable wool or wool blend
fabrics as well as satin, lace, silk and
other hand-washable garments.
Any other applications may be
dangerous. Miele cannot be held liable
for damage resulting from incorrect or
improper use or operation.

~

intended for use by persons (including
children) with reduced physical,
sensory or mental capabilities, or lack
of experience and knowledge, unless
they are supervised whilst using it or
have been shown how to use it by a
person responsible for their safety.

Safety with children

Keep children away from the

~

washing machine at all times. It is not a
toy! To avoid the risk of injury do not
allow children to play on or near it or to
play with its controls. Supervise
children whilst you are using it.

Older children may only use the

~

washing machine if its operation has
been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.

For machines with a 'porthole' door,

~

remember that the porthole glass will
be hot when washing at very high
temperatures.
Do not let children touch it.

6

Warning and Safety instructions

Technical safety

Before setting up the washing

~

machine, check it for any externally
visible damage.
Do not install or use a damaged
washing machine.

Before connecting the washing

~

machine, ensure that the connection
data on the data plate (voltage and
connected load) match the mains
electricity supply. If in any doubt,
consult a qualified electrician.

The electrical safety of this washing

~

machine can only be guaranteed when
continuity is complete between it and
an effective earthing system which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and regularly tested, and
where there is any doubt the household
wiring system should be inspected by a
qualified electrician. The manufacturer
cannot be held liable for the
consequences of an inadequate
earthing system (e.g. electric shock).

Do not connect the washing

~

machine to the mains electricity supply
by an extension lead. Extension leads
do not guarantee the required safety of
the appliance (e.g. danger of
overheating).

Faulty components must only be

~

replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
machine be guaranteed.

Unauthorised repairs could result in

~

unforeseen dangers for the user, for
which Miele cannot accept liability.
Repairs should only be undertaken by a
Miele approved service technician.
Ensure current is not supplied to the
machine until after maintenance or
repair work has been carried out.

If the connection cable is faulty it

~

must only be replaced by a Miele
approved service technician to protect
the user from danger.

In the event of a fault or for cleaning

~

purposes, the washing machine is only
completely isolated from the electricity
supply when:

– it is switched off at the wall socket

and the plug is withdrawn, or

– it is switched off at the mains, or

– the mains fuse is withdrawn, or the

screw-out fuse is removed (in
countries where this is applicable).

This washing machine must only be

~

connected to the on-site water supply
using a new hose kit. Old hoses must
not be re-used.

In countries where there are areas

~

which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
machine and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.

7

Warning and Safety instructions

This washing machine may only be

~

used in mobile installations such as
ships if a risk assessment of the
installation has been carried out by a
suitably qualified engineer.

Do not make any alterations to the

~

washing machine, unless authorised to
do so by Miele.

Correct use

Do not install your washing machine

~

in rooms where temperatures below
freezing may occur. Frozen hoses may
burst or split. The reliability of the
electronic control unit may be impaired
at temperatures below freezing point.

Before using the washing machine

~

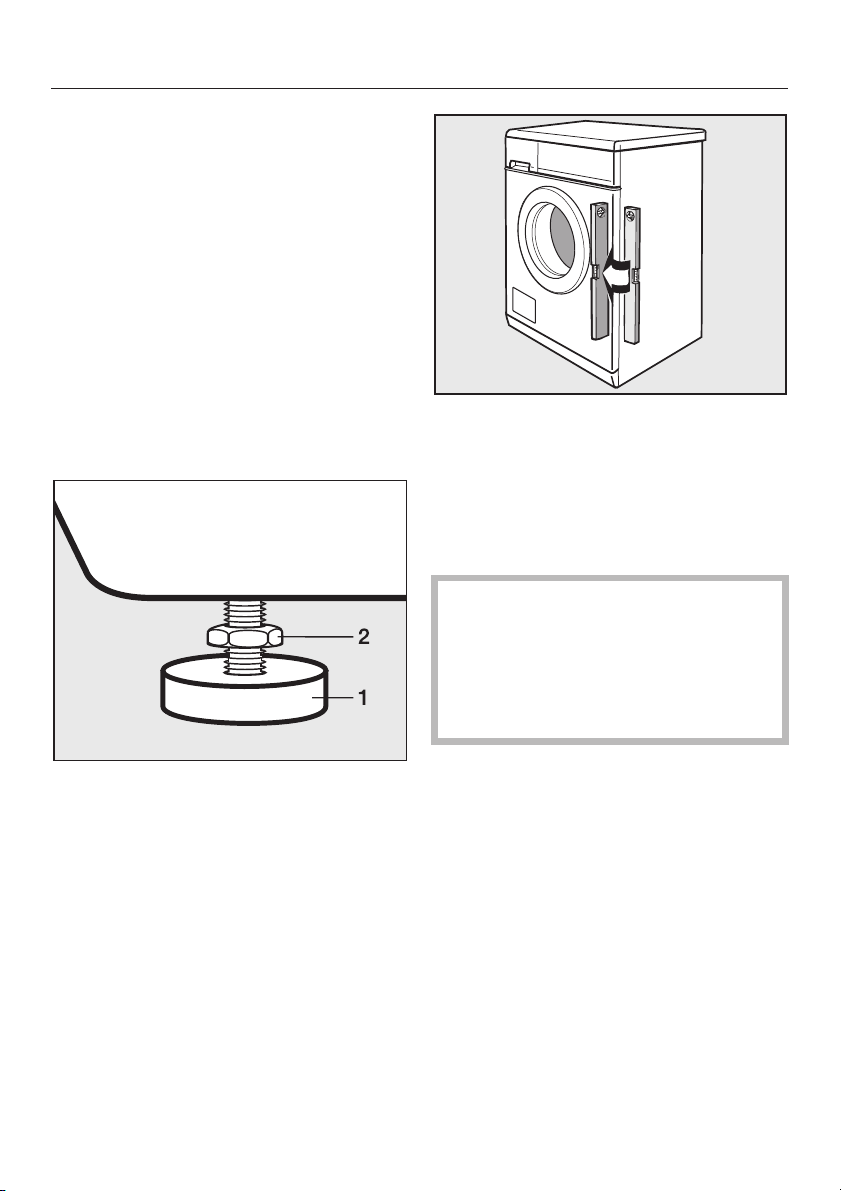

for the first time, check that the transit
bars at the rear of the machine have
been removed (see section on
"Installation"). During spinning, a transit
bar which is still in place may result in
damage to both the machine and
adjacent furniture or appliances.

Turn off the stopcock if the machine

~

is to be left for any length of time (e.g.
holiday), especially if there is no floor
drain (gully) in the immediate vicinity.

Flooding danger.

~

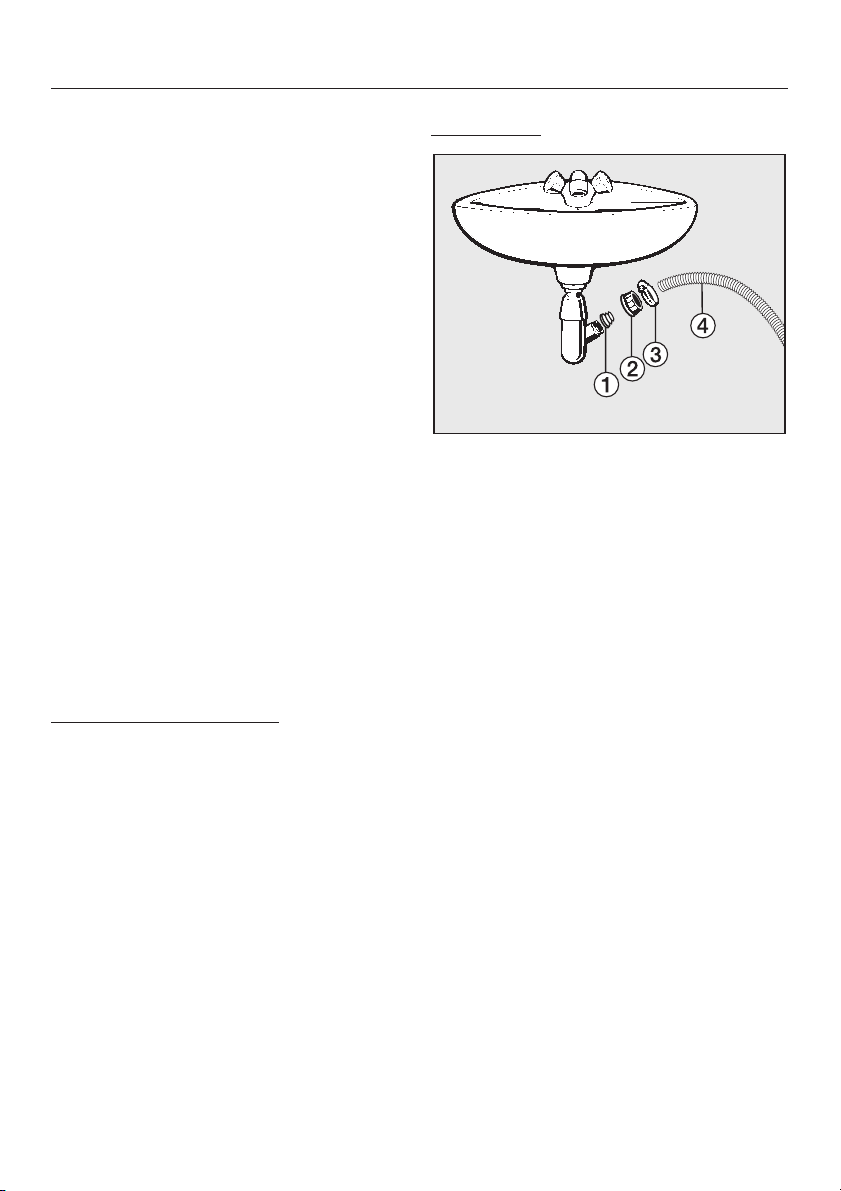

If hooking the drain hose into a wash
basin, check that the water can drain
off quickly enough to prevent the sink
from overflowing. Make sure the drain
hose is secure, so that the force of the
water flowing out of the hose does not
dislodge it.

Take care to ensure that foreign

~

objects (e.g. nails, pins, coins, paper
clips) do not find their way into the
machine with the laundry. These may
damage components of the machine
(e.g. suds container, drum), which in
turn can result in damage to the
laundry.

If the correct amount of detergent is

~

dispensed, the machine should not
need to be descaled. If, however, you
do wish to descale the machine only
use proprietary non-corrosive descaling
agents and strictly observe the
instructions on the packaging. A
special descaling agent is available to
order from the Miele Spare Parts
Department or via the internet on
www.miele-shop.com.

8

Warning and Safety instructions

Textiles which have been

~

pre-treated in solvent based cleaning
agents must be thoroughly rinsed in
clean water before being washed in the
machine.

Never use solvent based cleaning

~

agents, e.g. those containing benzene,
in this machine, as this may result in
damage to component parts and create
toxic fumes. Such agents also pose a
fire and explosion hazard.

Never use solvent based cleaning

~

agents, e.g. those containing benzene,
to clean the outside surfaces of this
machine. They can cause damage to
plastic surfaces.

Only use dyes specified by the

~

manufacturer as being suitable for use
in a domestic washing machine. Always
observe the manufacturer's instructions
carefully.

Colour run and dye removers

~

contain sulphur compounds which can
cause damage such as corrosion. Do
not use these products in this machine.

Only remove laundry from the

~

washing machine once the drum has
stopped turning. Reaching into a
moving drum is extremely dangerous
and could result in injury.

Accessories

Accessory parts may only be fitted

~

when expressly approved by Miele. If
other parts are used, guarantee,
performance and product liability
claims will be invalidated.

Miele cannot be held liable for
damage caused by non-compliance
with these Warning and Safety
instructions.

If liquid detergent comes into

~

contact with the eyes, rinse them
thoroughly with lukewarm water imme
diately. If swallowed, seek medical
assistance immediately and retain the
packaging or label for reference. Those
with skin problems or sensitive skin
should avoid their skin coming into
contact with liquid detergent.

-

9

Description of the machine

Control panel

a Programme buttons e-

For selecting a washing programme.

b Soiling button

For specifying the degree of soiling
of the laundry.

Water plus button

For increasing the water level.

c Temperature button

For selecting a temperature.

d Spin speed button

For selecting a final spin speed.

e PC / Optical interface

This is used by service technicians
to run diagnostic checks on your
machine and can also be used to
update programming data in the
future.

f Sequence indicator lights

Show which section of the wash
programme has been reached.

g Buzzer button

h Check lights

i Delay start button

For delaying the start of a
programme.

j Start/Stop button

For starting the programme selected
and cancelling a programme once it
has started.

k I-On/0-Off button

For switching the machine on or off.

l Door button

Opens the machine door.

m Display (h min)

The display fulfills several functions.
See next page for details.

10

Description of the machine

Display

The display shows:

the programme duration (Time left

–

display)

delay start

–

the programmable functions

–

Programme duration

After the start of a programme, the
estimated programme duration will
appear in the display in hours and
minutes.

When delay start is being used, the
programme duration will appear after
the delay start time has elapsed.

During the first 10 minutes the washing
machine measures how much water is
being absorbed by the laundry and
uses this to calculate the load. The
programme duration may be longer or
shorter depending on this absorbency
rate.

Delay start

The delay start time selected will
appear in the display.

After the machine has started, the delay
start time counts down. If the delay start
time is more than 10 hours, it will count
down by the hour. If it is less than 9
hours and 59 minutes it will count down
minute by minute.

Once the delay start time has finished,
the programme begins and the
estimated programme duration shows
in the display.

Programmable functions

The programmable functions can be
used to tailor washing programmes to
suit your individual requirements. In
programming mode, the display will
show the function selected.

11

Before using for the first time

Before using the machine for the first
time ensure that it is correctly
installed and connected. See
"Installation and connection". Also
check that the drain filter is securely
tightened to prevent the risk of water
leaks during use.

This washing machine has
undergone a thorough functional test
in the factory and there will be some
residual water in the drum from this
process.

For safety reasons, spinning is not
possible until the machine has been
prepared for using for the first time. To
activate the spinning function you must
run a wash programme without laundry
and without detergent.

Using detergent could result in an
excessive build-up of foam.

This also activates the ball valve. The
ball valve prevents detergent escaping
from the suds container into the sump
during a wash programme, thus making
maximum use of the detergent.

^

Open the stopcock.

^

Press the I-On/0-Off button in.

The indicator light for the Automatic
programme will come on.

^

Press the H programme button to
select the Cottons programme.

^

Press the Start/Stop button.

The programme will begin. When it has
finished, your machine is ready for
using for the first time.

12

Washing environmentally and economically

Energy and water consumption

Water consumption and energy

–

usage are determined by the size of
the load.
To make the most out of your
machine, load the maximum dry load
for the programme you are using.

Use the Automatic and Express

–

programmes for small loads.

When smaller amounts of laundry are

–

washed using the Cottons
programme, the automatic load
recognition system will reduce the
amount of water, time and energy
used. This may mean that the time
left shown in the display is adjusted
during the course of the wash
programme.

– Using the Cottons 60°C programme

instead of the Cottons 95°C
programme will give energy savings
of between 35% and 45%.

Detergent

Degree of soiling

With most of the programmes you can
specify the degree of soiling of the
laundry. The washing machine will then
adjust the programme to suit the
degree of soiling.

Light

–

No visible dirt or stains.

Normal

–

Visibly dirty and/or just a few slight
stains.

Heavy

–

Visible dirt and stains as well as
soiling that has dried on or been left
unwashed for a while.

When drying with a tumble dryer

Selecting the highest possible spin
speed for the wash programme will
save energy when drying in a tumble
dryer afterwards.

–

Do not exceed the amounts of
detergent recommended by the
manufacturer on the packaging.

–

Reduce the amount of detergent with
smaller loads (approx.

1

/3less than
the amount recommended can be
used when washing a half load).

13

How to wash correctly

Brief instructions

The headings numbered A, B, C,...
show the operating sequence and can
be used as brief instructions.

A Sort the laundry

^ Empty all pockets.

,

Foreign objects (e.g. nails,
coins, paper clips, etc.) can cause
damage to garments and
components in the machine.

^

Badly soiled areas, stains etc. should
be cleaned as soon as possible,
preferably whilst still fresh. Spillages
should be carefully dabbed off using
a soft colourfast cloth. Do not rub!

Badly soiled areas can be pre-treated
with liquid detergent, stain removers
etc. first, following the manufacturer's
instructions. With particularly stubborn
stains ask your dry cleaner for advice.

If you use a solvent-based clean

,

ing agent (e.g. one containing ben
zene) to pre-treat a stain, make sure
that any plastic parts (e.g. buttons)
are protected, and that the cleaning
agent is rinsed off before washing the
garment in the machine.

Do not use solvent-based

,

cleaning agents in this machine.

Sort the laundry by colour and by

^

care label. Most garments have a
textile care label in the collar or side
seam.

Dark textiles often contain excess dye
and should be washed separately
several times before being included in
a mixed load. Always wash whites and
coloureds separately.

– Curtains: Remove lead weights first

or place in a laundry bag.

–

Underwiring and collar stiffeners:
Any loose wiring in bras, shirt collar
stiffeners, etc. should be removed or
sewn in.

–

Knitted garments, trousers and
jeans, T-shirts and sweat shirts: Turn
inside out, if recommended by the
manufacturer.

–

Close any zips, fasten hooks and
eyes etc before washing.

–

Fasten duvet covers etc. to prevent
small items from being rolled up
inside them.

Do not wash any items in this machine
which are specified by the
manufacturer as not washable on the
care label. (h symbol)

-

-

14

How to wash correctly

B Switch on the washing machine

C Load the drum

Press the Door button to open the

^

drum door.

Unfold the laundry and load loosely

^

in the drum. Mixing both large and
small items gives better wash results
and also helps distribute the load
evenly during spinning.

The most efficient use of energy and
water is achieved when a full load is
washed. However, do not overload as
this causes creases and reduces
cleaning efficiency.

Make sure that no garments are
caught between the drum door and
seal.

D Select a programme

Press the e or - button repeatedly

^

until the indicator light for the
programme you want lights up.

^

Shut the door with a gentle swing.

15

How to wash correctly

Specify the degree of soiling of the
laundry

Press the top button to select the
degree of soiling. Normal is the default
setting.

Use the lower button to select the Water
plus option.

^ Press the top button repeatedly until

the degree of soiling you want lights
up.

^ Press the Water plus button if you

want to activate this function.

You cannot select the degree of soiling
or Water plus for every programme.

You can change the pre-set
temperature or spin speed by pressing
the Temperature or Spin button.

In some programmes the maximum
temperature and spin speed is limited.
The machine will not allow a higher
value to be selected.

^ Press the Temperature or Spin button

repeatedly until the indicator light for
the value you want comes on.

^ Press the Buzzer button if you want to

be reminded when the programme is
finished.

16

E Add detergent

It is important to dispense the correct
amount, because...

. . . too little detergent results in:

Laundry not getting properly clean

–

and with time it may become grey
and hard to the touch.

Greasy particles clinging to the

–

laundry.

Limescale deposits on the heater

–

elements.

. . . too much detergent results in:

– Excessive foam which causes a low

level of agitation and poor wash,
rinse and spin results.

– Higher water consumption (an

additional rinse cycle will
automatically switch in).

– A burden to the environment.

How to wash correctly

Pull out the detergent drawer and

^

place detergent in the compartments
as follows:

i

Detergent for the pre-wash (if the

Degree of soiling has been set as
Heavy, add

recommended).

j

Detergent for the main wash

1

/3of the total amount

§

Fabric conditioner or liquid starch.

^

Close the detergent drawer.

See "Detergent" for further information.

17

How to wash correctly

F Select Delay Start, if wished

Remove the laundry.

^

Delay start allows you to delay the start
of a programme from 30 minutes up to
a maximum of 24 hours, allowing you to
make use of night-time economy
electricity rates, for example.

Press the Delay start button. Each

^

press on the button increases the
delay start time:

by 30 minutes up to 10 hours,

–

by 1 hour from 10 hours upwards.

–

To cancel Delay start

^ Press the Delay start button once

when 24 ^ is showing in the display.

To cancel Delay start after you have
pressed the Start button:

^ You will have to cancel the

programme. See relevant section
later in this booklet.

G Start the programme

^

Press the flashing Start/Stop button.

Only remove laundry from the
machine once the drum has
stopped turning. Reaching into a
moving drum is extremely
dangerous and could result in injury.

Check that all items have been
removed from the drum. Items left in
the drum could discolour other items
in the next wash or become
discoloured themselves.

The estimated programme duration will
then show in the display. This will count
down in one minute steps. During the
first 10 minutes the machine measures
how much water is being absorbed by
the laundry. The programme duration
may be longer or shorter depending on
this absorbency rate.

H Remove the laundry when the

programme as finished

The Finish and Anti-crease Sequence
indicator lights will come on when the
programme is finished.

^

Press the Door button to open the
drum door.

18

^

Check the folds in the door seal for
any small articles, e.g. buttons which
might be lodged there.

^

Switch the washing machine off with
I-On/0-Off button.

^

Close the drum door. Otherwise there
is the danger of objects being placed
inadvertently in the drum. If these
remained unnoticed and were
washed in the next load, they could
damage the laundry.

Degree of soiling, Water plus, Buzzer

The washing machine will adjust the
programme to suit the degree of soiling
selected.

Light

No visible dirt or stains.

The duration of the main wash is
reduced.

Normal

Visibly dirty and/or just a few slight
stains.

The standard wash programme will be
carried out.

Heavy

Visible dirt and stains and/or dried on
soiling.

A fifteen minute pre-wash will be
carried out and the duration of the main
wash will be increased by 15 minutes.

Water plus

If the Water plus button is pressed, the
water level in the main wash and rinses
is increased.

You can also alter the setting allocated
to the Water plus button. See
"Programmable functions".

Buzzer

The buzzer will sound at the end of the
programme or when Rinse hold has
been reached.

The buzzer will sound repeatedly until
the machine is switched off.

Once switched on, the buzzer is active
in all programmes until it is switched off
again.

You can also change the volume of the
buzzer or deactivate the buzzer button.
See "Programmable functions".

The buzzer will always sound when
there is a fault, even if it has been
deactivated.

The Pre-wash Sequence indicator light
will flash. Add the appropriate amount
of powder detergent to compartment
i.

You can also deactivate the Pre-wash
and increase the duration of the main
wash by 30 or 60 minutes instead of the
standard default increase of 15
minutes. See "Programmable functions".

19

Spinning

Final spin speed

Programme rpm

Automatic 1200

Cottons 1400

Minimum iron/Delicates 1200

Woollens 1200

Silks 400

Express 1400

Dark garments 1200

Shirts 600

Denim 900

Drain/Spin 1400

You can reduce the final spin speed.
However, you cannot select a final spin
speed higher than that shown in the
chart above.

Rinse and interim spin

There is a spin after the main wash and
between the rinses. A reduction in the
final spin speed will also reduce the
interim spin speed. If a spin speed of
less than 700 rpm is selected for a
Cottons programme, an additional rinse
is introduced.

To omit the final spin (Rinse hold)

Select the Rinse hold setting. The

^

laundry will not be spun and will
remain suspended in the final rinse
water. This reduces creasing if the
laundry is not going to be removed
from the drum immediately after the
end of the programme.

To start the final spin

–

:

The Rinse hold indicator light will
illuminate. Select the spin speed you
want by pressing the spin speed
button until the indicator light next to
the spin speed you want illuminates.
The washing machine will then start
the final spin.

– To end the programme

:

Press the Door button. The water will
drain away. Press the Door button
again to open the door.

To omit rinse and interim spin and
the final spin

Select the Without spin setting. The
laundry is not spun after the final rinse.
The water will drain away and the
machine will go straight into the
anti-crease stage. An additional rinse is
introduced if this settnig is selected
with the Automatic, Cottons, Minimum
iron/Delicates and Express
programmes.

20

Programme chart

Automatic 7621* cold to 40°C Max. load 3.5 kg

Fabric Mixed loads of garments suitable for the Cottons and Minimum

iron/Delicates programmes. Sort according to colour.

Note The wash parameters (e.g. water level, wash rhythm and spin

speed) are adjusted automatically in this programme to ensure the
best possible care and wash result for each item.

Cottons 9876* 30°C to 95°C Max. load 6.0 kg

Fabric Cottons, linens or cotton mix fabrics, e.g. table linen, towelling,

underwear, T-shirts etc.

Note

Note for test institutes:
Programme setting for testing according to EN 60456 standard: Cottons 60°C
Short programme: 3.0 kg load and Light Degree of soiling setting

Minimum iron/Delicates
ac421876*

Fabric Synthetics, mixed fibres and easy care cottons.

Notes – Due to the large amount of fine dust in curtains, we recommend

Note for test institutes:
Programme setting for testing according to EN 60456 standard: Minimum

iron/Delicates 40°C and spin speed of 1200 rpm
Woollens /ac* cold to 40°C Max. load 2.0 kg

Fabric Machine-washable or hand-washable wool or wool blend fabrics. If

Only use the Cottons 95°C programme for heavily soiled laundry.

–

cold to 60°C Max. load 3.0 kg

Curtains, including net curtains, specified as machine-washable by
the manufacturer.

selecting the Heavy Degree of soiling setting and also the Water
plus option. Only wash a maximum load of 2 kg.

–

For curtains which crease easily, reduce the spin speed or
deselect the spin.

the care label does not specify a temperature, wash using the cold
setting.

21

Programme chart

Silks /c* cold to 30°C Max. load 2.0 kg

Fabric Silks and other handwashable fabrics with no wool content, e.g.

satin, lace and silk.

Note Place socks, tights, bras etc. in a washing bag.

Express 76* cold to 40°C Max. load 3.0 kg

Fabric Small loads of items which require freshening up and which can be

washed in a Cottons programme.

Note This programme can be used for rinsing individual items. Select the

cold setting, and do not add any detergent.

Dark garments cold to 40°C Max. load 3.0 kg

Item Dark garments made from cotton or mixed fibres.

Note Wash inside out.

Shirts cold to 60°C Max. load 2.0 kg

Notes – Pre-treat collars and cuffs if necessary.

– Wash silk garments in the Silks programme.

Denim cold to 60°C Max. load 3.0 kg

Notes – Wash denim inside out.

– Denim often contains excess dye and will run during the first few

washes. Wash light and dark coloured items separately.

Drain/Spin Max. load 6.0 kg

Notes

–

Drain only: Select Without spin.

–

Make sure you select the appropriate spin speed.

* Please note that the "buckets" represent garment care label symbols. See

"Garment care label symbols".

22

Programme sequence

Main wash Rinses Spinning

Water

level

Automatic ( abc e 2-3
Cottons d a ( 2-4

Minimum

e d e 2-3

iron/Delicates
Woollens e e e 2 LL
Silks e e e 2 – L
Dark garments ( b d 3 LL
Shirts e c e 2 – L
Express d b d 2-3
Denim ( c e 3 – L

Drain/Spin – – –––L

d = Low water level
( = Medium water level
e = High water level

See the following page for more information about programme sequences.

Wash

rhythm

Water

Rinses Interim

level

2)

1)

2)

2)

a= Intensive rhythm
b= Normal rhythm
c= Gentle rhythm
d= Sensitive rhythm
e= Handwash rhythm

Final

spin

spin

LL

LL

LL

LL

23

Programme sequence

This machine has fully electronic
controls with automatic load
recognition. It takes in the right amount
of water required for the programme
depending on the amount of laundry
and its absorbency rate. This means
that programme cycles and durations
can vary.

The programme sequences outlined in
the chart are based on the basic
programme with a full load. Extra
options which can be selected have not
been taken into account.

The display shows the stage the
programme has reached.

Special features in the programme
sequences:

Anti-crease

:

At the end of every programme, with
the exception of the Woollens
programme, the drum continues to turn
at intervals for up to 30 minutes to help
prevent creasing. The door can be
opened and laundry removed at any
time during the anti-crease phase.

1)

A second rinse is carried out when a
temperature of 60°C to 95°C has
been selected. A third rinse is
carried out when a temperature
below 60°C is selected.

A third/fourth rinse is carried out if:

– there is too much foam in the drum

– a spin speed lower than 700 rpm has

been selected

– Without spin has been selected

2)

A third rinse is carried out if:

24

–

Without spin has been selected

Garment care label symbols

Washing

The figure quoted in the bucket is the
maximum temperature the garment
can be washed at. The number of
bars under the symbol indicates the
level of agitation permitted.

9 No bar under the symbol: =

normal agitation

4 One bar under the symbol: =

reduced agitation

c Two bars under the symbol: =

much reduced agitation

/ Hand wash (if no temperature

is specified use the lowest
temperature or cold)

h Do not wash

Drying

The number of dots indicates the
drying temperature

q Normal temperature
r Low temperature
s Do not tumble dry

Ironing

The number of dots indicates the
ironing temperature

I Hot iron (max sole plate temp.

approx. 200°C)

H Medium hot iron (max sole

plate temp. approx. 150°C)

G Cool iron (max sole plate

temp. approx. 110°C). Do not
steam iron garments carrying
this symbol.

J Do not iron

Professional cleaning

f Dry clean only. The letters

indicate the type of cleaning

p

agent required.

w Professional Wet Clean only
D Do not dry clean

Bleaching

x Any oxidising bleaching

agent can be used

{ Only use an oxygen based

bleach or a non-chlorine
bleach

z Do not bleach

25

Changing the programme sequence

Cancelling a programme

You can cancel a programme at any
time after it has started.

Press the Start/Stop button briefly.

^

The suds will be pumped away and the
programme is cancelled.

If you want to remove the laundry:

Press the Door button.

^

If you want to select a different
programme:

Switch the machine off with the

^

I-On/0-Off button.

^ Switch the washing machine back on

again.

^ Check that there is still detergent in

the detergent drawer. Add detergent,
if necessary.

^ Select and start a new programme.

Interrupting a programme

^

Switch the machine off with the
I-On/0-Off button.

To continue with the same programme:

^

Switch the machine back on with the
I-On/0-Off button.

Changing a programme

After the start of a programme it is no
longer possible to select a different
programme.

You will need to cancel the current
programme before you can select a
new one.

Temperature

It is possible to alter the temperature up
to 5 minutes after the start of a
programme.

Spin speed

You can select a different spin speed
up until the final spin begins.

Degree of soiling

The degree of soiling setting cannot be
altered after the start of a programme.

Water plus and Buzzer

The buzzer can be switched on or off at
any time.

Water plus cannot be selected or
deselected after the programme has
started.

It is not possible to make any
changes if the safety lock has been
activated.

26

Changing the programme sequence

Adding or removing laundry
after a programme has started

Press the Door button to open the

^

drum door.

Add or remove items.

^

Close the drum door.

^

The programme will continue
automatically.

Please note:

Once a programme has started the
machine cannot recognise any
adjustment to the load.

For this reason, if laundry is added or
removed after the start of a programme,
the machine will always complete the
programme cycle assuming a full load
which can lead to an increase in the
programme duration shown in the
display.

The door cannot be opened, if:

–

the suds temperature is above 55°C.

–

the water is above a certain level.

–

the programme has reached the
Final spin stage.

Safety lock

The safety lock prevents the machine
from being opened or the
programme cancelled or the
temperature or spin speed being
altered during a wash programme.

To activate the safety lock

Once the programme has started,

^

press the Start/Stop button for at
least 4 seconds until the Locked
check light appears to the left of the
display.

The safety lock is now activated.

The machine will now not accept any
changes and the programme will
proceed through to the end.

The safety lock is deactivated
automatically at the end of the
programme.

To deactivate the safety lock

Once the programme has started,
press the Start/Stop button for at least 4
seconds until the Locked check light to
the left of the display goes out.

–

the safety lock has been activated.

The Locked check light will come on if
the Door button is pressed when the
above conditions are present.

27

Changing the programme sequence

System lock

The system lock prevents your
machine being used without your
knowledge.

If the system lock has been activated it
is not possible to start a programme.

To activate the system lock

Before you begin, first ensure that:

The washing machine is switched off.

–

The drum door is closed

–

A Press the Water plus and

Temperature buttons at the same

time and hold them pressed in until
you reach step D.

B Switch the machine on with the

I-On/0-Off button.

C Press the Degree of soiling

light/normal/heavy button three

times.

D Then release the Water Plus and

Temperature buttons.

The Locked check light will flash.

E Switch off the washing machine.

To deactivate the system lock

Repeat steps A to D. The Locked
check light will go out.

28

Detergent

The correct detergent

All modern detergents produced for automatic washing machines are suitable.
Use dispensing aids, e.g. balls, if these are supplied with the detergent. Tablets
are suitable for full loads, but note that it may be impractical to reduce tablets for
smaller loads. Some tablets do not dissolve as rapidly as others, and may not be
suitable for programmes with short durations.

Do not use biological detergents on silk, as the enzymes may damage the silk.
Instructions for use and recommended dosage amounts are given on the
detergent packaging.

Liquid detergent should be dispensed using a ball provided by the manufacturer
for programmes without a pre-wash.

For programmes with a pre-wash you will need to purchase a special container
from the Miele Spare Parts department which sits in the main wash compartment
j of the detergent dispenser drawer. Add liquid detergent to this container for
the main wash and to compartment i for the pre-wash.

All purpose

detergent for

whites*

Detergent for

coloured

fabrics*

Detergent for

delicates

Automatic X X

Cottons X X

Minimum iron/Delicates X X

Woollens Liquid detergent for machine-washable woollens

Silks Liquid detergent for machine-washable silk and

woollens

Express X X X

Dark garments X

1)

Shirts X X

Denim X

1)

Only use liquid detergent

2)

Only use powder detertent or detergent specifically designed for washing

1)

curtains

*Powder detergent, tablet detergent, liquid detergent and liquid tab detergent.

29

Detergent

The right amount to dispense will
depend on the following:

The quantity of laundry

–

The soiling level of the laundry

–

Lightly soiled
No visible dirt or stains. Possibly
slight body odour.

Normally soiled
Visibly dirty and/or just a few slight
stains.

Heavily soiled
Visible dirt and stains and/or dried on
soiling.

– The water hardness level.

Check with your local water supplier
if you do not know the hardness level
in your area.

Water softener

A water softener can be used to cut
down on the use of detergents in hard
water areas. Dispense according to the
amount specified on the packaging.
First add detergent and then the water
softener.

Miele branded water softening tablets
are available from the Miele Spare Parts
Department or via the internet on
www.miele-shop.com.

Use a quantity of detergent as for soft
water.

Miele do not recommend connecting
the machine to a household water
softener.

Washing with several
components

If you wash using several components
(e.g. special application detergents),
we recommend always dispensing the
agents into compartment j in the
following order:

30

1. Detergent

2. Water softeners

3. Stain remover

This way the agents are distributed
more evenly.

Fabric conditioners and liquid
starch

Fabric conditioners make garments soft
to handle and help prevent static cling
when tumble drying.

Starch stiffens and gives body to items
of laundry, e.g. shirts, tablecloths and
bed linen.

Automatic dispensing of fabric
conditioner or liquid starch to
laundry at the end of a programme

Detergent

If starching frequently, clean the
dispenser compartment and
especially the siphon tube and
conditioner channel regularly. See
"Cleaning the detergent dispenser
drawer". Do not use powder starch
formulations or viscous liquid starch
in the § compartment as it will clog
up.

Colour run and dye removers /
dyes

^

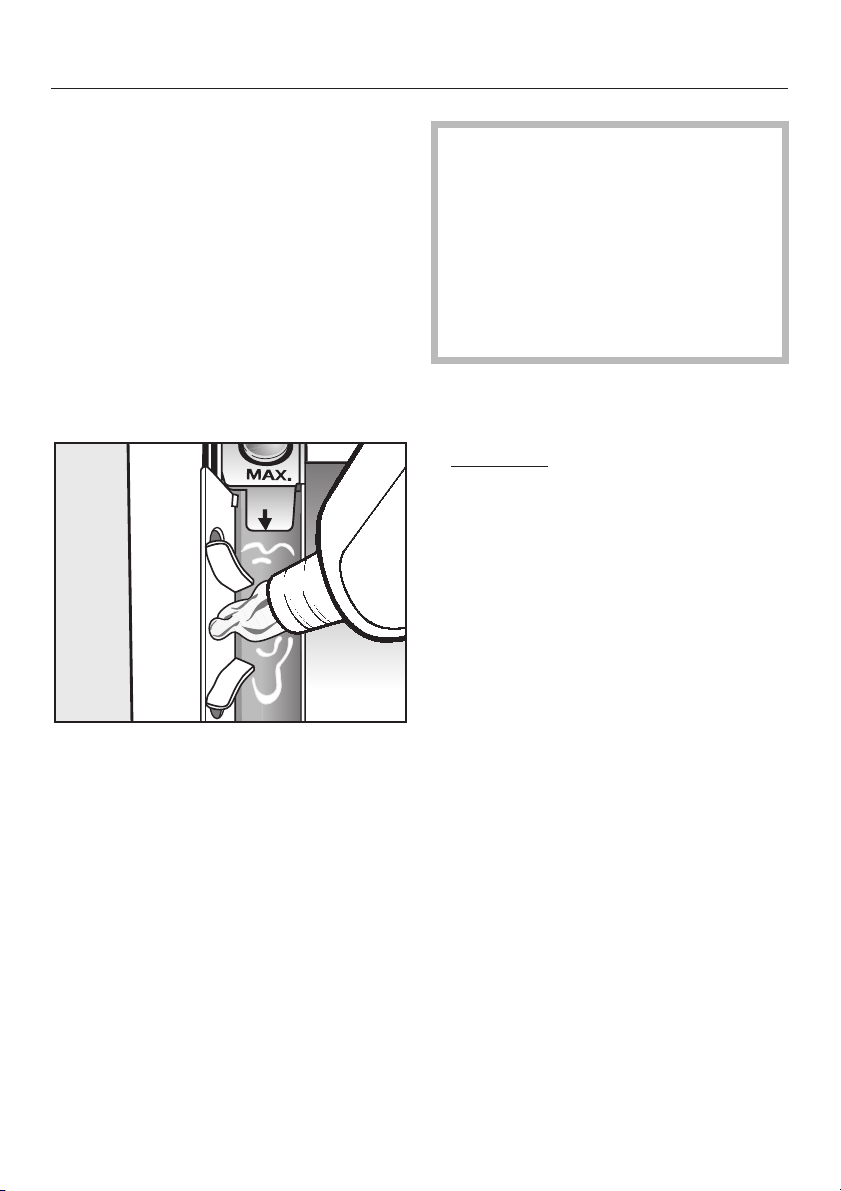

Add the fabric conditioner or liquid
starch to compartment §. Do not

exceed the maximum level mark.

It will be automatically dispensed in the
last rinse. At the end of the programme
a small amount of water remains in the
fabric conditioner compartment §.

Do not use

^

removers in this machine.

^ Dyes suitable for use in domestic

washing machines can be used.
However, please note that the salt
used in the dyeing process can
cause corrosion to stainless steel
components in the machine if you
dye frequently. Always observe the
manufacturer's instructions carefully.

colour run or dye

31

Cleaning and care

Disconnect the machine from the

,

mains electricity supply and
withdraw the plug from the socket
before cleaning the machine.

The washing machine must not

,

be hosed down.

A range of Miele branded cleaning and
conditioning agents are available to
order from your Miele dealer, the Miele
Spare Parts Department, or via the
internet on www.miele-shop.com

External casing and fascia
panel

Clean the casing using a Miele E-Cloth,
or with a mild non-abrasive cleaning
agent or soap and water using a well
wrung-out cloth. Wipe dry with a soft
cloth.

Extra cleaning

Carry out a hot wash (70°C or above)
with powder detergent approx. every 6
weeks to help prevent deposits building
up in the machine. These can occur
when washing is mainly done at low
temperatures, and also lead to
unpleasant smells. If you have no
reason to wash occasionally at this high
temperature, then run a Cottons 95°C
programme with detergent but no
laundry at regular intervals.

Cleaning the detergent
dispenser drawer

Remove detergent residues regularly.

^ The drum and any stainless steel

outer panels can be cleaned using a
suitable proprietary stainless-steel
cleaning agent following the
manufacturer's instructions on the
packaging.

,

Do not use solvents, abrasive
cleaners, glass cleaners or
all-purpose cleaning agents.
These might damage plastic
surfaces and other components
because of the chemicals they
contain.

32

^

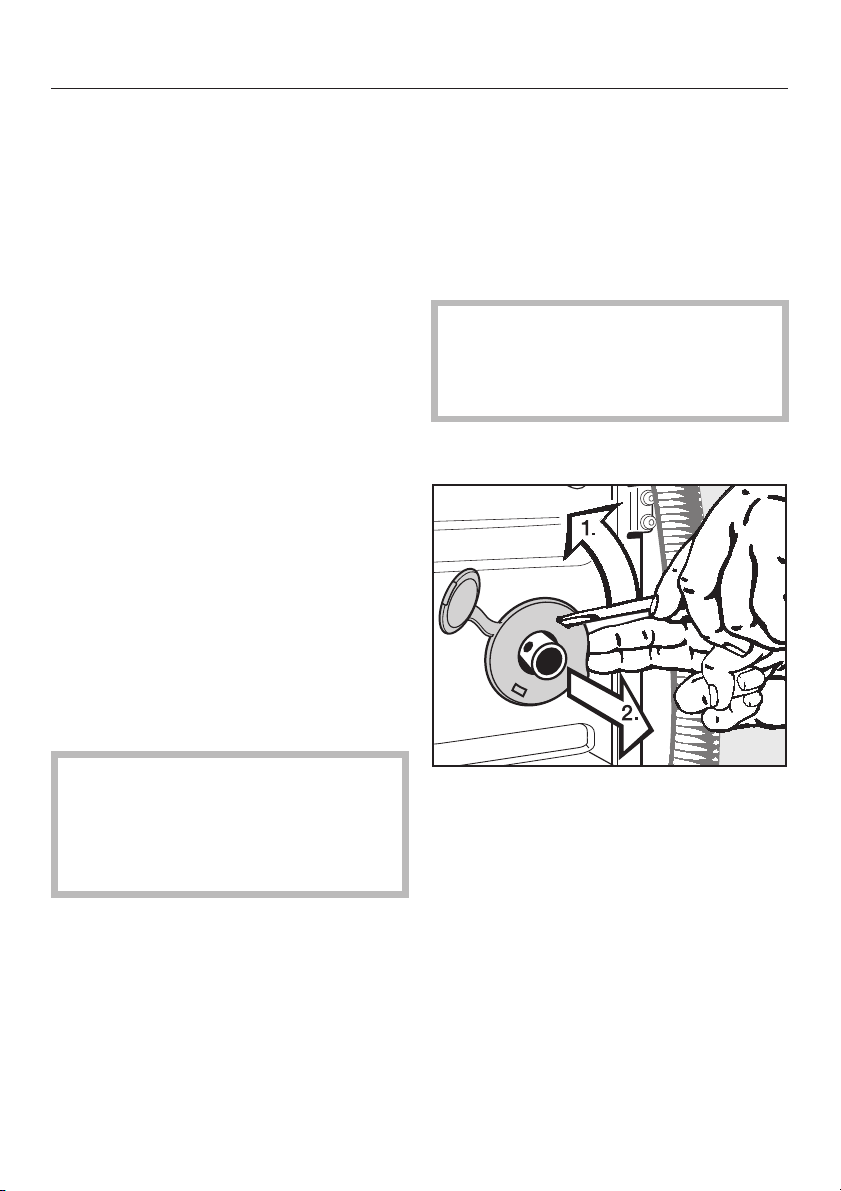

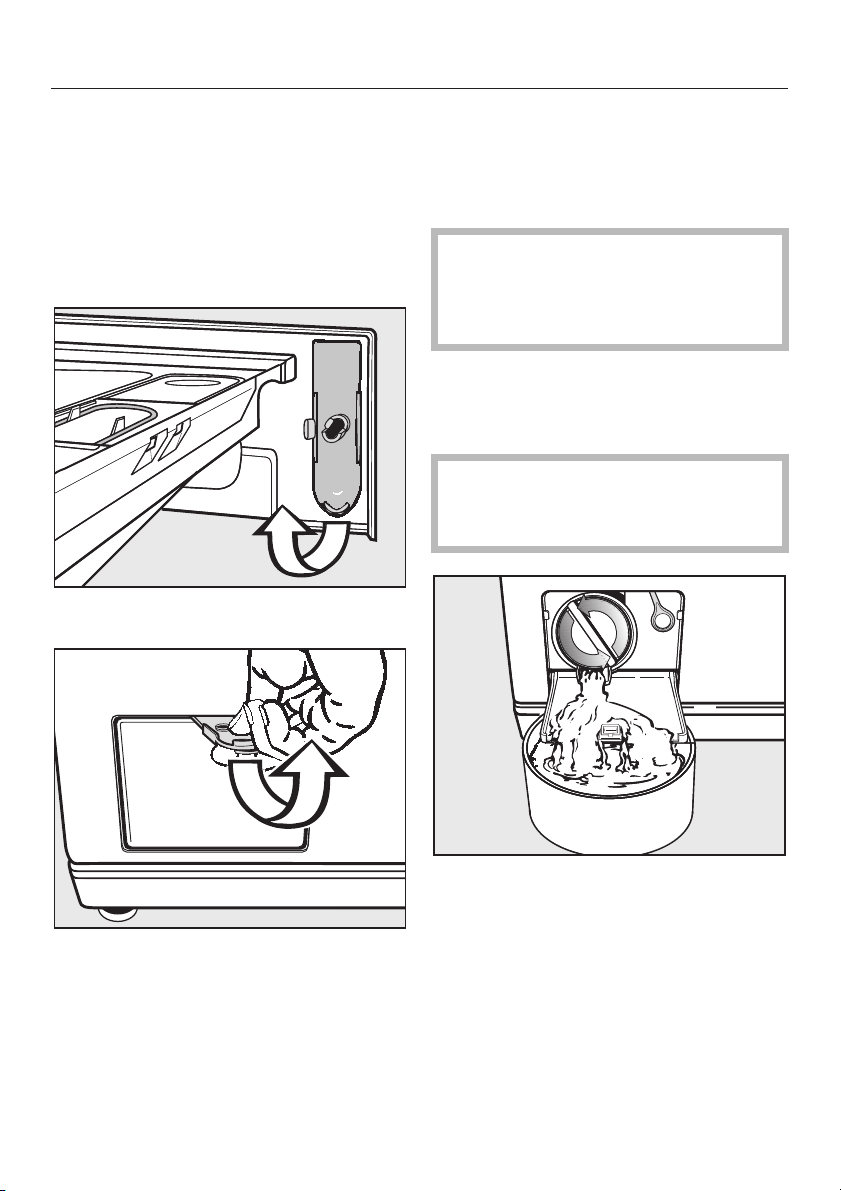

Pull out the detergent dispenser
drawer until a resistance is felt. Press
down the release catch and at the
same time pull the drawer right out of
the machine.

^

Clean the detergent drawer with
warm water.

Clean the siphon.

^

1. Remove the siphon from

compartment § and rinse under
warm running water. Clean the
siphon tube in the same way.

2. Replace the siphon.

Cleaning and care

Cleaning the detergent dispenser
drawer housing

^ Use a bottle brush to remove

detergent residues and limescale
from the jets inside the detergent
dispenser drawer housing.

If starching frequently, thoroughly
clean the siphon and siphon tube
regularly. A build-up of starch will
cause them to get clogged.

Descaling the machine

If the correct amount of detergent is
dispensed, the machine should not
need to be descaled. If, however, you
do wish to descale the machine only
use proprietary non-corrosive descaling
agents and strictly observe the
instructions on the packaging.

33

Cleaning and care

Cleaning the water inlet filters

The washing machine has two filters to
protect the inlet valves.

These filters should be checked every
six months or so, or more often if there
are frequent interruptions to the water
supply.

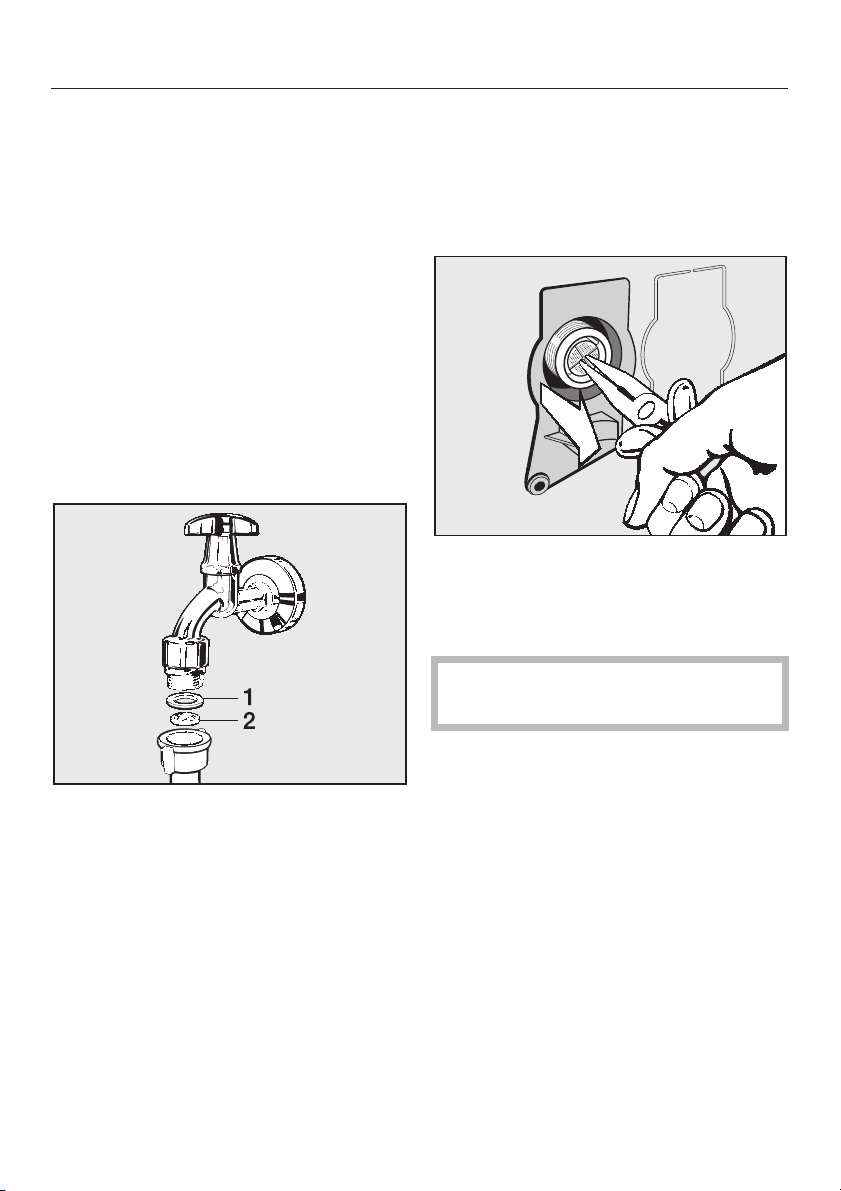

To clean the filter in the union in the
open end of the inlet hose:

First turn off the stopcock.

^

Unscrew the threaded union

^

connecting the free end of the inlet
hose to the stopcock.

To clean the filter in the water inlet
valve:

Using pliers, carefully loosen the

^

ribbed plastic nut on the inlet valve
and unscrew.

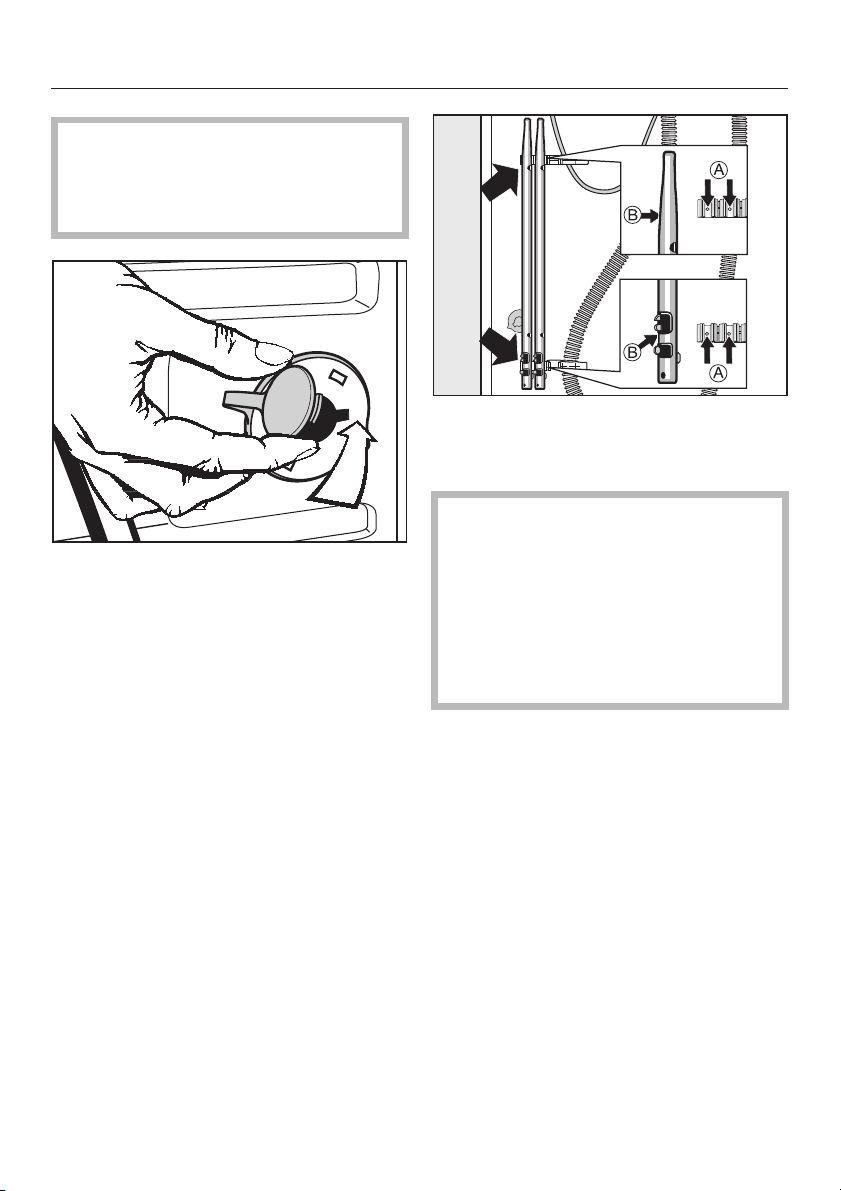

^ Use pointed nose pliers to withdraw

the plastic filter by the bar (see
illustration). Clean, put back and
secure.

The two filters must be put back in
place after cleaning.

^

Remove the rubber seal 1 from the
recess.

^

Using pointed pliers, take hold of the
plastic filter bar 2, remove the filter
and clean it.

^

Put the filter and seal back in the
reverse order and reconnect the
hose.

^

Turn on the stopcock and check the
connection is watertight. If it leaks,
tighten the connection.

34

Cleaning and care

With the help of the following notes, minor faults in the performance of the
appliance, some of which may result from incorrect operation, can be put right
without contacting the Service Department.

Repair work to electrical equipment should only be carried out by a suitably

,

qualified person in strict accordance with current local and national safety
regulations. Repairs and other work by unqualified persons could be
dangerous. The manufacturer cannot be held liable for unauthorised work.

The programme does not start

Problem Possible cause Remedy

The display remains
dark and no indicator
lights are lit up.

The Locked check
light is flashing.

The programme does
not start when the
Start/Stop button is
pressed.

There is no power to
the machine.

The electronic system
lock has been
activated.

The drum door is not
properly closed.

Check whether
– the mains plug is plugged

in and switched on.

– the fuse or circuit breaker

has tripped.

De-activate the system lock.
See "Changing the
programme sequence ­System lock".

– Close the drum door.

35

Cleaning and care

The wash programme stops and a fault indicator light comes
on.

Problem Possible cause Remedy A

The buzzer sounds and
the Drain check light
flashes. "– – –" appears
in the display.

The buzzer sounds and
the Water inlet check
light flashes. "– – –"
appears in the display.

The buzzer sounds and
the Water inlet and Drain
check lights flash. "– – –"
appears in the display.

The buzzer sounds and
the Pre-wash or the Rinse
hold Sequence indicator
light flashes. "– – –"
appears in the display.

The water outlet is
blocked or restricted.

The drain hose has
been fixed too high.

The water inlet is
blocked or restricted.

The filter in the water
inlet hose is dirty.

The Miele Waterproof
system has reacted.

There is a fault. Start the programme again.

Clean the drain filter and the
drain pump as described in
"Problem solving guide –
Opening the drum door in
the event of a blocked water
outlet and/or a power
failure".

The maximum delivery head
is1m.

Check whether
– the stopcock has been

opened properly.

– the inlet hose is kinked.

Clean the filter.

Call the Service Department

If the fault message appears
again, contact the Service
Department.

A To switch off the fault message: Switch the washing machine off with I-On/0-Off

button.

36

General problems

Problem Possible cause Remedy

The Detergent check
light comes on.

The Rinses Sequence
indicator light flashes.

The machine shakes
during the spin cycle.

The laundry has not
been spun properly
and is still wet.

The pump makes
strange noises.

There is a lot of
detergent residue in
the detergent drawer.

Fabric conditioner is
not completely
dispensed or too much
water remains in the §
compartment.

When laundry is dry it
feels hard to the touch.

Cleaning and care

Excessive foam has
built up during washing.

There is a fault. Start the programme again.

The machine feet are
not level.

The machine detected
an imbalance during the
final spin and reduced
the spin speed
automatically.

This is not a fault! These noises occur at the end of a
pump sequence as a normal part of the operation.

The water pressure is
too low.

Powder detergent used
with water softeners can
be sticky.

The siphon tube is not
correctly positioned or
is clogged up.

Too vigorous wash
action.

Not enough detergent
used.

No fabric conditioner
used.

Use less detergent next time
and follow the manufac
turer's instructions on dos
age given on the packaging.

If the fault message appears
again, contact the Service
Department.

Level the machine (see "In
stallation).

Include both large and small
items in the load as this will
give better distribution.

– Clean the filter in the water

inlet.
– Select Water plus.
Add washing powder and

then add the water softener.

Clean the siphon, (see
"Cleaning and care ­Cleaning the detergent dis
penser drawer").

Programme in gentle action
and more water.

Increase detergent dose to
prevent limescale build up in
laundry.

Use fabric conditioner in last
rinse.

-

-

-

-

37

Cleaning and care

An unsatisfactory wash result

Problem Possible cause Remedy

Liquid detergent
does not give the
required result.

Grey, greasy
particles cling to
washed laundry.

A stale smell is in
the drum and on
laundry.

White residues
which look like
powder detergent
are seen on dark
textiles after
washing.

Clothes are coming
out creased.

Liquid detergents
usually contain no
bleaching agents.
They do not remove
fruit, coffee and tea
stains.

Insufficient amounts of
detergent were used
to break down the
particles of grease in
heavily soiled laundry.

Low temperature
washing.

The detergent
contained compounds
(zeolites) to aid water
softening which are
not soluble in water.
They have ended up
on the laundry.

Programme was
overloaded.

The wrong
programme was used.

Use a general purpose

–

detergent containing a
bleaching agent.

Pour stain removers into

–

compartment j of the
dispenser drawer and liquid
detergent into a dispenser ball.

Never put stain removers and

–

liquid detergent together in the
dispenser drawer.

– Use more detergent.
– Before washing the next load

run a Cottons 95°C programme
with powder detergent but
without a load.

– Before washing the next load

run a Cottons 95°C programme
with powder detergent but
without a load.

–

Try and brush off the residues
with a soft brush once the
laundry is dry.

–

Wash dark textiles using a
detergent which contains no
zeolites. Liquid detergents
usually contain no zeolites.

–

Use the Dark garments
programme.

–

Reduce quantity of clothes in
drum.

–

Check care labels and the
programme chart.

–

Use easy iron conditioners.

38

Cleaning and care

The drum door does not open when you press the Door button

Possible cause Remedy

The machine is not
connected to the
electricity supply.

The machine is not
switched on.

The safety lock has been
activated.

The electronic system
lock is activated.

Power cut. Open the drum door as described in "Opening the

The door was not
correctly engaged.

There is still water in the
drum and the machine is
unable to drain.

For safety reasons the drum door cannot be opened if the suds temperature is
higher than 55°C.

Insert the plug in the socket and switch on.

Switch the machine on with the I-On/0-Off button.

Deactivate the safety lock as described in
"Changing the programme sequence - Safety lock".

Deactivate the system lock as described in
"Changing the programme sequence - System
lock".

drum door in the event of a blocked drain outlet
and/or power failure".

Press hard against the lock side of the drum door
and then press the Door button.

Clean the drain filter and the drain pump as
described in the next section.

39

Cleaning and care

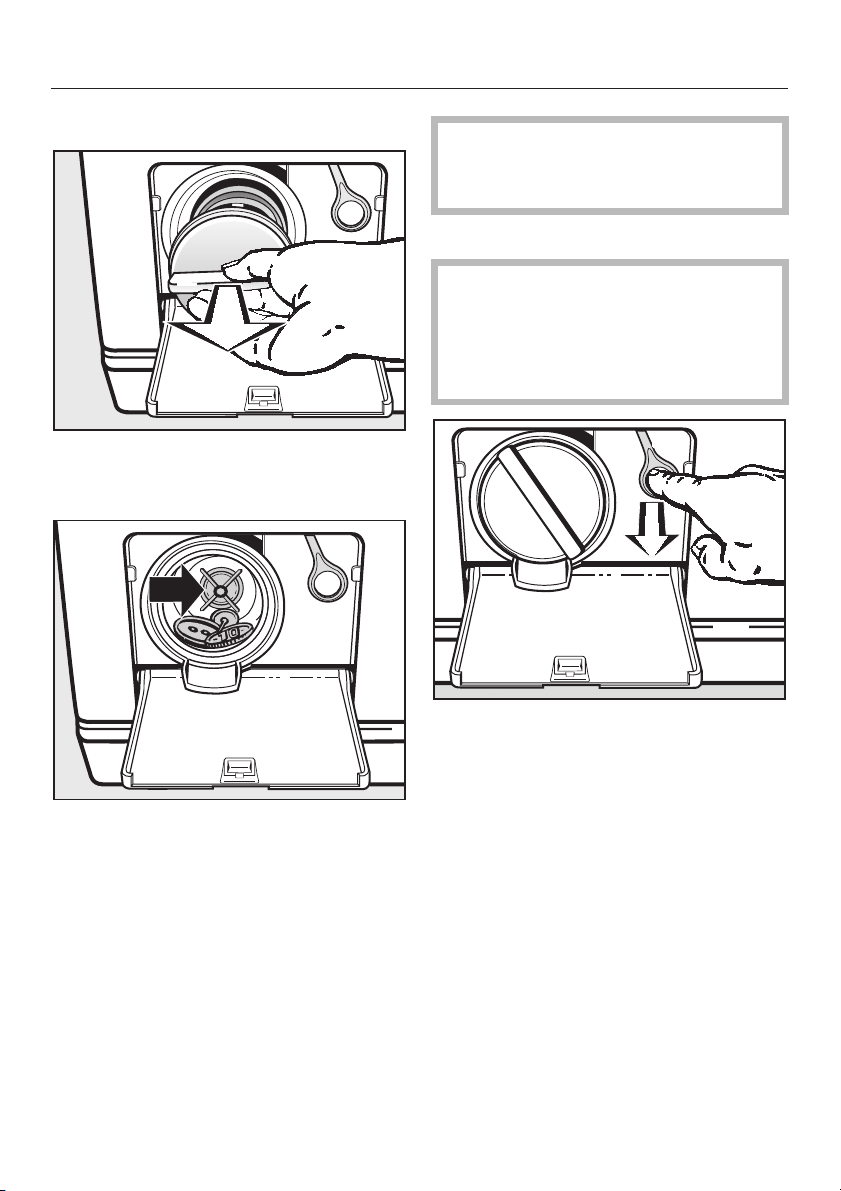

Opening the drum door in the
event of a blocked drain outlet
and/or power failure

Switch the washing machine off.

^

There is a lever behind the detergent
drawer fascia panel.

^ Remove the lever.

Blocked drain outlet

If the drain outlet is blocked, up to
25 litres of water will be retained in the
machine.

Caution: if laundry has been

,

washed at a high temperature, water
draining out of the machine will still
be hot. Danger of scalding!

Procedure for draining the machine

Place a suitable container under the

^

access flap.

When draining water from the
machine, do not unscrew the drain
filter completely or take it right out.

^

Use it to open the access flap.

40

^

Unscrew the drain filter lid until water
runs out.

To interrupt the flow of water:

^

Tighten the drain filter back up again.

Once the flow of water ceases:

^ Remove the drain filter completely.

^ Clean it thoroughly.

Cleaning and care

Make sure the drain filter is

,

securely tightened. Otherwise there
is a risk of water leakage during use.

Opening the drum door

Always make sure that the drum

,

is stationary before reaching into the
machine to remove laundry.
Reaching into a moving drum is
extremely dangerous.

^

Remove any foreign objects (e.g.
buttons, coins, etc.) and fluff from the
filter housing. Turn the impeller by
hand to check that it rotates freely.
Any foreign object causing an
obstruction should be removed.

^

Put the drain filter back in place and
secure.

^

Pull the emergency release
downwards (see illustration). The
drum door will open.

41

After sales service

In the event of any faults which you
cannot remedy yourself, please
contact:

your Miele Dealer or

–

the Miele Customer Contact Centre

–

(see back cover for contact details).

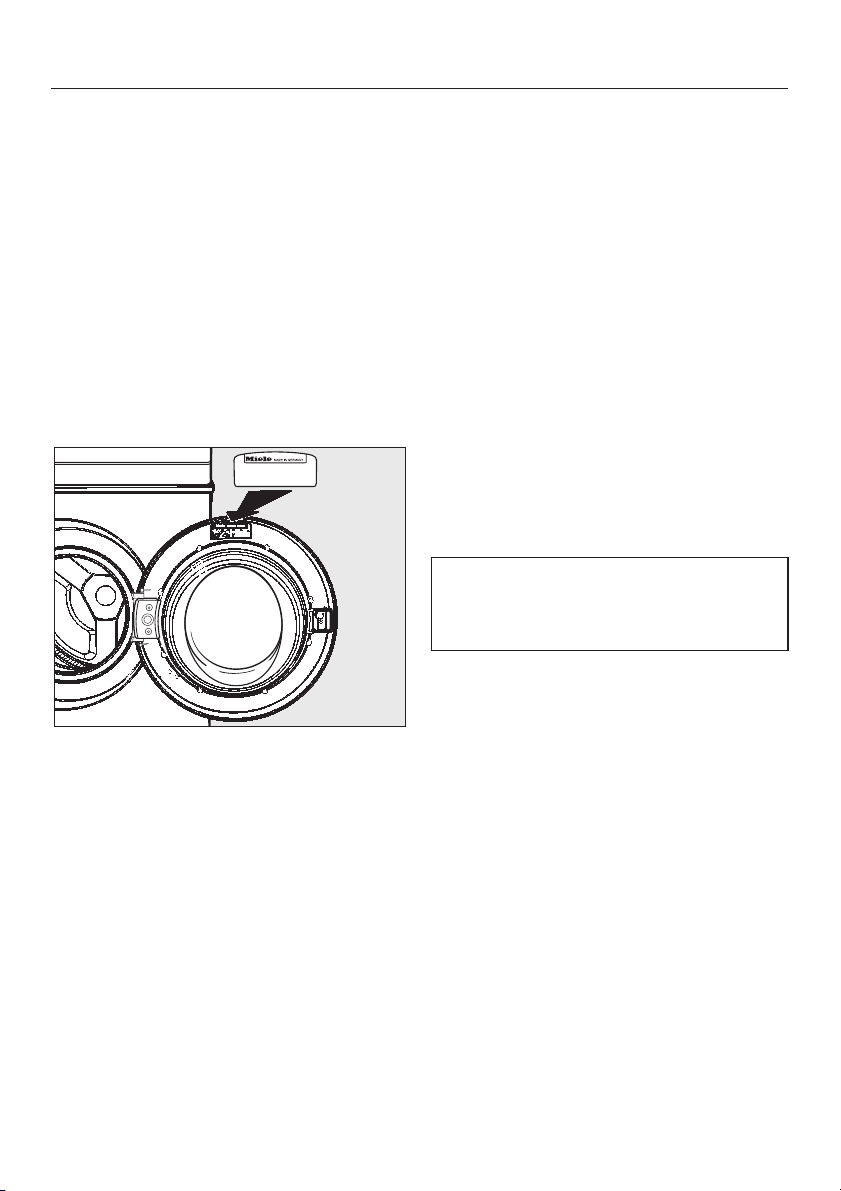

When contacting your Dealer or Miele,
please quote the model and serial
number of your machine, both of which
are shown on the data plate visible
above the porthole glass when the door
is open.

Future updates (PC)

The indicator light marked PC is the
interface used by Miele service
technicians during servicing work for
testing purposes and for updating the
machine's programme data.

Appliance guarantee

Please see the guarantee card
supplied with your machine.

Optional accessories

Optional accessories for this washing
machine are available from your Miele
Dealer, the Miele Spare Parts
Department or via the internet at
www.miele-shop.com.

Please note that telephone calls may
be monitored and recorded for
training purposes.

42

Front view

Installation and connection

a Inlet hose (tested to withstand

pressure of at least 7,000 kPa)

b Electricity supply cable

c - f Flexible drain hose (with

detachable swivel elbow)

g Control panel

h Detergent dispenser drawer

i Drum door

j Access to drain filter, drain pump

and emergency release

k Handle recesses for moving the

machine

l Four height adjustable feet

43

Installation and connection

Rear view

a Protruding lid for holding when

moving the machine

b Electricity supply cable

c Inlet hose (tested to withstand

pressure of at least 7,000 kPa)

d Drain hose

44

e Transit bar covers

f Restraining clip for inlet hose and

drain hose

g Restraining clips for transit bars

when removed

Installation and connection

Installation surface

A concrete floor is the most suitable
installation surface for a washing
machine, being far less prone to
vibration during the spin cycle than
wooden floorboards or a carpeted
surface.

Please note the following points:

The machine must be level and

^

securely positioned.

To avoid vibrations during spinning,

^

the machine should not be installed
on soft floor coverings.

If installing on a wooden joist floor:

^ We recommend a plywood base

(at least 59x52x3 cm). The base
should span several joists and be
bolted to the joists and not only to the
floorboards. Check for the presence
of pipes and cables.

If possible, install the machine in a
corner, as this is usually the most stable
part of the floor.

Installing the washing machine

To manoeuvre the machine out of its
packing case to its installation site hold
it by the edge of the lid where it
protrudes to the rear of the washing
machine as well as by the handle
recesses at the front.

Ensure that the machine feet and

,

the floor are dry to prevent the
machine from slipping during the
spin cycle.

Removing the transit bars

,

If the machine is installed on a

raised plinth, it has to be secured
against slippage during spinning
using retaining clips (available from
the Miele Spare Parts Dept).

^

To remove the left and right covers

1. Use a screwdriver to prise out the

cover as illustrated.

2. Pull the cover forwards to remove.

45

Installation and connection

Using the spanner supplied turn the

^

left-hand transit bar 90°, then

^

withdraw the transit bar.

Turn the right-hand transit bar 90°,

^

then

^

withdraw the transit bar.

46

To avoid the risk of injury the

,

holes for the transit bars must be
covered after the transit bars have
been removed.

^ Fit the covers on to the two holes.

Then plug the holes as shown with
the caps.

Installation and connection

Secure the transit bars to the back of

^

the washing machine. Make sure that
holes b are fitted over retainers a.

The washing machine must not

,

be moved without the transit bars in
place.
Store the transit bars as shown or
keep them in a safe place for future
use. They must be re-fitted if the
machine is to be moved again
(e.g.when moving house).

Re-fitting the transit bars

Re-fitting is carried out by reversing the
procedure.

47

Installation and connection

Levelling the machine

The machine must stand perfectly level
on all four feet to ensure safe and
proper operation.

Incorrect installation may increase
electricity and water consumption and
may cause the machine to move about.

Screwing out and adjusting the feet

The four adjustable screw feet are used
to level the machine. All four feet are
screwed in when the machine is
delivered.

Use a spirit level to check the

^

machine is standing level.

^ Hold foot 1 securely with a pipe

wrench. Turn counter nut 2 again
using the spanner supplied until it
sits firmly up against the housing.

,

All four counternuts must be
firmly up against the housing. Please
also check this for the feet which did
not need adjustment. Otherwise
there is the danger of the machine
moving about.

^

Using the spanner supplied turn
counter nut 2 in a clockwise
direction. Then turn counter nut 2
together with foot 1 to unscrew.

48

The fitting of building under kits and
stacking kits must only be
undertaken by qualified and
competent persons, in accordance
with the instructions supplied with
the kit.

Installation and connection

Washer and Dryer stack

A Miele tumble dryer can be stacked
with the washing machine. A "WTV"
stacking kit* is necessary and can be
purchased from the Miele Spare Parts
Department or via the internet at
www.miele-shop.com.

Building under a continuous
worktop/in a kitchen run

If you wish to push your machine under
a worktop and there is space to do this
without removing the lid, the
conversion kit is not necessary.
Otherwise the conversion kit is
essential.

– A special building under conversion

kit* is required.
To ensure electrical safety, the
washing machine lid must be
replaced by the cover plate supplied
with the conversion kit.

– For installation under a work surface

900/910 mm from the floor, a raising
kit* is required.

–

Connections for electricity, water and
drainage should be installed in such
a way that they remain accessible
when the machine is in place.

Fitting instructions are supplied with the
conversion kit.

All parts marked* are available from
your Dealer or the Miele Spare Parts
Department.

Please note:

a Safety distance to wall:

at least 2 cm

b Height:

Stacking kit with pull-out shelf:
approx. 169 cm
Stacking kit without pull-out shelf:
approx. 170 cm

Replacing the lid

If the lid has been removed in order to
fit a stacking kit or cover plate, ensure
that, if the lid is replaced, it fits securely
into the rear holders. Otherwise, it is not
properly secure for transport.

49

Installation and connection

The Miele water protection
system

The Miele water protection system
protects the washing machine from
water damage.

The system consists of three main
components:

1) the inlet hose

2) the electronic unit and the washing
machine housing

3) the drain hose

1) Inlet hose

The inlet hose can withstand
pressure of more than 7,000 kPa.

2) Electronic unit and washing
machine housing

– Sump

Overflow protection

–

This prevents the washing machine
taking in too much water. If the water
level exceeds a certain level, the
drain pump switches in and pumps
the excess water away.

3) Drain hose

The drain hose is protected by a
ventilation system which prevents the
washing machine from being
emptied completely.

Any leaking water is collected in a
sump in the base of the machine. A
float switches off the safety valves,
preventing any more water flowing
into the machine and water in the
suds container is pumped away.

50

Installation and connection

Connection to the water
supply

The machine should be connected to a
mains water supply in accordance with
local and national safety regulations.
The German authorities do not require it
to have a non-return valve as the
washing machine has been designed
to comply with DIN regulations.

The machine is designed to operate
with a flow pressure of between
100 kPa and 1,000 kPa. If it is higher
than 1,000 kPa it is essential to fit a
pressure reducing valve.

Connection to the mains water supply
should incorporate a mains stopcock

3

with

/4" thread. The stopcock should

be fitted by a qualified plumber.

,

The connection point is subject
to mains water pressure. Turn on the
stopcock slowly and check for leaks.
Correct the position of the washer
and union if appropriate.

In order to protect the water inlet
valve, the two dirt filters - one in the
open end of the inlet hose, one at
the inlet point in the machine must
not be removed.

Extension hose

Longer hoses 2.5 or 4.0 m in length

–

are available from your Miele dealer
or the Miele Spare Parts Department
as optional extras.

The washing machine is not suitable
for connection to a hot water supply
and connection to a household
water softener is not recommended.

Maintenance and care

Only use a genuine Miele hose should
you ever need a replacement or
extension. These are tested to
withstand pressure of at least
7,000 kPa.

51

Installation and connection

Connection to the drainage
system

The machine drains via a drain pump
with a delivery head of 1 metre*. The
drain hose must not be kinked as this
restricts drainage. The swivel elbow at
the end of the hose can be turned in
either direction, or can be detached if
required, with a sharp twist and pull.

If required, the drain hose can be
extended to a length of 5 m. The
necessary parts can purchased from
the Miele Spare Parts Department or
your Miele dealer.

* For a delivery head of more than 1 m
(up to a max. of 1.8 m) a replacement
drain pump will need to be fitted.
Please contact the Miele Spare Parts
Department or your Miele Dealer.

Drain hose connection:

1. Direct into a sink or basin:

Please note the following:

–

Hook the hose over the edge and
secure.

Please note:

a Adapter

b Nut

c Hose clip

d End of the hose

^ Fit adapter a to the sink drain outlet

using nut b.

^ Attach the end of the hose d to

adapter a.

^

Use a screwdriver to tighten hose
clip c up close to the nut.

–

Make sure that the water can drain
away freely without hindrance.
Otherwise there is a risk of water
overflowing or of some of the drained
water being sucked back into the
machine.

2. Connected securely to a plastic

drain pipe with a rubber nipple.
There is no need to use a non-return
valve.

3. Connected securely to a standpipe.

4. Connected securely to a floor gully.

52

Installation and connection

Electrical connection U.K.

All electrical work should be carried out
by a suitably qualified and competent
person, in strict accordance with
current national and local safety
regulations (BS 7671 in the UK).

Ensure power is not supplied to the
appliance until after installation work
has been carried out.

The appliance is supplied with a mains
cable with moulded plug ready for
connection to a 230-240V mains
supply.

Please ensure the connection data
quoted on the data plate match the
household mains supply.

Connection should be made via a
suitable switched socket which is easily
accessible after installation.

For extra safety it is advisable to install
a suitable residual current device
(RCD). Contact a qualified electrician
for advice.

Non-rewireable plugs BS 1363

The fuse cover must be refitted when
changing the fuse, and if the fuse cover
is lost, the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words on the base of the
plug (as applicable to the design of
plug fitted).

Replacement fuses should be ASTA
approved to BS 1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.

WARNING: THIS APPLIANCE
MUST BE EARTHED

Do not connect via an extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).

53

Consumption data

Load Consumption data

Energy Water Degree of soiling

in kWh in litres Light Normal

Automatic 40°C 3.5 kg 0.35 - 0.50 40 - 55 1 h 03 min 1 h 18 min

Cottons 95°C 6.0 kg 1.99 47 2 h 09 min

Minimum
iron/Declicates

Woollens / 30°C 2.0 kg 0.23 39 – 39 min
Silks / 30°C 1.0 kg 0.25 39 – 36 min

Express 40°C 3.0 kg 0.30 34 30 min –

Dark garments 40°C 3.0 kg 0.60 60 1 h 00 min 1 h 10 min

Shirts 60°C 2.0 kg 1.00 59 1 h 03 min 1 h 13 min

Denim 40°C 3.0 kg 0.50 52 50 min 1 h 00 min

1)

Cottons test programme in accordance with EN 60456

2)

Short programme for test institutes; the Degree of Soiling must be set to Light.

3)

Minimum iron test programme with spin speed of 1200 rpm in accordance with
EN 60456

1)

60°C

60°C 3.0 kg 0.73 39 1 h 03 min

40°C

40°C

40°C

40°C 3.0 kg 0.45 49 59 min

6.0 kg 1.02 47 1 h 49 min

1)

6.0 kg 0.65 59 2 h 04 min

2)

3.0 kg 0.36 39 59 min

3)

3.0 kg 0.45 49 1 h 19 min

Consumption data can vary from the nominal values given depending on water
pressure, water hardness, water inlet temperature, room temperature, type and
volume of load, fluctuations in the electricity supply and any extra options
selected.

54

Technical data

Height 850 mm

Width 595 mm

Depth 580 mm

Depth with door open 975 mm

Height for building under 820 mm

Width for building under 600 mm

Depth for building under 600 mm

Weight 93 kg

Maximum floor load 1,600 Newton (approx. 160 kg)

Capacity 6 kg dry laundry

Voltage see data plate

Connected load see data plate

Fuse rating (UK) see data plate / plug

Consumption data see "Consumption data"

Water flow pressure min. 100 kPa (1 bar)

Water flow pressure max. 1,000 kPa (10 bar)

Inlet hose length 1.60 m

Drain hose length 1.50 m

Mains connection cable length 1.60 m

Delivery head max. 1.00 m

Maximum drainage length 5.00 m

Test certificates awarded see data plate

55

Programmable functions
for changing default settings

The programmable functions can be used to tailor washing programmes to suit
your individual requirements.

Programmable functions

Water plus system

This is used to select the water intake
setting for the Water plus button.

There are three different options:

Setting 1
this option selected)

The water intake is increased in the
wash and rinse stages.

Setting 2:

An extra rinse is carried out.

Setting 3:

The water intake is increased in the
wash and rinse stages and an extra
rinse is carried out.

Follow steps A to F to programme
and store in memory.

Before you begin, first ensure that

– The washing machine is switched off.

–

The drum door is properly closed.

(the machine is delivered with

:

A Press the Start/Stop button and keep

it pressed in whilst carrying out steps

B-C.

B Press the I-On/0-Off button in.

C Wait until the indicator light for the

Start/Stop button comes on...

D . . . and then release the Start/Stop

button.

The Buzzer indicator light will flash

–

on and off once.

A P will flash in the display

–

alternating with the number 1, 2 or 3.

E Each subsequent press of the

Start/Stop button will select a
different setting.

The number alternating with the P in the
display refers to the settings as follows:

1 = Setting 1

2 = Setting 2

3 = Setting 3

F Switch the washing machine off with

I-On/0-Off button.

is selected

is selected

is selected

The Water plus button has now been
allocated the setting you have chosen.
This setting will remain in memory until
another setting is programmed.

57

Programmable functions

Gentle action

Activating gentle action reduces the
drum action and is suitable for
washing slightly soiled articles more
gently.

Gentle action can be activated for the
Cottons programme.

If Gentle action is programmed into the
machine, every wash cycle in this
programme will be carried out with
gentle action rhythm.

The washing machine is delivered with
the Gentle action setting deactivated.

Follow steps A to G to programme
and store in memory.

Before you begin, first ensure that

– The washing machine is switched off.

– The drum door is properly closed.

:

A Press the Start/Stop button and keep

it pressed in whilst carrying out steps

B-C.

B Press the I-On/0-Off button in.

C Wait until the indicator light for the

Start/Stop button comes on...

D . . . and then release the Start/Stop

button.

E Press the Buzzer button once

The Buzzer indicator light will flash

–

twice.

A P will flash in the display

–

alternating with the number 0 or 1.

0 = Gentle action is deactivated.

1 = Gentle action is activated.

F Press the Start/Stop button to

change the display from 0 to 1 or
from 1 to 0.

G Switch the machine off with the

I-On/0-Off button.

.

58

The setting you have selected is now
stored in memory and will remain so
until you alter it.

Programmable functions

Suds cooling in the Cottons
programme

When this is activated, additional
water flows into the drum at the end
of the main wash to cool the suds
down. Hot suds can damage plastic
drainage pipes.

Suds cooling takes place when
temperatures of 95°C and 75°C are
selected.

Suds cooling should be activated:

to prevent the danger of scalding if

–

the drain hose is hooked over the
edge of a sink or basin.

– where the drainage pipes do not

comply with DIN 1986.

The washing machine is delivered with
Suds cooling for the Cottons
programme deactivated.

Follow steps A to G to programme
and store in memory.

Before you begin, first ensure that

–

The washing machine is switched off.

:

A Press the Start/Stop button and keep

it pressed in whilst carrying out steps

B-C.

B Press the I-On/0-Off button in.

C Wait until the indicator light for the

Start/Stop button comes on...

D . . . and then release the Start/Stop

button.

E Press the Buzzer button twice

The Buzzer indicator light will flash

–

three times.

A P will flash in the display alternating
with the number 0 or 1.

0 = Suds cooling is deactivated.

1 = Suds cooling is activated.

F Press the Start/Stop button to

change the display from 0 to 1 or
from 1 to 0.

G Switch the machine off with the

I-On/0-Off button.

The setting you have selected is now
stored in memory and will remain so
until you alter it.

.

–

The drum door is properly closed.

59

Programmable functions

Increase the duration of the
main wash

This setting is used to select the
length of time (15, 30 or 60 minutes)
by which the main wash is increased
when the Heavy Degree of soiling
option is selected.

The washing machine is delivered with
the increase for the duration of the main
wash set at 15 minutes.

Follow steps A to G to programme
and store in memory.

Before you begin, first ensure that

– The washing machine is switched off.

– The drum door is properly closed.

:

A Press the Start/Stop button and keep

it pressed in whilst carrying out steps

B-C.

B Press the I-On/0-Off button in.

C Wait until the indicator light for the

Start/Stop button starts comes on...

D . . . and then release the Start/Stop

button.

E Press the Buzzer button three times

The Buzzer indicator light will flash

–

four times.

A P will flash in the display

–

alternating with the number 1, 2 or 3.

F Each subsequent press of the

Start/Stop button will select a
different setting.

The number alternating with the P in the
display refers to the settings as follows:

1 = 60 minutes

2 = 30 minutes

.

60

3 = 15 minutes (factory default setting)

G Switch the machine off with the

I-On/0-Off button.

The setting you have chosen for the
increase in the duration of the main
wash has now been allocated to the
Heavy Degree of soiling option. This
setting will remain in memory until
another setting is programmed.

Programmable functions

Buzzer

When the buzzer function has been
activated, an audible tone sounds at
the end of a programme or when
Rinse hold is reached.

There are three different options:

Setting 1

The Buzzer button is deactivated.

Setting 2

The buzzer sounds at the end of a
programme or when Rinse hold is
reached (default setting)

Setting 3

The buzzer sounds louder at the end of
a programme or when Rinse hold is
reached

Follow steps A to G to programme
and store in memory.

Before you begin, first ensure that

–

The washing machine is switched off.

–

The drum door is properly closed.

= off

= normal

= loud

:

A Press the Start/Stop button and keep

it pressed in whilst carrying out steps

B-C.

B Press the I-On/0-Off button in.

C Wait until the indicator light for the

Start/Stop button comes on...

D . . . and then release the Start/Stop

button.

E Press the Buzzer button four times

The Buzzer indicator light will flash

–

five times.

A P will flash in the display

–

alternating with the number 1, 2 or 3.

F Each subsequent press of the

Start/Stop button will select a
different setting.

The number alternating with the P in the
display refers to the settings as follows:

1 = off

2 = normal (default setting)

3 = loud

G Switch the machine off with the

I-On/0-Off button.

.

The setting you have selected is now
stored in memory and will remain so
until you alter it.

61

Programmable functions

Keypad tones

An audible tone sounds each time a
button is pressed.

The washing machine is delivered with
the keypad tone switched off.

Follow steps A to G to programme
and store in memory.

Before you begin, first ensure that

The washing machine is switched off.

–

The drum door is properly closed.

–

:

A Press the Start/Stop button and keep

it pressed in whilst carrying out steps

B-C.

B Press the I-On/0-Off button in.

C Wait until the indicator light for the

Start/Stop button comes on...

D . . . and then release the Start/Stop

button.

E Press the Buzzer button five times

The Buzzer indicator light will flash

–

six times.

A P will flash in the display alternating
with the number 0 or 1.

0 = keypad tone is deactivated.

1 = keypad tone is activated.

F Press the Start/Stop button to

change the display from 0 to 1
(activated) or from 1 to 0
(deactivated).

G Switch the machine off with the

I-On/0-Off button.

.

62

The setting you have selected is now
stored in memory and will remain so
until you alter it.

Programmable functions

Memory function

If an additional option is selected for
a programme, and / or the spin
speed is altered, the machine stores
these changes in memory at the start
of a programme.

When that particular programme is
chosen again, the display will show the
option(s) and / or spin speed which
have been stored for that programme in
the memory.

The washing machine is delivered with
the memory function deactivated.

Follow steps A to G to programme
and store in memory.

Before you begin, first ensure that

– The washing machine is switched off.

– The drum door is properly closed.

:

A Press the Start/Stop button and keep

it pressed in whilst carrying out steps

B-C.

B Press the I-On/0-Off button in.

C Wait until the indicator light for the

Start/Stop button comes on...

D . . . and then release the Start/Stop

button.

E Press the Buzzer button six times

The Buzzer indicator light will flash

–

seven times.

A P will flash in the display alternating
with the number 0 or 1.

0 = the memory function is

deactivated.

1 = the memory function is activated.

F Press the Start/Stop button to

change the display from 0 to 1
(activated) or from 1 to 0
(deactivated).

.

G Switch the machine off with the

I-On/0-Off button.

The setting you have selected is now
stored in memory and will remain so
until you alter it.

63

Programmable functions

Pre-wash with the Heavy
Degree of soiling option

This setting is used to activate or
deactivate an automatic pre-wash
whenever the Heavy Degree of
soiling option is selected.

The machine is delivered with the auto
matic pre-wash activated.

Follow steps A to G to programme
and store in memory.

Before you begin, first ensure that

– The washing machine is switched off.

– The drum door is properly closed.

:

A Press the Start/Stop button and keep

it pressed in whilst carrying out steps

B-C.

B Press the I-On/0-Off button in.

C Wait until the indicator light for the

Start/Stop button comes on...

D . . . and then release the Start/Stop

­button.

E Press the Buzzer button seven times

The Buzzer indicator light will flash

–

eight times.

A P will flash in the display alternating
with the number 0 or 1.

0 = the automatic pre-wash is

deactivated.

1 = the automatic pre-wash is

activated.

F Press the Start/Stop button to

change the display from 0 to 1
(activated) or from 1 to 0
(deactivated).

.

64

G Switch the machine off with the

I-On/0-Off button.

The setting you have selected is now
stored in memory and will remain so
until you alter it.

Optional accessories

Miele washing machines offer perfect
care for your laundry and feature a
wide range of special programmes
designed to suit the fabric being
washed. And now Miele have
developed a range of specialist
CareCollection detergents and
conditioning products to offer you a
complete package for cleaning and
caring for your laundry.

The Miele CareCollection detergents
and conditioning products are listed
below. You can order these and many
other useful products via the internet at:

All the products can also be ordered
via the Miele Customer Contact Centre
(see back cover for contact details).

CareCollection

Miele specialist detergents

"Outdoor wear"

This specialist detergent will clean your
water-repellent outerwear with care.

"Sportswear"

The Miele Sportswear detergent is
designed to clean sportswear whilst
taking care of the special microfibres
used in these garments. It will help to
neutralise and remove odours whilst
protecting the colour of the fabric and
preventing static build-up.

"Down Items"

This special-purpose detergent
contains a mild tenside and has been
specially formulated to keep down-filled
items supple and to give them bounce.

Miele proofing agent

This special finishing agent reproofs
garments against wind and water and
provides a dirt-repellent finish whilst
retaining elasticity and breathability.

65

Optional accessories

"UltraWhite" detergent

This multi-purpose powder detergent
has excellent stain removal properties
and is suitable for white and light
coloured laundry as well as heavily
soiled coloured items.

"UltraColor" detergent for coloured
garments

This liquid detergent is particularly
suitable for cleaning coloured and dark
garments. The special formulation
offers effective stain removal, even at
low temperatures, while helping to
prevent colours fading.

Liquid detergent "For Delicates"

This liquid detergent is ideal for the
gentle treatment of delicate fabrics,
such as wool and silk. Its special
formulation cleans effectively at
temperatures as low as 20°C, while
protecting the colour of your delicate
garments.

Fabric conditioner

The Miele fabric conditioner will give
your laundry a fresh, natural fragrance.
It makes garments soft to handle and
prevents static build-up during tumble
drying.

66

67
