Miele KWT 2671 ViS Specification Sheet

KWT 2671 ViS

MasterCool Wine Conditioning Unit
For high-end design andtechnology on a large scale.

EAN: 4002515928752 / material number: 10746080

Appliance category

Wine storage unit •

Construction type

Built-in •
Built-in integrated •
Door hinge side Left
Convertible hinging •
Can be installed side-by-side •

Design

Lighting BrilliantLight

Control panel

DynaCool •
Push2open •
MaxLoad hinge •
FlexiFrame •
Flexible wooden shelves FlexiFrame 9
Material of wooden racks Beechwood
SommelierSet •
NoteBoard •

Control

No. of temperature zones 3
Sabbath mode •

Appliance networking

MobileControl •

Safety

Lock function •
Acoustic door alarm •

• Push2open for convenient door­opening assistance

• Serve and enjoy to perfection –incl.
SommelierSet

• Various wines at the perfect
temperature – 3 temperature zones

• Flexible storage of large wine bottles
thanks to FlexiFrame

• Light floods the interior thanks to LED
elements – BrilliantLight

Acoustic temperature alarm •
Optical door alarm •

Technical data

Appliance width in in.(mm) 23 3/4 (603)
Appliance height in in.(mm) 83 3/4 (2,127)
Appliance depth in in.(mm) 24 (608)
Weight in lbs.(kg) 318 (144)
Maximum fridge compartment door front weight in lbs. (kg) 161 (73)
Wine conditioning zone volume in l 361
Available space for the number of 0.75l Bordeaux bottles 91
Current consumption in milliampere (mA) 4,000
Voltage in V 120
Fuse rating in A 10
Wire length in ft (m) 9 (3.0)

More information at www.MieleUSA.com

For further information please see next page...

KWT 2671 ViS

MasterCool Wine Conditioning Unit
For high-end design andtechnology on a large scale.

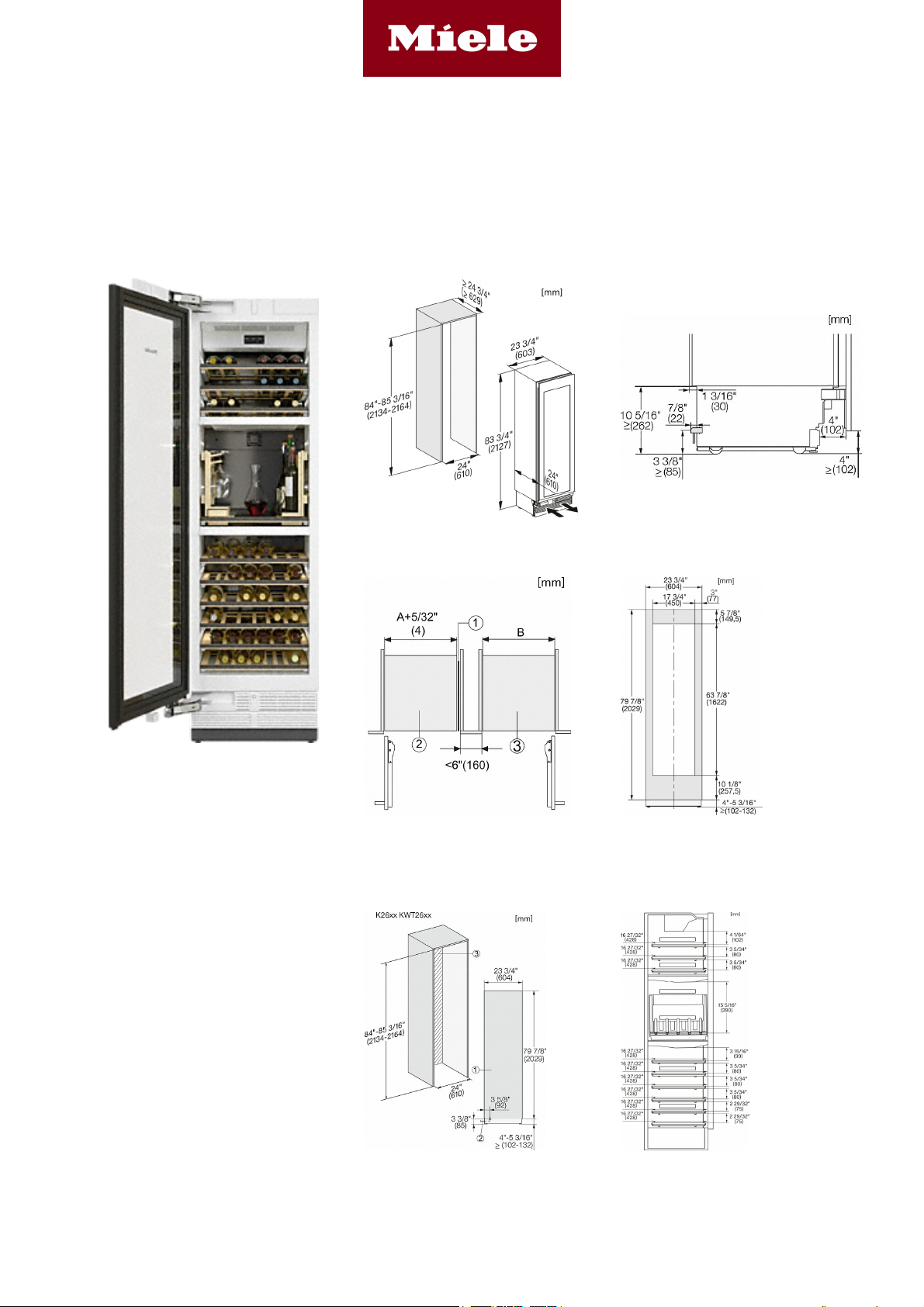

Opening angle 90°/115°, right side stop, MasterCool
(Sketch) with footnote

A) Appliance door
F 2411 Vi, F 2411 SF, F 2471 Vi, F 2471 SF: 525 mm (20
2/3 inch);
F 2412 Vi, F 2412 SF, F 2472 Vi, F 2472 SF: 525 mm (20
2/3 inch);
K 2611 Vi, F 2671 Vi, F 2671 SF, KWT 2611 Vi, KWT 2611
SF, KWT 2671 ViS: 677 mm (26 2/3 inch);
K 2612 Vi, F 2672 Vi, F 2672 SF, KWT 2612 Vi, KWT 2612
SF, KWT 2672 ViS: 677 mm (26 2/3 inch);
K 2811 Vi, K 2811 SF, F 2811 SF, F 2811 Vi, KF 2811 Vi,
KF 2811 SF: 829 mm (32 2/3 inch);
K 2812 Vi, K 2812 SF, F 2812 SF, F 2812 Vi, KF 2812 Vi,
KF 2812 SF: 829 mm (32 2/3 inch);
K 2911 Vi, K 2911 SF, F 2911 Vi, F 2911 SF, KF 2911 Vi,
KF 2911 SF: 982 mm (38 2/3 inch);
K 2912 Vi, K 2912 SF, F 2912 Vi, F 2912 SF, KF 2912 Vi,
KF 2912 SF: 982 mm (38 2/3 inch);
B) Furniture front (max. 38 mm) (1 1/2 inch)
C) Door handle
D) Distance from the door to the wall (without furniture front
and door handle):
F 2411 Vi, F 2411 SF, F 2471 Vi, F 2471 SF: 237 mm (9 1/3
inch);
F 2412 Vi, F 2412 SF, F 2472 Vi, F 2472 SF: 237 mm (9 1/3
inch);
K 2611 Vi, F 2671 Vi, F 2671 SF, KWT 2611 Vi, KWT 2611
SF, KWT 2671 ViS: 296 mm (11 2/3 inch);
K 2612 Vi, F 2672 Vi, F 2672 SF, KWT 2612 Vi, KWT 2612
SF, KWT 2672 ViS: 296 mm (11 2/3 inch);
K 2811 Vi, K 2811 SF, F 2811 SF, F 2811 Vi, KF 2811 Vi,
KF 2811 SF: 363 mm (14 1/3 inch);
K 2812 Vi, K 2812 SF, F 2812 SF, F 2812 Vi, KF 2812 Vi,
KF 2812 SF: 363 mm (14 1/3 inch);
K 2911 Vi, K 2911 SF, F 2911 Vi, F 2911 SF, KF 2911 Vi,
KF 2911 SF: 428 mm (16 7/8 inch);
K 2912 Vi, K 2912 SF, F 2912 Vi, F 2912 SF, KF 2912 Vi,
KF 2912 SF: 428 mm (16 7/8 inch);
E) ONLY valid for SF versions: A + 25 mm (1 inch)

Side-by-side, MasterCool, without partition wall, with
heating mat (Sketch) (with footnote)

1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US,
CA, MX, BR)

For further information please see next page...
