Miele KWT 2602 SF, KWT 2612 SF Operating instructions

Operating and Installation

Instructions

Wine Conditioning Unit

To prevent accidents and machine damage, read these instructions before installation or use.

en-US, CA

M.-Nr. 11 508 720

Contents
IMPORTANT SAFETY INSTRUCTIONS ............................................................	5
Caring for the environment ..............................................................................	15
Installation..........................................................................................................	16
Installation location .............................................................................................	16
Climate class ..................................................................................................	17
Installation notes .................................................................................................	18
Adjoining cabinetry.........................................................................................	18
Load-bearing capacity of the niche floor .......................................................	18
Ventilation.......................................................................................................	19
Door hinge......................................................................................................	19
Side-by-side...................................................................................................	19
Installation dimensions........................................................................................	21
Position of the electrical connection ..............................................................	21
Dimensions when the appliance door is open (opening angle 90°/115°).......	24
Installing the wine conditioning unit ....................................................................	25
Before starting................................................................................................	25
Tools required.................................................................................................	26
Aligning the installation niche.........................................................................	26
Checking the installation niche ......................................................................	27
Before installation...........................................................................................	27
Preparing the installation niche ......................................................................	28
Pushing the wine conditioning unit into the niche..........................................	31
Aligning the wine storage unit ........................................................................	32
Securing the wine conditioning unit in the niche ...........................................	35
Securing the toe-kick board and cover..........................................................	35

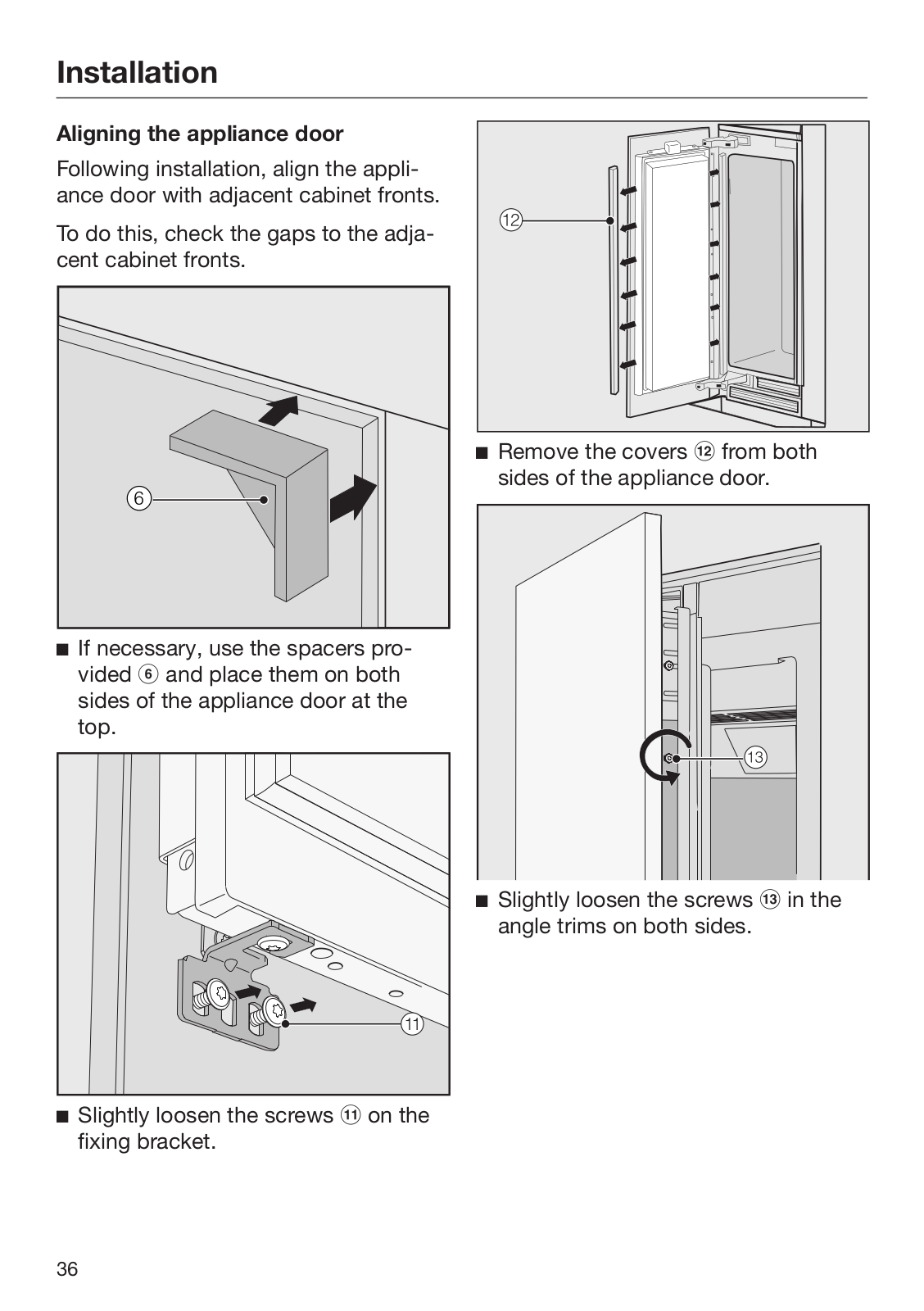

Aligning the appliance door............................................................................	36
Limiting the opening angle of the appliance door..........................................	39

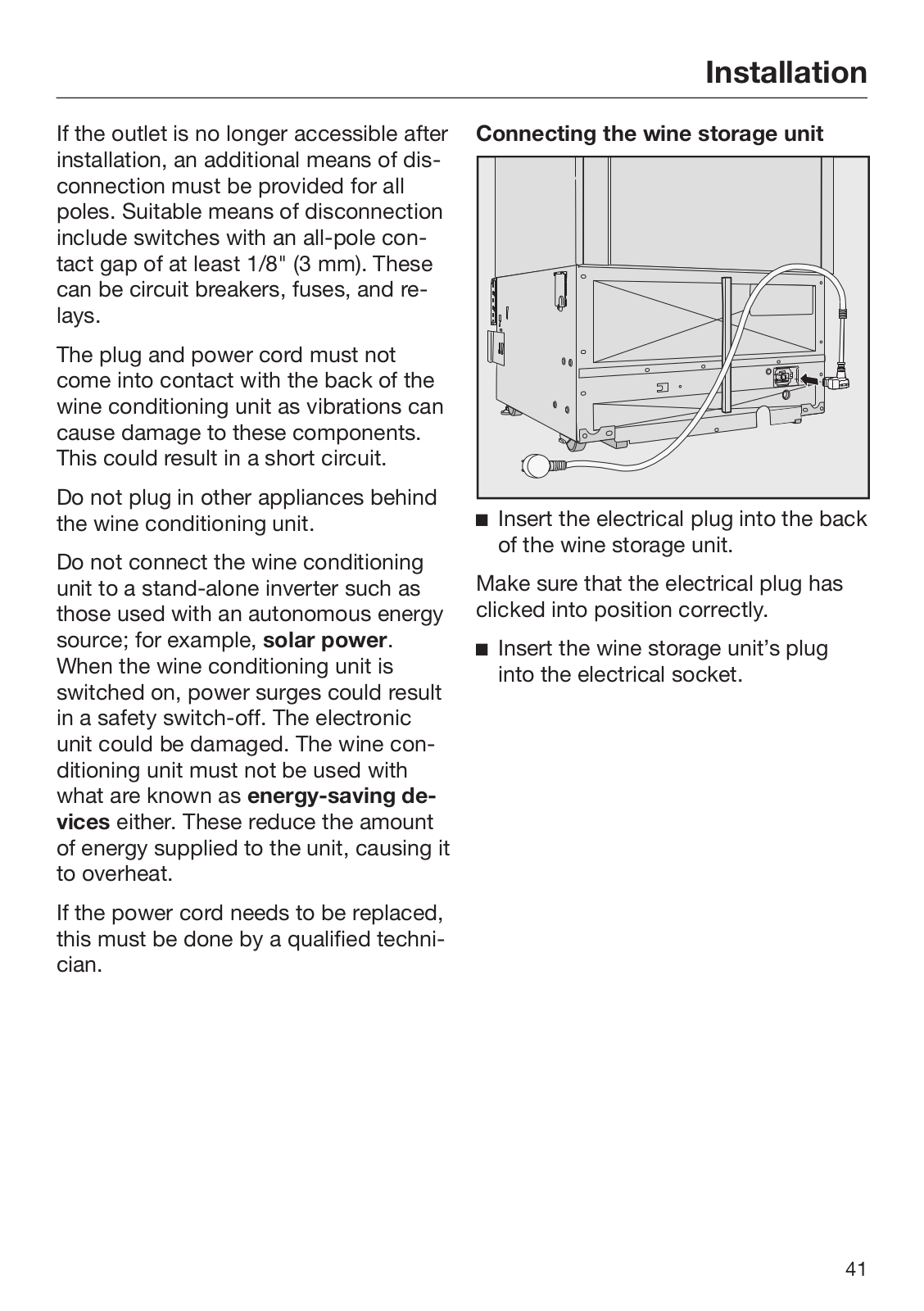

Electrical connection ...........................................................................................	40
Saving energy ....................................................................................................	42
Guide to the appliance......................................................................................	44

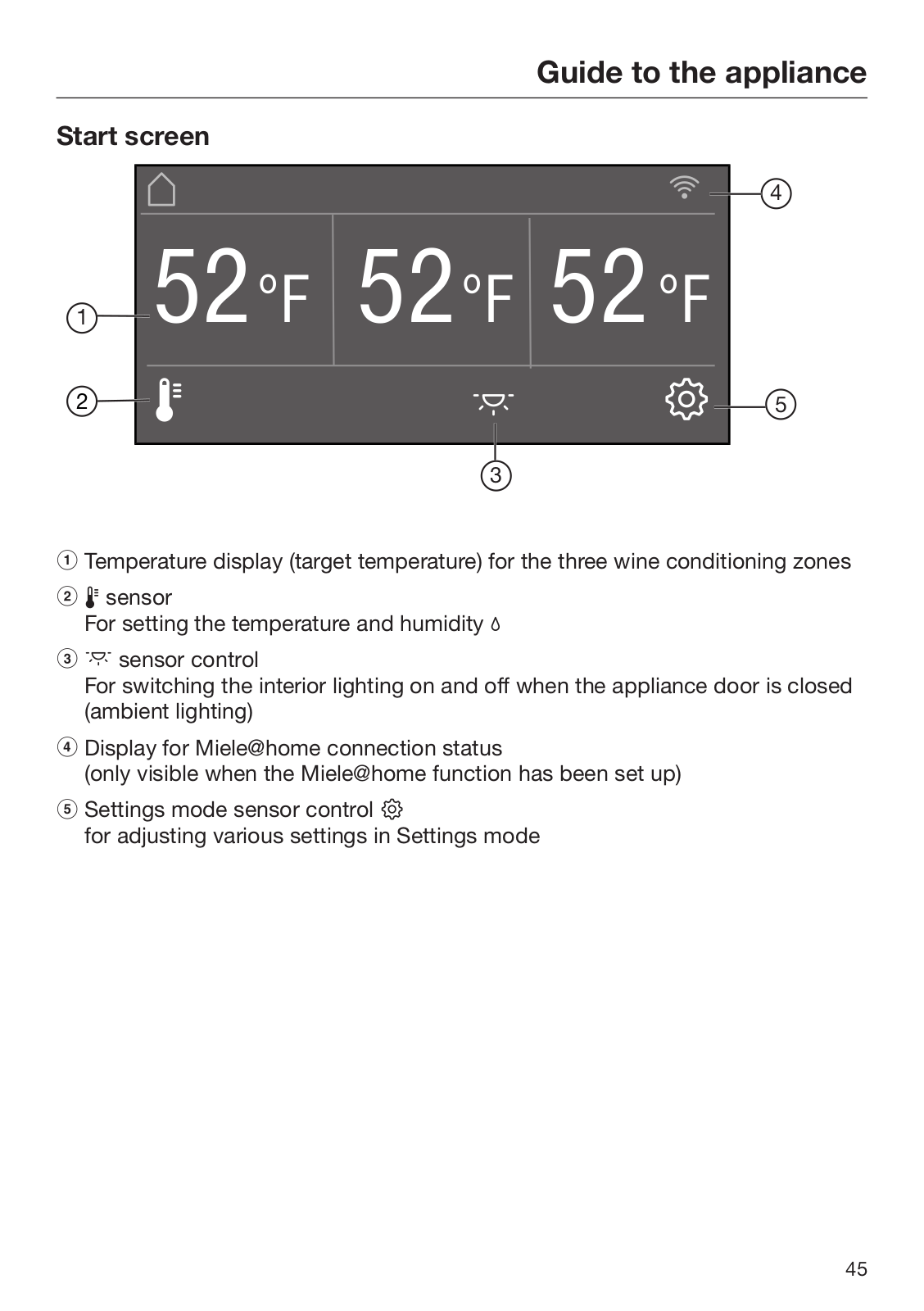

Start screen .........................................................................................................	45
Settings mode ................................................................................................	46
Accessories .......................................................................................................	48
Accessories supplied ..........................................................................................	48
Optional accessories...........................................................................................	48
Before first use ..................................................................................................	49
Choosing the right Door Assistant (Push2Open/Pull2Open) ........................	49
Miele@home ...................................................................................................	49

2

	Contents
Operating the wine conditioning unit ..................................................................	51
Starting up for the first time ...........................................................................	52
Switching the wine conditioning unit on and off ............................................	53
Switching off for longer periods of time ..............................................................	54
Selecting additional settings............................................................................	55
Switching Keypad Lock on or off / ..............................................................	55
Performing a Self Test .....................................................................................	56
Switching on the Door Assistant .....................................................................	56
Switching off the Door Assistant .....................................................................	58
Miele@home ........................................................................................................	59
Switching off Demo Mode ................................................................................	60

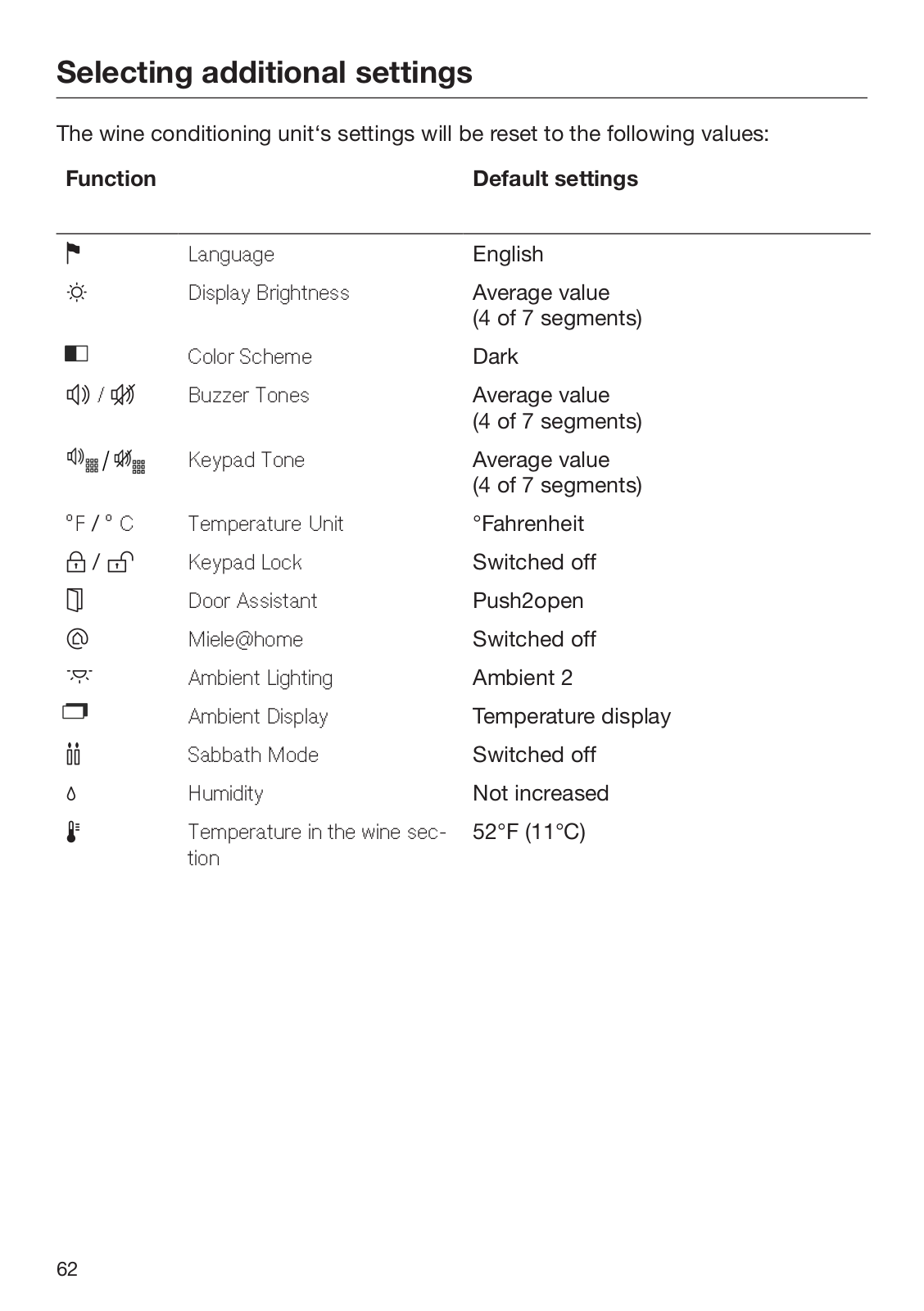

Resetting the settings to their default settings ..............................................	61
Switching Sabbath Mode on or off ..................................................................	63
Switching Ambient Lighting on or off.............................................................	64
Selecting the Ambient Display.............................................................................	65
The ideal temperature and humidity................................................................	66
Temperature ........................................................................................................	66
Isolator panels for thermal separation............................................................	67
Setting the temperature..................................................................................	67
Humidity ..............................................................................................................	68
Increasing the humidity ...............................................................................	68
Door alarm .........................................................................................................	70
Storing wine bottles ..........................................................................................	71
Wooden shelves ..................................................................................................	72
Moving the wooden shelves...........................................................................	72
Adjusting the wooden shelves .......................................................................	72

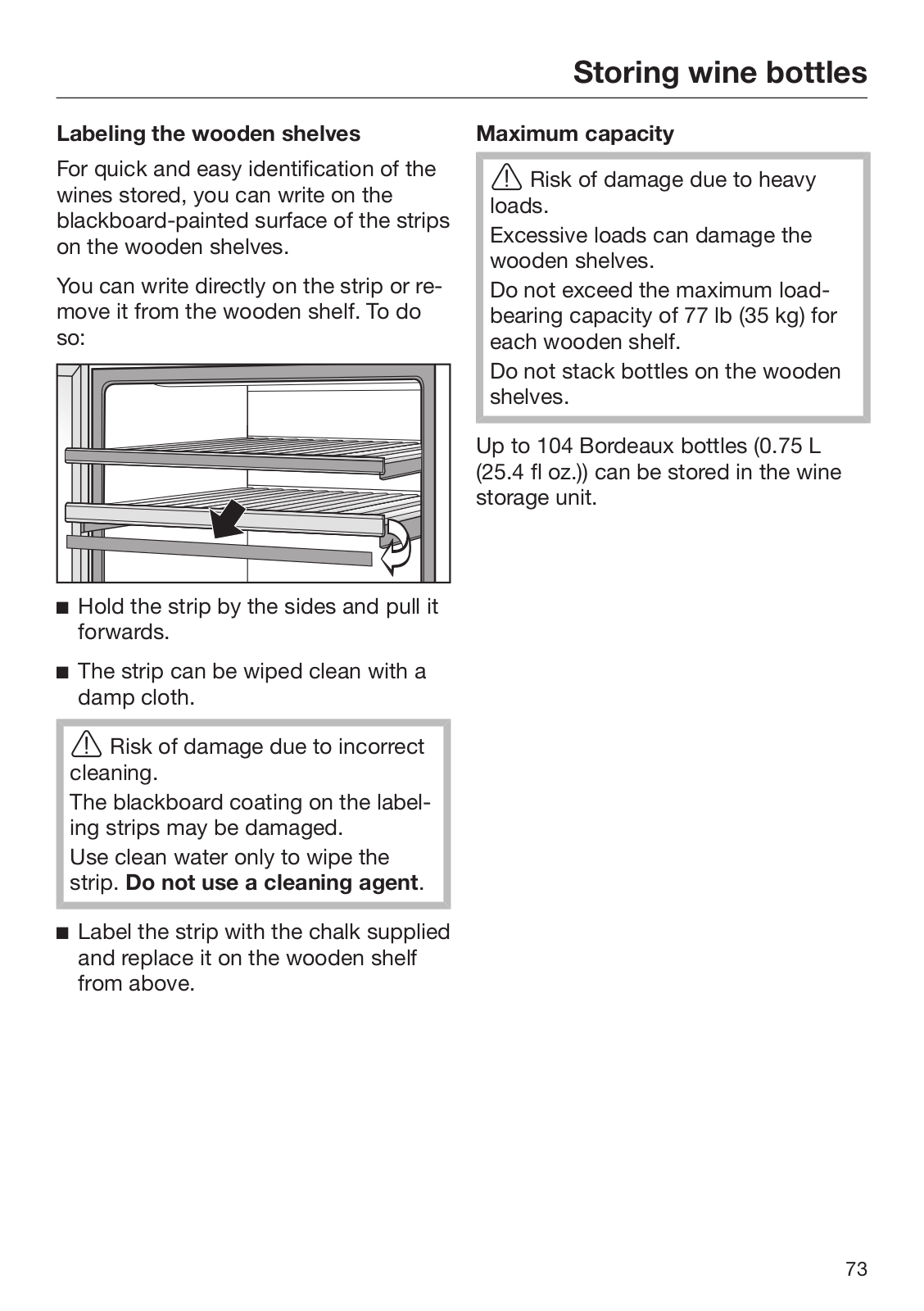

Labeling the wooden shelves.........................................................................	73
Maximum capacity .........................................................................................	73
Automatic defrosting ........................................................................................	74
Cleaning and care .............................................................................................	75
Cleaning agents...................................................................................................	75
Before cleaning the wine conditioning unit .........................................................	76
Interior, accessories, and appliance door ...........................................................	76
Cleaning the door seal ........................................................................................	77
Cleaning the ventilation gaps ..............................................................................	77
After cleaning ......................................................................................................	77

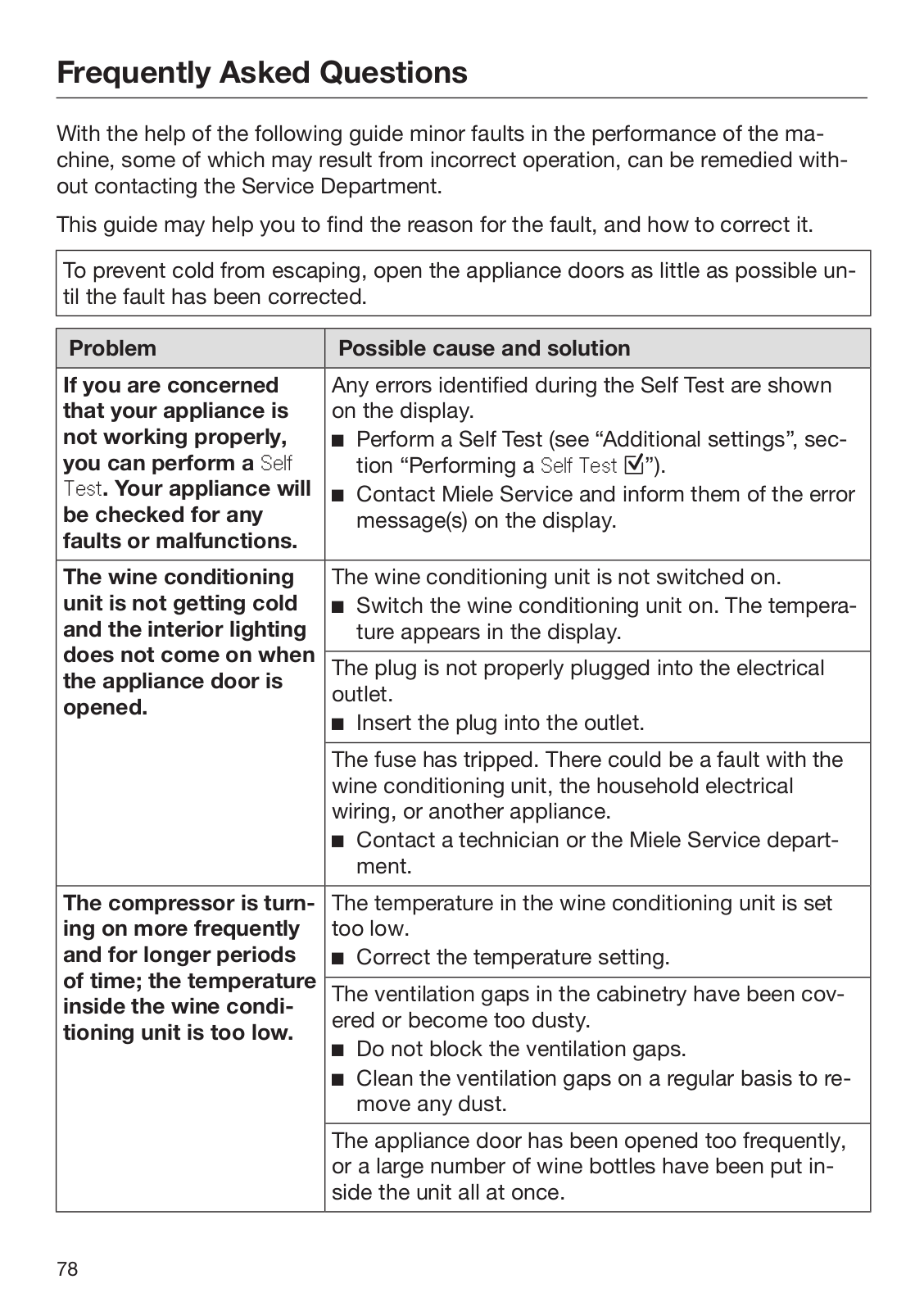

Frequently Asked Questions ............................................................................	78

3

Contents
Causes of noises ...............................................................................................	84
Customer Service..............................................................................................	85

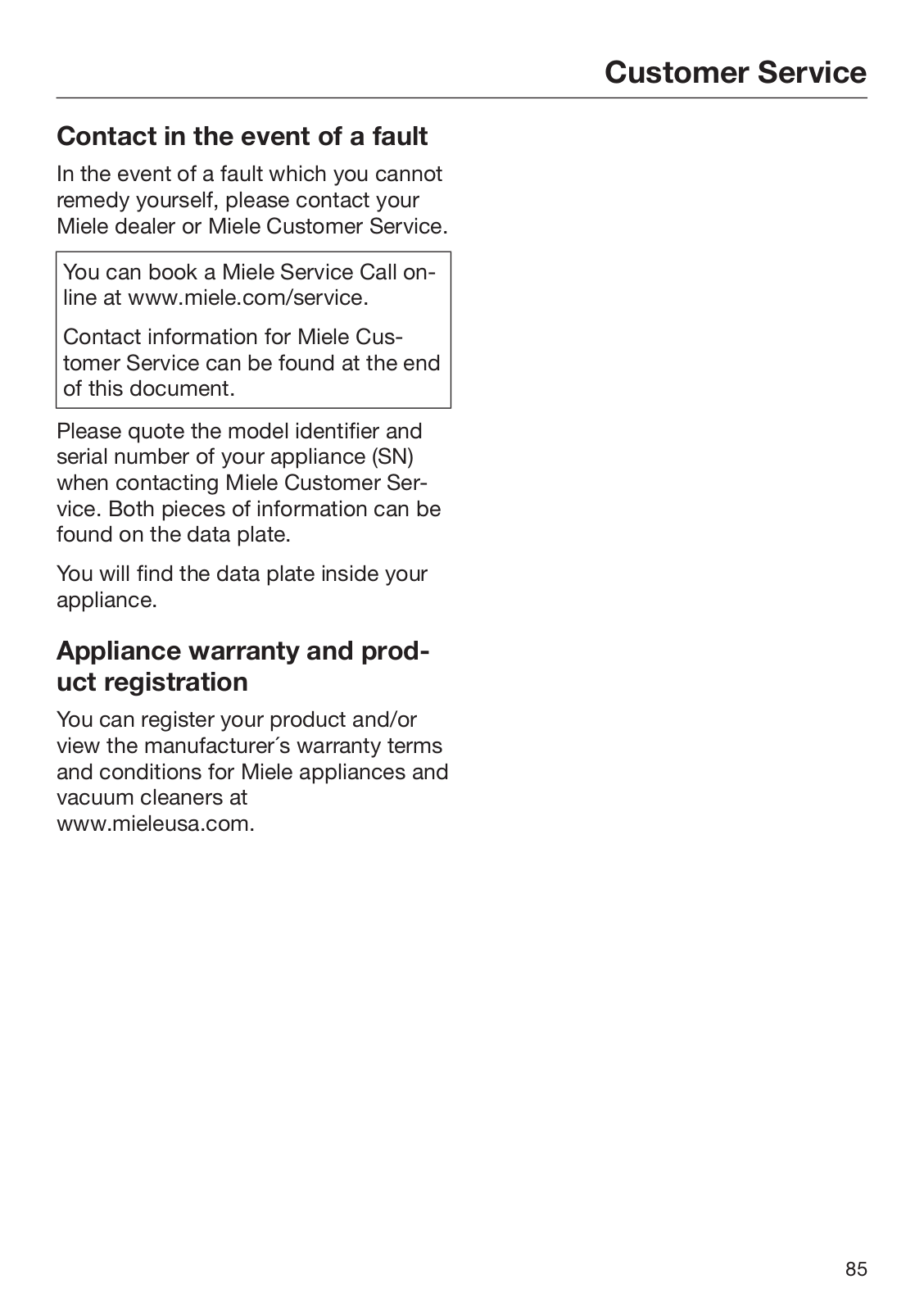

Contact in the event of a fault .............................................................................	85
Appliance warranty and product registration ......................................................	85

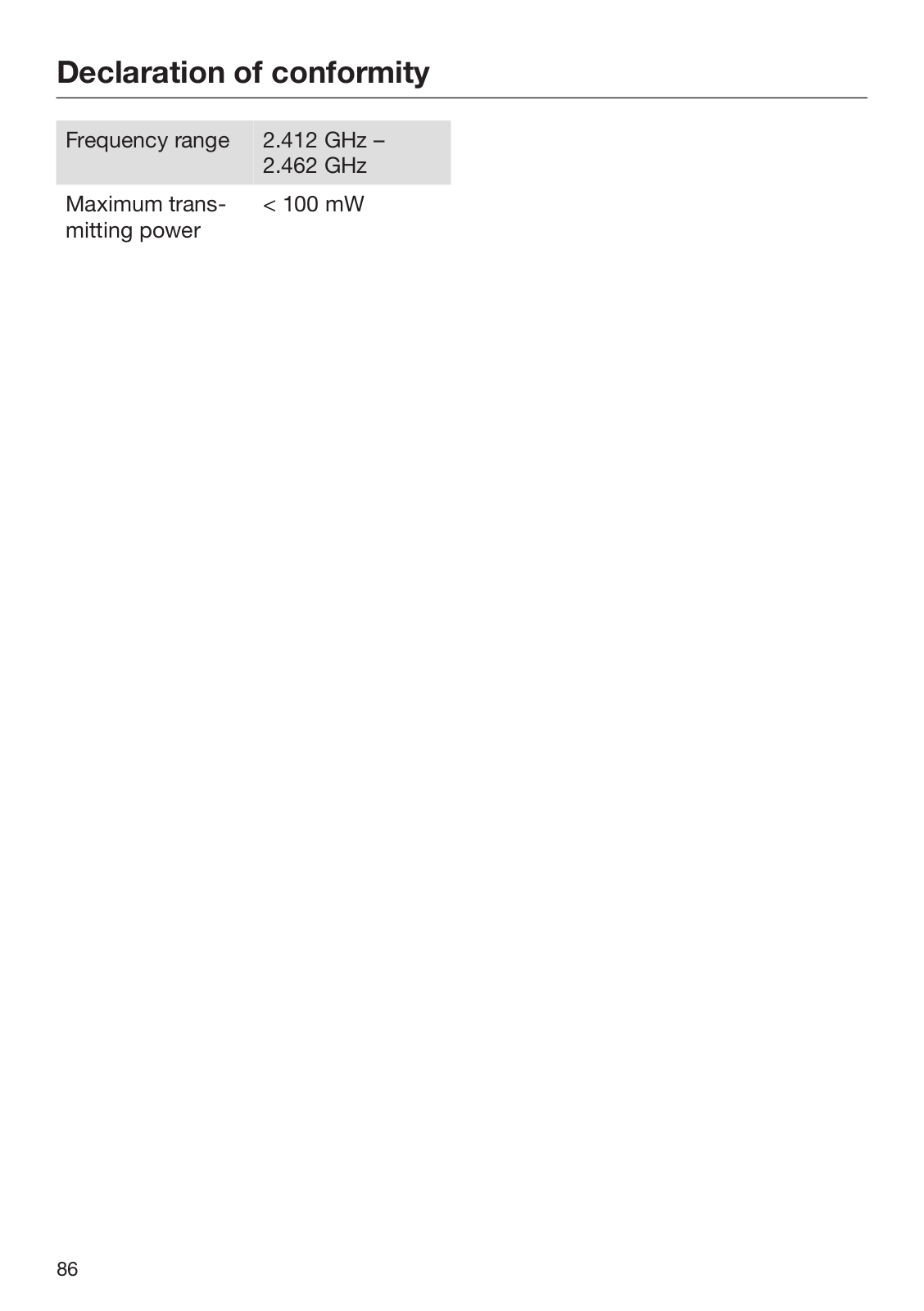

Declaration of conformity.................................................................................	86
Copyrights and licenses ...................................................................................	87

4

IMPORTANT SAFETY INSTRUCTIONS

This wine conditioning unit complies with all current local and national safety requirements. Inappropriate use can, however, lead to personal injury and material damage.

Read the operating and installation instructions carefully before using the wine conditioning unit. They contain important information on safety, installation, use, and maintenance. This is to protect yourself from injury, and from damaging your wine conditioning unit.

Please read and follow the instructions in the chapter on installing the wine conditioning unit, as well as the safety instructions and warnings.

Miele cannot be held liable for injury or damage caused by noncompliance with these instructions.

Keep these instructions in a safe place and pass them on to any future owner.

Danger of injury and damage to the appliance due to the wine conditioning unit tipping over.

The wine conditioning unit is very heavy and can tip forwards when the appliance door is open.

Keep the appliance door shut until the wine conditioning unit has been built in and secured in the installation niche in accordance with the operating and installation instructions.

Risk of injury from broken glass.

If installed at altitudes above 6,560 ft (2,000 m), there is a risk of the glass in the door breaking because of changes in air pressure. Shards of glass can cause severe injury.

5

IMPORTANT SAFETY INSTRUCTIONS

Appropriate use

This wine conditioning unit is intended for use in domestic house-

holds and similar residential environments such as

-staff kitchen areas in shops, offices and other working environments

-farm houses and by clients in hotels, motels and other residential type environments

-bed and breakfast type environments

-catering and similar non-retail applications.

This wine conditioning is not intended for use outdoors, in damp en-

vironments or in places exposed to rain.

The wine conditioning unit is intended for domestic use only for storing wine.

It must not be used for any other purpose.

The wine conditioning unit is not suitable for storing and keeping cool medicines, blood plasma, laboratory preparations or other such materials or products. Incorrect use of the wine conditioning unit for such purposes can cause deterioration of the items stored. The wine conditioning unit is not suitable for use in areas where there is a risk of explosion.

Miele cannot be held liable for damage resulting from improper or incorrect use of the appliance.

This wine conditioning unit may only be used by people (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised while using it.

The wine conditioning unit may only be used by these people without supervision if they have been shown how to use it in a safe way and recognize and understand the consequences of incorrect operation.

6

IMPORTANT SAFETY INSTRUCTIONS

Safety with children

Children near the wine conditioning unit must be supervised. Do not let children play with the wine conditioning unit.

The wine conditioning unit door hinges can cause injury. Keep children away at all times.

Ensure that any packing material is disposed of safely and kept out of the reach of children. DANGER of suffocation!

7

IMPORTANT SAFETY INSTRUCTIONS

Technical safety

The refrigerant circuit has been checked for leaks. The wine conditioning unit complies with statutory safety requirements.

This wine conditioning unit contains the coolant Isobutane (R600a), a natural gas which is environmentally friendly. The coolant does not damage the ozone layer and does not contribute to the greenhouse effect.

The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the cooling circuit. Unfortunately, this cannot be avoided, but it does not affect the performance of the wine conditioning unit.

When transporting and installing the wine conditioning unit, ensure that no parts of the cooling circuit are damaged. Splashes of coolant can damage the eyes.

In the event of damage:

-Avoid open flames or anything which creates a spark.

-Disconnect the wine conditioning unit from the electricity supply.

-Ventilate the room where the wine conditioning unit is located for several minutes.

-Contact Miele Service.

The more coolant there is in a wine conditioning unit, the larger the room it should be installed in. In the event of a leakage, if the wine conditioning is in a small room, there is the danger of combustible gases building up. For every 0.38 oz (11 g) of coolant at least 35.3 cubic feet (1 m3) of room space is required. The amount of coolant in the wine conditioning unit is stated on the data plate inside the wine conditioning unit.

8

IMPORTANT SAFETY INSTRUCTIONS

To avoid the risk of damage to the wine conditioning unit, make sure that the connection data (fuse rating, frequency and voltage) on the data plate corresponds to the household supply.

Check that this is the case before connecting the wine conditioning unit. Consult a qualified electrician if in any doubt.

The electrical safety of the wine conditioning unit can only be guaranteed when correctly grounded. It is essential that this standard safety requirement is met. If in any doubt please have the electrical installation tested by a qualified electrician.

Reliable and safe operation of the wine conditioning unit can only be guaranteed if it is connected to the power supply.

The electrical outlet must not be concealed behind the wine conditioning unit and must be easily accessible so that the appliance can be quickly disconnected from the electrical supply in case of an emergency.

If the power cord supplied is damaged, it must only be replaced by an original part to prevent a hazard for the user. Miele can only guarantee the safety of the appliance when original Miele parts are used.

The electrical outlet must be properly grounded.

Do not connect the appliance to the electrical supply with a power bar or extension cord. These are a fire hazard and do not guarantee the required safety of the appliance.

If moisture gets into electrical components or into the power cord, it could cause a short circuit. Therefore, do not operate the wine conditioning in areas where there may be moisture or splashing water (e.g., garages, laundry rooms).

This wine conditioning unit must not be used in a non-stationary location (e.g. on a ship).

9

IMPORTANT SAFETY INSTRUCTIONS

In environments with a tropical climate (above approximately 90°F (32°C) and above approximately 70% humidity), the wine conditioning unit must be operated in an air-conditioned room. Otherwise, it is not possible to guarantee that the wine conditioning unit will operate without issues.

Before installation and use check the wine conditioning unit for any visible damage. Do not operate or install a damaged appliance.

To ensure safe operation, use the wine conditioning unit only when it has been installed.

The wine conditioning unit must be disconnected from the power supply during installation, side-by-side heater installation, maintenance and repair work. The appliance is only disconnected from the power supply if:

-the circuit breaker has been tripped, or

-the power cord has been unplugged. Pull on the plug and not on the cord when removing it from the outlet.

Installation, repair, and maintenance work should only be performed by a Miele-authorized service technician.

Work by unqualified persons could be dangerous and may void the warranty.

Repairs and other work performed by unauthorized persons could be dangerous and may void the warranty.

Faulty components must only be replaced by genuine Miele replacement parts. Miele can only guarantee the safety standards of the appliance when Miele replacement parts are used.

Correct use

The wine conditioning unit is designed for use within a specific climate class (room temperature range). Do not use in a climate class for which it is not designed. A lower room temperature will cause the compressor to switch off for longer periods, meaning that the wine conditioning unit is unable to maintain the required temperature.

10

IMPORTANT SAFETY INSTRUCTIONS

WARNING! DANGER of overheating! Do not cover or block the air vents. This can impair the efficiency of the appliance, increase the power consumption and cause damage to the appliance.

If the wine conditioning unit is used for storing food which contains fat or oil, make sure that it does not come into contact with plastic components. Any spillages of oil or fat could cause stress cracks to the plastic and cause it to break or split.

Risk of fire and explosion. Do not store explosive materials in the wine conditioning unit or any products containing propellants (e.g., spray cans). Electrical components can cause flammable mixes of gases to ignite.

Risk of explosion. Do not operate any electrical appliances inside the wine conditioning unit. Risk of sparking and explosion.

Use only genuine original Miele parts. If parts or accessories from other manufacturers are used, the warranty may become invalid.

11

IMPORTANT SAFETY INSTRUCTIONS

Stainless steel machines:

Adhesives will damage the coated stainless steel surface and cause it to lose its dirt-repellent protective coating. Do not use sticky notes, transparent adhesive tape, masking tape, or other types of adhesive on the stainless steel surface.

The surface is easily scratched. Even magnets can cause scratching.

12

IMPORTANT SAFETY INSTRUCTIONS

Cleaning and maintenance

Do not use any oil or grease on the door seals. They can cause the seals to deteriorate over time.

Do not use a steam cleaning appliance to clean this wine conditioning unit.

The steam could reach electrical components and cause a short circuit.

Sharp edged or pointed objects will damage the evaporator, causing irreversible damage to the wine conditioning unit. Do not use sharp edged or pointed objects to

-remove frost and ice,

-remove labels, stickers, etc.

Transport

Always transport the wine conditioning unit in an upright position and in its original transport packaging to avoid damage in transit.

Risk of injury and damage. The wine conditioning unit is very heavy and must be transported by two people.

13

IMPORTANT SAFETY INSTRUCTIONS

Disposal of your old appliance

Children could become trapped in the machine and could suffo-

cate.

-Remove the machine doors.

-Leave the wooden shelves in the machine so children cannot climb inside.

DANGER of electric shock!

-Cut the plug off the power cord.

-Cut the power cord off the old appliance.

Dispose of them separately from the appliance.

Ensure that the wine conditioning unit is not stored in the vicinity of gasoline or inflammable gases and liquids during and after disposal.

Make sure that the coolant pipework is not damaged during disposal to avoid uncontrolled leakage of oil and coolant (see data plate for coolant type).

Splashes of coolant can cause damage to the eyes. Be careful not to damage any part of the pipework while awaiting disposal, e.g. by

-puncturing the coolant channels in the evaporator,

-kinking any pipework,

-scratching the surface coating.

14

Caring for the environment

Disposal of packaging material

The packaging is designed to protect the wine conditioning unit from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.

Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children. Return the packaging to your dealer.

Disposal of your old appliance

Electrical and electronic appliances contain valuable materials. They also contain certain substances, compounds and components which were essential for the proper functioning and safe use of the equipment. Handling these materials improperly by disposing of them in your household waste can be harmful to your health and the environment. Therefore, please do not dispose of your old appliance with regular household waste and follow local regulations on proper disposal.

Consult with local authorities, dealers or Miele in order to dispose of and recycle electrical and electronic appliances.

Miele assumes no responsibility for deleting any personal data left on the appliance being disposed.

Take care not to damage the pipework at the back of your wine conditioning unit before or during transportation to an authorized, environmentally friendly collection depot.

This way, coolant in the pipework and oil in the compressor will be contained, and will not leak into the environment.

Please ensure that your old appliance does not pose a danger to children while being stored prior to disposal. See “IMPORTANT SAFETY INSTRUCTIONS” for more information.

15

Installation

Installation location

This appliance should be installed in a dry, well-ventilated room.

When deciding where to install your wine conditioning unit, please bear in mind that it will use more energy if installed near to a heater, a range, or another appliance that gives off heat. Direct sunlight should also be avoided. The higher the room temperature, the longer the compressor runs and the higher the energy consumption of the wine conditioning unit is.

When installing the wine conditioning unit, please note the following:

-The electrical socket must be easily accessible in an emergency and not concealed behind the appliance.

-The plug and power cord must not touch the rear of the wine conditioning unit as they could be damaged by vibrations from the appliance.

-Do not plug in other appliances behind the wine conditioning unit.

If installation near a heat source is unavoidable, observe the following minimum distances between the appliance and the heat source:

-At least 1 1/4" (3 cm) to electric or gas stoves

-At least 11 3/4" (30 cm) to oil or coalbased stoves

If it is not possible to observe these minimum distances, an isolation plate must be installed between the Wine conditioning unit and the heat source.

16

Installation

Climate class

This wine storage unit is designed for use in climate class SN-T (room temperature range). Do not use in a climate class for which it is not designed.

Climate class	Room tempera-
	ture
SN	50°F to 90°F/
	+10°C to +32°C
N	60°F to 90°F/
	+16°C to +32°C
ST	60°F to 100°F/
	+16 to +38°C
T	60°F to 109°F/
	+16 to +43°C

A lower room temperature will cause the compressor to switch off for longer periods. This can cause the internal temperature in the wine storage unit to rise with the risk of wine deteriorating and going off.

Risk of damage due to high humidity.

In environments with high humidity, condensation can build up on the external wine conditioning unit panels, which can cause corrosion.

Install the wine conditioning unit with sufficient ventilation in a dry and/or air-conditioned room.

After installation, make sure that the appliance door closes properly, the ventilation gaps are not covered, and the wine conditioning unit has been installed in accordance with these operating and installation instructions.

Impaired functionality due to high humidity and high temperature.

High humidity (over approx. 70%) combined with a high room temperature (over approx. 90°F/32°C) can impair the function of your wine conditioning unit.

In environments with a tropical climate, the wine conditioning unit must be operated in an air-condi- tioned room.

17

Installation

Installation notes

Risk of damage and injury from the wine conditioning unit tipping over.

The wine conditioning unit is very heavy and can tip forwards when the appliance door is open.

Keep the appliance door shut until the wine conditioning unit has been installed and secured in its installation niche in accordance with these operating and installation instructions.

Due to its weight and size, the wine conditioning unit must be installed by two people.

Adjoining cabinetry

The wine conditioning unit is screwed to the adjoining cabinetry to the side and above. For this reason, it is essential that all of the relevant cabinetry are secured to the ground or wall.

Load-bearing capacity of the niche floor

To ensure the safe installation of the wine conditioning unit and to guarantee its correct functioning, the floor of the niche where the appliance is to be installed must be smooth and even.

It must be made from strong, rigid material.

Because the wine conditioning unit is extremely heavy when fully loaded, it is essential that the floor it stands on is able to bear its weight. If necessary, seek the advice of an architect or construction expert.

When fully loaded, the weight of the wine conditioning unit is approx.:

KWT 26x2 SF	1545 lbs
	(701 kg)
KWT 26x2 SFS	1556 lbs
	(706 kg)

18

Installation

Ventilation

Risk of fire and damage due to insufficient ventilation.

If the wine conditioning unit is not ventilated sufficiently, the compressor will run more frequently and for longer periods.

This causes increased energy consumption and an increased compressor operating temperature, which can result in damage to the compressor.

Please ensure that there is adequate ventilation around the wine conditioning unit.

It is essential to observe the required ventilation gaps. The ventilation gaps must never be obstructed.

Door hinge

Risk of damage and injury when changing the door hinges.

Changing the door hinges singlehandedly can cause damage to the appliance and injury.

The wine conditioning unit is supplied with a fixed hinge. On no account should you attempt to change the door hinge yourself.

If you need to change the door hinge to the other side, please contact the Miele Service department.

Side-by-side

This wine storage unit can be installed side-by-side with another wine storage unit or refrigeration appliance. The following overview will show you which side-by-side installation options you have with your wine storage unit.

Depending on the installation situation, you will need the side-by-side installation kit for side-by-side installation (see “Accessories – Optional accessories”).

You will also need a Top Frame (KTF) (top cover) for side-by-side installation. Both are available from your Miele dealer or the Miele Service.

Instructions for installing wine storage units/refrigeration appliances side-by- side can be found in the side-by-side installation kit installation instructions.

. . . with partition wall

The wall a between the side-by-side wine conditioning units/refrigeration appliances must be at least

5/8" (16 mm) thick.

19

Installation

If the door hinges of the appliances are next to each other, you must take into account the thickness of the cabinet fronts and door handles so that the appliance doors do not collide and become damaged if they are opened at the same time.

The wine conditioning units/refrigeration appliances are secured individually in their installation niche using the supplied installation material.

If the partition wall a is narrower than 6 5/16" (160 mm), you will need the side panel heater from the side-by-side installation kit to prevent condensation from forming and any resulting damage.

When planning installation niches, please note that the niche into which the appliance with the side panel heater is installed must be

3/16" (4 mm) wider (see “Installation

– Installation dimensions”).

If the partition wall a is thicker than

6 5/16" (160 mm), you do not need the side-by-side installation kit, nor the side panel heater.

. . . without partition wall

If the wine conditioning unit/appliances are to be installed next to each other without a partition wall between them, they will need to be joined together with the side-by-side merging kit. In addition, you must install the heating mat to prevent condensation from forming and any resulting damage.

20

Installation

Installation dimensions

Position of the electrical connection

-The electrical connection must not be positioned higher than 9" (228 mm) above the floor.

The electrical socket must not be concealed behind the appliance and must be

easily accessible in an emergency.

21

Installation

C

D

A

B

	A	B	C	D
KWT 26x2 SF(S)	84"–85 3/16"	24" (610 mm)	24" (610 mm)	3/4" (19 mm)
	(2,134–
	2,164 mm)

22

Installation

1 3/16" (30 mm)

	10 5/16"	7/8"
		(22 mm)
	(262 mm)

	3 3/8"	4"	4"
	(85 mm)
		(102 mm)	(102 mm)

Side view

23

Installation

Dimensions when the appliance door is open (opening angle 90°/115°)

3/8" (10 mm)

D

A

B

C

A	B	C	D
26 5/8" (677 mm)	Cabinet front	Door handle	11 5/8" (296 mm)

24

Installation

Installing the wine conditioning

unit

Before starting...

It is essential to read these installation instructions carefully before starting to install the wine conditioning unit.

The wine conditioning unit should be installed by a suitably qualified tradesman in accordance with these installation instructions. Safe operation of the wine conditioning unit is only assured if it has been installed and connected in accordance with the installation instructions.

DANGER of damage and injury! The wine conditioning unit is very heavy and can tip forwards when the appliance door is open.

Keep the door shut until the wine conditioning unit has been built in and secured in its installation niche in accordance with the operating and installation instructions.

The wine conditioning unit is both large and heavy. Installation must be carried out by two people.

The wine conditioning unit must be installed in accordance with local regulations. If local regulations are not available, the following regulations must be observed:

-in the USA: the National Electrical Code, ANSI/NFPA 70 – latest edition/ State and Municipal codes and/or local codes.

-in Canada: the Canadian Electrical Code C22.1 – latest edition/Provincial and Municipal codes and/or local codes.

25

Installation

Tools required

-Cordless drill

-TX 20 screwdriver

-Hammer drill

-Drill bits in various sizes, depending on materials

-Hammer

-Open-ended wrench

-Ratchet wrench, attachment: socket, 5/16" (8 mm)

-Adhesive tape

-Utility knife

-Pipe wrench

-Level

-Tape measure

-Pencil

Other

-Step ladder

-Hand truck

Aligning the installation niche

The installation niche must be carefully aligned using a bubble level before installing the wine conditioning unit. The niche corners must be at 90° angles to each other, otherwise the cabinet front will not sit straight on all 4 corners of the installation niche.

26

Installation

Checking the installation niche

Check the installation dimensions (see “Installation – Installation dimensions”).

Check the position of the electrical connection. The length of the power cord is 9' 10" (3 m).

The electrical socket must not be concealed behind the appliance and must be easily accessible in an emergency.

Check the surroundings for possible collisions (see “Installation – Dimensions with appliance door open”).

Only install the wine storage unit in stable, solid installation niches, positioned on an even and level floor.

Also check the installation niche for the following criteria:

-The side panels of the installation niche must be even.

-The surrounding walls of the installation niche must be at least

5/8" (16 mm) thick.

-The surrounding walls must be securely fixed to the floor or wall.

-Shortened side walls must be at least 4" (100 mm) deep.

Before installation

Before installation, remove any accessories from the back of the appliance.

Check the wine storage unit for damage during transportation.

Do not install the wine storage unit if it is damaged.

Check that all parts at the back of the appliance are unhindered.

To protect the floor during installation, secure an off-cut of flooring or similar material to the floor in front of the installation area.

Risk of damage and injury due to the refrigeration appliance tipping over.

As soon as you unscrew the brackets that fix the wine storage unit to the pallet, the appliance is no longer secured.

The wine storage unit is both large and heavy. Installation must be carried out by two people.

27

	Installation
		Preparing the installation niche
		Risk of damage and injury from
		the wine storage unit tipping over.
		This wine storage unit is very heavy
		and can tip forward when the doors
		are open.
		The installation niche must be se-
		cured to the wall behind it and/or
		above it with several screws. Only
		this can ensure that the wine storage
		unit will not tip over after being in-
	Unscrew the fixing brackets .	stalled in the installation niche.
		In addition, use the provided anti-tip
		brackets to secure the installation
	With the help of several people as re-
		niche.
	quired, carefully lift the wine storage
	unit from the pallet, starting with the	Parts required for installation of the
	back of the appliance.	wine storage unit are supplied with the
	Risk of damaging the floor from	wine storage unit. The plastic bags
		supplied are marked with letters for
	the load.	easy identification.
	Moving the wine storage unit can	When performing the individual as-
	cause damage to the floor.
	Move the wine storage unit carefully	sembly steps, observe the letters
		specified and use the matching plas-
	on floors that are sensitive to
		tic bag with the required installation
	scratching.
		equipment.

As soon as you have set the wine storage unit upright, you can move it using the rollers on the bottom.

28
