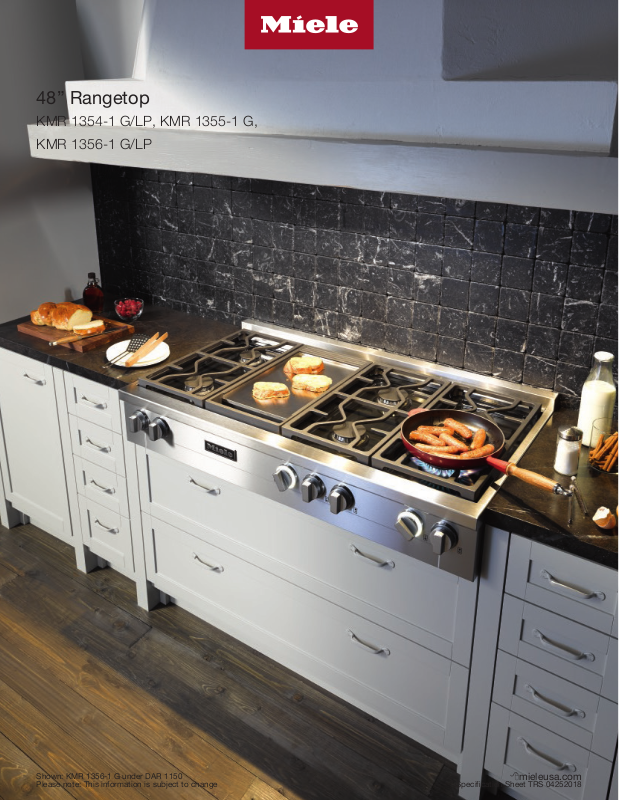

Page 1
48” Rangetop
KMR 1354-1 G/LP, KMR 1355-1 G,
KMR 1356-1 G/LP
Shown: KMR 1356-1 G under DAR 1150
Please note: This information is subject to change
Specication Sheet TRS 04252018
8mieleusa.com
Page 2
48” Rangetop
SPECIFICATIONS
Overall Unit Dimensions 4715/16” (1220 mm) W x 71/2” (191 mm) H [Not including grates] x 261/2” (673 mm) D [Depth to control panel]
Niche
Minimum Cabinet Niche Opening 48” (1220 mm) W x 251/16” (636.6 mm) D [To back of crontrol panel]
Minimum Support Thickness
Gas
Gas Line Connection 1/2” NPT
Operational Altitudes
Miele Natural Gas and LP Rangetops will function up to 9,800 ft. in
altitude without adjustment; the following exception will function up to 6,500 ft. in altitude without
High Altitude
Electrical
Electrical Requirements 120V, 60Hz, 15 Amps
Power Cord Yes - NEMA 5-15 plug, 4 ft (1.2 m) long
Shipping KMR 1354-1 KMR 1355-1 KMR 1356-1
Shipping Weight 165.3 lbs (75 kg) 174.2 lbs (79 kg) 187.4 lbs (85 kg)
Installation Accessories
12” Backguard RBGAG1248
20” Backguard
40” Backsplash
Support
Call 800.843.7231
Miele Website
20/20 Link
adjustment:
•Griddle in LP: KMR 1356-1 LP
•Grill in G: KMR 1355-1 G
If an installation exceeds these elevations, please contact rangejetkit@mieleusa.com.
3
/4” (19 mm)
RBGAG2048
RBS48
8www.mieleusa.com
82020technologies.com
Only Burners: With Grill: With Griddle:
KMR 1354-1
Item 26135460USA
KMR 1354-1 LP
Item 26135461USA
KMR 1355-1
Item 26135560USA
KMR 1356-1
Item 26135660USA
KMR 1356-1 LP
Item 26135661USA
Page 2 of 4
Page 3
PRODUCT VIEWS
Front View
Side View
48” Rangetop
Rear View
(1.2m)
Page 3 of 4
Page 4
48” Rangetop BTU Output
KMR1354-1 Burners
(2) 10,000 BTU (G/LP)
Gas Burners:
Total BTU Output
KMR1355-1 Burners
Gas Burners:
Grill Burner: 19,000 BTU (G)
Total BTU Output 111,100 BTU (G)
KMR1356-1 Burners
Gas Burners:
Griddle Burner:
Total BTU Output
(2) 13,600 BTU (G)
13,000 BTU (LP);
(4) 19,500 BTU (G/LP)
125,200 BTU (G)
124,000 BTU (LP)
(2) 10,000 BTU (G);
(1) 13,600 BTU (G);
(3) 19,500 BTU (G)
(2) 10,000 BTU (G/LP);
(1) 13,600 BTU (G)
13,000 BTU (LP);;
(3) 19,500 BTU (G/LP)
13,000 BTU (G)
14,300 BTU (LP)
105,100 BTU (G)
105,800 BTU (LP)
48” Rangetop
Note:
Please observe safe distances to rear
combustible surfaces of 12” (305 mm)
clearances. For zero clearance
installation, Miele Backguards will
satisfy the required distance to
combustible surfaces. The Miele
Backguard is available in 12” (305 mm)
or 20” (508 mm) heights.
Page 4 of 4
Specication Sheet TRS 04252018
