Miele KMR 1124, KMR 1134-1, KMR 1135-1, KMR 1136-1, KMR 1354-1 Operating instructions

...
Operating and Installation Instructions Rangetops
To prevent accidents and damage to the range, you must read all in­structions supplied before installing or using the appliance.
en-US, CA M.-Nr. 10 944 230
IMPORTANT SAFETY INSTRUCTIONS
®
®
WARNING: If the information in this manual is not followed exactly, a fire or
– Do not use or store gasoline or other combustible liquids or vapors in the vicinity
of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
– Do not try to light any appliance. – Do not touch any electric switches. – Do not use any phones inside your building. – Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
– If you are unable to reach your gas provider, call the fire department.
– Installation and service must be performed by a qualified installer, qualified ser-
vice agency or your gas provider. (In Massachusetts, installation must be performed by a licensed installer / gas fitter.)
– Note to the installer:
Please give these installation instructions to the consumer for the local electri­cal/gas inspector.
2
Contents
IMPORTANT SAFETY INSTRUCTIONS ................................................................ 2
IMPORTANT SAFETY INSTRUCTIONS ................................................................ 5
Guide to the Rangetop........................................................................................ 16
KMR 1124.............................................................................................................. 16
KMR 1134-1 .......................................................................................................... 17
KMR 1135-1 .......................................................................................................... 18
KMR 1136-1 .......................................................................................................... 19
KMR 1354-1 .......................................................................................................... 20
KMR 1355-1 .......................................................................................................... 21
KMR 1356-1 .......................................................................................................... 22
Operation tips ...................................................................................................... 23
Automatic re-ignition............................................................................................. 23
Before first use .................................................................................................... 24
Cleaning the rangetop for the first time................................................................. 24
Seasoning the griddle plate................................................................................... 24
Operation of the burners ....................................................................................25
Turning on.............................................................................................................. 25
Adjusting the flame................................................................................................ 26
Visual characteristics gas flames ..................................................................... 26
Turning off.............................................................................................................. 26
Cookware ............................................................................................................. 27
Energy saving tips .............................................................................................. 28
Operation of the grill ........................................................................................... 29
Assembling the grill ............................................................................................... 29
Turning on the grill................................................................................................. 30
Tips for grilling....................................................................................................... 30
Operation of the griddle...................................................................................... 31
Turning on the griddle............................................................................................ 31
Settings ................................................................................................................. 32
Tips for frying ........................................................................................................ 32
Cleaning and care ...............................................................................................33
Rangetop............................................................................................................... 34
Dishwasher-safe grates.................................................................................... 34
Burner control knobs with stainless steel finish............................................... 34
Simmer burner / Power burners ...................................................................... 34
Cleaning the dishwasher-safe grilling grate .......................................................... 35
3
Contents
Cleaning the griddle plate ..................................................................................... 35
Frequently Asked Questions .............................................................................. 36
Notes on installation ...........................................................................................38
Distance to the range hood................................................................................... 38
RBGDF Backguard................................................................................................ 38
Weights.................................................................................................................. 39
Dimensional drawings......................................................................................... 40
Rangetops KMR 1124, KMR 113x-1, KMR 135x-1............................................... 41
Electrical connection ..........................................................................................46
Gas connection.................................................................................................... 47
Burner ratings ...................................................................................................... 49
Burner ratings KMR 1124...................................................................................... 49
Burner ratings KMR 1134-1 .................................................................................. 50
Burner ratings KMR 1135-1 .................................................................................. 51
Burner ratings KMR 1136-1 .................................................................................. 52
Burner ratings KMR 1354-1 .................................................................................. 53
Burner ratings KMR 1355-1 .................................................................................. 54
Burner ratings KMR 1356-1 .................................................................................. 55
Technical Service................................................................................................. 56
Contact in case of fault ......................................................................................... 56
Warranty ................................................................................................................ 56
Data plate .............................................................................................................. 56
MieleCare ............................................................................................................. 57
Caring for the environment ................................................................................58
4

IMPORTANT SAFETY INSTRUCTIONS

When using the appliance, follow basic safety precautions, including the fol­lowing:
Read all instructions before installation and use of the rangetop to prevent accidents and machine damage.
This appliance conforms to current safety requirements. Inappro­priate use can, however, lead to personal injury and damage to property.
To avoid the risk of accidents and damage to the appliance, please read these instructions carefully before installing or using it for the first time. They contain important notes on installation, safety, use and maintenance. Miele cannot be held responsible for damage caused by the non­observance of these instructions.
Keep these instructions in a safe place and pass them on to any future owner.
5
IMPORTANT SAFETY INSTRUCTIONS

Appropriate use

This rangetop is intended for residential use and use in other simi-
lar environments.
This appliance is not intended for outdoor use.The rangetop is intended for residential use only to prepare food
and keep it warm. Any other use occurs at the owner's own risk and may be dangerous.
Persons who are unable to safely operate the range due to limited
physical, sensory or mental capabilities, or because of a lack of ex­perience or knowledge, may only use the appliance if they are super­vised while doing so. These persons may only use the appliance without supervision if they have been shown how to use it in a safe manner, and if they are able to recognize and understand the poten­tial risks of improper use.
6
IMPORTANT SAFETY INSTRUCTIONS

Safety with children

Do not leave children unattended: Children should not be alone or
unsupervised in the area where the rangetop is installed. Do not al­low them to sit or stand on the appliance.
All children must be kept away from the rangetop.Please supervise any children in the vicinity of the rangetop and
do not let them play with the appliance.
The rangetop gets hot when in use and remains hot for some time
after being turned off. Keep children away from the appliance until it has cooled down and is no longer a burn hazard.
Danger of suffocation! Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out of the reach of children.
Burn hazard!
Keep the spaces above and behind the rangetop clear of any items that could draw the attention of children. Otherwise, they can be tempted into climbing onto the appliance.
Risk of burning or scalding.
Turn pot and pan handles inward, so children cannot pull them down and be burned.
7
IMPORTANT SAFETY INSTRUCTIONS

Technical safety

Failure to observe the information contained in the installation in-
structions can lead to serious or fatal injuries for children and adults.
Unauthorized installation, maintenance, and repairs can cause
considerable danger for the user. Installation, maintenance, and re­pairs must only be carried out by a Miele authorized technician.
Maintenance by the user: Never repair or replace any part of the
appliance unless the instructions specifically recommend doing so. Service work may only be performed by a qualified technician.
A damaged rangetop can be dangerous. Always check for visible
signs of damage. Never use a damaged appliance.
Reliable and safe operation of the rangetop can only be guaran-
teed if it is connected to the public power supply.
The electrical safety of the rangetop can only be guaranteed when
it is properly grounded. Compliance with this essential safety re­quirement is absolutely mandatory. If in any doubt, please have the building's wiring system inspected by a qualified electrician.
Proper installation: Make sure that your appliance has been in-
stalled correctly and that it has been grounded by a qualified techni­cian.
Do not operate the appliance until it has been properly installed.To avoid damaging the rangetop, make sure that the information
(voltage and frequency) on the data plate correspond to the build­ing's power supply before connecting the appliance. When in doubt, consult a qualified electrician.
Installation and maintenance of the gas connection must be per-
formed by qualified installers, service agencies or gas providers.
Do not use a power strip or extension cord to connect the range-
top to electricity (risk of fire).
8
IMPORTANT SAFETY INSTRUCTIONS
This appliance must not be installed and operated in non-station-
ary locations (e.g., on a ship).
Any contact with live connections or tampering with the electrical
or mechanical components of the rangetop will endanger your safety and may lead to appliance malfunctions. Do not open the appliance housing under any circumstances.
Any repairs not performed by a Miele authorized service techni-
cian will void the warranty.
Defective components should be replaced by Miele original parts
only. Only with these parts can the manufacturer guarantee the safety of the appliance.
During installation, maintenance, and repair work, the rangetop
must be completely disconnected from the household electricity supply. The gas supply must be shut off. Ensure that this is the case by:
– removing the fuse, – “tripping” the circuit breaker, or – unplugging the unit. Pull the plug not the cord. – Shut off the gas supply and disconnect the rangetop from the gas
supply. Installation and maintenance of the gas connection must be performed by qualified installers, service agencies or gas providers.
Risk of electric shock!
If the rangetop is defective, immediately turn the appliance off and discontinue use. Disconnect the range from the gas and power sup­ply and call Miele Service.
If the rangetop is installed behind a cabinet door, do not close the
door while the range is in operation. Heat and moisture can build up behind the closed door and cause damage to the range, cabinetry, and flooring. Do not close the door until the range has completely cooled down.
9
IMPORTANT SAFETY INSTRUCTIONS
Reaching over a hot stovetop to access the cabinets can result in
burns. You can reduce the risk of burns by installing a range hood that extends at least 4³/₄" (12 cm) past the bottom of the cabinets.
10
IMPORTANT SAFETY INSTRUCTIONS

Correct use

Do not leave the rangetop unattended when cooking on high
power. Spilled food will begin to smoke and cause grease splatter, which can ignite on the range.
Oil and fat can catch fire if overheated. Never leave the appliance
unattended when cooking with oil and fat. If the oil or fat catches fire, do not attempt to put the flames out with water. Turn off the rangetop and smother the flames using a lid or a suitable fire blanket.
Smother the fire or flames, or use a dry chemical extinguishing
agent or foam fire extinguisher.
Storage in or on the appliance: Flammable materials should not be
stored in an oven or in the vicinity of the rangetop.
The flames could set the grease filters of a ventilation hood on fire.
Do not flambé under a ventilation hood.
Never heat empty cookware.Do not heat up food in closed containers, as pressure will build up
in the container, causing them to explode. Do not use the rangetop to boil or heat up cans.
If the rangetop is covered, there is a risk that the material of the
cover will ignite, explode or if the range is still hot or if turned on in­advertently. Never cover the range with a board, cloth, or protective sheet.
When using an electrical appliance, e.g., a hand mixer, near the
rangetop, make sure that the power cable does not come into con­tact with the hot range. The cable's insulation could become dam­aged.
Cookware made of plastic or aluminum foil will melt at high tem-
peratures. Do not use any plastic or aluminum foil cookware.
11
IMPORTANT SAFETY INSTRUCTIONS
The rangetop gets hot when in use and remains hot for some time
after being turned off. Do not touch the appliance if there is a possi­bility that it could still be hot.
You can burn yourself on a hot rangetop. When cooking on the
appliance, protect your hands by using heat-resistant pot holders or oven mitts. Only use dry pot holders or gloves. Wet or damp textiles conduct heat more effectively and produce steam, which poses a burn hazard. Be sure to keep all textiles away from the gas flames. Do not use oversized cloths, dish towels or other similar materials.
If the rangetop is accidentally turned on or is still hot, metal ob-
jects on the appliance can heat up. Other items may melt or catch fire. Do not place unused items on the range for storage!
A range hood installed above the range can become damaged or
catch fire as a result of intense heat. Do not use the gas burners without cookware.
The high temperatures radiated could cause objects near the
rangetop to catch fire. Do not use the range to heat the room.
Only light the gas burners after all burner parts have been properly
assembled.

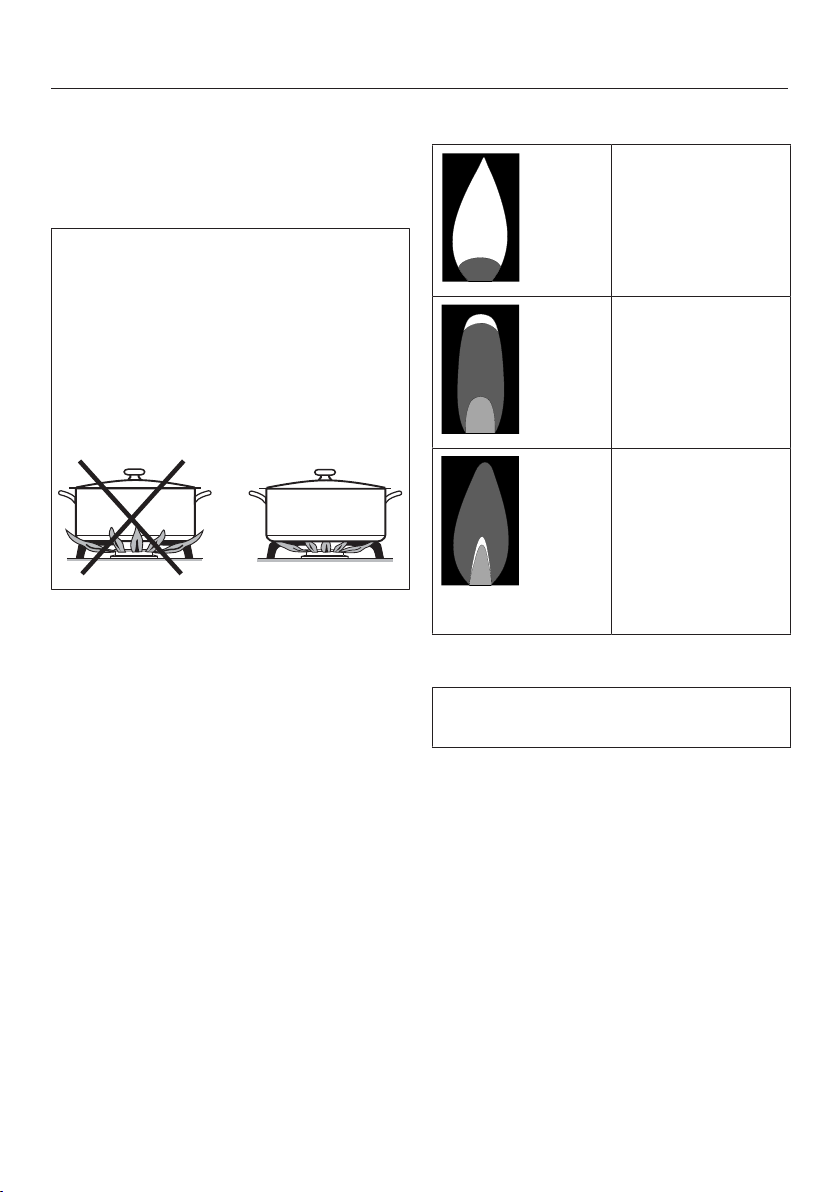

If the cookware is too small, it will not sit properly on the burner. If
the cookware is too large, heat emitted from the bottom of the cook­ware may damage the counter, walls with poor heat resistance (e.g., paneled walls), or portions of the rangetop.
Make sure that the burner flames do not extend beyond the bot-
tom of the cookware and rise up its sides.
Only use cookware with a thick enough bottom. Failure to do so
may result in damage to the rangetop.
Always use the burner grates supplied with the cooktop. Never
place cookware directly on the burner.
12
IMPORTANT SAFETY INSTRUCTIONS
Install the burner grates in an upright position to avoid scratching
the cooktop.
Remove all grease splatters and other flammable (food) residues
on the rangetop. They are a fire hazard.
Do not use pots or pans that are large enough to cover several
burners. The resulting heat buildup can damage the appliance.
If the rangetop has not been used for a long period of time, be
sure to thoroughly clean it and have it inspected by an authorized technician before using it again.
The use of the rangetop creates heat, moisture and combustion
products in the room where it is installed. Make sure that the appli­ance is installed in location with sufficient ventilation. Natural ventila­tion openings should not be blocked. Alternatively, a mechanical ventilation device (e.g. a range hood) can be installed.
Prolonged intensive use of the appliance may require additional
ventilation of the room, e.g., by opening a window, or by turning the range hood to a higher setting.
Ask your installer to show you the location of your gas shutoff
valve and fuses or circuit breaker panel in your apartment or home. Be sure that you know how and where to disconnect the gas and power supply to your rangetop.
Ensure that the igniters are clean and dry to allow the burners to
ignite and burn properly.
Fire hazard! Loose-fitting or hanging garments can catch fire. Be
sure to wear appropriately fitting clothing when cooking. Never allow loose clothing or flammable materials to come into contact with the burners while the burners are in use.
When you have finished cooking, make sure that the burners are
turned off by checking the position of the knobs.
13
IMPORTANT SAFETY INSTRUCTIONS
The grates, burner cap, bottom parts of the burner, and any other
parts located near the burner flame, can still be very hot after cook­ing and cause burns. Do not touch these components when using the rangetop.
Wind can blow curtains over the rangetop, causing them to catch
fire. If the range is installed near a window, do not use long curtains.
Only certain types of glass, ceramic or other enamel cookware
can be used on a gas rangetop without breaking as a result of sud­den temperature changes.
Do not use cooking utensils on the grill.Wet sponges or clothes can cause burns due to hot steam if they
are used to wipe spilled food off a hot burner. Some cleansers can emit hazardous vapors if they are applied to a hot surface. Be careful when cleaning the cooktop.
14
IMPORTANT SAFETY INSTRUCTIONS

Cleaning and maintenance

Do not use a steam cleaner to clean this appliance.
Steam could penetrate electrical components and cause a short cir­cuit.
SAVE THESE INSTRUCTIONS AND REVIEW THEM PERIODICALLY
15

Guide to the Rangetop

KMR 1124

a
Burner control knob for rear left burner
b
Burner control knob for front left burner
c
Burner control knob for front right burner
d
Burner control knob for rear right burner
16
e
Power burner
f
Grates
g
Simmer burner

KMR 1134-1

Guide to the Rangetop
a
Burner control knob for rear left burner
b
Burner control knob for front left burner
c
Burner control knob for front center burner
d
Burner control knob for rear center burner
e
Burner control knob for front right burner
f
Burner control knob for rear right burner
g
Power burner, front
h
Power burner, rear
i
Simmer burner
j
Grates
17
Guide to the Rangetop

KMR 1135-1

a
Burner control knob for rear left burner
b
Burner control knob for front left burner
c
Control knob for grill
d
Burner control knob for front right burner
e
Burner control knob for rear right burner
f
Power burner, front
18
g
Power burner, rear
h
Thermostatically controlled ceramic burner
i
Grill
j
Grates
k
Simmer burner

KMR 1136-1

Guide to the Rangetop
a
Burner control knob for rear left burner
b
Burner control knob for front left burner
c
Control knob for griddle plate
d
Burner control knob for front right burner
e
Burner control knob for rear right burner
f
Power burner, front
g
Power burner, rear
h
Griddle plate
i
Thermostatically controlled ceramic burner
j
Grease drip tray
k
Grates
l
Simmer burner
19
Guide to the Rangetop

KMR 1354-1

a
Backlit burner control knob for rear left burner
b
Backlit burner control knob for front left burner
c
Backlit burner control knob for rear left center burner
d
Backlit burner control knob for front left center burner
e
Backlit burner control knob for front right center burner
f
Backlit burner control knob for rear right center burner
20
g
Backlit burner control knob for front right burner
h
Backlit burner control knob for rear right burner
i
Power burner, front
j
Simmer burner
k
Power burner, rear
l
Grates

KMR 1355-1

Guide to the Rangetop
a
Backlit burner control knob for rear left burner
b
Backlit burner control knob for front left burner
c
Backlit control knob for grill
d
Backlit burner control knob for front center burner
e
Backlit burner control knob for rear center burner
f
Backlit burner control knob for front right burner
g
Backlit burner control knob for rear right burner
h
Power burner, front
i
Simmer burner
j
Power burner, rear
k
Thermostatically controlled ceramic burner
l
Grill
m
Grates
21
Guide to the Rangetop

KMR 1356-1

a
Backlit burner control knob for rear left burner
b
Backlit burner control knob for front left burner
c
Backlit control knob for griddle plate
d
Backlit burner control knob for front center burner
e
Backlit burner control knob for rear center burner
f
Backlit burner control knob for front right burner
g
Backlit burner control knob for rear right burner
22
h
Power burner, front
i
Simmer burner
j
Power burner, rear
k
Griddle plate
l
Thermostatically controlled ceramic burner
m
Grease drip tray
n
Grates
Fire hazard due to overheated
food. Unattended food can overheat and
ignite. Do not leave the cooktop unattended
whilst it is being used.
Do not turn the control knobs to the right beyond “Off”.
A spark may be generated on all burn­ers when a control knob is turned on. This is normal and does not indicate an appliance defect.
A brief reignition may occur during ac­tivation (clicking 1–2 x), e.g., in case of a draft.

Automatic re-ignition

Your rangetop is equipped with an auto­matic re-ignition function. If the flame goes out, e.g. because food has cooked over or there has been an air draft, the flame is automatically re-ig­nited.

Operation tips

If there has been a power failure,
the automatic re-ignition feature will not work properly.
Operate the cooktop only under su­pervision. If the burner has not ig­nited or the flame goes out, turn off the burner knob.
23

Before first use

Cleaning the rangetop for the first time

Remove any protective foil and stick-
ers.
Using a soft sponge, clean all remov-
able burner parts with a solution of warm water and a small amount of liquid dish soap. Dry the parts thor­oughly after cleaning and reassemble the burners (see “Cleaning and care”).
Remove the grilling grate and, using a
soft sponge, clean it with a solution of warm water and a small amount of dishwashing liquid. Dry it thoroughly after cleaning.
The griddle plate is oiled for protec-
tion against corrosion. Clean the grid­dle plate with a soft sponge, a small amount of dishwashing liquid, and warm water, and dry it.
Before first use, wipe down the appli-
ance with a damp cloth and dry it.

Seasoning the griddle plate

You must season the griddle plate be­fore cooking food on it the first time. This process prevents food from stick­ing and protects the surface from moisture.
Set the griddle plate on “High” for
30minutes.
Turn off the griddle plate after 30min-
utes and let it cool down.
During heating, the griddle plate con­stantly changes color. The discol­oration may become more intensive over time. The properties of the grid­dle plate, however, are not impaired in this manner.
Pour 1teaspoon of vegetable oil that
can be heated to a high temperature in the middle of the cooled griddle plate and distribute it with a paper towel, leaving out the corners of the plate.
Metal components are protected by a conditioning agent. Smells and vapor may occur when the appliance is used for the first time.
The smell and any vapors do not indi­cate a faulty connection or a defective appliance and are not harmful to your health.
24
Do not use too much oil. Excess oil leaves a rubbery substance on the plate that has to be removed.
Remove any excess oil with a paper
towel.
Heat the griddle plate on “High” until
it starts to smoke.
Turn off the griddle plate.When the griddle plate has cooled
down to a safe temperature, wash off the excess oil.
Repeat the process once the griddle
plate has cooled down completely.

Operation of the burners

Turning on

To ignite a burner, push the appropri-
ate control knob and turn it counter­clockwise to the “High” position. The ignitor “clicks” and ignites the gas.
If the burner fails to light, turn the
control knob to the “Off” position. Air the room or wait at least 1 minute be­fore trying again.
If the second attempt also fails to
light the burner, turn the control knob to the “Off” position and refer to the “Frequently asked questions” section.
Control Knob
Off Gas supply is off:
Burner off
High Strongest flame setting:
Maximum power of upper and lower flame rings
Simmer Weakest flame setting:
Upper flame ring off Minimum power of lower flame ring

Turning on during a power outage

In case of a power failure, the flame can be ignited manually.
Press in the burner knob and turn it
counterclockwise to “High.”
Light the emerging gas/air mixture
with a match.
25
Operation of the burners

Adjusting the flame

The burners can be variably adjusted between the lowest and highest flame settings.
Because the edges of the flame are much hotter than its center, the flame tips should stay beneath the bottom of the cookware. Flame tips which ex­tend beyond the sides of the cook­ware emit unnecessary heat into the room and can also damage cookware handles, which increases the risk of injury.
Adjust the flame so that it never ex-
tends up the sides of the cookware.

Visual characteristics gas flames

Yellow flames
Contact the Miele Service Depart­ment.
Yellow tips on outer cones
Normal for propane gas
Soft blue flames
yellow colour is only allowed at the tip of the inner cone
Normal for natural gas

Turning off

26
Do not turn the control knob clockwise past the “Off” position.
Turn the control knob to the right until
it reaches the “Off” position.
This stops the flow of gas, and the flame goes out.

Cookware

– Select cookware that fits the size of
the burner: Large diameter = large burner Small diameter = small burner
– Using cookware that is too large can
cause the flames to spread out and damage the surrounding countertop or other appliances. Choosing the right cookware size improves effi­ciency.
– Any cookware that has a diameter
smaller than the burner grate or which does not rest in a stable posi­tion on the grate (without wobbling) is dangerous and should not be used.
– Unlike cookware that is used on an
electric cooktop, the bottom of cook­ware used on a rangetop does not have to be flat to deliver effective cooking performance.
– When purchasing pots and pans,
keep in mind that the diameter indi­cated is typically the top diameter, not the bottom diameter.
– Do not use pots or pans that have
bottoms with pronounced edges.
– All heat-resistant cookware is suitable
for use.
– Cookware with a thick bottom is
preferable, as it distributes heat more evenly. Cookware with a thin bottom may cause food to overheat in certain spots. To avoid this, stir the food fre­quently.
– Always place cookware on the burner
grate supplied with the rangetop. Never place it directly on the burner.
– Position the cookware on the burner
grate so that it cannot tip. There is al­ways a possibility of a slight tilt, de­spite the proper position.
27

Energy saving tips

– Whenever possible, keep pots and
pans covered while cooking. Doing so will prevent unnecessary heat loss.
– Wide, shallow cookware heats up
faster and is therefore preferable to tall, narrow cookware.
– Cook with as little water as possible.
– Reduce the power setting once the
water has come to a boil or the oil/fat is hot enough for frying.
– Use a pressure cooker to reduce the
cooking time.
28

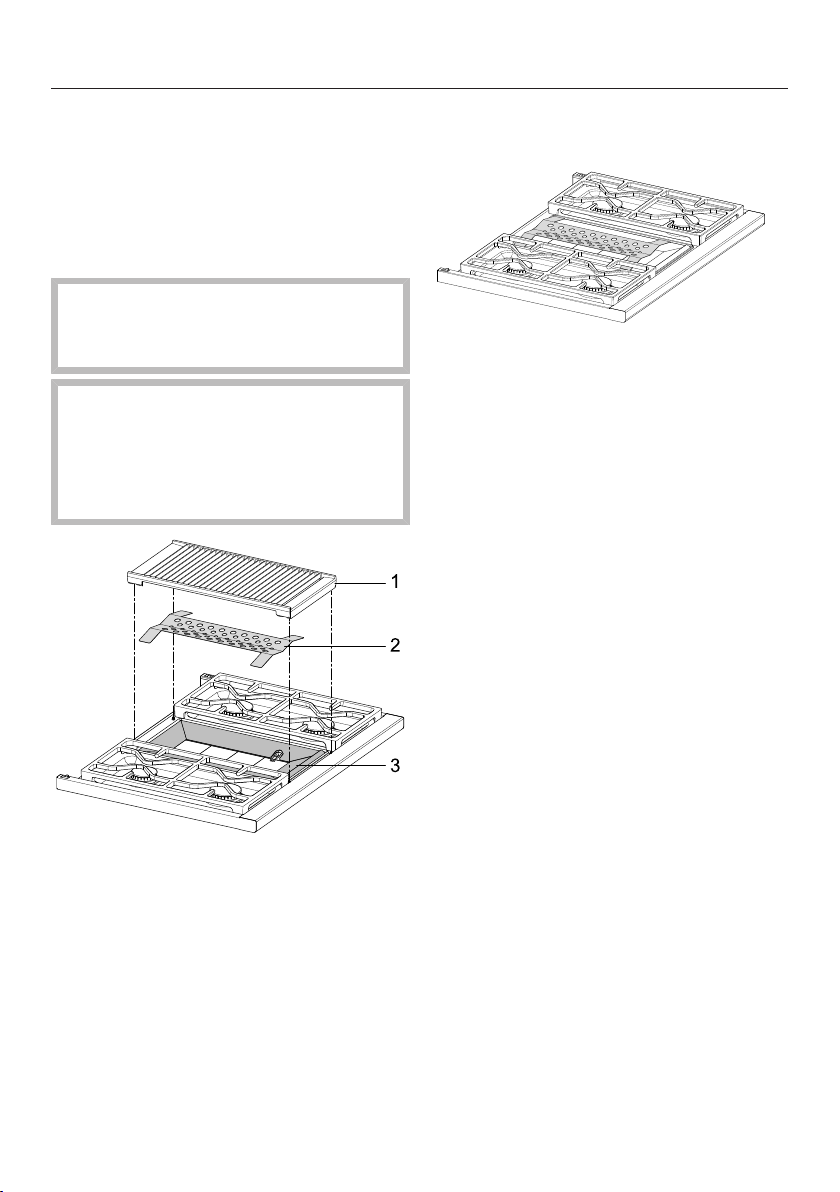

Operation of the grill

The grill has a ceramic burner that transfers intense heat to food, searing the outside to seal the juices. Full flexi­bility, depending on the food, from “Low” to “High” as power settings.

Assembling the grill

Burn hazard!
The burners must be turned off and allowed to cool completely.
Risk of injury!
The cast-iron grill is heavy. Carry the grill carefully and place it
securely on a soft base so that it lies flat.
Place the radiant plate on top of
the frame .
Place the grill into position.
Cleaning and care Tip: All parts can be disassembled in
the reverse order. You can also remove the frame for cleaning.
a
Grill
b
Radiant plate
c
Frame
Using a soft sponge, clean radiant
plate with a solution of warm water and a small amount of liquid dish soap. Dry the parts thoroughly after cleaning.
Remove the grill from the gas
cooktop.
29
Operation of the grill
Do not use cooking utensils on the grill.

Turning on the grill

Always follow USDA guidelines on food safety.
Press the control knob of the grill and
turn it counterclockwise to “High.”
If the burner fails to light, turn the
control knob to the “Off” position. Air the room or wait at least 1minute be­fore trying again.
If the second attempt also fails to
light the burner, turn the control knob to the “Off” position and refer to the “Frequently asked questions” section.
Pre-heat the grill with the grate in
place for approx. 20minutes.
Set the desired power level.
Control knob
Off Gas supply is off:
Grill off
High Maximum power
Low Minimum power

Turning on during a power outage

Danger of injury due to the man-
ual ignition of the flat burner during a power failure!
Never operate the grill during a power failure.
Turn off the grill control knob.

Tips for grilling

Fire hazard!
Do not leave the appliance unat­tended while cooking!
– Pat down wet food items with paper
towel to prevent splatters during grilling.
– Do not salt meat until after grilling, or
it will be too dry.
– Select lean mean or cut off fat before
grilling. Dripping fat can catch on fire.
– If dripping fat catches on fire, use
grilling tongs to move the meat to an­other spot or remove it entirely.
– Remove chicken skin to prevent
sparking.
– Halfway through cooking, brush mari-
nade onto the food.
30
– Leave the grill on for another 10min-
utes after you have finished grilling. This makes cleaning easier after cooking.

Operation of the griddle

The griddle is thermostatically con­trolled to maintain a consistent temper­ature. To prevent food from sticking, it is necessary to “season” the griddle prior to use (see “Before using for the first time”). Full flexibility, depending on the food, from “Low”, “Medium” and “High” as power settings.

Turning on the griddle

Always observe USDA food safety guidelines.
Press the control knob of the griddle
and turn it counterclockwise to “Low.”
If the burner fails to light, turn the
control knob to the “Off” position. Air the room or wait at least 1 minute be­fore trying again.
If the second attempt also fails to
light the burner, turn the control knob to the “Off” position and refer to the “Frequently asked questions” section.
Preheat the griddle plate for about 20
minutes.
Set the desired power level.
Control knob
Off Gas supply is off:
Griddle off
Low Minimum power
Medium Medium power
High Maximum power
31
Operation of the griddle

Turning on during a power outage

The griddle plate cannot be operated in case of a power failure.
Turn off the control knob for the grid-
dle plate.

Settings

Settings Food
Low Simmering Sauce
Holding food tem­perature
Medium Eggs
Bacon
French Toast
Medium–High Fish
Pancakes
Sausage
Hash Browns
Vegetables

Tips for frying

Before each use, wipe the griddle with a damp cloth to remove dust or other residue.
– Pre-heat the griddle plate thoroughly
for 8–10 minutes at the power level that you are going to be using for cooking.
– Pat down wet food items with paper
towel to prevent splatters during grilling.
– Do not salt meat until after grilling, or
it will be too dry.
– For cooking with the griddle plate,
you need only a little fat or none in the case of marinated food. If you use cooking fat, do not put it on the grid­dle plate until it is hot.
– Only use fats/oils that can tolerate
high temperatures.
– Marinating often improves the flavor
of food to be cooked.
High Burgers
Steaks
Stir-fry
32

Cleaning and care

Danger of burns!
The burners must be turned off and the rangetop must be cooled.
Danger of injury!
The steam from a steam cleaner could reach electrical components and cause a short circuit.
Do not use a steam cleaner to clean the rangetop.
All rangetop surfaces can become discolored or damaged if unsuitable cleaning agents are used.
All surfaces are susceptible to scratching.
Remove any cleaning agent residues immediately.
Always clean the rangetop after each use. Allow it to cool down before clean­ing.
To better maintain your appliance avoid the following:
– cleaners containing soda, ammonia,
thinners, or chlorides
– descaling agents
– Stain or rust removers
– Abrasive cleaning agents (e.g., pow-
der or cream cleansers, pumice stones)
– solvent-based cleaners
– dishwasher detergent
– grill and oven sprays
– glass cleaning agents
– hard, abrasive brushes or sponges
(e.g. pot scrubbers or scrub sponges, sponges which have previously been used with abrasive cleaning agents)
– sharp objects
(these could damage the seals be­tween the ceramic and the frame or between the frame and the counter­top).
33
Cleaning and care

Rangetop

The surfaces of the burner compo­nents and grates will slightly lose their luster over time. This is completely normal and does not indicate damage to the material.
Clean the entire rangetop after each
use with a soft sponge, warm water and a small amount of liquid dish soap.
Pre-soak any stubborn dirt or grime
before cleaning.
Dry the rangetop after using water to
clean it. This helps prevent lime de­posits.
Tip: Food that has cooked over onto a hot rangetop can cause the burner components to become discolored. Im­mediately remove all spilled food and all salt or sugar splatters!

Dishwasher-safe grates

Remove the burner grates.Clean the grates in the dishwasher or
using a soft sponge with warm water and a small amount of liquid dish soap.
If necessary, the rough side of a
kitchen sponge can be used.

Burner control knobs with stainless steel finish

The burner control knobs may be­come discolored if they are not cleaned regularly.
Do not clean the burner control knobs in a dishwasher or with a stainless steel cleaner.
Clean the knobs with a soft sponge, warm water and a small amount of liquid dish soap.

Simmer burner / Power burners

The burner cap is not dishwasher­safe.
Make sure that the flame holes are completely dry after cleaning.
Remove the burner cap.Clean the burner cap using a soft
sponge, warm water and a small amount of liquid dish soap.
All parts of the burner which cannot
be removed should be wiped down with a damp cloth.

Ignitor

Do not allow the ignitor to become wet. If it is wet, it will not spark.
34
Gently wipe down the ignitor clean
using a damp cloth.
Cleaning and care

Cleaning the dishwasher-safe grilling grate

Clean the grilling grate in the dish-
washer or with warm water and liquid dish soap. When the grilling rack is strongly soiled, soak it and then re­move the soiling with a brush. After that, let the rack dry thoroughly.

Cleaning the griddle plate

Burn hazard!
Allow the griddle plate to cool down sufficiently before cleaning it.
Fire hazard!
Clean the grease catch pan after ev­ery use of the griddle plate.
Loosen coarse soiling immediately
with a spatula and scratch grease and residue into the grease catch pan.
Remove any excess grease with a
paper towel.
Clean the grease catch pan with a
soft sponge, dishwashing liquid, and warm water. Dry it thoroughly after cleaning.
Wipe off the griddle plate with clean
water and dry it with a clean, dry cloth.
Rub some vegetable oil into the grid-
dle plate after every cleaning.
Put the grease catch pan back into
place.
Then let the griddle plate cool until it
is safe to the touch, add some hot, soapy dishwater, and let the grime soak.
Remove any soiling and water with a
sponge.
You can clean stubborn soiling off the griddle plate with the rough side of a dish sponge and a few drops of Miele ceramic and stainless steel cleaner (see “Optional accessories”).
Remove the grease catch pan and
empty it.
35

Frequently Asked Questions

With the help of the following guide minor faults in the performance of the ma­chine, some of which may result from incorrect operation, can be remedied with­out contacting the Service Department.
This guide may help you to find the reason for the fault, and how to correct it.
Problem Possible cause and solution
The burners do not ig­nite when the cooktop is being used for the first time or after it has been out of use for a longer period.
The burner does not light after several at­tempts.
The gas flame goes out after being lit.
The shape/color of the gas flame changes.
The gas flame goes out during use.
There may be air in the gas line. Try to light the burner again, making several at-
tempts if necessary.
The burner is not properly assembled. Assemble the burner correctly.
The gas shutoff valve is closed. Open the gas shut-off valve.
The burner is wet and/or dirty. Clean and dry the burner.
The flame holes are clogged and/or wet. Clean and dry the flame holes.
The burner parts are not in the proper position. Position the burner parts correctly.
The ignitor is dirty. Remove any dirt or grime.
The burner parts are not in the proper position. Position the burner parts correctly.
The burner cap itself or the holes in the burner cap are dirty.
Remove any dirt or grime.
The burner parts are not in the proper position. Position the burner parts correctly.
36
Frequently Asked Questions
Problem Possible cause and solution
The ignitor does not function properly.
The fuse in the building's wiring system was tripped. If necessary, contact a qualified electrician or Cus-
tomer Service for assistance.
There is food debris stuck between the ignitor and the burner cap.
Remove the debris. (See “Cleaning and care” for
more information.)
37

Notes on installation

Distance to the range hood

The minimum clearance between the appliance and a range hood above will be listed by the hood manufacturer.
If there is more than one appliance in­stalled below the range hood, each with a different safety clearance, the largest clearance must be used.

RBGDF Backguard

Depending on the model, you can ex­change the existing island trim of your appliance for a larger range backguard. The backguard is available in the fol­lowing heights: 12“ (305 mm) and 20” (508 mm).

Installing the backguard

The rear of the rangetop must be ac­cessible.
Install the backguard before connect­ing the rangetop.
Loosen the screws of the island trim.Pull back the island trim slightly until
it can be removed.
The backguard can be installed in re­verse order.
38
Notes on installation

Weights

The net weight of the rangetop with accessories is as follows:
Model Width Net weight including
grates and burner caps
KMR 1124 29¹⁵/₁₆" (762mm) approx. 100lbs / 45kg
KMR 1134-1 KMR 1135-1 KMR 1136-1
KMR 1354-1 KMR 1355-1 KMR 1356-1
35¹⁵/₁₆" (915mm)
47¹⁵/₁₆" (1220mm)
approx. 120lbs / 55kg approx. 130lbs / 60kg
approx. 151lbs / 68.5kg
approx. 150lbs / 68kg approx. 160lbs / 73kg approx. 170lbs / 78kg
39

Dimensional drawings

a
Side view
b
Front views
c
Rear view
40
d
Gas connection
e
Electrical connection
Dimensional drawings

Rangetops KMR 1124, KMR 113x-1, KMR 135x-1

Position Dimensions Description
13" (330mm) Maximum depth of top cabinet
18" (457mm) Minimum distance to bottom edge of
top cabinet
7¹/₂" (190.5mm) Distance between the top edge of the
countertop and the top edge of the support base
10" (254mm) Minimum distance to combustible sur-
faces
1) The support base must have a minimum thickness of ³/₄" (19.05mm). At the rear right of the support base, a cut-out of 51/8"x71/8"(130mmx80mm) must be provided (gas connection) and, at the rear left, a cut-out of 46/8"x19/16"(120mmx40mm) (electrical connection).
Support base
1)
41
Dimensional drawings

KMR 1124

Position Dimensions Description
min. 30"
(762mm)
37" (940mm) Minimum distance between the top
30" (762mm) Minimum distance between the top
For all other hoods please consult the manufacturer's specifications for required distances.
Please observe safe distances to rear combustible surfaces of 12" (305mm) clearance. For zero clearance installation the Miele Backguards will satisfy the required distance to com­bustible surfaces. The Miele Backguard is available in 12" (305mm) or 20" (508mm) heights.
Niche width
of the cooking area and the bottom of an unprotected combustible sur­face.
of the cooking area and the bottom of the Miele Range Hood (DAR model with DRxB XL blower).
42
Dimensional drawings

KMR 1134-1

Position Dimensions Description
min. 36"
(915mm)
37" (940mm) Minimum distance between the top
36" (915mm) Minimum distance between the top
30" (762mm) Minimum distance between the top
Refer to the Installation instructions for the Miele ventilation hood, Appliance dimensions (Distance between cooktop and ventilation hood (S)).
For all other hoods please consult the manufacturer's specifications for required distances.
Please observe safe distances to rear combustible surfaces of 12" (305mm) clearance. For zero clearance installation the Miele Backguards will satisfy the required distance to com­bustible surfaces. The Miele Backguard is available in 12" (305mm) or 20" (508mm) heights.
Niche width
of the cooking area and the bottom of an unprotected combustible sur­face.
of the cooking area and the bottom of the Miele Range Hood (DAR model with DRxB XL blower).
of the cooking area and the bottom of the Miele Range Hood (DAR model with DRxB XXL blower).
43
Dimensional drawings

KMR 1135-1, KMR 1136-1

Position Dimensions Description
min. 36"
(915mm)
37" (940mm) Minimum distance between the top
30" (762mm) Minimum distance between the top
Refer to the Installation instructions for the Miele ventilation hood, Appliance dimensions (Distance between cooktop and ventilation hood (S)).
For all other hoods please consult the manufacturer's specifications for required distances.
Please observe safe distances to rear combustible surfaces of 12" (305mm) clearance. For zero clearance installation the Miele Backguards will satisfy the required distance to com­bustible surfaces. The Miele Backguard is available in 12" (305mm) or 20" (508mm) heights.
Niche width
of the cooking area and the bottom of an unprotected combustible sur­face.
of the cooking area and the bottom of the Miele range hood (DAR model with DRxB XL blower or DRxB XXL blower).
44
Dimensional drawings

KMR 1354-1, KMR 1355-1, KMR 1356-1

Position Dimensions Description
min. 48"
(1220mm)
37" (940mm) Minimum distance between the top
30" (762mm) Minimum distance between the top
Refer to the Installation instructions for the Miele ventilation hood, Appliance dimensions (Distance between cooktop and ventilation hood (S)).
For all other hoods please consult the manufacturer's specifications for required distances.
Please observe safe distances to rear combustible surfaces of 12" (305mm) clearance. For zero clearance installation the Miele Backguards will satisfy the required distance to com­bustible surfaces. The Miele Backguard is available in 12" (305mm) or 20" (508mm) heights.
Niche width
of the cooking area and the bottom of an unprotected combustible sur­face.
of the cooking area and the bottom of the Miele Range Hood (DAR model with DRxB XXL blower).
45

Electrical connection

ATTENTION:
During installation, maintenance and repair work, the rangetop must be disconnected from the electricity supply. It is only completely isolated from the electricity supply if the plug fuses have been fully unscrewed (where applicable), the main circuit breaker has been tripped or the power cable has been unplugged from the wall outlet.
Do not cut off the plug on the power cord. If the plug does not fit in the outlet, have an electrician install an appropriate outlet.
The socket must be easily accessible after the rangetop has been installed.
Installation, repair and maintenance work should only be performed by a Miele authorized service technician. Work by unqualified persons can cause considerable danger to users. Miele cannot be held liable for any damage arising as a result of such work.
To avoid damaging the rangetop, make sure that the information (volt­age and frequency) on the data plate correspond to the building's power supply before connecting the appli­ance. When in doubt, consult a qualified electrician.
WARNING: THIS APPLIANCE MUST BE GROUNDED
Installer: Please pass these instruc­tions on to the customer.

Electrical connection

The rangetop is equipped with an ap­prox. 4 ft. long power cord with a plug for connection to the electrical supply with:
– 120V, 15A, 60Hz
SAVE THESE INSTRUCTIONS FOR THE ELECTRICAL INSPECTOR'S USE.
This appliance must be grounded in compliance with all applicable local and national regulations.
Installation, repair and maintenance work should only be performed by a Miele authorized service technician in compliance with local regulations and the ANSI National Electrical Code / NFPA 70 in the United States or the Canadian Electrical Code, Part I in Canada (CSA standard C22.1).
The plug must be inserted into a suit­able outlet that has been installed and grounded in compliance with all applicable local regulations.
46

Gas connection

Connection to the gas supply
may only be performed by a duly au­thorized technician. This technician is responsible for proper function at the installation site. In Massachusetts, the gas connec­tion may be performed only by a cer­tified gas installer.
The rangetop must be connected with its own shut-off valve.
The shut-off valve must be accessi­ble and visible, after the opening of a cabinet door, if necessary.
The gas connection of the rangetop can be to natural gas or propane gas according to the model.
Ask your gas company what kind of gas is used and compare it with the specifications on the data plate.
The rangetop is not connected to an exhaust vent.
During the setup and connection of the rangetop, observe the applicable installation conditions, especially suitable ventilation measures.
The gas connections must be ar­ranged in such a way that they are not heated and damaged by the op­eration of the range.
In particular, make sure that the gas hose lines and connection fittings on the rangetop do not come into con­tact with hot exhaust gases.
The gas hose and power cord could be damaged by hot spots on the rangetop.
Make sure that the gas hose and power cord do not come into contact with hot spots on the rangetop.
Flexible connection lines can be damaged by incorrect routing.
Attach flexible connecting lines in such a way so that they do not come into contact with any moving kitchen parts (e.g., a drawer) and are not ex­posed to mechanical stress.
The rangetop and the shut-off valve must be disconnected from the gas supply during gas pressure tests.
Disconnect the rangetop and the shut-off valve from the gas supply before performing a gas pressure test at a pressure of more than 1/2psi (3.5kPA). Close the shut-off valve of the gas supply before per­forming a gas pressure test at a pressure of less than or equal to 1/2psi (3.5kPA).
Incorrectly sealed gas lines can lead to a gas leak and thus to an explo­sion.
Seal all gas lines with a suitable thread sealant.
Seal tightness tests on the rangetop must be performed according to manufacturer specifications.
47
Gas connection
The gas connection must be made in accordance with local codes or, in the absence of local codes, with:
National Fuel Gas Code ANSIZ223.1 / NFPA No. 54 for the United States or the current Can / CGAB149.1 and 2 Installation Codes of Gas Appliances for Canada.
The gas pressure may not under­shoot or exceed certain values.
Make sure that the maximum gas pressure upstream of the gas pres­sure controller does not amount to more than 1/2psi (3.5kPA) for natu­ral and propane gas.
Make sure that the minimum gas pressure amounts to a 6“ water head in the case of natural gas and a 11” (279.4 mm) water head in the case of propane gas.
48

Burner ratings

Burner ratings KMR 1124

Natural gas NG Btu/hr kW
Simmer burner 12,500 3.7
Power burner 19,500 5.7
Total cooktop output 71,000 20.8
Liquid propane LP Btu/hr kW
Simmer burner 12,500 3.7
Power burner 19,500 5.7
Total cooktop output 71,000 20.8
49
Burner ratings

Burner ratings KMR 1134-1

Natural gas NG Btu/hr kW
Simmer burner 12,500 3.7
Power burner, rear 13,600 4.0
Power burner, front 19,500 5.7
Total cooktop output 98,200 28.8
Liquid propane LP Btu/hr kW
Simmer burner 12,500 3.7
Power burner, rear 13,000 3.8
Power burner, front 19,500 5.7
Total cooktop output 97,000 28.4
50
Burner ratings

Burner ratings KMR 1135-1

Natural gas NG Btu/hr kW
Simmer burner 12,500 3.7
Power burner, rear 13,600 4.0
Power burner, front 19,500 5.7
Grill 19,000 5.6
Total cooktop output 84,100 24.6
51
Burner ratings

Burner ratings KMR 1136-1

Natural gas NG Btu/hr kW
Simmer burner 12,500 3.7
Power burner, rear 13,600 4.0
Power burner, front 19,500 5.7
Griddle 13,000 3.8
Total cooktop output 78,100 22.9
Liquid propane LP Btu/hr kW
Simmer burner 12,500 3.7
Power burner, rear 13,000 3.8
Power burner, front 19,500 5.7
Griddle 14,300 4.2
Total cooktop output 78,800 23.1
52
Burner ratings

Burner ratings KMR 1354-1

Natural gas NG Btu/hr kW
Simmer burner 10.000 2.9
Power burner, rear 13,600 4.0
Power burner, front 19,500 5.7
Total cooktop output 125.200 36.7
Liquid propane LP Btu/hr kW
Simmer burner 10.000 2.9
Power burner, rear 13,000 3.8
Power burner, front 19,500 5.7
Total cooktop output 124,000 36.3
53
Burner ratings

Burner ratings KMR 1355-1

Natural gas NG Btu/hr kW
Simmer burner 10.000 2.9
Power burner, rear 13,600 4.0
Power burner, front 19,500 5.7
Grill 19,000 5.6
Total cooktop output 111,100 32.6
54
Burner ratings

Burner ratings KMR 1356-1

Natural gas NG Btu/hr kW
Simmer burner 10.000 2.9
Power burner, rear 13,600 4.0
Power burner, front 19,500 5.7
Griddle 13,000 3.8
Total cooktop output 105,100 30.8
Liquid propane LP Btu/hr kW
Simmer burner 10.000 2.9
Power burner, rear 13,000 3.8
Power burner, front 19,500 5.7
Griddle 14,300 4.2
Total cooktop output 105,800 31.0
55

Technical Service

Contact in case of fault

In the event of a fault which you cannot remedy yourself, please contact your Miele dealer or Miele Technical Service.
Contact information for Miele Technical Service can be found at the end of this document.
Please quote the model and serial number of your appliance when contacting Miele. Both pieces of information can be found on the data plate.

Warranty

For further information, please refer to your warranty booklet.

Data plate

Adhere the extra data plate supplied with the appliance in the space below. Make sure that the model number matches the one specified on the back cover of this document.
56
This service is available in USA only.
MieleCare, our Extended Service Con­tract program, gives you the assurance of knowing that your appliance invest­ment is covered by 5years of worry free ownership. MieleCare is the only Extended Service Contract in the industry that guarantees repairs by a Miele Authorized Service Provider using genuine Miele parts. Only genuine Miele parts installed by factory trained professionals can guar­antee the safety, reliability, and longevity of your Miele appliance.
Please note that unless expressly ap­proved in writing by Miele’s Service de­partment, Extended Service Contracts offered by other providers for Miele products will not be recognized by Miele. Our goal is to prevent unautho­rized (and untrained) service personnel from working on your Miele products, possibly doing further damage to them, you and/or your home.

MieleCare

To learn more about MieleCare Ex­tended Service Contracts, please con­tact your appliance dealer or visit us online at: www.mieleusa.com
57

Caring for the environment

Disposal of the packing mate­rial
The cardboard box and packing materi­als protect the appliance during ship­ping. They have been designed to be biodegradable and recyclable.
Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children. Dan­ger of suffocation!

Disposal of your old appliance

Electrical and electronic appliances contain valuable materials. They also contain certain substances, compounds and components which were essential for the proper functioning and safe use of the equipment. Handling these mate­rials improperly by disposing of them in your household waste can be harmful to your health and the environment. There­fore, please do not dispose of your old appliance with regular household waste and follow local regulations on proper disposal.
Consult with local authorities, dealers or Miele in order to dispose of and recycle electrical and electronic appliances. Miele assumes no responsibility for deleting any personal data left on the appliance being disposed. Please en­sure that your old appliance is kept away from children until removal. Ob­serve safety requirements for appli­ances that may tip over or pose an en­trapment hazard.
58
