Page 1

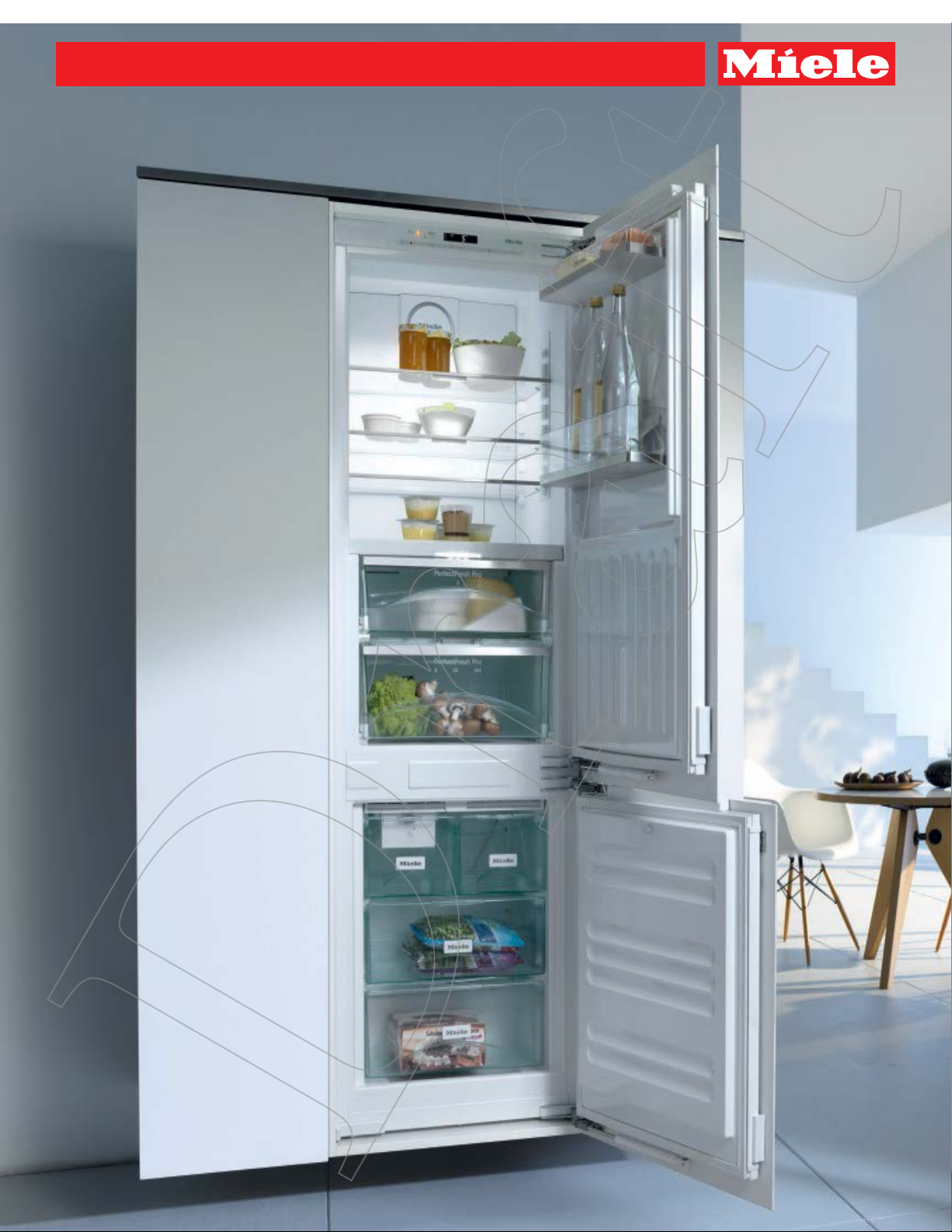

PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE
Specification Sheets TRS 04172015
8mieleusa.com
Page 2
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE
SPECIFICATIONS
KFNS 37692 iDE — Item 38376921USA
Overall Unit Width 22” (559mm)
Overall Unit Height 69
Overall Unit Depth 21
Niche
Cabinet Opening Width
Cabinet Opening Height 69
Minimum Cabinet Opening Depth 21
Plumbing
Water Supply Requirements
Water Connection Line
Features:
• NEW: Miele PerfectCool Series
• FlexiLight - Shelf mounted LED
lighting
• Right hinged, convertible
• Soft Close Door
• DynaCool
• Dishwasher Safe door shelves
• Easy Sensor Controls
• Plumbed Ice Maker
• PerfectFresh Pro
• Bottle Fins
• Sabbath Mode
Electrical
Electrical Requirements - Volts/Amps
Power Cord - Plug and length Yes - NEMA 5-15 plug, 6’ 10
Custom Panel
Maximum Panel Weight
Maximum Panel Thickness 3/4” (19mm)
Minimum Panel Thickness 5/8” (16mm)
Shipping
Shipping Weight 192.7 lbs (87.4 kg)
Shiipping Dimensions 24
Support
Call Miele 800.843.7231
Miele Website
20/20 Link
11
/16” (1770mm)
1
/2” (545mm)
1
/16 ” — 223/8 ” (560 - 568mm)
22
3
/4” — 703/8“ (1772 - 1788mm)
5
/8” (550mm)
Connect to a cold water supply only. Must
be connected to a shut-off valve. The water
shut-off valve must be accessible after
installation. The water pressure must be
between 22 psi (1.5 bar) and may not exceed
87 psi (6 bar). If the pressure is higher than
87 psi (6 bar), a pressure reducing valve
must be installed.
The connection parts included with the
appliance permit the connection of
various water lines (a water line is not
included in delivery).
110V / 120V, 60Hz, 15 Amps (single)
110V / 120V , 60Hz, 20Amp (side-by-side) -
When used in conjuction with second unit.
11
/16”
Please refer to the manual, section
Installing the appliance for further details.
Top Panel - 44lbs (20kg)
Bottom Panel - 26lbs (12kg)
1
/2” W x 731/2” H x 225/8” D
8www.mieleusa.com
82020technologies.com
KFNS 37692 iDE
Specification Sheets TRS 04172015
Page 2 of 5
Page 3
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE

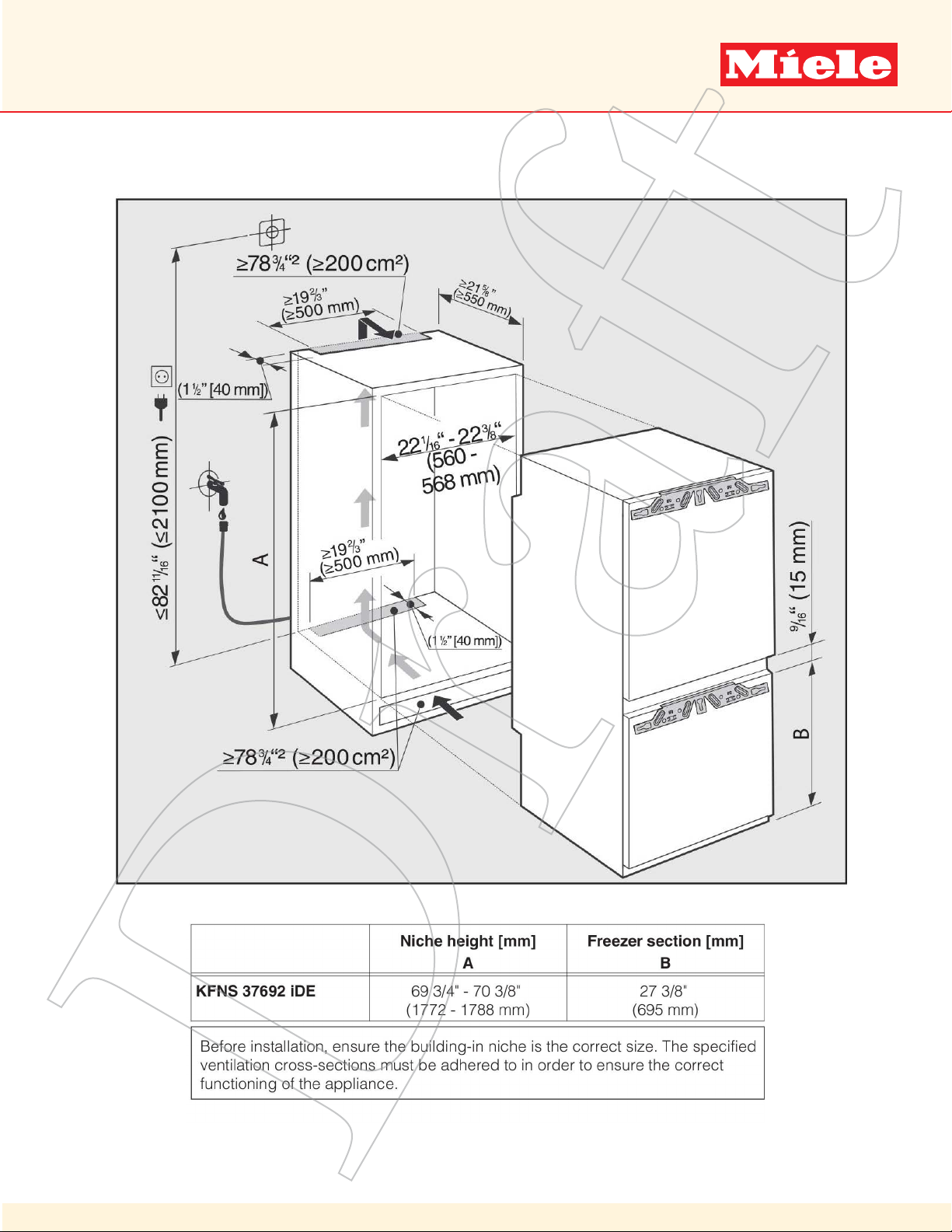

Installation Dimension
For additional information on Plumbing, please refer to the Plumbing section in the Install Manual.
Specification Sheets TRS 04172015
KFNS 37692 iDE
Page 3 of 5
Page 4
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE

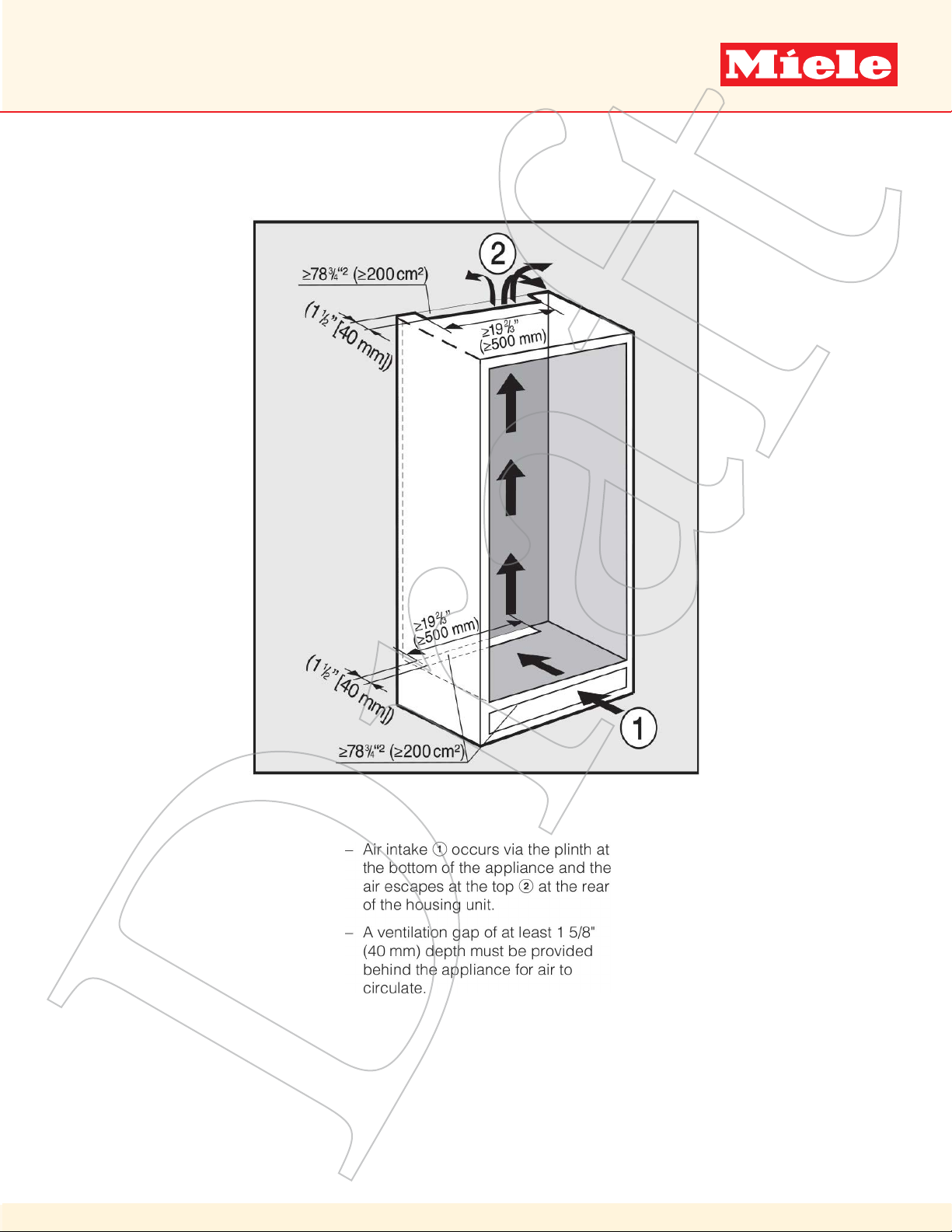

Ventilation Dimension
KFNS 37692 iDE
Specification Sheets TRS 04172015
Page 4 of 5
Page 5
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE

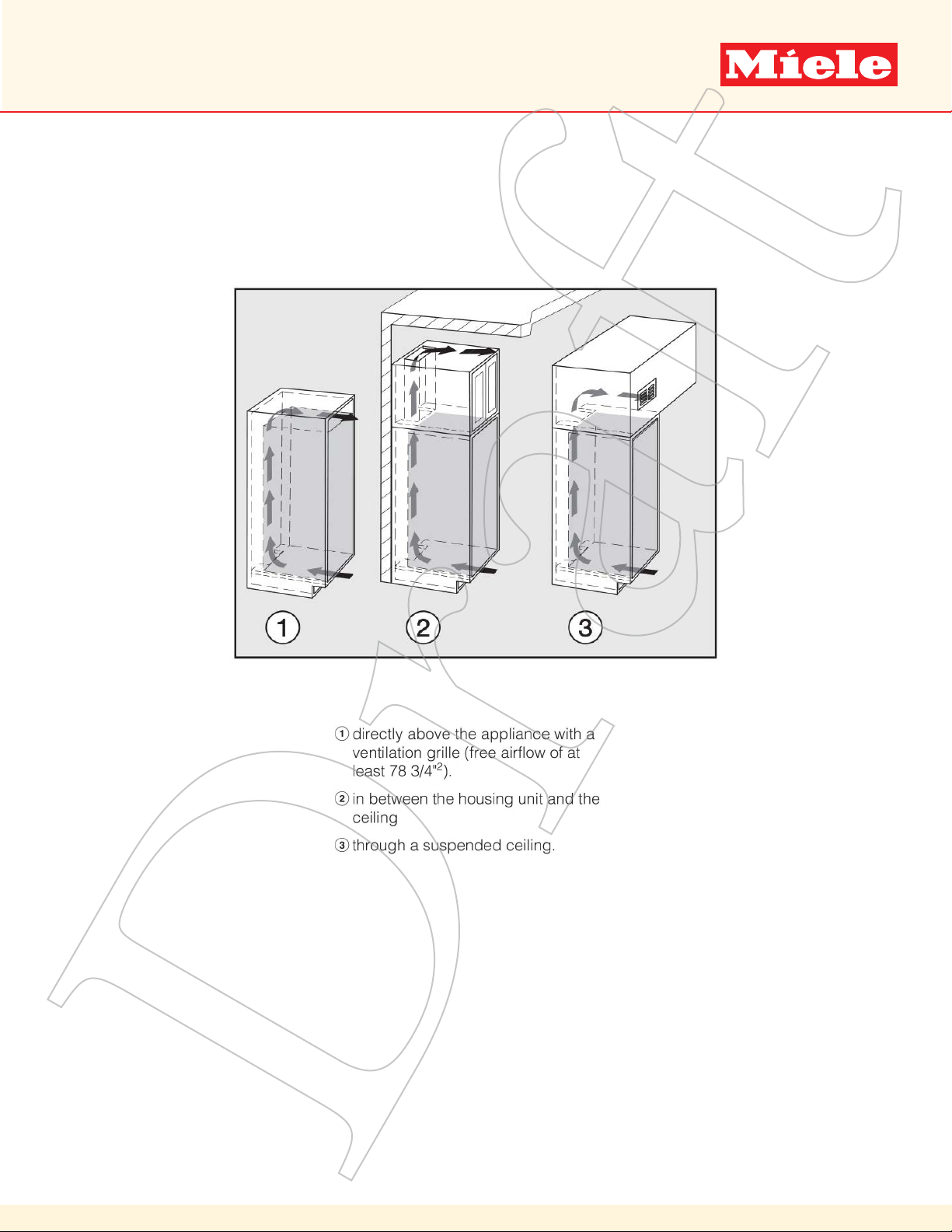

Ventilation Grille Options
KFNS 37692 iDE
Specification Sheets TRS 04172015
Page 5 of 5
