PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE
Specification Sheets TRS 01252016
8mieleusa.com
Page 2
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE
SPECIFICATIONS
KFNS 37692 iDE — Item 38376921USA
Overall Unit Width 22” (559 mm)
Overall Unit Height 69
Overall Unit Depth 21
Niche
Minimum Cabinet Opening Width
Minimum Cabinet Opening Height 69
Minimum Cabinet Opening Depth 21
Plumbing
Water Supply Requirements
Water Connection Line
Features:
• NEW: Miele PerfectCool Series
• FlexiLight - Shelf mounted LED
lighting
• Right hinged, convertible
• Soft Close Door
• DynaCool
• Dishwasher Safe door shelves
• Easy Sensor Controls
• Plumbed Ice Maker
• PerfectFresh Pro
• Bottle Fins
• Sabbath Mode
Electrical
Electrical Requirements - Volts/Amps
Power Cord - Plug and length Yes - NEMA 5-15 plug, 6’ 6” (2 m)
Custom Panel Refer to manual for further detail
Maximum Panel Weight
Maximum Panel Thickness
Minimum Panel Thickness
Shipping
Shipping Weight 192.7 lbs (87.4 kg)
Shiipping Dimensions 24
Support
Call Miele 800.843.7231
Miele Website
20/20 Link
11
/16” (1770 mm)
1
/2” (545 mm)
1
/16 ” (560 mm)
22
3
/4” (1772 mm)
5
/8” (550 mm)
Connect to a cold water supply only. Must
be connected to a shut-off valve. The water
shut-off valve must be accessible after
installation. The water pressure must be
between 22 psi (1.5 bar) and may not exceed
87 psi (6 bar). If the pressure is higher than
87 psi (6 bar), a pressure reducing valve
must be installed.
Unit comes with a male 3/4” BPT connection
on back of unit. The connection parts
included with the appliance permit the connection of various water lines (including
1/4” compression fitting). Water line is not
included.
110V / 120V, 60Hz, 15A (single)
110V / 120V, 60Hz, 20A (2 Individual units
installed side-by-side, using a Duplex outlet)
Top Panel - 44 lbs (20 kg)
Bottom Panel - 26 lbs (12 kg)
3
/4” (19 mm)
5
/8” (16 mm)
1
/2” W x 731/2” H x 225/8” D
8www.mieleusa.com
82020technologies.com
KFNS 37692 iDE
Specification Sheets TRS 01252016
Page 2 of 6
Page 3
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE

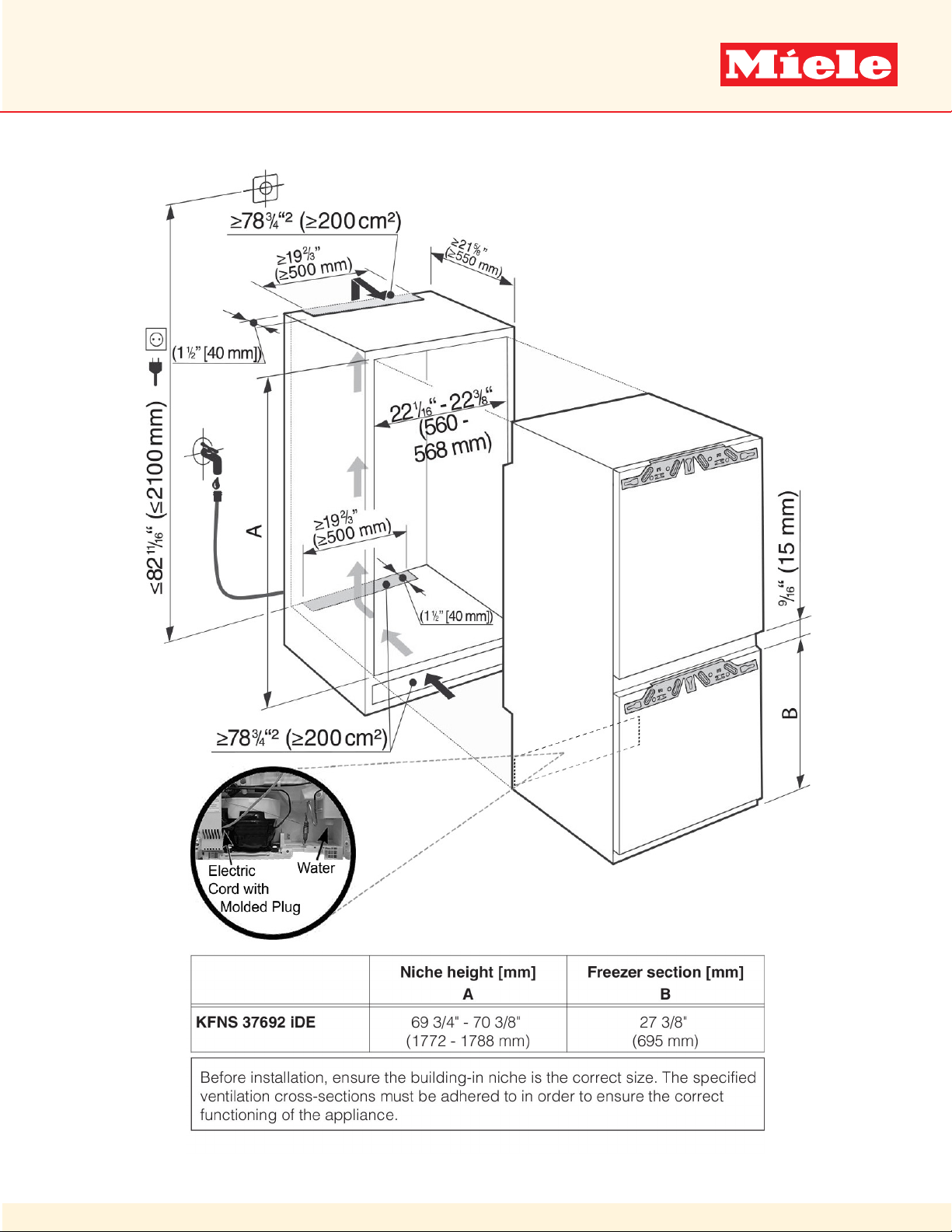

Installation Dimension
For additional information on Plumbing, please refer to the Plumbing section in the Install Manual.
For Side-by-Side installations two niche cutouts are required.
Specification Sheets TRS 01252016
KFNS 37692 iDE
Page 3 of 6
Page 4
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE

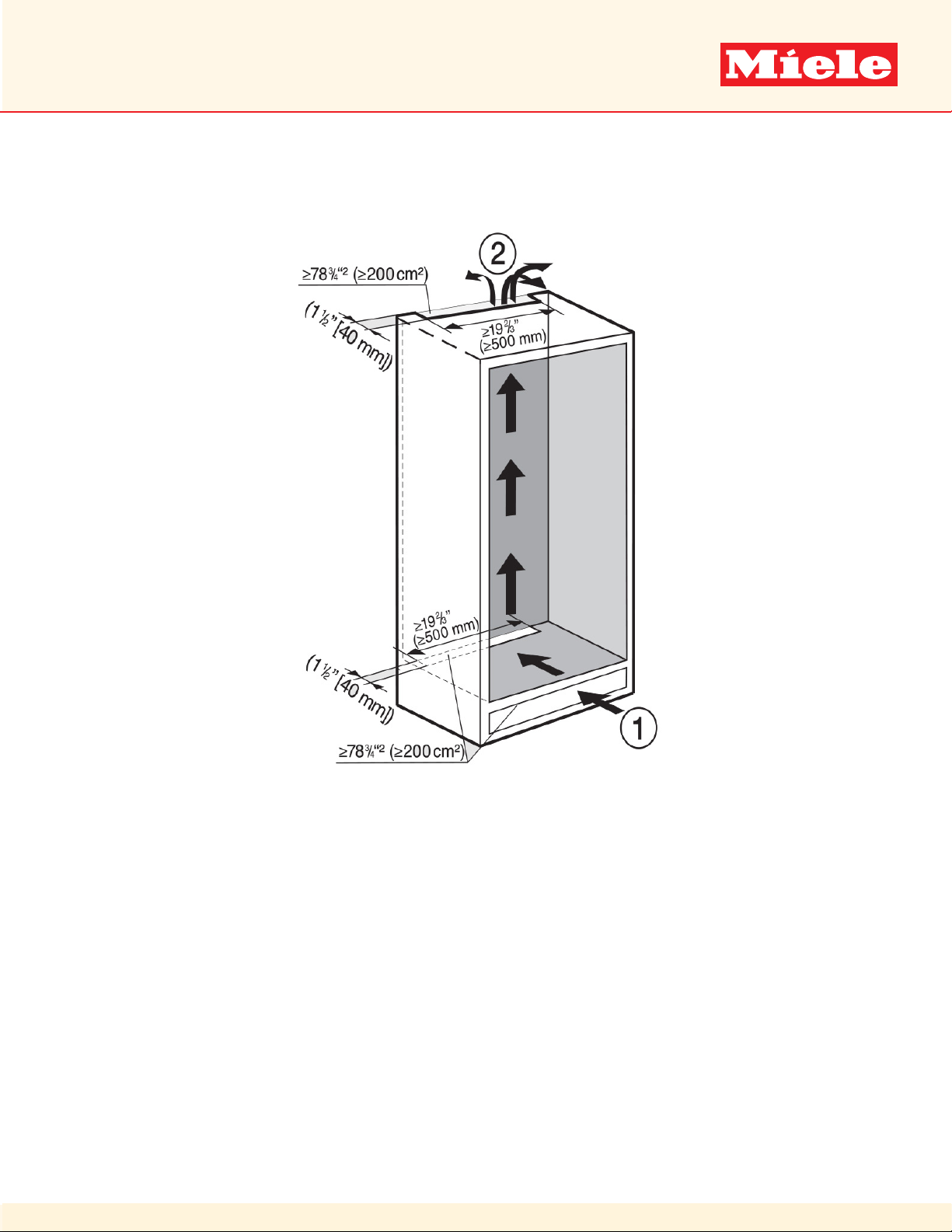

Ventilation Dimension
- Air intake (1) occurs via the plinth at the bottom of
the appliance and the air escapes at the top (2) at the
rear of the housing unit.
- A ventilation gap of at least 1 5/8” (40 mm) depth
must be provided behind the appliance for air to
circulate.
- The ventilation cross-sections in the plinth
housing unit and above the appliance must amount
to at least 78 3/4”
without obstruction.
- Please refer to the manual for further ventilation
details.
2
to ensure that air can circulate
KFNS 37692 iDE
Page 4 of 6
Specification Sheets TRS 01252016
Page 5
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE

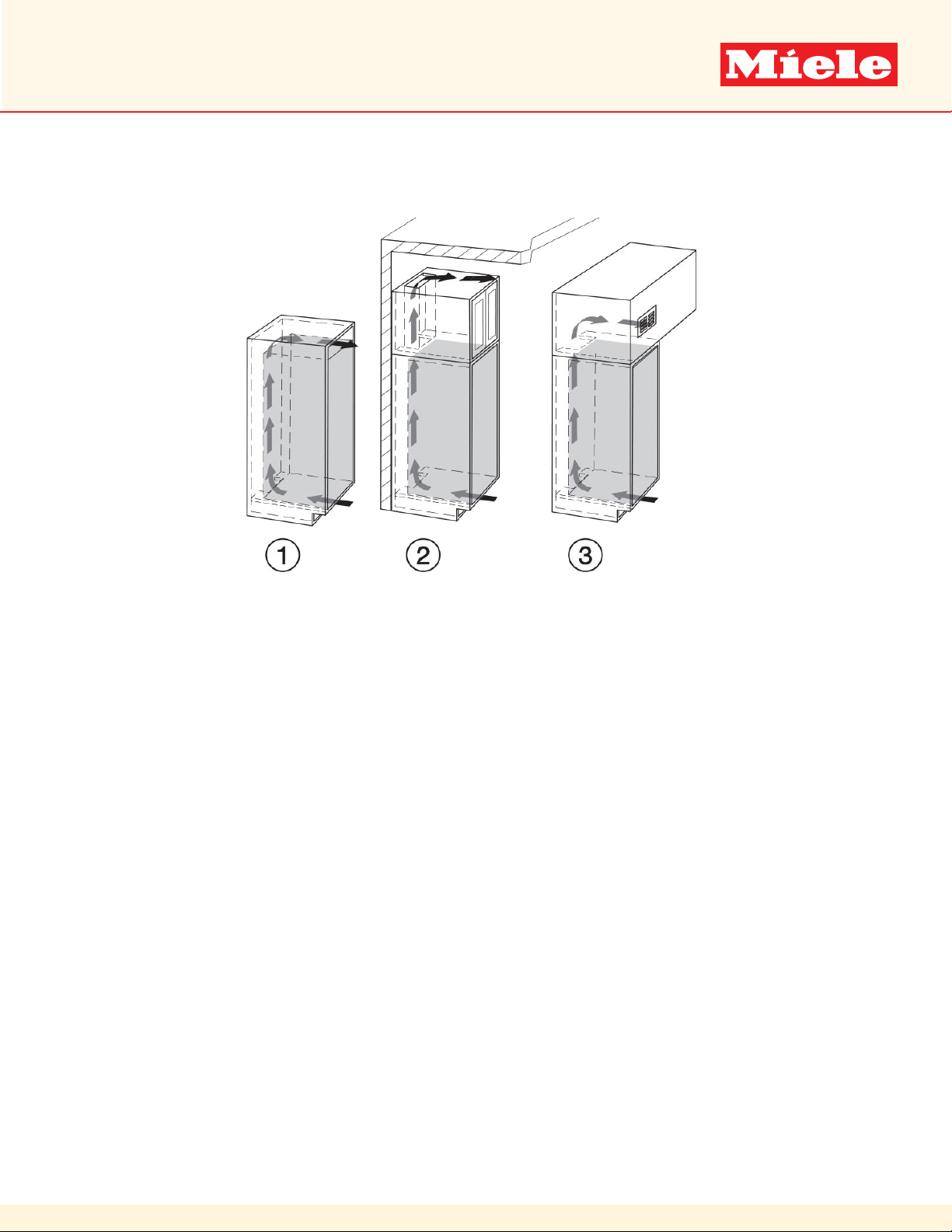

Top Ventilation Cross-section
(1) Directly above the appliance with a ventilation
grill (free airow of at least 78 3/4”2).
(2) In between the housing unit and ceiling.
(3) Through a suspended ceiling.
- Please refer to manual for further ventilation
details.
KFNS 37692 iDE
Specification Sheets TRS 01252016
Page 5 of 6
Page 6
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE
Custom Panel
SPECIFICATIONS
Custom Panel Refer to manual for further detail
Maximum Panel Weight
Maximum Panel Thickness
Minimum Panel Thickness
Inset Panel
Minimum Vertical Gap - Between Cabinet
and Door Panel
Minimum Horizontal Gap - Between Cabinet
and Top of Door Panel, Between Door Panels
Top Panel - 44 lbs (20 kg)
Bottom Panel - 26 lbs (12 kg)
3
/4” (19 mm)
5
/8” (16 mm)
1
/8” (3 mm)
1
/8” (3 mm)
Framed Cabinet with Inset Door
Panel Calculation
Panel Width = Niche Opening Width - 1/4” (6 mm)
Panel Height = Niche Opening Height - 1/4” (6 mm)
Frameless Style Cabinet Panel
Calculation
Panel Width = Niche Opening Width + Left Side Panel Thickenss
+ Right Side Panel Thickness
Panel Height = Niche Opening Height + Top Panel Thickness
+ Bottom Panel Thickness
KFNS 37692 iDE
Specification Sheets TRS 01252016
Page 6 of 6
