Operating and installation
instructions
Fridge-freezer
To avoid the risk of accidents or damage to the appliance it is essential to read these instructions before it is installed and used for the first time.
en-GB |
M.-Nr. 11 000 000 |
Contents |
|
Warning and Safety instructions...................................................................... |
5 |
Caring for the environment .............................................................................. |
14 |
Saving energy .................................................................................................... |
15 |
Guide to the appliance...................................................................................... |
17 |
Ice cube maker with integrated ice cube tray ..................................................... |
18 |
Accessories ....................................................................................................... |
20 |
Accessories supplied .......................................................................................... |
20 |
Optional accessories........................................................................................... |
21 |
Before using for the first time .......................................................................... |
23 |
Before using for the first time .............................................................................. |
23 |
Water container ................................................................................................... |
23 |
Connecting the appliance ................................................................................... |
24 |
Switching on and off ......................................................................................... |
25 |
Touch display ...................................................................................................... |
25 |
Switching on........................................................................................................ |
25 |
Start screen ......................................................................................................... |
25 |
Switching off the refrigeration appliance............................................................. |
26 |
Switching off for longer periods of time .............................................................. |
28 |
The correct temperature................................................................................... |
29 |
... in the refrigerator section ................................................................................ |
29 |
... in the freezer section ....................................................................................... |
29 |
Temperature display ............................................................................................ |
30 |
Setting the temperature....................................................................................... |
30 |
Temperature range ......................................................................................... |
31 |
Using Super cool and Super freeze ................................................................. |
32 |
Super cool function ......................................................................................... |
32 |
Super freeze function ..................................................................................... |
32 |
Switching a function on or off ............................................................................. |
33 |
Displaying a selected function ....................................................................... |
33 |
Temperature and door alarm............................................................................ |
34 |
Temperature alarm............................................................................................... |
34 |

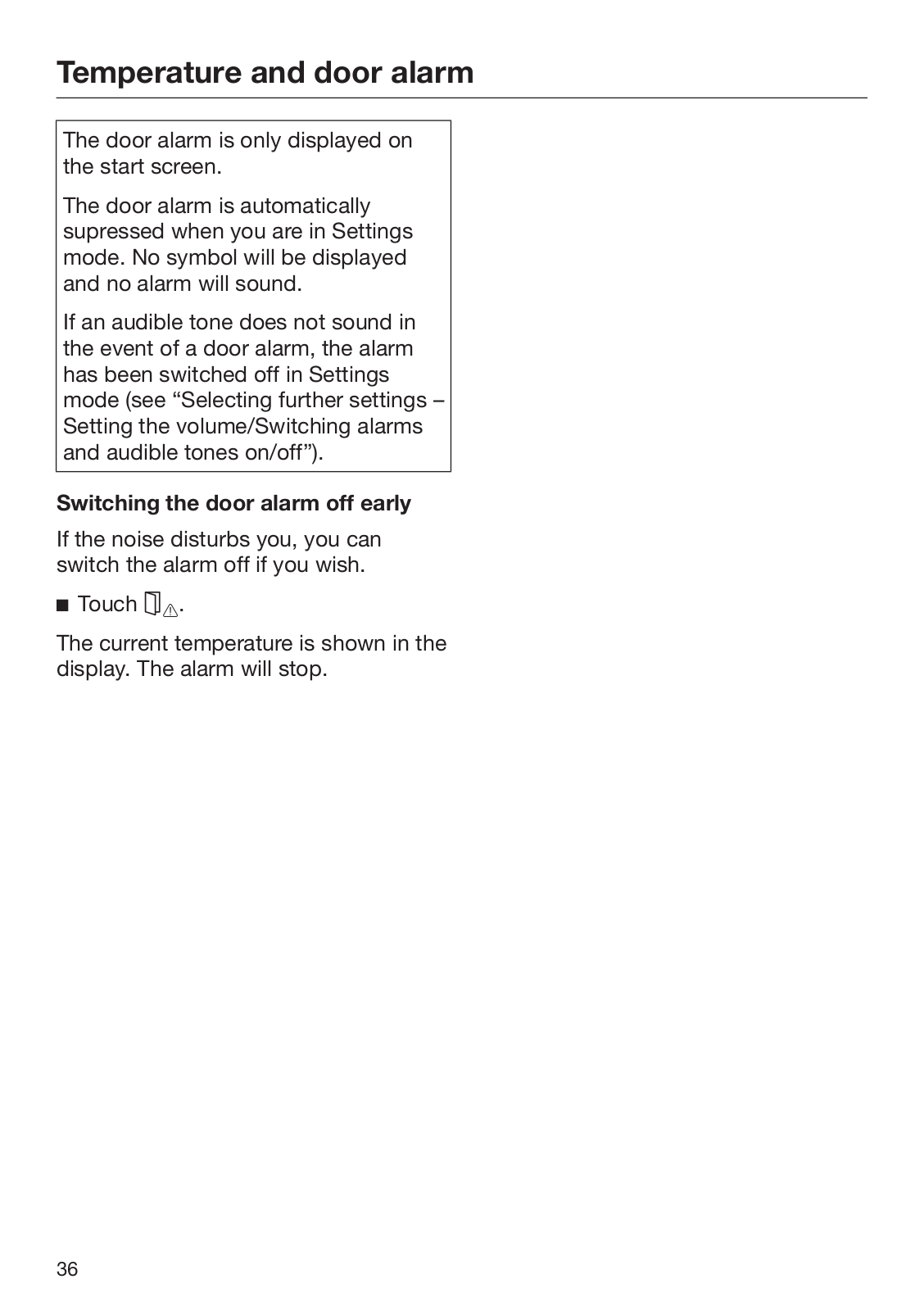

Door alarm........................................................................................................... |
35 |
Selecting further settings ................................................................................. |
37 |

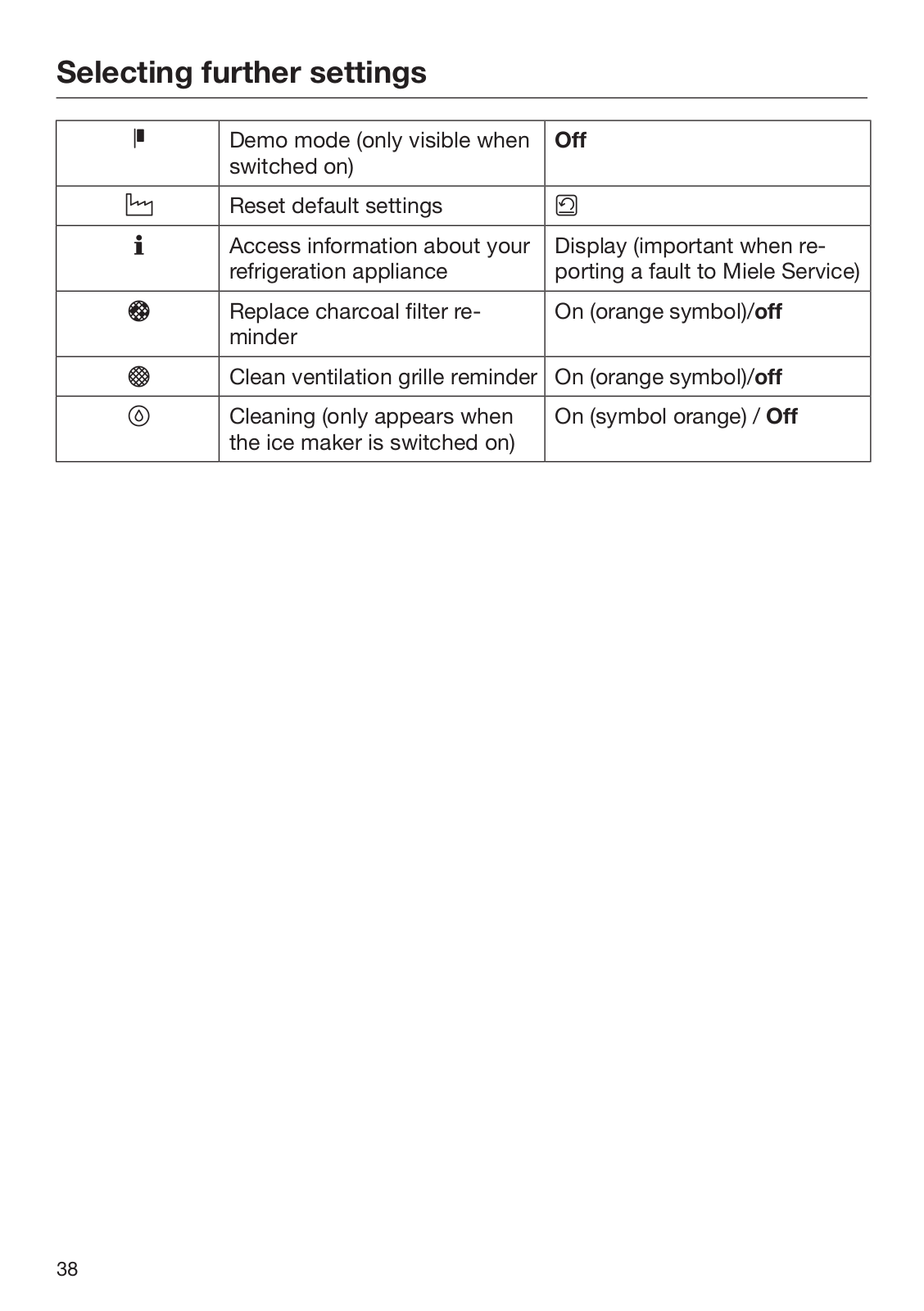

Settings overview ................................................................................................ |
37 |
2
|
Contents |
Explanation of the different Settings ................................................................... |
40 |
Switching Party mode on or off .................................................................. |
40 |
Switching Holiday mode on/off ................................................................ |
41 |
Using the minute minder (QuickCool timer) .............................................. |
42 |
Switching the ice cube maker on and off.................................................. |
43 |
Activating or deactivating the safety lock ............................................ |
44 |
Switching the refrigeration appliance off ................................................... |
44 |
Switching Sabbath mode on/off ................................................................. |
45 |
Setting the time before the door alarm is triggered ................................... |
46 |
Switching the sensor tone on / off ....................................................... |
46 |
Setting the volume/Switching alarms and audible tones on/off ............... |
46 |
Setting the display brightness ................................................................... |
47 |
Setting the temperature unit °C/°F ................................................................. |
47 |
Switching Demo mode off........................................................................... |
47 |
Resetting to the factory default settings .................................................. |
47 |
Accessing information ................................................................................. |
47 |
Replace charcoal filter reminder................................................................ |
48 |
Clean ventilation grille reminder ................................................................ |
48 |
Storing food in the refrigerator section........................................................... |
49 |
Different storage zones ....................................................................................... |
49 |
Food which is not suitable for storage in the refrigerator section ....................... |
50 |
Notes on buying food.......................................................................................... |
51 |
Storing food correctly.......................................................................................... |
51 |
Protein-rich food............................................................................................. |
51 |

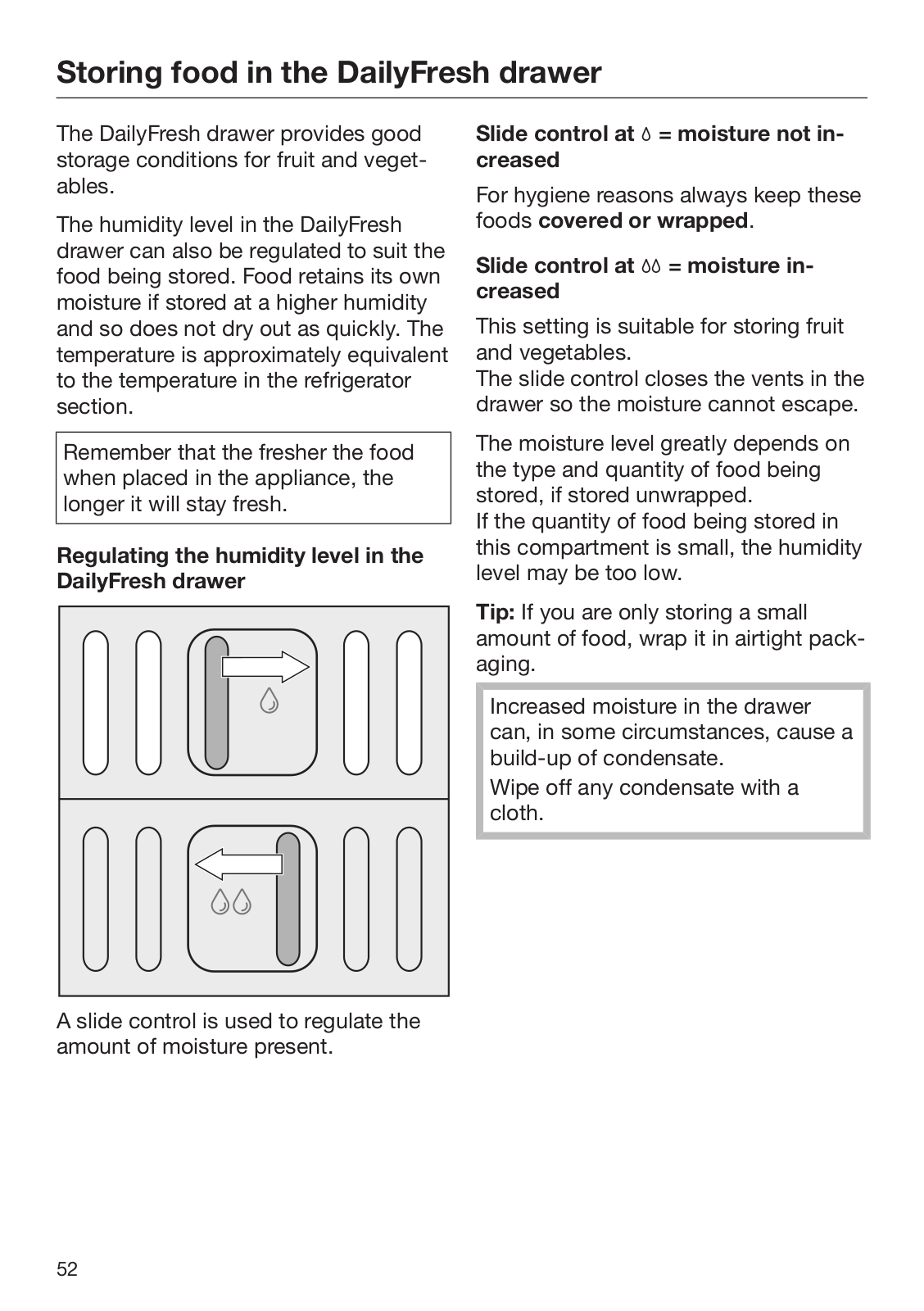

Storing food in the DailyFresh drawer............................................................. |
52 |
Adjusting the interior fittings (refrigerator section) ....................................... |
54 |
Adjusting the door/bottle shelf ............................................................................ |
54 |
Moving the adjustable shelf/adjustable shelf with lighting.................................. |
54 |
Adjusting the bottle rack ..................................................................................... |
54 |
Removing the DailyFresh drawer and rollers....................................................... |
55 |
Moving the storage drawer (CompactCase)........................................................ |
55 |
Moving and fitting the bottle holder .................................................................... |
56 |
Moving the charcoal filters .................................................................................. |
56 |
Freezing and storing food................................................................................. |
57 |
Maximum freezing capacity ................................................................................ |
57 |
Freezing fresh food.............................................................................................. |
57 |
Storing frozen food.............................................................................................. |
57 |
Home freezing ..................................................................................................... |
58 |
Storage time for frozen food........................................................................... |
59 |
Defrosting frozen goods ................................................................................. |
59 |
3
Contents |
|
Making ice cubes ................................................................................................ |
60 |
Switching the ice cube maker on and off....................................................... |
60 |
Adjusting the interior fittings................................................................................ |
61 |
Using accessories ............................................................................................... |
61 |
Defrosting........................................................................................................... |
62 |
Cleaning and care ............................................................................................. |
63 |
Cleaning agents................................................................................................... |
63 |
Cleaning the ice cube tray................................................................................... |
64 |

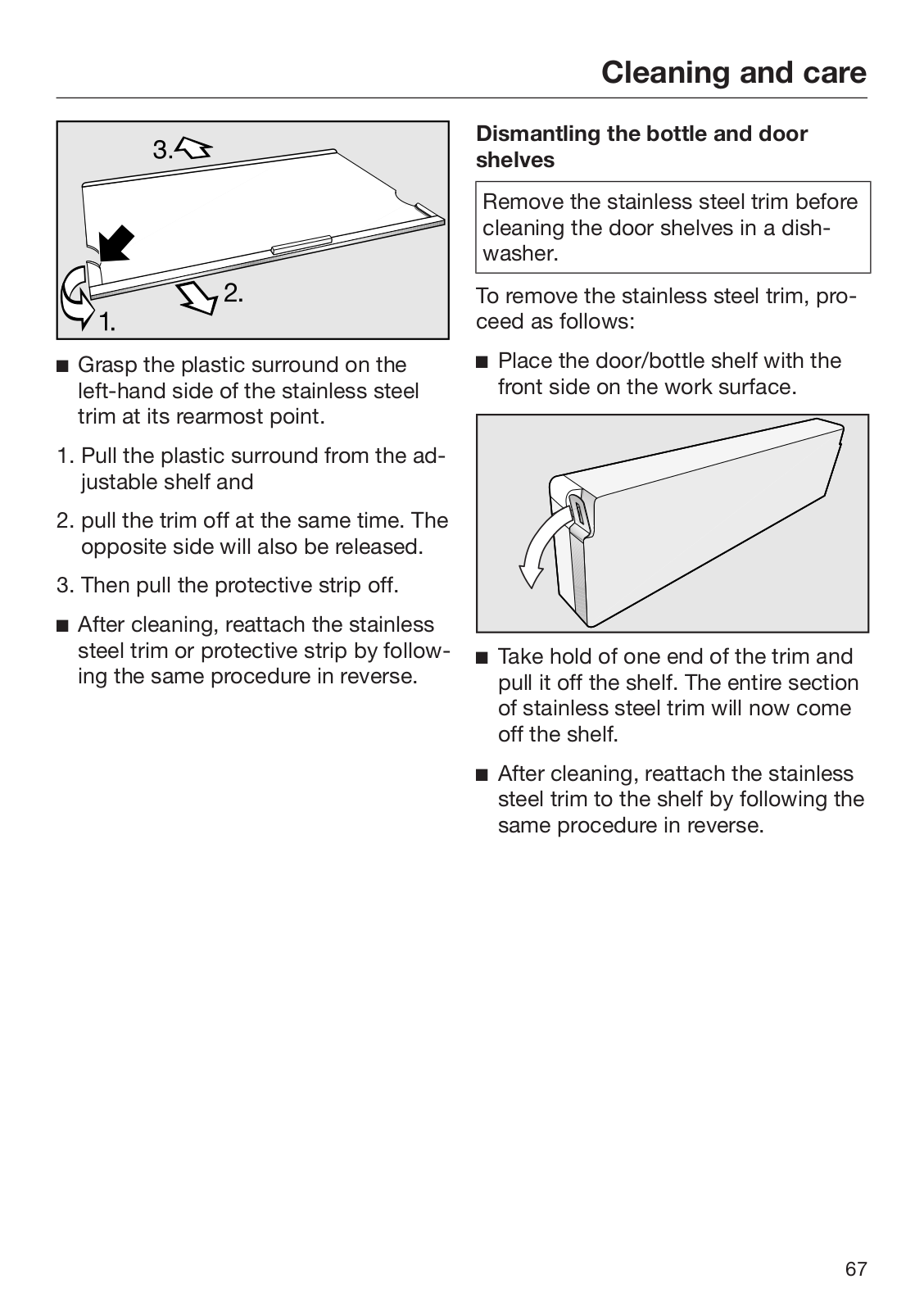

Preparing the refrigeration appliance for cleaning .............................................. |
65 |
Cleaning the interior and accessories ................................................................. |
69 |
Cleaning the front of the appliance and the side panels..................................... |
70 |
Cleaning the ventilation grille .............................................................................. |
70 |

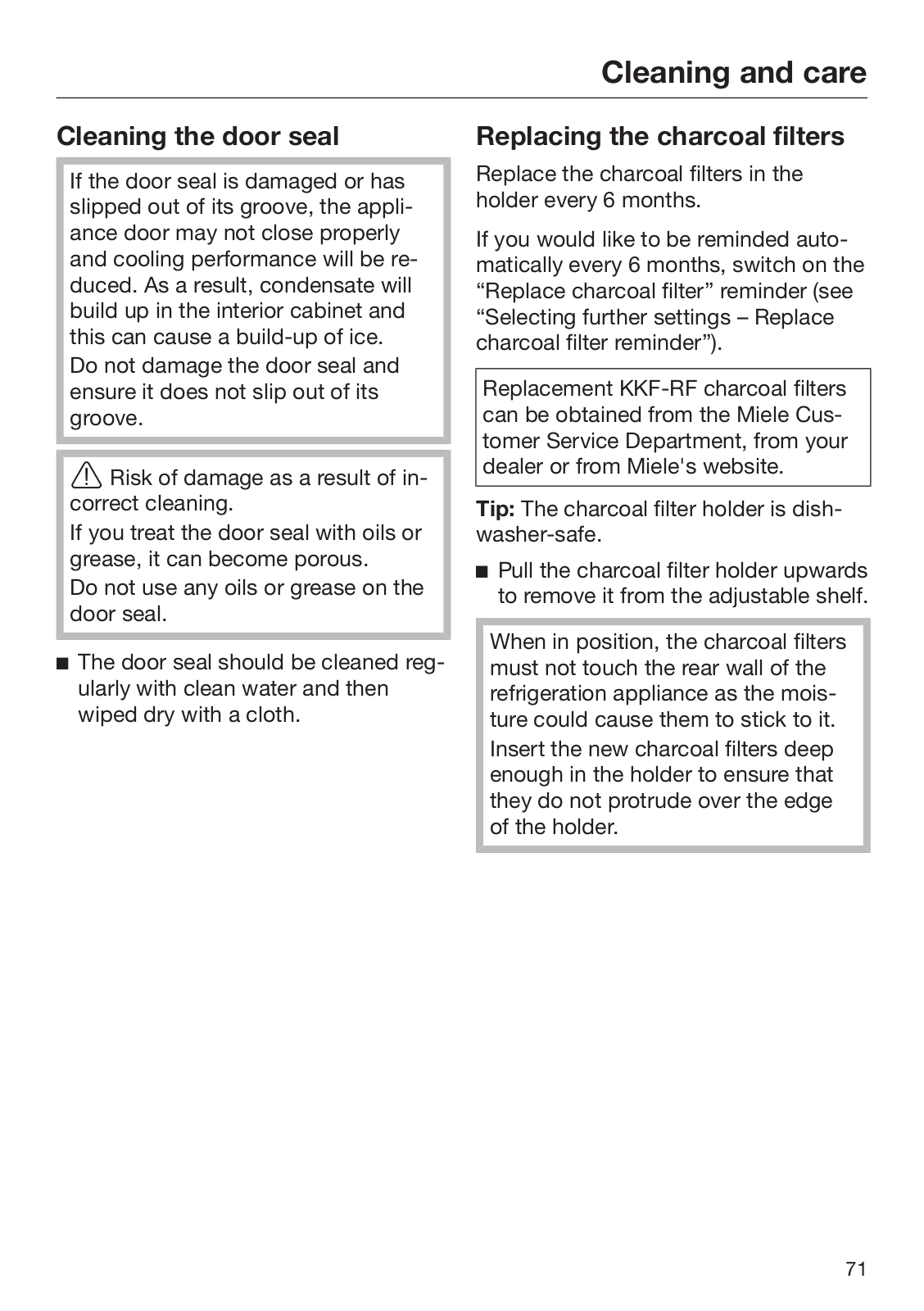

Cleaning the door seal ........................................................................................ |
71 |
Replacing the charcoal filters .............................................................................. |
71 |
After cleaning ...................................................................................................... |
72 |

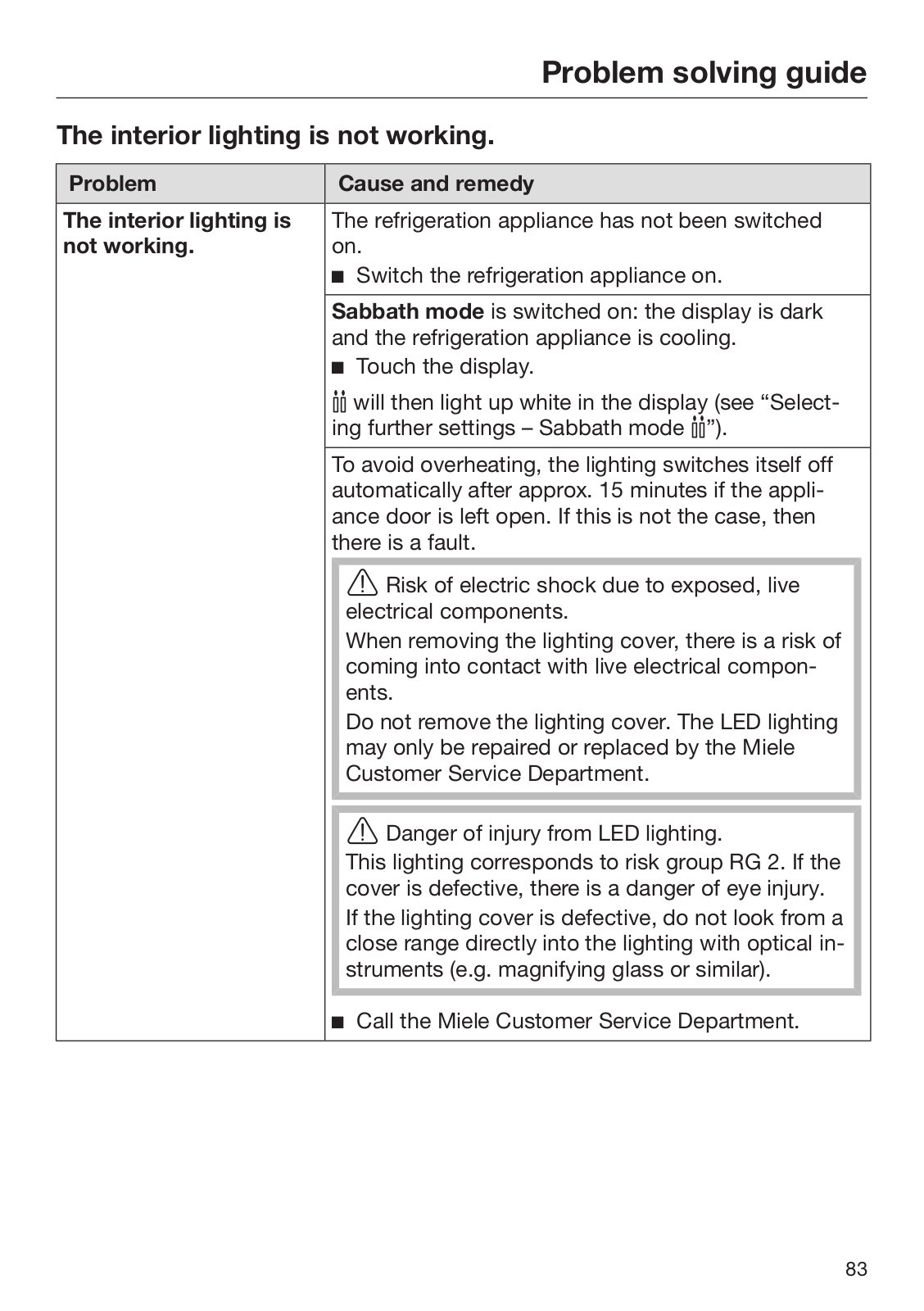

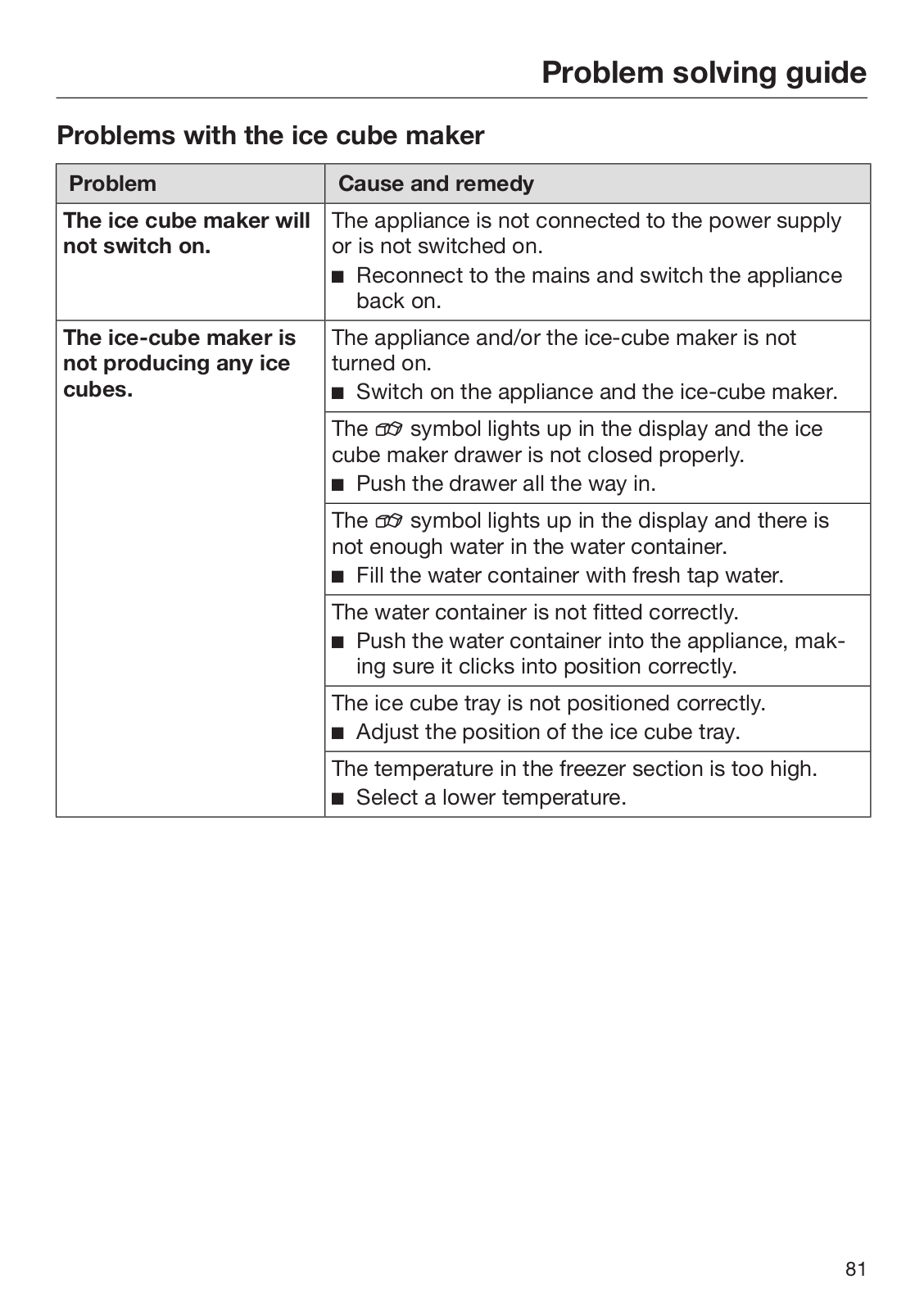

Problem solving guide ...................................................................................... |
73 |

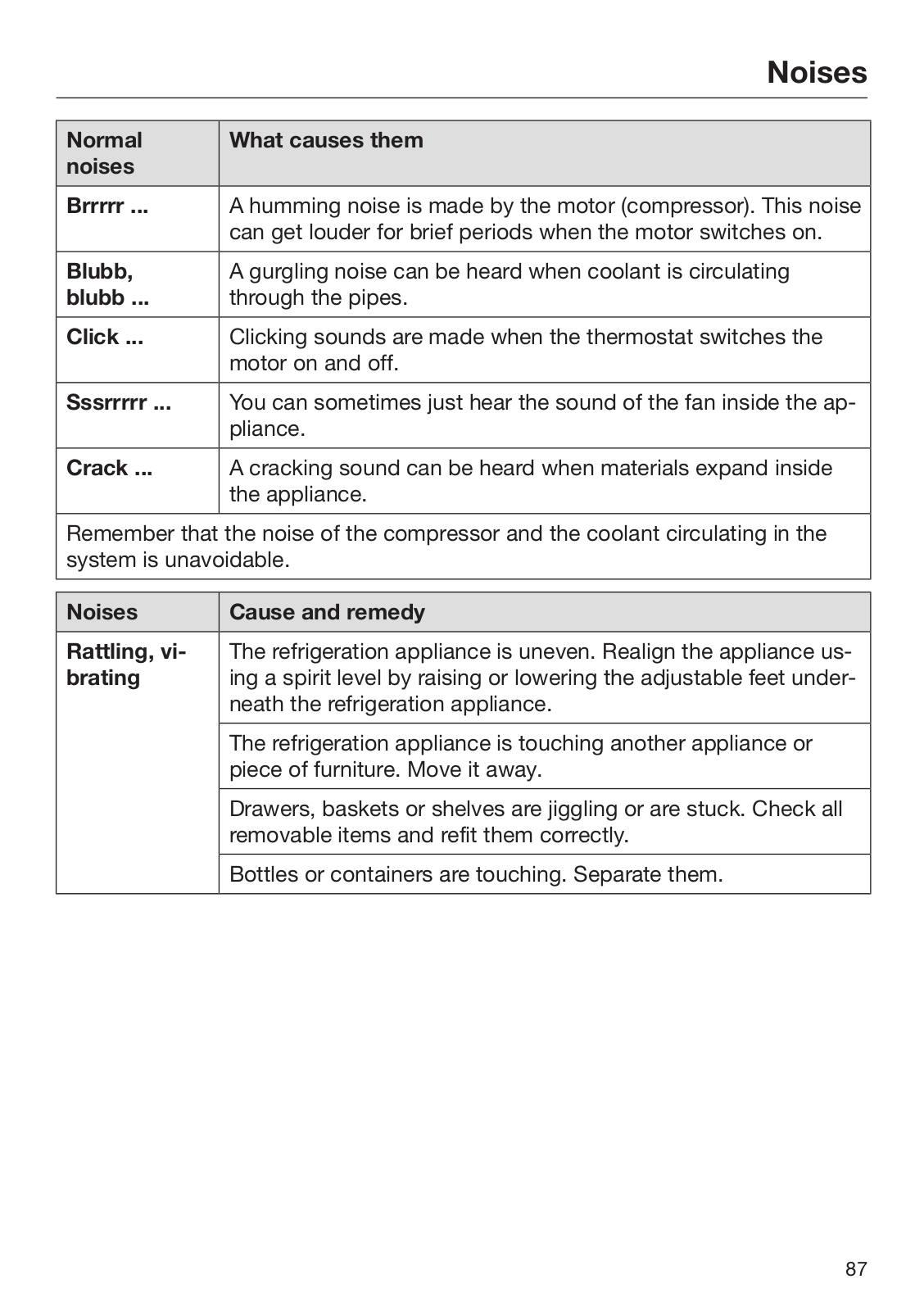

Noises................................................................................................................. |
87 |
Service................................................................................................................ |
88 |
Contact in the event of a fault ............................................................................. |
88 |
– Displaying licence agreements.................................................................... |
88 |
EPREL database ................................................................................................. |
88 |
Warranty .............................................................................................................. |
88 |
Installation.......................................................................................................... |
89 |

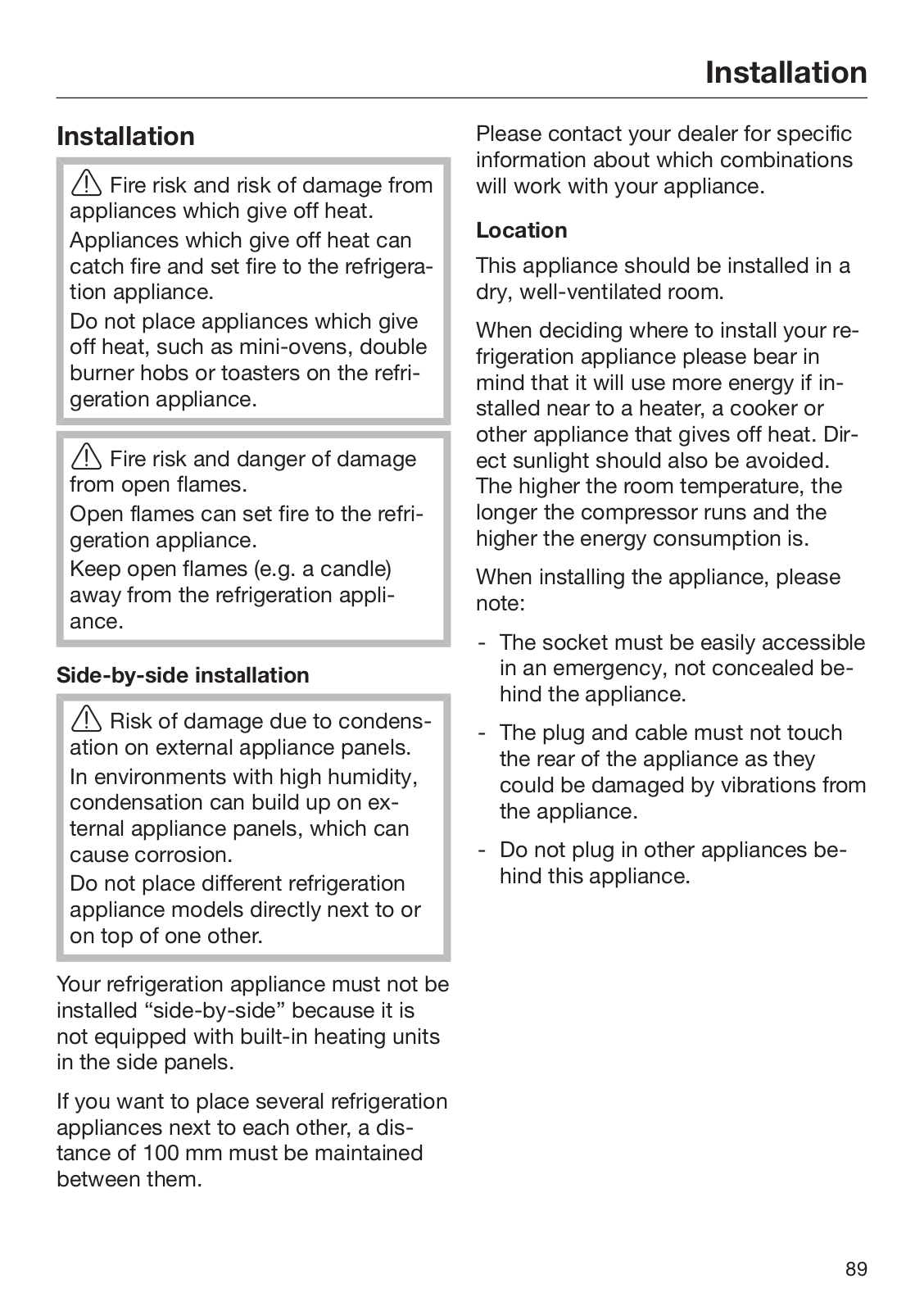

Installation ........................................................................................................... |
89 |
Side-by-side installation................................................................................. |
89 |
Location.......................................................................................................... |
89 |
Ventilation....................................................................................................... |
91 |
Fitting supplied wall spacers.......................................................................... |
91 |
Limiting the opening angle of the appliance door.......................................... |
92 |

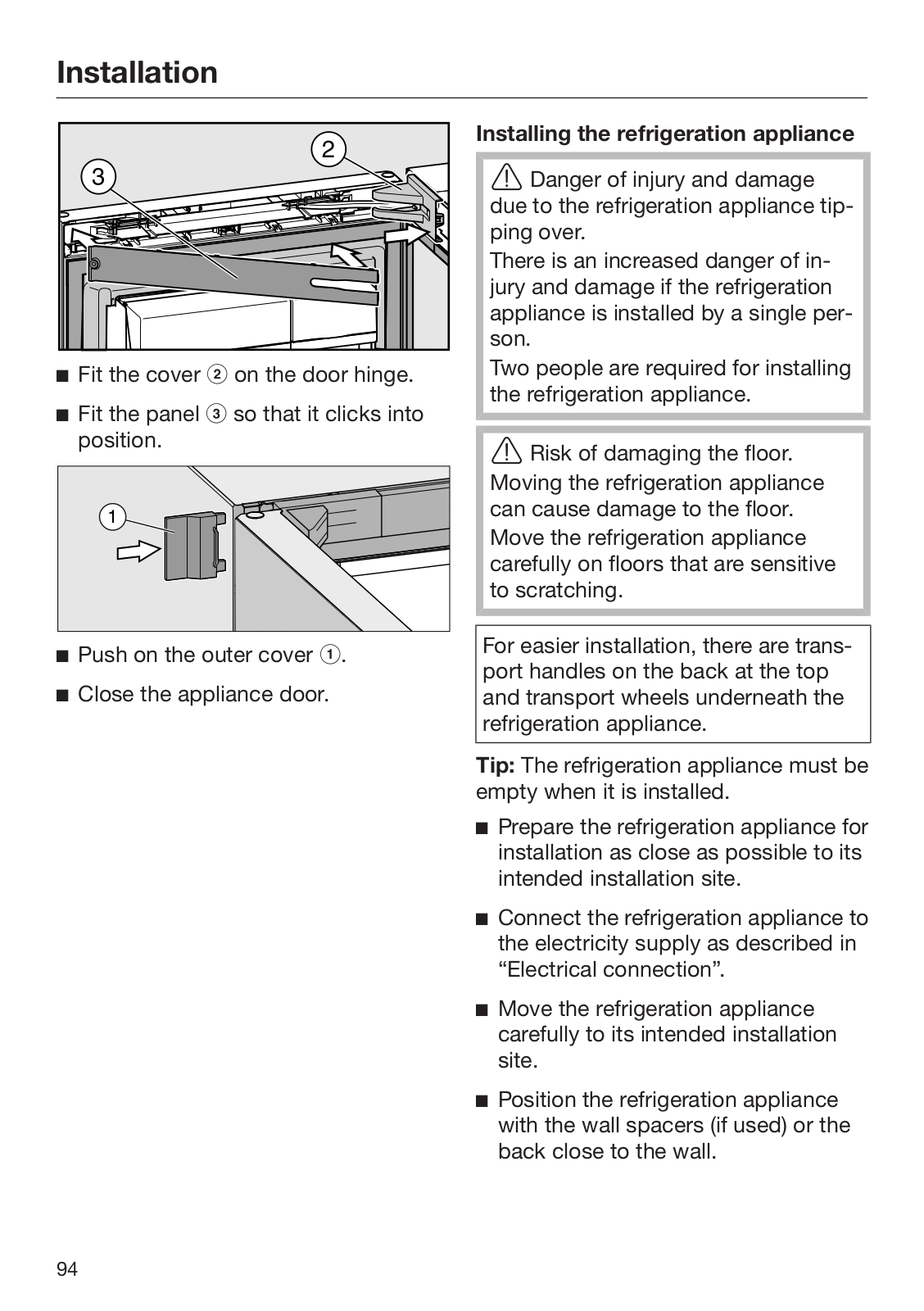

Installing the refrigeration appliance .............................................................. |
94 |
Aligning the appliance .................................................................................... |
95 |
Installing the refrigeration appliance in a run of kitchen units ........................ |
95 |

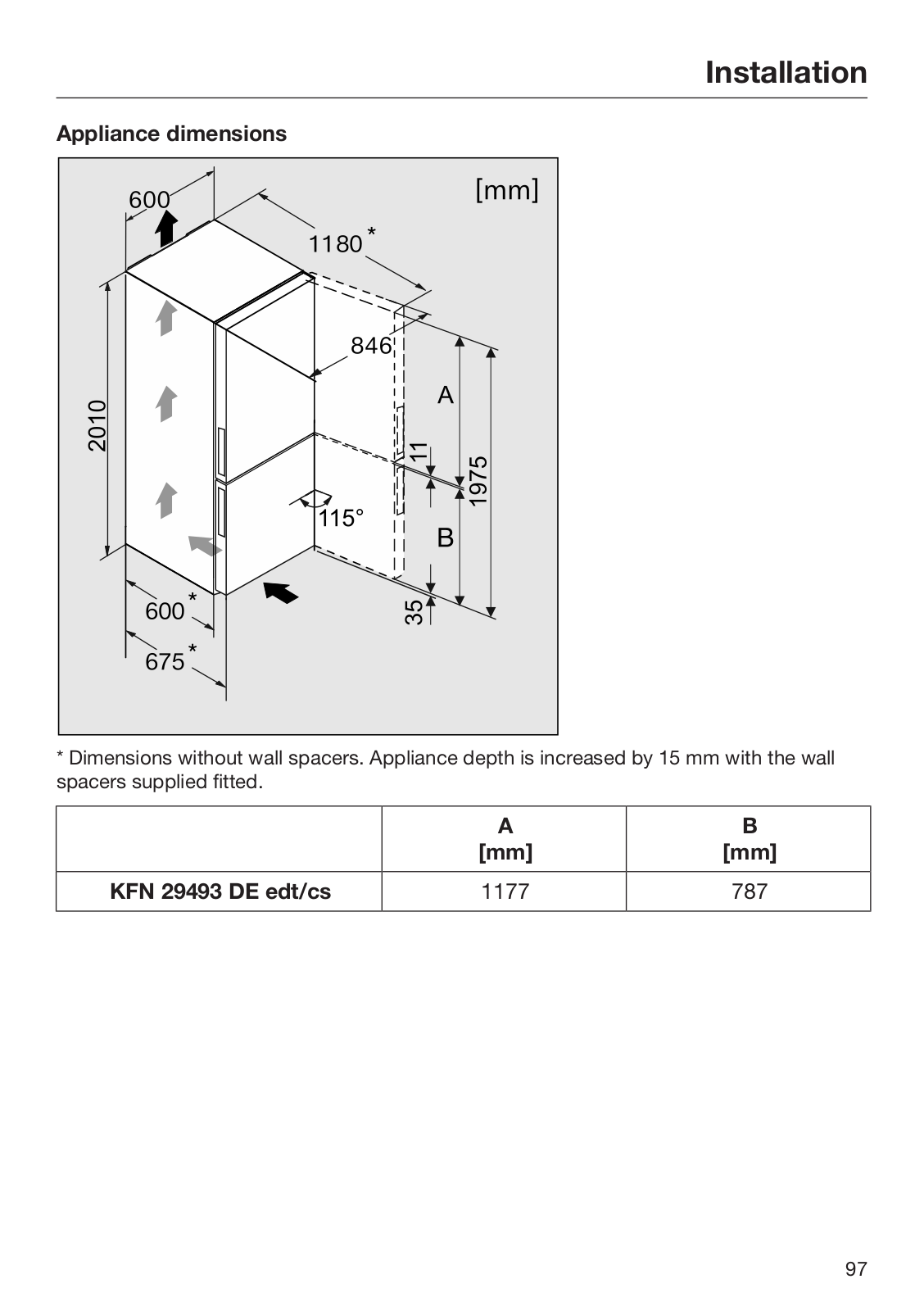

Appliance dimensions .................................................................................... |
97 |
Changing the door hinging.................................................................................. |
98 |
Aligning the appliance doors............................................................................... |
111 |
Electrical connection ........................................................................................... |
112 |
4
Warning and Safety instructions
This refrigeration appliance complies with current safety requirements. Inappropriate use can, however, lead to personal injury and material damage.
Please read the operating and installation instructions carefully before using the refrigeration appliance for the first time. They contain important information on safety, installation, use and maintenance. This is to protect yourself from injury, and from damaging your refrigeration appliance.
In accordance with standard IEC 60335-1, Miele expressly and strongly advises that you read and follow all information provided on installing the refrigeration appliance, as well as the safety notes and warnings.
Miele cannot be held liable for injury or damage caused by noncompliance with these instructions.
Keep these operating and installation instructions in a safe place and pass them on to any future owner.
Correct application
This refrigeration appliance is intended for use in the home and in similar environments, for example
– in shops, offices and similar work settings
– by the guests in hotels, motels, bed & breakfasts and other typical home settings.
This refrigeration appliance is not intended for outdoor use.
This appliance is intended for domestic use only for cooling and storing food and drink as well as for storing deep frozen food, freezing fresh food and for making ice.
Any other usage is not supported by the manufacturer and could be dangerous.
5
Warning and Safety instructions
This refrigeration appliance is not suitable for storing and keeping cool medicines, blood plasma, laboratory preparations or similar substances or products that are subject to the Medical Device Directive. Incorrect use of the refrigeration appliance for such purposes may cause deterioration of the items stored. The refrigeration appliance is also not suitable for use in areas where there is a risk of explosion.
Miele cannot be held liable for damage caused by improper or incorrect use or operation of the appliance.
The appliance can only be used by people with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised whilst using it, or have been shown how to use it in a safe way and recognise and understand the consequences of incorrect operation.
Safety with children
Children under 8 years of age must be kept away from the refrigeration appliance unless they are constantly supervised.
Children 8 years and older may only use the appliance unsupervised if they have been shown how to use it in a safe way and recognise and understand the consequences of incorrect operation.
Children must not be allowed to clean or maintain the appliance unsupervised.
Please supervise children in the vicinity of the appliance and do not let them play with it.
Danger of suffocation! Whilst playing, children could become entangled in packaging (such as plastic wrapping) or pull it over their head and suffocate. Keep packaging material away from children.
6
Warning and Safety instructions
Technical safety
The coolant circuit has been checked for leaks. The refrigeration appliance complies with statutory safety requirements and the appropriate EU directives.
This refrigeration appliance contains the refrigerant isobutane (R600a), a natural gas which is environmentally friendly but flammable. The refrigerant does not damage the ozone layer and does not contribute to the greenhouse effect.
The use of this refrigerant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the refrigerant flowing around the cooling circuit. Unfortunately, this cannot be avoided, but it does not affect the performance of the refrigeration appliance.
When transporting and installing the refrigeration appliance, ensure that no parts of the cooling circuit are damaged. Splashes of refrigerant can damage the eyes.
In the event of damage:
-Avoid naked flames or anything which creates a spark.
-Disconnect the refrigeration appliance from the mains electricity supply.
-Ventilate the room where the refrigeration appliance is located for several minutes.
-Contact the Miele Customer Service Department.
The more coolant there is in a refrigeration appliance, the larger the room it should be installed in. In the event of a leakage, if the appliance is in a small room, there is the danger of a combustible gas/ air mixture building up. For every 11 g of coolant at least 1 m3 of room space is required. The amount of coolant in the refrigeration appliance is stated on the data plate inside the appliance.
7
Warning and Safety instructions
To avoid the risk of damage to the appliance, make sure that the connection data (fuse rating, frequency and voltage) on the data plate corresponds to the household supply.
Check that this is the case before connecting the appliance. Consult a qualified electrician if in any doubt.
The electrical safety of this appliance can only be guaranteed when correctly earthed. It is essential that this standard safety requirement is met. If in any doubt please have the electrical installation tested by a qualified electrician.
Reliable and safe operation of this appliance can only be assured if it has been connected to the mains electricity supply.
If the electrical connection cable is faulty it must only be replaced by a Miele authorised service technician to protect the user from danger.
Do not connect the appliance to the mains electrical supply by a multi-socket adapter or extension lead. These are a fire hazard and do not guarantee the required safety of the appliance.
If moisture gets into electrical components or into the mains connection cable, it could cause a short circuit. Therefore, do not operate this refrigeration appliance in areas which are exposed to moisture (e.g in a garage or utility room).
This appliance must not be used in a non-stationary location (e.g. on a ship).
Do not use a damaged appliance. It could be dangerous. Check the appliance for visible signs of damage.
The appliance must be isolated from the electricity supply during installation, maintenance and repair work.
Unauthorised installation, maintenance and repairs can cause considerable danger for the user.
Installation, maintenance and repairs must only be carried out by a Miele authorised technician.
8
Warning and Safety instructions
While the appliance is under warranty, repairs should only be undertaken by a Miele authorised service technician. Otherwise the warranty is invalidated.
Please note the following advice for ice cube production:
-Only use cold, fresh tap water to fill the water container. Hot water and other liquids could damage the water container or the ice cube maker.
-Change the water in the water container regularly (if not used for more than 24 h) and always empty and refill it before switching on the ice cube maker to ensure that the ice cubes are made with fresh water. This will prevent bacteria from building up.
-Do not use water from a reverse osmosis unit in this appliance. This could damage the refrigeration appliance.
Faulty components must only be replaced with genuine Miele original spare parts. Miele can only guarantee the safety standards of the appliance when Miele replacement parts are used.
This refrigeration appliance is supplied with a special lamp to cope with particular conditions (e.g. temperature, moisture, chemical resistance, abrasion resistance and vibration). This lamp must only be used for the purpose for which it is intended. The lamp is not suitable for room lighting. Replacement lamps may only be fitted by a Miele authorised technician or by the Miele Customer Service Department. This refrigeration appliance contains several light sources with at least energy efficiency class G.
9
Warning and Safety instructions
Correct use
This refrigeration appliance is designed for use within specific ambient temperatures (climate range). Do not use in ambient temperatures for which it is not designed. The climate range is stated on the data plate in the interior cabinet of the refrigeration appliance. A lower ambient temperature will cause the compressor to switch off for longer periods, meaning that the refrigeration appliance is unable to maintain the required temperature.
Do not cover or block the air vents as this could impair the efficiency of the appliance, increase the electricity consumption and could cause damage to the components.
If storing food which contains a lot of fat or oil in the appliance or the door, make sure that it does not come into contact with plastic components as this could cause stress cracks or break the plastic.
Risk of fire and explosion. Do not store explosive materials in the refrigeration appliance or any products containing propellants (e.g. spray cans). Electrical components can cause flammable mixes of gases to ignite.
Danger of explosion. Do not operate any electrical equipment (e.g. an electric ice-cream maker) inside the refrigeration appliance. Danger of sparking and explosion.
Danger of injury and damage to the appliance. Do not store cans or bottles containing carbonated drinks or liquids which could freeze in the freezer zone. Otherwise they could burst.
Danger of injury and damage to the appliance. When cooling drinks quickly in the freezer zone, make sure bottles are not left in for more than one hour. Otherwise they could burst.
Danger of injury. Never handle frozen food or the metal parts of the appliance with wet hands. Your hands may freeze to the frozen food or to the metal.
10
Warning and Safety instructions
Danger of injury. Do not take ice cubes out with your bare hands and never place ice cubes or ice lollies in your mouth straight from the freezer zone. The very low temperature of the frozen food can cause frost burn to the lips and tongue.
Do not refreeze partially or fully defrosted food. Consume defrosted food as soon as possible, as it will lose its nutritional value and spoil if left for too long. Defrosted food may only be re-frozen after it has been cooked.
Observe the manufacturer's “use-by” dates and storage instructions given on food to avoid the risk of food poisoning. Storage times will depend on several factors, including the freshness and quality of the food, as well as the temperature at which it is stored.
Stainless steel appliances
Adhesives will damage the stainless steel surface and cause it to lose its dirt-repellent protective coating. Do not use sticky notes, transparent adhesive tape, masking tape or other types of adhesive on the stainless steel surface.
The surface is susceptible to scratching. Even magnets can cause scratching.
Accessories and spare parts
Only use genuine original Miele accessories and spare parts with this appliance. Using accessories or spare parts from other manufacturers will invalidate the warranty, and Miele cannot accept liability.
Miele will guarantee to supply functional spare parts for a minimum of 10 years and up to 15 years following the discontinuation of your refrigeration appliance.
11
Warning and Safety instructions
Cleaning and care
Do not use any oils or grease on the door seals, as these will cause the seals to deteriorate and become porous with time.
Do not use a steam cleaning appliance to clean or defrost this appliance.
Steam could reach electrical components and cause a short circuit.
Sharp edged or pointed objects will damage the evaporator, causing irreversible damage to the appliance. Do not use sharp edged or pointed objects to
-remove frost and ice,
-separate frozen food or remove ice trays.
Do not place electric heaters or candles in the appliance to defrost it. These can damage the plastic parts.
Do not use defrosting sprays or de-icers, as they could contain substances which could damage the plastic parts or which might cause the build-up of gases and pose a danger to health.
Transport
Always transport the appliance in an upright position and in its original transport packaging to avoid damage in transit.
Danger of injury and damage to the appliance. The refrigeration appliance is very heavy and must be transported by two people.
12
Warning and Safety instructions
Disposal of your old appliance
If your old refrigeration appliance has a door lock, destroy it. This will prevent the risk of children playing accidentally locking themselves in and endangering their lives.
Splashes of coolant can damage the eyes. Be careful not to damage any part of the pipework whilst awaiting disposal, e.g. by
-puncturing the coolant channels in the condenser,
-bending any pipework, or
-scratching the surface coating.
13
Caring for the environment
Disposal of the packing mater-
ial
The packaging is designed to protect the appliance from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.
Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites.
Disposing of your old appli-
ance
Electronic and electrical appliances contain many valuable materials. They also contain certain materials, compounds and components which were essential for their correct functioning and safety. These could be hazardous to your health and to the environment if disposed of with general waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with general waste.
Instead, please make use of officially designated collection and disposal points to dispose of and recycle electrical and electronic appliances in your local community, with your dealer or with Miele. By law, you are solely responsible for deleting any personal data from the appliance prior to disposal.
Take care not to damage your refrigeration appliance’s pipework before or during transportation to an authorised collection depot.
This is to ensure that coolant in the cooling circuit and oil in the compressor is contained, and will not leak into the environment.
Please ensure that your old appliance poses no risk to children while being stored prior to disposal. For further information, see “Warning and Safety instructions” in these operating and installation instructions.
14
|
|
|
Saving energy |
|
|
Normal energy consump- |
|
Increased energy con- |
|
|
|
|||
|
tion |
|
sumption |
|
|
|
|
|
|
Installation / |
In a ventilated room. |
|
In an enclosed, unventilated |
|
Maintenance |
|
|
room. |
|
|
|
|
|
|
|
Protected from direct sun- |
|
In direct sunlight. |
|
|
light. |
|
|
|
|
|
|
|
|
|
Not near to a heat source |
|
Near to a heat source (radi- |
|
|
(radiator, oven). |
|
ator, oven). |
|
|
|
|
|
|
|
Where the ideal ambient |
|
Where the ambient room |
|
|
room temperature is approx. |
|
temperature is above 25 °C. |
|
|
20 °C. |
|
|
|
|
|
|
|
|
|
Ventilation gaps uncovered |
|
Ventilation gaps covered or |
|
|
and dusted regularly. |
|
dusty. |
|
|
|
|
|
|
Temperature |
Refrigerator section 4 to |
|
The lower the temperature, |
|
setting |
5 °C |
|
the higher the energy con- |
|
|
|
|
sumption. |
|
|
|
|
|
|
|
PerfectFresh Pro zone just |
|
|
|
|
above 0 °C |
|
|
|
|
|
|
|
|
|
Freezer section -18 °C |
|
|
|
|
|
|
|
|
15
Saving energy
|
Normal energy consump- |
Increased energy con- |
|
tion |
sumption |
|
|
|
Use |
Drawers and shelves ar- |
|
|
ranged as they were when |
|
|
the appliance was delivered. |
|
|
|
|
|
Only open the door when |
Frequent opening of doors |
|
necessary and for as short a |
for long periods will cause a |
|
time as possible. Store food |
loss of coldness. The appli- |
|
in an organised way. |
ance will try to cool down |
|
|
and the compressor will run |
|
|
for longer periods. |
|
|
|
|
Take an insulated cool bag |
Hot food or food at room |
|
when shopping, and load |
temperature raises the tem- |
|
food in the appliance as |
perature inside the appli- |
|
soon as possible. |
ance. The appliance will try |
|
Replace any food removed |
to cool down and the com- |
|
as quickly as possible, be- |
pressor will run for longer |
|
fore it warms up too much. |
periods. |
|
Allow hot food and drinks to |
|
|
cool down before placing |
|
|
them in the appliance. |
|
|
|
|
|
Store food well packaged or |
The evaporation or condens- |
|
covered. |
ation of liquids in the refri- |
|
|
gerator section will cause a |
|
|
loss of coldness. |
|
|
|
|
Place frozen food in the refri- |
|
|
gerator to defrost. |
|
|
|
|
|
Do not over-fill the appliance |
Poor air circulation will |
|
to allow air to circulate. |
cause a loss of coldness. |
|
|
|
16
Guide to the appliance
a Control panel with display
b Interior lighting
c Fan
d Door shelf / Egg tray
e Adjustable shelf with lighting (FlexiLight)
f Storage drawer (CompactCase)
g Bottle rack
h Holder with active charcoal filter (Active AirClean)
i Water container
j Bottle shelf with bottle holder
k Regulator for setting the humidity level in the DailyFresh drawer
l Condensate channel and drain hole
m DailyFresh drawer (on rollers)
n Recessed handle with door opening aid (Click2open)
o Ice cube drawer with automatic ice cube maker
p Freezer drawers
q Ventilation grille
This drawing is for illustration purposes only.
For easier installation there are transport handles on the back at the top and transport wheels underneath the appliance.
17
Guide to the appliance
Ice cube maker with integrated
ice cube tray
The automatic ice cube maker is supplied with water from the water container (see chapter “Before using for the first time”, section “Water container”).
The ice cube maker can be turned off independently of the refrigeration appliance if you do not want to make any ice cubes.
The automatic ice cube maker is located in the ice cube drawer .
An ice cube tray , in which the ice cubes are produced, is integrated in the ice cube maker . This ice cube tray cannot be removed.
The ice cube tray automatically empties into the drawer as soon as ice cubes are produced.
The ice cube maker is switched on via Settings mode (see “Selecting further settings”, section “Switching the ice cube maker on and off”).
18
|
|
|
Guide to the appliance |
|
Symbols on the display |
|
|
||
Controls |
|
|
|
|
|
|
|
||
Symbol |
|
Meaning |
||
|
|
|
||
|
Standby |
For switching on the whole refrigeration ap- |
||
|
|
|
pliance, |
|
|
|
|
for switching on the refrigerator section sep- |
|
|
|
|
arately |
|
|
|
|
||
|
Settings mode |
For selecting settings (see “Selecting further |
||
|
|
|
settings”) |
|
|
|
|
||
/ |
Minus/plus |
For altering a setting (e.g. temperature) |
||
|
|
|
||
OK |
|
For confirming a setting |
||
|
|
|
||
/ |
Left/right navigation ar- |
For scrolling in Settings mode to select a |
||
|
|
row |
setting |
|
|
|
|
||
|
Back |
For exiting a menu |
||
|
|
|
|
|
Information |
|
|
||
|
|
|
||
Symbol |
|
Meaning |
||
|
|
|
||
|
Standby |
The appliance is connected to the electrical |
||
|
|
|
supply but is not switched on. |
|
|
|
|
The refrigerator section is switched off sep- |
|
|
|
|
arately. |
|
|
|
|
||
|
Freezer section |
Identifies the freezer section temperature |
||
|
|
|
display. |
|
|
|
|
||
|
Super cool (refrigerator |
Function can be selected depending on sec- |
||
|
|
section) / Super freeze |
tion (see “Using Super cool and Super |
|
|
|
(freezer section) |
freeze”). |
|
|
|
|
||
|
Temperature alarm |
Warning (see “Problem solving guide - Dis- |
||
|
|
|
play warnings”). |
|
|
|
|
||
|
Door alarm |
Warning (see “Problem solving guide - Dis- |
||
|
|
|
play warnings”). |
|
|
|
|
|
|
|
|
Power failure |
Warning (see “Problem solving guide - Dis- |
|
|
||||
|
|
|
play warnings”). |
|
|
|
|
|
|
19
Accessories
Accessories supplied |
Egg tray |
Bottle holder
Butter dish
The flexible ribs grip the bottles securely when the door is opened and closed.
Bottle rack
Bottles can be stored horizontally using the bottle rack to save space.
The bottle rack can be placed at different positions in the appliance.
KKF-FF Active AirClean charcoal filters with holder
The charcoal filters neutralise unpleasant odours in the refrigerator section for improved air quality.
20
Accessories
Cool pack
The cool pack prevents the temperature in the freezer section from rising too quickly in the event of a power cut. This can help prolong the storage life.
The cool pack will be at its most effective after it has been in the freezer for approx. 24 hours.
Door opening angle limiter
The door hinges are set ex works to enable the door to be opened up to 115°. If the appliance door hits an adjacent wall when opened, for example, the opening angle can be limited to approx. 90°.
Optional accessories
A range of useful Miele accessories and care products are available for your appliance.
Accessories are available to order via the Miele Webshop, from Miele directly (see back cover for contact details) or from your Miele dealer.
Bottle rack
The appliance is supplied with a bottle rack for the refrigerator section. Additional bottle racks can be fitted if required.
KKF-FF Active AirClean charcoal filters with holder
The appliance is supplied with a charcoal filter holder. Additional holders can be fitted in the refrigerator section, if required.
KKF-RF replacement filters (Active AirClean)
Replacement filters to the fit the holder are available. We recommend replacing the charcoal filters every 6 months.
Multi-purpose microfibre cloth
The microfibre cloth is suitable for removing fingerprints and light soiling from surfaces such as stainless steel, glass, plastic and chrome without the use of chemicals.
21
Accessories
MicroCloth Kit
The MicroCloth Kit contains a universal cloth, a glass cloth and a polishing cloth.
These cloths are extremely resistant to tearing and very robust. Thanks to very fine microfibres these cloths achieve an excellent cleaning performance.
XKS 3100 W WiFi stick (Miele@home)
The WiFi stick enables your refrigeration appliance to communicate, so that you can access appliance data at any time with a smartphone or tablet (iOS® or Android™ operating systems).
To use the Miele@mobile app or Miele@home features, such as the option to switch on SuperCool/SuperFreeze, you must insert the WiFi stick into your Miele refrigeration appliance and connect it to your WiFi network.
Fitting and installation instructions for the stick are supplied with it and describe how to install the WiFi stick and connect to a WiFi network.
22
Before using for the first time
Before using for the first time
Packaging material
Remove all packaging material from the inside of the appliance.
Protective foil
The stainless steel trim to the interior shelves and the door shelves has a layer of protective foil to prevent damage during transportation. The appliance doors, and side panels where applicable, have a protective foil.
Do not remove the foil until the appliance has been positioned in its final location.
Cleaning and care
Please refer to the relevant instructions in “Cleaning and care”.
Clean the inside of the appliance and the accessories.
Throw away the first 3 batches of ice cubes made after the ice cube maker is started up, as the water will have been used for the initial rinsing of the water supply line.
Clean the ice cube maker.
Water container
The water quality must conform to the requirements for drinking water in the country in which the refrigeration appliance is being installed (e.g. 98/83/ EU).
Risk of damage due to incorrect operation.
Liquids containing sugar, such as soft drinks, fruit juice and syrup or concentrate diluted with water, can damage the pump and the ice cube maker.
Hot or boiling water can damage the water container.
Only use cold, fresh tap water to fill the water container.
Risk to health due to contaminated water.
Bacteria can develop in water which has been sitting in the water container or the water supply lines for several days. This poses a risk to your health.
Change the water in the water container every day.
You should also always empty and refill it before switching on the ice cube maker to ensure that the ice cubes are made with fresh water.
Clean the water container if it is not used for more than 24 h and dry it carefully.
Throw away the first 3 batches of ice cubes made after the ice cube maker is started up, as the water will have been used for the initial rinsing of the water supply line.
This applies to the initial commissioning as well as when using the appliance again after it has been turned off for a long time.
The ice cube maker in the freezer section is supplied with water from the water container in the refrigerator section.
23
Before using for the first time
However, you can also use the cooled water in the water container at any time.
The water container holds approx. 1 litre of water.
Connecting the appliance
Connect the appliance to the electricity supply as described in “Electrical connection”.
Switch the appliance on. |
Pull the water container forwards to remove it.
Clean it thoroughly with water to remove any dust etc.
Fill the container up to the marker with fresh, cold drinking water.
Place the filled water container back into its holder and push it all the way in.
Make sure that the water container has locked into position and is sitting correctly in its niche.
Standby
will appear in the display.
24
Switching on and off
Touch display
Using pointed or sharp objects on the touch display can damage it.
Only touch the display with your fingers.
If your fingers are cold, the touch display may not react.
Switching on
To enable the temperature to get sufficiently cold inside the appliance, allow the appliance to run for approx.
2 hours before placing food in it.
Do not place food in the freezer section until the temperature is at least -18 °C.
5°C
-18°C
Start screen
The display changes to the start screen.
The interior lighting will come on and become brighter until the maximum brightness is reached. The appliance is switched on and begins to cool down to the following pre-set temperatures:
-Temperature in the refrigerator section = 5 °C
-Temperature in the freezer section = -18 °C
Standby
Touch briefly.
The welcome message
Miele - Willkommen will appear in the display for approx. 3 seconds.
If this does not happen and appears in the display, the safety lock is still activated (see “Selecting further settings - Activating or deactivating the safety lock - Deactivating the safety lock temporarily”).
Start screen
5°C
-18°C
The start screen is the screen from which all settings can be selected.
25
Switching on and off
The display is divided into several fields for this purpose:
The temperature display for the refrigerator section is in the upper field.
Touch the temperature display to access the refrigerator section display. Here you can set or change the temperature (see “The correct temperature” - “Setting the temperature”) as well as select the Super cool function (see “Using Super cool and Super freeze”).
The temperature display for the freezer section is in the lower field.
This is also identified by .
Touch the temperature display to access the freezer section display. Here you can set or change the temperature as well as select the Super freeze function (see “Using Super cool and Super freeze”).
Settings mode is on the righthand side.
Touch the symbol to access Settings mode. Here further settings can be selected (see “Selecting further settings”).
Switching off the refrigeration
appliance
You can switch the appliance off in Set-
tings mode (see “Selecting further set-
tings”).
5°C
-18°C
Start screen
Touch .
Settings mode
Use the or arrow buttons until
is displayed.
Switching off the refrigeration appliance
Touch .
The temperature display goes out and
lights up.
The interior lighting of the refrigerator section will go out and cooling will be switched off.
will go out after approx. 10 minutes. The display goes dark and switches to energy-saving mode.
26
Switching on and off
Switching off the refrigerator section separately
The refrigerator section can be switched off without having to switch off the freezer section.
As the refrigerator section is not being cooled, the water in the water container will go stale. Switch off the ice cube maker and drain the water container.
Tip: We recommend using the Holiday mode function if you are away on holiday (see “Selecting further settings” – “Switching Holiday mode on/off”), so that the appliance operates at lower power rather than being switched off completely.
If the Party mode or Super cool functions have been previously selected, these will be switched off automatically.
5°C
-18°C
Standby
Touch the temperature display in the field for the refrigerator section.
5°C
OK
Refrigerator section display
Touch or until is displayed.
Touch .
Touch OK to confirm your entry.
-18°C
Start screen – refrigerator section switched
off
The temperature display for the refrigerator section goes out and lights up.
The refrigerator section is switched off. The temperature in the freezer section will still be shown in the display. The refrigerator section interior lighting will go out.
27
Switching on and off
Switching the refrigerator section on
separately (if previously switched off)
-18°C
Start screen - refrigerator section switched
off
Touch in the field for the refrigerator section.
4°C
OK
Refrigerator section display
Touch or until 4 °C is displayed.
Touch OK to confirm your entry.
The refrigerator section will be switched on and the interior lighting will come on. It will start to cool and gradually reach the set temperature.
Switching off for longer peri-
ods of time
If, during a long absence, the refrigeration appliance is switched off but not cleaned and the door(s) left shut, there is a risk of mould forming inside the appliance.
It is essential to clean the refrigeration appliance.
If the refrigeration appliance is not going to be used for a longer period of time, observe the following:
Switch the refrigeration appliance off.
Switch the appliance off at the wall socket and pull the plug out of the socket, or disconnect the fuse.
Empty the ice cube drawer.
Take the water container out of the appliance, empty it, then clean and dry it.
Clean the refrigeration appliance and leave the door ajar to air the appliance and avoid odours building up inside.
It is also advisable to carry out the last two instructions if you are switching the refrigerator section off for a longer period of time.
28
The correct temperature
It is very important to set the correct temperature for storing food in the appliance. Bacteria will cause food which is not stored at the correct temperature to deteriorate rapidly. Temperature influences the growth rate of these bacteria. Reducing the temperature reduces their growth rate.
The temperature in the refrigeration appliance will rise:
-The more often the appliance door is opened and the longer it is kept open
-The more food that is stored in it
-The warmer the food is which is being put into it
-The higher the ambient temperature surrounding the refrigeration appliance. This refrigeration appliance is designed for use within specific ambient temperatures (climate range).
Do not use in ambient temperatures for which it is not designed.
... in the refrigerator section
We recommend a temperature of 4 °C in the refrigerator section.
... in the freezer section
To freeze fresh food and to store frozen food for long periods, a temperature of
-18 °C is required. At this temperature the growth of bacteria is generally halted. As soon as the temperature rises above -10 °C, the bacteria become active in the food again so it cannot be kept as long. For this reason, partially defrosted or defrosted food must not be re-frozen. Food may be re-frozen once it has been cooked , as the high temperatures achieved when cooking destroy most bacteria.
29
The correct temperature
Temperature display
5°C
-18°C
Start screen
In normal operation the upper temperature display shows the average, current temperature in the refrigerator section and the lower temperature display the lowest temperature in the freezer section.
Depending on the ambient temperature and the temperature setting, it can take the appliance a few hours to reach the temperature required and for this temperature to then be shown as a constant temperature in the display.
Setting the temperature
The temperatures for the refrigerator and freezer sections can be set independently of one another.
Touch the temperature display for the section you want to change.
The previously set temperature will appear.
4°C
OK
Refrigerator section display
-18°C
OK
Freezer section display
Use and to set the temperature higher or lower.
30
Loading...
