Miele K 2911 SF Specification Sheet

K 2911 SF

MasterCool™ refrigerator
For high-end design andtechnology on a large scale.

EAN: 4002515901380 / material number: 10744810

Appliance category

Fridge •

Construction type

Built-in •
Built-in integrated •
Door hinge side Left
Convertible hinging •
Can be installed side-by-side •

Design

Front color Stainless steel/CleanSteel
Lighting BrilliantLight

Control panel

Freshness system MasterFresh
DynaCool •
SelfClose •
Push2open •
FullAccess •
EasyClean •
MaxLoad hinge •

Control

Electronic temperature display and control MasterSensor
Super Cooling •

• Push2open for convenient door­opening assistance

• Food stays fresh for up to 3xlonger
thanks to SmartFresh

• Light floods the interior thanks to LED
elements – BrilliantLight

• Communication with the machine
could not be easier – WiFiConn@ct

• Convenient controlthanks to color
touch display MasterSensor

No. of temperature zones 2
Sabbath mode •

Fridge / Fridge compartment

Height-adjustable toughened glass shelves 2
No. of removable fruit and vegetable drawers 1
No. of PerfectFresh drawers 2
SlidingShelf •
Door rack for tins 1
Inner door racks for bottles 3

Appliance networking

Miele@home •
WiFiConn@ct •
MobileControl •

Safety

Lock function •
Overflow protection •
Acoustic door alarm •
Acoustic temperature alarm, freezer section •
Optical door alarm •
Optical temperature alarm •

More information at www.MieleUSA.com

For further information please see next page...

K 2911 SF

MasterCool™ refrigerator
For high-end design andtechnology on a large scale.

Technical data

Appliance width in in.(mm) 35 3/4 (908)
Appliance height in in.(mm) 83 3/4 (2,127)
Appliance depth in in.(mm) 24 1/8 (610)
Weight in lbs.(kg) 457 (207.00)
Fridge compartment volume in l 582
Freezing capacity in h/lbs. (h/kg) 0 (0.0)
Current consumption in milliampere (mA) 4,000
Voltage in V 120
Fuse rating in A 10
Wire length in ft (m) 9 (3.0)

Standard accessories

Active AirClean filter •

For further information please see next page...

K 2911 SF

MasterCool™ refrigerator
For high-end design andtechnology on a large scale.

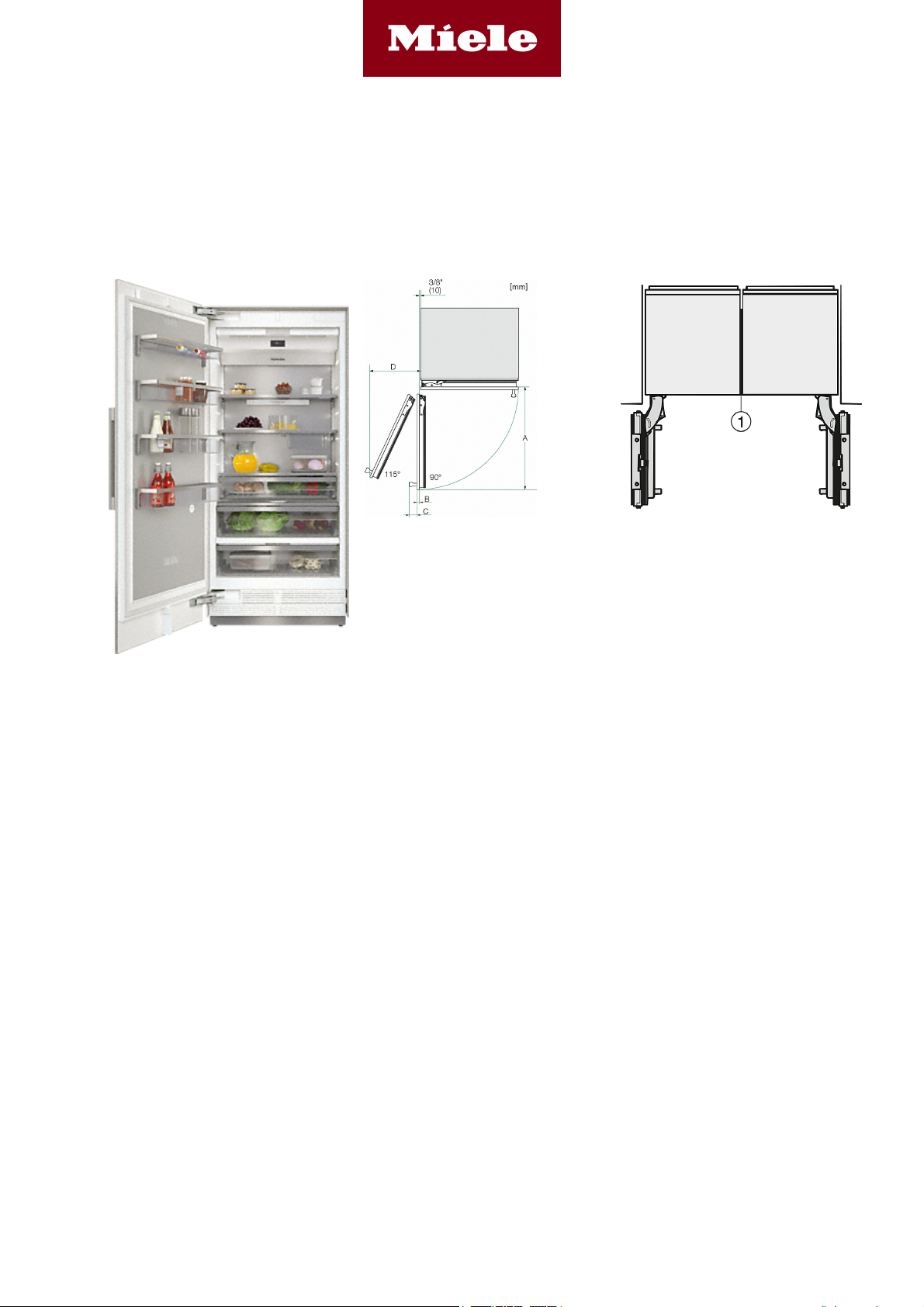

Opening angle 90°/115°, right side stop, MasterCool
(Sketch) with footnote

A) Appliance door
F 2411 Vi, F 2411 SF, F 2471 Vi, F 2471 SF: 525 mm (20
2/3 inch);
F 2412 Vi, F 2412 SF, F 2472 Vi, F 2472 SF: 525 mm (20
2/3 inch);
K 2611 Vi, F 2671 Vi, F 2671 SF, KWT 2611 Vi, KWT 2611
SF, KWT 2671 ViS: 677 mm (26 2/3 inch);
K 2612 Vi, F 2672 Vi, F 2672 SF, KWT 2612 Vi, KWT 2612
SF, KWT 2672 ViS: 677 mm (26 2/3 inch);
K 2811 Vi, K 2811 SF, F 2811 SF, F 2811 Vi, KF 2811 Vi,
KF 2811 SF: 829 mm (32 2/3 inch);
K 2812 Vi, K 2812 SF, F 2812 SF, F 2812 Vi, KF 2812 Vi,
KF 2812 SF: 829 mm (32 2/3 inch);
K 2911 Vi, K 2911 SF, F 2911 Vi, F 2911 SF, KF 2911 Vi,
KF 2911 SF: 982 mm (38 2/3 inch);
K 2912 Vi, K 2912 SF, F 2912 Vi, F 2912 SF, KF 2912 Vi,
KF 2912 SF: 982 mm (38 2/3 inch);
B) Furniture front (max. 38 mm) (1 1/2 inch)
C) Door handle
D) Distance from the door to the wall (without furniture front
and door handle):
F 2411 Vi, F 2411 SF, F 2471 Vi, F 2471 SF: 237 mm (9 1/3
inch);
F 2412 Vi, F 2412 SF, F 2472 Vi, F 2472 SF: 237 mm (9 1/3
inch);
K 2611 Vi, F 2671 Vi, F 2671 SF, KWT 2611 Vi, KWT 2611
SF, KWT 2671 ViS: 296 mm (11 2/3 inch);
K 2612 Vi, F 2672 Vi, F 2672 SF, KWT 2612 Vi, KWT 2612
SF, KWT 2672 ViS: 296 mm (11 2/3 inch);
K 2811 Vi, K 2811 SF, F 2811 SF, F 2811 Vi, KF 2811 Vi,
KF 2811 SF: 363 mm (14 1/3 inch);
K 2812 Vi, K 2812 SF, F 2812 SF, F 2812 Vi, KF 2812 Vi,
KF 2812 SF: 363 mm (14 1/3 inch);
K 2911 Vi, K 2911 SF, F 2911 Vi, F 2911 SF, KF 2911 Vi,
KF 2911 SF: 428 mm (16 7/8 inch);
K 2912 Vi, K 2912 SF, F 2912 Vi, F 2912 SF, KF 2912 Vi,
KF 2912 SF: 428 mm (16 7/8 inch);
E) ONLY valid for SF versions: A + 25 mm (1 inch)

Side-by-side, MasterCool, without partition wall, with
heating mat (Sketch) (with footnote)

1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US,
CA, MX, BR)

For further information please see next page...

K 2911 SF

MasterCool™ refrigerator
For high-end design andtechnology on a large scale.

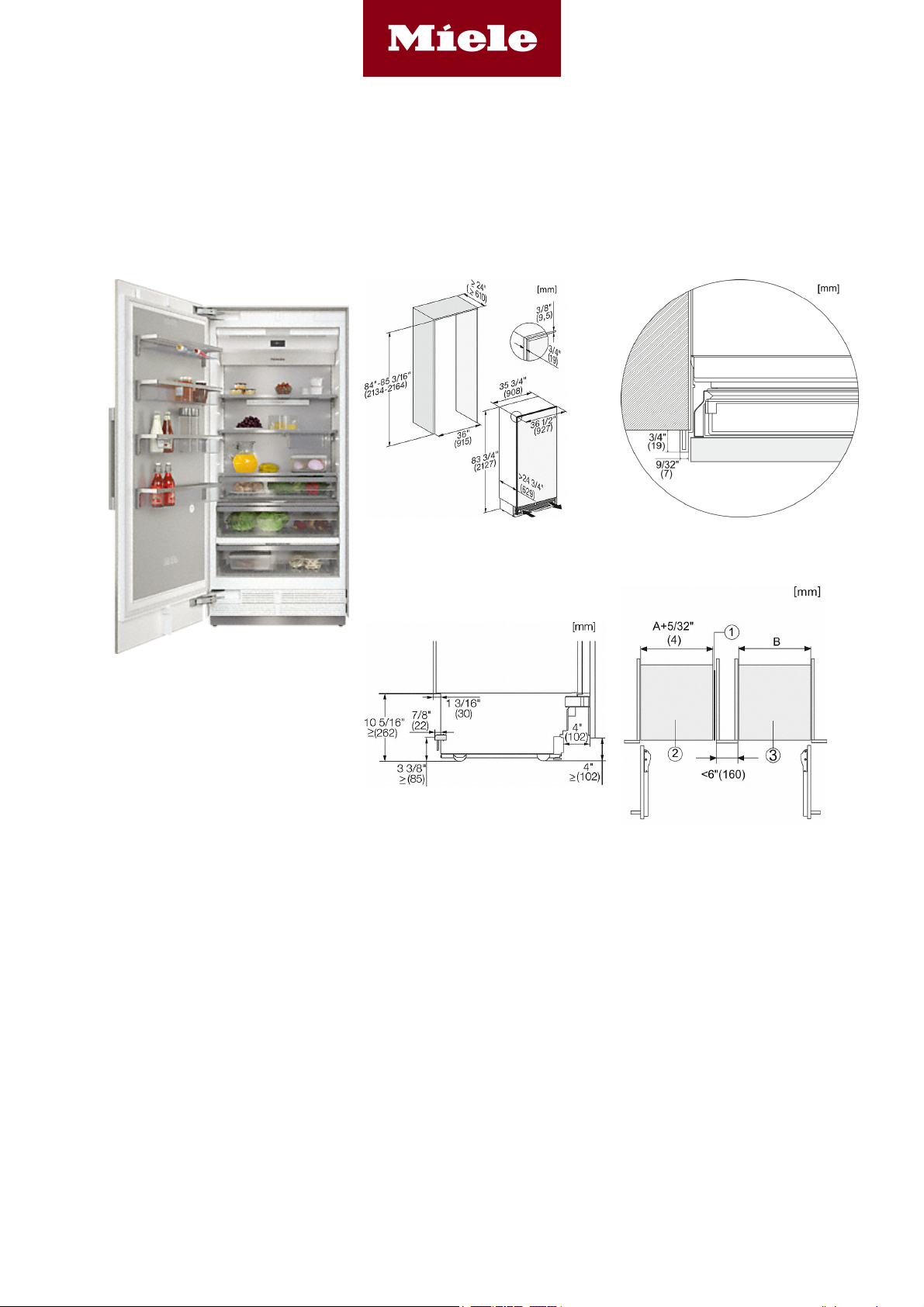

K2902SF, K2912SF, F2912SF, K2901SF, K2911SF,
F2911SF, K2901 SF, K2911 SF, F2911 SF, inner space,
MasterCool (US, CA)

Sideview, MasterCool, Sketch

MasterCool, top view, doorway, installation drawings

Side-by-Side, MasterCool, footnote, installation drawings

1. KSK 2001/2002

2. Device A

3. Device B
A = niche device A
B = niche device B

For further information please see next page...

K 2911 SF

MasterCool™ refrigerator
For high-end design andtechnology on a large scale.

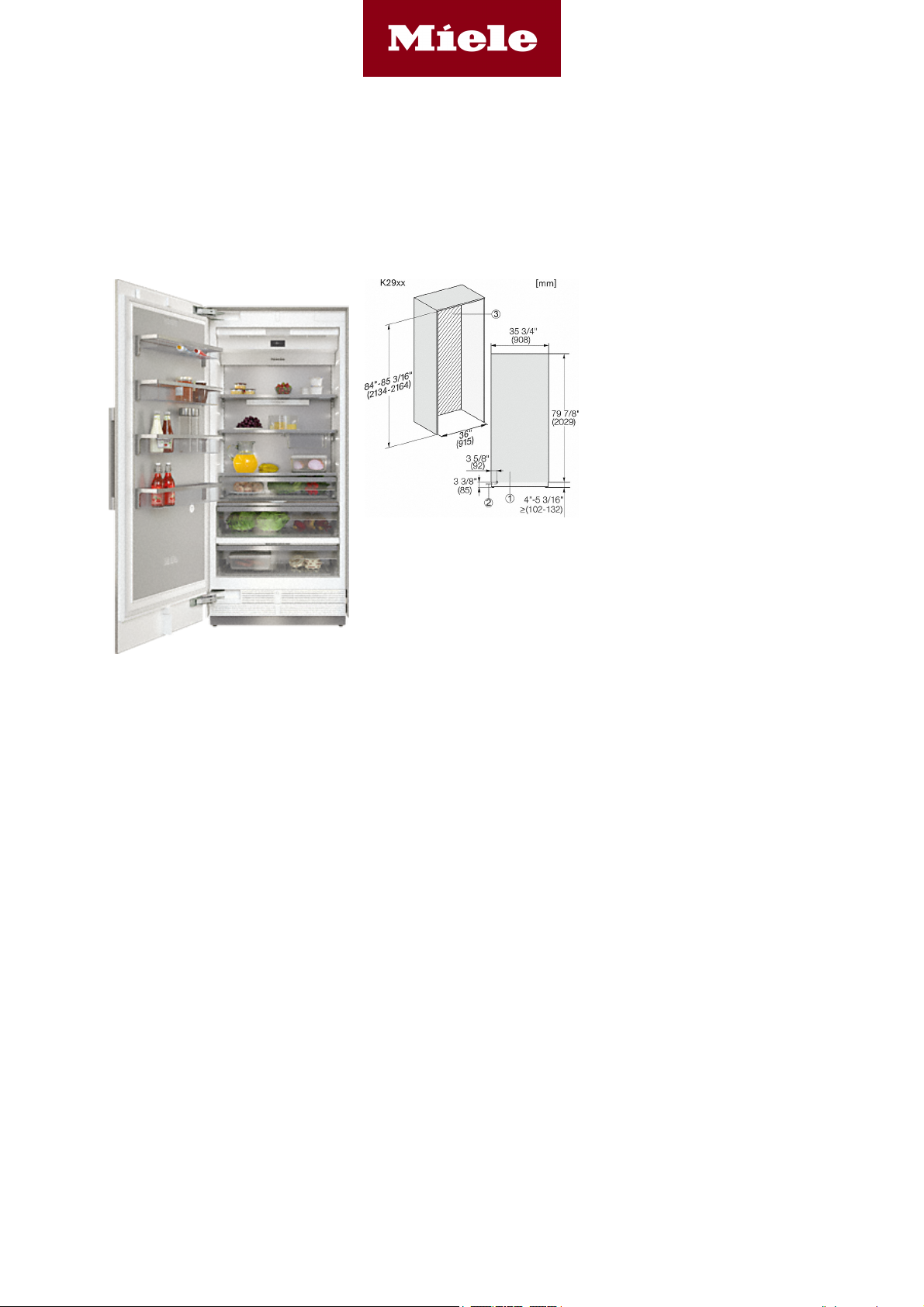

K2902Vi, K2902SF, K2912Vi, K2912SF, installation,
MasterCool, *footnote, installation drawings

1. Vew from the front

2. Mains connection cable, L = 3000 mm (118 inch)

3. No water/ELT connections permitted in this area
