Miele K 1803 SF Operating and Installation Instructions

Operating and Installation Instructions Refrigerator

To prevent accidents and appliance damage read these instructions before installation or use.

M.-Nr. 09 920 730en - US, CA

Contents

IMPORTANT SAFETY INSTRUCTIONS.................................4

Guide to the refrigerator ............................................7

Before use .......................................................9

Turning the appliance On/Off .........................................9

Settings.........................................................10

Turning the button sound On/Off ......................................11

Turning off for longer periods of time ..................................12

Temperature and door alarm .......................................13

Temperature alarm ................................................13

Door alarm .......................................................13

Setting the temperature............................................14

Setting the temperature in the refrigerator...............................14

SmartFresh drawers ..............................................16

Storage temperatures ..............................................16

Humidity.........................................................16

Using the SmartFresh drawers .......................................16

Using the refrigerator efficiently ....................................18

SuperCool.......................................................19

Automatic defrost ................................................20

Adjusting the interior fittings .......................................21

Moving the shelves ................................................21

Removing the storage shelf from above the deli drawer....................23

To remove the shelf above the SmartFresh drawers .......................23

Cleaning and care ................................................24

Cleaning the interior and accessories ..................................25

Appliance doors / Side walls .........................................25

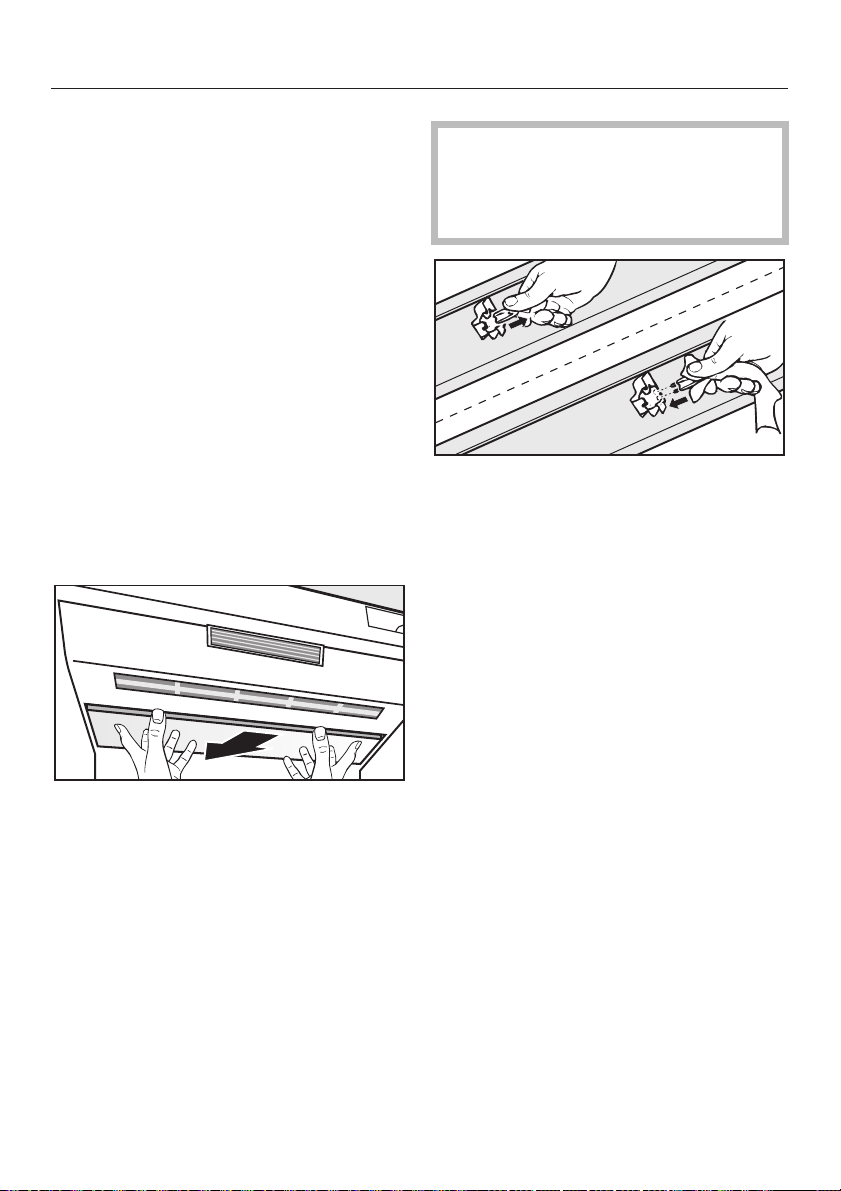

Humidity filters ....................................................27

Ventilation slits ....................................................28

Door seals .......................................................28

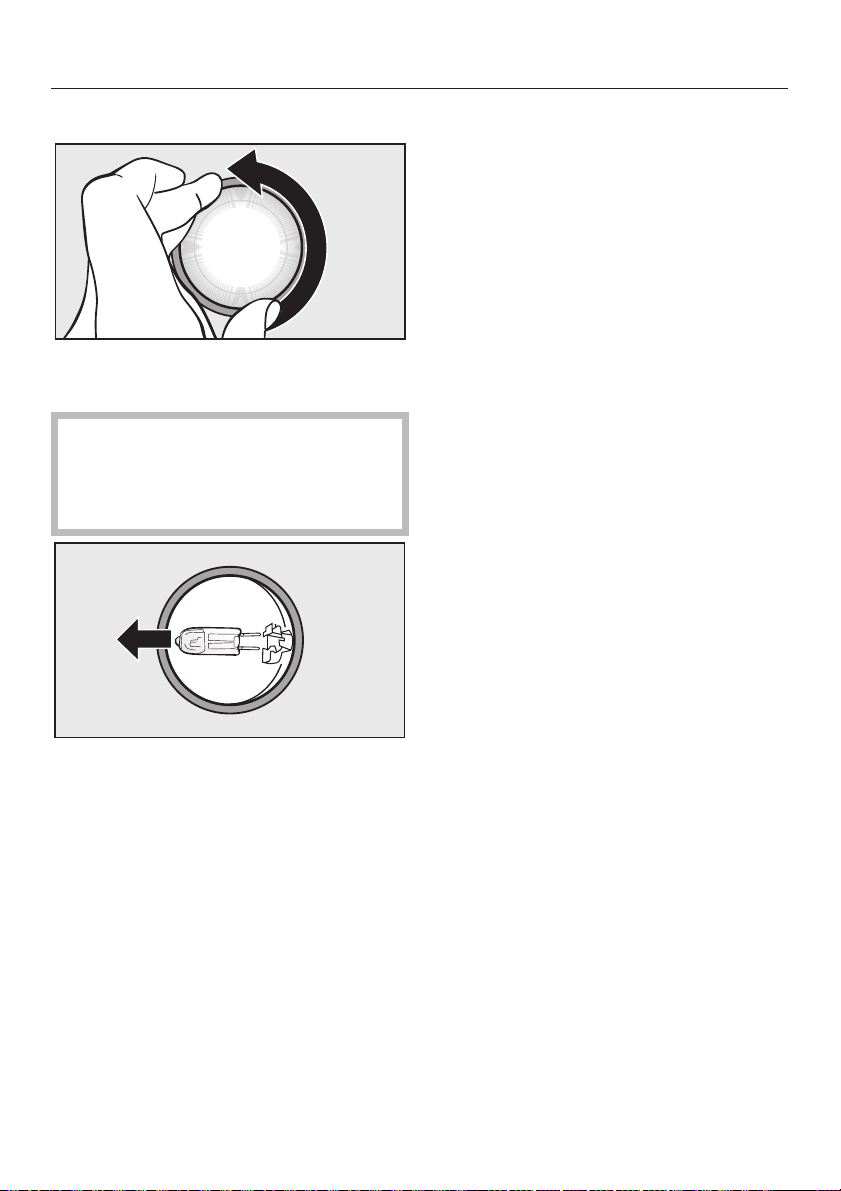

Changing the light bulb .............................................29

Frequently asked questions ........................................31

Causes of noises .................................................33

After sales service ................................................34

Caring for the environment.........................................37

Contents

Installation ......................................................38

Climate Range ....................................................38

Installation site ....................................................38

Stainless steel panels ..............................................41

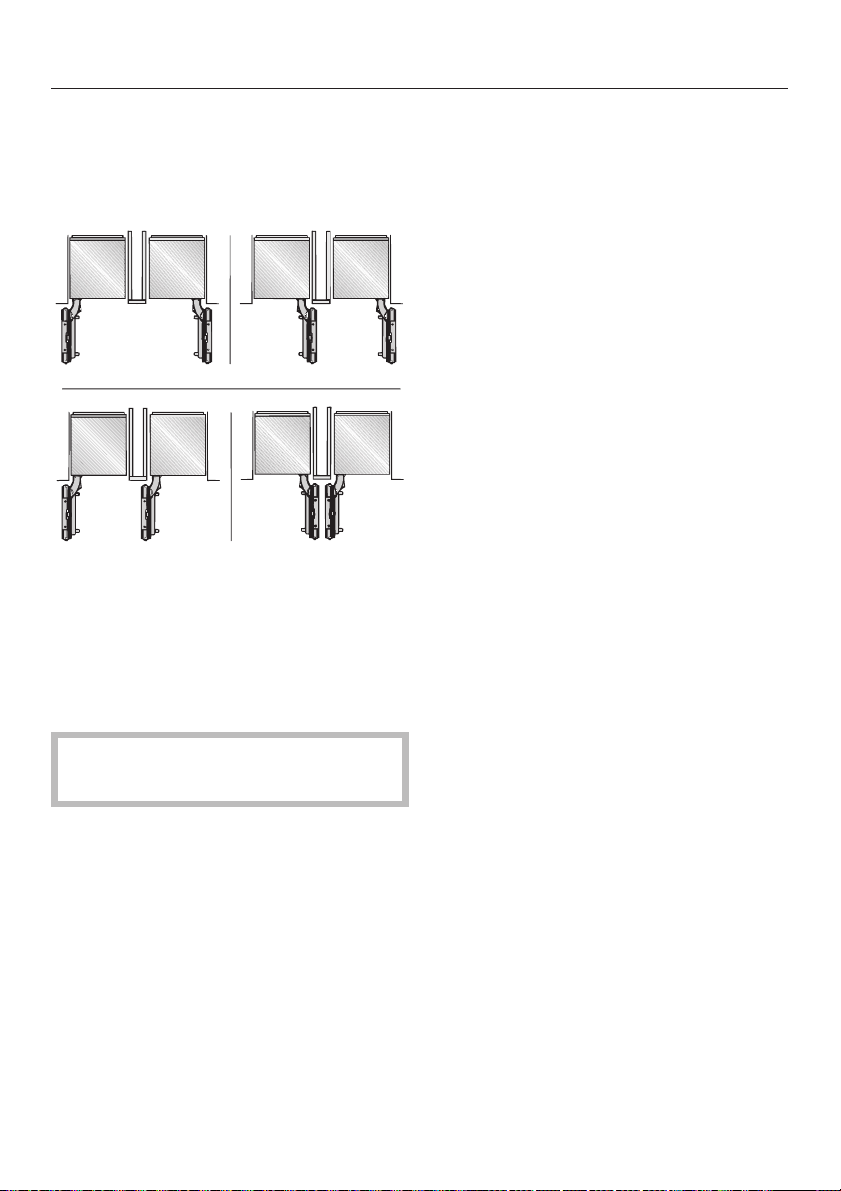

Installation options .................................................41

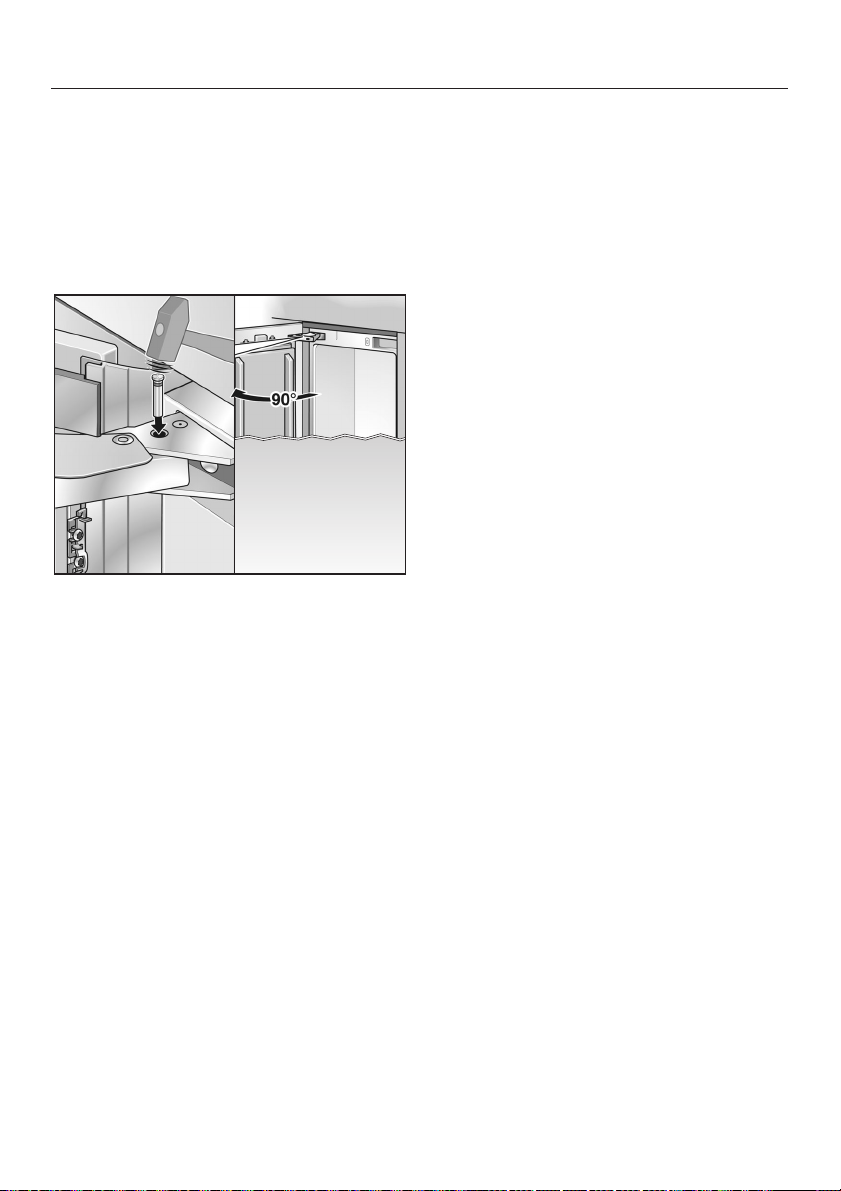

Adjusting the door opening angle (optional accessory) ....................43

Dimensions......................................................44

Niche dimensions .................................................45

Installing the appliance ............................................47

Before you begin ..................................................47

RemoteVision module installation .....................................49

Preparing the installation niche .......................................50

Sliding the appliance into the installation space ..........................54

Aligning the appliance..............................................55

Attaching the appliance to the installation niche..........................56

Electrical connection..............................................58

RemoteVision (optional accessory) ..................................59

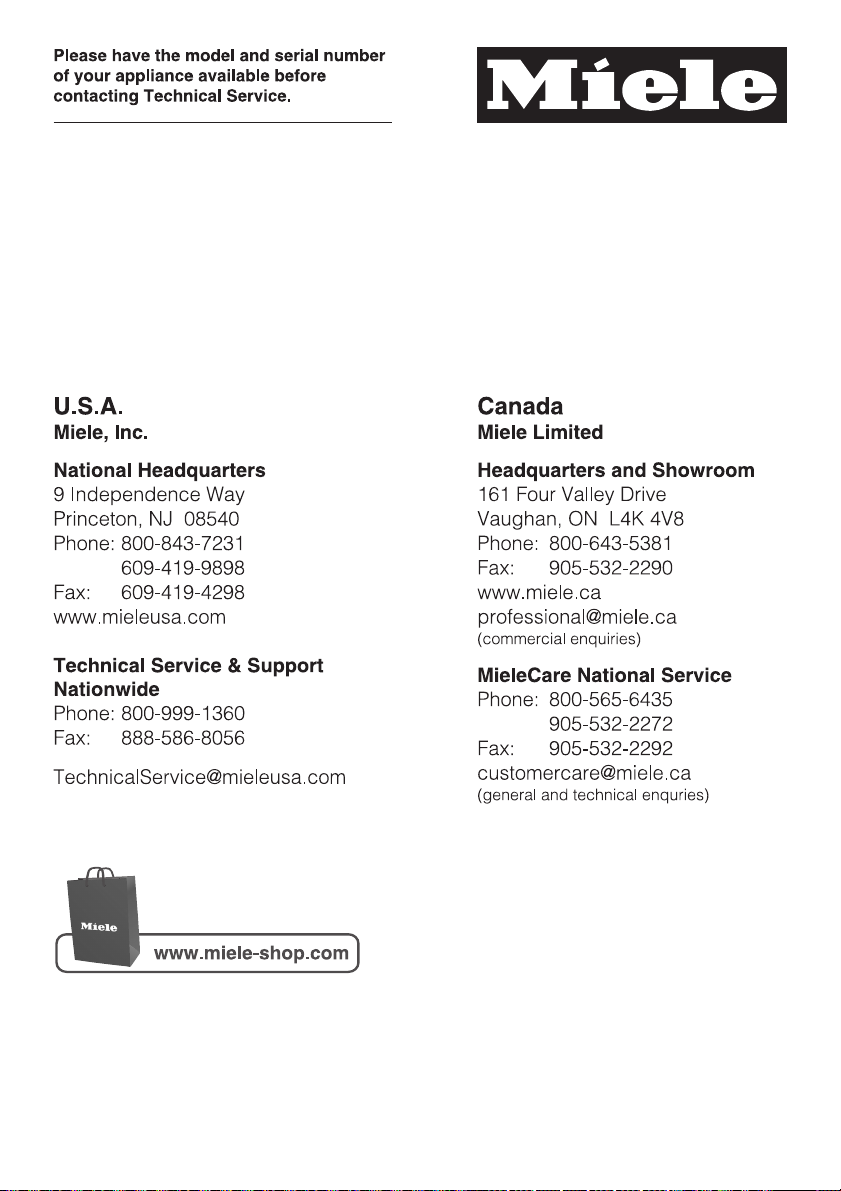

Contact details ..................................................63

IMPORTANT SAFETY INSTRUCTIONS

When using the appliance, follow basic safety precautions, including the following:

Read all instructions before installation and use to prevent accidents and machine damage.

This appliance is intended for residential use only. Use only as described in this Operating manual.

Only use the appliance for its intended purpose.

This appliance complies with current safety requirements. Improper use of the appliance can lead to personal injury and material damage.

Keep these operating instructions in a safe place and pass them on to any future user.

Electrical Safety

Before installation, make sure that

the voltage and frequency listed on the data plate correspond with the household electrical supply. This data must correspond to prevent injury and machine damage. Consult a qualified electrician if in doubt.

Before installation or service,

disconnect the power supply to the work area by unplugging the unit, "tripping" the circuit breaker or removing the fuse.

Do not use an extension cord to

connect this appliance to electricity. Extension cords do not guarantee the required safety of the appliance (e.g., danger of overheating).

Be certain your appliance is

properly installed and grounded by a qualified technician. To guarantee the electrical safety of this appliance continuity must exist between the appliance and an effective grounding system. It is imperative that this basic safety requirement be met. If there is any doubt, have the electrical system of the house checked by a qualified electrician.

Only connect power to the

appliance when all installation work is complete.

IMPORTANT SAFETY INSTRUCTIONS

Installation

This appliance is top-heavy and must be secured to prevent the possibility of tipping forward. Keep the door closed until the appliance is completely installed and secured per the installation instructions.

This appliance must be installed

and connected in compliance with the installation instructions.

Installation and repair work should

be performed by a Miele authorized service technician. Work by unqualified persons could be dangerous and may void the warranty.

Installation must comply with local

regulations and state laws.

Do not operate any appliance with a

damaged cord or plug, or if the appliance has been damaged in any manner. Contact Miele’s Technical Service Department.

This appliance must not be used in

a non-stationary location (e.g. on a ship).

Do not install the refrigerator in a

room with too low an ambient temperature, e.g., a garage, as this may lead to the appliance switching off for longer periods so that it cannot maintain the required temperature.

Use

This appliance is not designed for

commercial use. It is intended for use in domestic households and in similar working and residential environments such as:

shops, offices and similar work

–

environments

by customers in hotels, motels, Bed

–

& Breakfasts or similar residential environments.

This appliance is not intended for

outdoor use.

Persons who lack physical, sensory

or mental abilities, or experience with the machine should not use it without supervision or instruction by a responsible person.

To reduce the risk of injury, do not

allow children to play in, on or near the appliance, especially in the door hinge area.

After your refrigerator is in operation,

do not touch the cold surfaces in the refrigerator compartment, particularly when hands are damp or wet. Skin may adhere to these extremely cold surfaces.

Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

Do not use any oils or grease on the

door seal, as these will cause the seal to deteriorate and become porous with time.

IMPORTANT SAFETY INSTRUCTIONS

Do not block the ventilation gaps in

the plinth or the top of the appliance housing unit, as this can impair the efficiency of the appliance, increase the electricity consumption and cause damage to the appliance.

Never use a steam cleaner to clean

the appliance. Pressurized steam could damage electrical components and cause a short circuit.

The following applies to stainless steel appliances:

Do not use sticky notes, transparent

adhesive tape, masking tape or other types of adhesive on the coated surface of the appliance door. These will damage the surface, causing it to lose its soil resistant protective coating.

The high-quality surface coating of

the appliance door is susceptible to scratches. Even a magnet can cause damage.

Disposal of your old appliance

Before disposing of an old

appliance, first make the door latch or lock unusable.

Take off the door.

Leave the shelves in place so that

children may not easily climb inside.

Consult with your municipal policy

on recycling.

Be careful not to damage any part of

the pipework while awaiting disposal by:

- puncturing the refrigerant channels in the evaporator.

- bending any pipework.

- scratching the surface coating.

Splashes of refrigerant can damage the eyes.

Your old refrigerator may have a

cooling system that used CFCs (chlorofluorocarbons). CFCs are believed to harm stratospheric ozone. If you intentionally release this CFC refrigerant, you can be subject to fines and imprisonment under provisions of environmental legislation. Make sure the CFC refrigerant is removed and disposed of by a qualified technician.

SAVE THESE INSTRUCTIONS

a Hinged door shelf

b Shelves (height adjustable)

c Door shelves (height adjustable)

d Deli drawer

e Control panel

f Main switch

g Humidity filters

h SmartFresh drawers

Guide to the refrigerator

Control panel

a Access button "p"

activates the control panel

b Refrigerator

c Upper SmartFresh drawer

d Lower SmartFresh drawer

e Temperature display

X colder; Y warmer Allows you to set the desired temperature in the refrigerator

f Food type(s) to be stored in the

SmartFresh drawers (left: high humidity right: lower humidity)

g On/Off sensor button for the

SuperCool function

h Sensor button for the temperature

and door alarm*

* Only visible when the relevant

function is activated

Before use

Before using for the first time

The stainless steel surface of the appliance is protected with a plastic film, which protects it during shipping.

Do not remove this protective film until the appliance has been completely installed.

After removing the protective film clean the exterior surface with the supplied stainless steel agent. This will aid in preventing resoiling.

Clean the inside of the appliance and

the accessories with a mild solution of warm water and liquid dish soap. Dry with a soft cloth.

If the appliance was transported or laid horizontally for any reason, allow it to stand vertical for at least 8 hours before turning it on. Failure to do so will affect the functioning of the appliance.

Turning the appliance On/Off

Open the appliance door.

Turn the appliance On/Off with the

main switch.

The main switch is located on the right-side underneath the control panel.

All zones are switched on or off together.

Once on, the appliance begins cooling. When the door is open, the interior lights come on.

The access button will light in the control panel.

The preset temperatures (factory settings) are reached after a few hours. Do not put any food in the appliance until the preset temperatures are reached.

Switching the appliance off with the main switch does not safely isolate it from the power supply.

Settings

Using the settings

This appliance is operated with the use of touch keys activated by a finger.

An available button will appear white.

–

A selected button will appear yellow.

–

Touch the access button "p"soit

turns yellow.

On the control panel you will now see the sensor buttons for the three appliance zones.

^ To change settings (e.g., to set the

temperature, etc.), touch the sensor button for the appliance zone you wish to set.

The selected sensor button appears yellow and depending on the zone selected, additional sensor buttons will appear on the control panel.

Depending on the zone selected, you can now:

adjust the temperature,

–

select the SuperCool function or

–

select settings for the SmartFresh

–

drawers by food type.

For additional information, see the corresponding sections in the manual.

^ To de-select a zone touch the sensor

button for that particular zone so that it turns white or select another sensor button.

^ To leave the settings menu, touch the

access button "p" so it turns white. The last settings entered are stored. If the access button is not pressed the display will go out after approx. 30 secs.

The sensor buttons for the three appliance zones now disappear from the control panel.

Settings

Custom settings

In the custom settings mode you can select and change functions. The function possibilities are described in the respective chapters of this manual.

Function Display text

Temperature unit °C-°F (see "Setting the temperature")

RemoteVision Module settings (optional accessory)

Button sound on/off (see "Settings")

To enter and exit the Settings mode

†

;

Turning the button sound On/Off

If you prefer the buttons to be silent when touched the button sound can be turned off.

Touch the access button "p"soit

turns yellow.

^ Touch the sensor button for the

refrigerator so it turns yellow.

^ Note the position of the X button, but

do not touch.

^ Touch the access button "p" again so

it turns white.

Only the access button "p" is visible.

Place one finger on the position of the X button and hold (the X button will not be visible).

While holding down the X button, press the access button "p" once. Keep holding the X button down until the following appears in the display (approx. 5 seconds).

Tap the X button until = appears in the display.

Touch the access button "p"to confirm.

Settings

By touching the X button, you can

choose between:

= 0 : Button sound is off = 1 : Button sound is on = – : Return to menu.

Touch the access button "p"to

confirm the setting.

Tap the X button until you see ; in

the display.

^ Touch the access button "p".

You have now left the Custom settings mode.

When you are in the Custom settings mode the door alarm is turned off automatically. Once the door is closed it is reactivated.

Turning off for longer periods of time

If the appliance is not going to be used for an extended time (for example, during a vacation) some precautions should be taken.

Take all food out of the appliance

Turn the appliance off at the main

switch

Unplug the appliance

Clean the interior

Leave the door open to prevent

odors

Temperature and door alarm

The appliance is equipped with an alarm system, to ensure that the temperature does not rise unnoticed because of energy loss or an open door.

The alarm system is always operational, it does not need to be switched on.

Temperature alarm

If the temperature becomes too warm, an alarm sounds, the "alarm" indicator turns red and flashes. At the same time the affected zone flashes in the display.

The alarm will sound and the display will flash if:

– too much warm air flows into the

appliance, for example when food is being loaded, re-arranged, or taken out.

– large amounts of food are loaded at

once.

–

the power fails.

Turning the temperature alarm Off

As soon as the alarm condition is corrected, the alarm signal turns off and the affected zone stops flashing in the display. The "alarm" indicator goes out.

To turn the alarm off early, press

the "alarm" sensor button. The alarm signal turns off. The "alarm" indicator remains red and the corresponding appliance zone continues to flash until the alarm condition is corrected.

Door alarm

If the appliance door is left open, an alarm signal will sound and the "alarm" indicator will turn red after five minutes.

Turning the door alarm Off

Once the door is closed the alarm turns off and the "alarm" indicator goes out. If the door has not been closed properly, the alarm will sound again after five minutes.

To turn the alarm off early, press the "alarm" sensor button. The "alarm" indicator and signal will turn off.

Setting the temperature

Setting the temperature in the refrigerator

Touch the access button "p"soit

turns yellow.

Touch the sensor button for the

refrigerator so it turns yellow.

^ Use the X and Y buttons next to the

temperature display to set the temperature warmer or colder.

Tap the X and Y sensor buttons to raise/lower the temperature 1°, or hold it down to move through the temperature range more quickly.

The loss of coldness is no cause for concern if it is due to the door being left open for a while, e.g. for removing or storing a large amount of food.

Temperature range

The temperature can be selected within the following ranges:

Refrigerator :

–

35 to 46° F (2°C to 8°C)

A temperature of 37°F (4°C) in the refrigerator section is recommended.

The room temperature and the installation location can affect the time it takes for the appliance to get to the desired temperature. If the room temperature is too high, it may not be possible for the appliance to reach the lowest temperature.

Temperature display

The temperature display on the operating panel always shows the required temperature.

The display will flash if:

–

a different temperature is being set,

–

the temperature in the appliance has risen by several degrees, indicating that the appliance is warming up too much.

Setting the temperature

Temperature unit (Fahrenheit/Celsius)

The temperature can be displayed in degrees Fahrenheit (°F) or Celsius (°C).

Touch the access button "p"soit

turns yellow.

^ Touch the sensor button for the

refrigerator section so it turns yellow.

^ Note the position of the X button, but

do not touch.

^ Touch the access button "p" again so

it turns white.

Only the access button "p" is visible.

^ Place one finger on the position of

the X button and hold (the X button will not be visible).

While holding down the X button,

press the access button "p" once. Keep holding the X button down until the following appears in the display (approx. 5 seconds).

Tap the X button until † appears in

the display.

Touch the access button "p"to

confirm.

^ By touching the X button you can

select either Fahrenheit or Celsius for the temperature display.

†0: Fahrenheit †1: Celsius † –: return to menu

^ Touch the access button "p"to

confirm the setting.

^ Tap the X button until a ; appears in

the display.

Touch the access button "p".

You have left the Custom settings mode.

When you are in the Custom settings mode the door alarm is turned off automatically. Once the door is closed it is reactivated.

SmartFresh drawers

The SmartFresh drawers provide the right combination of temperature and humidity. The result is freshness up to three times longer than in the other zones of the refrigerator.

Storage temperatures

For fresh foods that are not adversely affected by cold, the best range is 32° - 37°F (0° - 3°C). This helps to keep the food fresh considerably longer than in the rest of the refrigerator, spoiling is minimal.

The temperature is set to approx. 35°F (1.5°C).

Humidity

The closer the humidity in the appliance matches the moisture content of the food, the more moisture the food will retain, and the fresher and crisper it will stay over a longer period of time.

The optimal humidity is determined on the basis of the food stored in the appliance.

Proper humidity is assisted by 2 humidity filters located above the SmartFresh drawers. These filters allow air to pass through, yet retain moisture.

Using the SmartFresh drawers

Use the sensor button to select the

desired drawer.

The selected sensor button turns yellow, and the sensor buttons for the food choices appear.

The most recently selected food type(s) appear yellow.

^ Use the sensor buttons to select the

food type(s).

– Several food types can be selected

at the same time.

– To delete a food type, simply press it

again.

–

Depending on the food types selected, the optimal humidity is determined for the SmartFresh drawers.

–

The "deli" and "dairy" settings are the most energy efficient.

Touch the access button to confirm the settings.

Place the food in the drawer.

Repeat the process above to additional food types.

Tips for storing food in the SmartFresh drawers

For optimal storage conditions, it is always best to store similar foods together in one drawer.

The upper SmartFresh drawer is the best place to store moisture sensitive foods.

Be sure the drawers are clean and dry before placing food in them.

Foods that are best stored under dry conditions

– fresh fish and shellfish, meats,

poultry, sausage, dairy products and deli salads.

Foods that are best stored under moist conditions

SmartFresh drawers

– fresh produce, e.g., vegetables,

lettuce, herbs, mushrooms, cabbage, fruit.

Remember that higher moisture levels can only be attained when the food is stored unpacked so air can circulate freely.

Using the refrigerator efficiently

Different storage zones

Due to the natural circulation of air in the appliance, there are different temperature zones in the refrigerator. Cold, heavy air sinks to the lowest section of the appliance. Make use of these different zones when placing food in the appliance.

This appliance uses a dynamic cooling feature to establish a constant temperature during cooling. As a result, the differences between temperature zones are less pronounced.

Leave some space between items, so air can circulate freely around them. Make sure the ventilation slits are not covered - this is important for the cooling performance.

Warmest area

The warmest area is in the top section of the door. Use this area to store items such as butter and cheese.

Coldest area

The coldest area in the refrigerator is directly above the SmartFresh drawers. The temperature in the drawers themselves is even colder.

Use these cold areas in the refrigerator for all highly perishable foods, such as:

fish, meat, poultry,

–

deli meats, store-bought meals,

–

dishes or baked goods containing

–

eggs or cream,

fresh bread dough, pastry dough,

–

cake batters,

– dairy products.

If storing high-proof alcohol, make sure it is tightly closed and stored upright.

Do not store cooking oil in the refrigerator door. Traces of oil can cause stress cracks to occur in the plastic components in the door.

Do not allow food to touch the rear wall of the appliance, it may freeze to the wall.

SuperCool

When the SuperCool function is activated, the appliance is cooled as cold and quickly as possible (to a factory-preset temperature).

The SuperCool function is ideal for the rapid cooling of drinks and for refrigerating large quantities of foods.

Switching on SuperCool

Touch the sensor button for the

refrigerator so it turns yellow.

^ Touch the SuperCool sensor button

so it turns yellow.

In the temperature display for the refrigerator zone, the new temperature setting appears, 35°F (2°C).

Switching off SuperCool

The SuperCool function automatically switches off after approx. 6 hours. The sensor button turns white, and the appliance continues running at normal power.

To save energy, the SuperCool function can be switched off early, once the food and/or drinks are sufficiently chilled.

^ Touch the SuperCool sensor button

so that it turns white.

The temperature display for the zone selected returns to the original temperature setting.

The appliance now continues running at normal power.

The temperature in the appliance now begins to fall, with maximum cooling in the refrigerator zone.

Automatic defrost

Refrigerator and SmartFresh drawers

The refrigerator and SmartFresh drawers defrost automatically.

During normal operation, condensate and frost can form on the rear wall of the refrigerator and drawers. You do not need to remove this build-up, it will defrost and evaporate automatically with the heat generated by the appliance.

+ 44 hidden pages
