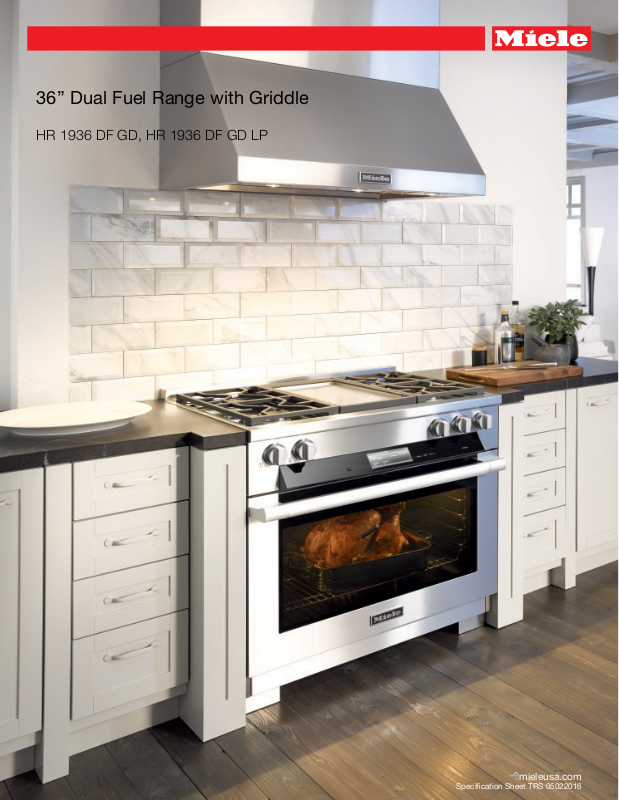

36” Dual Fuel Range with Griddle
HR 1936 DF GD, HR 1936 DF GD LP
8mieleusa.com
Specification Sheet TRS 05022016
36” Dual Fuel Range with Griddle
Model: HR 1936 DF GD / HR 1936 DF GD LP
HR 1936 DF GD / HR 1936 DF GD LP
Features:
M Touch controls and backlit precision knobs
ComfortLift panel
M Pro dual stacked burner system with TrueSimmer
M Pro infrared griddle
ComfortClean dishwasher-safe grates
TwinPower Convection fans
21 Operating modes including Self Clean
Moisture plus
MasterChef and MasterChef Plus automatic programs
Wireless roast probe
Soft Close and Soft Open
Clean Touch Steel™ front
SPECIFICATIONS |
|
|
|
HR 1936 DF GD |
Item 25193651USA |
||
HR 1936 DF GD LP |
Item 25193652USA |
||
Overall Unit Width |
3515/16” (913 mm) |
||
Overall Height |
351/2” — 37” (901.7mm — 939.8 mm) |
||
Overall Unit Depth to front of control panel |
|
261/2” (673 mm) |
|
Oven Door Clearance |
|
223/4” (577 mm) |
|
Niche |
|
|
|
|
|
36” (914 mm) |
|
Minimum Cabinet Niche Width |
|
||
|
|
|
|
Minimum Cabinet Opening Height |
|
351/2” (901.7 mm) |
|
Burners (G/LP) |
|
M Pro Power Plus - Standard Configuration* |
|
Gas Burners: |
|
(1) 12,500 BTU (G/LP); (3) 19,500 BTU (G/LP) |
|
|
|
|
|
Griddle: |
|
(1) 13,000 BTU (G); 14,300 BTU (LP) |
|
|
|
|
|
Total BTU Output |
|
84,000 BTU (G); 85,300 BTU (LP) |
|
Gas |
|
|
|
|
|
|
|
Gas Line Connection |
|
1/2” NPT |
|
Operational Altitudes |
|
|
|
|
|
|
|
|
|
Miele Natural Gas and LP Ranges and Rangetops |
|
|
|
will function up to 9,800 ft. in altitude without |
|
|
|
adjustment; the following exception will function up |
|
|
|
to 6,500 ft. in altitude without adjustment: |
|
High Altitude |
|
• Griddle in LP: HR 1136 LP, HR 1936 LP, |
|
|
HR 1956 LP, KMR 1136 LP, KMR 1356 LP |
||
|
|
||
|
|
• Grill in G: HR 1135 G, HR 1935 G, HR 1955 G, |
|
|
|
KMR 1135 G, KMR 1355 G |
|
|
|
If an installation exceeds these elevations, please |
|
|
|
contact rangejetkit@mieleusa.com. |
|
Plumbing |
|
|
|
|
|
An Inline water filter, like activated carbon, is |
|
|
|
required to reduce mineral deposits. Do not |
|
|
|
connect to a Reverse Osmosis (RO) water system. |
|
|
|
Connect to a cold water supply only. Must be |
|
|
|
connected to a shut-off valve. The water shut-off |
|
Water Supply Requirements |
|
valve must be accessible afterinstallation. The |
|
|
water pressure must be between 14.5 and 145 psi |
||
|
|
||
|
|
(1 and 10 bars). If the pressure is higher, install a |
|
|
|
pressurereducing valve. The supplied hose has |
|
|
|
a length of 4’ 11” (1.5 m). The hose must not be |
|
|
|
shortened. The total hose length must not exceed |
|
|
|
24.5 ft. (7.5 m). |
|
|
|
Supplied hose: flexible braided 4’11” (1.5 m) with |
|
Plumbed Hose Connection |
3/8” O.D. compression fitting for connection to a |
||
|
shut off valve |
||
Electrical |
|
|
|
Electrical Requirements |
120V / 240V, 60Hz, 30 Amps |
||
120V / 208V, 60Hz, 30 Amps |
|||
|
|||
Power Cord |
|
NEMA 14-30 plug, 5’11” (1.8 m) long |
|
Shipping |
|
|
|
Shipping Weight |
448.6 lbs. (203.5 kg) |
||
|
|
||
Shipping Dimensions |
435/16” (1100mm) W x 52” (1,294mm) H x 311/2” |
||
(800mm) D |
|||
|
|||
Support |
|
|
|
Call Miele |
800.843.7231 |
||
|
|
||
Miele Website |
8www.mieleusa.com |
||
|
|
||
20/20 Link |
82020technologies.com |
||
|
|
|
|
* Please note if a BTU-reducing kit is necessary, an authorized installer is required to modify the product to meet ANSI Z21.
HR 1936
Page 2 of 10
Specification Sheet TRS 05022016
36” Dual Fuel Range with Griddle
Model: HR 1936 DF GD / HR 1936 DF GD LP
Optional Accessories:
12” Backguard
RBGAG1236
12” tall high-quality brushed stainless steel Backguard
20” Backguard
RBGAG2036
20” tall high-quality brushed stainless steel Backguard
40” Backsplash
RBS36
40” tall flat stainless steel Backsplash panel
HR 1936
