Ovens

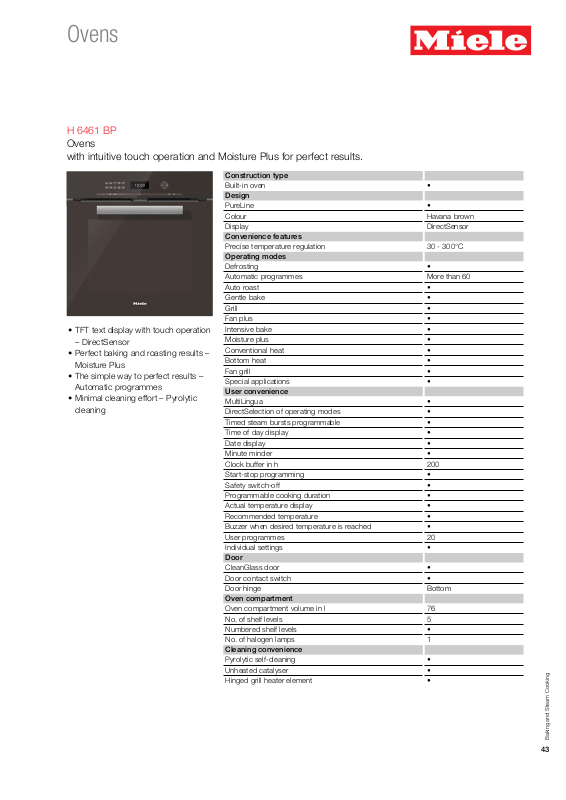

H 6461 BP
Ovens
with intuitive touch operation and Moisture Plus for perfect results.
Construction type
Built-in oven •
Design
PureLine •
Colour Havana brown
Display DirectSensor
Convenience features
Precise temperature regulation 30 - 300°C
Operating modes
Defrosting •
Automatic programmes More than 60
Auto roast •
Gentle bake •
Grill •
Fan plus •
• TFT text display with touch operation
– DirectSensor
• Perfect baking and roasting results –
Moisture Plus
• The simple way to perfect results –
Automatic programmes
• Minimal cleaning effort – Pyrolytic
cleaning
Intensive bake •
Moisture plus •
Conventional heat •
Bottom heat •
Fan grill •
Special applications •
User convenience
MultiLingua •
DirectSelection of operating modes •
Timed steam bursts programmable •
Time of day display •
Date display •
Minute minder •
Clock buffer in h 200
Start-stop programming •
Safety switch-off •
Programmable cooking duration •
Actual temperature display •
Recommended temperature •
Buzzer when desired temperature is reached •
User programmes 20
Individual settings •
Door
CleanGlass door •
Door contact switch •
Door hinge Bottom
Oven compartment
Oven compartment volume in l 76
No. of shelf levels 5
Numbered shelf levels •
No. of halogen lamps 1
Cleaning convenience
Pyrolytic self-cleaning •
Unheated catalyser •
Hinged grill heater element •
Baking and Steam Cooking
43
Page 2
Ovens
H 6461 BP
Ovens
with intuitive touch operation and Moisture Plus for perfect results.
Efficiency and sustainability
Energy-saving lighting •
Residual heat utilisation •
Rapid heat-up •
Safety
Appliance cooling system and touch-cool fronts •
Safety switch-off •
System lock •
Door lock during pyrolytic cleaning •
Technical data
Niche width in mm 560
Niche height in mm 593
Niche depth in mm 550
Appliance width in mm 554
Appliance height in mm 579
Appliance depth in mm 547
Weight in kg 47.0
Total rated load in kW 3.5
Voltage in V 230
Fuse rating in A 16
Number of phases 1
Standard accessories
Universal tray with PerfectClean 1
Baking tray with PerfectClean 1
Baking and roasting rack PyroFit 1
Recipe booklet •
Mains cable •
Descaling tablets •
Baking and Steam Cooking
44
Page 3
Ovens
H 6461 BP
Ovens
with intuitive touch operation and Moisture Plus for perfect results.
H 5000 EP/BP - 60 cm (Installation drawing)
* Appliances with glass front
** Appliances with metal front
H 5000 BP; H 6000 BP; H 2000 BP; 60 cm (Installation
drawing)
* Appliances with glass front
** Appliances with metal front
Detailed installation drawing H 6000,H 5000, H 4000, E/B,
EP/BP, 76 litres, (Installation drawing)
A = Design "ContourLine": 45 mm
Design "PureLine": 42 mm
B = Appliances with glass front: 2,2
Appliances with metal front: 1,2
Baking and Steam Cooking
45
