Miele G 841 SCi Operating Instruction

Operating instructions
for dishwashers
It is essential to read the operating and installation instructions before installing, commissioning or using the machine, to avoid the risk of accidents or damage to the machine.
G
Contents
Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Appliance overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Energy saving washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before using the appliance for the first time you require: . . . . . . . . . . . . . . . . . . . 11
To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Programming the water hardness level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Checking the programmed water hardness level. . . . . . . . . . . . . . . . . . . . . . . 15
Filling the salt reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Salt indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Rinse aid indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Setting the rinse aid dosage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Flap up rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Positioning rail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Hinged spikes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Dishwashers with a cutlery basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Dishwashers with a cutlery tray (SC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Items not suitable for dishwashers: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2
Contents
Operating the dishwasher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Programme selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Programme sequence indicator lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Changing a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Unloading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Cleaning the filters in the wash cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Cleaning the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Cleaning the door and the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Cleaning the control panel and door front panel. . . . . . . . . . . . . . . . . . . . . . . . . . 40
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Solving problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Cleaning the drain pump and non-return valve. . . . . . . . . . . . . . . . . . . . . . . . . . . 52
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Comparison tests. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Model G 6XX (For model number see data plate). . . . . . . . . . . . . . . . . . . . . . . . . 60
Model G 8XX (For model number see data plate). . . . . . . . . . . . . . . . . . . . . . . . . 62
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . see Installation Instructions
3
Description of the appliance
Appliance overview
1 Upper spray arm (not visible) 2 Cutlery tray
(depending on model) 3 Upper basket 4 Water feed for middle spray arm 5 Middle spray arm 6 Lower spray arm
4
7 Four height adjustable screw feet 8 Filter combination 9 Salt reservoir
10 Dual compartment detergent
dispenser
11 Rinse aid reservoir
(with dosage selector)
12 Data Plate
Control panel
Description of the appliance
13 "On/Off" button 14 Programme sequence display 15 "Start" button 16 Programme selector
This instruction book applies to several different dishwasher models. The specific dishwasher models below are referred to as follows: G 641 SC(i) = G 6XX G 841 SCi = G 8XX
The model numbers G 6XX and G 8XX used in this book refer to the model designation specified on the data plate of the machine (and not the description on the control panel). The data plate is located at the top of the door when open.
17 Check/Refill indicators 18 Child safety lock 19 Door release
5
Warning and Safety instructions
Installation
This appliance conforms to current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. Read the operating instructions carefully before starting to use this appliance. This way you will avoid the risk of accidents and damage to the appliance. Keep these instructions in a safe place for future reference, and pass them on to any future user.
the installation instructions.
has been installed.
must only be installed under a continu ous worktop which is secured to adja cent cabinetry.
The dishwasher must be installed and connected in compliance with
The electrical socket must be eas ily accessible after the dishwasher
In order to ensure stability, built-un der and integrated dishwashers
-
-
-
-
Correct usage
This dishwasher is intended
exclusively for cleaning domestic crockery and cutlery in a domestic household. Using it for purposes other than those for which it was designed, as well as any alterations or conver­sions to the machine would be un­authorised and could cause harm. The manufacturer cannot be held liable for damage resulting from improper or in­correct use of the appliance.
Delivery
Before setting up the machine
check it for any externally visible damage. Under no circumstances should you use a damaged machine. A damaged machine is dangerous.
Please ensure that the packaging
material is offered for recycling.
The dishwasher must not be in
stalled under a hob. The high radi­ant temperatures which are sometimes generated by a hob could damage the dishwasher. For the same reason it should not be installed next to open fires or other appliances which give off heat, such as heaters etc.
Do not connect the dishwasher to
the mains supply until it has been installed.
Check that the voltage, frequency
and fuse rating shown on the data plate match the household mains sup ply.
The electrical safety of this appli
ance can only be guaranteed when continuity is complete between the ap pliance and an effective earthing sys tem. It is most important that this basic safety requirement is tested and where there is any doubt, the electrical system in the house should be checked by a qualified electrician. The manufacturer cannot be held liable for the conse quences of an inadequate earthing sys tem (e.g. electric shock).
-
-
-
-
-
-
-
6
Warning and Safety instructions
This equipment is not designed for
maritime use or for use in mobile installations such as caravans, aircraft etc. However it may be suitable for such usage subject to a risk assess ment of the installation being carried out by a suitably qualified engineer.
A damaged machine is dangerous.
Switch off at the mains and call your Miele supplier or the Miele Service Department.
The plastic housing of the water
connection contains an electrical component. The housing must therefore not be dipped in water.
There are live wires in the water in-
let hose. Never cut the water inlet hose, even if it is too long.
For safety reasons do not operate
this appliance on an extension ca­ble. (Danger of overheating).
-
Daily use
Do not use solvents in the dish
washer. Danger of explosion.
Water in the dishwasher must not
be used as drinking water. This wa ter is not drinking water.
Avoid inhalation of powder deter
gents. Do not ingest dishwasher detergent! Dishwasher detergents con tain irritant or corrosive ingredients. They can cause burning in the nose, mouth and throat if swallowed, or inhibit breathing. Consult a doctor immediate ly if detergent has been swallowed or inhaled.
-
-
Do not sit or lean on the opened
door. This could cause the dish washer to tip and be damaged and you could get injured.
In an appliance with a cutlery bas
ket (depending on model) cutlery is cleaned and dried more efficiently if placed in the basket with the handles downwards. However, to avoid the risk of injury place cutlery with sharp points with the handles upwards.
Only use detergents formulated for
domestic dishwashers. Do not use washing-up liquid.
Only use rinse aid formulated for
domestic dishwashers.
Only use special coarse grained
dishwasher salt for reactivation. Do not use other salts such as cooking salt, agricultural grade or gritting salt. These may contain insoluble additives which can impair the functioning of the water softener.
Plastic items which cannot with
stand being washed in hot water, such as disposable plastic containers, or plastic cutlery and crockery should
-
not be cleaned in the dishwasher. The high temperatures in the dishwasher may cause them to melt or lose shape.
-
-
-
-
-
7
Warning and Safety instructions
Take care on dishwashers with a visi ble heater element
(depending on model)
Do not touch the heating element
during or directly after the end of a programme. It will be hot. Danger of burning!
Some plastic items could melt or
catch fire if they were to come into contact with the heating element. Therefore always place plastic items or any other items which may not be com pletely heat resistant in the upper bas ket and ensure they cannot drop down onto the heater element. Any items which are too small to be lodged securely in the upper basket should not be cleaned in the dish­washer.
-
Safety with children
Do not allow children to play in or
around the dishwasher, or to oper­ate it. There is a danger that children playing might shut themselves in the dishwasher.
Keep children away from deter
gents. Dishwasher detergents con tain irritant or corrosive ingredients. They can cause burning in the mouth,nose and throat if swallowed, or inhibit breathing. Consult a doctor im mediately if your child has swallowed or inhaled detergent.
-
-
-
-
To avoid the danger of children
coming into contact with the dish washer detergent: only add detergent just before starting the programme and close the door, activating the child safety lock (depending on model). Keep children away from the dish washer when the door is open. There could still be detergent residues in the cabinet.
To ensure children do not come
into contact with detergent on models with the “Delay start” option make sure the dispenser is dry before adding detergent. Wipe dry if neces­sary. Detergent will clog if poured into a damp dispenser and may not be thor­oughly dispersed. If the door is open at the end of a programme, children may come into contact with this residue.
To avoid machine and material damage
Do not fill the rinse aid reservoir
with powder or liquid detergent. This will cause serious damage to the reservoir.
-
Inadvertently filling the salt reser
voir with powder or liquid dish washer detergent always leads to seri ous damage to the water softener. Make sure you have picked up the cor rect packet of dishwasher salt before filling the salt reservoir!
Do not use commercial or industrial
detergents as these may damage material and there is a risk of severe chemical reaction.
-
-
-
-
-
-
8
Warning and Safety instructions
The Miele Waterproof System offers protection from water damage, pro
vided the following conditions are met:
The dishwasher is correctly installed
and plumbed in. The dishwasher is properly main
tained and parts are replaced where it can be seen that this is necessary.
The stopcock has been turned off
when the appliance is not used for a longer period of time (e.g. during holidays).
In countries where there are areas
which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the appli­ance and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the appliance guarantee.
-
Repairs and maintenance
Disposal of your old appliance
­When disposing of an old dish
washer first make it unusable. Dis
connect, cut off the cable and the plug from the cable. Make the door lock in operative by unscrewing 2 cross-slotted screws, so that children cannot acci dentally shut themselves in. Make ap propriate arrangements for the disposal of the appliance.
The manufacturer cannot be held lia ble for damage caused by non-com pliance with these Warning and Safety instructions.
-
-
-
-
-
-
-
Repairs may only be carried out by
suitably qualified and competent engineers in accordance with local and national safety requirements. Repairs and other work by unqualified persons could be dangerous.
Always disconnect the appliance
from the electrical supply for main tenance work (switch off at wall socket and remove the plug, or remove the screw out fuse in countries where this is applicable).
-
9
Caring for the environment
Disposal of the packing material
The transport and protective packing has been selected from materials which are environmentally friendly for disposal and can normally be recycled.
Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation!
Rather than just throwing these materi als away, please ensure that they are recycled.
-
Disposal of your old appliance
Old appliances contain materials which can be recycled. Please contact your dealer, your local waste collection cen­tre or scrap merchant about potential recycling schemes.
Ensure that the appliance presents no danger to children while being stored for disposal. See the appropriate sec tion in the Warning and Safety instruc tions.
-
-
Energy saving washing
This dishwasher is exceptionally eco nomical in its use of water and electric ity. You can make the most of your ap pliance by following these tips:
If your household water system is
^
suitable, this dishwasher can be con nected to a hot water supply, for fur ther economies. Although all stages of the wash then take place with hot water, savings are made in:
- the use of primary energy,
- costs,
- programme running times. If, however, your water is heated by electricity we would still recommend connection to cold water.
^ For most economical dishwashing
make full use of the baskets without overloading the dishwasher.
^ Choose the programme to suit the
type of crockery being washed and the degree of soiling.
^
Select the Economy programme for energy-saving dishwashing.
-
-
-
-
-
10
^
Use the correct amounts of deter gent.
^
Use only 2/3 of the given dosage if baskets are only half full.
-
Before using the appliance for the first time you require:
approx. 2 litres of water,
approx. 2 kg dishwasher reactivation
salt, domestic dishwasher detergent,
rinse aid formulated for domestic
dishwashers.
Every dishwasher is tested at the factory. There will be residual water in the appliance from this test. It is not an indication that it has been previously used.
Before using for the first time
11
Before using for the first time
To open the door
^ Press the release catch inside the
door grip and pull forward.
If the door is opened during operation all functions are automatically inter­rupted.
To close the door
^ Push the baskets right in, lift the door
and push until it clicks into position.
Child safety lock
The yellow key for the child safety lock is on one of the spikes at the front of the upper basket. Remove the key before switching on the dishwasher and keep it in a safe place away from the dishwasher.
To prevent children opening the dish­washer door during operation, use the key to lock the door:
12
Horizontal setting: The door is locked.
Vertical setting: The door can be opened.
Before using for the first time
Water softener
In order to achieve good cleaning re sults, the dishwasher needs to operate with soft water. Hard water results in the build-up of calcium deposits on crock ery and in the dishwasher. Mains water with a hardness level higher than 0.7 mmol/l (4° d - German scale) needs to be softened. This takes place automatically in the integrated water softener.
The water softener must be filled with
dishwasher salt for reactivation.
– The dishwasher must be pro-
grammed to correspond to the water hardness in your area.
– Your local water authority will be able
to advise you of the water hardness level in your area.
-
-
Where the water hardness fluctuates e.g. between 1.4 - 3.1 mmol/l (8 - 17 °d German scale) always programme the dishwasher to the higher value (3.1 mmol/l in this example).
In the event of a fault, it will help the service technician if you know the hard ness of your local water supply.
Enter the water hardness below:
^
mmol/l or °d
-
13
Before using for the first time
Programming the water hardness level
Switch the dishwasher off using the
^
"On/Off" button. Turn the programme selector to the
^
"Stop" position. Press the "Start" button in and whilst
^
holding it in switch the dishwasher on using the "On/Off" button. Release the "Start" button within two seconds.
The "Salt" indicator light will flash.
Warning:
If a different indicator light comes on or flashes, the process must be repeated.
Exception:
The "Rinse aid" indicator light will come on if you have not yet added rinse aid or if rinse aid needs replenishing.
Turn the programme selector to the
^
position that corresponds to your wa­ter hardness level (see chart below).
°d
German
scale
1 - 4 0.2 - 0.7 "1 o’clock"position 5 - 7 0.9 - 1.3 "2 o’clock"position 8 - 10 1.4 - 1.8 "3 o’clock" position
11 - 13 2.0 - 2.3 "4 o’clock" position
14 - 16 2.5 - 2.9 "5 o’clock" position
17 - 22 3.1 - 4.0 "6 o’clock" position 23 - 35 4.1 - 6.3 "7 o’clock" position 36 - 70 6.5 -12.6 "8 o’clock" position
mmol/l Programme selector
setting
The dishwasher is set at the factory for a hardness level of 2.5 -2.9 mmol/l (14 -16 °d ).
Example:
For a water hardnesss of 3.5 mmol/l, turn the programme selector to the "6 o’clock" position.
14
Before using for the first time
Press the "Start" button.
^
The "Start" indicator light will come on.
Turn the programme selector to the
^
"Stop" position. Switch the dishwasher off using the
^
"On/Off" button.
The water hardness level is now stored in memory.
Checking the programmed water hardness level
Switch the dishwasher off using the
^
"On/Off" button. Turn the programme selector to the
^
"Stop" position. Press the "Start" button in and whilst
^
holding it in switch the dishwasher on using the "On/Off" button. Release the "Start" button within two seconds.
The "Salt" indicator light will flash.
Warning:
If a different indicator light comes on or flashes, the process must be repeated.
Exception:
The "Rinse aid" indicator light will come on if you have not yet added rinse aid or if rinse aid needs replenishing.
^ Click the programme selector from
the "1 o’clock" position as far as the "8 o’clock" position.
When the programme selector is at the position which corresponds to the water hardness setting already programmed, the "Start" indicator light will come on (see chart "Programming and setting the water hardness level").
^
Turn the programme selector to the "Stop" position.
^
Switch the dishwasher off using the "On/Off" button.
15
Before using for the first time
Filling the salt reservoir
If the water in your area is very soft and constantly lower than 0.7 mmol/l (4 °d) you do not need to add dish washer salt. The water softener must, however, still be programmed to correspond to the water hardness level in your area. (The salt indicator light will still come on, but should be ignored).
Important: Before filling the salt res ervoir with dishwasher salt for the first time 2 litres of water to enable the salt to dissolve. Once the dishwasher has been used, there is always sufficient water in the reservoir.
,
voir with powder or liquid dish­washer detergent always leads to serious damage to the water soft ener. Make sure you have picked up the correct packet of dishwasher salt before filling the salt reservoir!
, you must fill it with approx.
Inadvertently filling the salt reser-
Remove the lower basket and un
^
screw the salt reservoir cap. Fill the reservoir with approx. 2 litres
^
-
-
-
of water (first use).
^ Place the funnel provided over the
salt reservoir and carefully fill with salt until the reservoir is full. The salt res­ervoir holds approx. 2 kg of salt de­pending on the brand used.
As the salt reservoir is filled, displaced water will overflow.
^
Clean any excess salt from around the reservoir opening and then screw the cap on again firmly.
-
,
Only use special coarse grained dishwasher salt for reactivation. Do not use other salts such as cooking salt, agricultural grade or gritting salt. These may contain insoluble additives which can impair the func tioning of the water softener.
16
^
Run the "Pre-wash" programme im mediately to remove any traces of salt water from the cabinet.
-
-
Before using for the first time
Salt indicator
The salt indicator light comes on to no tify you that the reservoir is empty.
^ The reservoir should then be refilled
with dishwasher salt for reactivation. (See: Filling the salt reservoir).
After the reservoir has been filled, the water softener is automatically reacti­vated the next time the dishwasher is run. The salt indicator light may still be illuminated during this process. It will go out once the salt concentration has reached the correct level.
Note
If the water in your area is very soft and
­constantly lower than 0.7 mmol (4 °d) you do not need to add salt to the res ervoir. The salt indicator light, however, will still come on, but should be ig nored.
(See "After sales service" for definition of "PC").
-
-
17
Before using for the first time
Rinse aid
Rinse aid is necessary to ensure water does not cling and leave marks on crockery during the drying phase. Rinse aid is poured into the storage res ervoir and the amount set is dispensed automatically.
Inadvertently filling the rinse aid
,
reservoir with powder or liquid dish washer detergent always causes se rious damage to the reservoir. Only pour rinse aid formulated for domes tic dishwashers into the reservoir.
Alternatively, it is possible to use – Household vinegar with a max. 5%
acid content or – Liquid citric acid up to 50% acid
content. The resulting rinsing and drying quality
will not, however, be as good as when rinse aid is used.
-
Adding rinse aid
-
-
-
^ Press the button in the direction of
the arrow until the flap springs open.
,
Do not use vinegar with a higher acid content (e.g. vinegar essence 25% acid). This must not be used as its use would damage the dish washer.
18
-
Before using for the first time
Rinse aid indicator
Add rinse aid only until it is visible on
^
the surface of the filter in the opening.
The rinse aid reservoir holds approx. 130 ml.
^ Close the flap firmly so that it clicks
into place. Otherwise water would en­ter the rinse aid reservoir during a programme.
^
Wipe up any spilled rinse aid. This prevents over-foaming occurring dur ing the next programme.
The Rinse aid indicator light on the fas cia comes on when the rinse aid reser voir needs to be replenished.
When the light comes on the reservoir still contains sufficient rinse aid for 2 - 3 programmes.
^ Add rinse aid in plenty of time.
-
-
-
19
Before using for the first time
Setting the rinse aid dosage
The dosage selector has settings from 1-6. It is set to "3" (3 ml) at the factory. Approx. 3 ml of rinse aid are then used per programme. This is a recom­mended setting.
If spots appear on crockery and glass­ware:
^ Use a higher setting. If clouding or smearing appears on
crockery and glassware:
^
Use a lower setting.
20
Loading the dishwasher
Note
Remove coarse food residues from
^
crockery.
There is no need to rinse items under running water.
Do not wash items soiled with
,
ash, sand, wax, lubricating grease or paint in the dishwasher. Ash does not dissolve and is distributed in the wash cabinet. Wax, sand, lubricating grease and paint cause damage to the dishwasher.
Crockery can be loaded anywhere in the baskets, but the following notes should be observed:
^ Do not place crockery and cutlery in-
side other pieces where they may be concealed.
^ Load the crockery so that water can
access all surfaces. This ensures that it is properly cleaned.
^
Make sure that all items are securely positioned.
^
Hollow items such as cups, glasses, pans, etc. must be inverted in the basket.
^
Tall, narrow, hollow items, e.g. cham pagne glasses, should be placed in the centre of the basket to ensure better water coverage.
Deep based items should be placed
^
at an angle so that water can run off them freely.
The spray arms must not be blocked
^
by items which are too tall or hang through the baskets. If in doubt, test for free movement by manually rotating the spray arms.
Make sure that small items do not fall
^
through the holders in the baskets. Small items, e.g. lids, should there fore be placed in the cutlery tray or cutlery basket.
Some foodstuffs may contain natural dyes, e.g. carrots, tomatoes or ketchup. Plastic items in the dish­washer may discolour if large quan­tities of these foodstuffs find their way into the appliance on the crock­ery. The stability of plastic items is not affected by this discolouration.
When the dishwasher is being loaded food and drink residue may drip onto the sides of the dish washer door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms.
­Food residue should therefore be
wiped away before the dishwasher door is closed.
-
-
21
Loading the dishwasher
Upper basket
For small, lightweight, delicate items such as cups, saucers, glasses, des­sert bowls, etc. Shallow saucepans or casserole dishes can also be placed in the upper basket.
Flap up rack
To make room for tall items raise the rack upwards.
Positioning rail
Long items such as soup ladles, mixing spoons and long knives should be placed lying down across the front of the upper basket.
22
The positioning rail can be flipped over to the middle of the basket for easy sorting and removing of crockery.
Loading the dishwasher
Adjusting the upper basket
(depending on model) In order to gain more space for taller
pieces of crockery in the bottom or up per basket, the upper basket can be adjusted on three levels with 2 cm be tween each level.
The upper basket can also be set at an angle with one side high and the other side low. Ensure however, that the bas ket can be inserted smoothly into the cabinet.
Pull out the upper basket.
^
-
Depending on the setting of the upper basket, the following plate dimensions can be accommodated.
-
Dishwashers with cutlery tray
Model G 6XX
(see data plate for model number)
-
Upper basket
level
To p 1 5 3 0 Middle 17 28 Bottom 19 26
Model G 8XX
(see data plate for model number)
Upper
basket
level
Plate Ø in cm
Upper bas
ket
Plate Ø in cm
Upper bas-
ket
-
Lower
basket
Lower
basket
^
Pull upwards on the levers at either side of the upper basket.
^
Adjust the basket to the desired height.
^
Then push the levers securely back down into position.
To p 2 0 3 0 Middle 22 28 Bottom 24 26
Dishwashers with cutlery basket
without adjustment to upper basket Plate Ø in upper basket: 23 cm
Plate Ø in lower basket: 28 cm
23
Loading the dishwasher
Lower basket
For larger and heavier items such as plates, serving platters, saucepans, bowls, etc. Small items such as saucers can also be placed in the lower basket. Do not place thin, delicate glassware in the lower basket.
Dishwashers with cutlery tray
Hinged spikes
Both sides of the rear section can be lowered to make more room for large items, e.g. pots, pans and dishes.
^ Raise and then fold down one side of
the spiked insert and then do the same to the other side.
Dishwashers with cutlery basket
24
Loading the dishwasher
Height limitation
The stay at the front of the upper basket determines the max. height permissible for items placed in the lower basket to ensure they do not impede the move­ment of the middle spray arm.
Bottle holder
The bottle holder, e.g. for milk and baby bottles, can be inserted in various positions in the lower basket. See areas marked white in the illustration. However, do not place a bottle holder in the middle or in the corners. Water will not be able to access the bottles properly, and cleaning results will be impaired.
25
Loading the dishwasher

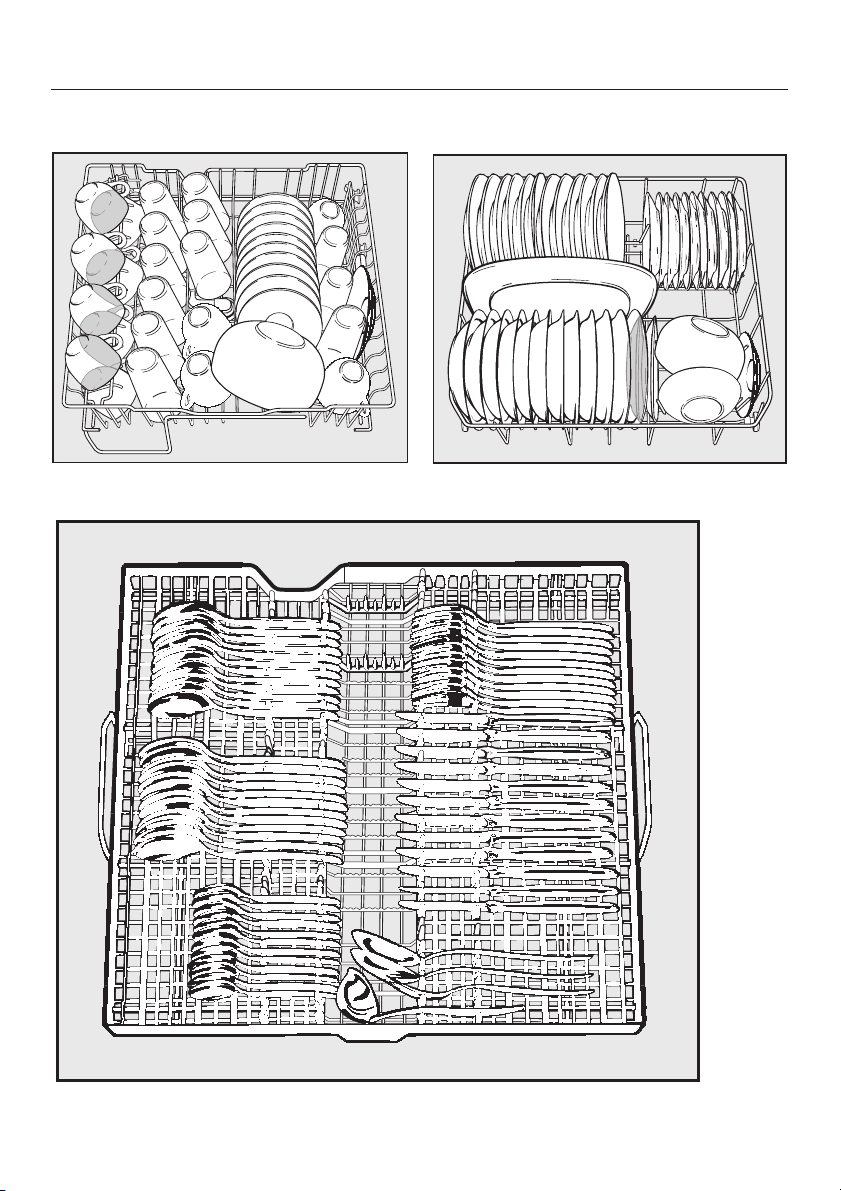

Cutlery
Dishwashers with a cutlery basket
^ Unsorted cutlery should be placed in
the cutlery basket with the handles facing downwards to ensure optimum spray water access.
However, to avoid the risk of in
,
jury cutlery with sharp points should be placed with the handles up wards.
Place small spoons in the individual
^
slots to either side of the cutlery bas ket.
-
-
-
26
Cutlery insert for the cutlery basket
Use the insert supplied for heavily soiled spoons and forks.
The insert separates the items so that they can be more easily accessed by water.
^ Fit it into the cutlery basket if re-
quired.
Loading the dishwasher
Insert cutlery with the handles facing
^
downwards, and distribute them evenly along the insert.
27
Loading the dishwasher
Dishwashers with a cutlery tray (SC)
For best results cutlery should be grouped in zones, one for knives, one for forks, one for spoons, etc.This makes unloading much easier.
Place the blades of knives and the prongs of forks between the holders. Spoons, on the other hand, should be placed with the handles between the holders.
Longer items such as soup ladles, cake slices, mixing spoons and long knives should be placed lengthwise in the in dentation in the middle of the cutlery tray.
The upper spray arm must not be blocked by items which are too big (e.g. cake slices).
The cutlery tray insert is removable.
-
Spoon heads should be placed in con tact with at least one of the serrated re­tainers on the base of the cutlery tray to ensure that water runs off them freely.
If spoon handles do not fit between the holders then lay them the other way round making sure that the head of the spoon is in contact with the support on the bottom of the tray.
-
28
Loading the dishwasher
Items not suitable for dishwashers:
Wooden cutlery and crockery or
items with wooden parts: these may discolour and fade. The glue used in these items is not dishwasher-proof and wooden handles may come loose after being washed in a dish washer.
Craft items, antiques, valuable vases
and decorative glassware are also not suitable for dishwashers.
Plastic items which are not heat re
sistant. The high temperatures in the dishwasher may cause them to melt or lose shape.
– Copper, brass, tin and aluminium
items may discolour or become matt.
– Colours painted over a glaze may
fade after a number of washes.
– Clouding may occur on glasses after
frequent washing. Do not wash glassware containing lead crystal in a dishwasher.
-
-
Please note
Silverware silver polish ted at the end of a programme, where water has not run off smoothly. It may need rubbing dry with a soft cloth. Sil ver treated in a silver immersion dip is usually dry at the end of a programme but may discolour.
Silver which has been in contact with foods containing sulphur can discolour. These include egg yolk, onions, mayon naise, mustard, pulses, fish, fish brine and marinades.
,
grease filter) must not be cleaned with caustic alkaline commercial or industrial cleaning agents. These may damage material, or in extreme cases, cause severe chemical reac­tion. See section "Adding detergent" for information on suitable deter­gents.
previously cleaned with a
may still be damp or spot
-
Aluminium components (e.g. a
-
-
We recommend: –
When purchasing new crockery and cutlery, make sure they are dish washer-proof.
There are no standard guidelines for washing glassware. When in doubt, wash glassware by hand.
If delicate glassware is washed in the dishwasher ensure that only very low temperatures are used (see programme chart). This will reduce the risk of clouding.
-
29
Operating the dishwasher
Detergent
Only use detergents formulated
,
for domestic dishwashers. Do not use washing up liquid.
You can use conventional powder de
^
tergent, tablets or liquid dishwasher detergent. Refer to the dosing instructions given by the manufacturer on the packag ing.
Put powder or liquid detergent into
^
the dispenser compartment.
^ Detergent tablets should only be put
into compartment II if this is recom­mended by the manufacturer. If the manufacturer recommends in­serting tablets in the cutlery basket do not do so. Instead place them on the inside of the door or directly into the wash cabinet to help them dis­solve properly.
Detergent manufacturers give the re quired amount of detergent for a partic ular programme on their packaging.
Use at least 30 ml of detergent for a
^
full load in the following programmes:
- Intensive,
-
- Universal plus,
- Universal,
- Normal,
-
- Economy. If the manufacturer recommends a larger amount of detergent, use the amount recommended.
Failure to dispense the recom­mended amount of detergent may impair cleaning results.
If you are using 2 in 1 or 3 in 1 com­bination tablets, please continue to replenish the salt and rinse aid res­ervoirs as described in this booklet. Otherwise the cleaning and drying performance of the machine may deteriorate over time.
-
-
30
Adding detergent
Operating the dishwasher
Avoid inhalation of powder de
,
tergents and do not ingest dish washer detergent! Dishwasher de tergents contain irritant or corrosive ingredients. They can cause burning in the nose, mouth and throat if swal lowed, or inhibit breathing. Consult a doctor immediately if detergent has been swallowed or inhaled. Keep children away from detergents and from the dishwasher when the door is open. There could still be deter gent residues in the cabinet. To avoid the danger of children coming into contact with the dishwasher de­tergent only add detergent just be­fore starting the programme and close the door, activating the child safety lock.
It is essential to follow the instruc­tions given in the programme chart at the end of the operating instruc tions.
-
-
-
-
-
-
^ Press the opening catch on the de-
tergent dispenser. The flap will spring open.
The flap is always open at the end of a programme.
For information
Compartment I holds max. 20 ml, Compartment II holds max. 70 ml.
There are markings in compartment II to assist with dispensing. The marks in dicate a level of approx. 20, 25, 30 ml when the door is open in a horizontal position.
^
Add the required amount of deter gent and close the flap.
-
^
Ensure that the detergent package is properly sealed after use. Otherwise the detergent can lose its effective ness.
-
-
31
Operating the dishwasher
Programme selection
Choose your programme according to the type of load and how dirty it is.
In most cases this will be a Universal programme or a Universal plus programme.
These programmes are ideally suited to everyday mixed loads with varying de grees of soiling.
The different programmes and their uses are described in the programme chart at the end of this booklet.
-
32
Switching on
^ Make sure the spray arms are not ob-
structed.
^ Close the door.
Operating the dishwasher
Do not finish a programme prema­turely. Important programme stages (e. g. reactivating the water softener) could be omitted.
^ Open the stopcock, if it is closed. ^ Press the "On/Off" button (13).
The "Start" indicator light (15) will flash.
Starting a programme
^
When selecting a programme, refer to the programme chart at the end of the operating instructions.
^
Turn the programme selector (16) clockwise or anti-clockwise to the re quired programme.
^
Press the "Start" button (15).
The programme cycle begins. The "Start" (15) and "Wash/Rinse" (14) indi cator lights come on.
Programme sequence indicator lights (14)
The "Wash/Rinse" indicator light comes on in the pre-wash, main wash, interim rinse and final rinse stages of a programme.
The "Drying" indicator light during the drying stage of a programme.
-
The "End" indicator light when the programme has finished.
-
comes on
comes on
33
Operating the dishwasher
At the end of a programme
A programme has finished when the "End" indicator light comes on in the programme sequence display (14).
The dishwasher can now be opened and unloaded (see "Unloading the dish washer").
For safety’s sake it is advisable to al ways switch the dishwasher off if you do not wish to start another programme immediately.
-
Switching off
At the end of a programme:
Turn the programme selector (16) to
^
the "Stop" position.
The "End" indicator light (14) goes out
­and the "Start" indicator light (15)
flashes.
Press the "On/Off" button (13).
^
The "Start" indicator light (15) goes out.
The dishwasher continues to use electricity until switched off using the "On/Off" button.
If the dishwasher is not to be used for a longer period of time, e. g. whilst on holiday, the stopcock should be turned off.
34
Operating the dishwasher
Interrupting a programme
A programme is interrupted as soon as the door is opened. If the door is closed again, the programme will continue from the point it was at before the door was opened.
Water in the dishwasher may be
,
hot. Danger of scalding! Only open the door if absolutely necessary and exercise extreme caution when doing so. Before clos ing the door again, leave it ajar for approx. 20 secs. This will enable the temperature in the wash cabinet to settle. Close the door firmly making sure that it clicks into place.
-
Changing a programme
Important: If the detergent dispenser flap has already opened, do not change the programme.
If a programme has already started and you wish to change it proceed as fol lows:
Turn the programme selector (16) to
^
the "Stop" position. Leave the programme selector (16) in
^
this position for at least one second.
^ Then turn the programme selector
(16) to the programme you wish to
use. ^ Press the "Start" button (15). The programme cycle begins.
-
35
Operating the dishwasher
Unloading the dishwasher
Dishes tend to break and chip more
^
easily when they are hot. Allow the dishes to cool until they are comfortable enough to handle before unloading them.
If you open the door fully after switch
^
ing off, the dishes will cool much faster.
First unload the lower basket, then
^
the upper basket and finally the cut lery tray (depending on model). This will prevent water drops from the upper basket and cutlery tray from falling onto the dishes in the lower basket.
-
-
36
Check your dishwasher regularly (approx. every 4 - 6 months). This way faults and problems can be avoided.
Cleaning the filters in the wash cabinet
The filter combination in the base of the wash cabinet retains coarse soil from the suds solution, preventing it access ing the circulation system and re-enter ing the cabinet through the spray arms.
The dishwasher must not be
,
used without all the filters in place.
Collection of coarse soil may cause the filters to clog. Check the filter combination regularly (every 4 - 6 months) and clean if neces­sary.
Cleaning and care
-
-
Turn the handle anti-clockwise to re
^
lease the filter combination.
-
^ Switch the dishwasher off before-
hand.
^
Lift the filter combination out of the
dishwasher. Remove any coarse par
ticles and rinse the filter under run
ning water. Use a nylon brush if nec
essary.
-
-
-
37
Cleaning and care
To clean the underside of the filter, the flap must be opened:
^ Pull back the yellow clip to do this. ^ Rinse all parts under running water,
using a nylon brush if necessary.
^ Then close the flap so that the clip
engages. Important: After cleaning make sure that the clip has properly engaged.
Replace the filter combination so that
^
it lies flat in the base of the wash cab-
inet. ^ Secure the filter by turning the handle
in a clockwise direction.
,
Take care when you are fitting the filter combination that it is se­cured in position correctly. Other­wise coarse soil could get into the circulation system and cause a blockage.
38
Cleaning and care
Cleaning the spray arms
Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be inspected and cleaned regularly (approx. every 4 - 6 months).
Switch the dishwasher off before
^
hand.
Remove the spray arms as follows:
Take out the cutlery tray (if your dish
^
washer is fitted with one). Press the top
^
engage the inner ratchet. Then un­screw the spray arm.
spray arm upwards to
-
Remove the lower basket.
^
-
^ Pull the lower
wards to remove it.
spray arm firmly up-
^
Lift up the middle gage the ratchet. Then unscrew the spray arm b.
spray arm a to en
-
^
Use a pointed object to push food particles into the spray arm jets.
^
Rinse thoroughly under running wa ter.
^
Replace the spray arms and check that they rotate freely.
-
39
Cleaning and care
Cleaning the wash cabinet
The wash cabinet is largely self-clean ing, provided that the correct amount of detergent is always used.
If, however, there are limescale or grease deposits in the cabinet these can be removed with a proprietary dishwasher cleaner.
-
Cleaning the door and the door seal
Wipe the door seals regularly with a
^
damp cloth to remove food deposits.
^ When the dishwasher is being loaded
food and drink residue may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by wa­ter from the spray arms. Any soiling should be wiped off these surfaces before the door is closed.
Cleaning the control panel and door front panel
Plastic panels:
This type of panel should only be
^
wiped with a damp cloth or suitable cleaning agent designed for use on plastic.
Do not use abrasive cleaning
,
agents, glass cleaning agents or all-purpose cleaners. Because of their chemical composition they could cause serious damage to plastic surfaces.
Stainless steel panels: ^ Clean using a damp cloth and a little
washing-up liquid or with a propri­etary non-abrasive cleaning agent designed specifically for use on stainless steel. To help prevent re-soiling (finger prints etc.), a propri­etary conditioning agent for stainless steel can also be used. Apply spar­ingly with an even pressure following the direction of the grain.
40
Aluminium panels: Aluminium is affected by the way that light falls on it, by the surrounding envi ronment and by the angle you observe it from. Aluminium is susceptible to scratching and abrasion and must be treated with due care.
^
Soiling should be removed as soon as possible using a damp cloth and a little washing-up liquid.
-
Stainless steel and aluminium
,
surfaces and controls may suffer discolouration or damage if soiling is left on them for too long. Soiling should therefore be removed as soon as possible, taking care not to scratch or damage the surface ma terial.
Wood door front panels:
Door fronts made from wood should
^
only be cleaned using a damp cham ois leather and then dried with a soft cloth.
Do not use any cleaning agents
,
containing ammonia or thinners. These would damage the surface structure.
E-Cloth:
A microfibre "E-Cloth" is available from the Miele UK Spare Parts Department, Part number 98013530, which is suit­able for cleaning surfaces such as stainless steel, glass, plastic and chrome without the use of chemicals.
-
Cleaning and care
-
41
Problem solving guide
With the aid of the following guide, minor problems can be easily corrected with out calling in a Miele service technician, saving you both time and money.
You should, however, note the following:
Repairs should only be carried out by a suitably qualified and trained per
,
son in accordance with local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage the appliance.
Problem Possible cause Remedy
The "Start" indicator light does not flash after the appliance has been switched on with the "On/Off" button.
The dishwasher does not start after the "Start" button has been pressed; the "Start" indi­cator light is flashing.
The dishwasher stops during a programme.
The door is not properly closed.
The appliance is not plugged in.
The fuse is defective or has tripped.
The programme selector is at the "Stop" position.
The fuse is defective or has tripped.
Close the door firmly.
Insert the plug.
Replace the fuse (see data plate for minimum fuse rating).
– Turn the programme
selector to the required programme.
– Press the "Start" button.
Replace the fuse (see data plate for minimum fuse rating).
-
-
42
Problem solving guide
Problem Possible cause Remedy
The indicator light "In let/Drain" lights up and flashes alternately.
The stopcock is closed. Open the stopcock fully.
-
The water inlet filter is blocked.
The Waterproof system has reacted.
Before rectifying the prob lem you must:
Turn the programme
selector to the "Stop" position.
Switch the dishwasher
off using the "On/Off" button.
then:
Clean the water inlet fil
ter, see "Solving prob lems".
Call the Miele Service De­partment.
-
-
-
43
Problem solving guide
Problem Possible cause Remedy
The indicator light "In let/Drain" is flashing and the programme does not continue.
-
Water intake is restricted.
Water outlet is restricted, water remains in the wash cabinet at the end of a programme.
Before rectifying the prob lem you must:
Turn the programme
selector to the "Stop" position.
Switch the dishwasher
off using the "On/Off" button.
Open the stopcock
fully. Check the water inlet
filter and clean if nec essary, see "Cleaning the water inlet filter".
– The water pressure at
the intake is lower than
0.3 bar. Seek profes­sional advice.
– Clean the filter combi-
nation, see "Cleaning and Care".
– Clean the drain pump,
see "Cleaning the drain pump and non-return valve".
Clean the non-return valve, see "Cleaning the drain pump and non-return valve".
Remove any kink in the drain hose.
-
-
44
Problem solving guide
Problem Possible cause Remedy
The "End" and "Start" indicator lights flash si multaneously at the end of a programme.
There may be a technical fault.
-
Turn the programme
selector to the "Stop" position.
Switch the dishwasher
off using the "On/Off" button.
After a few seconds:
Switch the dishwasher
on using the "On/Off" button.
Turn the programme
selector to the required
programme. – Press the "Start" button. If the indicator lights flash
again, there is a technical fault.
– Call the Miele Service
Department.
45
Problem solving guide
Problem Possible cause Remedy
Knocking noise in the wash cabinet.
Rattling noise. Items of crockery are in
Knocking noise in the water pipes.
The spray arm is knocking against an item in the bas ket.
­secure in the wash cabi net.
This may be caused by the on-site installation or the cross-section of the piping.
-
Interrupt the programme, rearrange items which are
­obstructing the spray arm.
Interrupt the programme, rearrange the items of crockery.
This has no influence on dishwasher function. If in doubt contact a suitably qualified plumber.
46
Problem solving guide
Problem Possible cause Remedy
The dishes are not clean.
The dishes were not loaded correctly. Dishes were placed inside other pieces, water could not access all surfaces.
The outlet of the water in take pipe for the middle spray arm was covered. An insufficient amount of water flowed into the mid dle spray arm.
The programme was not powerful enough.
Not enough detergent was dispensed.
Tall items are blocking the path of the spray arms.
The spray arm jets are blocked.
The filter combination in the base of the wash cabi net is not clean or is not correctly fitted. This may cause the spray arm jets to get blocked.
The drain pump or non-re turn valve may be blocked.
See notes in "Loading the dishwasher".
Make sure that dishes
­placed in the rear section of the upper basket do not cover the opening.
-
Select a more intensive programme, see "Programme chart" at the end of these operating in­structions.
Use more detergent, see "Operating the dish­washer".
Rearrange the items so that the spray arms can rotate freely.
Clean the spray arm jets, see "Cleaning and Care".
Clean and/or replace the
-
filter combination cor rectly. Clean the spray arm jets, see "Cleaning and Care".
-
Clean the drain pump and the non-return valve, see "Cleaning the drain pump and non-return valve".
-
47
Problem solving guide
Problem Possible cause Remedy
Dishes and glasses are not dry or are flecked.
White residue is visible on cutlery and crockery, clouding occurs on glassware; film can be wiped off.
Smearing appears on glassware and cutlery, there is a bluish sheen on the surface of glass ware; film can be wiped off.
The rinse aid amount may be insufficient or the rinse aid reservoir empty.
Crockery was taken out of the cabinet too soon.
Not enough rinse aid was used.
There is no salt in the salt reservoir.
The salt reservoir cap has not been screwed on cor­rectly.
The water softener is pro­grammed to a setting which is too low.
Combination dishwasher detergent tablets contain­ing rinse aid and/or salt may have been used. These are unsuitable as long term use can impair the softener unit.
The rinse aid dosage is set too high.
-
Increase the dosage or replenish the reservoir, see "Before using for the first time".
Leave it in for longer, see "Operating the dish washer".
Increase the dosage, see "Before using for the first time".
Add dishwasher reactiva tion salt, see "Before using for the first time".
Replace it making sure it screws back on correctly.
Programme a higher set­ting, see "Before using for the first time".
Use a standard liquid, tablet or powder deter­gent.
Reduce the dosage, see "Before using for the first time".
-
-
48
Problem solving guide
Problem Possible cause Remedy
Glassware is dull and discoloured; film cannot be wiped off.
Tea or lipstick stains have not been com pletely removed.
Plastic items are discol oured.
There are rust stains on cutlery.
-
Glassware is not dishwasherproof. The sur faces are affected.
The wash temperature of the selected programme was too low.
The bleaching effect of the detergent used is too low.
Natural dyes e.g. from
-
carrots, tomatoes or ketchup may be the cause. The amount of de­tergent used or its bleach­ing effect was not suffi­cient to deal with natural dyes.
The salt reservoir cap has not been screwed on cor­rectly.
The affected items are not corrosion resistant.
The "Pre-wash" programme was not run after dishwasher salt was added. Traces of salt have got into the wash cy cle.
There is no remedy. Purchase glassware
­which is dishwasher­proof.
Select a programme with a higher wash tempera ture.
Use a different type of de tergent.
Use more detergent, see "Operating the dish washer". Discolouration is irrever­sible.
Replace it making sure it screws back on correctly.
There is no remedy. Purchase cutlery which is dishwasher-proof.
Always run the "Pre-wash" programme after adding dishwasher salt.
-
-
-
-
49
Problem solving guide
Problem Possible cause Remedy
The detergent lid cannot be closed properly.
Detergent residue is left in the dispenser at the end of a programme.
Water remains in the wash cabinet at the end of a programme.
Clogged detergent resi due is blocking the catch.
The dispenser was still damp when detergent was added.
The filter combination in the wash cabinet is clogged.
The drain pump or non-re­turn valve may be blocked.
The drain hose is kinked. Remove any kink in the
Remove the residue.
-
Make sure the dispenser is dry before adding de tergent.
Before rectifying the prob lem you must:
Turn the programme
selector to the "Stop" position.
Switch the dishwasher
off using the "On/Off" button.
Clean the filter combina­tion, see "Cleaning and Care".
Clean the drain pump and the non-return valve, see "Cleaning the drain pump and non-return valve".
drain hose.
-
-
50
Cleaning the water inlet filter
Solving problems
A filter is incorporated in the screw con nection of the valve on the water inlet hose. The filter must be cleaned when dirty, otherwise insufficient water flows into the wash cabinet.
The plastic housing of the water
,
connection contains an electrical component. It must not be dipped in water.
Recommendation
If the mains water contains a large number of insoluble substances, we recommend fitting a large-area filter in the connection between the stopcock and the water inlet hose threaded un­ion. This filter is available from the Miele Spares Dept.
Cleaning the filter:
^ Disconnect the dishwasher from the
mains supply (switch off at the mains socket, pull out the plug , switch off the appropriate circuit at the fuse box or withdraw the mains fuse).
^
Turn off the stopcock.
^
Unscrew the inlet hose.
-
Carefully remove the rubber seal.
^ ^ Withdraw the filter using pointed pli-
ers and rinse clean under running water.
^ Replace the filter and seal, making
sure they are sitting correctly.
^ Reconnect the inlet hose to the stop-
cock, making sure it goes on cor­rectly and is not cross-threaded.
^
Turn on the stopcock gradually to test for leaks. If there is a leak, the inlet hose might not be on securely, or it may have been screwed on at an an gle. Unscrew and reconnect the wa ter inlet valve correctly.
-
-
51
Solving problems
Cleaning the drain pump and non-return valve
If the water has not been pumped away at the end of a programme the drain pump or the non-return valve might be blocked. They are, however, easy to clean. Watch out for glass or bone splinters which could cause injury.
Take the filter combination out of the
^
wash cabinet (see "Cleaning and care", "Cleaning the filters in the wash cabinet").
Scoop the water out of the cabinet
^
using a suitable container.
Raise the locking clamp for the
^
non-return valve.
52
Solving problems
^ Lift up the non-return valve and rinse
well under running water.
^ Remove all foreign objects from the
non-return valve.
The drain pump is situated under the non-return valve (see arrow).
^ Remove all foreign objects from the
drain pump (watch out for glass or bone splinters which are particularly difficult to detect and could cause in­jury). Turn the drain pump impeller by hand to check that there are no more obstructions.
^ Carefully replace the non-return valve
and secure it with the locking clamp.
53
After sales service
Should you still have any difficulties, please contact:
Your Miele Dealer
– or
The Miele Service Department (see
back cover for address).
Please quote the model type and
^
number of your appliance.
This information is given on the data plate at the top of the door.
Please note that telephone calls may be monitored and recorded to im­prove our service.
Programme update function - PC
The programme update function (PC = Programme correction) is designed to enable a service technician to update your machine’s electronics in keeping with advances in technology.
The indicator or check light marked "Salt PC" is used as the interface for this programming.
Information regarding programme up­dates will be made known by the Miele Company as and when such develop ments become available.
-
54
Optional accessories
To make the most of your dishwasher
If you would like … you will need to order …
... to wash bottles, e. g. milk or baby bottles
… . to wash long-stemmed glassware … . a glassware insert for the upper
… . to wash additional items of cutlery
… . a bottle holder
basket
… . a small cutlery basket for the lower basket
55
Comparison tests
Model G 6XX (For model number see data plate) Test standard: EN 50242 / IEC 704 Standard programme Economy
for comparison tests (energy label):
Note: The Universal Plus 55 ° programme for normal
soiling has increased wash and drying results with shorter running times and increased energy requirements.
Amount washed: 12 place settings Amount of detergent: 30g only Rinse aid dispensing: Setting 3 (approx. 3 ml)
in compartment II.
Dishwashers with cutlery basket
Cutlery insert: Place teaspoons into the right and left hand spoon
sections in the basket. Fit the cutlery insert into the cutlery basket (see "Loading the dishwasher"). Place dessertspoons in the right and left hand sides of the cutlery insert, soup spoons at the back and forks in the front.
Upper basket
56
Lower basket
Dishwashers with cutlery tray
Comparison tests
Upper basket
Lower basket
Cutlery tray
57
Comparison tests
Model G 8XX (For model number see data plate) Test standard: EN 50242 / IEC 704 Standard programme Economy
for comparison tests (energy label):
Note: The Universal Plus 55 ° programme for normal
soiling has increased wash and drying results with shorter running times and increased energy requirements.
Amount washed: 14 place settings Amount of detergent: 30g only Rinse aid dispensing: Setting 3 (approx. 3 ml)
Upper basket
in compartment II.
Lower basket
58
Comparison tests
Cutlery tray
59
Programme chart
Model G 6XX
Programme When to use Detergent
Compartment
II
(Wash cycle)
Economy
Normal 50 ° with a shorter wash time
Universal 55 ° for normal everyday loads 100 %
Universal Plus 55 °
Intensiv 75 ° for normally soiled pots, pans, dishes etc with dried on soiling;
Pre-wash for rinsing crockery to avoid smells, if a complete cycle is not yet
1) Standard programme for energy labelling.
2) Programme with much longer, but quieter drying phase
1) 2)
for normal everyday loads, energy saving programme which uses a low temperature and long programme duration
for lightly to normally soiled crockery
where soiling has not dried on
with a longer wash time for normally soiled crockery with dried on soiling
for very heavy soiling, add 20% more detergent to compartment I
needed. This programme should also be used for flushing out salt residues after replenishing the salt reservoir.
100 %
100 %
100 %
100 %
60
Pre-
wash
12
Programme chart
Programme sequence Consumption Duration
Energy kWh Water h:min
-
Hot
water
con
nection
(55 °C)
Main wash
X
45 °
Interim
rinse
XX
Final rinse
55 °
Litres Cold
-
Hot
water
con
nection
(55 °C)
water
-
con nection (15 °C)
Drying Cold
water
con
nection
(15 °C)
X 1.05 0.6 13 2:48 2:37
-
X
50 °
X
55 °
XX
55 °
X
75 °
X 0.06 0.06 5 0:11 0:11
When washing a full load in the Intensive Programme, the Universal Plus Programme, the Universal Programme, the Normal Programme and the Economy Programme at least 30 ml of detergent are re quired. If the detergent manufacturer recommends using more than this you should dispense the amount they suggest. For the Intensive Programme add an additional 5-7 ml to compartment I.
Values quoted are in accordance with EN 50242. Results in the home may differ.
XX
65 °
XX
65 °
XX
65 °
XX
75 °
X 1.2 0.6 13 1:12 1:05
X 1.2 0.6 13 1:37 1:24
X 1.25 0.7 17 2:05 1:52
X 1.7 1.2 13 2:31 2:09
-
61
Programme chart
Model G 8XX
Programme When to use Detergent
Compartment
II
(Wash cycle)
Economy
Normal 50 ° with a shorter wash time
Universal 55 ° for normal everyday loads 100 %
Universal Plus 55 °
Intensiv 75 ° for normally soiled pots, pans, dishes etc with dried on soiling;
Pre-wash for rinsing crockery to avoid smells, if a complete cycle is not yet
1) Standard programme for energy labelling.
2) Programme with much longer, but quieter drying phase
1) 2)
for normal everyday loads, energy saving programme which uses a low temperature and long programme duration
for lightly to normally soiled crockery
where soiling has not dried on
with a longer wash time for normally soiled crockery with dried on soiling
for very heavy soiling, add 20% more detergent to compartment I
needed. This programme should also be used for flushing out salt residues after replenishing the salt reservoir.
100 %
100 %
100 %
100 %
62
Pre-
wash
12
Programme chart
Programme sequence Consumption Duration
Energy kWh Water h:min
-
Hot
water
con
nection
(55 °C)
Main wash
X
45 °
Interim
rinse
XX
Final rinse
55 °
Litres Cold
-
Hot
water
con
nection
(55 °C)
water
-
con nection
(15 °C)
Drying Cold
water
con
nection
(15 °C)
X 1.08 0.7 13 2:48 2:37
-
X
50 °
X
55 °
XX
55 °
X
75 °
X 0.06 0.06 5 0:11 0:11
When washing a full load in the Intensive Programme, the Universal Plus Programme, the Universal Programme, the Normal Programme and the Economy Programme at least 30 ml of detergent are re quired. If the detergent manufacturer recommends using more than this you should dispense the amount they suggest. For the Intensive Programme add an additional 5-7 ml to compartment I.
Values quoted are in accordance with EN 50242. Results in the home may differ.
XX
65 °
XX
65 °
XX
65 °
XX
75 °
X 1.3 0.7 13 1:12 1:05
X 13 0.7 13 1:37 1:24
X 1.35 0.8 17 2:05 1:52
X 1.8 1.3 13 2:31 2:09
-
63
Transport
Should you ever need to move the dish washer, e.g. when moving house, note the following:
Empty the dishwasher,
Secure any loose parts, e. g. hoses,
mains cable, cutlery baskets, lower basket
Transport the dishwasher in the up
right position. If unavoidable, it may be transported on its back. Do not transport it on its side or on the door as residual water still in the appliance will leak out of it. This residual water could get into the electronic unit and cause a fault.
-
-
646566
67
Alteration rights reserved / G641/G644/G841 Plus / 0703
M.-Nr. 05 714 422 / V00
This paper consists of cellulose which has been bleached without the use of chlorine.
Loading...
