Operating instructions
Commercial dishwasher
G 7762 UNIVERSAL
Be sure to read the operating
instructions carefully before installing
and starting to use this machine.
This way you will avoid the risk of
accidents and damage to the machine. M.-Nr. 04 039 571
QÄ
Contents
Contents
Guide to the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warning and safety instructions (detachable) . . . . . . . . . . . . . . . . . Centre pages
Description of the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Setting the water softener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Opening and closing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Application technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Adding rinse aid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Setting the dosage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Adding detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Programme selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Switching the machine on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Selecting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Selecting an additional programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Programme sequence indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Programming special functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Reactivating the water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Correcting minor faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
2
Guide to the machine
DOS
1234 5 6 7 8 9
Guide to the machine
°C
min
•
•
•
•
•
•
•
•
•
I-O
•
•
•
•
•
•
•
1 "Check water inlet/drainage"
indicator
2 "Reactivate softener"
indicator *)
3"Add
(liquid) detergent" indicator
(only where special DOS module
is connected externally)
4 "Add rinse aid" indicator
5 Programme sequence indicator
6 Display
7 Door release
8 On/Off pushbutton (I-0)
9 Programme selectors
*) – only functions if water softener
is fitted –
3
Guide to the machine
10 11 12 13 14 15
10 Connection for DOS module
(at the rear of the machine)
11 Filter combination
12 Dispenser for
detergent
13 Salt container socket
(water softener) *)
4
powder
14 Two dispensers for liquid
rinsing agent with dosage selector
15 Level indicator
*) – only functions if water softener
is fitted –
Warning and safety instructions
Warning and safety instructions
This machine meets all the statutory
safety requirements. Improper use
may cause accidents and damage
to the machine.
Before installation and before using
the machine for the first time, read
the operating instructions carefully.
This way you will avoid the risk of
accidents and damage to the machine.
Keep the operating instructions in a
safe place.
Specified use of the machine
This machine is only authorised for
the applications mentioned in the
operating instructions. Do not use the
machine for purposes other than those
for which it was designed, as this
might be dangerous. The manufacturer
cannot be held responsible for damage caused by improper use of the
machine.
The electrical safety of this ma-
chine can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system. It is imperative that this basic
safety requirement is tested and where
there is any doubt, the electrical system should be checked by a qualified
electrician. The manufacturer cannot be
held responsible for damage caused by
the lack or inadequacy of an effective
earthing system (e.g. electric shock).
A damaged machine poses a
safety risk. Disconnect the machine immediately from the mains supply and inform a suitably qualified service technician.
Repairs should only be carried out
by suitably qualified and competent service technicians. Repairs by unqualified persons could be dangerous.
The machine should not be oper-
ated by unauthorised personnel.
Please note the following in order to
prevent accidents
Commissioning and repairs should
only be carried out by a suitably
qualified and competent Miele service
technician, an authorised Miele service
dealer or by other suitably qualified and
competent service technicians.
Do not install the machine where
there is a risk of explosion or
where sub-zero temperatures may
occur.
Take care when handling liquid
cleaning agents/additives. These
may contain irritants or corrosive substances. Do not use organic solvents
as there may be the danger of explosion.
Carefully follow the relevant safety instructions on packaging and wear protective gloves and goggles.
5
Warning and safety instructions
Avoid inhaling powder dust.
Swallowing detergent may cause
burns or even lead to suffocation.
The water in the machine must not
be used as drinking water.
Do not sit or lean on the open door.
This could cause the machine to
tip and be damaged.
Be careful when sorting sharp
pointed instruments not to injure
yourself. If necessary, place the
pointed end downwards with the
handles pointing upwards.
When using the machine at high
temperatures take care as the load
is extremely hot and may cause burns.
Baskets and inserts must first be
allowed to cool. Empty any water still remaining in concave items into the
cabinet before removing the load.
Do not touch the heating elements
after the end of a programme as
this may cause burns.
Never use a hose or a high-press-
ure cleaner on or in the vicinity of
the machine.
Before carrying out repairs, discon-
nect the machine from the mains
supply (switch off at the main socket
and pull out the plug, switch off the
appropriate circuit at the fuse box or
withdraw the mains fuse).
Please heed the following instructions in order to guarantee the quality
of cleaning performance and to
avoid damage.
Only use detergents which have
been tested and recommended by
Miele for use in special dishwashers.
Use of other cleaning agents may
cause damage to both the load and the
machine.
Prior treatment (e.g. with deter-
gent), but also certain types of soil
and some detergents may cause foaming which may have an adverse effect
on the quality of cleaning.
The recommendation of specific
chemical products (e. g. detergent) for individual applications does
not mean that the appliance manufacturer accepts responsibility for any
effect these may have on the articles
being processed.
Please note that variations in composition, storage conditions, etc., which
are not always announced by the detergent manufacturer, may affect the
quality of the cleaning results.
When using detergents and spe-
cial cleaning agents, take particular care to follow the manufacturer’s
instructions. Only use the appropriate
cleaning agent for the application
recommended by the manufacturer.
Improper use may cause damage to
material, or in some cases lead to
severe chemical reaction (e.g. oxyhydrogen explosion).
6
Warning and safety instructions
Only use water and cleaning agents
in this machine. Do not use organic
solvents as there may be a danger of
explosion.
(Note: There are many organic solvents
which do not pose a risk of explosion,
but may cause other problems, such as
damage to elastomers and plastic components).
In the case of critical applications
requiring a particularly high standard of cleaning, cleaning programmes
and parameters (detergent, quality of
water, etc.) should be coordinated with
the Miele Applications Technology
Department.
If a particularly high standard of
cleaning and rinsing is required
(e. g. chemical analysis, special industrial production, etc.), regular quality
checks must take place to guarantee
the correct standard of cleaning.
Use special inserts in accordance
with the instructions provided.
Do not allow any acid or solvent
residue, especially hydrochloric
acid and solutions containing chloride
to get into the wash cabinet. This also
applies to ferrous components susceptible to corrosion.
Only traces of solvent in conjunction
with soil (particularly for the highest risk
category) are permissible.
Take care that solutions/vapours
containing hydrochloric acid do
not come into contact with the stainlesssteel casing, as this may cause corrosion.
Please heed installation instruc-
tions and refer to the installation
diagram supplied with the machine.
Empty all concave items before
placing them in the machine.
7
Warning and safety instructions
Use of accessories
Only Miele accessories designed
for the appropriate application
should be connected to the machine.
Model designations of individual
appliances can be obtained from the
Miele Application Technology Department.
Disposal of old appliances
Before discarding an old machine,
unplug it and render the plug useless. For environmental and safety
reasons, ensure that the machine is
completely drained of any residual
cleaning agent. Observe safety regulations and wear safety goggles and
gloves. Make the door inoperative by
removing the lock pin (2 Phillips screws
above the door). This will prevent children from accidentally locking themselves in. Then make appropriate
arrangements for the safe disposal of
the appliance. For machines with a tank
system, ensure that the tank is evacuated before disposal of the appliance.
The manufacturer cannot be held
responsible for damage caused by
failure to heed the warning and
safety instructions.
In countries where there are areas
which may be subject to infestation by cockroaches or other vermin,
pay particular attention to keeping the
machine and its surroundings in a
clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be
covered by the machine guarantee.
8
Description of the machine
This Miele machine is a frontloading
commercial dishwasher with appropriately short batch times specially
designed for use in family restaurants,
fast food outlets, cafés, guest houses,
etc.
Description of the machine
This machine is
softener as standard.
A water softener is required in areas
with a supply hardness of more than
6°d (1.07 mmol/l).
not fitted with a water
9

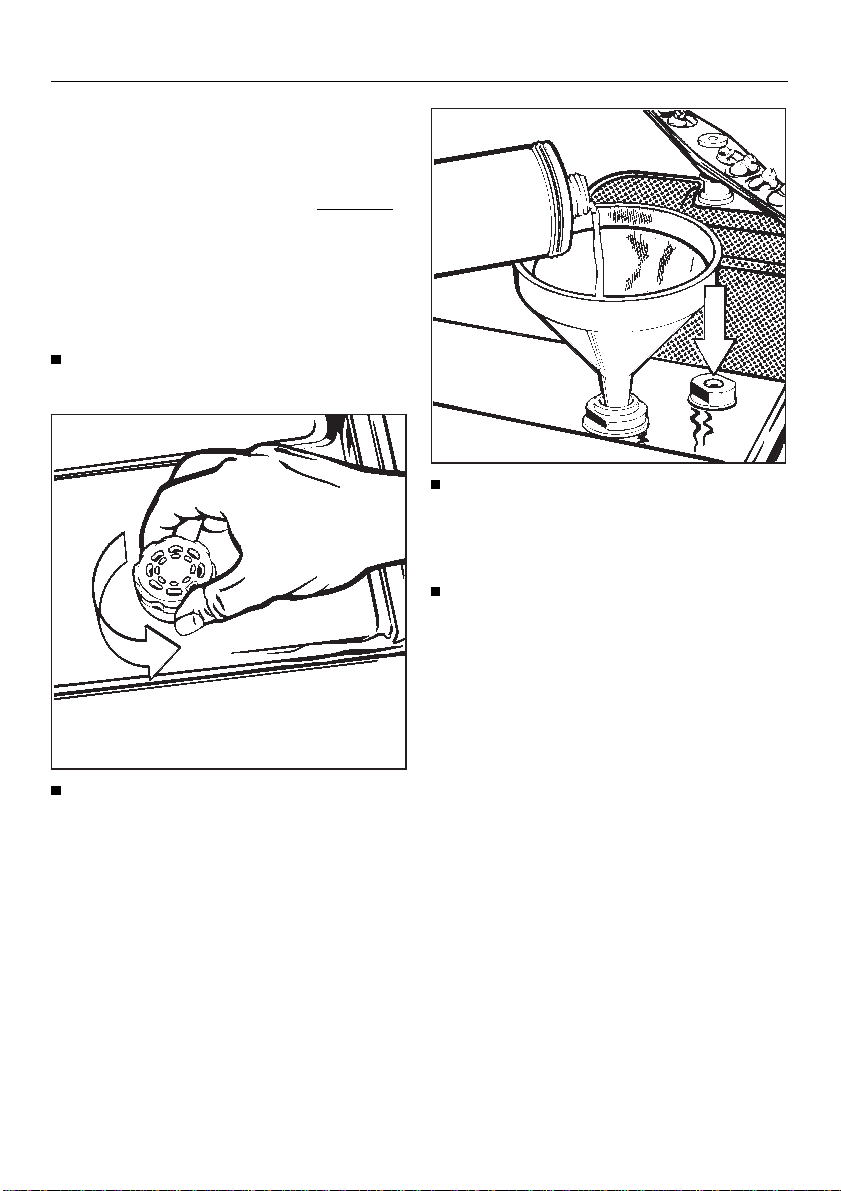

Setting the water softener
Setting the water softener
- Only for machines with a built-in water
softener -
To avoid the build up of calcareous deposits on both the load and the machine,
the water needs to be softened, if supply
hardness is over 6°d (1.07 mmol/l).
To ensure a steady supply of soft water,
the built-in water softener must always
be:
1. Correctly set
2. Topped up with salt as soon as the
k indicator light goes on.
When commissioning a machine the
water softener must be set to correspond with supply hardness.
Your local water authority will advise
you on the supply hardness in your
area.
Setting the water softener
The hardness range is divided into 18
units and a zero position. The dishwasher is set at the factory for a water
hardness time setting "8", corresponding to 19°d (3.38 mmol/l).
If your water supply is softer than this,
then:
Change the setting on the controls
(see table).
Time
setting
°d mmol/ l °f °e ppm
18
17
16
15
14
13
12
11
10
6
1.07
7
1.25
8
1.42
9
1.60
10
1.78
11
1.96
12
2.14
13
2.31
15
17
19
22
24
28
32
38
48
71
2.67
3.03
3.38
3.92
4.27
4.98
5.70
6.76
8.54
12.64
9
8
7
6
5
4
3
2
1
0
10.7
12.5
14.3
16.0
17.9
19.6
21.4
23.2
26.8
30.4
33.9
39.3
42.8
50.0
57.1
67.8
85.7
126.7
7.5
8.8
10.0
11.3
12.5
13.8
15.0
16.3
18.8
21.3
23.8
27.5
30.0
35.0
40.0
47.6
60.1
88.9
CaCO
1267
Press and hold q and c together
while switching the machine on
using the main button "I-0".
"P..." appears in the display.
Press k. The "P" disappears and
setting "0" always appears in the display. The time setting "0" can now be
changed as necessary. To do this:
Press c as often as is necessary to
call up the required value in the display.
Press h . "SP" appears.
Press h once more. The setting is
now stored. The display clears.
3
107
125
143
160
179
196
214
232
268
304
339
393
428
500
571
678
857
10
The machine is now ready for operation.
If supply hardness in your area is permanently below 6°d (1.07 mmol/l):
Select time setting "0".
The k control lamp does not come
on and the water softener does not
need to be activated.
"Reactivating the water softener" see
page 26.
Setting the water softener
11
Opening and closing the door
Opening and closing the door
To open the door a
Press the release catch as far as it
will go and, at the same time, grasp
the door grip and open the door.
During operation the door should only
be opened in extreme cases, e.g. if
items in the load are severely jostled
(see "Interrupting a programme").
To close the door
Lift the door upwards and push until
it clicks into position. Do not press
the release catch.
12
Application technology
Application technology
Loading the machine
Prior to loading
Empty all items before placing them
in the machine (if applicable, observe regulations on preventing the
spread of contagious diseases).
Do not allow any remains of acids
or solvents, especially hydrochloric
acid and chlorine to get into the
wash cabinet.
Notes
Load items so that water can access
all surfaces. This ensures that items
will be thoroughly cleaned.
Do not place crockery and cutlery inside each other where they may be
concealed.
Hollow items, such as cups, glasses,
pans, jugs, etc., must be inverted in
the basket to ensure that water
comes into contact with all surfaces.
The rotation of the spray arms must
not be obstructed by items which
are too high for the basket or which
hang down in their path. If necessary, manually rotate the arms to test
this.
Loading the upper basket
Insert small, lightweight and delicate
items such as cups, saucers,
glasses, small bowls and heat-resistant plastic.
Loading the lower basket
Insert larger, heavier items such as
plates, serving platters, saucepans,
bowls, etc. Glasses may only be
cleaned in the lower basket if it is
fitted with a special glassware insert.
Cutlery
Unsorted cutlery should be placed
in a cutlery basket, handles pointing
downwards.
Deep-based items should be placed
at an angle to enable water to run off
them freely.
Tall hollow items should be placed in
the centre of the basket to allow
water easier access.
Small items should be placed on the
cup racks. Cups should be on the
lower rack and bowls on the top rack
so that water reaches all items.
Do not cover the funnel in the middle
of the top basket.
Examples of loading see next page
13
Application technology
Loading examples:
O 181 Upper basket
for 20 cups, 24 saucers or 12 dessert
plates.
Individual upper and lower baskets
O 189 Upper basket, open front
for various inserts, e.g. containers for
cutlery and glasses.
U 180 Lower basket
with two E 216 1/2 inserts, each for 15
plates with a dia. of 24 cm and two
E 165 cutlery holders for mixed cutlery.
14
U 180 Lower basket
with E 184 1/1 insert for 21 trays, baking sheets, food carriers, etc.
Application technology
Adjusting the upper basket
The upper basket can be adjusted
above and below the middle position
by 2 cm. The
middle position at the factory, and in
this position will accommodate:
plates with a dia. of up to 19 cm,
whilst the
date:
plates with a dia. of up to 25 cm.
For further details regarding load
size combinations, see table below.
Upper
basket
position
To p 1 7 2 7
Middle 19 25
Bottom 21 23
To adjust the upper basket:
Pull out the upper basket until a
resistance is felt, lift from the runners
and remove.
Unscrew the knurled nuts (roller
bearings) on both sides of the
basket with a suitable spanner,
reposition as required.
upper basket is set at the
lower basket will accommo-
Upper
basket
cm Ø
Lower
basket
cm Ø
Items not suitable for dishwashers
Cutlery with wooden or horn handles.
Wooden or plastic cutting boards.
Glued items, e.g. old knives with
handles which have been glued on.
Handmade craft items.
Items made of copper, aluminium, or
tin.
Plastic items which are not heat
resistant.
Please note
Silver items may suffer some discolouration.
Colours painted over a glaze may
fade after frequent washing.
Clouding or etching may occur on
glassware after frequent washing
due to the high temperatures used in
the final rinse.
We recommend
Wash delicate glassware by hand.
When purchasing new crockery and
cutlery, ensure they are dishwasherproof.
15
Adding rinse aid
Adding rinse aid
Two dispensers, each with a capacity
of approx. 200 ml for liquid agents, are
located in the door.
The required amount of liquid
(e.g. "Mielclear" or a similar agent containing citric acid for plastic items) is
dispensed automatically.
rinse aid
Adding rinse aid
When the H LED (Add rinse aid)
lights up on the fascia panel:
Pour rinse aid into the opening until
the level indicator is dark (see arrow
in illustration). Use funnel if necessary.
Firmly tighten the screw cap. Wipe
away any spillage.
Note:
Both containers must always be filled
with the same agent.
Unscrew the dispenser cap.
16
Setting the dosage
The dosage selector in both dispensers
can be adjusted to settings from 1-6
(1-6 ml). The dosage is set at the factory
to "1 1/2" ml per dispenser (3 ml altogether).
Adding rinse aid
If stains become visible on the surface of the utensils, select a higher
setting.
If the surface becomes streaky and
cloudy, use a lower setting.
17
Adding detergent
Adding detergent
Only use cleaning agents formulated for special processes and approved for use with this machine.
Do not use detergents intended for
domestic dishwashers.
Pour powder detergent into the powder
dispenser in the door before each programme.
Fill the dispenser.
Dosage: approx. 3 g/l, corresponding
to approx. 30 g per load.
Follow manufacturer’s instructions.
Close the dispenser lid.
Press the opening catch on the container flap forwards (see arrow). The
flap will spring open. (The flap is always open at the end of a programme).
18
Special types of soil may require different compositions for detergents and additives. The MIELE Service Department
(Application Technology) will be
pleased to advise you.
G7762
Warning and safety instructions
Warning and safety instructions
Instructions for the operator:
Remove these pages and ensure that they are fixed in a position clearly visible
to the system operator in direct proximity to the installation site.
Instruct and encourage operating personnel to heed the warning and safety instructions.
This machine meets all the statutory
safety requirements. Improper use
may cause accidents and damage
to the machine.
Before installation and before using
the machine for the first time, read
the operating instructions carefully.
This way you will avoid the risk of
accidents and damage to the machine.
Keep the operating instructions in a
safe place.
Specified use of the machine
This machine is only authorised for
the applications mentioned in the
operating instructions. Do not use the
machine for purposes other than those
for which it was designed, as this might
be dangerous. The manufacturer cannot
be held responsible for damage caused
by improper use of the machine.
Please note the following in order to
prevent accidents
Commissioning and repairs should
only be carried out by a suitably
qualified and competent Miele service
technician, an authorised Miele service
dealer or by other suitably qualified
and competent service technicians.
Do not install the machine where
there is a risk of explosion or
where sub-zero temperatures may
occur.
The electrical safety of this ma-
chine can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system. It is imperative that this basic
safety requirement is tested and where
there is any doubt, the electrical system should be checked by a qualified
electrician. The manufacturer cannot be
held responsible for damage caused by
the lack or inadequacy of an effective
earthing system (e.g. electric shock).
A damaged machine poses a
safety risk. Disconnect the machine immediately from the mains supply and inform a suitably qualified service technician.
Repairs should only be carried out
by suitably qualified and competent service technicians. Repairs by unqualified persons could be dangerous.
The machine should not be oper-
ated by unauthorised personnel.
1
Warning and safety instructions
Take care when handling liquid
cleaning agents/additives. These
may contain irritants or corrosive substances. Do not use organic solvents
as there may be the danger of explosion.
Carefully follow the relevant safety
instructions on packaging and wear
protective gloves and goggles.
Avoid inhaling powder dust.
Swallowing detergent may cause
burns or even lead to suffocation.
The water in the machine must not
be used as drinking water.
Do not sit or lean on the open door.
This could cause the machine to
tip and be damaged.
Be careful when sorting sharp
pointed instruments not to injure
yourself. If necessary, place the
pointed end downwards with the
handles pointing upwards.
When using the machine at high
temperatures take care as the load
is extremely hot and may cause burns.
Baskets and inserts must first be
allowed to cool. Empty any water still
remaining in concave items into the
cabinet before removing the load.
Do not touch the heating elements
after the end of a programme as
this may cause burns.
Never use a hose or a high-pressure cleaner on or in the vicinity of
the machine.
Before carrying out repairs, discon-
nect the machine from the mains
supply (switch off at the main socket
and pull out the plug, switch off the appropriate circuit at the fuse box or withdraw the mains fuse).
Please heed the following instructions in order to guarantee the quality
of cleaning performance and to
avoid damage.
Only use detergents which have
been tested and recommended by
Miele for use in special dishwashers.
Use of other cleaning agents may
cause damage to both the load and the
machine.
Prior treatment (e.g. with deter-
gent), but also certain types of soil
and some detergents may cause foaming which may have an adverse effect
on the quality of cleaning.
The recommendation of specific
chemical products (e. g. detergent) for individual applications does
not mean that the appliance manufacturer accepts responsibility for any
effect these may have on the articles
being processed.
Please note that variations in composition, storage conditions, etc., which
are not always announced by the detergent manufacturer, may affect the
quality of the cleaning results.
2
Warning and safety instructions
When using detergents and spe-
cial cleaning agents, take particular care to follow the manufacturer’s
instructions. Only use the appropriate
cleaning agent for the application recommended by the manufacturer.
Improper use may cause damage to
material, or in some cases lead to
severe chemical reaction (e.g. oxyhydrogen explosion).
Only use water and cleaning agents
in this machine. Do not use organic
solvents as there may be a danger of
explosion.
(Note: There are many organic solvents
which do not pose a risk of explosion,
but may cause other problems, such as
damage to elastomers and plastic components).
In the case of critical applications
requiring a particularly high standard of cleaning, cleaning programmes
and parameters (detergent, quality of
water, etc.) should be coordinated with
the Miele Applications Technology
Department.
Use special inserts in accordance
with the instructions provided.
Empty all concave items before
placing them in the machine.
Do not allow any acid or solvent
residue, especially hydrochloric
acid and solutions containing chloride
to get into the wash cabinet. This also
applies to ferrous components susceptible to corrosion.
Only traces of solvent in conjunction
with soil (particularly for the highest risk
category) are permissible.
Take care that solutions/vapours
containing hydrochloric acid do
not come into contact with the stainlesssteel casing, as this may cause corrosion.
Please heed installation instructi-
ons and refer to the installation
diagram supplied with the machine.
If a particularly high standard of
cleaning and rinsing is required
(e. g. chemical analysis, special industrial production, etc.), regular quality
checks must take place to guarantee
the correct standard of cleaning.
3
Warning and safety instructions
Use of accessories
Only Miele accessories designed
for the appropriate application
should be connected to the machine.
Model designations of individual
appliances can be obtained from the
Miele Application Technology Department.
Disposal of old appliances
Before discarding an old machine,
unplug it and render the plug
useless. For environmental and safety
reasons, ensure that the machine is
completely drained of any residual
cleaning agent. Observe safety regulations and wear safety goggles and
gloves. Make the door inoperative by
removing the lock pin (2 Phillips screws
above the door). This will prevent children from accidentally locking themselves in. Then make appropriate
arrangements for the safe disposal of
the appliance.
For machines with a tank system, ensure
that the tank is evacuated before disposal of the appliance.
The manufacturer cannot be held
responsible for damage caused by
failure to heed the warning and
safety instructions.
In countries where there are areas
which may be subject to infestation by cockroaches or other vermin,
pay particular attention to keeping the
machine and its surroundings in a
clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be
covered by the machine guarantee.
4
Adding detergent Programme selection
Note
This machine can also be fitted with a
"DOS C 60 module" (dispenser pump
for liquid detergent). This is connected
externally.
A separate set of
installation diagram is included
with
with the DOS module.
Take great care when handling liquid
agents/additives! They may contain
irritants or corrosive substances.
Please follow the relevant safety
measures.
Wear protective goggles and
gloves.
operating instructions
Always select a programme appropriate to the type of load and the degree
of soil.
The different programmes and their
applications are described overleaf in
the Programme chart.
19
Programme chart
Programme chart
Programme Application Detergent
(when not using liquid
detergent)
Please follow
manufacturer’s
instructions.
r UNIVERSAL
q SHORT
p SPECIAL
SHORT
For normal loads. 30 grammes in the powder
Quick programme for lightly soiled items. 30 grammes in the powder
For continuous cleaning before soil
has dried on.
dispenser
dispenser
30 grammes in the powder
dispenser
20
Programme chart
Programme cycle Miscellaneous
1.
Pre-wash2.Main wash
*)
Interim
rinse I
(see
"Special
functions")
XX
60°C *)
X
60°C *)
X
60°C *)
X = Programme stage included
3.
XXX
4.
Interim
rinse II
5.
Final
rinse
6.
Drying
(extra pro-
gramme)
(X)
*) To change the main wash
and final rinse temperatures
(60°C / 70°C) see
"Special functions"
80°C
XXX
(X)
80°C
XX
(X)
80°C
21
Switching the machine on and off
Switching the machine on and off
1. Switching on
Press I-0.
2. Selecting a programme
After the machine has been switched
on, the indicators next to the programme touchpads come on to show
the selection available.
Press the touchpad for the required
programme. The wash temperature
of the programme selected appears
in the display.
Select additional programme c
"DRYING" if required (see "Selecting
an additional programme").
Press the h "Start" touchpad. The
running time in minutes for the selected programme now appears in
the display (count-up display).
During the heat-up stage in "Main
wash" and "Final rinse" the required
temperature is displayed.
All other programmes are automatically blocked and only the indicator
for the programme selected stays on.
Programme change
A wrongly selected programme may
be changed as follows,
"Start" touchpad has not yet been
pressed:
providing the
Press the touchpad of the required
programme.
Press the h "Start" touchpad.
(Otherwise see "Interrupting a
programme" -next page-)
3.Selecting an additional
programme
The following additional programmes
are available:
c DRYING
This may be selected immediately
after choosing a wash programme.
For the drying process the heater
element is switched on intermittently
for 10 minutes. The total running time
of the programme is lengthened
accordingly.
k REACTIVATION
(see "Reactivating water softener").
q DRAIN,
If, for example, the programme has
been interrupted.
To drain the machine:
– Press I-0.
– Press q.
– Press the h "Start" touchpad.
22
Switching the machine on and off
Programme sequence
indicator
When a wash programme has been
selected, the LEDs in the display indicate programme sequence.
I Pre-wash
l Main wash
m Interim rinse
H Final rinse
c Drying (additional programme)
When a programme stage has been
completed, the corresponding LED
goes off.
The programme is completed when all
LEDs have gone off and the h "Start"
light is off. The total programme running time appears in the display.
Switching off
Press and release the I-0 button.
The machine can now be opened and
unloaded.
Interrupting a programme
Once a programme is running, it
should only be interrupted in extreme
cases, e.g. when articles in the dishwasher are severely jostled and have to
be rearranged.
The machine must then be switched
off, the water drained and the programme restarted:
Switch the machine off and then on
again by pressing I-0.
Select the "DRAIN" programme
(additional programme).
On completion, open the door and
reinsert the items in a secure position,
(wear protective gloves and goggles
where necessary, for example when
dealing with infected items).
Replenish the powder detergent dispenser if necessary.
Close the door.
Reselect the programme.
23
Programming special functions
Programming special functions
The following special functions can be
selected in conjunction with standard
programmes:
1. Extended water intake duration
with overriding level control
If the water supply pressure is less than
2.5 bar, not enough water will flow into
the cabinet. If the supply pressure is
between 1 and 2.5 bar, water intake
duration can be extended.
The setting is adjusted separately for
cold and hot fill.
To adjust the setting:
Switch off the machine.
Press and hold the 6 and c touch-
together while switching the
pads
machine on using the main "I-0" button.
"P..." appears in the digital display.
When r is pressed, "10" or "11" appears in the display.
"10" = Cold – 60-second water intake
"11" = Cold – extended water fill with
overriding level control.
Switch off the machine.
Press and hold the q and c touch-
pads
together while switching the
machine on using the main "I-0" button.
"P..." appears in the display.
When touchpad q is pressed, "20"
or "21" appears in the display.
"20" = Hot – 60-second water intake
"21" = Hot – extended water fill with
overriding level control.
Press c to change the setting from
"20" to "21" or vice versa.
Press h. "SP" appears in the display.
Press h again to acknowledge se-
lection of the change. The change is
stored and the display is cleared.
Press c to change the setting from
"10" to "11" or vice versa.
Press h. "SP" appears in the display.
Press h again to acknowledge se-
lection of the change. The change is
stored and the display is cleared.
24
Programming special functions
2. Selecting a second interim rinse
This special function can be selected
for all programmes to improve the interim rinse results (see "Programme
cycle" Interim rinse I).
Switch off the machine.
Press and hold the q and c
touchpads
the machine on using the main "I-0"
button.
"P..." appears in the display.
When touchpad p is pressed, "30",
"31" or "32" appears in the display.
"30" =
"31" = Do not select!
"32" =
Press c until the required function
("30" or "32") is displayed.
Press h . "SP" appears in the display.
Press h again to acknowledge se-
lection of the change. The changes
are stored and the display is cleared.
together while switching
One interim rinse.
Two interim rinses.
3. Changing the main wash temperature from 60°C to 70°C or from 70°C
back to 60°C (for all programmes)
The main wash temperature is set as
standard at 60°C. This can be changed
as follows:
Switch off the machine.
Press and hold the q and ctouch-
together while switching the
pads
machine on using the main "I-0" button.
"P..." appears in the display.
When touchpad q is pressed, "40"
or "41" appears in the display.
"40" = 60°C Main wash temperature.
"41" = 70°C Main wash temperature.
"42" = Do not select!
"43" = Do not select!
Press c until the required function
("40" or "41") is displayed.
Press h. "SP" appears in the display.
Press h again to acknowledge
selection of the change. The change
is stored and the display is cleared.
25
Reactivating the water softener
Reactivating the water softener
– Only applicable for machines with a
built-in water softener –
When the k indicator light on the left
hand side of the control panel comes
on during a programme the built-in
water softener is depleted and cannot
supply any more softened water. It
must therefore be reactivated with
washer salt as soon as the programme
has finished.
If this cannot be done immediately, and
further batches have been washed,
then the reactivation process must be
carried out twice in succession.
dish-
Never fill the salt reservoir with dishwasher cleaning agent
this can lead to
– damage to the water softener and
– blockage of the salt container
filter insert, resulting in a build up
of pressure in the salt reservoir.
The irritant alkali solution could be a
hazard and personal injury could be
caused when the salt container is
removed.
Make sure that you have picked up
the right packet of
before filling the salt container.
dishwasher salt
Only use special coarse grained dishwasher salt (granule size approx.
1-4 mm), for reactivation, as other salts
may contain insoluble impurities or additives which can impair the functioning
of the softener.
The salt container holds approx. 2 kg
salt.
Important
If the only reactivation salt available is
fine grain, please consult your Miele
service representative.
Reactivation salt with granules larger
than 4 mm cannot be used.
Filling the salt container
Unscrew the filter insert from the salt
container and remove.
Fill the salt container with granular
dishwasher salt and screw the filter
insert back in place.
26
Reactivating the water softener
Position the salt container as
follows:
Remove the bottom basket from the
machine.
Unscrew the plastic cap in the base
of the wash cabinet.
Switch on the machine
Open the stopcocks if previously closed.
Close the door.
Press I-0.
Press the k touch pad.
Press the "Start" h touch pad.
The reactivation programme proceeds
automatically and finishes when the indicator light k at the left hand side of
the control panel and the "Start" indicator light h have gone out.
Then:
Switch off the machine.
Unscrew the salt container carefully,
so that any water pressure that has
built up can be released. Do not use
force. If you cannot uncrew the salt
container by hand, contact the Miele
Service department.
Screw the plastic lid back on the socket.
Reposition bottom basket.
Rinse the salt container and filter in-
sert thoroughly.
Turn off the stopcocks if the machine
is not to be used again for some time.
Place the salt container on the reactivation socket and screw firmly into
place.
Important
The water pressure (flow pressure at the
take off point) must be at least 2.5 bar.
If it less than this see "Programming special functions".
If the flow pressure is below 2.5 bar, or
if it fluctuates, the water softener cannot be reactivated in the normal way.
After reactivation, salt remains may still
be found in the salt container.
To use up the salt remains and to wash
out the water softener, the "reactivate
softener" programme must be switched
on again.
27
Cleaning and care
Cleaning and care
Cleaning the filters in the
wash cabinet
The filter combination in the base of the
cabinet should be inspected regularly
and cleaned if necessary.
Important
Check that there are no splinters of
glass in the filter as these may cause
injury.
Cleaning the coarse filter
To unscrew the micro-fine filter, take
hold of the two lugs, turn twice in an
anti-clockwise direction and
Press the two lugs together, remove
and clean the filter.
Put the clean filter back into position
and press until it clicks in place.
Cleaning the micro-fine and
surface filters
Remove the coarse filter.
28
remove, together with the surface filter.
Clean the filters.
Replace the filter combination in
reverse order.
The machine must not be used without
all the filters in place.
Cleaning the filters in the
water inlet
Filters are incorporated in the screw
connection of the water inlet valve for
protection. The filters must be cleaned
when dirty, otherwise insufficient water
flows into the wash cabinet.
Turn off the stopcocks.
Unscrew the water inlet hoses.
1
2
Cleaning and care
Clean coarse filter (1) and fine filter
(2), replace if necessary.
After reconnection, turn on the stopcocks to test for leaks.
There is a further filter in front of the
water inlet valve which must only be
cleaned or replaced by a suitably qualified and competent person.
29
Correcting minor faults
Correcting minor faults
Repairs to electrical components
should only be carried out by a suitably
qualified technician. Improper repairs
may pose a serious risk to the user.
The following explanatory notes, however, show how some minor faults can
be rectified without calling in a service
technician.
Faults / possible causes
The dishwasher does not start
– The door is not properly closed.
– The machine is not plugged in.
– The fuse has blown.
A few minutes after switching on, the
p q indicator flashes
– The stopcocks are turned off.
The water in the wash cabinet is not
heated; the programme sequence
lasts too long.
This dishwasher has a resettable thermal cut-out which isolates the heater
elements in the case of overheating.
This could be caused, for example, if
large objects cover the heater elements or if the filters in the wash
cabinet are blocked.
Remove the cause of the fault.
Take off the service panel (see
"Electrical connection").
– The filters in the water inlet hose are
dirty.
Switch off the machine.
Open the stopcocks or clean the filters
(see "Cleaning and care").
Switch on the machine again and
restart the programme.
The wash cycle finishes too early
and the p q indicator flashes
– The drain hose is kinked.
– The door was opened and closed
again during the programme cycle.
– There was a power failure.
Rectify the fault if possible.
Drain the machine and restart the
programme (see "Interrupting a
programme").
30
Press in the re-set button (blue) on
the thermal cut-out.
If the thermal cut-out trips repeatedly,
the MIELE Service Department must be
contacted.
If it is not possible to remedy a fault by
following the instructions given above,
the MIELE Service Department must be
contacted.
Installation
Installation
Please refer to the installation diagram supplied with the machine
The machine must stand firmly on the
ground and be levelled accordingly.
Floor unevenness can be compensated by adjusting the leg levellers.
Installation options for this machine are
as follows:
Freestanding
Slot-in or end-of-row:
The dishwasher should be installed adjacent to other appliances and furniture
or in a recess at least 60 cm wide and
60 cm deep.
Built under:
Install the machine under a continuous
worktop or under a draining board.
The recess dimensions should be at
least 60 x 60 x 82 cm (W x D x H).
The machine lid must be removed as
follows:
Open the door.
Remove the fixing screws on the left
and right-hand sides, using a Phillips
screwdriver.
Pull the machine lid forwards by ap-
prox. 5 mm and remove by lifting up-
wards.
By removing the lid, the machine can
be built into an 82 cm high recess.
If the recess height is 87 cm, a conversion kit is required.
Aligning and bolting the machine
To guarantee stability, the dishwasher
must first be aligned and then screwed
to the worktop.
Open the door. Screw the machine
to the continuous worktop through
each of the two holes on the left and
right-hand side of the front strip.
31
Installation
When installing built under appliances, do not use silicone sealant
to seal the gaps between the machine and any adjacent units, as this
would hinder ventilation to the circulation pump.
Depending on the various requirements
for building under, the following
available from the MIELE Service Department:
87 cm recess height
This kit consists of longer machine feet
and a plinth plate.
Cover plate (worktop protection)
A stainless-steel cover plate protects
the underside of the worktop from
steam discharge.
kits are
32
Electrical connection
All electrical connection work must be
carried out by a qualified electrician in
compliance with local and national
regulations.
For extra safety it is advisable to install a residual current device (RCD)
with a trip current of 30 mA.
Technical data is available on the
data plate or in the enclosed wiring
diagram.
The voltage, rated load and plug rating
must correspond to that given on the
data plate.
Conversion can only be undertaken in
compliance with the conversion and
wiring diagrams
without a steam condenser.
A
conversion diagram is to be found at
the back of the machine and on the
back of the service panel.
The relevant
found on the left-hand side behind the
plinth, attached to the base of the machine.
data plate with the relevant test cer-
The
tification is on the rear of the machine
and on the plinth (behind the service
panel).
and only on machines
wiring diagram is to be
Electrical connection
To remove service panel and plinth:
b
b
a
a
b
b
Disconnect the machine from the
mains!
Remove fixing screws "a".
Take hold of both sides of the ser-
vice panel and pull forward.
Remove plinth facing screws "b").
Disconnect earth lead if necessary.
Remove plastic protective cap.
To reassemble:
Replace plastic protective cap,
plinth facing and service panel in
reverse order.
Make sure the earth lead is reconnected.
Also refer to the installation instructions
enclosed.
33
Plumbing
Plumbing
Connection to the water inlet
The machine must be connected to
the mains supply in accordance with
local and national regulations.
As the machine is designed to comply with DVGW regulations, a separate non-return device is not required.
Flow pressure should be between
2.5 and 10 bar. If the supply pressure is not within this range, the
MIELE Service Department will give
advice on the appropriate measures
to take (see also "Programming
special functions").
The machine is fitted as standard
with connections for cold (blue mark-
and hot (red marking) water in-
ing)
take, max. 70°C. The inlet hoses
should be connected to the hot and
cold water supply.
If a supply of hot water is not available, the inlet hose with the
ing must also be connected to the
cold water supply. In this case, both
hoses must be connected to the
cold water supply.
The hose marked with 90°C should
also only be connected to a hot
water supply with a max. temperature of 70°C in order to prolong its
life cycle.
Stopcocks with 3/4" threaded union
should be fitted on site. They should
be easily accessible, as the water
supply must be turned off when the
machine is not in use.
red mark-
The machine is fitted with 10 mm
inlet hoses with 3/4" threaded union,
length 1.7 m. On no account must
the filters at the entrance to the inlet
hose be removed.
Install large surface area filters (included in the accessories kit) between the stopcock and the inlet
hose (illustr. see "Cleaning and care,
water intake").
Also refer to the installation instructions
enclosed
The water in the cabinet is not suitable for drinking!
Drainage
The drainage system is fitted with a
non-return valve which prevents dirty
water from flowing back into the machine via the drain hose.
The machine is fitted with approximately 1.5 m of flexible drain hose
(22 mm dia.).
The drain hose must not be shortened.
A hose clip is provided.
Longer drain hoses, max. length 4 m
are available if required.
The length of the drain hose must
not exceed 4 m, the delivery head
should not exceed 1 m.
Also refer to the installation instructions enclosed.
34
Caring for the environment
Disposal of transport
packaging
Transport packaging protects the machine from damage during transport.
Transport and protective packaging is
made from environmentally friendly, recyclable materials.
Recycling packaging material helps to
conserve natural resources and reduce
waste. These materials should be taken
to the nearest local collection point for
recyclable materials, rather than just
throwing them away.
Disposal of old appliances
Old appliances contain valuable materials. Please enquire about suitable recycling schemes at your local authority
before discarding an old appliance. Ensure that children cannot gain access
to discarded appliances.
Caring for the environment
Before discarding an old appliance,
unplug it and render the plug useless. For environmental and safety
reasons, ensure that the machine is
completely drained of any residual
cleaning agent. Observe safety
regulations and wear safety
goggles and gloves. Make the door
lock inoperative by removing the
lock pin (2 Phillips screws above
the door). This will prevent children
accidentally locking themselves in.
Then make appropriate arrangements for the safe disposal of the
appliance.
For machines with a tank system,
ensure that the tank is evacuated
before disposal of the appliance.
35
All rights reserved / 000 4297
This paper consists of cellulose which has been bleached without the use of chlorine.
Loading...
