Miele G7130SCUCLST User Manual

Download
Operating instructions Dishwasher
To avoid the risk of accidents or damage to the appliance, it is essential to read these instructions as well as the installation plan before it is installed and used for the first time.
en-AU, NZ M.-Nr. 12 383 510HG07
Contents
Setting the language ...................................................................................... 25
Setting up Miele@home ................................................................................. 25
Setting the water hardness ............................................................................ 26
Activating AutoDos......................................................................................... 26
Filling the salt reservoir................................................................................... 29
Replenishing salt ............................................................................................ 30
Adding rinse aid ............................................................................................. 32
Refilling rinse aid ............................................................................................ 32
2
Contents
Loading the 3D MultiFlex tray......................................................................... 54
Loading the cutlery basket............................................................................. 55
Dishwashers with cutlery tray......................................................................... 56
Dishwashers with cutlery basket.................................................................... 58
Activating AutoDos......................................................................................... 70
Inserting a PowerDisk..................................................................................... 71
Detergent dispensing ..................................................................................... 73
Adding detergent............................................................................................ 73
3
Contents
Express...................................................................................................... 87
4
Contents
5

Warning and Safety instructions

This dishwasher complies with all current local and national safety requirements. However, inappropriate use can lead to personal injury and damage to property.
Please observe the installation sheet and read the operating instructions carefully before setting up the dishwasher and using it for the first time. They both contain important information on the installation, safety, use, and maintenance of the machine. This prevents both personal injury and damage to the dishwasher.
In accordance with standard IEC 60335-1, Miele expressly and strongly advises that you read and follow the instructions in "Installation" and in "Warning and Safety instructions". Miele cannot be held liable for injury or damage caused by non­compliance with these instructions.
Keep the installation sheet and the operating instructions in a safe place and pass them on to any future owner.
6
Warning and Safety instructions

Correct application

This appliance is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts, and other typical living quarters. This does not include common/ shared facilities or commercial facilities within hotels, motels or bed & breakfasts.
This dishwasher is not suitable for outdoor use.The dishwasher is intended for use at altitudes of up to 4,000m
above sea level.
The dishwasher must only be used for cleaning domestic crockery
and cutlery. Any other use is not permitted.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning its use by a person responsible for their safety, and are able to recognise the dangers of misuse.
7
Warning and Safety instructions

Safety with children

Young children must not be allowed to use this appliance.Older children may only use the dishwasher if its operation has
been clearly explained to them and they are able to use it safely. They must be able to understand and recognise the possible dangers of misuse.
Cleaning work may only be carried out by older children under the
supervision of an adult.
Children should be supervised in the vicinity of the dishwasher.
Keep small children away from the appliance at all times to avoid the risk of injury. Ensure that they do not play with the appliance. There is a risk that children may lock themselves in the dishwasher.
If the automatic door opening mechanism is active (depending on
the model), keep young children away from the area in which the door opens. There is a danger of injury in the unlikely event of a fault with the opening mechanism.
Danger of suffocation! While playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it over their head with the risk of suffocation. Keep packaging material away from children.
Keep detergents and other household cleaning agents out of
reach of children. Some dishwasher detergents are strongly alkaline and contain irritants and corrosive ingredients. They can be extremely dangerous if swallowed, and can cause severe skin burns and eye damage. They can cause burning in the mouth, nose and throat, or inhibit breathing. Avoid contact with the skin and eyes. Keep children away from the dishwasher when the door is open. There could still be detergent residues in the cabinet or dispenser. Check that the dispenser is empty after the completion of a programme. Seek medical advice immediately if a child has swallowed or inhaled any detergent. Contact a Poisons Information Centre (Australia) or the National Poisons Centre (NZ).
8
Warning and Safety instructions

Technical safety

Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance, and repairs must only be carried out by a Miele authorised technician.
Damage to the dishwasher can compromise your safety. Before
using the dishwasher and in particular following transport, check it for any visible damage. Never use a damaged dishwasher.
The electrical safety of this dishwasher can only be guaranteed
when continuity is complete between it and an effective earthing system. It is most important that this basic safety requirement is present. If in doubt, the electrical installation should be checked by a qualified electrician. Miele cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).
Temporary or permanent operation with a self-sufficient or non-
mains synchronous energy supply system (e.g. isolated networks, back-up systems) is possible. A requirement for the operation is that the energy supply system complies with all current local and national requirements that apply to stand-alone, solar and/or battery systems. The protective measures provided in the installation and in this Miele product must also be assured in their function and operation in isolated operation or in non-mains synchronous operation, or replaced with equivalent measures in the installation.
The dishwasher must only be connected to the electricity supply
via a suitable switched socket using a 3-pole plug with protective contact (it must not be hardwired). The socket must be easily accessible after the dishwasher is installed so that it can be disconnected from the electricity supply at any time.
There must be no electrical sockets concealed behind the
dishwasher because the building-in niche may be too small, creating a risk of overheating if the dishwasher were to be pushed up against the plug (fire hazard).
9
Warning and Safety instructions
The dishwasher must not be installed underneath a cooktop. The
high temperatures radiated by cooktops could damage the dishwasher below. For the same reason, the dishwasher must not be installed next to open fires or other appliances that give off heat, such as heaters etc.
Ensure that the connection data on the dishwasher’s data plate
(fuse rating, frequency and voltage) match the electricity supply to prevent damage to the dishwasher. Compare these before connecting the appliance to the mains electricity. If in any doubt, consult a qualified electrician.
Do not connect the dishwasher to the electricity supply until it has
been fully installed and any adjustment has been made to the door springs.
The dishwasher may only be operated if the door opening
mechanism is working correctly, as otherwise there could be a danger when the automatic door opening is activated (depending on the model). To check that the door opening mechanism is working correctly:
- The door springs must be evenly adjusted on both sides. They are correctly adjusted when the door remains stationary when left half open (approx. 45° opening angle). The door must not fall open on its own beyond this point.
- The door locking pin retracts automatically after the drying phase when the door is opened.
Multi-socket adapters and extension leads do not guarantee the
required safety of the appliance (e.g. danger of overheating). Do not connect the dishwasher to the electricity supply using a multi-socket adapter or an extension cord.
The dishwasher must not be installed and operated in mobile
locations (e.g. on a ship).
10
Warning and Safety instructions
Do not install the dishwasher in a room where there is a risk of
frost. Frozen hoses can break or burst. The reliability of the electronic control unit may be impaired at temperatures below freezing point.
To avoid any damage to the dishwasher, it must only be operated
when it is connected to a fully vented plumbing system.
The plastic housing of the water connection contains an electrical
valve. The housing must not be dipped in water.
There are live wires in the water inlet hose. Do not cut the hose,
even if it is too long.
The integrated water protection system offers protection from
water damage, provided the following conditions are met:
- Installation has been carried out correctly.
- The dishwasher is properly maintained and parts are replaced when they are visibly damaged.
- The tap is turned off during longer absences from the home (e.g. whilst on holiday).
The Waterproof system will work even when the dishwasher is switched off. However, the dishwasher must remain connected to the electricity supply.
The water connection pressure needs to be between 50 and
1,000kPa.
A damaged dishwasher could be dangerous. If the dishwasher
gets damaged, switch it off at the mains immediately and contact Miele customer service.
The manufacturer’s warranty will be invalidated if the appliance is
not repaired by a Miele authorised service technician.
Defective components must be replaced with original parts. If
original Miele parts are installed correctly, Miele ensures full compliance with safety requirements and the warranty remains valid.
11
Warning and Safety instructions
During installation, maintenance, and repair work, the dishwasher
must be disconnected from the electricity supply (switch it off and withdraw the plug from the socket).
If the mains connection cable is damaged, it must only be
replaced with a specific mains connection cable of the same type (available Miele). For safety reasons, such replacement may only be carried out by a Miele authorised technician or by Miele in order to avoid a hazard.
In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the warranty.

Correct installation

The dishwasher must be installed and connected in accordance
with the installation instructions and the supplied installation plan.
Be careful before and while installing the dishwasher.
Some metal parts pose a risk of injury/cutting. Wear protective gloves.
The dishwasher must be correctly aligned horizontally to ensure
trouble-free operation.
In order to ensure stability, built-under and integrated dishwashers
must only be installed under a continuous countertop which is secured to adjacent cabinetry.
The dishwasher must only be built into a tall unit if additional
safety precautions are taken. In order to safely install the appliance in a tall unit, please use the "Tall unit installation kit" and observe the installation plan provided. Otherwise there is the danger of the unit tipping over.
12
Warning and Safety instructions
The door springs must be evenly adjusted on both sides. They are
correctly adjusted when the door remains stationary when left half open (approx. 45° opening angle). The door must not fall open on its own beyond this point. The appliance must only be operated with properly adjusted door springs. If the door cannot be adjusted properly, contact Miele customer service.
The maximum weight of the front panel that can be aligned with the factory fitted door springs is 10–12kg (depending on model).

Correct use

Do not use solvents in the dishwasher. There is a danger of
explosion.
Do not inhale or ingest dishwasher detergent. Some dishwasher
detergents are strongly alkaline and contain irritants or corrosive ingredients. They can be extremely dangerous if swallowed, and can cause burning in the eyes, nose, mouth, and throat, or inhibit breathing. Avoid contact with the skin and eyes. Do not inhale powder detergents. Do not swallow dishwasher detergents. Seek medical advice immediately if detergent has been swallowed or inhaled. Contact a Poisons Information Centre (Australia) or the National Poisons Centre (NZ).
Avoid leaving the dishwasher door open unnecessarily. You could
injure yourself on the open door or trip over it.
Do not sit, stand, or lean on the open door. The dishwasher could
tip over. This could injure you or damage the dishwasher.
Dishes may be very hot at the end of the programme. Allow the
dishes to cool until they are comfortable enough to handle before unloading them.
Only use detergent and rinse aid formulated for domestic
dishwashers. Do not use washing-up liquid.
13
Warning and Safety instructions
Do not use any commercial or industrial detergents. These may
cause material damage, and there is a risk of a severe explosive chemical reaction (such as an explosive oxyhydrogen gas reaction).
Do not fill the rinse aid reservoir with powder or liquid detergent.
This will cause serious damage to the rinse aid reservoir.
Do not fill the AutoDos (depending on model) with powder or
liquid detergent. Loose detergent will damage the AutoDos.
Do not fill the salt reservoir with powder or liquid detergent.
Dishwasher detergent will damage the water softener.
Only use special coarse-grained dishwasher salt or other pure
evaporated salts for reactivation. Other types of salt (such as cooking salt, rock salt, agricultural grade or gritting salt) may contain insoluble components which can impair the functioning of the water softener.
In dishwashers with a cutlery basket (depending on model), knives
and forks should be placed with the handles upwards in the basket for safety reasons. Knives and forks placed with the handles downwards pose a danger of injury. However, cutlery placed handle down in the cutlery basket will come out cleaner and drier.
Plastic items which cannot withstand being washed in hot water,
such as disposable plastic containers or plastic cutlery, should not be cleaned in the dishwasher. The high temperatures in the dishwasher may cause them to melt or lose shape.
If you use the timer option (depending on model), the detergent
compartment must be dry. Wipe dry with a cloth first if necessary. The detergent will clump together if the detergent compartment is not dry, and it may not be fully rinsed out.
Please observe the information listed under Technical data
regarding the capacity of the dishwasher.
14
Warning and Safety instructions

Accessories and spare parts

Only use original Miele accessories. If other parts are used,
warranty, performance, and, if applicable, product liability claims will be invalidated.
Miele will guarantee to supply functional spare parts for a
minimum of 10years and up to 15years following the discontinuation of your dishwasher.

Transport

Damage to the dishwasher can compromise your safety. Before
using the dishwasher, check it for any visible transport damage. Never use a damaged dishwasher.
Only transport the dishwasher in an upright position so that no
water flows into the electrical controls, as this would cause faults.
If you wish to transport the dishwasher, empty it and securely
fasten all loose parts such as baskets, hoses and mains connection cables.

Disposal of your old dishwasher

Make the door lock inoperative so that children cannot
accidentally shut themselves in. Remove or destroy the locking bracket of the door lock, and make appropriate arrangements for the disposal of the appliance.
15

Notes on the operating instructions

These operating instructions apply to several different dishwasher models of different heights. The different dishwasher models will be named as follows: Standard = dishwasher measuring
80.5cm high (built-in appliance) or
84.5cm high (freestanding appliance) XXL = dishwasher measuring 84.5cm high (built-in appliance).

Notes on the layout

Warnings

Information which is important
for safety is highlighted in a thick framed box with a warning symbol. This alerts you to the potential danger of injury to people or damage to property.
Read these warning notes carefully and observe the procedural instructions and codes of practice they describe.

Notes

Additional information and comments

Additional information and comments are highlighted in a box framed with a thin black line.

Instructions for the user

Instructions on how to operate the dishwasher are identified by marked operating steps. They explain the procedure step by step. Operating steps are indicated by a black square bullet point.
Example:
Select the setting you want and press
OK to confirm.

Display

Information given via the display appears in a special display font to match the font on the appliance.
Example: When the message Close the door appears in the display...
Notes contain information of particular importance that must be observed.
They are highlighted by a thick framed box.
16
The following items are supplied:
- Dishwasher
- Operating instructions for operating the dishwasher
- Installation sheet for installing the dishwasher
- Other installation accessories for installing the dishwasher (see installation sheet)
- Funnel for filling the dishwasher salt
- Additional printed matter and add­ons if required

Items supplied

17

Guide to the appliance

Appliance overview

a
Door locking pin
b
Upper spray arm (not visible)
c
3D MultiFlex cutlery tray (depending on model)
d
Upper basket
e
Middle spray arm
f
Aeration valve
g
Lower spray arm
18
h
Filter combination
i
Salt reservoir
j
Data plate
k
Rinse aid reservoir
l
Detergent compartment
m
AutoDos detergent outlet
n
AutoDos (automatic dispensing)

Control panel

Guide to the appliance
a
Programme selection
ECO = ECO
Auto = Auto45–65°C 45°C = Gentle45°C 65°C = QuickPowerWash65°C 75°C = Intensive75°C = Further programmes/
Settings
b
Display For further information, see “Guide to the appliance - Display functions” in the operating instructions..
c
Start button with indicator light For starting the selected programme.
d
AutoDos button For activating/deactivating AutoDos.
e
Express button For reducing the programme duration.
f
Timer button For selecting a later programme start.
g
OK button For selecting menu options and values displayed. For confirming messages.
h
buttons For programme selection. For changing the values displayed. For scrolling to other menu pages.
i
Back button For navigating back to the previous menu or deleting values which have been set previously.
j
Programme selection button For programme selection.
k
Optical interface For service technicians.
l
On/Off button For switching the dishwasher on and off.
19
Guide to the appliance

Display functions

The display is used to select or set the following:
- further programmes
- the timer
- the Settings 
The display can show the following:
- the programme stage
- the estimated time left for the programme to run
- the energy and water consumption (EcoFeedback)
- any relevant fault messages and information
To save energy, the dishwasher switches off after a few minutes if you do not press any buttons during this time. Press the button to switch the dishwasher back on.
The OKbutton is used to confirm messages or settings and also to move to the next menu or another menu level.
Under Further programmes/Settings, a scroll bar will appear in the right of the display. This offers further options. These options can be viewed using the buttons.
You can alter the dishwasher’s controls to suit changing requirements in the Settings menu (see “Settings”).
The option that is selected will have a tick next to it.
To exit a submenu, press the Backbutton.
If you do not press any buttons for several seconds, the display will revert to the previous menu. You will then have to enter your settings again.
20

Caring for the environment

Disposal of the packing material

The transport and protective packaging has been selected from materials which are environmentally friendly for disposal, and can normally be recycled.
Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites. Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.

Disposing of your old appliance

Electrical and electronic appliances often contain valuable materials. They also contain specific materials, compounds and components, which were essential for their correct function and safety. These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with your household waste.
Please dispose of it at your local community waste collection / recycling centre for electrical and electronic appliances. You are also responsible for deleting any personal data that may be stored on the appliance prior to disposal. Please ensure that your old appliance poses no risk to children while being stored prior to disposal.
21

Using for the first time

Every dishwasher is tested at the factory. There will be residual water in the machine from this test. It is not an indication that the dishwasher has been used previously.

Opening the door

In some programmes the door automatically opens slightly to assist the drying process. This function can be deactivated, if preferred (see “Settings - AutoOpen”).
To open the door, reach under the
door grip and pull.
Open the door fully to disengage the
locking mechanism.
At the end of the programme, if the AutoOpen function is on, the door locking pins automatically retract.
To prevent a technical fault, do not hold the door locking pins firmly when they are retracting.
If the door is opened during operation, all functions are automatically interrupted.
Risk of scalding due to hot
water. During operation, water in the
dishwasher may be very hot. Only open the door if absolutely
necessary and exercise extreme caution when doing so. Before closing the door again, leave it ajar for approx. 20 seconds. This will enable the temperature in the wash cabinet to settle.
Risk of injury due to door
opening automatically. The door may open automatically at
the end of a programme. Keep the area around the door free
of obstructions.
22
Using for the first time

Closing the door

Push the baskets right in.Raise the door upwards until the
catch engages.
Risk of crushing due to the door
closing. When closing the door, you are at
risk of shutting your fingers in it. Do not put your hand inside the door
as it is closing.

Activating the safety lock

Use the safety lock to prevent children opening the dishwasher door. The door can then only be opened by using a lot of force.
To lock the door, push the slide
underneath the door grip to the right.
To unlock the door, push the slide to
the left.
23
Using for the first time

Miele@home

Your dishwasher is equipped with an integrated Wi-Fi module.
To use this feature, you will need:
- a Wi-Fi network
- the Miele App
- a Miele user account. The user account can be created via the Miele App.
The Miele App will guide you as you connect your dishwasher to your home Wi-Fi network.
Once your dishwasher is connected to your Wi-Fi network, you can use the App to carry out the following tasks:
- Control your dishwasher remotely
- Call up information on the operating status of your dishwasher
- Call up information on the programme sequence of your dishwasher

Availability of the Wi-Fi connection

The Wi-Fi connection shares a frequency range with other appliances (including microwave ovens and remote control toys). This may result in sporadic or even complete connection failures. Therefore, a constant availability of featured functions cannot be guaranteed.

Miele@home availability

The ability to use the Miele App depends on the availability of the Miele@home service in your country.
The Miele@home service is not available in every country.
For information about availability, please visit www.miele.com.

Miele App

You can download the Miele App from the Apple App Store® or the Google
Play Store™ free of charge (only functional in selected countries).
Connecting the dishwasher to your Wi­Fi network will increase energy consumption, even when the dishwasher is switched off.
Make sure that your Wi-Fi network signal strength is strong enough at the installation site of your dishwasher.
24
Using for the first time

Standard settings

Switching on the dishwasher

Switch the dishwasher on with the
button.
The welcome screen will appear when the dishwasher is switched on for the first time.
For further information about the display functionality, see “Guide to the appliance - Display functions”.

Setting the language

The display will change automatically to the screen for setting the language.
Select the language and the country,
if applicable, using the buttons and confirm with OK.
For further information on setting the language, see “Settings - Language”.
A tick will appear next to the language that has been set.

Setting up Miele@home

The message Set up Miele@home will appear in the display.
To set up Miele@home now, confirm
by touching OK.
Useful tip: To postpone setup until later, select the optionSkip and confirm with OK.
There are two ways of connecting your dishwasher to your Wi-Fi network:
Select the connection method you
want and confirm your selection with OK.
1. Connect using App
2. Connect using WPS
You will then be guided by the display and the Miele App.
For further information on Miele@home, see “Settings ­Miele@home”.
25
Using for the first time

Setting the water hardness

The display will change to the screen for setting the water hardness.
- The dishwasher needs to be programmed to the correct water hardness for your area.
- Your local water authority will be able to advise you of the water hardness level in your area.
- Where the water hardness fluctuates, e.g. between 1.8 and 2.7mmol/l (10­15°dH - German scale), always programme the dishwasher to the higher value (2.7mmol/l or 15°dH in this example).
In the event of a fault, it will help the service technician if you know the hardness of your local water supply.
Enter the water hardness below:
____________mmol/l
The dishwasher is programmed at the factory for a water hardness level of
0.36 mmol/l (2 °dH - German scale).

Activating AutoDos

The display changes to the settings screen for AutoDos (see “Detergents ­Automatic dispensing/AutoDos”).
Even if you do not wish to use AutoDos, you must remove the transport locking device from the PowerDisk compartment before running the first programme (see “Detergents - Activating AutoDos”).
You can activate AutoDos. If you do not wish to use AutoDos, you can manually dispense the detergent via the detergent compartment (see “Detergents - Manual detergent dispensing”).
Select the setting you want and
confirm with OK.
This setting applies to all programmes and can be changed at any time using the AutoDossensor.
Set the water hardness level in your
area and confirm with OK.
See “Settings - Water hardness” for more information.
26
Finally, prompts will appear in the display.
After confirming these prompts with
OK, the messages Refill salt andRefill rinse aid may appear.
Add salt and rinse aid if necessary
(see “Using for the first time ­Dishwasher salt” and “Rinse aid”).
Select OK to confirm the messages.
When a programme is selected, it will appear briefly in the display and the relevant indicator light will come on. Next, the estimated energy and water consumption may be shown for the selected programme for several seconds. Finally, the display will show the estimated programme duration for the programme selected.
Using for the first time
27
Using for the first time

Dishwasher salt

In order to achieve good cleaning results, the dishwasher needs to operate with soft (low limescale) water. Hard water results in the build-up of calcium deposits on crockery and in the appliance. Water with a hardness level higher than
0.9mmol/l (5°dH – German scale) must be softened. This occurs automatically in the integrated water softener. The water softener is suitable for a water hardness level of up to 12.5mmol/l (70°dH - German scale).
The water softener requires reactivation salt. Depending on the water hardness level (<3.8mmol/l, or <21°dH – German scale), dishwasher salt is not required if combination detergents are being used (see “Detergents - Types of detergents”).
If the water in your area is very soft and constantly lower than 0.9mmol/l (5 °dH - German scale) you do not need to add dishwasher salt. The salt refill indicator will automatically switch off after the water hardness has been set accordingly (see “Settings - Water hardness”).
Damage to the water softener
from detergents. Dishwasher detergents will damage
the water softener. Do not fill the salt reservoir with
powder or liquid detergent.
Damage caused by using
unsuitable salts. Other types of salt (such as cooking
salt, rock salt, agricultural grade or gritting salt) may contain insoluble components which can impair the functioning of the water softener.
Only use special coarse-grained dishwasher salt or other pure evaporated salts for reactivation.
28
If you only ever use combination detergent products in your dishwasher, you can switch off both refill reminders if you wish (see “Settings - Refill reminders”).
Please make sure that if you stop using combination detergents, you refill the dishwasher salt and rinse aid. Switch the refill reminders back on if required.

Filling the salt reservoir

Before filling the salt reservoir for the first time, you must fill it with approx. 2litres of water to enable the salt to dissolve.
Once the dishwasher has been used, there is always sufficient water in the salt reservoir.
Remove the lower basket from the
wash cabinet and unscrew the salt reservoir cap.
Using for the first time
Risk of corrosion due to saline
solution. Water or saline solution will run out
of the reservoir when the cap is opened. Saline solution that runs out can cause corrosion in the wash cabinet and to the dishwasher load.
The salt reservoir should therefore only be opened to replenish the salt.
Fill the salt reservoir with approx. 2l
of water (first use only).
Place the funnel provided on the salt
reservoir and carefully fill with dishwasher salt until the reservoir is full. The salt reservoir holds up to 2kg of salt, depending on the type of salt used.
Clean off salt residues from around
the salt reservoir opening. Next, screw the salt reservoir cap on again firmly.
Immediately after filling the salt
container, run the 65 °C QuickPowerWash programme with the Express option and without any load in the dishwasher to dissolve and remove any traces of salt from the wash cabinet.
29
Using for the first time

Replenishing salt

When Refill salt appears in the
display wait until the end of the programme and then refill the salt reservoir.
Confirm with OK.
The salt refill indicator will go out.
Risk of corrosion due to saline
solution. Saline solution that runs out can
cause corrosion in the wash cabinet and to the dishwasher load.
Each time you have opened the salt reservoir lid, immediately run the 65 °C QuickPowerWash programme with the Express option and without any dishes. This will dissolve and remove any traces of salt from the wash cabinet.
After the salt reservoir has been filled, the refill reminder may still appear in the display if the salt concentration has not yet reached the correct level. In this case, confirm with OK again.
The salt refill indicator is deactivated if the dishwasher is set to a water hardness below 0.9mmol/l (5 °dH ­German scale).
30
Using for the first time

Rinse aid

Rinse aid is necessary to ensure water does not cling to and leave marks on crockery during the drying phase, and it helps crockery dry faster after it has been washed. Rinse aid is poured into the storage reservoir and the amount set is dispensed automatically.
Damage caused by washing-up
liquid or detergents. Dishwasher detergent will destroy
the rinse aid reservoir. Only fill rinse aid designed for
domestic dishwashers into the reservoir.
Alternatively, you can use liquid citric acid with up to 10% acid content. The dishes will be more moist and stained than with rinse aid.
Damage caused by acids.
The dishwasher can be damaged by acids with a higher concentration.
Never use citric acid or vinegar with a higher acid content (e.g. vinegar essence 25% acid).
If you only ever use combination detergent products in your dishwasher, you do not need to fill the rinse aid reservoir. However, the best rinsing and drying results will be achieved by using a detergent together with separate dishwasher salt and rinse aid.
If you want to permanently use combination detergent products in your dishwasher, you can switch off the refill reminders for salt and rinse aid if you wish (see “Settings - Refill reminders”).
Please make sure that if you stop using combination detergents, you refill the dishwasher salt and rinse aid. Switch the refill reminders back on if required.
31
Using for the first time

Adding rinse aid

Lift the yellow catch on the lid of the
rinse aid container .
The lid will spring open.
Wipe up any spilled rinse aid. This
prevents over-foaming occurring during the next programme.
You can adjust the rinse aid dosage for best results (see "Settings - Rinse aid").

Refilling rinse aid

When the Refill rinse aid message appears, the reservoir only contains sufficient rinse aid for another 2 - 3 programmes.
Add rinse aid in good time.Confirm with OK.
The refill rinse aid reminder will go out.
Only add rinse aid until the fill level
indicator (see arrow) turns dark when the door is open horizontally.
The rinse aid reservoir holds approx. 110 ml.
Close the flap firmly so that it clicks
into place. Otherwise water can enter the rinse aid reservoir during a programme.
32

Settings

You can alter the dishwasher’s controls to suit changing requirements by adjusting the settings.
Settings can be altered at any time.

Opening the Settings menu

Switch the dishwasher on with the
button if it is switched off.
Use the programme selection
button to select the Further programmes/Settings option.
The first of the further programmes will appear in the display.
Select the Settings menu option
using the buttons and confirm with OK.
The first option in the Settings menu will appear in the display.
For further information about the display functionality, see “Guide to the appliance - Display functions”.

Changing settings

Use the buttons to select the
menu option you want to change and confirm your selection with OK.
Submenu options that have already been selected will have a tick beside them.
Use the buttons to select the
required setting and confirm with OK.
To exit a submenu, press the
button.
The display will revert to the menu above.

Closing the Settings menu

Press the button. The display will change to the menu.
33
Settings
Language
The display can be set to appear in one of several different languages.
You can change the language used in the display and also the country via the
Language submenu.
The flag after the word Language  serves as a guide if a language that you do not understand has been set. In this case keep selecting the menu option that has a flag after it until you reach the Language submenu.

Water hardness

Your dishwasher is fitted with a water softener.
- The dishwasher needs to be programmed to the correct water hardness for your area.
- Your local water authority will be able to advise you of the water hardness level in your area.
- Where the water hardness fluctuates, e.g. between 1.8 and 2.7mmol/l (10­15°dH - German scale), always programme the dishwasher to the higher value (2.7mmol/l or 15°dH in this example).
If the water hardness in your area is available in a unit other than °dH, you can convert the values as follows: 1°dH = 0.18mmol/l = 1.78°fH

Setting the water hardness

Select the water hardness level in
your area and confirm with OK.
34
Settings

AutoDos (automatic dispensing)

Automatic dispensing automatically adjusts the amount of detergent to the selected programme. In the Auto45– 65°C programme, the quantity is adjusted depending on the degree of soiling of the crockery.
If you want to extend the service life of the PowerDisk, you can reduce the dispensing quantity. The programme’s cleaning performance may decrease as a result. If you want to improve the cleaning performance, you can increase the dispensing quantity. This reduces the service life of the PowerDisk.
Setting theDosage amount
For best results, you can adjust the dispensing quantity of the PowerDisk.
Select the Dosage amountmenu
option and confirm with OK.

Rinse Aid

You can adjust the rinse aid dosage for best results. The rinse aid dosage can be set from 0 to 6ml. 3ml is the factory default setting.
If spots appear on crockery and glassware:
- Increase the rinse aid dosage.
If clouding or smearing appears on crockery and glassware:
- Decrease the rinse aid dosage.
Select the setting you want and
confirm with OK.
35
Settings

Miele@home

Your dishwasher is equipped with an integrated Wi-Fi module.
You can connect your dishwasher to your Wi-Fi network. This will increase the energy consumption, even when the dishwasher is switched off.
Additional menu options will be added to the “Settings“ and “Miele@home” menus.
Make sure that your Wi-Fi network signal strength is strong enough at the installation site of your dishwasher.
There are a number of ways of connecting your dishwasher to your Wi­Fi network:

Connect using App

The Miele App is available to download free of charge from the Apple App
Store® or from the Google Play Store™.
Select the Connect using Appmenu
option and confirm with OK.
Follow the instructions in the App.
Once the dishwasher is connected to your Wi-Fi network, you can use the App to carry out the following tasks:
- Control your dishwasher remotely
- Call up information on the operating status of your dishwasher
- Call up information on the programme sequence of your dishwasher
36
- Set up a Miele@home network with other Wi-Fi-enabled Miele appliances
Settings

Connect using WPS

As an alternative to networking via the Miele App, you can connect your dishwasher to your Wi-Fi network using WPS (Wireless Protected Setup).
Your Wi-Fi router must support WPS.
Confirm the messagePress WPS
button with OK.
Activate the WPS function on your
router within twominutes.
Once the connection has been
established, confirm the message with OK.
If the connection fails, you have probably not connected WPS on your router quickly enough. Repeat the steps above.

Deactivate

If you do not wish to use the Wi-Fi module of your dishwasher, you can switch it off.
Select the Deactivatemenu option
and confirm with OK.
In the Miele@home menu, the menu option Activate will now be displayed instead of Deactivate.

Activate

If you wish to connect your dishwasher to your Wi-Fi network, you can switch on the Wi-Fi module.
Select the Activatemenu option and
confirm with OK.
In the Miele@home menu, the menu option Deactivate will now be displayed instead of Activate.
37
Settings
DisplayingConnection status
You can call up the current connection status of your dishwasher.
Select the Connection statusmenu
option and confirm with OK.
Use the sensors to consecutively
call up the Wi-Fi signal strength, the name of your router, and the associated IP address.
Select OK to confirm the messages.

Set up again

This menu option only appears if you have connected your dishwasher to your Wi-Fi network before.

Connect using App

Select the Connect using Appmenu
option and confirm with OK.
Follow the instructions in the App.

Connect using WPS

Select the Connect using WPSmenu
option and confirm with OK.

Reset

This menu option only appears if you have connected your dishwasher to your Wi-Fi network before.
You can use this menu option to reset all Wi-Fi module settings to the factory default settings.
The network configuration should be reset whenever a dishwasher is being disposed of or sold, or if a used dishwasher is being put into operation. This is the only way to ensure that all personal data has been removed and, in the case of the latter, a previous owner will no longer be able to access the dishwasher.
Select the Resetmenu option and
confirm with OK.
Follow the instructions in the display.
38
Settings

Remote control

This menu option will only be displayed if you have connected your dishwasher to your Wi-Fi network (see “Settings - Miele@home”).
If you have switched on the option
Remote control, the menu item MobileStart is displayed under
Further programmes/Settings.
If you wish to permanently switch off the Remote control option, you can do this under this menu option. The menu item MobileStart will then no longer be displayed.
Even if the Remote control option is switched off, you can use Miele to call up information about your appliance. However, you cannot start any programmes or change any settings from it.

RemoteUpdate

The RemoteUpdate menu option is only displayed and can only be selected if the requirements for using Miele@home have been met (see “Using for the first time ­Miele@home”).
The RemoteUpdate function is used for updating the software in your dishwasher. If an update is available for your dishwasher, it will automatically download it. Updates will not be installed automatically. They must be initiated manually.
If you do not install an update, you can continue to use your dishwasher as usual. However, Miele recommends installing updates.

Activating/deactivating

The RemoteUpdate function is activated as standard. Available updates will be downloaded automatically but will only be installed if you initiate the installation manually.
Deactivate RemoteUpdate if you do not want any updates to be downloaded automatically.
39
Settings

Running a RemoteUpdate

Information about the content and scope of a RemoteUpdate will be provided in the Miele App.
A message will appear in your dishwasher display if a software update is available.
You can install the update immediately or postpone this until later. When the appliance is switched on again, you will be reminded about the update.
Deactivate RemoteUpdate if you do not want to install the update.
The update may take several minutes.
Please note the following information about the RemoteUpdate function:
- You will only receive a message when an update is available.
- Once an update has been installed, it cannot be undone.
- Do not switch the dishwasher off during the update. Otherwise, the update will be aborted and will not be installed.
- Some software updates can only be carried out by a Miele service technician.

Consumption (EcoFeedback)

You can set whether the energy and water consumption is displayed for the selected programme. This function shows the estimated consumption before a programme, and the actual consumption after the end of the programme. In this menu you can also call up the total consumption of energy and water for all the wash programmes you have run on your dishwasher to date (see “Caring for the environment ­EcoFeedback consumption display“).
DisplayingConsumption
Select the Consumption displaymenu
option and confirm with OK.
Select the setting you want and
confirm with OK.
DisplayingTotal consumption
Select the Total consumptionmenu
option and confirm with OK.
You can display the values for Energy
and Water using the buttons.
You can also reset the values for the total consumption to 0.
Select the Resetmenu option and
confirm with OK.
40
Select the Yesmenu option and
confirm with OK.
Confirm the message with OK.
The values are now reset to 0.
Settings

Display brightness

You can set the display brightness to one of seven different levels.

Refill reminders

If you only ever use combination detergent products or automatic dispensing using Miele PowerDisks (if available), you can switch off the refill reminders for reactivation salt and rinse aid if you wish.
Please make sure that if you stop using combination detergents, you refill the dishwasher salt and rinse aid. Switch the refill reminders back on.

AutoOpen

In some programmes the door automatically opens slightly to assist the drying process.
This function can be deactivated if you wish.
Risk of damage due to steam.
Steam from the dishwasher could damage the edges of delicate worktops when you open the door at the end of the programme if the fan is no longer running.
If you have deactivated the automatic door opening function but would still like to open the door at the end of the programme, make sure that you open the door fully.
41
Settings

Extra clean

You can choose this function to increase the cleaning performance of the programmes.
If you activate this function, the programme cycle times and the main wash temperatures will increase. Programmes normally without a pre­wash will incorporate a pre-wash phase. The water and energy consumption may increase.
If this function is switched on, it will be applied to all programmes until it is switched off again (except for the ECO programme).

Extra dry

You can select this function in order to increase the drying performance of the programmes.
If you activate this function, the programme cycle times and final rinse temperatures will increase. Programmes normally without a pre-wash will incorporate a pre-wash phase. The energy consumption may increase.

2nd interim rinse

You can choose this function to increase the cleaning performance of the programmes with a second interim rinse.
When this function is activated, water consumption may increase.
If this function is switched on, it will be applied to all programmes until it is switched off again (except for the ECO programme).

Hygiene cycle

If you mainly use low temperature programmes (<50°C), there is a risk of bacteria and unpleasant odours building up in the wash cabinet (see “Cleaning and care – Hygiene cycle”).
If this function is switched on, a message will be displayed recommending the use of a high temperature programme after several low temperature programmes have been run.
If this function is switched on, it will be applied to all programmes until it is switched off again (except for the ECO programme).
42
Settings

Software version

You can display the electronic software version of your dishwasher for technical support purposes.

Showroom

For demonstration purposes only.
The dishwasher is equipped with a demo mode for showroom use.

Factory default

You can reset all dishwasher settings to the factory default settings.
The settings of the Wi-Fi module (where applicable) have to be reset separately (see "Settings – Miele@home – Reset").
Select Reset and confirm with OK.

Copyright and licences for the communication module

For the purpose of operating and controlling the communication module, Miele uses proprietary or third-party software that is not covered by open source licensing terms. These items of software/software components are protected by copyright. The copyright powers of Miele and third parties must be respected.
In addition, the communication module contains software components which are distributed under open source licensing terms. The open source components contained in the appliance along with the corresponding copyright notices, copies of the licensing terms valid at the time, and any further information can be accessed locally via IP using a web browser (http://<IP address>/Licenses), where <IP address> is the IP address of the appliance. The liability and warranty arrangements for the open source licences displayed in this location only apply in relation to the respective rights holders.
43

Caring for the environment

Economical dishwashing

This dishwasher is exceptionally economical in its use of water and electricity. You can support the economical operation of your appliance by following these tips:
- Washing in a dishwasher generally uses less water and energy than washing dishes by hand.
- Pre-rinsing dishes under running water is not necessary and unnecessarily increases water and energy consumption.
- For the most economical dishwashing, make full use of the basket capacity without overloading the dishwasher. This results in the most economical use of the dishwasher in terms of energy and water consumption.
- Choose the programme to suit the type of crockery being washed and the degree of soiling (see “Programme chart”).
- You can connect the dishwasher to a hot water supply. A hot water connection is particularly suitable with energy-saving water heating sources, such as solar water heaters. If the water is heated by electricity, we recommend connection to cold water.
- Select the ECOprogramme for energy-saving dishwashing. This programme is the most efficient in terms of its combined energy and water consumption for cleaning dishes with a normal level of soiling.
- Follow the detergent manufacturer’s recommendations on detergent dosage.
- When using powder or liquid detergent, you can use 1/3 less
detergent if the baskets are only half full.
44
Caring for the environment

EcoFeedback consumption display

The "Consumption" function is used for calling up information about the energy and water consumption of your dishwasher (see "Settings ­Consumption (EcoFeedback)").
The following information can be viewed in the display:
- An estimate of the consumption before the programme begins
- The actual consumption at the end of the programme
- The total consumption of the dishwasher to date

1. Consumption estimate

After a programme has been selected, first the name of the programme and after a few seconds the estimated energy consumption and water consumption will appear in the display.
The estimated consumption function is activated as standard. It can be deactivated, if preferred (see “Settings ­Consumption (EcoFeedback)”).

2. Displaying consumption

At the end of the programme, you can call up the actual energy and water consumption for the programme that has just been run.
Confirm the messageConsumption
(OK) with OK.
Switching the dishwasher off at the end of the programme will delete the actual consumption values for the programme that has just been run.

3. Total consumption

You can call up the total consumption of energy and water for all programmes you have run on your dishwasher to date (see “Settings - Consumption (EcoFeedback)”).
The estimated consumption will be shown as a bar chart. The more bars are shown (), the higher the energy or water consumption.
The values are influenced by the programme, any programme options selected, the ambient conditions and the size of the load.
The display will change automatically from showing the estimated consumption to showing the time remaining.
45

Loading the dishwasher

General information

Remove coarse food residues from crockery.
There is no need to pre-rinse items under running water.
Damage can be caused by ash,
sand, wax, lubricating grease, or paint.
These substances will contaminate the dishwasher and can then no longer be removed.
Do not wash items soiled with these substances in the dishwasher.
Dishes can be loaded anywhere in the baskets. However, please try to observe the following notes:
- Do not place dishes and utensils inside other items where they will cover one another.
- Load the crockery so that water can access all surfaces. This ensures that they will get properly cleaned.
- The spray arms must not be blocked by items that are too tall or hang through the baskets. Test for free movement by manually rotating the spray arms.
- Make sure that small items cannot fall through the holders in the baskets. Small items such as lids should therefore be placed in the cutlery tray or cutlery basket (depending on model).
Some foods such as carrots, tomatoes, or tomato sauce may contain natural dyes. These dyes can discolour plastic items in the dishwasher if large quantities of these foods are in contact with the crockery inside the machine. The stability of plastic items is not affected by this discolouration. Washing silverware can also cause plastic items to discolour.
- Make sure that all items are securely positioned.
- Hollow items such as cups, glasses, and saucepans etc. must be inverted in the baskets.
- Tall and narrow, hollow items such as champagne glasses should be placed in the centre of the basket rather than in the corners. This ensures the hollow items are more easily accessed by the water jets.
- Wide based items should be placed at an angle so that water can run off them freely.
46
Loading the dishwasher

Items not suitable for washing in the dishwasher:

- Wooden cutlery and crockery or items with wooden parts. These may discolour and fade. Furthermore, the glue used in these items is not dishwasher safe. Wooden handles may come loose after being washed in the dishwasher.
- Craft items, antiques, valuable vases, and decorative glassware. Such items are not suitable for dishwashers.
- Plastic items that are not heat resistant. The high temperatures in the dishwasher may cause them to melt or lose shape.
- Copper, brass, tin, and aluminium items. These may discolour or become dull.
- Colours painted over a glaze. These may fade after a number of washes.
- Delicate glassware and glassware containing lead crystal. Clouding may occur over time.
Silverware
Silver can discolour when in contact with foods containing sulphur. These include egg yolk, onions, mayonnaise, mustard, pulses, fish, fish brine, and marinades.
Silverware previously cleaned with a silver polish may still be damp or
spotted at the end of a programme, as water has not run off smoothly.
Damage due to caustic alkaline
detergents. Aluminium parts (e.g. the grease
filters of rangehoods) can be damaged by caustic alkaline detergents. In extreme cases, there is a risk of an explosive chemical reaction (such as an explosive oxyhydrogen gas reaction).
Aluminium components must not be cleaned in the dishwasher with caustic alkaline commercial or industrial detergents.
Useful tip: When purchasing new crockery and cutlery, make sure they are dishwasher safe if you want to wash them in the dishwasher.

Glass care

- Clouding may occur on glasses after frequent washing in the dishwasher. When washing delicate glassware in the dishwasher, select a special glass care programme with a low temperature (see “Programme chart”). This will reduce the risk of clouding.
- Purchase glassware that is dishwasher safe (e.g. Riedel glassware).
- Use detergents with glass protective additives.
Useful tip: Rub the silverware dry with a cloth.
47
Loading the dishwasher

Upper basket

See “Loading the dishwasher ­Loading examples” for examples of how to load crockery and cutlery.

Loading the upper basket

Damage due to leaking water.
If you run the dishwasher without the upper basket, water can leak out of the dishwasher.
Only run the dishwasher with the upper basket in place (except with the programmeTall items, if available).
Use the upper basket for small,
lightweight, and delicate items such as cups, saucers, glasses, dessert bowls, etc. Shallow pans or casserole dishes can also be placed in the upper basket.
Long items such as soup ladles and
mixing spoons should be placed lying down across the front of the upper basket.

Loading the FlexCare cup rack

You can put cups, small bowls, and flat dishes on the FlexCare cup rack. Glasses can be arranged along the cup rack so they sit securely during the programme.
Fold down the cup rack.Raise the cup rack upwards to make
room for tall items.
48
Loading the dishwasher

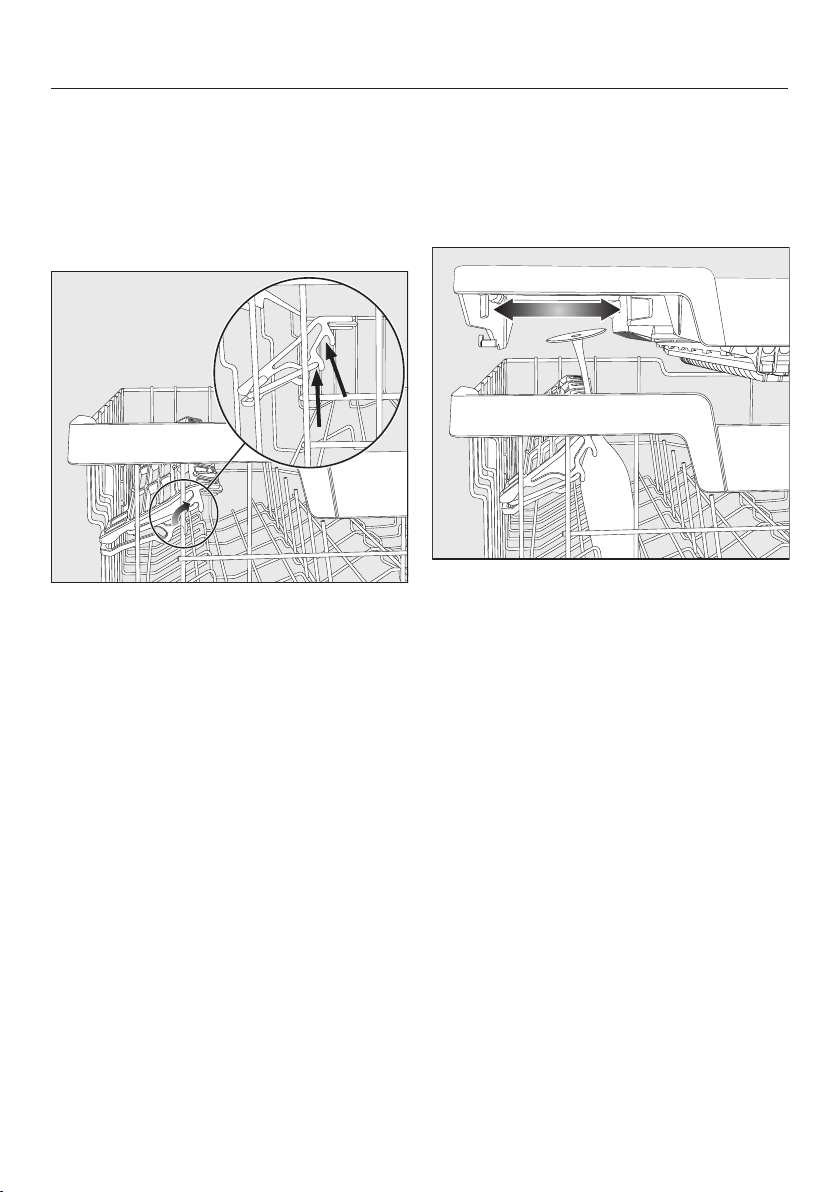

Adjusting the FlexCare cup rack

You can set the height and depth of the cup rack at twodifferent levels so that it can accommodate larger cups and so that taller items can be placed underneath it.
Pull the cup rack upwards and click it
into the desired position (see arrows).

Loading the silicone elements of the FlexCare cup rack

The silicone elements on the cup rack are specially designed to hold tall glasses with long stems securely.
Fold down the cup rack and lean the
glasses in the openings.
If you wish you can adjust the left
insert of the 3D MultiFlex tray to make space for taller glasses (see “Cutlery tray/Cutlery basket – Loading the 3D MultiFlex tray”).
49
Loading the dishwasher

Lowering the spikes

You can fold down every second spike in the two front right hand rows of spikes to make it easier to arrange larger pieces of crockery, e.g. cereal bowls.
Press the yellow lever downwards,
and then lower the dark gray
spikes.
Place the items vertically in the row of
spikes.
50
Loading the dishwasher

Adjusting the upper basket

In order to gain more space for taller items, the upper basket can be adjusted on three levels with 2cm between each level.
The upper basket can also be set at an angle so that water can run off freely from recesses. However, make sure that the basket can slide smoothly in and out of the wash cabinet.
Pull out the upper basket.

To raise the upper basket:

Pull the basket up until it clicks into
place.

To lower the upper basket:

Pull upwards on the levers at either
side of the upper basket.
Adjust the basket to the desired
height and then push the levers securely back down into position.
When adjusting the upper basket, make sure that tall plates in the lower basket do not block the middle spray arm.
51
Loading the dishwasher

Lower basket

See “Loading the dishwasher ­Loading examples” for examples of how to load crockery and cutlery.

Loading the lower basket

Place larger and heavier items such
as plates, serving platters, saucepans, serving bowls etc., in the lower basket. Glasses, cups, small plates and saucers can also be placed in the lower basket.

Loading the MultiComfort area

The rear section of the lower basket is used for washing cups, glasses, plates, and saucepans.

Lowering the spikes

The rows of spikes at the front are used for loading plates, soup bowls, platters, dessert bowls and saucers.
Both right-hand rows of spikes can be folded down to make more room for large items such as pots, pans, and serving dishes and bowls.
Press the yellow lever downwards ,
and then fold down the spikes .
Place large platters and dishes in the
centre of the lower basket.
Useful tip: When tilted, plates up to 35cm in diameter can be accommodated.
52

Loading the FlexCare glass holder

The silicone elements in the glass holder provide a stable and secure hold for delicate stemware.
Stemware such as wine glasses and
champagne flutes can be leaned against the glass holder or suspended from it.
The glass holder can be folded up to
make more room for tall items.
You can set the glass holder to two different heights.
Loading the dishwasher
Slide the glass holder to the desired
height until the catches click into place at the top or the bottom.
53
Loading the dishwasher

Cutlery tray/Cutlery basket

(depending on model)
See “Loading the dishwasher ­Loading examples” for examples of how to load crockery and cutlery.
Load cutlery into the 3D MultiFlex tray
or the cutlery basket (depending on model).

Loading the 3D MultiFlex tray

To make unloading easier, cutlery should be grouped in zones, one for knives, one for forks, one for spoons, etc.
Spoon heads should be placed to rest on the serrated retainers on the base of the tray to ensure that water runs off them freely.
You can push the left insert to the middle in order to accommodate tall items of crockery and long stemmed glasses in the upper basket (see “Upper basket – Loading the silicone elements of the FlexCare cup rack”).
You can put large and long cutlery in the recessed centre part of the tray.
Arrange tall items (such as cake servers) so that they do not block the upper spray arm.
You can adjust the height of the right­hand insert to create more space in the right-hand part of the tray for larger cutlery items or smaller pieces of crockery.
If spoon handles do not fit between
the holders, lay them the other way round.
54
Pull the insert inwards by the yellow
handle and click it into place in one of the two positions.

Loading the cutlery basket

The cutlery basket can be placed anywhere on the front rows of spikes in the left or right corner of the lower basket.
To avoid the risk of injury, knives and
forks should be placed with the handles upwards in the cutlery basket. However, cutlery placed handle down in the cutlery basket will come out cleaner and drier.
Loading the dishwasher
Fit the insert onto the cutlery basket if
required.
Place small items of cutlery in the
individual slots on three sides of the cutlery basket.

Loading the cutlery insert for the cutlery basket

Use the insert supplied for heavily soiled items of cutlery. As this insert separates the items, they do not overlap and can be more easily accessed by the water jets.
Place cutlery into the insert with the
handles facing downwards.
Arrange them evenly along the insert.
55
Loading the dishwasher

Loading examples

Dishwashers with cutlery tray

Upper basket
Lower basket
56
Cutlery tray
Loading the dishwasher
57
Loading the dishwasher

Dishwashers with cutlery basket

Upper basket Lower basket
Cutlery basket
58

Comparison tests

Test standard: AS/NZS 2007.1:2005, AS/NZS 2007.2:2005;
AS/NZS 6400:2005
Standard programme
(for energy label):
Capacity: 14place settings
Detergent amount: 27.5 g
Rinse aid dosage: Setting 3
You can find information on adjusting the rinse aid dosage in the "Rinse aid" section of this booklet.
The door opens automatically during the drying phase. Do not close the door until the drying test has finished.
Upper basket setting:
Position: Bottom
FlexCare cup rack (if available):
ECO
Left lower position, right upper position

Loading examples

Pictures illustrating how to load the dishwasher for each model (see data plate) are shown on the following pages.
Picture : Upper basket Picture : Lower basket Picture : Cutlery basket
Do not lower or remove the basket inserts.
Squeeze and remove the bottle holder from the lower basket (if available).
59
Comparison tests

Capacity

14
Upper basket Lower basket
60
Comparison tests
Cutlery basket
1 fork 2 soup spoons
61
Comparison tests
Test standard: AS/NZS 2007.1:2005, AS/NZS 2007.2:2005;
AS/NZS 6400:2005
Standard programme
(for energy label):
Capacity: 14place settings
Detergent amount: 27.5 g
Rinse aid dosage: Setting 3
You can find information on adjusting the rinse aid dosage in the "Rinse aid" section of this booklet.
The door opens automatically during the drying phase. Do not close the door until the drying test has finished.
Upper basket setting:
Position: Bottom
FlexCare cup rack: Left lower position
ECO

Loading examples

Pictures illustrating how to load the dishwasher for each model (see data plate) are shown on the following pages.
Picture : Upper basket Picture : Lower basket Picture : Cutlery tray
Do not lower or remove the basket inserts.
Squeeze and remove the bottle holder from the lower basket (if available).
62

Capacity

14
Comparison tests
63
Comparison tests
64
Comparison tests
Test standard: AS/NZS 2007.1:2005, AS/NZS 2007.2:2005;
AS/NZS 6400:2005
Standard programme
(for energy label):
Capacity: 15place settings
Detergent amount: 33.7 g
Rinse aid dosage: Setting 3
You can find information on adjusting the rinse aid dosage in the "Rinse aid" section of this booklet.
The door opens automatically during the drying phase. Do not close the door until the drying test has finished.
Upper basket setting:
Position: Bottom
FlexCare cup rack Left lower position, right upper position
ECO

Loading examples

Pictures illustrating how to load the dishwasher for each model (see data plate) are shown on the following pages.
Picture : Upper basket Picture : Lower basket Picture : Cutlery tray
Do not lower or remove the basket inserts.
Squeeze and remove the bottle holder from the lower basket (if available).
65
Comparison tests

Capacity

15
66
Comparison tests
67

Detergents

Types of detergents

Damage due to unsuitable
detergents. Detergents that are not suitable for
domestic dishwashers can cause damage to the dishwasher or to the load.
Only use detergents formulated for domestic dishwashers.
Modern detergents contain various active ingredients, the most important of which are:
- Water softening complexing agents to prevent calcification.
- Alkalis to aid removal of dried-on soiling.
- Enzymes to break down starch and loosen protein.
- Oxygen-based bleaching agents to remove coloured stains (e.g. tea, coffee, tomato sauce).
Most dishwasher detergents are mildly alkaline and contain enzymes and oxygen-based bleaching agents.
There are different types of detergents:
- Powder and liquid gel detergents. These detergents allow you to adjust the amount dispensed according to the size of the load and the level of soiling.
- Tablet detergents. These are suitable for most levels of soiling.
As well as the usual detergents, combination products are also available. These contain rinse aid and water softener (reactivation salt). Only use these combination detergents for the water hardness levels recommended by the manufacturer on the packaging. The cleaning and drying performance of these combination detergents can vary greatly.
For optimum cleaning and drying results, use dishwasher detergent and add salt and rinse aid separately.
68
Detergents
Risk of chemical burns from
detergent. Dishwasher detergents can cause
burning on the skin and in the eyes, nose, mouth, and throat.
Avoid contact with detergents. Do not inhale or ingest powder detergents. Do not swallow dishwasher detergent. Seek medical attention immediately if detergent has been swallowed or inhaled.
Keep detergents out of reach of children. Detergent residues could still be present in the machine. Keep children away from the dishwasher when the door is open. Do not fill the detergent dispenser until just before starting the programme and activate the door safety lock (depending on model).

Detergent dispensing

There are two ways of dispensing the detergent.
During automatic dispensing, the AutoDos function will automatically dispense the required amount of detergent for each programme once a PowerDisk has been inserted (see “Detergents - Automatic dispensing/ AutoDos”).
If you do not wish to use AutoDos, you can manually dispense the detergent into the detergent compartment. This means you will have to fill the required amount of detergent into the detergent compartment before each programme (see “Detergents - Manual detergent dispensing”).
69
Detergents

Automatic dispensing/AutoDos

Before you can use AutoDos, you must insert a PowerDisk containing powder detergent into the PowerDisk compartment.
One PowerDisk contains enough detergent for approx. 20cycles, depending on the selected programme.
PowerDisks are available to order directly from the Miele online store or a Miele Experience Centre.
Risk of chemical burns from
residual detergent. Detergents have a caustic effect.
This can cause health problems and damage to surfaces. If the AutoDos is used incorrectly or leaks, residual detergent may drip onto the floor area in front of the dishwasher.
Always remove residual detergent from in front of the dishwasher immediately.

Activating AutoDos

Switch the dishwasher on with the
button.
Before you use AutoDos for the first
time, remove the transport lock from the PowerDisk compartment and dispose of it appropriately.
Insert a PowerDisk (see “Automatic
dispensing/AutoDos - Inserting a PowerDisk”).
TheAutoDos function will be activated automatically. The message AutoDos activated will appear in the display.
This setting applies to all programmes and can be changed at any time using the AutoDosbutton.
If no programme is started for 48hours, the PowerDisk will automatically be rotated so that the detergent does not clump together. If this happens, the messagePowder
refreshing will appear in the display
when the dishwasher is switched on. No detergent is dispensed during this refreshing process.
70

Inserting a PowerDisk

Switch on the dishwasher before you replace the PowerDisk so that the dishwasher recognises it.
Only replace the PowerDisk when the messagePowerDisk empty. Deactivate
AutoDos with OK. appears.
Slide the yellow catch of the AutoDos
lid to and open it.
The message AutoDos lid open will appear in the display.
Remove the empty PowerDisk.
Detergents
If the arrows in the PowerDisk holder
and in the viewing window are not pointing towards each other, remove the PowerDisk holder (see “Cleaning and care - Cleaning the AutoDos”).
Put the holder back into place so that
the arrows point towards each other and the holder lies flat. When doing this, only hold the PowerDisk holder by the yellow tab in the middle. Do not hold it by the side tab.
Insert the new PowerDisk and press it
evenly downwards until it sits flush.
71
Detergents
Close the AutoDos lid and slide the
yellow catch until it is aligned with the symbol.
If the PowerDisk is not in the correct starting position, it will be rotated automatically and the AutoDos function will be activated. Wait until this process is finished before you start a programme.
The detergent powder must be dry so that it does not clump together.
Do not fill the AutoDos with any type of liquid.
In order to ensure that the AutoDos works at its best, check it each time you replace the PowerDisk and clean it if needed (see “Cleaning and care ­Cleaning the AutoDos”).
The AutoDos lid must be closed to prevent damage to the AutoDos.
Always close the AutoDos lid before you close the dishwasher door. Otherwise, the AutoDos may be damaged.
Programmes cannot start when the AutoDos lid is open.
72
Detergents

Manual detergent dispensing

Detergent must be manually dispensed if you have deactivated automatic dispensing using the AutoDossensor.

Detergent dispensing

The detergent compartment holds a maximum of 50ml.
There are marks in the detergent compartment to aid with dispensing: 20, 30, max. When the door is opened to a horizontal position, they show the approximate fill level in ml and the maximum fill height.
Follow the detergent dosage
recommended by the manufacturer on the packaging.
Unless directed otherwise, use one
detergent tab or add 20 to 30ml of detergent to the detergent compartment, depending on the degree of soiling of the crockery.

Adding detergent

Lift the yellow catch on the lid of the
detergent compartment .
The lid will open. The lid will also be open at the end of the programme.
If you use less than the recommended amount of detergent, the dishes may not get properly clean.
Some tabs may not dissolve completely when the programmeQuickPowerWash is used.
Add the detergent to the detergent
compartment.
Slide the lid shut until you hear it click
into place.
73
Detergents
The detergent must not cause the detergent compartment lid to get stuck. This can prevent the lid from opening during the programme sequence.
Do not overfill the detergent compartment.
Automatic dispensing/AutoDos
should be deactivated if detergent is manually dispensed.
Ensure that the detergent packaging
is properly closed after use. This prevents the detergent from getting damp and clumping together.
You can also apply a small amount of
detergent to the inner panel of the door in programmes that have a pre­wash stage (see “Programme chart”).
74

Operation

Switching on the dishwasher

Make sure the spray arms can rotate
freely.
Close the door.Turn on the tap if it is turned off.Press the button.
When a programme is selected, it will appear briefly in the display and the relevant indicator light will come on. Next, the estimated energy and water consumption may be shown for the selected programme for several seconds. Then the display will show the estimated duration of the selected programme.
The Start indicator light will flash.

Selecting a programme

Choose your programme according to the type of crockery and the degree of soiling.
The different programmes and their use are described in the “Programme chart”.
Use the programme selection
button to select the programme you want.
The indicator light for the selected programme will come on.
Further programmes can be selected under .
Use the programme selection
button to select the option.
The first of the further programmes will appear in the display.
Use the buttons in the display to
select the programme you want.
You can now select programme options (see “Programme options”).
If any programme options are selected, the appropriate indicator lights will also light up.
75
Operation

Display of programme duration

The estimated duration of the selected programme appears in the display before the programme begins. During the programme, the time left until the end of the programme is displayed.
Each programme stage is indicated by a symbol:
Pre-wash/Soak Main wash Interim rinse Final rinse Drying Finish
The displayed duration may vary for the same programme. It is influenced by, for example, the temperature of the incoming water, the reactivation cycle of the water softener, the detergent type, and the amount of dishes and how soiled they are.

Starting a programme

Press the Startbutton.
If necessary, confirm the previously displayed message with OK.
The programme will start.
The Start indicator light will come on.
During the programme sequence, you can use OK to display the name of the programme that is currently running.
Risk of scalding due to hot
water. During operation, water in the
dishwasher may be very hot. Only open the door if absolutely
necessary and exercise extreme caution when doing so. Before closing the door again, leave it ajar for approx. 20 seconds. This will enable the temperature in the wash cabinet to settle.
When a programme is selected for the first time, the display will show the average programme duration for a cold water connection.
The programme durations shown in the “Programme chart” refer to standard test loads and temperatures.
Each time a programme is run, the control module calculates the programme duration depending on the temperature of the water taken into the dishwasher and the size of the load.
76
Operation

At the end of the programme

The programme has finished when the display shows the message Finished.
In some programmes, if the AutoOpen function is activated, the door will automatically open slightly (see “Settings – AutoOpen”). This improves the drying process.
If the Consumptionprogrammable function is switched on, you can now call up the actual energy and water consumption of the programme that has just finished (see “Caring for the environment – EcoFeedback consumption display”).
The drying fan may continue to run for a few minutes at the end of the programme.
Risk of damage due to steam.
Steam from the dishwasher could damage the edges of delicate worktops when you open the door at the end of the programme if the fan is no longer running.
If you have deactivated the automatic door opening function (see “Settings – AutoOpen”), but would still like to open the door at the end of the programme, then make sure that you open the door fully.

Energy management

To save energy, the dishwasher will switch off automatically 10minutes after the last time a button is pressed or after the end of a programme.
You can switch the dishwasher back on with the button.
The dishwasher will not switch itself off while a programme is running or if there is a fault.
77
Operation

Switching off the dishwasher

The dishwasher can be switched off
at any time using the button.
Confirm the query Switch off with OK.
Switching the dishwasher off during a programme cancels the programme.
You can also do this to stop an ongoing timer.
Risk of damage from leaking
water. Overflowing water can cause
damage. If the dishwasher is not going to be
used for a longer period of time, e.g. whilst on holiday, the tap should be turned off.

Unloading the dishwasher

Dishes tend to break and chip more easily when they are hot. Allow the dishes to cool until they are comfortable enough to handle before unloading them.
The dishes will cool much faster if you open the door when the programme has ended.
First unload the lower basket, then
the upper basket, and finally the 3D MultiFlex tray. This will prevent water drops from the upper basket and 3D MultiFlex tray from falling onto the dishes in the lower basket.
78
Operation

Interrupting a programme

A programme will be interrupted as soon as the door is opened. If the door is closed again, the programme will continue from the point it was at before the door was opened.
Risk of scalding due to hot
water. During operation, water in the
dishwasher may be very hot. Only open the door if absolutely
necessary and exercise extreme caution when doing so. Before closing the door again, leave it ajar for approx. 20 seconds. This will enable the temperature in the wash cabinet to settle.

Cancelling or changing a programme

If a programme is cancelled, important programme stages may be missed.
A programme should only be cancelled in the first few minutes of the programme sequence.
If a programme has already started and you wish to cancel it, proceed as follows:
Switch the dishwasher off with the
button.
Confirm the query Switch off with OK.
If you would like to select another programme:
Switch the dishwasher back on with
the button.
If you have dispensed detergent
manually, check whether the detergent compartment is still closed. If the lid is already open, fill it with detergent again and close the lid.
Select the programme you want, and
then start it.
79

Options

Timer
You can set the start time of a programme. The programme start time can be delayed for between 30minutes and 24hours. With a start time delay between 30minutes and 3hours, the delay can be set in 30-minute increments. It is set in hours for periods longer than this.
With manual detergent dispensing, the detergent can clump together if the detergent compartment is not dry, and it may not be fully rinsed out.
When using the timer function, make sure that the detergent compartment is dry before adding detergent. Wipe it dry with a cloth first if necessary. Do not use liquid detergents. These can leak out.
Danger to health due to
detergent. To prevent children coming into
contact with dishwasher detergent: Do not fill the detergent dispenser
until just before starting the programme, i.e. before you activate the timer. Use the safety lock to secure the dishwasher door.

Activating the timer

Switch the dishwasher on with the
button.
The Start indicator light will flash.
Select the required programme.Press the Timer button.

The most recently set “Start in” time will be shown in the display. The Timer indicator light will light up.

Set the required time after which the
programme should start automatically using the buttons.
If you press and hold the or buttons, the numbers will increase automatically.
Confirm with OK.
The Start indicator will light up continuously.
80
Options
After you have activated the timer, the display and the indicator lights will switch off after a few minutes to save energy.
Press the button to switch the display back on for a few minutes.
The time up until the programme starts can be seen counting down in the display in hours for durations above 10hours, and in minutes for durations below 10 hours.
At the end of the start delay period, the programme selected will start automatically. The time remaining will be shown in the display and the Timer indicator light will go out.

Starting a programme before the time for the timer has elapsed:

A programme can be started before the timer has elapsed. Proceed as follows:
Switch the dishwasher off with the
button.
Switch the dishwasher back on with
the button.
Select the required programme.Press the Startbutton.
The programme will start. The Start indicator will light up continuously.
81

Guide for selecting a programme

Pots, pans, everyday porcelain
and cutlery
Standard dried-on normal
food deposits
Stubborn dried-on, burnt-on
food deposits containing
starch or protein
1
Water and
energy saving programme
Maximum
cleaning performance
Crockery Food deposits Programme
features
Temperature-sensitive dishes,
glasses and plastics
Mixed crockery
Lightly dried-on food deposits
All fresh to dried-on food
deposits
Lightly dried-on food deposits
Programme with glass care
Variable,
sensor-controlled programme
Short programme taking
less than an hour
No crockery
Residual salt after refilling
the salt container
Flushes out
salt residues
1
Food such as potatoes, pasta, rice or stews can leave starchy deposits.
Deposits containing protein can be left by food such as fried meat or fish.
82
Guide for selecting a programme
Gentle45°C
Auto 45–65°C
QuickPowerWash 65°C
ECO
Intensive 75°C
Programme
2
Consumption estimate
4
QuickPowerWash 65°C
+ Express
2
The programmes can be combined with the “Express” or “IntenseZone” programme options (if available) (see “Programme options”). You can also select the “Extra clean”, “Extra dry” and “Second interim rinse” function (if available) (see “Settings”).
3
Recomended amount of detergent (see “Detergent”).
4
The estimated values may change due to the selected settings or programme options, or the conditions in which the appliance is being used.
Programme duration 13 minutes,
no heating up,
solely for flushing out salt.
Energy consumption
Water consumption
Programme duration
Energy consumption
Water consumption
Programme duration
Energy consumption
Water consumption
Programme duration
Energy consumption
Water consumption
Programme duration
Energy consumption
Water consumption
Programme duration
20 ml
30 ml
30 ml
30 ml
30 ml
-
3
83

Programme chart

Programme Programme sequence
Pre-wash Main wash Interim rinse Final rinse Drying
°C °C
1
ECO
Auto45–65°C Variable programme sequence,
Intensive 75°C
QuickPowerWash 65°C
Gentle45°C
PowerWash60°C
ExtraQuiet55°C
Maintenance
sensor-controlled adjustment to load size and level of soiling
As
required
47
45–65
75
- 65
45
60
- 55
- 75
34
As
required

55–70
55–70
65
55–70
55–70
55–70
70
1
This programme is the most efficient in terms of its combined energy and water consumption for cleaning dishes with a normal level of soiling.
84
Programme chart
6,7
2
Time
3:48 / 3:48 /
3,4,5
3:45
2:05–3:35 1:57–3:21
3:49 / 3:47 /
3:42
Consumption
Electricity Water
Cold water Hot water Litres Cold water Hot water
kWh kWh h:min h:min
0.50 / 0.51 /
3,4,5
0.54
0.75–1.05
6,7
0.34 / 0.34 /
3,4,5
0.36
0.45–0.55
6,7
9.2 / 9.2 /
3,4,5
9.6
6.0–13.0
1.35 0.85 14.0 3:11 3:03
1.20 0.75 10.5 0:58 0:58
0.90 0.40 13.0 2:44 2:28
1.00 0.50 13.0 2:24 2:12
0.95 0.60 9.5 3:59 3:50
1.75 1.00 19.0 2:09 1:47
2
The values for the ECO programme were calculated under standardised testing conditions. Values for the remaining programmes were calculated under comparable testing conditions. In practice, the selected settings, programme options or use conditions may result in different values.
3
Standard height dishwashers with cutlery basket
4
Standard height dishwashers with cutlery tray
5
XXL dishwashers with cutlery tray
6
Minimum value: half load with light soiling
7
Maximum value: full load with heavy soiling
3,4,5
85
Programme chart
Further programmes
PowerWash60°C
Programme for cleaning a mixed load with fresh food deposits which have begun to dry on.
ExtraQuiet55°C
Very quiet programme with longer duration. This programme is suitable for a mixed load with lightly dried on food deposits.

Maintenance programme

The dishwasher wash cabinet is generally self-cleaning. However, if residues or deposits occur, use the
Maintenanceprogramme to clean it. The
dishwasher must not be loaded for this programme. This programme is designed for cleaning the wash cabinet using care products (dishwasher cleaner/dishwasher conditioner) (see “Optional accessories - Appliance care”). Follow the instructions on the packaging. When using dishwasher care products, no detergent should be added. For this reason, automatic dispensing (if available) is deactivated for this programme.
86

Programme options

Selecting programme options

You can use programme options to adjust the programmes.
To do this, you can select the programme options before starting the programme.
Switch the dishwasher on with the
button.
The Start indicator light will flash.
Select a programme as required.Press the button for the programme
option you want.
The indicator light for the relevant button will come on when the programme option is selected.
If the programme option is not compatible with the selected programme, a message to this effect will appear in the display.
In this event, confirm the message
with OK.
Express

The Express programme option reduces the programme duration.

In order to achieve optimum cleaning results, the temperature, and therefore the energy consumption, will increase with this option.
The time by which the programme duration is shortened varies according to the selected programme.
Selecting the Express programme option may take precedence over other selected options.
When used in combination with the QuickPowerWash programme, the Express programme option results in a rinse designed solely for the purpose of flushing out the wash cabinet to remove salt solution that leaked out after refilling the salt reservoir.
The selected programme option will remain active for that particular programme until the selection is changed.
87

Cleaning and care

Check the condition of your dishwasher regularly (approx. every 4–6months). This way, faults and problems can be avoided.
Damage caused by unsuitable
cleaning agents. All surfaces of this appliance are
susceptible to scratching. Contact with unsuitable cleaning agents can alter or discolour all surfaces.
Only use cleaning agents formulated for use on the relevant surfaces.

Cleaning the wash cabinet

The wash cabinet is largely self­cleaning, provided that the correct amount of detergent is always used.
The frequent use of low-temperature wash programmes (<50°C) increases the risk of contamination and odours inside the wash cabinet. Run the Intensive 75°C programme once a month to clean the wash cabinet and prevent odours from developing.

Hygiene cycle

If you mainly use low temperature programmes, there is a risk of bacteria and unpleasant odours building up in the wash cabinet. If you repeatedly use low temperature programmes, you should regularly run a high temperature programme. This is to prevent the build­up of residues and odours.
You can activate or deactivate a Hygiene info message (see “Settings – Hygiene cycle”). If you deactivate this message, run the Intensive75°Cprogramme once per month to clean the wash cabinet and prevent odours from developing.
However, if residues such as limescale or grease have been deposited, use the
Maintenance programme to clean the
dishwasher (see “Programme chart – Further programmes”) with dishwasher cleaner (see “Optional accessories – Maintenance”). Follow the instructions on the product packaging.
Miele cleaning and care products are available to order from Miele Service or from Miele’s online store.
Clean the filters in the wash cabinet
regularly.
88
Cleaning and care

Cleaning the door and the door seal

The door seal and the sides of the dishwasher door are not accessed and cleaned by the spray arm jets. As a result, mould can develop here.
Wipe the door seals regularly with a
damp cloth to remove food deposits.
Wipe off any food or drink residues
which may have dripped onto the sides of the dishwasher door before closing it.

Cleaning the control panel

The control panel should only be
wiped with a damp cloth.

Cleaning the appliance front

Damage due to soiling.
Soiling that is left too long might become impossible to remove and could cause the external surfaces to alter or discolour.
It is therefore best to remove any soiling immediately.
To avoid damaging the external surfaces, do not use the following:
- cleaning agents containing soda, ammonia, acids or chlorides
- cleaning agents containing descaling agents
- abrasive cleaning agents, e.g. powder cleaners and cream cleaners
- solvent-based cleaning agents
- stainless steel cleaning agents
- dishwasher cleaners
- oven cleaners or sprays
- glass cleaning agents
- hard, abrasive brushes or sponges, e.g. pot scourers, brushes, or sponges which have been previously used with abrasive cleaning agents
- dirt eraser sponges
- sharp metal scrapers
- steel wool or metal scourers
- steam cleaners
Clean the front with a soft sponge
and a solution of warm water and a little washing-up liquid. After cleaning, wipe the front dry using a soft cloth. A clean, damp microfibre cloth (such as the Original Miele all purpose microfibre cloth) without detergent can also be used.
89
Cleaning and care

Cleaning the AutoDos

You should check that the detergent fill channel is clean every time you replace the PowerDisk, and clean it if necessary, e.g. powder residues. This should be done at the latest when the Clean AutoDos message is displayed. This helps keep the AutoDos working properly.
In order to ensure that the AutoDos works at its best, check it each time you replace the PowerDisk and clean it if needed.
Slide the yellow catch of the AutoDos
lid to and open it.
Remove the PowerDisk if applicable.
Pull the PowerDisk holder upwards
by the yellow tabs and remove it. When doing so, do not pull on the side tab.
1 PowerDisk holder
2 Detergent chute for dispensing the
detergent from the PowerDisk into the wash cabinet
90
Use the tab (see arrow) to release
the fill channel and pull it out.
Cleaning and care
Clean the fill channel with water and a
soft brush if necessary.
It is very important that no moisture gets inside the AutoDos system during cleaning.
Dry the fill channel well so that the
detergent powder does not clump together.
Insert the fill channel until the tab
clicks into place.
The AutoDos lid must close tightly so that the detergent powder does not get wet and clump together.
Make sure that all seals are clean.
Insert a PowerDisk.Close the AutoDos lid and slide the
yellow catch until it is aligned with the symbol (see “Detergents ­Inserting a PowerDisk”).
Regularly check the lower spray arm for any blockages to ensure that the detergent outlet of the AutoDos can be fully flushed out (see “Cleaning and care - Cleaning the spray arms”).
Put the holder back into place so that
the arrows in the PowerDisk holder and in the viewing window point towards each other. The holder must lie flat.
91
Cleaning and care

Cleaning the spray arms

Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be inspected regularly (approx. every 2–4months).
Never run a wash programme without using the spray arms.
Damage due to soiling entering
the circulation system. Without filters, soiling can enter the
circulation system and cause a blockage.
Do not run a wash programme without the lower spray arm or without the filters fitted.
When cleaning the filters and spray arms, make sure that coarse soiling cannot get into the circulation system.
Switch the dishwasher off.

Removing the cutlery tray (if present)

In order to be able to remove the upper spray arm, you first have to remove the cutlery tray (if present).
Pull out the cutlery tray.
Press the rail safety clips on both
sides of the cutlery tray together and remove the safety clips.
Take out the cutlery tray completely.
92
Cleaning and care

Removing the upper spray arm

Push the upper spray arm upwards
to engage the inner ratchet. Then unscrew the spray arm by rotating the screw thread anti-clockwise (when
viewed from below) .

Removing the middle spray arm

Removing the lower spray arm

Remove the lower basket.
Rotate the screw thread of the lower
spray arm anti-clockwise and pull the spray arm upwards to remove.

Cleaning the spray arms

Rotate the screw thread of the middle
spray arm clockwise (overhead
perspective) (see diagram) and remove the spray arm .
Use a pointed object to push food
particles stuck in the jets into the spray arm.
Rinse the spray arm thoroughly under
running water.
93
Cleaning and care

Refitting the spray arms

Reinstall the upper spray arm and
tighten it by hand.
Reinstall the middle spray arm.Refit the lower spray arm and ensure
that the filter combination lies flat in the base of the wash cabinet.
Rotate the screw thread of the lower
spray arm clockwise until the arrow in the viewing window points to the lock symbol.

Inserting the cutlery tray (if present)

Slide the cutlery tray back onto the
rails from the front.
Replace the safety clips in the rails on
both sides of the cutlery tray.
Make sure the spray arms can rotate
freely.
Damage due to soiling entering
the circulation system. The lower spray arm is used to
secure the filter combination. Without filters, coarse soiling can enter the circulation system and cause a blockage.
Do not run a wash programme without the lower spray arm or without the filters fitted.
94
Cleaning and care

Checking the filters in the wash cabinet

The filter combination in the base of the wash cabinet retains coarse soiling from the suds solution. This prevents soiling getting into the circulation system and re-entering the wash cabinet through the spray arms.
Damage due to soiling entering
the circulation system. Without filters, soiling can enter the
circulation system and cause a blockage.
Do not run a wash programme without the lower spray arm or without the filters fitted.
When cleaning the filters and spray arms, make sure that coarse soiling cannot get into the circulation system.
The filters can become clogged by soiling that collects over time. The level of soiling and the time it takes before the filters need cleaning will vary depending on use.

Cleaning the filters

Switch the dishwasher off.Remove the lower spray arm (see
“Cleaning and care - Cleaning the spray arms”).
Before removing the filter
combination, remove any coarse soiling to prevent it from entering the circulation system.
Remove the filter combination.
The message Check filters will appear in the display after every 50 programme sequences.
Check the filter combination.Clean the filter combination if
necessary.
Then confirm the message with OK.
95
Cleaning and care
In order to clean the inside of the
filter, pull the microfilter downwards and away from the filter combination.
Rinse all the parts under running
water. If necessary, use a soft cleaning brush to remove soiling.
Push the microfilter back onto the
filter combination.
Refit the filter combination so that it
lies flat in the base of the wash cabinet.
Refit the lower spray arm to the filter
combination using the screw thread.
Rotate the screw thread clockwise
until the arrow in the viewing window points to the lock symbol.
Damage due to soiling entering
the circulation system. The lower spray arm is used to
secure the filter combination. Without filters, coarse soiling can enter the circulation system and cause a blockage.
Do not run a wash programme without the lower spray arm or without the filters fitted.
96

Cleaning the water inlet filter

A filter is incorporated in the screw thread to protect the water inlet valve. If the filter is soiled, insufficient water flows into the wash cabinet.
Risk of electric shock.
The plastic housing of the water connection contains an electrical valve.
The housing must not be dipped in water.
Cleaning and care
Disconnect the dishwasher from the
power supply. To do this, switch off at the socket and withdraw the plug.
Turn off the tap.Unscrew the water inlet valve.
Carefully remove the seal from the
threaded union.
Using combination or pointed pliers,
take hold of the plastic filter bar and remove the filter.
Rinse the filter under running water.Reassemble in reverse order.
Screw the threaded union securely back onto the tap. Slowly turn on the tap. If water drips out, tighten the connection.
Never forget to put the filter back in place after cleaning.
97
Cleaning and care

Cleaning the drain pump

If water remains in the wash cabinet after the end of a programme, the water has not been pumped away. The drain pump may be blocked by foreign objects. These foreign objects are easy to remove.
Disconnect the dishwasher from the
power supply. To do this, switch off at the socket and withdraw the plug.
Take the filter combination out of the
wash cabinet (see “Cleaning and care
- Cleaning the filters”).
Press the catch of the drain pump
cover inwards.
Scoop the water out of the wash
cabinet using a suitable container or utensil.
Tip the cover inwards until it is
released.
Rinse the cover thoroughly under
running water and remove all foreign objects.
98
The drain pump (see arrow) is underneath the cover.
Risk of injury from glass
splinters. It is especially difficult to see glass
splinters in the drain pump. Take care when cleaning the drain
pump.
Cleaning and care
Damage caused by incorrect
cleaning. The components are delicate and
can be damaged during cleaning. Take care when cleaning the drain
pump.
Carefully remove all foreign objects
from the drain pump. Check the drain pump impeller by manually turning it. You will feel a little resistance when you turn the impeller.
Refit the cover in the reverse order of
removing it.
Ensure that the catch engages correctly.
99

Problem solving guide

Many malfunctions and minor faults that can occur in daily operation can be corrected without contacting Miele. This will save you time and money because you will not need a service call.
You can find information on how to remedy faults yourself at www.miele.com/ service.
Please note, however, that a call-out charge will be applied to unnecessary service visits where the problem could have been rectified as described in these operating instructions.
This section only lists faults that you can remedy yourself. All other faults are shown in Fault FXX.

Technical problems

Problem Possible cause and remedy
The display remains dark and the Start indicator light is not flashing after the dishwasher has been switched on with the button.
The dishwasher stops during a programme.
The dishwasher is not plugged in or the socket is not switched on.
Insert the plug and switch on at the socket.
The circuit breaker has tripped.
Reset the circuit breaker in the mains fuse box
(see data plate for minimum fuse rating).
If the circuit breaker trips again, call Miele.
The circuit breaker has tripped.
Reset the circuit breaker in the mains fuse box
(see data plate for minimum fuse rating).
If the circuit breaker trips again, call Miele.
100
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
