G 5915 SCI

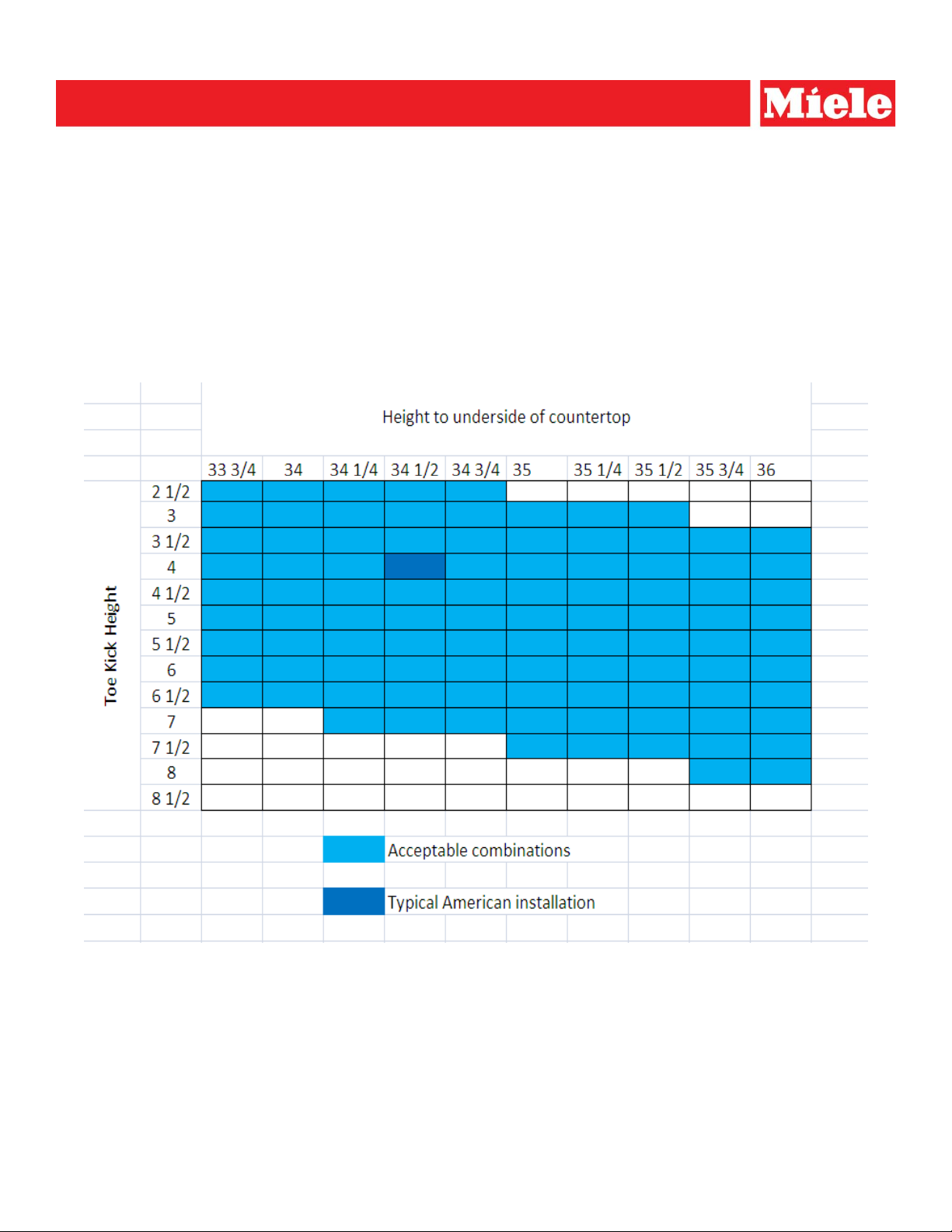

Product and Cut-out Dimensions Page 1 o f 3
Diamond G 5915 SCi Integrated Dishwasher
Location Codes
C - Cutout 1 3/8” x 1 3/4” (34 mm x 35 mm) for water, drain and electric pass-through.
Adjust according to water and drain location.
D - 5 foot (1.5 meter) flexible drain hose connects lower center rear.
E - 5 foot (1.5 meter)– 120 Volt – 15 Amp 3-wire molded plug power supply connects front terminal or can be
hardwired.
W - 5 foot flexible water intake hose with a 3/8” compression fitting nut connects lower center rear.
Notes
All installations must be done in accordance with local codes.
Drawing is not to scale Specification Sheets OJS 11012011
