Miele ESW 762-25, ESW 763-25 Operating instructions
Operating Instructions
Built-in Warming Drawer
ESW 700-25
ESW 760-25
ESW 761-25
ESW 762-25
ESW 763-25
To prevent accidents
and machine damages,
read these instructions
before installation or use.
UV
M.-Nr. 05 857 821
2
Contents
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the warming drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Guide to the controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Temperature selector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Humidity control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Temperature And Humidity Suggestions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Loading the warming drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Using the food warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Keeping food warm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Prewarming the dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Warming drawer care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Appliance front and control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Stainless steel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Non-slip mat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

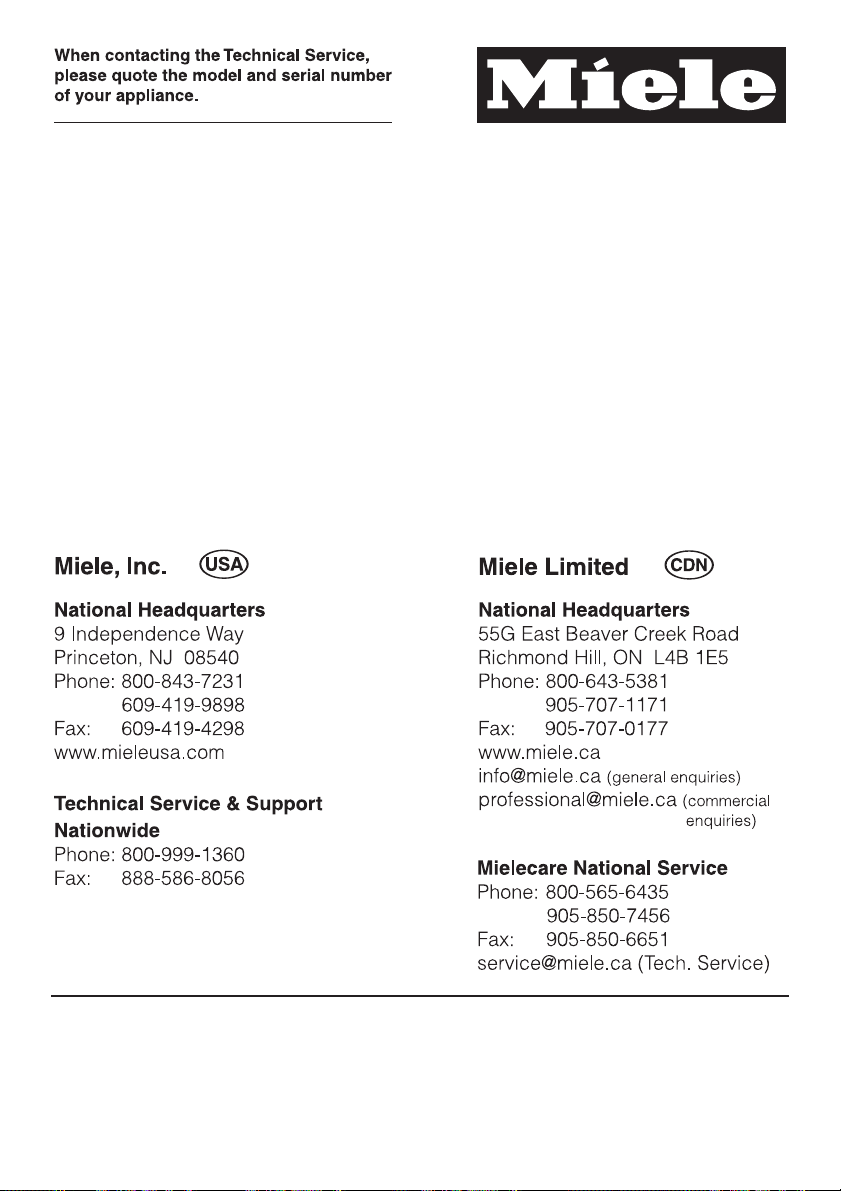

Technical Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Help protect our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Disposal of the packing materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Disposal of an old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

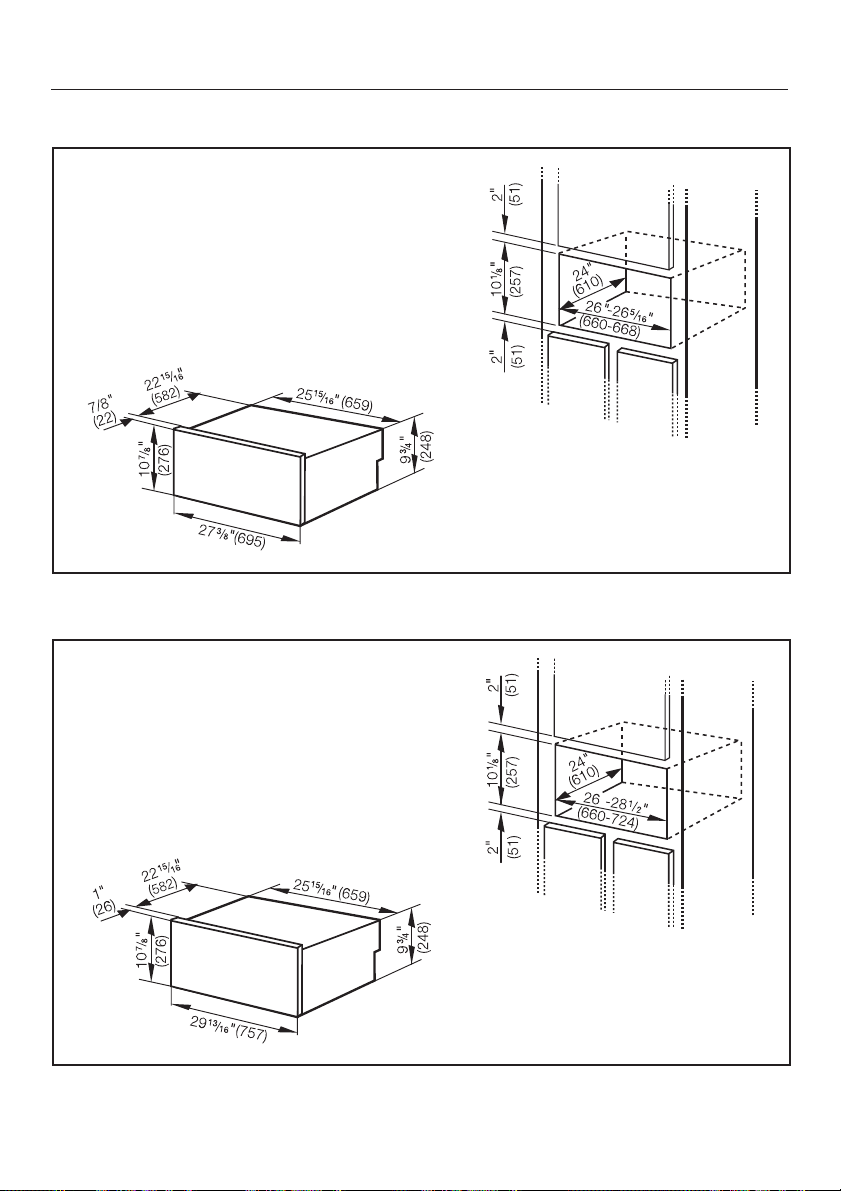

Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Installing the warming drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Removing the drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Inserting the drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Integrated installations
Models 700-25 FB / 760-25 FB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3
IMPORTANT SAFETY INSTRUCTIONS
Technical safety
WARNING- When using the warming
drawer follow basic precautions,
including the following:
Read all instructions before instal
lation or use of the warming drawer
to prevent injury and machine
damage.
This appliance is only intended for
the domestic use of holding cooked
food at serving temperature. Any
other use is at the operator’s own
risk and could be dangerous.
This appliance conforms to all
uniform safety codes and regulations. The manufacturer can not be
held responsible for damage or
injury caused by improper use of
this appliance.
Keep these operating instructions in
a safe place and pass them on to
any future user.
SAVE THESE INSTRUCTIONS!
-
Before installation make sure that
the voltage and frequency listed on
the data plate correspond with the hou
sehold electrical supply. This data must
correspond to prevent injury and ma
chine damage. Consult a qualified elec
trician if in doubt.
Be certain your appliance is pro
perly installed and grounded by a
qualified technician.
To guarantee the electrical safety
of this appliance, continuity must
exist between the appliance and an
effective grounding system. It is imperative that this basic safety requirement
be met. If there is any doubt, have the
electrical system of the house checked
by a qualified electrician.
The manufacturer cannot be held
responsible for damages caused by the
lack, or inadequacy of, an effective
grounding system.
Installation, repair and mainten
ance work should be by a Miele
authorized service technician. Work by
unqualified persons could be dange
rous and may void the warranty.
-
-
-
-
-
-
Before installation or service, dis
connect the power supply to the
work area by removing the fuse, "trip
ping" the circuit breaker, or unplugging
the unit.
4
-
-
IMPORTANT SAFETY INSTRUCTIONS
This appliance must only be used
after it has been installed in cabin
etry to ensure all electrical components
are shielded.
Never open the outer casing of the
appliance.
Tampering with electrical connections
or components and mechanical parts is
dangerous and can cause machine da
mage.
Do not operate any appliance with
a damaged cord or plug or after
the appliance malfunctions or has been
damaged in any manner. Return the
appliance to the nearest authorized
service facility for service.
Do not connect the appliance to
the electricity supply by an extension cord. Extension cords do not
guarantee the required safety of the
appliance, e.g danger of overheating.
This equipment has not been
designed for maritime use or for
use in mobile installations such as air
craft or recreational vehicles. However,
under certain circumstances it may be
possible for an installation in these
applications. Please contact the nea
rest Miele Dealer or Technical Service
with specific requirements.
-
-
Use
-
-
Prevent burns. Do not touch hot
surfaces. Use handles or knobs.
Use heat-resistant oven mitts when
removing dishes.
Use only dry, heat resistant pot hol
ders. Moist or damp pot holders
used on hot surfaces may result in
steam burns. Do not substitute towels
or other bulky items for pot holders.
Do not touch the top mounted hea
ting element or other interior surfa
ces of the warming drawer. Heating ele
ments may be hot even though they are
not glowing. During and after use, do
not let clothing or other flammable materials come in contact with the top
mounted heating element or interior
surfaces of the drawer until they have
had sufficient time to cool.
Keep children away from the ap-
pliance and its controls. Supervise
its use by the elderly or infirm. The
appliance can get very hot during use.
Danger of burns!
Do not store anything in the war
ming drawer. Forgotten items could
melt or catch fire when the appliance is
turned on. Flammable liquids and
materials should never be stored in or
above the warming drawer.
-
-
-
-
-
Fire hazard - food, bread and
herbs warmed for a long period will
dry out and could ignite.
Make sure food is not forgotten in the
warming drawer.
Fire hazard - Do not replace the
non-slip mat of the warming drawer
with any other type of mat.
5
IMPORTANT SAFETY INSTRUCTIONS
It is possible that some bacterial
growth may occur in foods maintai
ned for lengthy periods of time at low
temperature levels.
Before serving, be sure food is at a
safe temperature.
This is particularly important when
preparing food for babies and children.
Never warm undiluted alcohol in
the warming drawer as this can ea
sily ignite.
Exercise caution when warming
food with a high sugar content. If
heated for too long the sugar may cara
melize or ignite.
Only use heat resistant
dishes.
Do not place food in unopened
containers in the warming drawer.
Pressure may build up and cause them
to explode.
Do not use plastic containers or
plastic wrap in the warming dra
wer. Items may melt and cause da
mage to the warming drawer or injury.
-
-
Close the drawer after removing
-
-
-
food. An opened drawer can be a
trip or burn hazard.
Always open the drawer carefully.
Allow hot air or steam to escape
before placing or removing food.
Do not lean or sit on the drawer.
This will damage the drawer which
can only hold a maximum of 33 lbs
(15 kg).
Use a food thermometer to check
the temperature of food.
Only use the warming drawer with
the non-slip mat in place to prevent
injuries and machine damage.
To prevent injuries, do not use
accessories not recommended by
Miele.
Before cleaning the appliance, trip
the circuit breaker and allow the
appliance to cool.
Do not use a steam cleaner to
clean the drawer. Steam could pe
netrate electrical components and
cause a short circuit.
-
6
IMPORTANT SAFETY INSTRUCTIONS
General notes
Children should not be left alone or
unattended in an area where an
appliance is in use. They should never
be allowed to sit or stand on any part of
the appliance.
Caution: Do not store items of interest
to children in cabinets above or in the
warming drawer. Children climbing on
the appliance to reach these items
could be seriously injured.
Wear proper clothing. Loose-fitting
or hanging garments should never
be worn while using the warming dra
wer.
Do not leave the warming drawer
unattended while in use.
Do not use water on grease fires!
A violent steam explosion may
result. Smother the fire with a dry chemical or foam fire extinguisher.
Never add water to food in a hot
drawer. The steam created could
cause serious burns or scalds.
-
When using kitchen appliances
near the warming drawer, make
certain that the power cords do not
come in contact with or get caught in
the drawer.
In areas subject to infestation by
cockroaches or other vermin, keep
the appliance and its surroundings
clean at all times. Any damage caused
by pests will not be covered by the
appliance warranty.
Do not use outdoors.
Disposal of an old appliance
Before discarding an old
appliance, disconnect the power
cord and remove any doors to prevent
hazards.
Do not use the warming drawer to
heat the room. Due to the high
temperatures radiated, objects left near
the appliance could catch fire.
7
Guide to the warming drawer
a Timer
b Temperature selector
c Humidity control
d Non-slip mat
e Rack
f Drawer
8
Guide to the controls
The warming drawer is operated by the
timer, the temperature selector and the
humidity control.
The controls are only visible when the
drawer is open.
Once the warming drawer begins to
heat the circulation fan will turn on to
evenly heat the drawer. When the
selected temperature is reached, the
heat and the fan will shut off to prevent
food from drying out.
If the temperature drops below the
selected temperature, the heat will turn
back on.
Timer
The timer activates the heating
elements and circulation fan. To warm
food the timer must be turned to an
appropriate time setting. A time setting
of 1 - 4 hours or "Continuous" can be
selected.
– To set a limited time:
Turn the timer clockwise from "0" to
the desired time (up to 4 hours.)
–
To set an unlimited time:
Turn the timer counterclockwise from
"0" to "Continuous". The knob can
not be turned past "4 h" to
"Continuous".
–
The warming drawer is turned off at
the "0" setting.
–
The "Continuous" setting will warm
the drawer until the knob is turned to
"0".
Please note, the "Continuous" setting
requires close supervision to prevent
fires. Forgotten food will dry out and
could ignite.
9
Guide to the controls
Temperature selector
The temperature can be set on or
between the "Low", "Medium" and "High"
settings.
The temperature settings:
Low: 140 °F (60 °C)
–
Medium: 176 °F (80 °C)
–
High: 203 °F (95 °C)
–
10
Loading...
