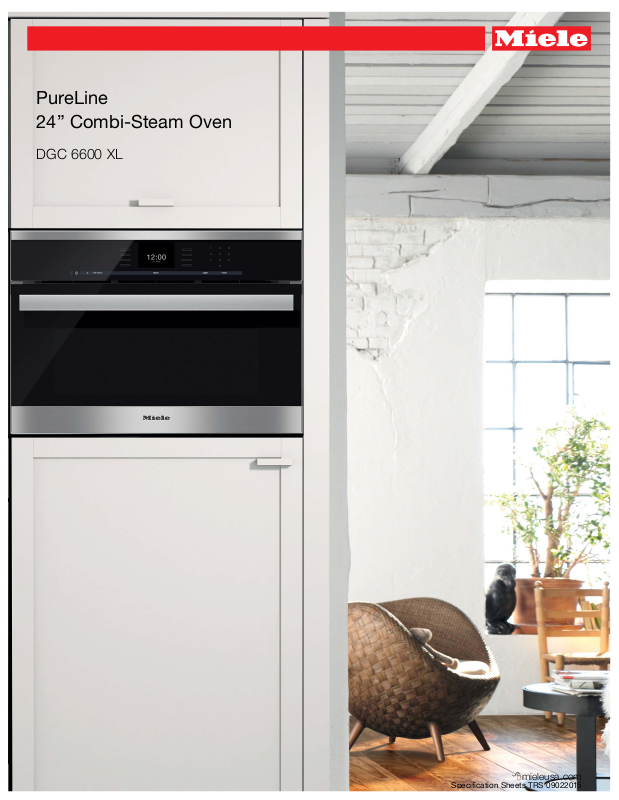

PureLine
24” Combi-Steam Oven
DGC 6600 XL
8mieleusa.com
Specification Sheets TRS 09022015
PureLine Combi-Steam Oven
DGC 6600 XL
DGC 6600 XL
Features:
•SensorTronic controls: 5-line TFT display with laterally positioned sensor controls that clearly present menu content.
•MultiSteam technology delivers powerful external steam generation and optimum steam distribution via 6 inlet ports
•Wired roast probe for perfect roasting
•3-in-1 appliance
1.True European convection oven
2.Steam oven
3.Combination of steam and convection oven
•MasterChef menus offer over 150 food types to cook to perfection
•XL stainless steel cavity
•Lift up control panel conceals water and condensate container (both containers are dishwasher-safe)
•The simple yet sleek Silhouette handle seems to float enhancing its modern design lines
SPECIFICATIONS
DGC 6600 XL — Item 23660052USA
|
Overall Fascia Dimensions |
237/16” (595 mm) W x 18” (455.5 mm) H |
|
|
x 7/8” (23 mm) D |
|
|
|
|
|
|
|
Overall Unit Width - Excluding Fascia Dimension |
219/16” (548 mm) |
|
|
Overall Unit Height - Excluding Fascia Dimension |
1711/16” (449 mm) |
|
|
Overall Unit Depth - Excluding Fascia Dimension |
215/8” (550 mm) |
|
|
Oven Door Clearance |
131/16” (332 mm) |
|
|
Depth with door open |
3411/16” (898 mm) |
|
|
Built-In |
|
|
|
|
|
|
|
Minimum Cabinet Width |
221/16” (560 mm) |
|
|
Minimum Cabinet Depth |
217/8” (555 mm) |
|
|
Minimum Opening Height |
1711/16” (450 mm) |
|
|
Minimum Base Support |
60 lbs |
|
|
|
|
|
|
Additional Cut-outs Required |
Venting cut-out required |
|
|
1911/16” x 19/16” (500 x 40 mm) |
|
|
|
|
|
|
|
Electrical |
|
|
|
Electrical Requirements |
240V, 60Hz, 20A |
|
|
|
|
|
|
Power Cord |
Molded plug - NEMA 6-20, 240V power cord |
|
|
5 ft (1.5 m) |
|
|
|
|
|
|
|
Shipping |
|
|
|
Shipping Weight |
65 lbs |
|
|
|
|
|
|
Shipping Dimensions |
267/32” (666 mm) W x 215/8”(549 mm) H x |
|
|
231/16” (535 mm) L |
|
|
|
|
|
|
|
Support |
|
|
|
Call Miele |
800.843.7231 |
|
|
|
|
|
|
Miele Website |
8www.mieleusa.com |
|
|
|
|
|
|
20/20 Link |
82020technologies.com |
|
DGC 6600 XL
Page 2 of 10
Specification Sheets TRS 09022015
PureLine Combi-Steam Oven
DGC 6600 XL
HANDLE SPECIFICATIONS
DGC 6600 XL
Page 3 of 10
Specification Sheets TRS 09022015
