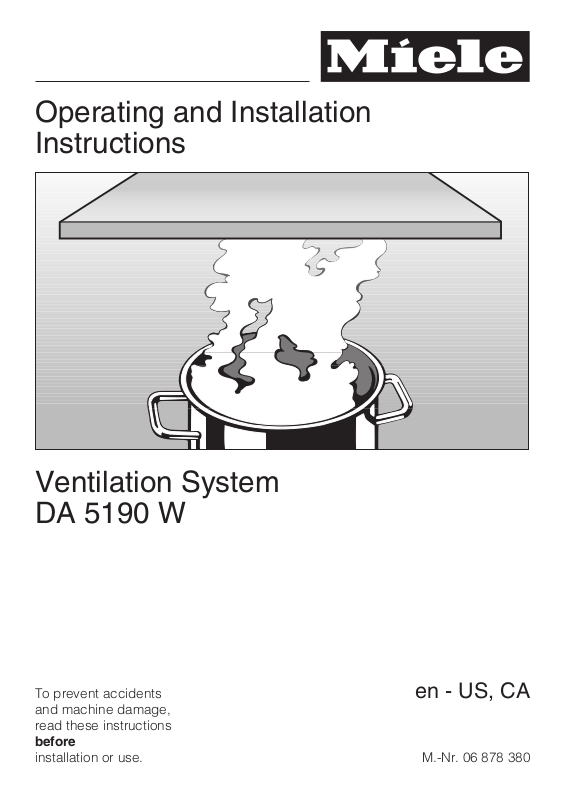

Miele DA5190W User Manual
Operating and Installation
Instructions
Ventilation System
DA 5190 W
To prevent accidents
and machine damage,
read these instructions
before
installation or use.
en - US, CA
M.-Nr. 06 878 380
Contents
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Guide to the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Turning on the fan .................................................10
Selecting the power level............................................10
Delayed Shut Down ................................................12
Turning off the fan .................................................12
Turning the lighting on/off ...........................................13
Dimming the lighting ...............................................13
Grease filter timer .................................................14
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning the casing................................................17
Grease filter ......................................................18
Active charcoal filter ...............................................20
Changing the light bulb .............................................21
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Installation accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Plywood backing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Installation instructions .............................................32
Dismantling ......................................................32
Air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2
IMPORTANT SAFETY INSTRUCTIONS
Read these Operating Instructions carefully before installing or
using the Ventilation System.
This appliance is designed to vent
This appliance is intended for
residential use only. Use the
appliance only for its intended
purpose. The manufacturer cannot
be held responsible for damages
caused by improper use of the
hood.
This appliance complies with current
safety requirements. Improper use
of the appliance can lead to
personal injury and material
damage.
READ AND SAVE THESE
INSTRUCTIONS
CAUTION
Use only for general ventilation.
Do not use to exhaust hazardous or
explosive materials and vapors.
~
cooking smoke and odors only.
Be certain your appliance is
~
properly installed and grounded by a
qualified technician.
To guarantee the electrical safety of this
appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician. The manufacturer
cannot be held responsible for
damages caused by the lack, or
inadequacy, of an effective grounding
system.
Before connecting the appliance to
~
the power supply make sure that the
voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent machine
damage. If in doubt consult a qualified
electrician.
Installation work and repairs should
~
only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held
responsible.
3
IMPORTANT SAFETY INSTRUCTIONS
This equipment is not designed for
~
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
an installation in these applications.
Please contact the nearest Miele dealer
or the Miele Technical Service
Department with specific requirements.
Before servicing or cleaning the unit,
~
switch power off at the service panel
and lock the service disconnecting
means to prevent power from being
switched on accidentally. If the service
disconnecting means cannot be
locked, securely fasten a prominent
warning device, such as a tag, to the
service panel.
Before discarding an old appliance,
~
unplug it from the power supply and
remove the power cord to prevent
hazards.
Use
Do not allow children to play with or
~
operate the appliance or its controls.
Supervise its use by the elderly or
infirm.
Do not flambé or grill with an open
~
flame beneath the hood.
Flames could be drawn up into the
hood by the suction and the grease
filters may catch fire.
Never operate gas burners without
~
cookware. Turn the burner off when not
in use. Adjust the burner so that the
flames do not extend beneath the
cookware. Do not overheat the
cookware, e.g. when using a wok. The
hood can be damaged due to
excessive heat from the burners and
the cookware.
Do not use the hood without the
~
grease filter in place.
Clean the grease filter regularly.
~
Dirty filters are a fire hazard.
Do not use a steam cleaner to clean
~
the hood. Steam could penetrate
electrical components and cause a
short circuit.
Always turn on the hood when using
~
the cooktop to prevent damage from
condensation.
4
IMPORTANT SAFETY INSTRUCTIONS
, WARNING - TO REDUCE
THE RISK OF A COOKTOP
GREASE FIRE:
Never leave surface units
~
unattended at high settings. Boilovers
cause smoking and greasy spillovers
may ignite. Heat oils slowly on low or
medium settings.
Always turn the hood on when
~
cooking at a high heat.
Clean ventilating fans frequently.
~
Grease should not be allowed to
accumulate on the fan or filter.
Use proper pan size. Always use
~
cookware appropriate for the size of the
surface element.
, WARNING
TO REDUCE THE RISK OF INJURY
TO PERSONS IN THE EVENT OF A
COOKTOP GREASE FIRE, OBSERVE
THE FOLLOWING:
SMOTHER FLAMES with a close
~
fitting lid, cookie sheet, or metal tray
then turn off the burner.
BE CAREFUL TO PREVENT BURNS.
If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE
DEPARTMENT.
NEVER PICK UP A FLAMING PAN
~
- You may be burned.
DO NOT USE WATER, including
~
wet dishcloths or towels - a violent
steam explosion will result.
Use a fire extinguisher
~
ONLY if:
– You have a class ABC extinguisher,
and you know how to operate it.
– The fire is small and contained in the
area where it started.
–
The fire department is being called.
–
You can fight the fire with your back
to an exit.
5
IMPORTANT SAFETY INSTRUCTIONS
Installation
, WARNING
~
To reduce the risk of fire only use
metal ductwork.
Provided a larger distance is not
~
given by the manufacturer of the
cooktop, follow the minimum safety
distances between a cooktop and the
bottom of the hood:
22" (550 mm) above electric
–
cooktops,
30" (762 mm) above gas cooktops,
–
– 26" (650 mm) above an open electric
grill or an open electric boiler/fryer.
If local building codes require a greater
safety distance, follow their
requirement.
If there is more than one appliance
beneath the hood and they have
different minimum safety distances
always select the greater distance.
Be careful not to damage hidden
~
electrical wiring or plumbing when
cutting or drilling into the wall or ceiling.
Any fittings, sealant, or materials
~
used to install the ductwork must be
made of approved non-flammable
materials.
Never connect an exhaust hood to
~
an active chimney, dryer vent, vent flue,
or room ventilating ductwork. Seek
professional advice before connecting
an exhaust hood vent to an existing,
inactive chimney or vent flue.
Ducted fans must always be vented
~
outdoors.
Make sure that the airflow in the
~
room is sufficient for combustion and
exhausting of all non-electric heating
appliances (water heaters, gas
cooktops, gas ovens, etc.), otherwise
backdrafts may occur. Follow the
heating manufacturer’s guidelines and
safety standards or those published by
the National Fire Protection Association
(NFPA) or the American Society for
Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE).
If in doubt, consult an experienced
professional.
Do not use an extension cord to
~
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance,
(e.g. danger of overheating).
Do not install this hood over
~
cooktops burning solid fuel.
6
The ventilation hood offers two modes
of operation:
Functional description
Air extraction
The air is drawn in and cleaned by the
grease filter and directed outside.
The hood comes equipped with a
non-return flap. This flap automatically
closes when the hood is turned off so
that no exchange of outside air and
room air can occur.
When the hood is turned on, the air
pressure of the exhaust fan automatically opens the flap blowing the
inside air and cooking odors outside.
Recirculation mode
Air is drawn through the grease filter
and active charcoal filter. The filtered
air is then recirculated back into the
kitchen through a vent at the top of the
hood’s chimney.
The active charcoal filter and the
installation kit may be purchased from
your Miele.
Before using the hood in
recirculation mode, ensure that the
active charcoal filter is in place, see
"Cleaning and Care".
7
Guide to the hood
8
Guide to the hood
a Chimney extension
b Chimney
c Canopy
d Overhead lighting
e Recirculation vent
(only in recirculation mode)
f Active Charcoal Filter
Available to purchase, for use in the
recirculation mode.
g Grease filter
h Light button
This button turns the light on and off
and also dims the light.
i On/Off button
j Fan power selection
l Grease and charcoal filter
button
The filter indicator lights red when the
grease filter needs to be cleaned.
The indicator lights blue when the
active charcoal filter needs to be
changed.
The charcoal filter is only used in
recirculation mode.
The charcoal filter timer must be
activated before the first use of the
hood.
This button is also used:
– to reset the filter timer after cleaning
the grease filter or changing the
charcoal filter (see "Cleaning and
Care").
– to show how long the filters have
been in use (see "Operation / Filter
timers").
– to change the number of hours
counted by the filter timer (see
"Operation / Reprogramming the filter
timers").
k Delayed shut down
This button activates the Delayed Shut
Down feature. The fan can be set to
turn off automatically after either 5 or 15
minutes.
9
Operation
Turning on the fan
Press the On/Off button.
^
Selecting the power level
Use the "–/+" controls to select the
^
desired power level.
+ = increases the fan speed
– = decreases the fan speed
Levels "1" to "3" (green indicators) are
usually sufficient for normal cooking.
Intensive setting
Level "4" (yellow indicator) should be
used for a short period when frying or
cooking food with a strong aroma.
Automatically switching back the
intensive power level
The intensive level "4" can be
programmed to automatically switch
back to level "3" after 10 minutes.
Turn the fan and the lights off.
^
Press and hold the "Delay Shut down"
^
button for 10 secs. The first indicator
lights.
^ Press the following buttons one after
another,
– light
10
–
the "–" button, and
–
the light button again.
If the power level indicators "1" and "4"
flash, the automatic switch back is not
activated.
To activate the automatic switch back
^
press the "+" button.
The power level indicators "1" and "4"
light continuously.
To deactivate press the "–" button.
^
^ To save the setting press the "Delay
Shut Down" button.
If the procedure is not stored within
4 minutes of programming, the hood
will automatically default to the "old"
data.
Operation
Fan performance
The maximum air flow capacity is
625 cfm. Factors such as narrow duct
diameter and bends will affect this
value.
Level 1 operates at 40% capacity
Level 2 operates at 60% capacity
Level 3 operates at 80% capacity
Level 4 operates at 100% capacity
11
Loading...
