Operating and Installation Instructions
Ventilation Hood
To prevent accidents and damage to the appliance, you must read
these instructions before installing the appliance and using it for the first
time.
en-US M.-Nr. 09 968 400
Page 2
Contents
IMPORTANT SAFETY INSTRUCTIONS................................................................. 3
Caring for the environment................................................................................. 12
Description of functions...................................................................................... 13
Guide to the appliance......................................................................................... 14
Operation .............................................................................................................. 16
Turning on the fan .................................................................................................. 16
Selecting the power level....................................................................................... 16
Turning off the fan.................................................................................................. 17
Turning cooktop lighting On/Off............................................................................. 17
Automatic safety shut-down.................................................................................. 17
Cleaning and care................................................................................................ 18
Stainless steel housing .......................................................................................... 18
Grease filters.......................................................................................................... 19
OdorFree Charcoal Filter........................................................................................ 21
Disposing of the OdorFree Charcoal Filter........................................................ 21
Changing a halogen lamp...................................................................................... 22
Installation ............................................................................................................ 23
Before installation .................................................................................................. 23
Installation parts..................................................................................................... 23
Appliance dimensions............................................................................................ 24
Distance between cooktop and ventilation hood (S) ............................................. 25
Installation recommendations................................................................................ 26
Structural support.................................................................................................. 26
Removing the protective film ................................................................................. 26
Exhaust duct......................................................................................................... 38
Condensate trap .................................................................................................... 39
Electrical connection........................................................................................... 40
Grounding Instructions .......................................................................................... 40
Service and warranty........................................................................................... 41
Location of the data plate...................................................................................... 41
Technical data ..................................................................................................... 42
2
Page 3
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
This appliance complies with current safety requirements.
Improper use of the appliance can lead to personal injury and
material damage.
Read all instructions before installing or using the appliance for
the first time. Only use the appliance for its intended purpose.
Keep these operating instructions in a safe place and pass them
on to any future user.
Use
CAUTION: For General Ventilating Use Only. Do Not Use To
Exhaust Hazardous Or Explosive Materials And Vapors.
This appliance is intended for residential use only. Use only as
described in these operating instructions.
This ventilation hood is designed for domestic use and for use in
similar residential environments.
This ventilation hood is not intended for outdoor use.
It must only be used to extract and clean vapors produced during
cooking. Any other use occurs at the owner's own risk.
This appliance is suitable for installation above gas or electric
cooking surfaces.
Persons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.
3
Page 4
IMPORTANT SAFETY INSTRUCTIONS
Children
As with any appliance, close supervision is necessary when used
by children.
Danger of suffocation! Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out of the reach of children.
Technical safety
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
– Use this appliance only in the manner intended by the
manufacturer. If you have questions, contact Miele.
– Before servicing or cleaning the appliance, switch power off at
the service panel and lock the service disconnecting means to
prevent power from being switched on accidentally. If the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
Installation, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation
instructions. Contact Miele’s Technical Service Department for
examination, repair or adjustment. Repairs and other work by
unauthorized persons could be dangerous and may void the
warranty.
A damaged ventilation hood oven can be dangerous. Always
check for visible signs of damage. Never use a damaged ventilation
hood.
Be certain your appliance is properly installed and grounded by a
qualified technician. To guarantee the electrical safety of this
appliance, continuity must exist between the appliance and an
effective grounding system. It is imperative that this basic safety
requirement be met. If there is any doubt, have the electrical system
of the house checked by a qualified electrician.
4
Page 5
IMPORTANT SAFETY INSTRUCTIONS
To avoid damaging the ventilation hood, make sure that the
connection data (voltage and frequency) on the data plate
correspond to the building's power supply before connecting the
appliance. When in doubt, consult a qualified electrician.
Do not use a power bar or extension cord to connect the
ventilation hood to electricity. These are a fire hazard and do not
guarantee the required level of appliance safety.
To ensure safe operation, only use the ventilation hood after it has
been properly installed.
This ventilation hood may not be used in non-stationary locations
(e.g. on a ship).
Only open the housing as described in the enclosed "Installation
diagram" and in the "Cleaning and care" section of this manual.
Under no circumstances should any other parts of the housing be
opened.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operation faults.
Defective components should be replaced by Miele original parts
only. Only with these parts can the manufacturer guarantee the
safety of the appliance.
During installation, maintenance, and repair work, the ventilation
hood must be disconnected from the electrical supply. It is only
completely isolated from the electricity supply if one of the following
applies:
– The circuit breakers on the electrical service panel are tripped.
– The screw-type fuses on the electrical service panel have been
removed.
– The power cable (if present) has been unplugged from the socket
(pull the plug not the cord).
5
Page 6
IMPORTANT SAFETY INSTRUCTIONS
Proper use
WARNING: TO REDUCE THE RISK OF A COOKTOP GREASE
FIRE:
– a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers may ignite. Heat
oils slowly on low or medium settings.
– b) Always turn the hood on when cooking at a high heat.
– c) Clean the ventilation hood frequently. Grease should not be
allowed to accumulate on the fan or filter.
– d) Use the proper pan size. Always use cookware appropriate for
the size of the cooking area.
Never use an open flame beneath the ventilation hood.
To avoid the risk of fire, do not flambé or grill over an open flame.
When turned on, the ventilation hood will draw any flames into the
filter. Fat deposits may ignite.
6
Page 7
IMPORTANT SAFETY INSTRUCTIONS
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A COOKTOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
– a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal tray then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
– b) NEVER PICK UP A FLAMING PAN - You may be burned.
– c) DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
– d) Use a fire extinguisher ONLY if:
– 1) You have a class ABC extinguisher, and you know how to operate it.
– 2) The fire is small and contained in the area where it started.
– 3) The fire department is being called.
– 4) You can fight the fire with your back to an exit.
*Based on "Kitchen Firesafety Tips" published by NFPA.
The ventilation hood may become damaged if exposed to
excessive heat from a gas cooktop.
– When using the ventilation hood over a gas cooktop, ensure that
any burners in use are always covered by cookware. Turn burners
off when removing the cookware, even if doing so for just a short
time.
– Select cookware that is suitable for the size of the burner.
– Adjust the flame so that it never extends up the sides of the
cookware.
– Avoid overheating the cookware (e.g., when cooking with a wok).
Always turn the ventilation hood on whenever a burner is in use to
prevent damage from condensation.
7
Page 8
IMPORTANT SAFETY INSTRUCTIONS
Overheated oils and fats can ignite and set the ventilation hood
on fire.
When cooking with oils or fats, do not leave pots, pans or fryers
unattended. Never leave an electric grill unattended when grilling.
Fat and debris deposits impair the proper functioning of the
ventilation hood.
To ensure that cooking vapors are properly cleaned, never use the
ventilation hood without the grease filters in place.
A filter containing too much grease is a fire hazard!
The filters should be cleaned or replaced at regular intervals.
Please note that the heat rising from the stovetop during cooking
can cause the ventilation hood to become very hot.
Do not touch the housing or the grease filters until the ventilation
hood has cooled down.
8
Page 9
IMPORTANT SAFETY INSTRUCTIONS
Proper installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
– a) Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes and
standards, including fire-rated construction.
– b) Sufficient air is needed for combustion and exhausting of
gases through the flue (chimney of fuel burning equipment to
prevent back drafting. Follow the heating equipment
manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA) and
the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authorities.
– c) When cutting or drilling into the wall or ceiling, do not damage
electrical wiring and other hidden utilities.
– d) Ducted hoods must always be vented to the outdoors.
– e) Do not use this hood with any solid-state speed control device.
To determine whether a ventilation hood may be operated above
your cooking appliance, please refer to the information provided by
the appliance's manufacturer.
Safety regulations prohibit the installation of a ventilation hood
above solid fuel stoves.
Insufficient distance between the cooking appliance and the
ventilation hood can result in damage to the hood.
The minimum safety distances between the appliance and the
bottom of the ventilation hood specified in the "Installation" section
must be maintained, unless the appliance's manufacturer has
indicated that a greater distance is required.
If more than one cooking appliance is used beneath the ventilation
hood, and if different minimum safety distances apply for these
appliances, you should use the greater distance.
9
Page 10
IMPORTANT SAFETY INSTRUCTIONS
Be sure to observe the information contained in the "Installation"
section when mounting the ventilation hood.
Metal parts can have sharp edges which may cause injury.
Wear gloves to protect your hands from being cut.
When installing the exhaust duct, only use pipes or tubes made of
non-flammable material. These can be obtained from your Miele
dealer or from Miele Technical Service.
Exhaust air should not be vented into a chimney or vent flue
which is otherwise in use and should not be channeled into ducting
which ventilates rooms with fuel-burning installations.
If exhaust air is to be extracted into a chimney or vent flue no
longer used for other purposes, be sure to comply with all applicable
regulations.
WARNING: TO REDUCE THE RISK OF FIRE USE ONLY METAL
DUCTWORK.
10
Page 11
IMPORTANT SAFETY INSTRUCTIONS
Cleaning and care
Never use a steam cleaner to clean the ventilation hood.
The steam can reach the electrical components and cause a short
circuit.
Accessories
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty will become void.
11
Page 12
Caring for the environment
Disposal of the packing material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Do not dispose of this appliance with
your household waste.
Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.
Before discarding an old appliance
ensure that it presents no danger to
children while being stored for disposal.
Unplug it from the outlet, cut off its
power cord and remove any doors to
prevent hazards.
12
Page 13
Description of functions
The following functions are available on
your ventilation hood, depending on the
model:
Vented mode
The air is drawn in and cleaned by the
grease filters and directed outside.
Non-return flap
A non-return flap in the ducting
prevents the exchange of inside and
outside air from occurring when the
ventilation hood is not in use.
The flap is closed when the ventilation
hood is turned off.
When the ventilation hood is turned on,
the non-return flap opens so that the
exhaust air can be transported outside
without any obstruction.
Recirculation mode
The recirculation mode requires a
recirculation kit and OdorFree Charcoal
Filter (available as optional accessories,
see "Technical Data" for more
information)
The air is drawn in and first cleaned by
the grease filters and then by an
OdorFree Charcoal Filter. The cleaned
air is then recirculated back into the
kitchen.
A non-return flap has been provided
with the hood in case your ducting
does not have one. It is inserted into
the outlet duct collar of the fan.
13
Page 14
Guide to the appliance
14
Page 15
Guide to the appliance
a
Telescopic chimney
b
Chimney
c
Canopy
d
Control panel
e
Grease filter
f
Spacer frame
The spacer frame creates a shadow gap between the chimney and the ceiling.
The ventilation hood can be installed with or without the spacer frame.
g
Recirculation vent
(only for recirculation mode)
h
Cooktop lighting
i
OdorFree Charcoal Filter
Optional accessory for recirculation mode
j
On/Off button for fan
k
Buttons for setting the fan power
l
Button for cooktop lighting
15
Page 16
Operation
Turning on the fan
Press the On/Off button .
The fan turns on at level 2. The
symbol and 2 will light up in the fan
level display.
Selecting the power level
Power levels 1 to 3 can be used for light
to heavy cooking vapors and odors.
For strong vapors and odors that are
temporarily produced when cooking,
e.g. during searing, select the IS level
as an intensive setting.
Press the "" button for a lower
power level or the "" button to
select a higher level.
Automatically switching back from the intensive level (IS)
The intensive level can be programmed
to switch back to level 3 automatically
after 10 minutes.
To do so, turn off the fan and the
cooktop lighting.
Press the and buttons at the
same time for approx. 10 seconds,
until 1 lights up.
Then, press the following buttons in
order:
– The lighting button ,
– Followed by the button and then
– The lighting button again.
If automatic switch-off is not activated,
the 1 and IS displays will flash.
To activate it, press the button.
If 1 and IS are lit up, automatic switch-
off is activated.
16
To deactivate it, press the button.
Use the On/Off control to confirm
your choice of setting.
If you do not confirm within 4
minutes, the hood will revert to the
old setting.
Page 17
Turning off the fan
Press the On/Off button to turn the
fan off.
The symbol will go out.
Turning cooktop lighting On/Off
The cooktop lighting can be turned on
and off separately from the fan.
To do so, press the button.
The symbol is lit when the cooktop
lighting is turned on.
Automatic safety shut-down
Should the hood be left on, the fan will
switch off automatically after 10 hours.
The lighting will remain on.
Pressing the On/Off button will
switch the fan back on again.
Operation
17
Page 18
Cleaning and care
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
Before cleaning or servicing the
hood, disconnect it from the power
supply, see "IMPORTANT SAFETY
INSTRUCTIONS".
Stainless steel housing
General
The surfaces and control buttons are
susceptible to scratching and
chipping.
Observe the following cleaning
instructions.
Clean all surfaces and control
buttons using warm water and liquid
dish soap only, applying the mixture
with a sponge cloth.
Make sure that no water gets into
the interior of the hood.
Only use a damp cloth to clean the
hood, especially in the control panel
area.
Special instructions for stainless steel surfaces
(does not apply to control buttons)
Stainless steel surfaces can also be
cleaned using a non-abrasive
stainless steel cleaner, available from
Miele.
To prevent the surfaces from quickly
becoming dirty again, we
recommend treating them with a
stainless steel care conditioner.
Apply sparingly over the entire area
using a soft cloth.
Special instructions for RAL color finish housing
(special order)
Observe the general cleaning
instructions contained in this chapter.
Minor scratches on the surface are
inevitable when cleaning the housing.
Depending on the lighting in the
kitchen, this may negatively affect the
appliance's appearance.
After cleaning, dry the surfaces with a
soft cloth.
Avoid the following:
– Cleaners containing soda, acid or
chloride, or cleaners containing
solvents
– Abrasive cleaners such as scouring
powder, scouring liquid, abrasive
sponges such as pot scourers, or
used sponges that still contain
residues from abrasive cleaners
18
Page 19
Cleaning and care
Special instructions for control buttons
Do not leave dirt and debris on the
buttons for any length of time.
Otherwise they may become
discolored or damaged.
Remove any dirt or debris
immediately.
Observe the general cleaning
instructions contained in this chapter.
Do not use a stainless steel cleaner
to clean the control buttons.
Grease filters
The reusable metal grease filters in the
appliance remove the solid particles
contained in kitchen vapors (fat, dust,
etc.), thereby preventing the ventilation
hood from becoming dirty.
A dirty filter is a fire hazard!
Cleaning intervals
Over longer periods of time, fat buildup
on the grease filter hardens and makes
cleaning more difficult. Therefore, we
recommend cleaning the grease filters
once every 3-4 weeks.
Removing the grease filters
When handling a grease filter, be
careful not to drop it.
This can result in damage to the filter
and to the cooktop.
Make sure you hold the filter
securely at all times when handling
it.

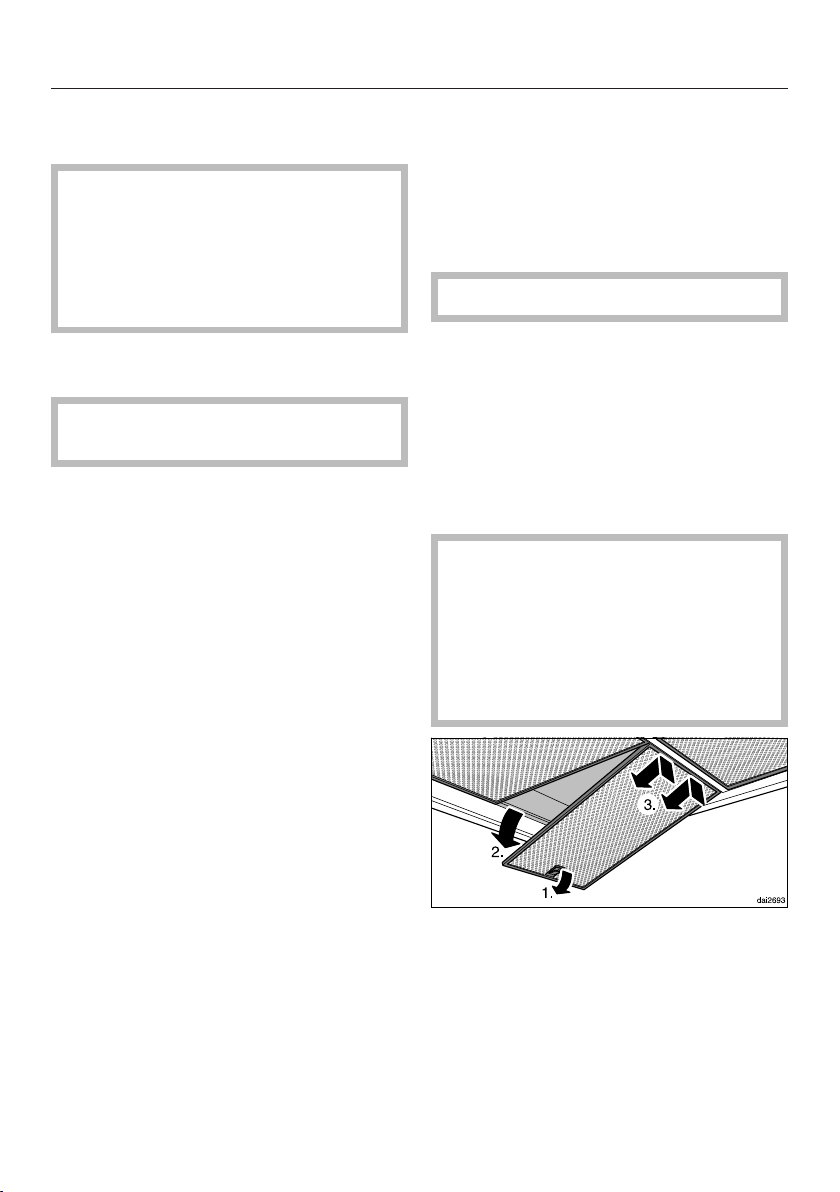

To remove a grease filter, release the
locking clip. Then, open the filter to a
45° angle, unhook it, and remove it
from the hood.
19
Page 20
Cleaning and care
Cleaning the grease filters by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and dish soap. Do not use undiluted
dish soap.
Unsuitable cleaning agents
Unsuitable cleaners can cause damage
to the filter surfaces if used regularly.
Do not use any of the following:
– Lime removers
– Abrasive powders or abrasive liquids
– Aggressive all-purpose cleaners and
degreaser sprays
– Oven sprays
Cleaning the grease filters in the dishwasher
Place the filters as upright or inclined
as possible in the lower basket.
Ensure that the spray arm is not
obstructed.
When removing the filters for
cleaning, also clean off any
accessible oil or fat buildup from the
housing. Doing so will prevent a fire
hazard.
Reinstall the grease filters. When
inserting the filters, make sure that
the locking clip is facing down.
If the filters have been installed
incorrectly, you can insert a small
screwdriver into the slit to disengage
the locking clip.
Use a common household
dishwasher detergent.
Select a program with a wash
temperature between 122°F (50°C)
and 149°F (65°C). In a Miele
dishwasher use the "Normal"
program.
Depending on the detergent used,
cleaning the filters in a dishwasher
may cause the inside filter surfaces to
become discolored. However, this will
not affect the functioning of the filters
in any way.
After cleaning
After cleaning, leave the filters on an
absorbent surface to dry.
20
Page 21
Cleaning and care
OdorFree Charcoal Filter
If the hood is equipped for recirculation,
an OdorFree Charcoal Filter must be
installed in addition to the grease filters.
This filter is designed to absorb odorcausing agents and is mounted in the
canopy above the grease filters.
OdorFree Charcoal Filters are available
from your Miele dealer or from Miele.
See "Technical data" for the type and
reference number.
Installing/replacing the OdorFree Charcoal Filter
To install or replace the OdorFree
Charcoal Filter, the grease filters must
first be removed as described above.
Remove the OdorFree Charcoal Filter
from its packaging.
When to change the OdorFree Charcoal Filter
Always replace the OdorFree
Charcoal Filter whenever it no longer
absorbs kitchen odors effectively.
Replace the filter at least once every
6 months.
Disposing of the OdorFree Charcoal Filter
Used OdorFree Charcoal Filters can
be disposed of with normal
household waste.
Press the OdorFree Charcoal Filter
into the frame.
Reinstall the grease filters.
21
Page 22
Cleaning and care
Changing a halogen lamp
The halogen lights become very hot
during operation.
They can cause burns even after
being shut off for some time.
Allow them to cool down for a few
minutes before changing the halogen
lamps.
Disconnect the ventilation hood from
the electrical supply before replacing
the lamps (see "IMPORTANT SAFETY
INSTRUCTIONS").
To access the halogen lamp, press
the lamp cover gently upwards. The
cover will open and can then be
lowered.
22
Pull the halogen lamp out of its
socket.
Replace it with a new halogen lamp
(12 V, 20 W, G4). Wear a glove or use
a soft cloth to hold it and push it into
the socket carefully. Please follow the
lamp manufacturer's instructions.
Flip the cover back up, making sure it
clicks into place.
Page 23
Before installation
Before installing the appliance,
read all of the information contained
in this chapter and also in the
"IMPORTANT SAFETY
INSTRUCTIONS" section.

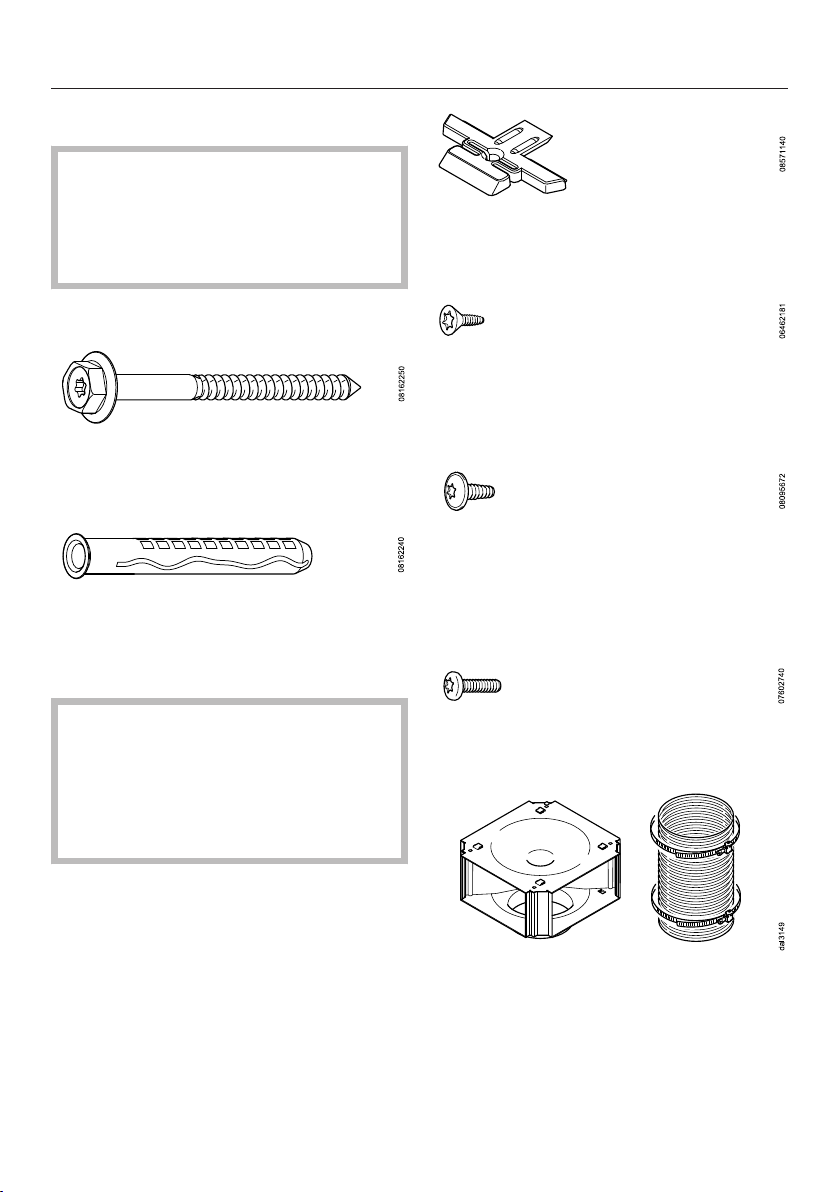

Installation parts
4 screws, 6 9/16" x 4 5/16"
(7 x 110 mm) and
4 plugs, 3/8" x 3 1/8" (10 x 80 mm)
for securing the ventilation hood to the
ceiling (not for use in USA / CDN).
The screws and plugs are designed
for use in solid ceilings only.
Use different fasteners for other
ceiling construction types. Make
sure that the ceiling can support the
load.
Installation
4 extension piece holders
for aligning and securing the telescopic
chimney
4 screws M3/16" x 5/16"
(M4 x 8.5 mm)
for securing the extension piece
holders.
14 screws M3/16" x 5/16"
(M4 x 8 mm)
for securing the spacer frame and
securing the hood to the installation
frame.
1 screw M3/16" x 5/8" (M4 x 16 mm)
for securing the chimney.
DUI 32 recirculation kit for
recirculation mode
(not supplied, available as an optional
accessory). The kit includes a
directional unit, aluminum hose, and
hose clips.
23
Page 24
Installation
Appliance dimensions
a
Mounting area for the exhaust ducting and power cable. In recirculation mode,
only the power cord is required.
b
Possible height range for appliance in vented mode
c
Possible height range for appliance in recirculation mode
d
Alternative installation with spacer frame
e
Air vent positioned at the top for recirculation
24
Page 25
Installation
f
A power cord is required to connect the hood to the socket in the ceiling. With
extraction mode flexible ducting is also required.
Exhaust connection 6" (150 mm)
Distance between cooktop and ventilation hood (S)
Provided a larger distance is not given by the manufacturer of the cooktop,
follow the minimum safety distances between a cooktop and the bottom of the
hood.
Please also observe the information contained in the "IMPORTANT SAFETY
INSTRUCTIONS" section.
Minimum distance S
Cooking appliance Miele
appliance
Electric/Induction cooktop 24" (610 mm)
Electric grill, deep fat fryer (electric) 26" (660 mm)
Multi-burner gas cooktop
≤ 43,000 BTU/hr (12.6 W),
no burner > 15,000 BTU/hr (4.5 kW).
Multi-burner gas cooktop
≤ 73,800 BTU/hr (21.6 W),
no burner > 16,500 BTU/hr (4.8 kW)
Multi-burner gas cooktop
> 73,800 BTU/hr (21.6 W),
or one of the burners > 16,500 BTU/hr (4.8 kW)
Single-burner gas cooktop
≤ 20,500 BTU/hr (6 kW)
Single-burner gas cooktop
≤ 27,600 BTU/hr (8.1 kW)
Single-burner gas cooktop
> 27,600 BTU/hr (8.1 kW)
26" (660 mm) 30" (760 mm)
30" (760 mm)
Not possible
26" (660 mm) 30" (760 mm)
30" (760 mm)
Not possible
Non-Miele
appliance
25
Page 26
Installation
Installation recommendations
– We also recommend a distance of at
least 25 1/2" (650 mm) above electric
cooktops to provide more workspace
and easier cooking under the hood.
– When selecting an installation height,
always take the user height into
consideration. Users should have
ample space to work comfortably on
the cooktop and reach the ventilation
hood controls with ease.
– Please note that the greater the
distance from the cooktop, the less
effective the hood is at drawing in the
cooking vapors.
– To achieve optimal vapor extraction,
make sure that the hood covers the
cooktop. The hood should be
positioned centrally over the
cooktop, not to the side or rear.
– The cooktop should be no wider than
the hood. Preferably, it should be
narrower.
– The mounting area must be easily
accessible. The ventilation hood
should be easy to reach and
disassemble in case a service call is
necessary. This should be taken into
consideration when planning the
position of cupboards, shelves,
ceilings or decorative elements in the
vicinity of the ventilation hood.
Structural support
The hood must be attached to rigid
structural framing that is supported
in its entirety by the ceiling joists, or
to the ceiling joists directly. Do not
attach the plate directly to the ceiling
with anchors, toggle bolts, etc.
Removing the protective film
The housing components are covered
by a protective film to prevent them
from becoming damaged during
transport.
Please remove this film before
installing the housing components. It
can be peeled off easily without any
additional tools.
26
Page 27
8
5
/
8
"
220 mm
8
5
/
8
"
220 mm
dai3435aus

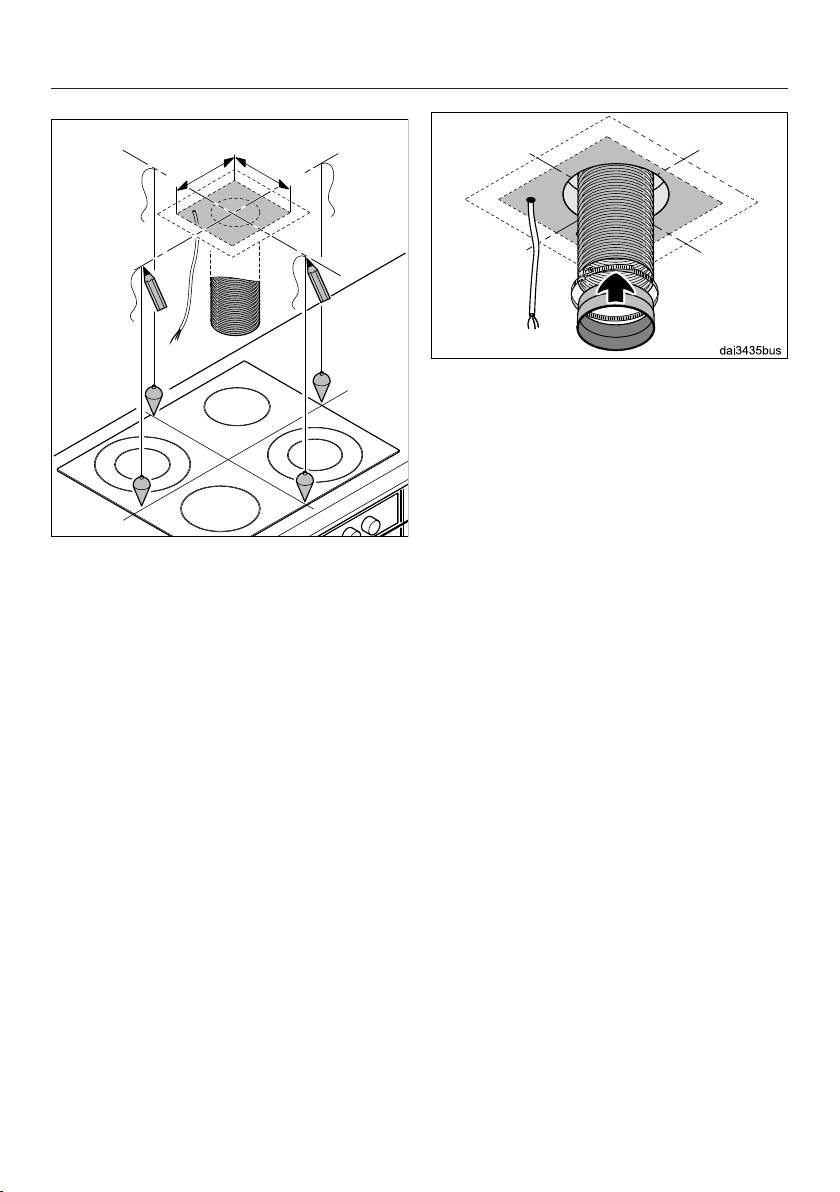

Draw two intersecting lines on the
ceiling.
Installation
For vented mode:
– Place a section of the exhaust
ducting in the ceiling and feed it
down through the cross-sectional
area as illustrated. Exhaust ducting of
approx. 27 9/16" (700 mm) length is
required between the ceiling and the
hood exhaust socket.
– Secure the exhaust ducting to the
exhaust socket, e.g. with a hose clip
(available as an optional accessory)
on flexible ducting.
Place the power cord and guide it
through the ceiling in the area shown.
A power cord approx. 27 9/16"
(700 mm) in length is required
between the ceiling and the hood
connectors.
27
Page 28
Installation
Use a knife to release the four
spacers and the two covers from the
spacer frame supplied.
Use the spacer frame as a drilling
template. Place it on the ceiling with
the arrows pointing forwards. Using
the notches, align the spacer frame
on the intersecting lines and make
pencil marks for the drill holes.
28
Drill four holes 3/8" (10 mm),
approx. 4 1/2" (115 mm) deep for the
plugs supplied.
Place the four plugs in the holes and
screw in the four screws so that they
protrude by approx. 1 3/16" (30 mm).
Page 29
The spacer frame can be installed
between the chimney and the ceiling.
This creates a shadow which gives the
illusion of a gap between the ceiling
and the chimney. This is useful if the
ceiling is not level or is uneven. The
hood is aligned vertically with the
spacers supplied. Visual irregularities
between the chimney and the ceiling
are then concealed by the shadow.
Installation
Mount the spacer frame onto the
installation frame.
If you wish to install the hood with the
spacer frame, remove the four inserts
from the fixing holes.
29
Page 30
Installation
Hang the installation frame on the
four screws. The front of the frame is
marked with a "V."
If using the spacer frame, place the
two covers into the fixing holes.
30
Align the installation frame and
secure it with the screws.
The spacers, which were removed
from the spacer frame at the start,
can be used to align the hood
vertically.
Page 31
Holding the installation frame
securely, remove the two fixing
screws and extend the installation
frame to its maximum length.
Replace the screws.
The directional unit from recirculation
kit DUI 32 (optional accessory) is
installed for recirculation mode (RM):
Installation
Bend the four retaining tabs on the
installation frame outwards.
Place the power cord inside the
installation frame.
Fit the directional unit as shown,
noting the marking on the front.
Bend the retaining tabs back and
approx. 45° inwards to hold the
directional unit in place.
31
Page 32
Installation
Secure the exhaust socket to the
hose using a hose clip.
Secure the hose to the directional
unit socket using a hose clip.
Check that the hose is held securely.
32

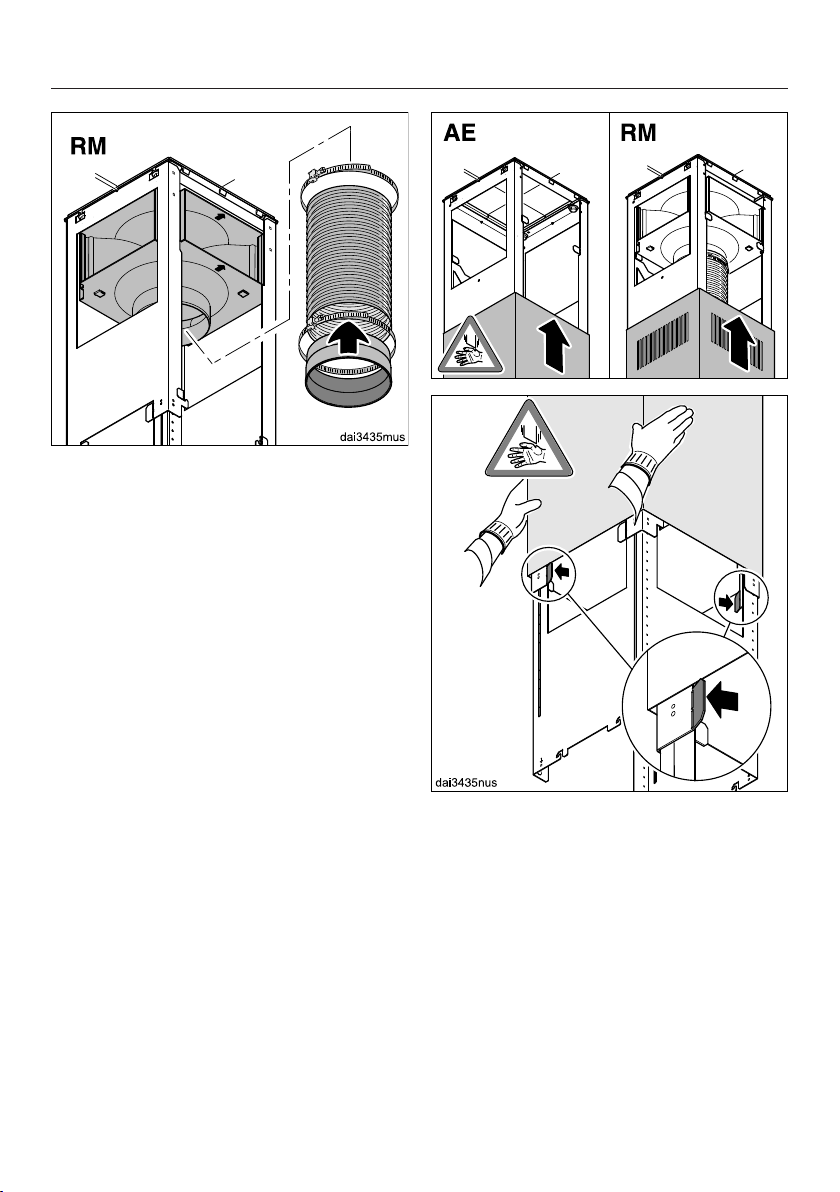

Push the telescopic chimney over the
installation frame:
– with the recirculation grilles at the
bottom for vented mode (AE),
– with the recirculation grilles at the top
for recirculation mode (RM).
Bend the two retaining tabs outwards
to prevent the telescopic chimney
from slipping down again.
Page 33
Installation
Fit the four telescopic chimney
clamps. When the screws are
tightened, the clamps spread out and
push the telescopic expansion piece
upwards.
Tighten the screws only until the top
edge of the telescopic chimney is
evenly aligned with the ceiling or the
spacer frame.
Bend back the two retaining tabs.
Push the chimney over the telescopic
chimney and bend the retaining tabs
outwards again to prevent the
chimney from slipping down again.
33
Page 34
Installation
A non-return flap is supplied with the
hood or is already fitted in the exhaust
socket of the motor unit (depending on
model).
With vented mode (AE) insert the
non-return flap in the exhaust socket
if your ducting system is not
equipped with one.
Recirculation mode (RM) does not
require the non-return flap to be
inserted. If there is one present, it
should be removed.
Hang the ventilation hood canopy on
the chimney by pushing the canopy
up into the installation frame and
pressing the retaining clips into the
openings as shown. Ensure the
controls are at the front.
34
Secure the hood with the screws
supplied.
Page 35

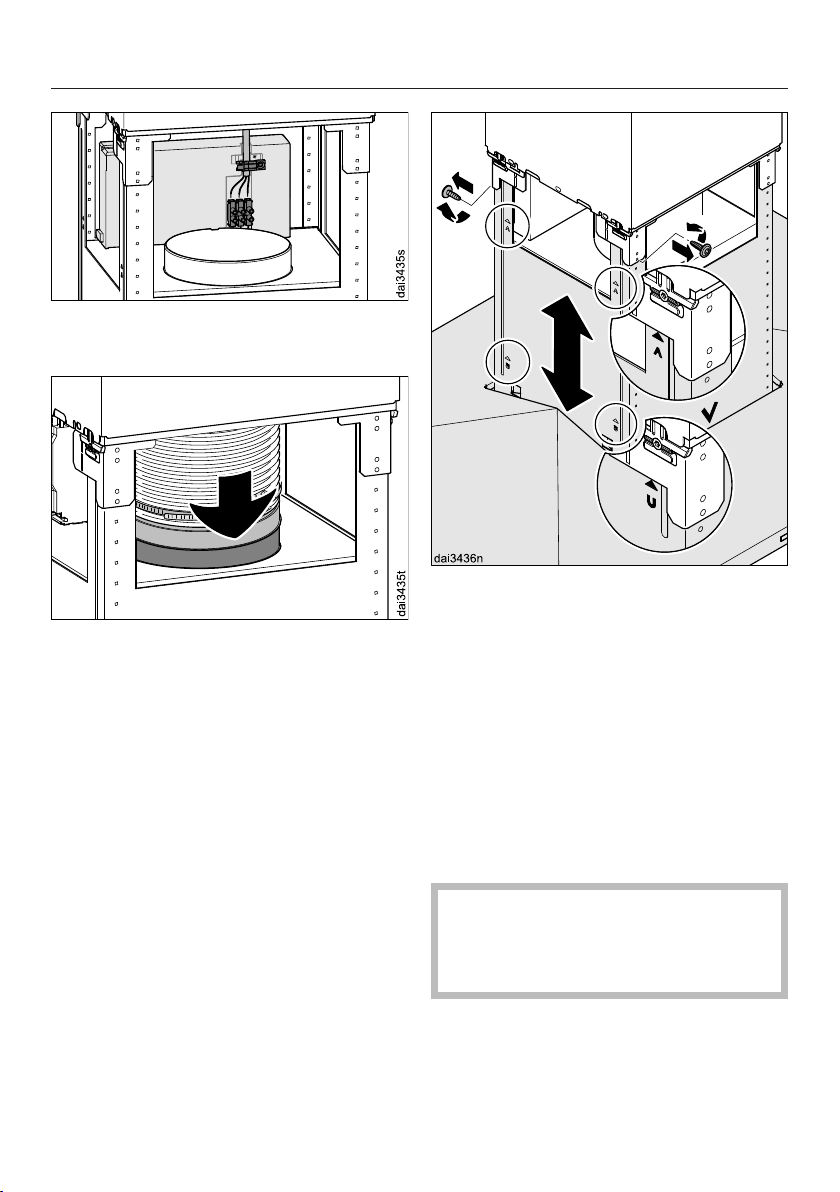

Connect the power cord. See
"Electrical connection."
Place the exhaust ducting onto the
exhaust socket.
Installation
Unscrew both screws from the
installation frame again.
The canopy can now be adjusted to the
desired height, observing the
permissible height ranges:
– With vented mode: upwards as far as
it will go, downwards only to the "A"
marking.
– With recirculation mode: upwards as
far as the "U", downwards as far as it
will go.
Follow the instructions in "Appliance
dimensions." Safety distances
between the cooktop and ventilation
hood must be observed.
35
Page 36
Installation
Raise the canopy to the desired
height and secure it with the screws.
36
Hold the chimney securely, bend
back the retaining tabs and carefully
lower it.
The chimney will locate in the cut-out in
the canopy.
Page 37
Remove the grease filters from the
hood.
Installation
With recirculation mode (RM)
ventilation hoods, insert the OdorFree
Charcoal Filter.
Insert the safety screw on the inside.
Carefully remove the protective foil
from the grease filters.
Reinsert the grease filters.
37
Page 38
Exhaust duct
WARNING: Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.
To reduce the risk of fire and to
properly exhaust air, the exhaust
gases extracted by the hood should
be vented outside of the building
only.
Do not vent exhaust air into spaces
within walls or ceilings or in attics,
crawl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
"IMPORTANT SAFETY
INSTRUCTIONS" to reduce the risk
of personal injury. Follow all local
building codes when installing the
hood.
Only use smooth pipes or flexible
duct hoses made from non-
flammable materials for exhaust
ductwork.
To achieve the greatest possible air
extraction with the lowest noise
levels, please note the following:
– The diameter of the exhaust duct
should not be less than 6" (150 mm).
– Make sure that all connections are
secure and airtight.
Remember that any constriction of
the airflow will reduce extraction
performance and increase operating
noise.
If the exhaust duct is to be routed
through an outside wall, we
recommend installing a telescopic
wall vent or a rooftop vent (available
as an optional accessory).
If the exhaust air is to be conducted
into a vent flue, the intake piece must
be aligned with the flow direction of
the flue.
When installing the exhaust duct
horizontally, you must slope it away
from the source by at least 1 cm per
meter (3/8" per 3 1/4'). This ensures
that condensate cannot drain back
into the ventilation hood.
– If flat exhaust ducts are used, the
cross section should not be smaller
than that of the exhaust connector.
– The exhaust duct should be as short
and straight as possible.
– If elbows are needed, make sure they
have a large radius.
– The exhaust duct itself must not be
kinked or compressed.
38
If the exhaust duct is to be routed
through rooms, ceiling space etc., the
temperatures in these different areas
may differ greatly, which means that
the problem of condensation will
need to be addressed. The exhaust
duct will need to be insulated.
Page 39
Condensate trap
In addition to insulating the exhaust
duct, we recommend installing a
condensate trap to collect and
evaporate any condensate which might
accumulate.
Condensate traps are available for
exhaust ducts with a diameter of 5"
(125 mm) or 6" (150 mm).
Exhaust duct
When installing a condensate trap,
make sure that it is positioned
vertically and, if possible, directly
above the hood outlet duct collar.
The arrow on the housing indicates
the direction of airflow.
39
Page 40
Electrical connection
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
All electrical work should be
performed by a qualified electrician
in strict accordance with national
regulations (for USA: ANSI-NFPA 70)
and local safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous.
Ensure that power to the appliance is
OFF while installation or repair work
is performed.
Verify that the voltage, load and
circuit rating information found on
the data plate (located behind the
baffle filters), match the household
electrical supply before installing the
hood.
Use only with ventilation hood cordconnection kits that have been
investigated and found acceptable
for use with this model hood.
If there is any question concerning
the electrical connection of this
appliance to your power supply,
please consult a licensed electrician
or call Miele’s Technical Service
Department.
Grounding Instructions
WARNING - Improper grounding can
result in a risk of electric shock.
This appliance must be grounded. In
the event of an electrical short
circuit, grounding reduces the risk of
electric shock by providing a path of
least resistance.plug.
If there is any doubt, have the
electrical system of the house
checked by a qualified electrician.
To increase security before the
machine is installed, it is
recommended to install a protective
switch(30mA).
The hood must be hard wired
accordingly:
Black/Red wire: connect to L1 (live)
White wire: connect to N (neutral)
Green wire: connect to GND (ground)
WARNING: THIS APPLIANCE MUST
BE GROUNDED
40
Page 41
For faults that you cannot resolve on
your own, please contact your Miele
dealer or Miele Technical Service.
The telephone number for the Technical
Service Department is listed at the back
of these instructions.
When contacting Miele, please state
the model and serial number of your
ventilation hood.
These can be found on the data plate.
Location of the data plate
The data plate is visible once you have
removed the grease filters.
Warranty
For further information, please refer to
your warranty booklet.
Service and warranty
41
Page 42
Technical data
Fan motor 350 W
Cooktop lighting 4 x 20 W
Total connected load 430 W
Voltage, Frequency 120 V AC, 60 Hz
Fuse rating 15 A
Weight 81.4 lbs (37 kg)
Optional accessories for recirculation mode:
Recirculation kit DUI 32 and OdorFree Charcoal Filter DKF 12
42
Page 43
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available before
contacting Technical Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-9898
609-419-4298
Technical Service & Support
Nationwide
Phone:
Fax:
T
echnicalService@mieleusa.com
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
800-999-1360
888-586-8056
Customer Care Centre
Phone:
customercare@miele.ca
800-565-6435
905-532-2272
Germany
Manufacturer
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
43
Page 44
DA 390-6
M.-Nr. 09 968 400 / 00en-US
Loading...
