Miele DA2628 Installation and Operation Guide
Operating and installation instructions
Rangehood
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ M.-Nr. 10 927 200
Contents
Warning and Safety instructions.......................................................................... 4
Caring for the environment ................................................................................ 13
Guide to the appliance........................................................................................ 14
Description of the functions............................................................................... 16
Before using for the first time ............................................................................ 17
Selecting extraction mode or recirculation mode.................................................. 17
Setting up Miele@home ........................................................................................ 17
Connecting via the App.................................................................................... 18
Connecting via WPS ........................................................................................19
Signing out of Wi-Fi (reset to factory settings)................................................. 20
Setting up Con@ctivity .......................................................................................... 21
Con@ctivity via the home Wi-Fi network (Con@ctivity 3.0).............................. 22
Con@ctivity via a direct Wi-Fi connection (Con@ctivity 3.0) ............................ 22
Con@ctivity with radio frequency connection (Con@ctivity 2.0) ...................... 23
Operation (automatic mode) ..............................................................................27
Cooking with Con@ctivity (automatic mode) ........................................................ 27
Leaving automatic mode temporarily.................................................................... 29
Returning to automatic mode........................................................................... 29
Operation (manual mode) ................................................................................... 30
Cooking without Con@ctivity (manual mode) ....................................................... 30
Switching the fan on.............................................................................................. 30
Selecting a power setting...................................................................................... 30
Selecting the run-on time...................................................................................... 30
Switching the fan off ............................................................................................. 30
Dimming/switching the cooktop lighting on/off .................................................... 31
Power management .............................................................................................. 31
Safety switch-off ................................................................................................... 32
Operation (automatic and manual modes)........................................................ 33
Operating hours counter ....................................................................................... 33

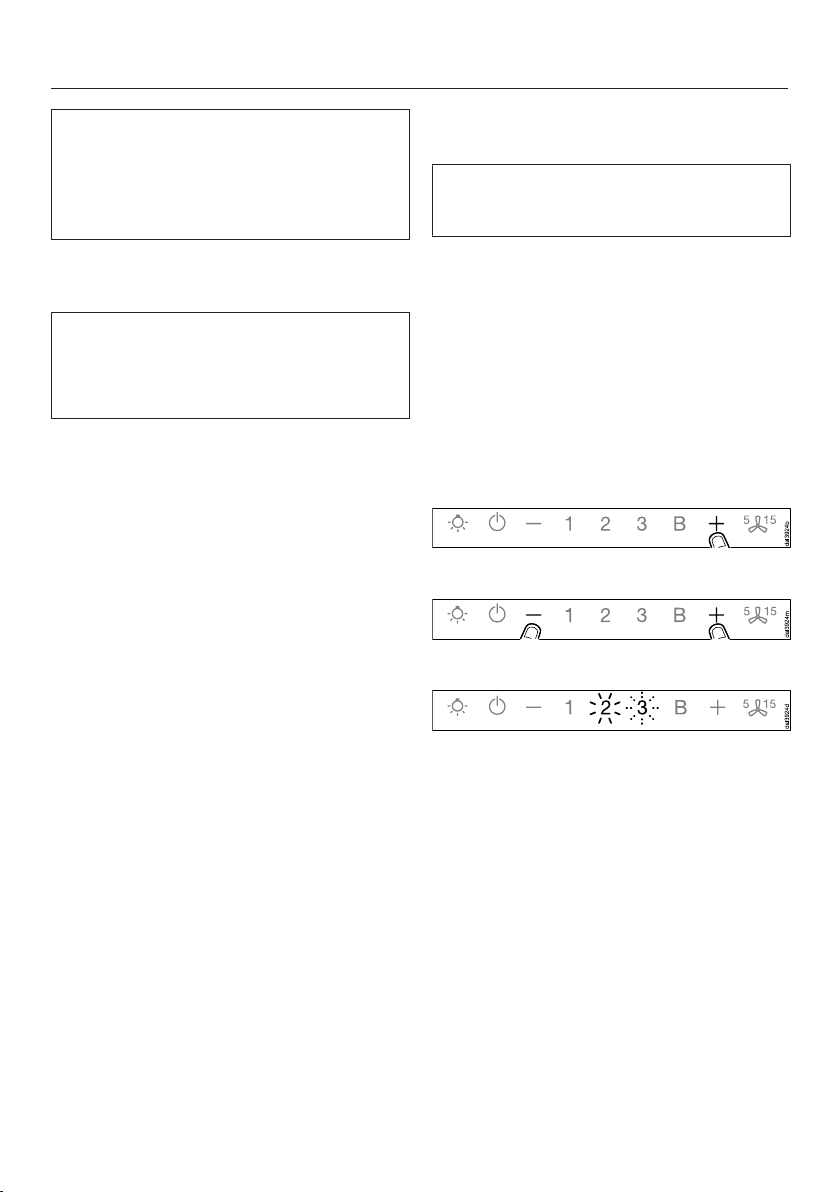

Altering the grease filter operating hours counter ............................................ 33
Altering or deactivating the charcoal filter operating hours counter ................34
Reading the filter operating hours counter....................................................... 34
Energy saving tips ............................................................................................... 35
Cleaning and care ............................................................................................... 36
Housing ................................................................................................................. 36

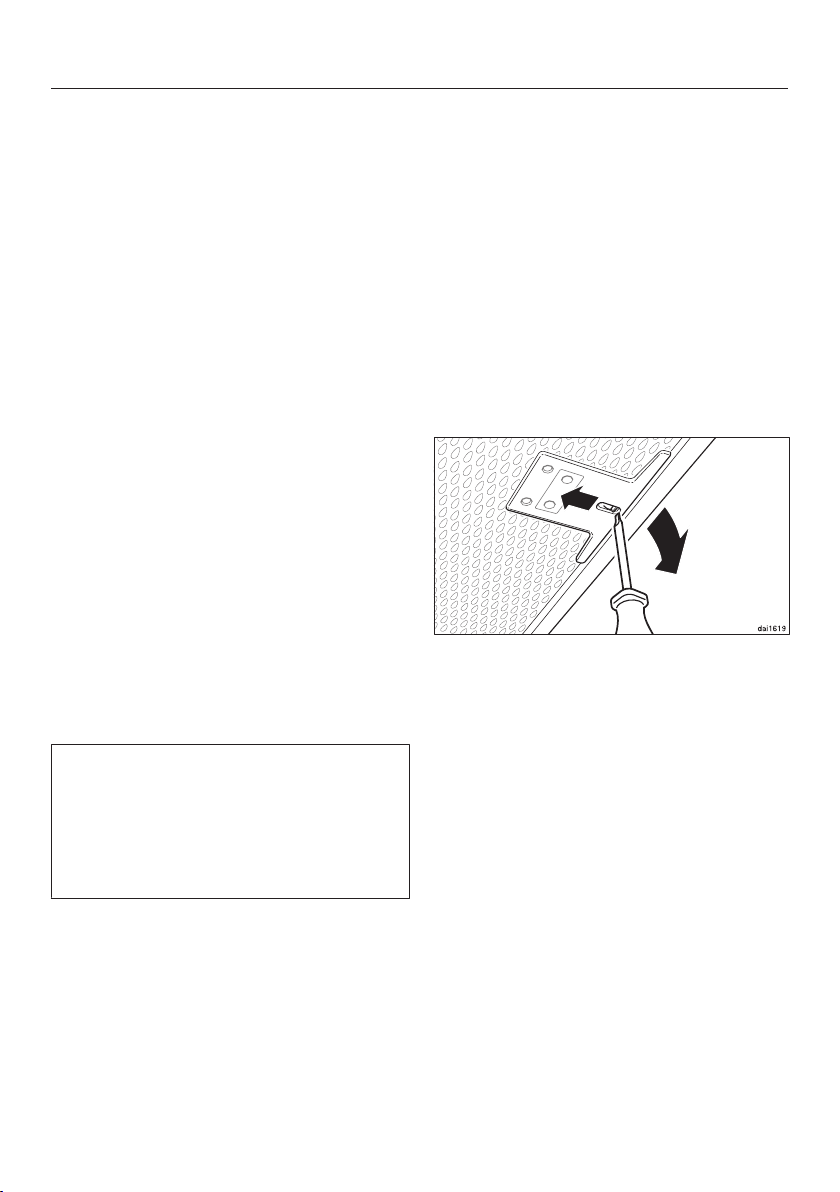

Grease filters and edge extraction panel............................................................... 37
2
Contents
NoSmell active charcoal filters.............................................................................. 41
Resetting the charcoal filter operating hours counter...................................... 41
Disposing of the charcoal filters....................................................................... 41
After sales service and warranty .......................................................................42
Position of the data plate ...................................................................................... 42
Warranty ................................................................................................................ 42
Installation............................................................................................................ 43
Before installation.................................................................................................. 43
Installation instructions.......................................................................................... 43

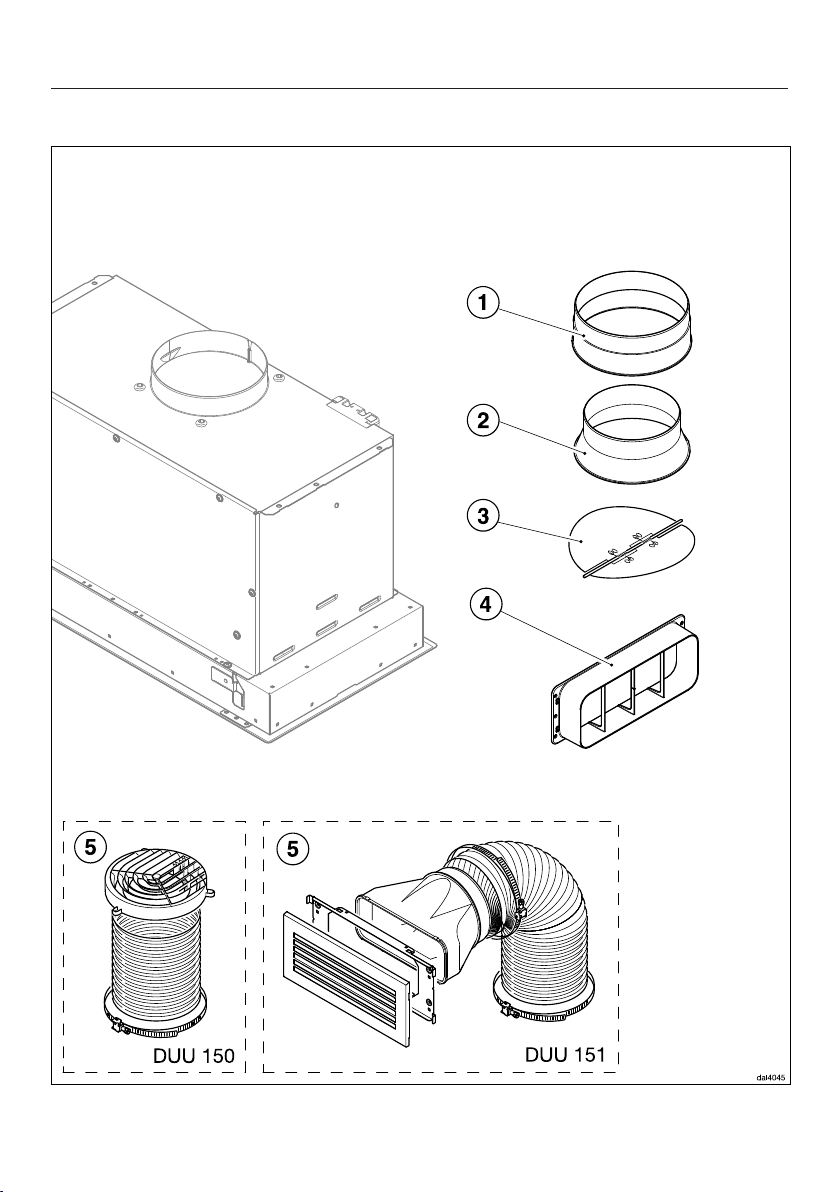

Assembly parts...................................................................................................... 44

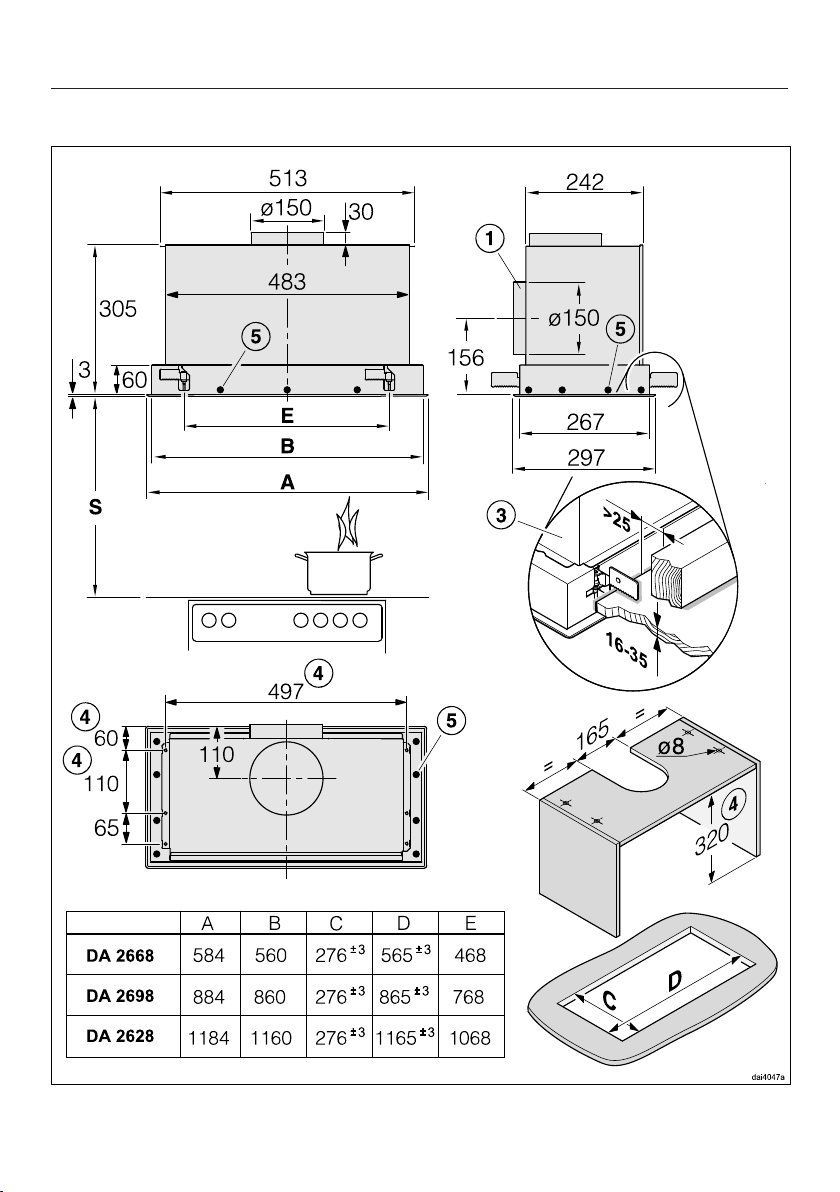

Appliance dimensions ........................................................................................... 46
Safety distance (S) ................................................................................................ 48
Installation recommendations ............................................................................... 49
Connection for air extraction ............................................................................. 50
Silencer.................................................................................................................. 51
Electrical connection ..........................................................................................52
Technical data...................................................................................................... 53
Optional accessory for recirculation mode ........................................................... 54
3
Warning and Safety instructions
This appliance complies with all relevant local and national safety
requirements. Inappropriate use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and damage to the appliance, please
read these instructions carefully before using it for the first time.
They contain important notes on the safety, installation, use and
maintenance of the appliance. Miele cannot be held liable for noncompliance with these instructions.
Keep these instructions in a safe place and ensure that all users
are familiar with the contents. Pass them on to any future owner of
the appliance.
Correct application
This rangehood is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include common/
shared facilities or commercial facilities within hotels, motels or bed
& breakfasts.
The appliance is not suitable for outdoor use.
It must only be used to extract vapours and remove odours from
cooking.
Any other usage is at the owner's risk. Miele cannot be held liable for
damage resulting from incorrect or improper use or operation.
Where a recirculation rangehood is fitted above a gas cooktop,
please ensure that there is an adequate supply of fresh air into the
room in which it is installed. Please seek the advice of a qualified gas
fitter if necessary.
4
Warning and Safety instructions
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning its use by a person responsible
for their safety, and are able to recognise the dangers of misuse.
Safety with children
Young children must not be allowed to use this appliance.
Older children may only use the appliance when its operation has
been clearly explained to them and they are able to use it safely,
recognising the dangers of misuse.
Cleaning work may only be carried out by older children under the
supervision of an adult.
Children should be supervised near the appliance. Ensure that
they do not play with the appliance.
The cooktop lighting is very intense.
Ensure, in particular, that babies/small children do not look directly
at the light.
Danger of suffocation! Children may be able to wrap themselves in
packing material or pull it over their head with the risk of suffocation.
Keep children away from any packing material.
5
Warning and Safety instructions
Technical safety
Repairs and other work by unqualified persons could be
dangerous. Installation, maintenance work and repairs to electrical
appliances must only be carried out by a Miele approved service
technician.
A damaged appliance can be dangerous. Check it for visible signs
of damage. Do not use a damaged appliance.
The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system. It is most important that this basic safety requirement is
present and tested regularly and, where there is any doubt, the
household wiring system should be inspected by a qualified
electrician.
Reliable and safe operation of this rangehood can only be assured
if it has been connected to the mains electricity supply.
The connection data (voltage and frequency) on the data plate of
the rangehood must match the mains electricity supply in order to
avoid the risk of damage to the rangehood.
Compare this before connecting the appliance to the mains
electricity. If in doubt, consult a qualified electrician.
Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. Extension leads are a fire
hazard and do not guarantee the required safety of the appliance.
EXT model rangehoods are connected to their external motor
using a special connection cable and plug connectors.
These appliances may only be combined with a Miele external
motor.
6
Warning and Safety instructions
For safety reasons, this appliance may only be used after it has
been built in.
This rangehood must not be installed and operated in mobile
installations (e.g. on a ship).
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Only open the housing as described in the instructions given in the
installation sheet and in the “Cleaning and care” section of this
booklet. Under no circumstances should any other parts of the
housing be opened.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
Faulty components must only be replaced by genuine Miele spare
parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.
If the mains connection cable is damaged, it must only be
replaced by a Miele authorised service technician or suitably
qualified electrician in order to avoid a hazard.
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when:
– the mains circuit breaker is switched off, or
– it is switched off at the wall socket and the plug is withdrawn from
the socket. Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains electricity
supply.
7
Warning and Safety instructions
Using at the same time as another heating appliance that depends on the air from the room
Danger of toxic fumes!
Great care should be taken when using the rangehood in the same
room or the same area of the house as another heating appliance
that depends on the air from the room.
Such heating appliances draw in air from the room and duct
exhaust gases out through a chimney or extraction ducting. They
include gas, oil, wood and coal-fired boilers and heaters,
continuous flow or other water heaters, gas cooktops and ovens.
The rangehood draws in air from the kitchen and from
neighbouring rooms. This applies to the following modes of
operation:
- extraction mode,
- extraction mode with an external motor,
- recirculation mode with a recirculation box installed outside the
room.
If there is insufficient air, an underpressure will occur. The heating
appliance may be starved of oxygen. This impairs combustion.
Harmful gases could be drawn from the chimney or extraction
ducting back into the room, with potentially fatal consequences.
Risk of death!
8
Warning and Safety instructions
In order to ensure safe operation and to prevent gases given off by
a heating appliance from being drawn back into the room, when
the rangehood and the heater are both operated simultaneously,
an underpressure in the room of 0.04mbar (4Pa) is the maximum
permissible.
Sufficient ventilation can be maintained by air inlets which cannot
be blocked, e.g. in windows, doors and outside wall vents. The
diameter of the inlet openings must enable sufficient ventilation. A
ventilation brick alone is not generally sufficient to ensure safe
ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, the advice of a competent builder, or for
gas, a qualified gas fitter should be sought.
If the rangehood is being operated in recirculation mode, whereby
the air is redirected into the room in which it is installed, the above
restrictions do not apply.
9
Warning and Safety instructions
Correct use
Never use an open flame beneath the rangehood. To avoid the
danger of fire, do not flambé or grill over an open flame.
When switched on, the rangehood could draw flames into the filter.
Fat deposits could ignite, presenting a fire hazard.
The rangehood can become damaged when exposed to excessive
heat.
– When using the rangehood over a gas cooktop, ensure that any
burners in use are always covered by a pan. Switch the cooking
zone off when a pan is removed, even for a short time.
– Select a pan which is suitable for the size of the burner.
– Regulate the flame so that it does not burn up the sides of the
pan.
– Avoid overheating the pan (e.g. when cooking with a wok).
Always switch the rangehood on when a cooking zone is in use,
otherwise condensation may collect in the rangehood, which could
cause corrosion.
Overheated oil and fat can ignite, causing fire damage to the
rangehood.
When cooking with oil or fat, chip pans and deep fat fryers etc., do
not leave the pans unattended. Similarly, never leave an open grill
unattended when grilling.
10
Warning and Safety instructions
Do not use the rangehood without the filters in place. This way
you will avoid the risk of grease and dirt getting into the appliance
and hindering its smooth operation.
The rangehood can get very hot during cooking due to heat rising
from the cooktop.
Do not touch the housing or the grease filters until the rangehood
has cooled down.
Correct installation
Refer to the cooktop manufacturer's instructions as to whether a
rangehood may be operated above the cooktop.
Safety regulations prohibit the fitting of a rangehood over solid
fuel stoves.
An insufficient safety distance between the stovetop and the
rangehood can result in damage to the rangehood.
The minimum safety distances between the top of the stovetop and
the bottom of the rangehood given in the “Installation” section of this
booklet must be observed, unless the stovetop manufacturer states
that a greater safety distance is required.
If more than one cooking appliance is fitted beneath the rangehood,
and they have different minimum safety distances to the rangehood,
select the greater distance.
The distances given in “Installation” must be observed when
fitting the rangehood.
Metal parts can have sharp edges which may cause injury.
Wear gloves to protect your hands from being cut.
All ducting, pipework and fittings must be of non-flammable
material. These can be obtained from builders' merchants.
The appliance must not be connected to a chimney or vent flue
which is in current use for exhausting fumes from appliances burning
gas or other fuels. Neither should it be connected to ducting which
ventilates rooms with fireplaces.
11
Warning and Safety instructions
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
Cleaning and care
There is a risk of fire if cleaning is not carried out as described in
these operating instructions.
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach electrical components and cause a short
circuit.
In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the machine and its
surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the machine warranty.
Accessories
Use only genuine original Miele spare parts. If spare parts or
accessories from other manufacturers are used, the warranty will be
invalidated, and Miele cannot accept liability.
12
Caring for the environment
Disposal of the packing material
The transport and protective packaging
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances. You are also responsible for
deleting any personal data that may be
stored on the appliance prior to
disposal. Please ensure that your old
appliance poses no risk to children
while being stored prior to disposal.
13
Guide to the appliance
14
Guide to the appliance
a
Exhaust connection
Extraction ducting can be directed through the back of the rangehood or
upwards to the ceiling.
b
Cooktop lighting
c
Charcoal filters (2 filters)
Optional accessory for recirculation mode
(only for DA 2668, DA 2698)
d
Grease filter
(DA 2668, DA 2698: 2 filters; DA 2628: 4 filters)
e
Edge extraction panel
(DA 2668, DA 2698: 1 panel; DA 2628: 2 panels)
f
Touch controls
g
Touch control for switching the lighting on and off and for dimming the lighting
h
On/Off touch control for the fan
i
Touch controls for selecting the fan power setting
j
Touch control for the run-on function
k
Touch control for the operating hours counter
This control is used for displaying operating hours used and for altering the
counter setting. See “Before using for the first time” for details on how to set
the counter for extraction mode or for recirculation mode.
15
Description of the functions
Depending on the model of the
rangehood, the following options are
available:
Air extraction mode
The cooking vapours are drawn in by
the rangehood. The air is then passed
via the edge extraction panel through
the grease filters, cleaned and then
directed outside.
Recirculation mode
The air is drawn in and passed via the
edge extraction panel through the
grease filters and then through two
charcoal filters. The cleaned air is then
recirculated back into the kitchen.
DA 2628 cannot be used as a
recirculation mode rangehood.
Operation with an external motor
(...EXT model rangehoods)
16
Rangehoods designed for use with an
external motor have to be connected to
a Miele external motor located in a
position of your choice outside the
room. The external motor is connected
to the rangehood by means of a control
cable and is operated via Con@ctivty or
by the controls on the rangehood.
Before using for the first time
Selecting extraction mode or recirculation mode
The rangehood can be operated with
either extraction mode or recirculation
mode. The power of the fan is
adapted to suit the selected mode of
operation. The rangehood is set up at
the factory for recirculation mode. It
has to be re-set for extraction mode.
To re-set it for extraction mode the
operating hours counter for the
charcoal filter(s) has to be deactivated.
Switch off the fan and the lighting.
Press the control and the operating
hours control at the same time.
The charcoal filter symbol and one of
the fan power levels will flash.
Press and hold the control until the
B indicator lights up.
Confirm your selection by pressing
the operating hours control .
All the indicator lights will go out.
Setting up Miele@home
Prerequisite:
– Home Wi-Fi network
Your rangehood is equipped with an
integrated Wi-Fi module. The
rangehood can be connected to the
household Wi-Fi network.
You will then be able to operate the
rangehood via the Miele@mobile App.
If your Miele cooktop is connected to a
home Wi-Fi network, you can control
the rangehood automatically via the
Con@ctivity function.
Before installing the rangehood in its
final location, ensure that the signal
of your Wi-Fi network is strong
enough.
Please note that you cannot set up a
Wi-Fi connection at the same time as
the radio frequency Con@activity 2.0
system.
Extraction mode has now been set.
If you do not confirm your selection
within 4minutes, the rangehood will
automatically revert to the previous
setting.
17
Loading...
