Miele DA239-2 Operating instructions
Operating and installation instructions
Ventilation System
DA 239-2
To prevent accidents
and machine damage,
read these instructions
before installation or use.
UV
M.-Nr.
05 603 050
Table of Contents
Table of Contents
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Main power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Turning on the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Delayed Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Turning off the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Automatic Safety Shut Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Turning the lighting on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Grease filter timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Checking the grease filter timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Reprogramming the grease filter timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning the casing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

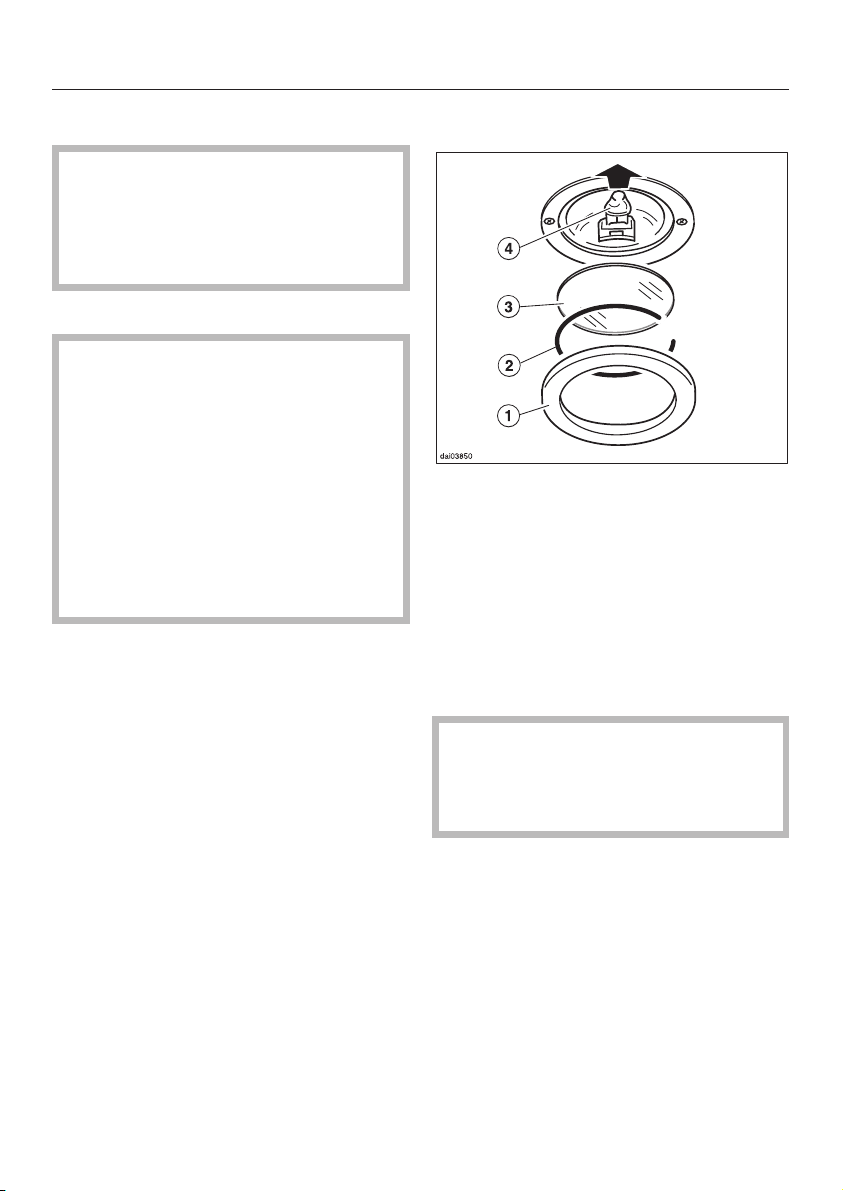

Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2
IMPORTANT SAFETY INSTRUCTIONS
Read these Operating Instructions carefully before installing or
using the Ventilation System.
This appliance is designed to vent
This appliance is intended for resi
dential use only. Use the appliance
only for its intended purpose. The
manufacturer cannot be held re
sponsible for damages caused by
improper use of the hood.
This appliance complies with current
safety requirements. Improper use of
the appliance can lead to personal
injury and material damage.
Read all instructions before installing
or using for the first time.
Keep these operating instructions in
a safe place and pass them on to
any future user.
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
-
-
cooking smoke / odors only.
Be certain your appliance is prop
erly installed and grounded by a
qualified technician.
To guarantee the electrical safety of this
appliance, continuity must exist be
tween the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician. The manufacturer
cannot be held responsible for damages caused by the lack, or inadequacy of, an effective grounding system.
Before connecting the appliance to
the power supply make sure that
the voltage and frequency listed on the
data plate correspond with the household electrical supply. This data must
correspond to prevent machine dam
age. Consult a qualified electrician if in
doubt.
-
-
-
CAUTION
For General Ventilating Use Only.
Do Not Use To Exhaust Hazardous
Or Explosive Materials And Vapors.
Installation work and repairs should
only be performed by a qualified
technician in accordance with all appli
cable codes and standards. Repairs
and other work by unqualified persons
could be dangerous and the manufac
turer will not be held responsible.
-
-
3
IMPORTANT SAFETY INSTRUCTIONS
This equipment is not designed for
maritime use or for use in mobile
installations such as caravans or air
craft. However, under certain conditions
it may be possible for an installation in
these applications. Please contact the
nearest Miele dealer or the Miele Tech
nical Service Department with specific
requirements.
Before servicing, disconnect the
power supply by either removing
the fuse, unplugging the unit or manu
ally "tripping" the circuit breaker.
Before discarding an old appli
ance, unplug it from the power
supply and remove the power cord and
any doors to prevent hazards.
-
-
-
-
Use
Do not allow children to play with
or operate the appliance or its con
trols. Supervise its use by the elderly or
infirm.
Be careful when preparing a
flambé beneath the hood.
Flames may be drawn up into the hood
by the suction or grease filters may
catch fire.
Never operate gas burners without
pots.
Do not leave cooking surfaces un
attended while in use. Overheated
food, oil and grease can catch fire.
Do not use the hood without the
grease filters in place.
Clean the grease filters regularly.
Dirty filters are a fire hazard.
Do not use a steam cleaner to
clean the hood. Steam could penetrate electrical components and cause
a short circuit.
-
-
In areas subject to infestation by
cockroaches or other pest, keep
the appliance and its surroundings
clean at all times. Any damage caused
by cockroaches or other pest will not
be covered under warranty.
4
IMPORTANT SAFETY INSTRUCTIONS
Installation
When installing the hood, make
sure that the following minimum
safety distances between Miele
cooktops and the hood are maintained.
22" (55 cm) above electric cooktops
–
26" (65 cm) above gas cooktops
–
26" (65 cm) above an open grill
–
For non-Miele cooking appliances
maintain the safety distances recom
mended by the cooktop manufacturer
in their installation and operating in
structions.
If there is more than one appliance beneath the hood and they have different
minimum safety distances always select the greater distance.
Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance, (e.g.
danger of overheating).
-
-

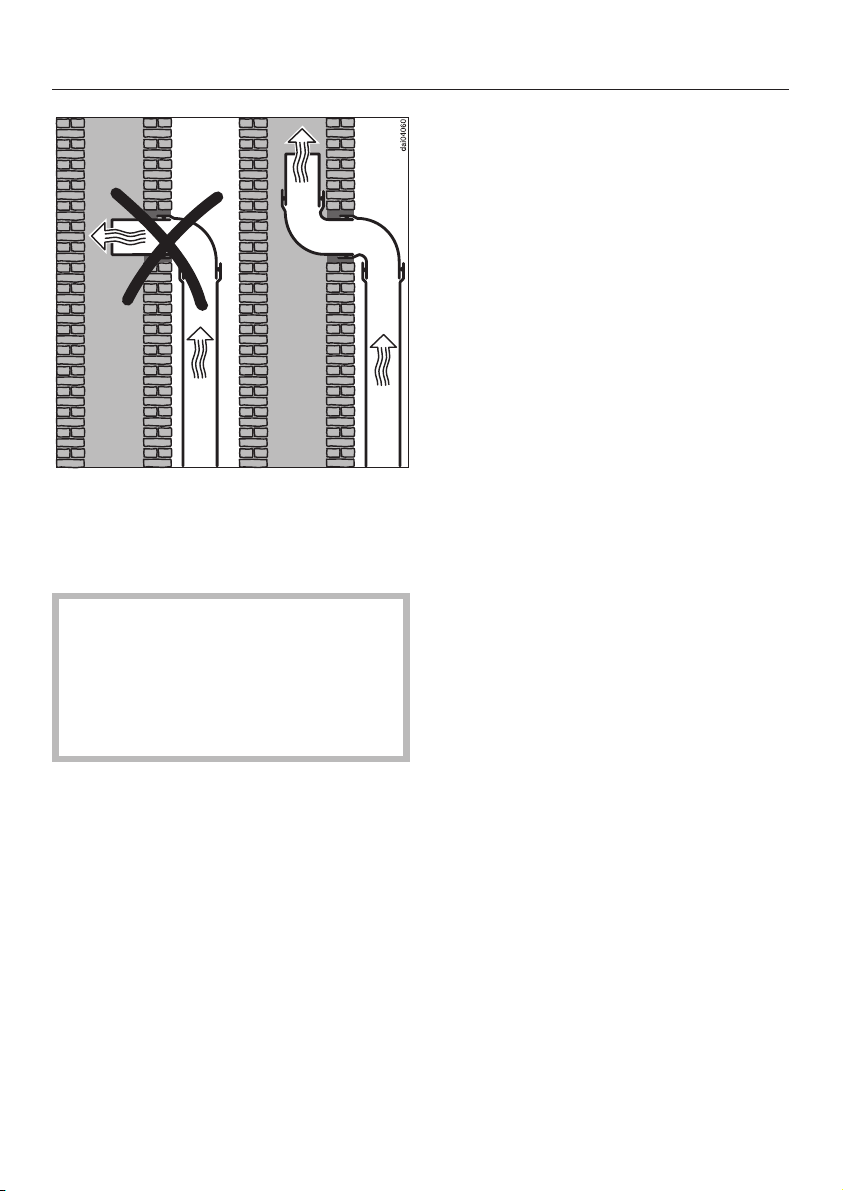

Never connect an exhaust hood to
an active chimney, dryer vent, vent
flue, or room ventilating ductwork. Seek
professional advice before connecting
an exhaust hood vent to an existing, in
active chimney or vent flue.
Make sure that the airflow in the
room is sufficient for combustion
and exhausting of all non-electric heat
ing appliances (water heaters, gas
cooktops, gas ovens, etc.), otherwise
backdrafts may occur. Follow the heat
ing manufacturer’s guidelines and
safety standards or those published by
the National Fire Protection Association
(NFPA), or the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE). If in
doubt, consult an experienced professional.
-
-
-
Do not install this hood over
cooktops burning solid fuel.
Any fittings, sealant, or materials
used to install the ductwork must
be made of approved non-flammable
materials.
5
IMPORTANT SAFETY INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF INJURY
TO PERSONS IN THE EVENT OF A
RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING:
Smother flames with a close fitting
lid, cookie sheet, or metal tray, then
turn off the burner.
Be careful to prevent burns.
If the flames do not go out immediately,
evacuate and call the fire depart
ment.
Never pick up a flaming pan -
You may be burned.
Do not use water, including wet
dishcloths or towels - a violent
steam explosion will result.
Use an extinguisher
only if:
– You know you have a Class ABC ex-
tinguisher, and you already know
how to operate it.
-
–
The fire is small and contained in the
area where it started.
–
The fire department is being called.
–
You can fight the fire with your back
to an exit.
The manufacturer cannot be held lia
ble for damage caused by non-com
pliance with these Warning and
Safety instructions.
6
-
-
Functional description
The ventilation hood works by air ex
traction. The air is drawn in and
cleaned by the grease filters and di
rected outside.
The hood comes equipped with a
non-return flap. This flap automatically
closes when the hood is turned off so
that no exchange of outside air and
room air can occur. When the hood is
turned on, the air pressure of the ex
haust fan automatically opens the flap
blowing the inside air and cooking
odors outside.
-
-
-
7
Guide to the appliance
8
Guide to the appliance
a Chimney extension
b Chimney
c Canopy
d Overhead lighting
e Grease filter
f Control panel
g Main power switch
h Light button
The lighting can be used independently
of the fan.
i On/Off button
j Fan power level buttons
Four fan speed selection
k Delayed Shut Down
This button activates the Delayed Shut
Down feature. The fan can be set to
turn off automatically after either 5 or 15
minutes.

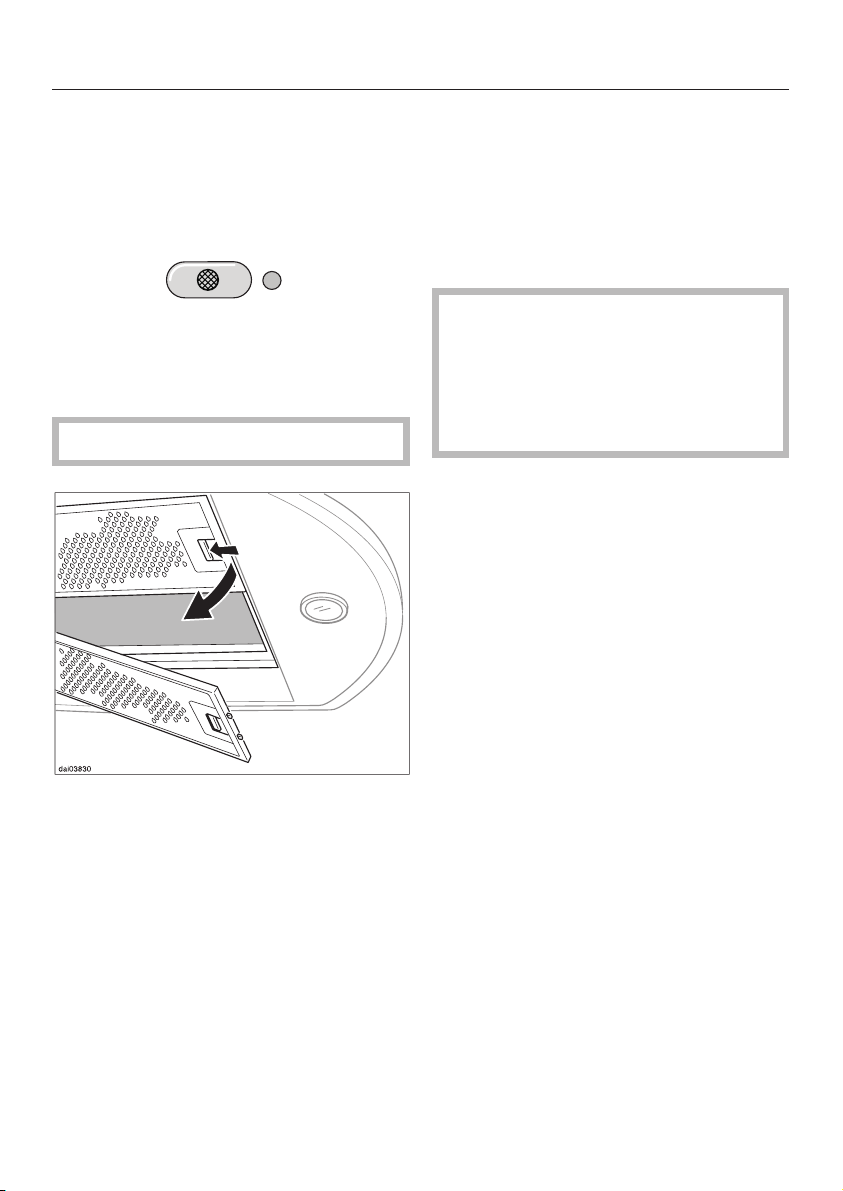

l Grease filter button
The indicator next to the grease filter
button lights when the grease filters
need to be cleaned.
This button is also used:
– to reset the grease filter timer after
cleaning the grease filters (see
"Cleaning and Care").
–
to show how long the grease filter
has been in use (see "Operation /
Grease filter timer").
–
to change the number of hours
counted by the grease filter timer
(see "Operation / Reprogramming the
grease filter timer").
9
Operation
Main power switch
Press the main power switch to "I". The
fan and the lighting can now be oper
ated.
If the appliance is not going to be used
for a long period of time (e.g. while va
cationing) turn the appliance off by
pressing the main power switch to "0".
The next time it is turned on, the hood
will operate at the level previously used.
-
-
Turning on the fan
^ Press the On/Off button.
Intensive setting
Level "4" (yellow indicator) should be
used for a short period when frying or
cooking food with a strong aroma.
Fan performance
The maximum air flow capacity is
625 cfm. Factors such as narrow duct
diameter and bends will affect this
value.
Level 1 operates at 40% capacity
Level 2 operates at 60% capacity
Level 3 operates at 80% capacity
Level 4 operates at 100% capacity
Delayed Shut Down
If odors or smoke remain in the kitchen
after cooking has been completed, the
Delayed Shut Down feature can be selected to allow the hood to continue
running for either 5 or 15 minutes.
The fan runs at power level "2".
The On/Off indicator lights.

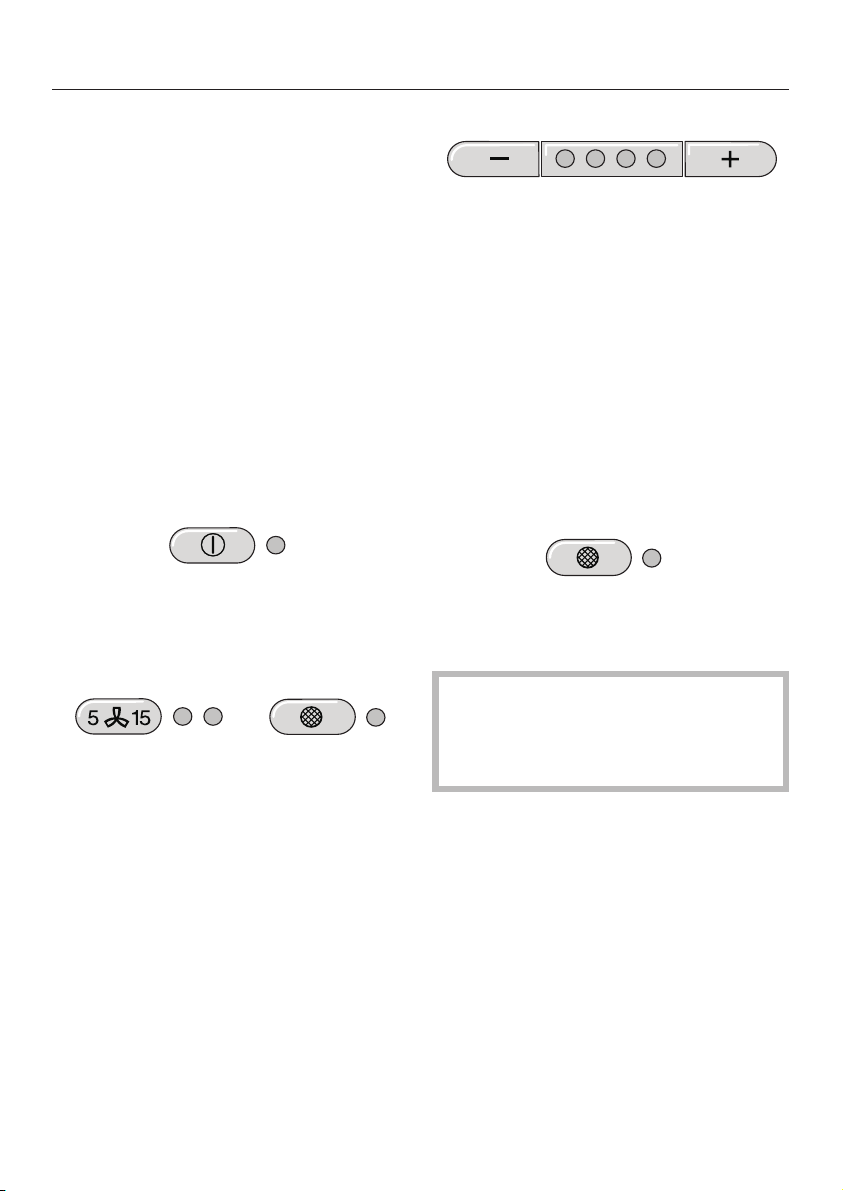

Selecting the power level
^
Use the _ buttons to select the
desired power level.
& =increases the fan speed
$ =decreases the fan speed
Level "1" to "3" (green indicators) are
usually sufficient for normal cooking.
10
^
Press the Delayed Shut Down button
while the fan is still running.
Press once = 5 minute delay
(left indicator lights)
Press twice = 15 minute delay
(right indicator lights)
To cancel the Delayed Shut Down fea
ture press the button again.
-
Operation
Turning off the fan
Press the On/Off button to turn the
^
fan off.
The indicator goes out.
Automatic Safety Shut Off
The fan will turn off automatically
10 hours after the last button was acti
vated. The lighting however will remain
on.
^ Press the On/Off button to turn the
fan back on again.
Turning the lighting on/off
The overhead lighting can be turned on
and off independently of the fan.
Press the light button to turn on the
^
lighting.
The light button indicator illuminates.
Press the light button again to turn off
^
the lighting.
11
Operation
Grease filter timer
A timer monitors the hours of fan opera
tion. The indicator for the grease filter
will light after 30 hours of operation. The
grease filters must then be cleaned.

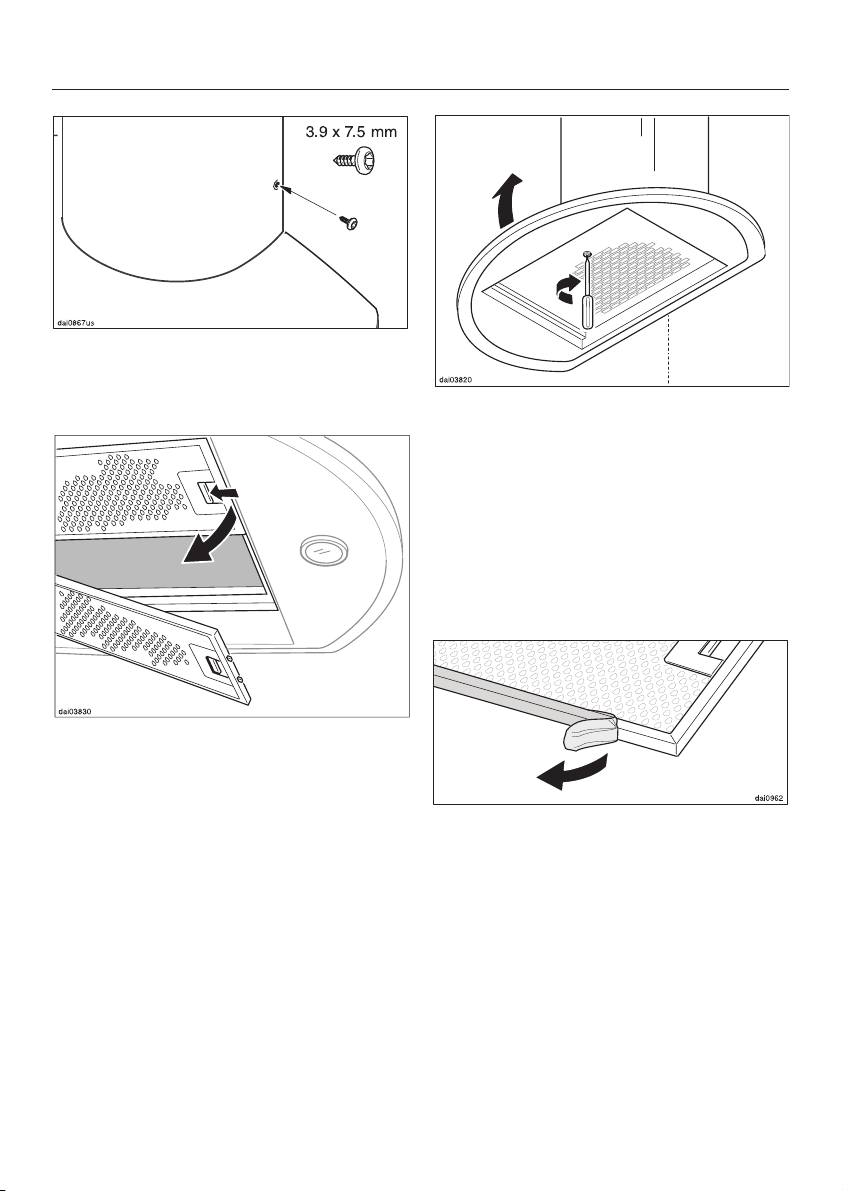

After the grease filters have been
cleaned and put in place, the grease fil
ter timer must be reset.
To do this, press the grease filter but
^
ton for about 3 seconds.
The indicator will go out.
Checking the grease filter timer
To check the percentage of time al
ready used:
Press the On/Off button to turn the
^
fan on.
-
^ Press the grease filter button.
The number of flashing _ indicators
show the percentage of programmed
hours that have been used.
-
12
1 indicator = less than 25 %
2 indicators = less than 50 %
3 indicators = less than 75 %
4 indicators = less than 100 %
This information will remain stored in
memory in the event of a power failure.
Loading...
