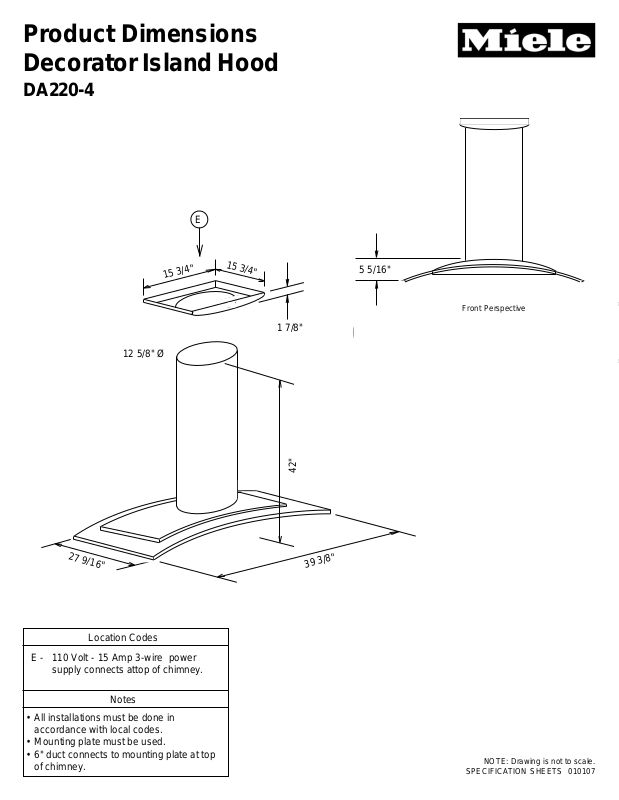

Product Dimensions
Decorator Island Hood
DA220-4
E
27 9/16"
12 5/8" Ø
15 3/4"
15 3/4"
5 5/16"
Front Perspective
1 7/8"
42"
39 3/8"
Location Codes
E -
110 Volt - 15 Amp 3-wire power
supply connects attop of chimney.
Notes
• All installations must be done in
accordance with local codes.
• Mounting plate must be used.
• 6" duct connects to mounting plate at top
of chimney.
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010107
Installation Dimensions
Decorator Island Hood
DA220-3
Ceiling mounting plate
Chimney mounting plate
Front Perspective
Ceiling
Ceiling mounting plate
Chimney mounting plate
Notes
• Center unit over cooking surface
• Bolt spacers to structural members
• Attach ceiling mounting plate to spacers in
ceiling using supplied mounting bolts
• External ducting connects to ceiling
mounting plate
• Connect chimney mounting plate to ceiling
mounting plate using supplied mounting
bolts.
Structural Ceiling Members (16" centers)
2 x 4 spacers
(bolt to structural members)
NOTE: Unit must be secured to
structural members in ceiling.
Chimney
Mounting Bolts
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010107
