Operating instructions
for the
DA 216
DA 217
DA 219
Ventilation systems
To prevent accidents and reduce
the risk of damaging the appliance, read
these Operating Instructions
before installation or use. M.-Nr. 05 112 610
ö]
Contents
Contents
Help protect our environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Descripton of the functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation
Main power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Turning on the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Turning the lamps on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Selecting the power level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Activing the Delayed Shut Down feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Turning off the exhaust fan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Automatic Safety Shut Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating hours of the filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Checking filter usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Reprogramming the timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Grease filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Charcoal filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and Care
Cleaning the casing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Active charcoal filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Changing a light tubes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
After Sales Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Electrical connection and Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Appliance dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Installation
Extraction connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Recirculation connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Help protect our environment
Disposal of packing materials
The cardboard box and packing materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Please dispose of these materials as
you would any other recyclable products.
Help protect our environment
Disposal of your old appliance
Old appliances contain materials that
can be recycled. Please contact your
local recycling center about the possibility of recycling these materials.
Before discarding an old appliance,
disconnect it from the electrical supply and cut off its power cord to prevent it from becoming a hazard.
3
Warning and Safety Instructions
Warning and Safety Instructions
Read these Operating Instructions carefully before installing or
using the Ventilation System.
This appliance is intended for
residential use only. Use the appliance only for its’ intended purpose. The manufacturer cannot be
held responsible for damages
caused by improper use of the
hood.
Read all the instructions before installing or using for the first time.
SAVE THESE INSTRUCTIONS AND
REVIEW THEM PERIODICALLY
CAUTION
For General Ventilating Use Only.
Do Not Use To Exhaust Hazardous
Or Explosive Materials And Vapors.
This appliance is designed to vent
cooking smoke \ odors only.
Be certain your appliance is
properly installed and grounded
by a qualified technician.
Do not connect the appliance to
the main electrical supply using an
extension cord. Extension cords do not
meet the safety requirements of this appliance.
Do not turn on the hood until it has
been properly installed.
Repairs on electric appliances
should only be performed by qualified personnel. Do not repair or replace
any part of the appliance unless specifically recommended in this manual.
Before servicing, disconnect the
power supply by either removing
the fuse or manually “tripping” the circuit breaker.
When installing the hood, make
sure that the minimum safety
distances between cooktops and the
hood are maintained.
– For electric cooktops: 18" (45 cm)
– For gas cooktops: 26" (65 cm)
Do not install this exhaust hood
over cooktops burning solid fuel.
To guarantee the electrical safety
of this appliance, continuity must
exist between the appliance and an
effective grounding system. It is imperative that this basic safety requirement
be met. If there is any doubt, have the
electrical system of the house checked
by a qualified electrician. The manufacturer cannot be held responsible for
damages caused by the lack, or inadequacy of, an effective grounding system.
4
Warning and Safety Instructions
WARNING
To reduce the risk of fire, use only
metal ductwork.
Any fittings, sealant, or materials used
to install the ductwork must be made of
non-flammable materials.

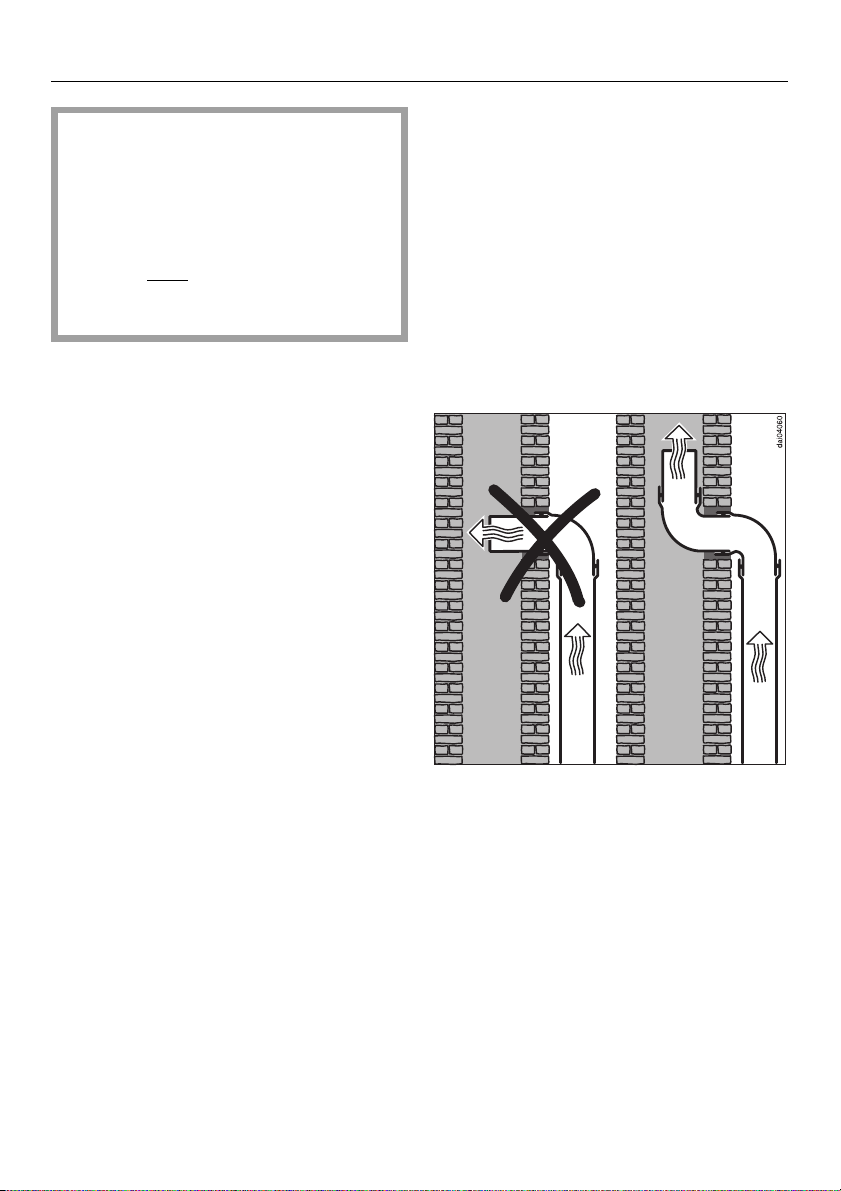

Never connect an exhaust hood to
an active chimney, dryer vent, vent
flue, or room ventilating ductwork. Seek
professional advice before connecting
an exhaust hood vent to an existing, inactive chimney or vent flue.
Never operate gas burners without
pots. Heat generated by prolonged operation of gas burners without pots could damage the hood.
Do not flambé beneath the exhaust
hood. Flames could be drawn up
into the hood by the suction or the
grease filters may ignite.
Do not allow children to play with
the hood or its controls.
WARNING
TO REDUCE THE RISK OF A RANGE
TOP GREASE FIRE:
Keep the fan, filters and grease
laden surfaces clean.
Always turn hood ON when cooking at high heat.
Use high range settings on range
only when necessary. Heat oil
slowly on low to medium setting.
Don’t leave range unattended
when cooking.
Always use cookware and utensils
appropriate for the type and
amount of food being prepared.
Do not leave cooking surfaces un-
attended while in use. Overheated
food can ignite.
Do not use the exhaust hood with-
out the grease filters in place.
Clean the grease filters regularly.
Saturated filters are a fire hazard.
Do not use a steam cleaner to
clean the hood. The steam could
penetrate to electrical components and
cause a short circuit.
5
Warning and Safety Instructions
WARNING
TO REDUCE THE RISK OF INJURY
TO PERSONS IN THE EVENT OF A
RANGE TOP GREASE FIRE,
OBSERVE THE FOLLLOWING:
Smother flames with a close fit-
ting lid, cookie sheet, or metal tray,
then turn off the burner.
Be careful to prevent burns.
If the flames do not go out immediately,
evacuate and call the fire department.
Never pick up a flaming pan -
You may be burned.
Do not use water, including wet
dishcloths or towels - a violent
steam explosion will result.
Use an extinguisher
only if:
– You know you have a Class ABC ex-
tinguisher, and you already know
how to operate it.
– The fire is small and contained in the
area where it started.
– The fire department is being called.
– You can fight the fire with your back
to an exit.
WARNING
TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO
PERSONS,
OBSERVE THE FOLLOWING:
Use this unit only in the manner intended by the manufacturer. If you
have questions, contact the manufacturer.
Before servicing or cleaning unit,
switch power off at service panel
and lock the service disconnecting
means to prevent power from being on
accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
Installation and electrical work
must be performed by qualified
technicians in accordance with all applicable codes and standards.
Make sure that the airflow in the
room is sufficient for combustion
and exhausting of all non-electric heating appliances (water heaters, gas
cooktops, gas ovens, etc.), otherwise
back drafts may occur. Follow the heating maunfacturers guidelines and
safety standards or those published by
the National Fire Protection Association
(NFPA), or the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE).
If in doubt, consult an experienced professional.
Be careful not to damage hidden
electrical wiring or plumbing when
cutting or drilling into the wall or ceiling.
Ducted fans must always be
vented to the outdoors.
6
Warning and Safety Instructions
When connecting the hood to an external vent, make sure that there is
adequate ventilation in the room
where the exhaust hood is to be
used.
When using the hood in the same area
as other appliances requiring room air
(e.g. non-electric water heaters, gas
cooktops, gas ovens, etc.) make certain that the air extracted by the hood
does not hinder their operation. These
appliances need air for combustion.
Adequate ventilation can be maintained by installing air vents in windows
or walls or by ensuring that the hood
can only be turned on when the other
appliances are off, or vice versa.
To prevent combustion gases being
drawn back into the room by the exhaust hood, the underpressure in the
room must be no greater than 0,0006 psi
(0,04 mbar) when the hood and these
appliances are running simultaneously.
Disposal of discarded appliances
Before discarding an old appliance, disconnect its power cord to prevent it
from becoming a hazard.
SAVE THESE INSTRUCTIONS AND
REVIEW THEM PERIODICALLY
Throughout the manual, important
safety items will be highlighted in
boxes and should be read in conjunction with these “Warning and
Safety instructions”.
If there are any doubts as to whether
there is adequate ventilation, consult
an experienced professional.
7
Guide to the appliance
Guide to the appliance
DA 216, DA 217, DA 219
8
Guide to the appliance
Chimney extension
b
Chimney
c
Canopy
d
e Controls
f Cooktop illumination
g Recirculation Grill
h Grease filter
i Main power switch
If the hood is not going to be used for
an extended period (during vacation,
etc.), turn the appliance off using the
main power switch.
Light switch
j
The lights can be turned on and off independently of the fan.
m Delayed Shut Down
Pressing this switch activates the Delayed Shut Down feature. The hood will
then automatically shut off after 5 or 15
minutes.
Grease filter switch
n
The lamp of the grease filter switch will
light when the grease filters need to be
cleaned.
This switch is also used to program
and monitor the Filter Operating Hours.
Charcoal filter switch
o
The lamp of the Charcoal filter switch
will light when charcoal filters need to
be changed.
This switch is also used to program
and monitor the Filter Operating Hours.
On/Off switch
k
Press this switch to turn the fan on or
off.
– / + switch
l
Four fan speeds are available to suit
the ventilation needs of your kitchen.
9
Descripton of the functions
Descripton of the functions
The exhaust hood offer two functional
operations:
1) Draws air in through the grease
filters and directs it into the exhaust
ductwork.
The hoods are installed with a non-return exhaust valve. This valve automatically closes when the hood is turned off
so that outside air cannot enter the kitchen. When the hood is turned on, the
air pressure of the exhaust fan automatically opens the valve, allowing the inside air and odors to be vented outside.
2) Draws air in through the grease
filters and directs the air through an
active charcoal filter. The filtered air is
then recirculated back into the kitchenthrough a vent at the top of the
cooker hood.
Before using the cooker hood for
the first time, ensure that the active
charcoal filters is in place, see section on "Cleaning and care".
10
Operation
Gently press the buttons with your
finger to select the desired function.
Main power switch
In order for the hood to operate, the
main power switch must be set to “I”. If
the hood is turned off using this switch,
the settings in use at that time will be
active when it is once again turned on.
Turning on the fan
Press the On/Off button.
The fan will turn on and run at speed
“2”. The corresponding indicator lamp
will also be lit.
Turning the lamps on and off
The lamps can be operated independently of the fan.
Operation
Selecting the power level
Four fan speeds are available to suit
the ventiation needs of your kitchen.
A low or medium setting is generally
sufficient for normal cooking. Higher
settings are recommended for strong
odors or heavy smoke.
If the hood is turned off using the Main
power switch or after a power failure, it
will operate at the last selected speed
when it is once again turned on.
Select the desired power level by
pressing the _ switch.
$ lowers the fan speed
> increases the fan speed
The indicator lamps show which power
level has been selected.
Press the Light switch.
When the lamps are on, the indicator
above the switch will be lit.
11
Operation
Activing the Delayed Shut
Down feature
If odors or smoke remain in the kitchen
after cooking has been competed, the
Delayed Shut-Down feature can be selected to allow the hood to continue
operating for an additional 5 or 15
minutes.
Press the Delayed Shut-Down switch;
Once for an additional 5 minutes of
operation, or
Twice for an additional 15 minutes of
operation.
The indicator lamp above your selection will remain lit until the fan shuts off.
To cancel your selection, press the
layed Shut-Down switch until both indicator lamps go out.
De-
Turning off the exhaust fan
Turn the fan off by pressing the
On/Off button
The hood can also be turned off with
the Main Power Switch if it will not be
used for an extended period (during vacations for example).
Automatic Safety Shut Off
The fan will be turned off automatically
10 hours after the last switch was activated. The lamps however, will remain
on.
Pressing the On/Off button will turn
the fan back on.
12
Operation
Operating hours of the filters
Internal timers monitor the hours of fan
filtration operation and will light the respective lamp above the Grease or
Charcoal filter switch to notify you when
the filters need servicing.
The grease timer is factory preset for
30 hours; however; it is resetable by
the homeowner. The charcoal filter
(which is a recirculation filter) has no
preset and must be programmed.
Once the filters have been seriviced,
the timer must be reset as follows:
Press and hold the Grease or Charcoal filter switch for 4 seconds after
which, the indicator lamp will go out
Checking filter usage
The percentage of programmed operating hours that the filter has been used
can be displayed as follows:
Turn on the fan.
The number of indicator lamps flashing
above the _ switch shows the percentage of programmed hours that the
filter has been used.
1 lamp = less than 25 %
2 lamps = less than 50 %
3 lamps = less than 75 %
4 lamps = less than 100 %
This value will remain stored in memory
in the event of a power failure.
Reprogramming the timer
The amount of operating time before a
reminder to clean the filters is displayed can be changed to suit individual cooking habits.
Grease filters
Settings of 20, 30, 40 or 50 hours are
possible; however, it is suggested that
if your cooking consists of a great deal
of pan or deep fat frying, the timer
should be set for 20 hours.
Press-the Grease or charcoal filter
switch.
13
Operation
To change the setting:
Turn off the fan using the On/Off
switch (not the Main Power switch).
Press the Delayed Shut-Down and
Grease Filter switch simultaneously.
The grease filter lamp and one of the
_ lamps will flash.
Select the desired reminder time by
pressing the $ or > switch.
The lit indicator lamp shows the selected reminder time:
1st lamp from the left = 20 hours
2nd lamp from the left = 30 hours
3rd lamp from the left = 40 hours
4th lamp from the left = 50 hours
Store the selection by pressing the
Grease filter switch.
If your selection is not stored within
4 minutes, the timer will revert to
using the previous setting.
Charcoal filters
The active charcoal filter is solely use
for recirculation and is not use to exhaust fumes. Before using the recirculation mode, the charcoal timer must be
set as follows:
Turn off the fan using the On/Off
switch (not the Main Power switch).
Press the Delayed Shut-Down and
Charcoal Filter switch simultaneously.
The charcoal filter lamp and one of the
_ lamps will flash.
Select the desired reminder time by
pressing the $ or > switch.
The lit indicator lamp shows the selected reminder time:
Ist lamp = 120 hours
2nd lamp = 180 hours
3rd lamp = 240 hours
4th lamp = unlimited hours
Store the selection by pressing the
charcoal filter switch.
14
If your selection is not stored within
4 minutes, the timer will revert to
using the previous setting.
Cleaning and Care
Before servicing or cleaning the
hood, disconnect it from the power
supply by either removing the fuse,
unplugging it, or manually "tripping"
the circuit breaker.
Cleaning the casing
The casing can be cleaned using a
mild solution of water and dishwashing
detergent. Dry with a soft cloth.
Never use abrasive cleaners, scouring pads, steel wool or caustic
(oven) cleaners to clean the hood.
will damage the surface.
They
Cleaning and Care

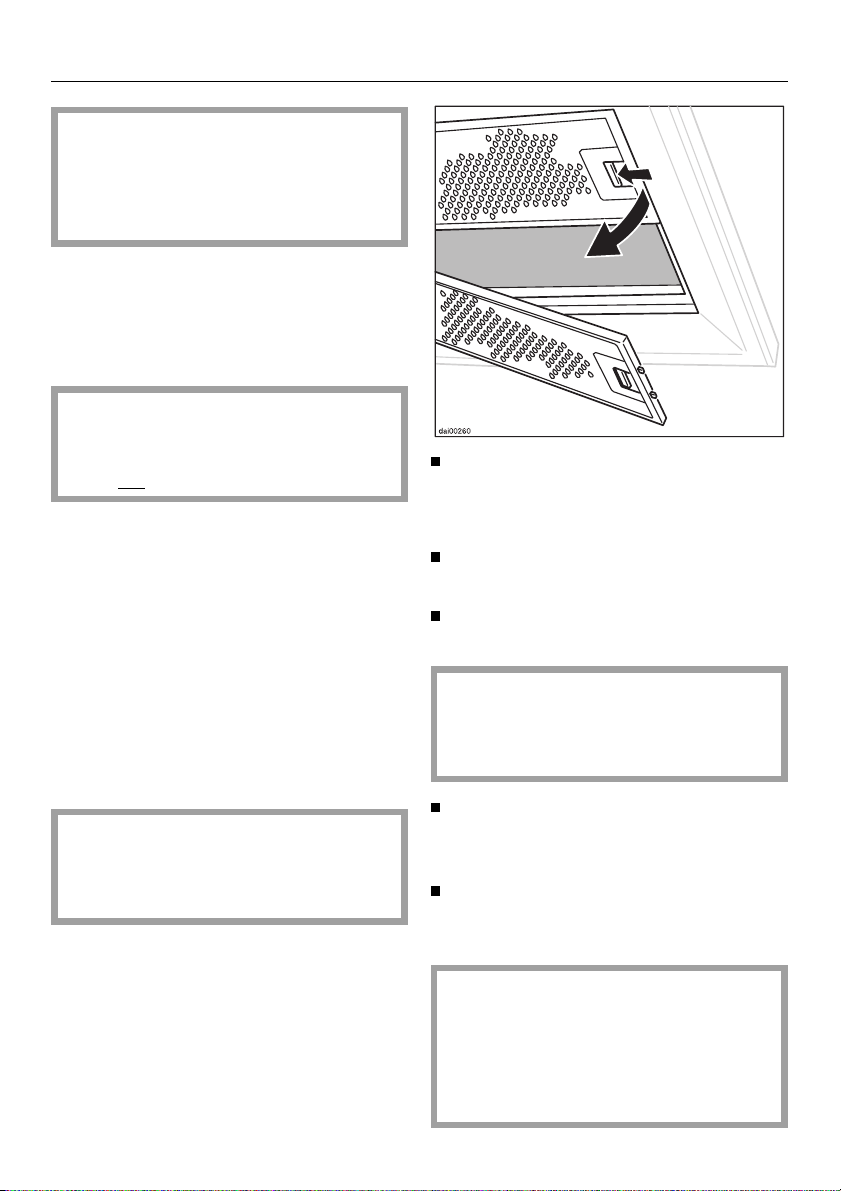

To release the filters, press their latches toward the middle of the hood.
A mild, non-abrasive stainless steel
cleaner can also be used to clean the
hood.
Grease filters
The reusable metal grease filters will
absorb any grease, dust, or other solid
particles that are pulled into them by
the fan. The filters should be cleaned
every 3 - 4 weeks, or whenever the
grease filter indicator lamp illuminates.
Continued operation with dirty
grease filters is dangerous. They
could ignite and cause personal injury and property damage.
Once the filters have been cleaned,
reset the filter timer by pressing and
holding the Grease filter switch until the
indicator lamp goes out.
To clean the grease filters:
By hand - use a scrub brush in hot
water with mild detergent.
In a dishwasher - place the grease filters in the lower basket.
Cleaning the filters in a dishwasher
may cause permanent discoloration
of the filter surface. Performance of
the filter will be unaffected, however.
After cleaning, the filters can be
dried by placing them on a towel or
other absorbent surface.
While the filters are removed, clean
any dirt or grease from the filter casing to prevent the risk of fire.
Before replacing the filters make
sure that the latches are facing
down. If a filter is installed upside
down, insert a small screwdriver
into the slit along its edge to disengage it from the casing.
15
Cleaning and Care
Active charcoal filter
Active Charcoal Filters will absorb most
kitchen odors. They are non-washable/non-reusable and must be replaced as needed.
Remove the grease filters to gain access to the charcoal filters.
Remove the charcoal filters and install the new filters so that the catch
faces the cooktop.
Always change the active charcoal filter when the charcoal filter indicator
lamp comes on. Failure to replace the
charcoal filters will adversely effect the
odor absorbing performance of the filtering system. Replace the filter at
least every 3 - 4 months of normal use.
16
Changing a light tubes
Before changing the light bulbs, disconnect the hood from the power
supply by either removing the fuse,
unplugging it, or manually “tripping”
the circuit breaker.

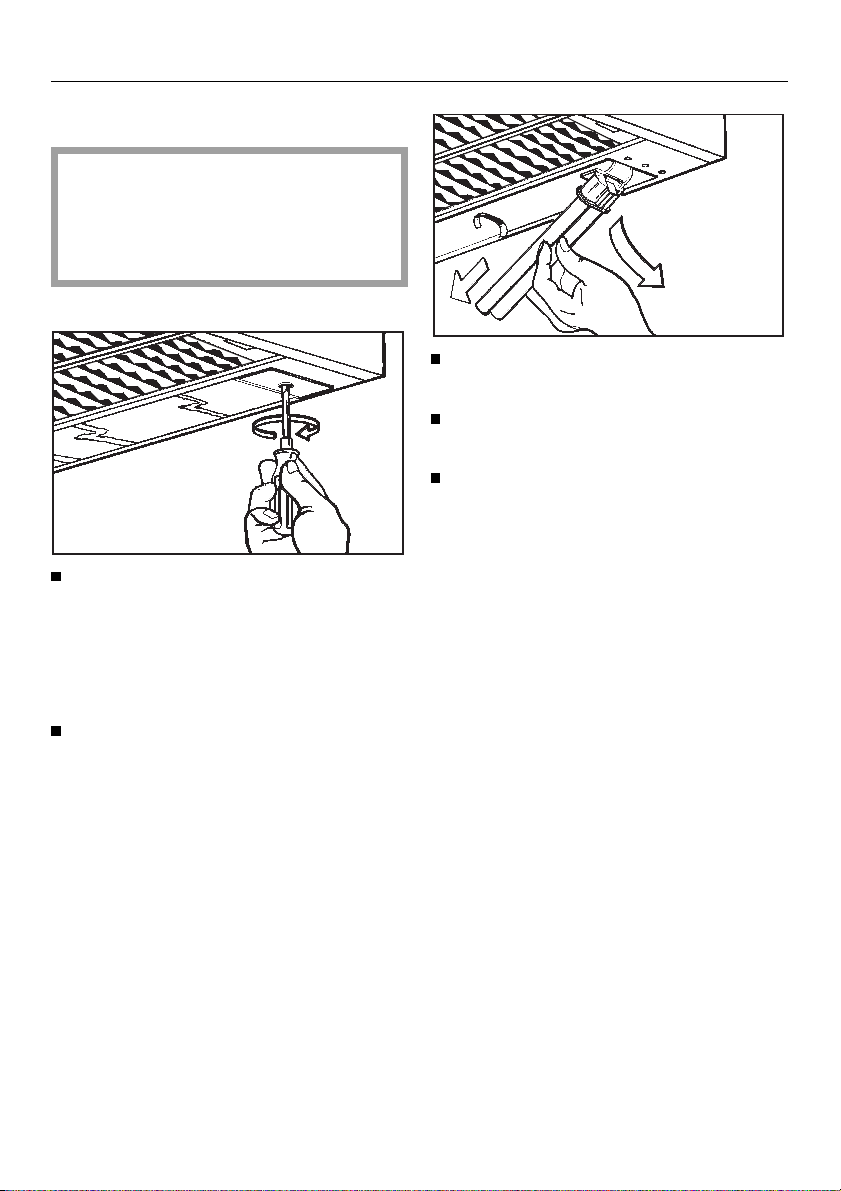

Unlatch the light bulb cover assembly by turning the mounting screw to
the right or left.
Be careful to hold the glass cover upwards so that it does not fall onto the
cooking surface.
Cleaning and Care
Carefully swivel the light tubes downwards and pull them out to the front.
Change the light tubes and push
them back into place.
Reinstall the glass cover and secure
the light bulb cove assembly.
Remove the glass cover, guiding it
downward at an angle.
17
After Sales Service
After Sales Service
If a problem arises that you cannot
remedy yourself, please contact the
nearest Miele Service Department.
Phone numbers and addresses are
listed on the back cover.
When contacting the Service Department, please have the Model and Serial No. of the appliance available. They
can be found on the data label that is
visible upon removal of the grease filters.
18
Electrical connection and Technical data
Electrical connection and Technical data
Electrical Connection
The hood comes equipped with a
5 ft power cord for connection to a
120 VAC, 60 Hz power supply.
Verify that the information on the data
plate (located behind the grease filters)
matches your electrical supply before
installing the hood.
Technical data
Maximum load. . . . . . . . . . . . . . . 410 W
Light . . . . . . . . . . . . . . . . . . . . 3 x 20 W
Voltage . . . . . . . . . . . . . . . . . . 120 VAC
Frequency . . . . . . . . . . . . . . . . . . 60 Hz
Fuse rating . . . . . . . . . . . . . . . . . . 15 A
Important
The power cord wires are colored as follows:
Green/yellow = ground
Blue = neutral
Brown = live
CAUTION:
Ensure that power supply is OFF
during installation.
If you have any questions as to how
to connect this hood to your building power supply, please call Miele
Appliances or consult a licensed
electrician.
WARNING
THIS APPLIANCE MUST BE
GROUNDED
Fan
Values derived using 6" (150 mm)
ducting and EN 61591 test procedures.
Extraction:
Settings 1 – 3. . . . . . . . . 210 – 430 cfm
(360 – 730 m
Setting 4 . . . . . . . . . . . . . . . . . 495 cfm
(840 m
unrestricted flow . . . . . . . . . . . 560 cfm
(950 m
3
/h)
3
/h)
3
/h)
Recirculation:
Settings 1 – 3. . . . . . . . . 175 – 380 cfm
(300 – 650 m
Setting 4 . . . . . . . . . . . . . . . . . 430 cfm
(730 m
3
/h)
3
/h)
19

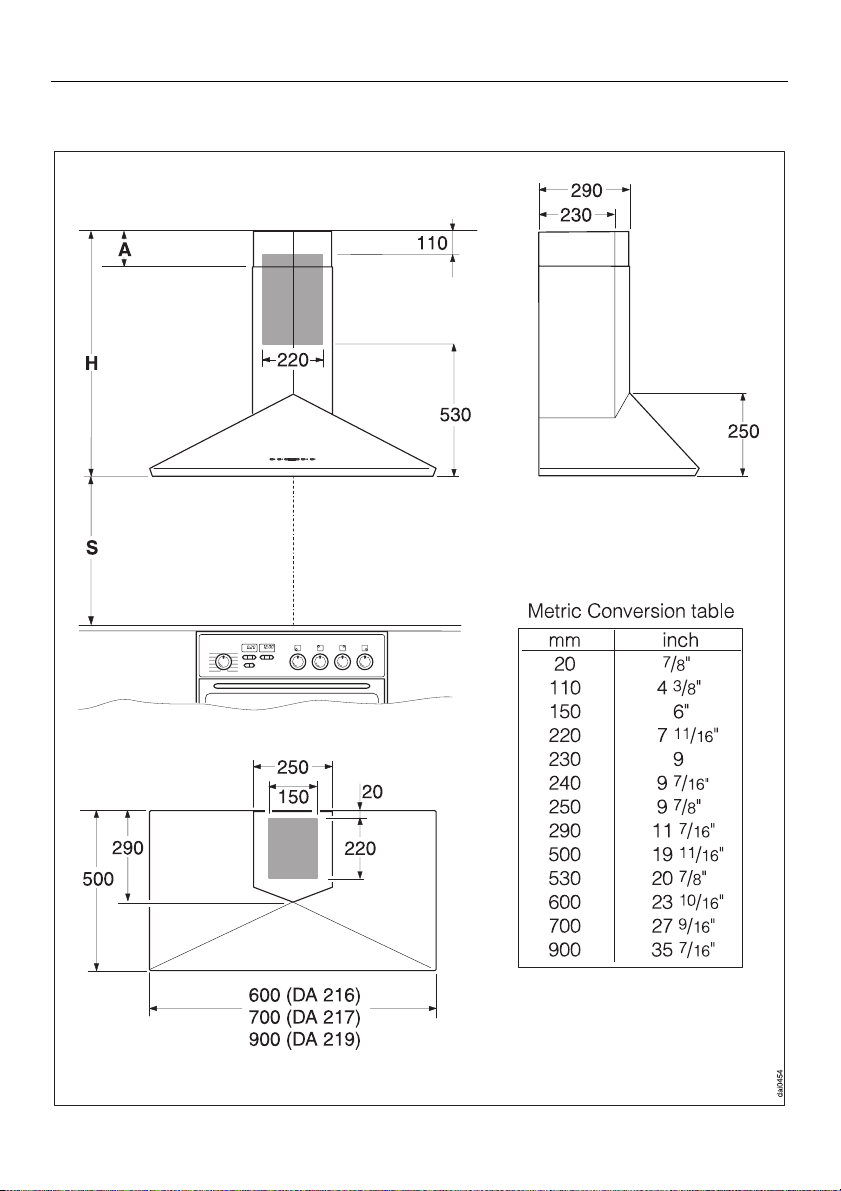

Appliance dimensions
Appliance dimensions
DA 216, DA 217, DA 219
20
Appliance dimensions
S = The minimum allowable distance
between the top of the cooking surface
and the bottom of the hood
H = Height of installed hood
The use of a Chimney Extension allows
the hood to be installed at various distances from the ceiling. Before installation of the chimney extension, a determination must be made concerning the
venting function of the hood.
Extension height dimension table
Extraction Recirculation
HH
DA 216
DA 217
DA 219
279/16 - 37 "
700 - 940 mm
15
27
/16 - 377/16"
710 - 950 mm
3
28
/4 - 383/16"
730 - 970 mm
311/8 - 403/8 "
790 - 1025
311/2 - 403/4"
800 - 1035 mm
325/16 - 419/16"
820 -1055 mm
mm

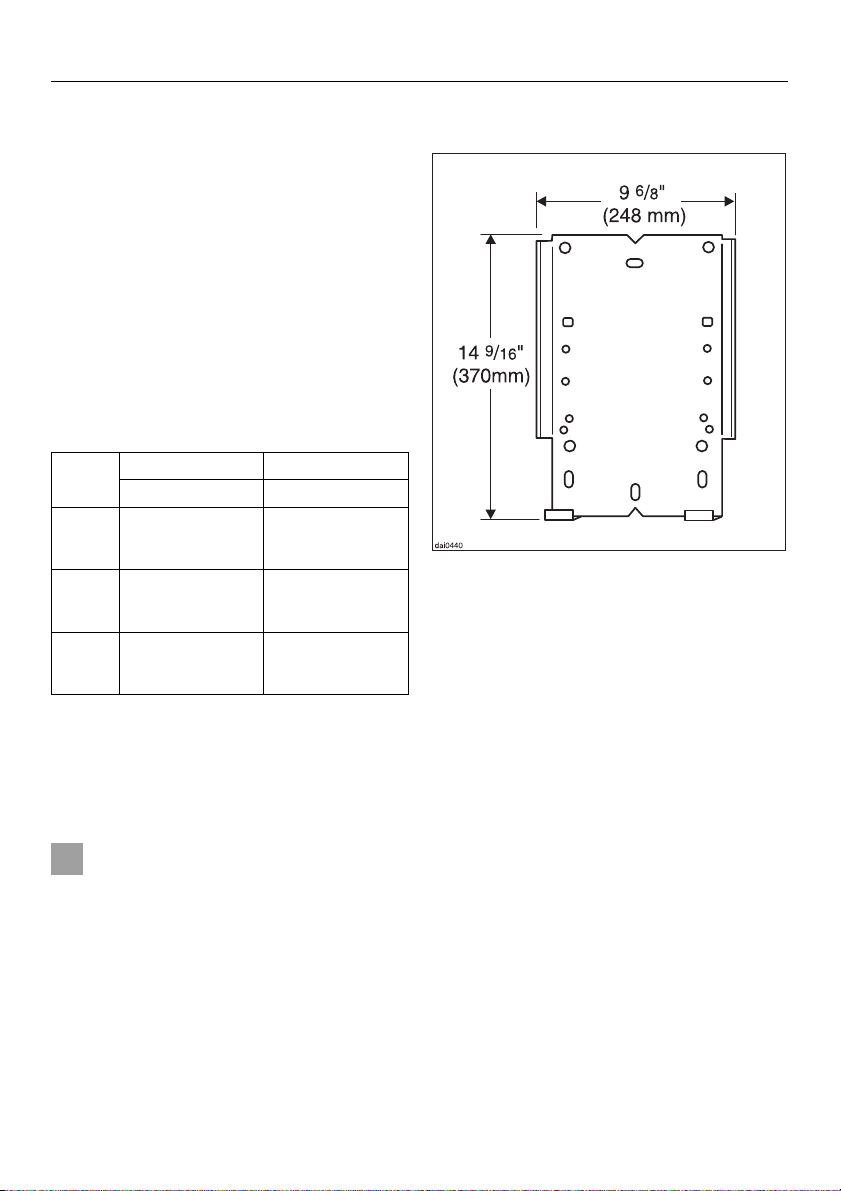

Retaining Plate A
"A", the distance between the top edge
of the chimney and the ceiling must be
at least
7
/8" (20mm) to allow for the in-
stallation of the chimney.
= Cut out area in wall or ceiling for
entrance of 6" (150 mm) ductwork (only
for Extraction).
21
Installation
Installation
Do not install this exhaust hood over
cooktops burning solid fuel.
When installing the hood, make
sure that the following minimum distances (S) between the cooking surface and the hood are maintained.
– For electric cooktops: 18” (45 cm)
– For gas cooktops: 26” (65 cm)
Installation
Read the entire installation procedures
and determine height (S) before beginning the installation. Installation producers differ depending on the model
and desirable venting method: Extraction or Recirculation.
This hood requires a 120VAC 60Hz
power supply. An outlet should be installed on the wall, just above Retaining
plate A.
Retaining Plates
The ventilation system will be mounted
to the wall through the use of retaining
plates. Plate “A” is installed first, followed by plate “B”. Plate “C” need
only be installed if it is required due to
the height of the room.
The vent duct must be brought down
through the ceiling or back wall to the
top of the motor assembly.
22
Begin by drawing a line on the wall,
centered over the cooking surface.
Installation

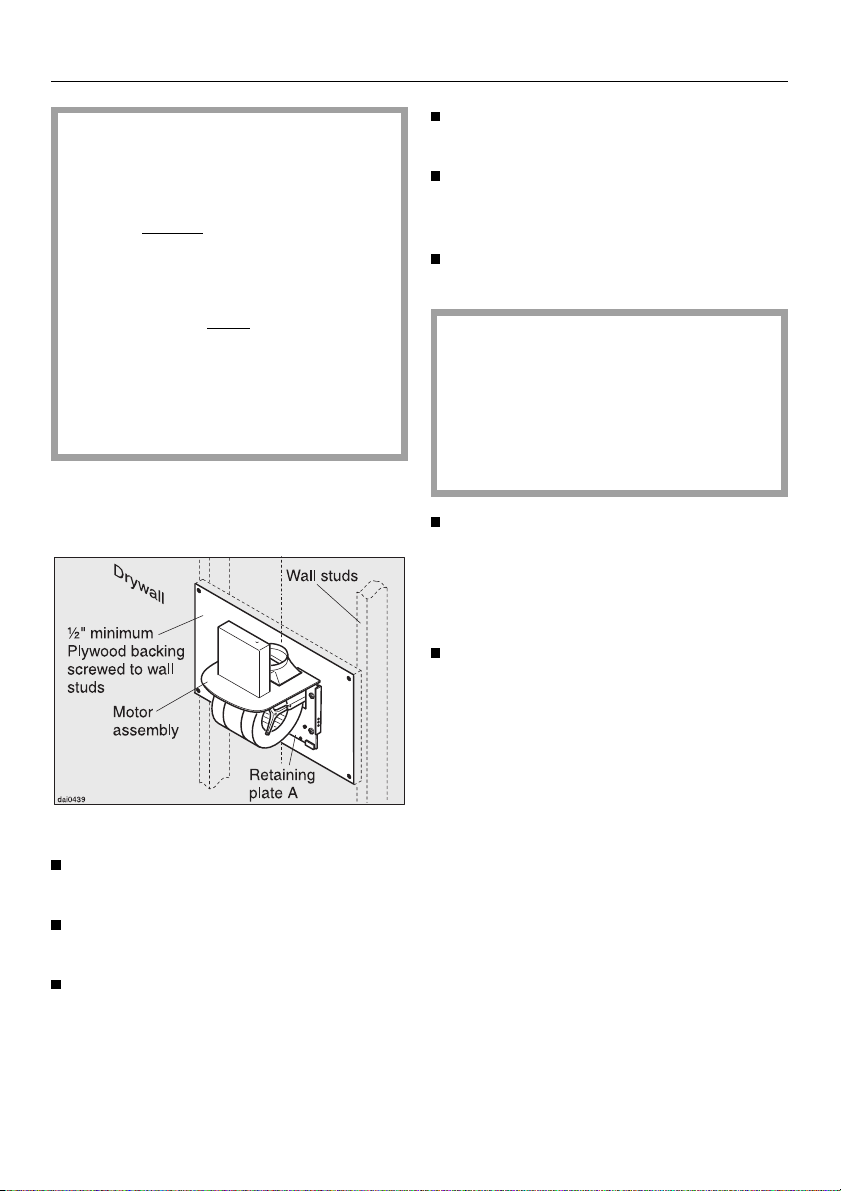

The majority of the weight of the installed Ventilation System will be
supported by Retaining plate A. It
must be firmly attached to the stud
framing
are not available in the required locations, a plywood backing (min.
1
/2” (13 mm) thick) spanning at
least two studs
Failure to adequately support the
weight as stated may result in the
Ventilation System falling off the
wall, thereby causing personal injury and property damage.
Example:
behind the drywall. If studs
must be installed.
Make a cutting line 3” above and 3”
below the outline of plate “A”.
Find the studs to the left and right of
the mounting location by tapping the
wall or using a stud finder.
Mark a vertical cutting line along the
center of each stud.
Be careful not to damage any wiring
or plumbing that may be located behind the wall. Make sure that the
power supply to the area where this
installation is being performed has
been turned off at the breaker panel
before cutting into the wall.
Remove the drywall between the cutting lines and replace it with plywood
1
of a matching thickness (min.
thick). Tape the joints and refinish
the wall.
Proceed to “Attaching the Retaining
plates to the wall” to complete the installation.
/2”
To install a plywood backing board

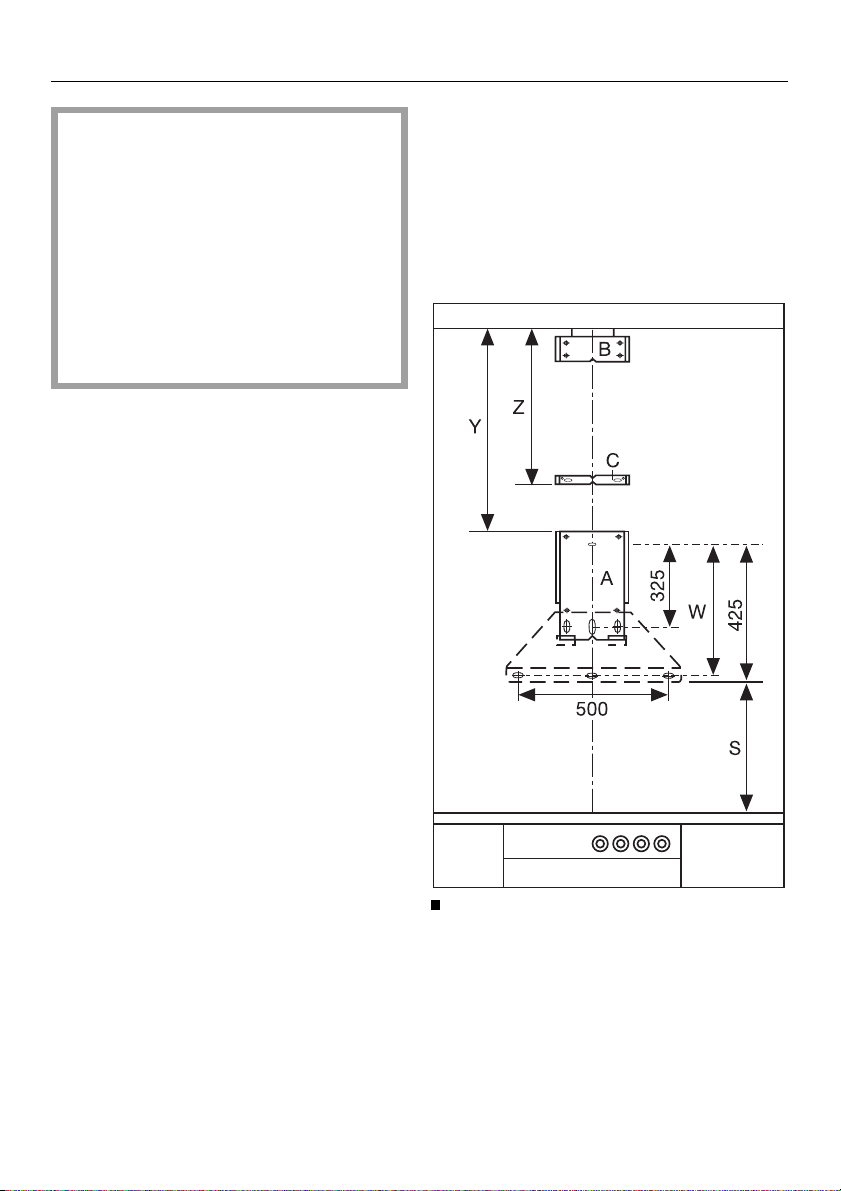

Make a mark , S + 16 3/4“ above the
cooktop and on the centerline.
Make a second mark 12 3/4 " underneath the first one.
Hold Retaining plate A against the
wall so that the marks are visible
through holes
(see next page). Draw a line around
the plates’ perimeter, then set aside
the plate.
and c of the plate
b
If plywood backing is not needed, proceed to “Attaching the Retaining plates
to the wall.”
23
Installation
Attaching the Retaining plates
to the wall

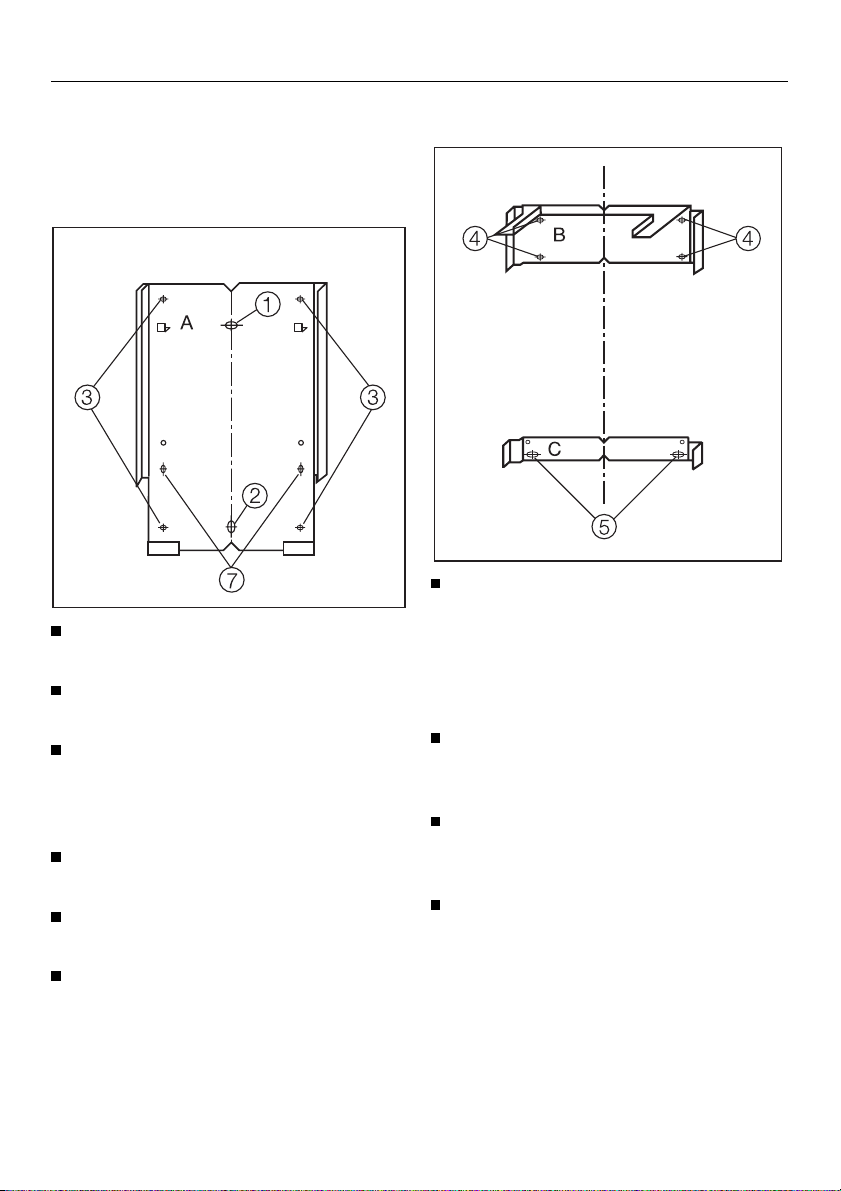

Retaining plate A
Drill a 1/8” (3 mm) hole, b, S + 16 3/4"
(425 mm) above the countertop.
3
Drill another 1/8” (3 mm) hole, c, 12
(325 mm) underneath the first hole.
Screw Retaining plate “A” to the wall
using two of the 5 x 40 mm screws
provided. Make sure the plate is
level.
Drill 4 more 1/8“ (3 mm) holes at loca-
.
tion
d
Use four more 5 x 40 mm screws to
firmly attach the plate to the wall.
Drill two more 1/8“ (3 mm) holes, h,
which will be used later to fasten the
canopy to the wall.
/4"
Retaining plates B and C
Using the notches cut into the plate,
center Retaining plate “B” on the line
that was drawn on the wall earlier.
Hold the plate flush with the ceiling
and mark the locations of the four
mounting holes,
Drill four 1/4” (6mm) holes at the
marked locations and insert a small
wall anchor into each hole.
Attach Retaining plate ”B” to the wall
using four 4 x 30 mm screws and
washers.
If the distance (Y) between the top
edge of Retaining plate ”A” and the
ceiling is greater than 14
mm), Retaining plate “C” must also
be installed.
e
.
3
/8“ (365
24
Hold plate “C” in place so that the
distance between the ceiling and
bottom edge of the plate (Z) is
3
/8“ (365 mm). Mark the locations
14
for the 2 holes,
Drill two 1/4” (6mm) holes at the
marked locations and insert a small
wall anchor into each hole.
Attach Retaining plate “C” to the wall
using two 4 x 30 mm screws and
washers.
f
.
Installation
Attaching the Canopy
The following holes must be drilled before installing the canopy.
DA 216 and DA 217: Drill a 1/4”
(6mm) in the middle of measurement
(W) and insert a S6 plug.
DA 219: Drill two 1/4” (6mm) holes
7
/8" from both sides of center of
9
measurement (W).

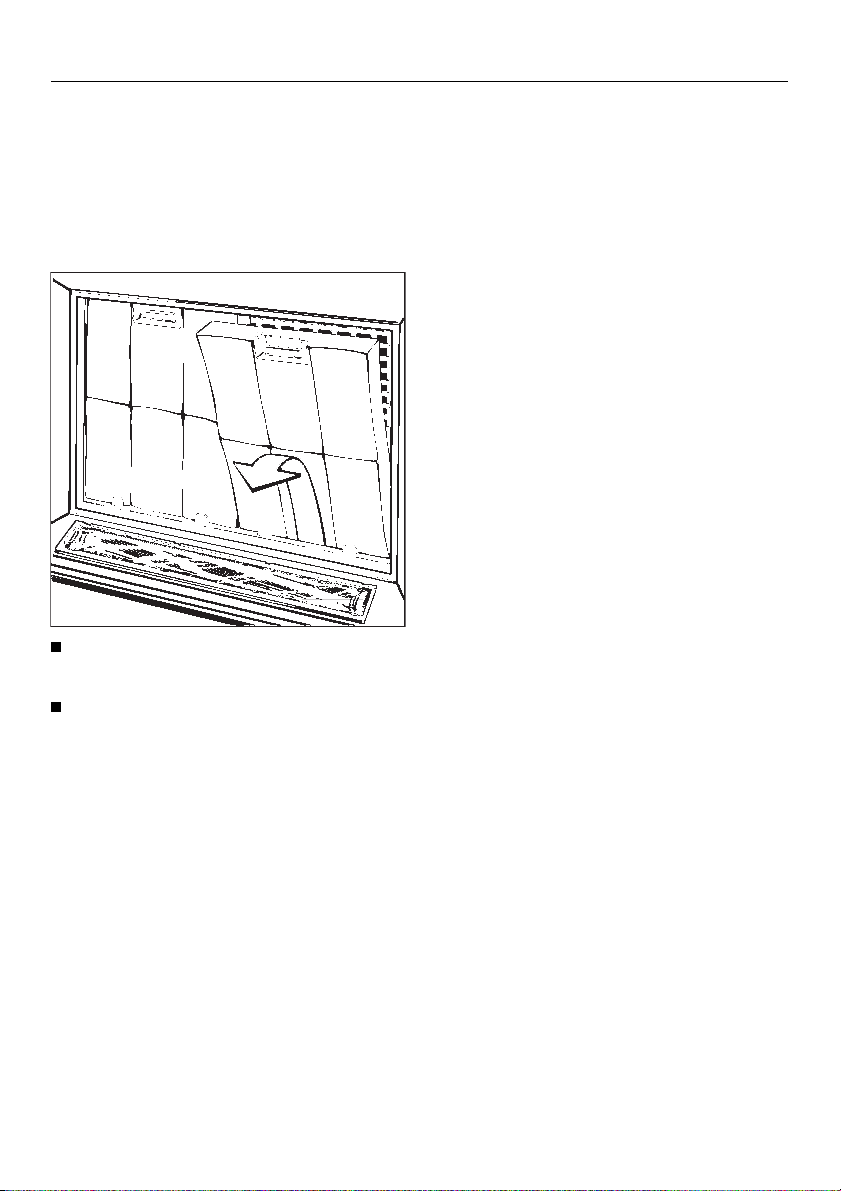

To fit the canopy, the grease filters
and the light tubs must be removed.
(See section on “Cleaning and Care”)

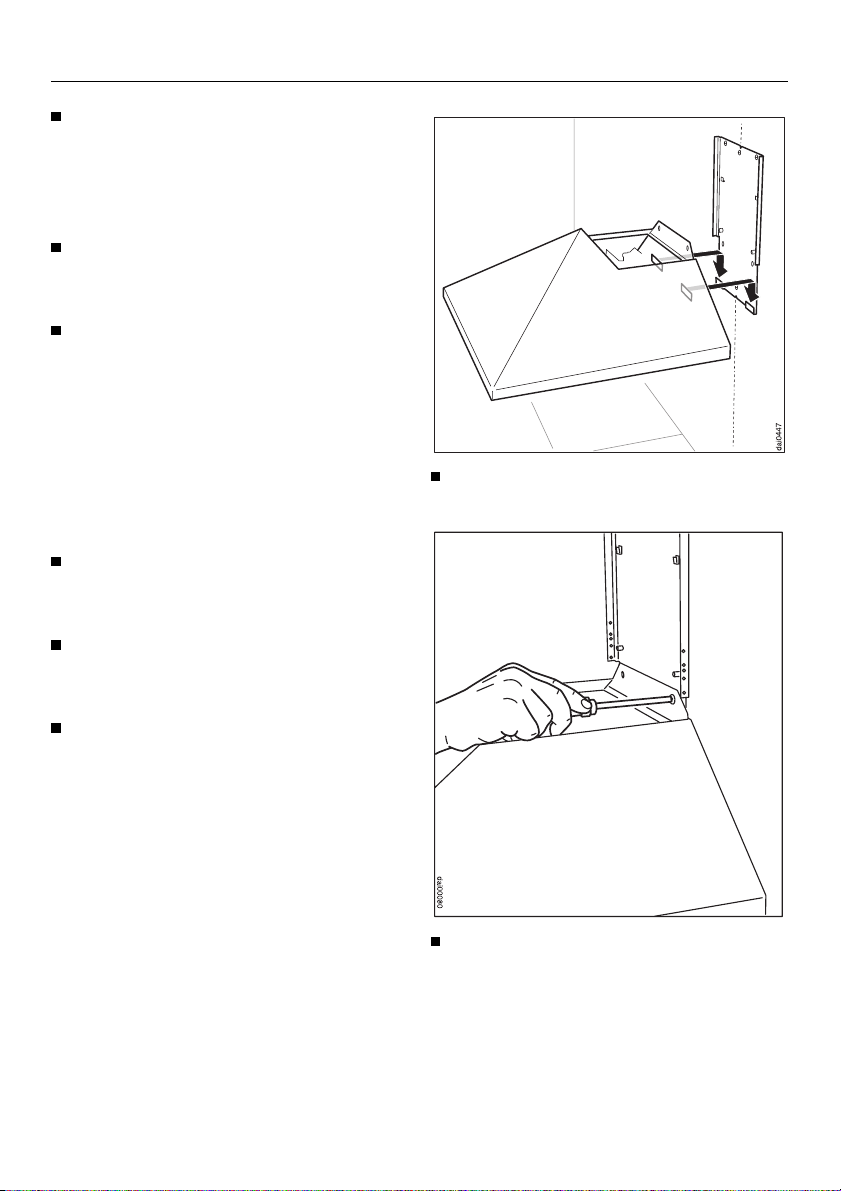

Hang the canopy onto the hooks on
the lower edge of Retaining plate “A”.
Secure the canopy to the wall using
two 5 x 60 mm screws.
25
Installation
DA 216, DA 217:
Secure the canopy with one 4 x 30 mm
screw and one 4,3 mm washers.
DA 219:
Secure the canopy with two 4 x 30 mm
screws and two 4,3 mm washers.
Put the light tubes and grease filters
back in place.
Motor Assembly
26

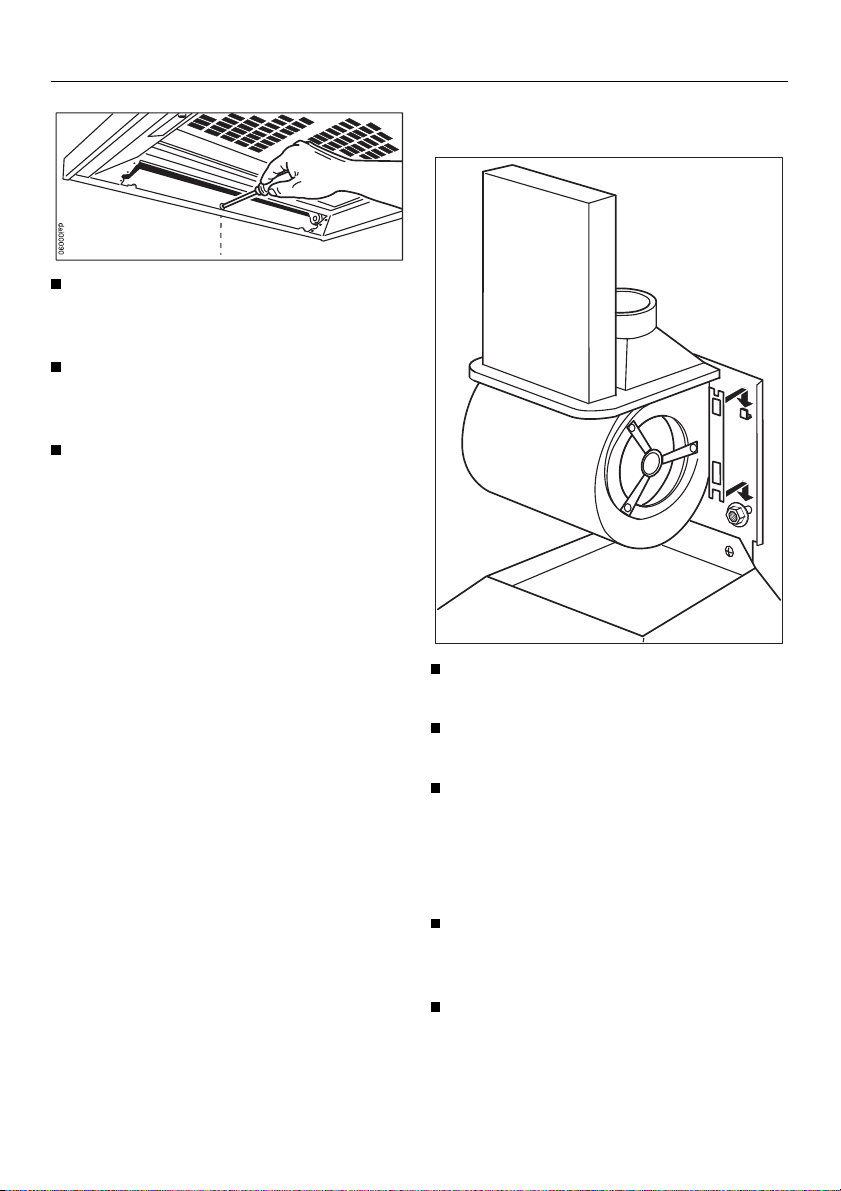

Hang the Motor Assembly on the
hooks of Retaining plate “A”.
Secure it to the plate using the nuts
as shown.
Connect the exhaust ducting to the
flange of the motor assembly using
the supplied clamp.
Electrical connection
First insert the plug into their corre-
sponding connectors (15 pole and
6 pole).
Then plug the power cord into its
outlet.
Installation
Extraction connection
Ductwork with a diameter of less
than 6" (150mm) should only be
used when absolutely necessary.
As duct diameter decreases, the
hoods’ performance and sound levels will be affected.
Please read the section “Air Extraction”
and follow all local building codes when
installing the hood for extraction use.

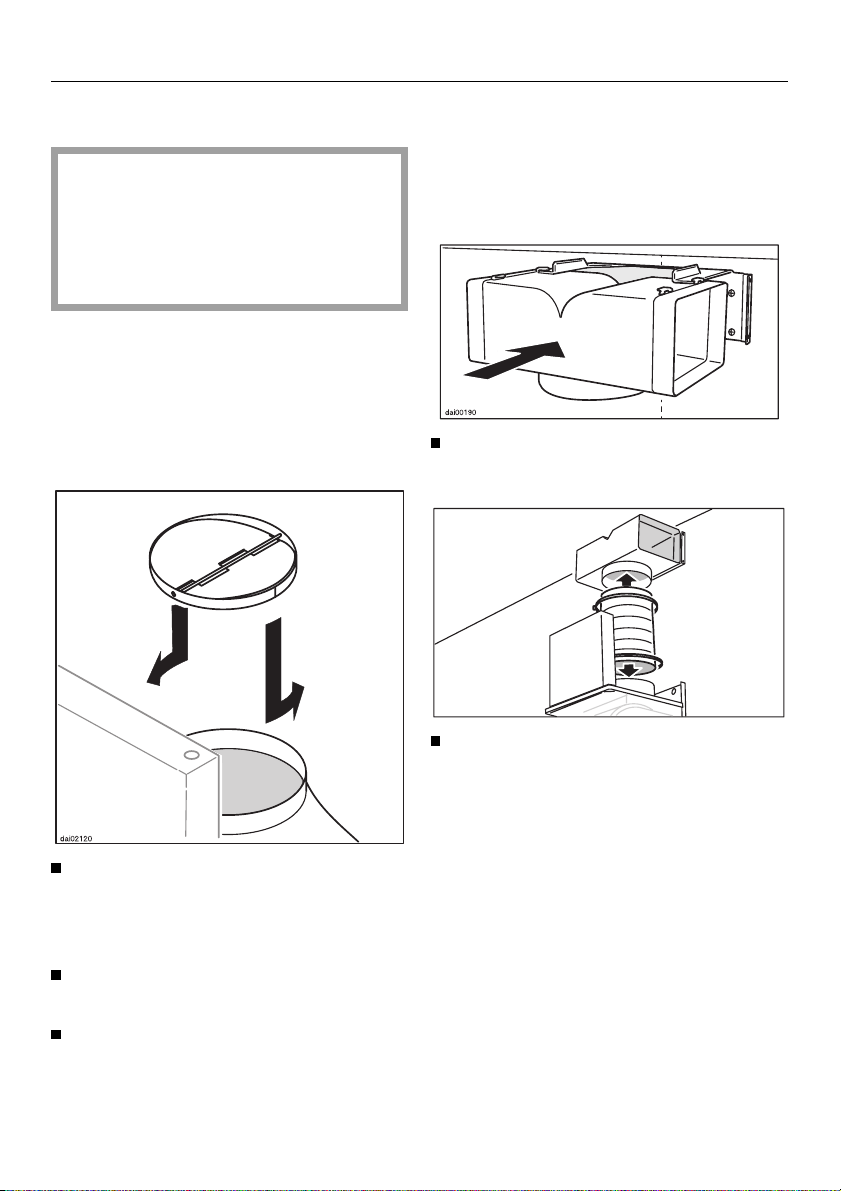

Inserting the
Non-return exhaust valve
Recirculation connection
The recirculation installation is used
when conditions do not favor venting to
the outside of the building.
Slide the diverter onto the brackets
of plate “B”.
Place the Non-return exhaust valve
into the exhaust connection at the
top of the motor assembly so that the
flaps open in the "up" direction.
Rotate the valve slightly to the left to
lock it in place.
Secure the exhaust ducting from the
outside of the building to the fan assembly.
Slip the hose clamps over the flex
hose and install the flex hose onto
the diverter and the fan assembly exhaust port. Once into place, tighten
the clamps.
27
Installation
Attaching the Chimney Extension
The use of a Chimney Extension, allows
the hood to be installed at various distances from the ceiling.
NOTE: The extension must be installed in relationship to the method
of venting; Extraction or Recirculation
The extension piece has vented openings on one end which are opposite of
each other on the sides.

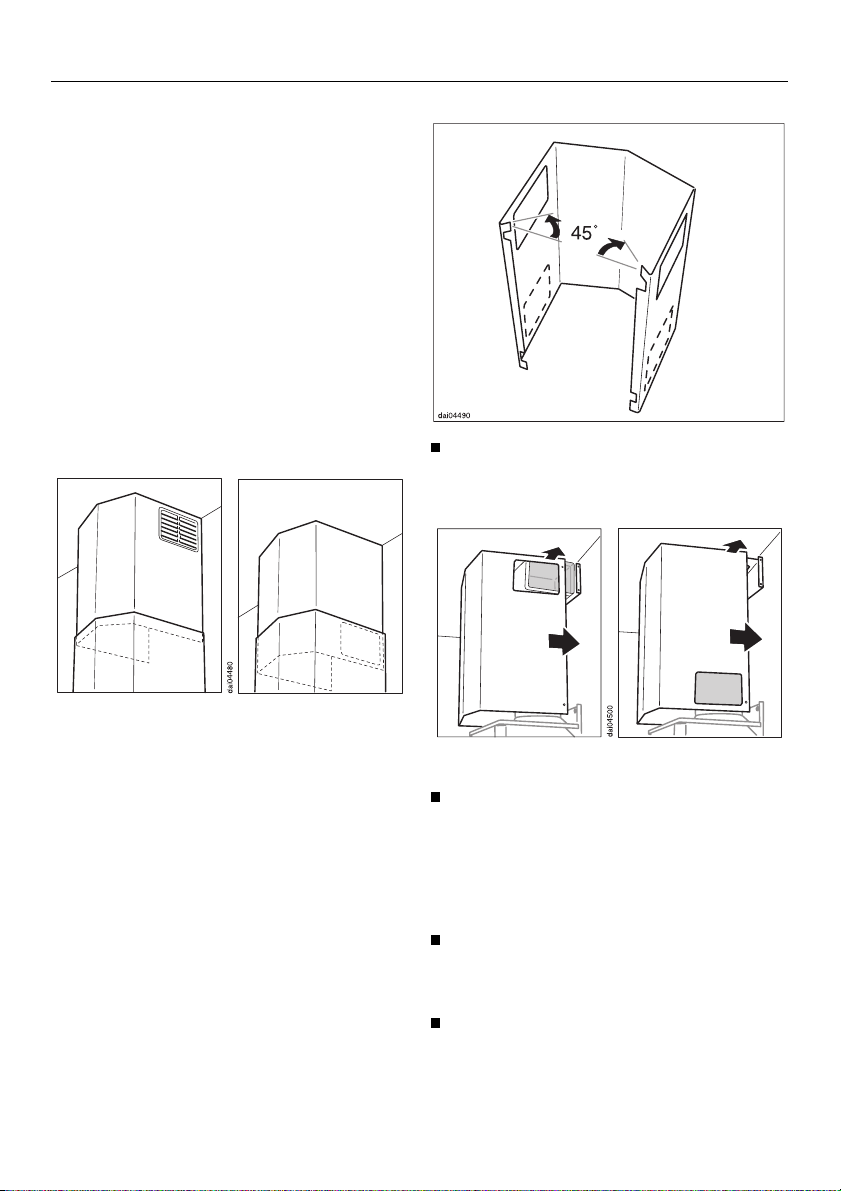

Bend the top hanging tabs 45° inwards. This will make installing the
extension easier.
These vents are required for recirculation use will be closest to the ceiling
when being installed.
For extraction, the vents are not required and are covered by the chimney.
28
Recirculation Extraction
Push the extension piece up over the
upper retaining plate.
When installing for recirculation, ensure
that the vents are positioned so they
line up with the diverter.
Screw the extension piece firmly
to the upper retaining plate using
two 3.9 x 7.5mm screws.
Cover the screws with the supplied
cap covers.
Only for recirculation:
With the slats pointing downwards,
install the recirculation grills through
the extension piece and into the
diverter.
Chimney Installation

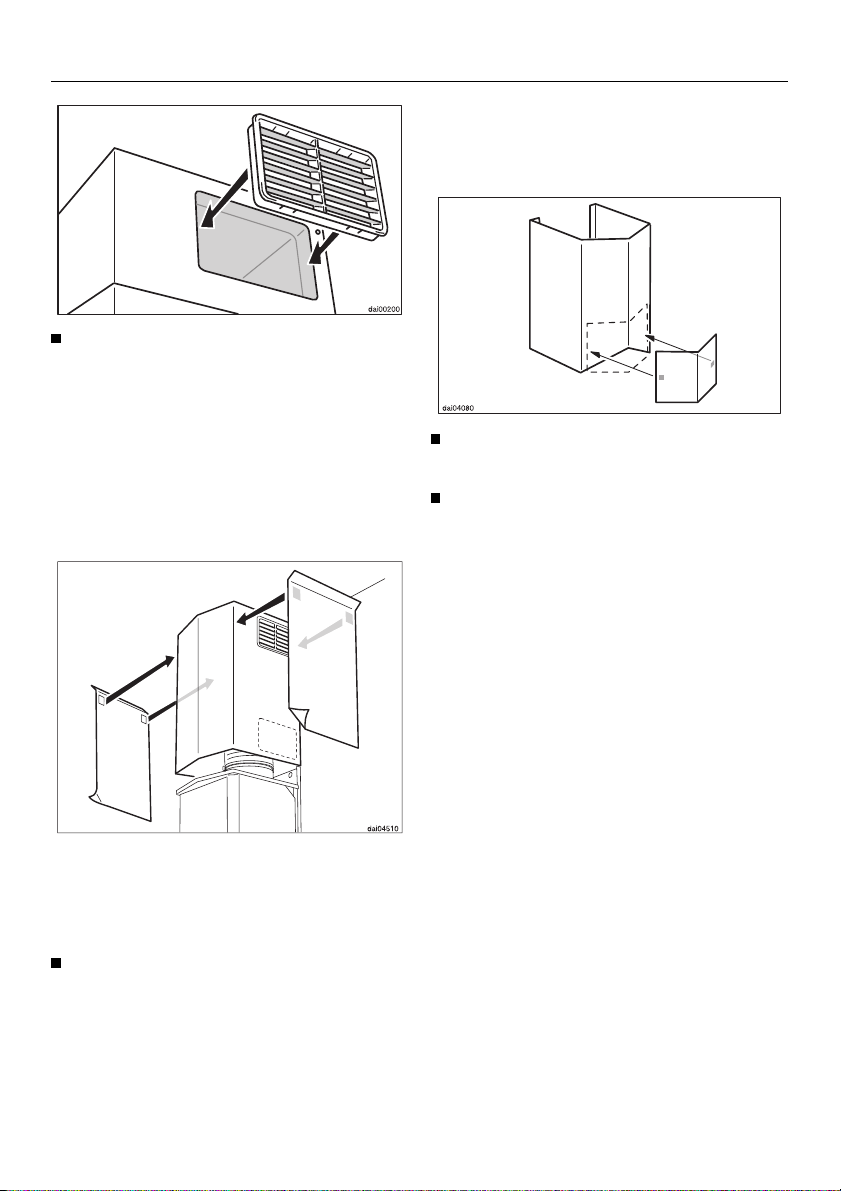

Protective sheets
Installation
A protective cardboard sheet prevents
the chimney piece being scratched during fitting.
Remove the foil from the adhesive
strips on the protective sheet.
Attach the protective sheet on the
front of the chimney piece such that
it protrudes slightly beyond the bottom edge.
The protective sheets are used to prevent scratching to the extension piece
when installing the chimney and are
removed upon completion.
Stick the protective sheets onto the
sides of the extension piece. Make
sure the sheets are smooth on the
metal and flush with the bottom edge.
29
Installation

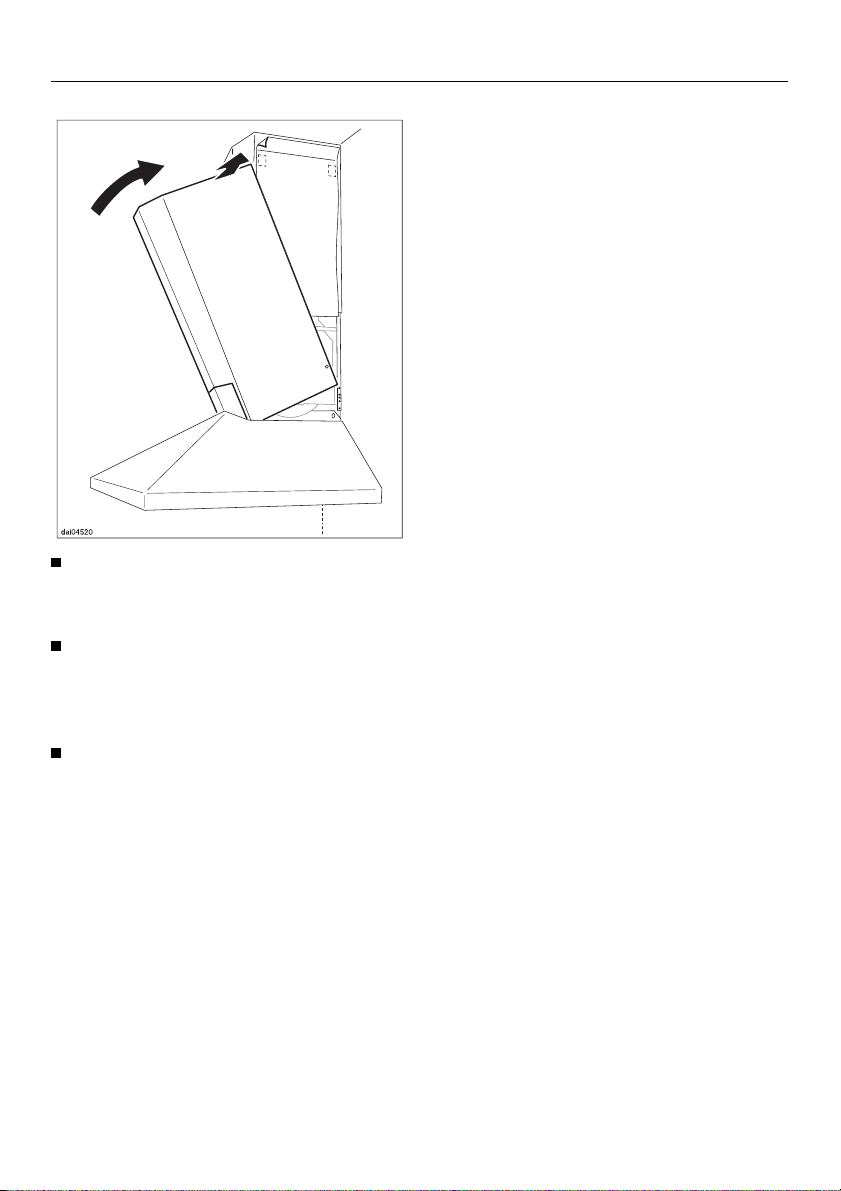

Gently pull the chimney apart
enough to fit it over the extension
piece and push into place
After being placed, push the chimney downwards into the hood and
align the chimney lower screw holes
with screw mounts in the hood
Remove/pull the protective sheets
and secure the chimney with two
3.9 x 7.5 mm screws and cover them
with the supplied screw caps.
30
Air extraction
Air extraction
Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be harmful or fatal if inhaled. The exhaust
gases extracted by the hood
should be vented outside of the
building
Do not terminate the exhaust ducts
in attics, garages, crawlspaces, etc.
Please read and follow the "Warning
and Safety Instructions“ to reduce the
risk of personal injury, and follow all local
building codes when installing the hood.
Exhaust ducting and connections
– The ducting should be as short and
straight as possible, and the number
of sharp bends should be minimized.
– For most efficient air extraction, the
diameter of the ductwork should not
be less than 6" (150 mm). Use of flat
ducts also reduces the air extraction
efficiency.
only.
– Use smooth or flexible pipes made
from non-flammable materials for exhaust ducting.
– Where the ductwork is horizontal, it
must slope away from the hood at
least 1/8" per foot (1cm per meter) to
prevent condensation dripping into
the appliance.
– If the exhaust is ducted through an
outside wall, a Miele Telescopic Wall
Vent can be used.
– Noise levels of the hood will increase
if flat ducts or round ducts of less
than 6" (150 mm) in diameter are
used.
WARNING
To reduce the risk of fire, Use only
metal ductwork.
CAUTION
To reduce risk of fire and to properly
exhaust air, be sure to duct air outside - Do not vent exhaust air into
spaces within walls or ceilings or
into attics, crawl spaces, or garages.
– If the exhaust is ducted into an inac-
tive flue, the air must be expelled
parallel to the flow direction of the
flue.
31
Air extraction
Never connect an exhaust hood to
an active chimney, dryer vent, vent
flue, or room venting ductwork.
Seek professional advice before
connecting an exhaust hood vent to
an existing, inactive chimney or
vent flue.
Ductwork with a diameter of less
than 6" (150 mm) should only be
used when absolutely necessary.
As duct diameter decreases, the
hoods performance and sound levels will be affected.
Note:
If the ductwork runs through rooms,
ceilings, garages, etc. where temperature variations exist, it may need to be
insulated to reduce condensation. In
some cases, a condensate trap may
also be required.
32
Alteration rights reserved 001 USA / CDN - 5098
This paper consists of cellulose which has been bleached without the use of chlorine.
Loading...
